Blaupunkt SPEAKER GTx 2652 User manual

Operating and Installation Instructions
2-WAY COAXIAL SPEAKER
GTx 2652

Pair of 6.5”2-way coaxial speakers with PP injected Cone including mounting hardware
•
•
•
•
•
•
•
•
•
•
Recycling and Disposal
Do not dispose of your old unit in the
household trash!
Use the return and collection systems
available to dispose of the old device.
This manual may be updated from time to time without
any notice.
INTRODUCTION
1
Proper system planning is vital in order to maximize the
device’s performance and road safety. Plan your instal-
lation carefully to avoid compromising performance re-
liability of the system. Consult an authorized Blaupunkt
delaler for installation or reparation. Read the manual
carefullt before operating the device for the rst time.
Safety Notes
Ensure to folow below safety notes during installation
and wiring connection: -
•
•
•
•
Installation and Connection Instructions
•
•
•
Disclaimer
In no event shall Blaupunkt be liable for any direct,
indirect, punitive, incidental, special consequential
damages to property or life and whatsoever arising out
of or connected with the use or misuse of our products.
USA & CANADA: This product is not intended for sale in
the United States and Canada. If purchased in the U.S. or
Canada, this product is purchased on as-is basis. No
warranty, whether expressed or implied is provided in
the U.S. or Canada.
Voltage Supply
•
•
•
Disconnect the negative terminal of the battery. Refer
to the safety notes of the vehcle manufacturer.
Ensure positions of the holes are nowhere near the
vehicle component to avoid any damage during
drilling.
Ensure cross section of the cable is no less than
2.5mm if the positive and negative cables are too
long.
Incorrect installation may result in malfunction of the
device or the car sound system.
Select a dry and well-ventilated location to install the
device.
The device must not be installed in overly exposed
location such on therear shelf, rear seat etc.
The installation location must be suitable for screw
holes and have stable ground support.
Use the supplied power extension cable to connect to
the positive battery terminal.
Firmly and carefully connect the ground lead to a bare
metal point on the vehicle chassis.
The control of the device should be a two-channel
control, either via the preamplier output of the car
sound system.
A control solely via the right or left channel is also
possible since the low-frequency portion of the music
is generally identical on both channels.

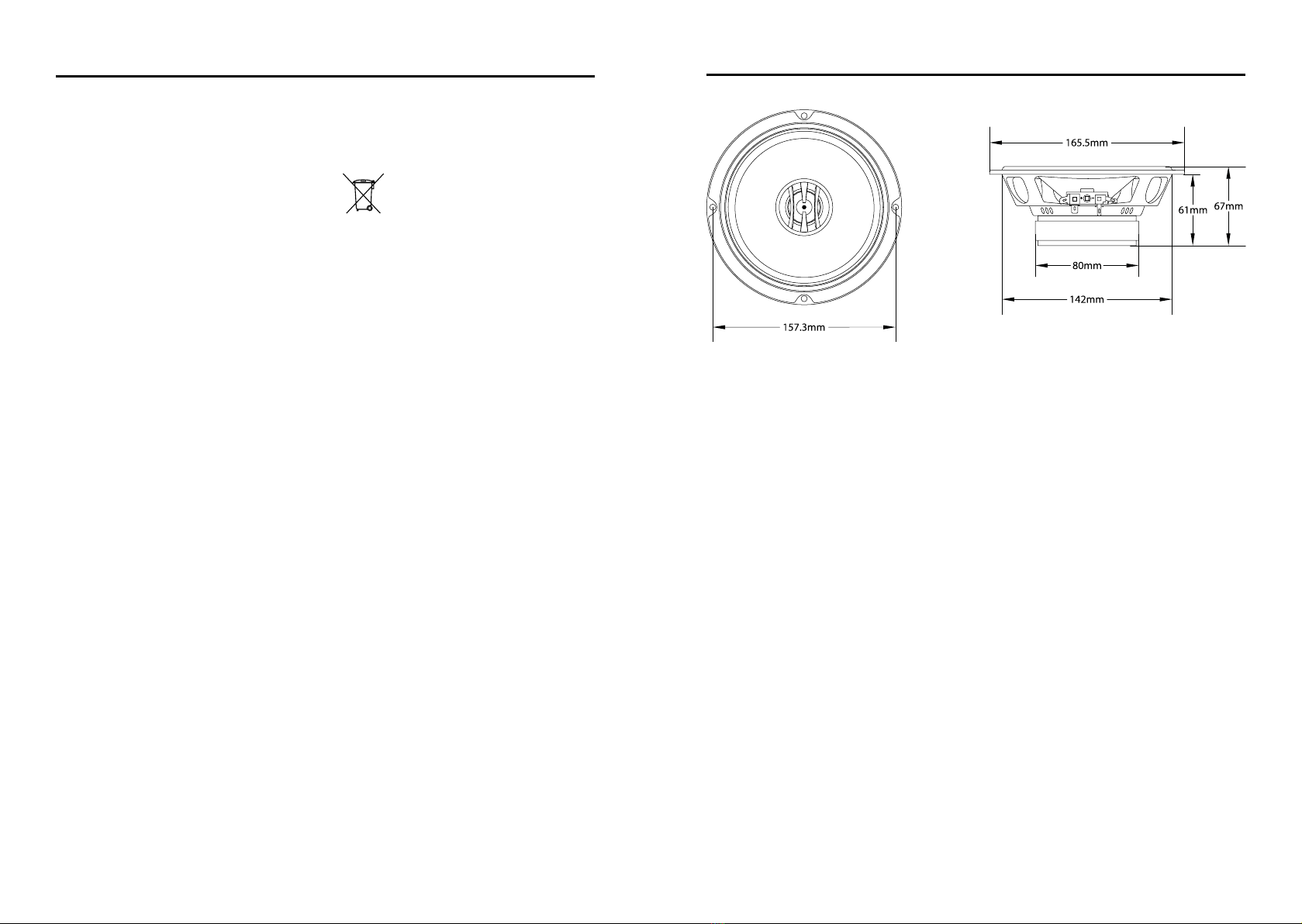

SPECIFICATION
2
Max. Power Handling : 120W
Normal Output Power (RMS) : 50W
Voice Coil : 25.5mm
Tweeter Size : 43.5mm
Impedence : 3.6ohms
Frequency Response : 66Hz - 20,000Hz
Sensitivity : 89dB
Mounting Depth : 60mm
Mounting Hole Diameter : 143mm

Designed and engineered by Blaupunkt Competence Centre 1 111 21 036 02 01
