10.1” Portable DVD Player - BPDVD10

General Safety 4
Product Overview 7
Remote Control 9
Getting Started 10
Setup 11
Troubleshooting 13
Specifications 13
Support 16
CONTENTS

4
GENERAL SAFETY
Read this manual thoroughly before you start using the Portable DVD Player.
Store this manual, the completed warranty card, your receipt and the product packaging.
The safety precautions instructions reduces the risk of fire, electric shock and injury when
correctly complied to.
Please follow all instructions and take notice of all warnings.
The lightning flash with symbol within the
triangle is intended to warn you of a
non-insulated dangerous voltage in the
product’s enclosure that could be of
sucient magnitude to generate a risk of
electric shock to persons.
The exclamation point within the triangle
is intended to warn you to the presence
of important operating and maintenance
instructions in the documents included with
the product.
The cover (or back) of the unit should
not be removed to prevent risk of electric
shock.
This unit must be serviced by a qualified
service personnel only.
The lightning flash symbol within the triangle is intended to warn you of
non-insulated dangerous voltage the product’s enclosure that could be of
sucient magnitude to generate a risk of electric shock to persons.
• Using Cabinets or stands recommended by the manufacturer of the DVD Player.
• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture
and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the television
or its controls and to call for an adult to assist.
IMPORTANT INFORMATION

5
GENERAL SAFETY (CONT.)
This product must be positioned in a suciently stable location, it can be
potentially hazardous due to falling when mounted and can cause injury, particularly
to children if it positioned incorrectly.
• Do not use a damaged power cord, plug or loose outlet. Doing so may cause an
electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to
overheat and start a fire. Make sure the outlet is readily accessible during operation
of the equipment.
• Do not bend, twist or kink the power cord excessively.
• The apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the product. Dry location use only.
• Do not run the power cord near heat-producing appliances such as radiators, stoves or
irons. The excessive heat could melt the insulation and expose live wires, resulting in
fire or electric shock.
• No naked flame source, such as candles, should be placed on the product.
• Do not allow anything to rest on or roll over the power cord. Doing so may cause fire
or electric shock.
• Unplug ths product during lightning storms or when unused for long periods of time.
Not doing so may result in fire or electric shock.
• Do not cover the ventilation openings of the product with items such as newspapers,
tablecloths, curtains etc or insert objects into the slots available on the products.
As this could result in the product temperature rising and could cause a fire.
• Do not expose this appliance to rain or moisture as it may result in fire or an
electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids
such as vases.
• Danger of explosion if battery is incorrectly placed. Replace with same or equivalent type.
IMPORTANT INFORMATION

6
GENERAL SAFETY (CONT.)
Please make sure upon positioning this product, the place is:
• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the DVD Player set near heat sources such as radiators, stoves or other audio
visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in
short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the
product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may
result in fire or explosion. Do not place any naked flame sources, such as lit candles,
cigarettes or incense sticks.
• Do not expose the DVD player and remote control to direct sunlight and excessive
heat inside vehicles.
• Only use the power adaptor provided with this unit.
LASER SAFETY
This set employs an optical laser beam system in the disc mechanism
designed with built-in safeguards. Do not attempt to disassemble. Exposure
to this invisible laser light beam may be harmful to the human eye.
This is a Class-1 laser product. Use of controls, adjustments or procedures
other than those specified herein may result in hazardous laser light
beam exposure.
This DVD player should not be adjusted or repaired by anyone except
qualified service personnel. The laser mechanism in the set corresponds to
the stylus (needle) of a record player. Although this product uses a laser
pick-up lens, it is completely safe when operated according to directions.

7
PRODUCT OVERVIEW
• LCD ON/OFF: Turn on or o the display.
• USB/CARD: In DVD mode, press to switch modes
between DVD/USB/Card.
• PREV Button: To skip to the previous title/chapter I track
• SETUP: Press once to enter DVD system setup
menu and press again to exit.
• MENU: To return to the disc’s menu interface
• FWD Button: To perform fast forward playback.
• F.RWD Button: To perform fast reverse playback.
• NEXT Button: To skip to the next title /chapter / track
• VOL+ : Press to increase volume by degree.
• VOL-: Press to decrease volume by degree.
• SOURCE: Press to switch between AV in and DVD mode.
• STOP: Press once to prestop. Press twice to
stop completely.
• PLAY/PAUSE: During playback, press to switch
between playback and pause. Press to confrim the
selection during menu navigation.

8
PRODUCT OVERVIEW (Cont.)

9
REMOTE CONTROL
Batteries
Requires 2 x AAA batteries
(included)

10
GETTING STARTED
Power and Charging the battery

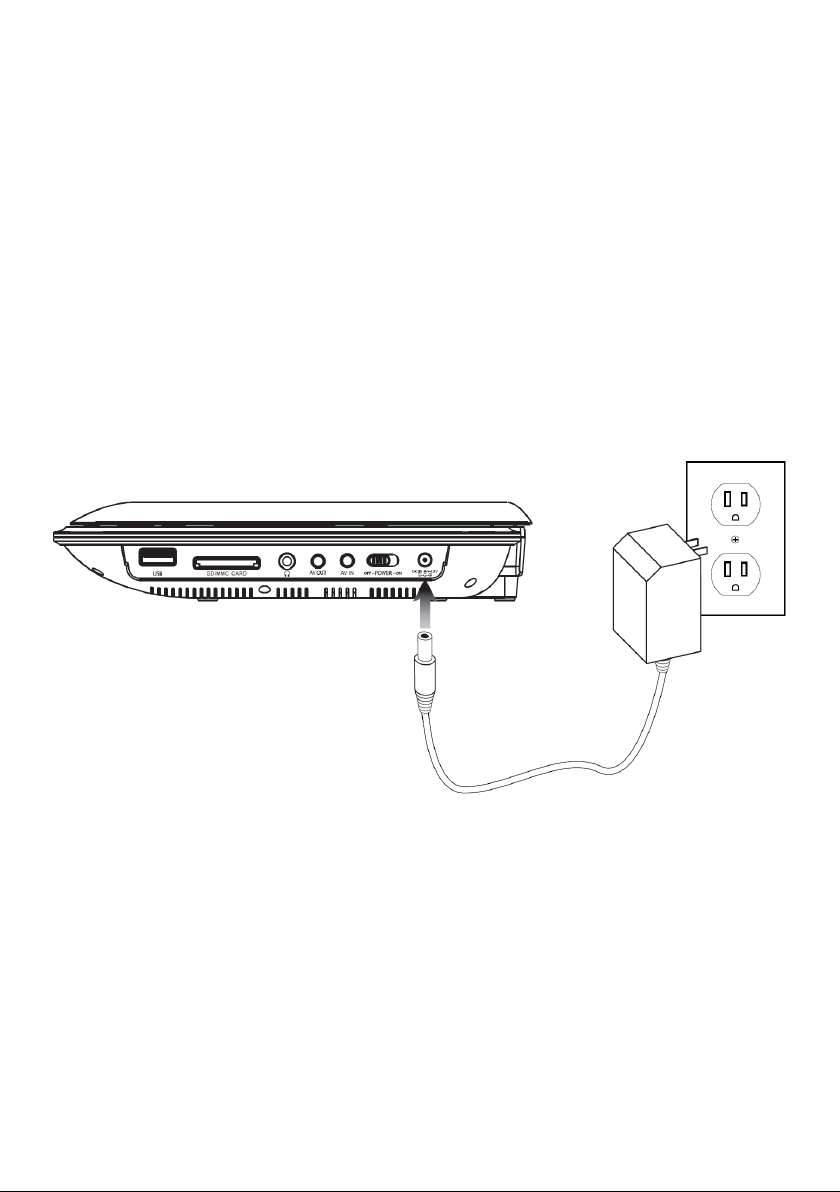

DC Power input: Requires an AC/DC adapter, or 12V DC car adapter (included).
To Power the unit, plug the included AC/DC adapter into the unit and a standard wall outlet.
If using in a car, plug the 12V DC car adapter into the unit and a standard 12V Power outlet in
the car.
The Power Indicator will turn green whenever the portable DVD player is Powered on.
The Charge Indicator will turn red whenever the battery is charging.

11
SETUP
LOADING A DVD OR CD
Loading a Disc
1. Press the Open button to open the Disc Door.
2. Load a disc into the DD player, label side facing up.
3. Manually close the Disc Door.
After a disc is loaded, it will begin playing automatically.
Playing a Loaded Disc
1. Follow the instructions for Loading a Disc.
2. If the disc does not begin playing automatically, press the Play/Pause button.
Programming a Loaded Disc
1. Follow the instructions for Loading a Disc and Playing a Loaded Disc.
2. While the loaded disc is playing, press the Program button on the remote.
3. Use the Number Keypad to enter in the titles and chapters in the order you want to
view them.
DVD Titles and chapters or CD tracks will play in the order they are programmed.
4. Repeat step 3 until the desired DVD titles and chapters or CD trcks are programmed.
USB PORT
Connecting a USB Thumb Drive
Connect a USB Thumb Drive to the USB Port. Picture formats are supported (Jpeg).
Accessing the Content on a USB Drive
1. Follow the instructions for Connecting a USB thumb drive.
2. Press the DVD/SD/USB button to enter DVD/SD/USB mode.
SD CARD
Connecting a SD CARD
Note: Formats are not universally compatible. Playback may be dependent on
recording conditions.
1. Follow the instructions for Connecting a Memory Card.
2. Press and hold the DVD/SD/USB Button to enter DVD/SD/USB mode.

12
SETUP
LOADING A DVD OR CD
Loading a Disc
1. Press the Open button to open the Disc Door.
2. Load a disc into the DD player, label side facing up.
3. Manually close the Disc Door.
After a disc is loaded, it will begin playing automatically.
Playing a Loaded Disc
1. Follow the instructions for Loading a Disc.
2. If the disc does not begin playing automatically, press the Play/Pause button.
Programming a Loaded Disc
1. Follow the instructions for Loading a Disc and Playing a Loaded Disc.
2. While the loaded disc is playing, press the Program button on the remote.
3. Use the Number Keypad to enter in the titles and chapters in the order you want to
view them.
DVD Titles and chapters or CD tracks will play in the order they are programmed.
4. Repeat step 3 until the desired DVD titles and chapters or CD trcks are programmed.

13
SPECIFICATIONS
TROUBLESHOOTING
Power Supply DC 12V 1.5A;
Power Consumption 18W
Battery Type Lithium-polymer
Compatiable Disc Formats DVD,CD,CD-RW, JPEG
Signal System PAL/NTSC/AUTO
Frequency Response 20Hz to 20KHz
Operating Temperature 5-40˚c
Car Adaptor Fuse 3A

14

15

CUSTOMER HELPLINE:
1300 296 699
[e-mail]
DISTRIBUTED BY:
Ayonz Pty Ltd
