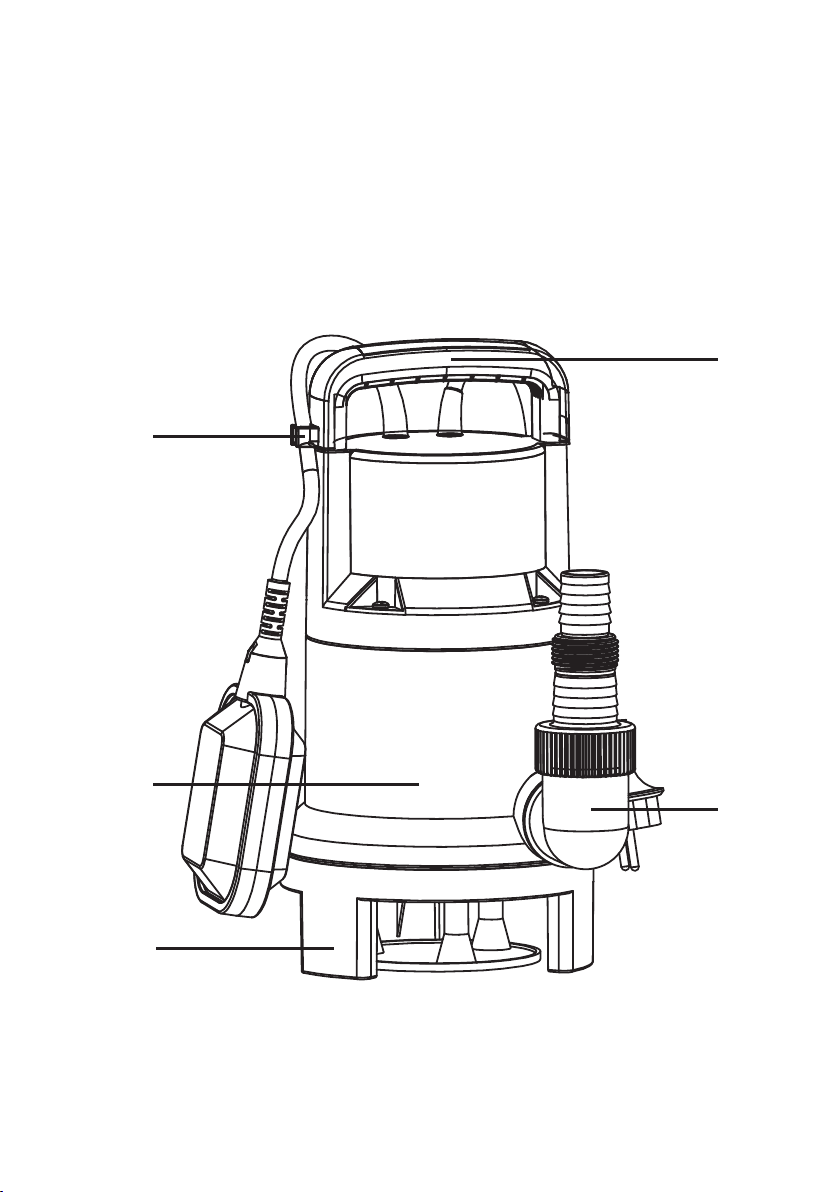

1. Handle 2. Body
3. Base 4. Float cable handle
5. Universal connector
Technical data
INSTALLATION
The pump is intended for placement in the basement or other places exposed to flooding, or
immersing in a water body. Make sure that the float can move freely, is not blocked by other objects or
does not get stuck in the mud.
The device should work in a vertical position.
Make sure that the water can be drained to the desired location (check local regulations) before using
the pump.
The pump is equipped with a universal connector which allows for the connection of hoses with
different diameters. In case of connecting the 13 mm (1/2’’), 15 mm (5/8’’) or 19 mm (3/4’’) hose – cut off
the narrowest part of the connector, screw a connector with the diameter of 24.5 mm onto the thread,
then attach the hose quick-connector to the connector. In the case of 25 mm (1’’) hose – the hose must
be screwed in and pressed onto the universal connector. Secure the hose with a clamp. In the case of 32
mm (1 ¼’’) hose, cut off the narrowest part of the connector together with the adjacent threaded
segment. Screw and push the hose onto the remaining connector, then secure it with a clamp.
The above-mentioned components, such as the connector, quick-connector, clamp and hose – are not
supplied with the device.
Always make sure that the pump, power cord and plug are not damaged before use. Make sure that the
turn-on point and the turn-off point are correctly set. It is worth checking the operation of the pump in
the barrel – whether the pump starts and stops when the float position is changed.
PUMP OPERATION
The attachment of the float cable in the handle determines the turn-on/turn-off height. The upper
position determines when the pump will start operating. The lower position determines the pump
turn-off moment.
Place the pump on a hard surface or use a rope attached to the pump handle to hang it in the reservoir.
Connect the pump to the power supply.
Pump starting and stopping depend on water level and float position.
CLEANING AND MAINTENANCE
Make sure that the pump is disconnected from the power supply before proceeding with maintenance.
If the pump is carried – wash the pump after each use.
When using the pump in one place, it is recommended to clean it once every 3 months.
The accumulated sludge can be washed with a pressure washer. Wipe the components with a cloth. Do
not use aggressive detergents, solvents or sharp objects.
Do not use the pump when the temperature is below 0°. Store the pump in a place where the
temperature is higher than 0°.
It is recommended to use the pump at least once every 3 months.
WP1001 1601 4001 7501
Specification/Model
Voltage
Maximum power
Maximum flow
Maximum head
Maximum working depth
Maximum water temperature
Maximum size of particles/impurities
IPX protection class
WP4001 WP7501 WP1001 WP1601
230 V ~ 50 Hz
400 W 750 W 1000 W 1600 W
8000 l/h 11000 l/h 16000 l/h 20000 l/h
5,5 m 7,5 m 9m 10 m
7 m 7 m 7 m 8 m
35 ºC
35 mm
IPX8
6
