Blomberg GKS 3134 User manual

Instructions Booklet
built-in cooktops
Gebrauchsanweisungen
kochmulden, Einbauversion
GKS 3134 X GKS 3204 X
MMS 3201 X MKS 3201 X
MGS 3101 X

Important warnings and tips for use
♦ IMPORTANT! This manual constitutes an integral part of the appliance. It must be kept intact
and within easy reach during the entire life of the cooktop. Please carefully read this manual
and all the instructions contained herein before using the appliance. Keep any spare parts
supplied with the appliance. Installation must be carried out by a qualified technician and in
compliance with current regulations. This appliance is intended solely for domestic use and is
designed for the following functions: cooking and reheating food. Any other use is
considered as improper.
The manufacturer declines all liability resulting from poor installation, tampering,
inexpert use and use for purposes other than those specifically stated.
♦ Check that the appliance has not been damaged during transport.
♦ Keep all packaging materials (plastic bags, polystyrene foam, nylon, etc.) away from children,
as they are potentially dangerous.
♦ The packaging material is recyclable, and marked with the recycling symbol .Dispose of
the appliance responsibly.
♦ This appliance must be used by adults only. Make sure children do not touch the controls
or play with the appliance.
♦ Installation and gas/electrical connections must be carried out by a qualified technician in
accordance with the manufacturer's instructions and in full compliance with current laws and
safety regulations.
♦ Electrical safety can only be guaranteed if the product is connected to a suitable earth
connection.
♦ It is dangerous to modify or attempt to modify the appliance. In the event of a malfunction, do
not attempt to repair the appliance yourself, but contact a qualified technician.
♦ After using the cooktop, ensure the indicator on the knob is turned to the "off" position and
close the mains gas delivery tap or the gas cylinder tap.
♦ Should you decide not to use the appliance any longer, before scrapping it make it unusable in
accordance with current environmental health and safety laws, ensuring any parts which might
constitute a danger to children are rendered harmless.
♦ The appliance data plate, with technical specifications, is positioned at a visible point under the
safety cover and is also enclosed with this manual. The data plate below the safety cover
must under no circumstances be removed.
♦ Illustrations for the use of the appliance are grouped together at the end of this manual.
Declaration of Conformity 


This appliance conforms to the following EC directives:
− 90/396/EEC “Gas safety requirements”
− 73/23/EEC “Low voltage”
− 89/336/EEC “Electromagnetic compatibility”
− 93/68/EEC “General Standards”
− 89/109/EEC “Materials or objects destined to come into contact with foodstuffs”
These instructions are valid only for those countries whose ID
initials appear on the data plate found on the instructions
handbook and on the appliance.
1

COOKTOP SPECIFICATIONS
Warnings:
This appliance is designed to be built into a housing unit.
♦ The installation class is type 3 for gas and type Y for electric parts.
♦ Housing units must be designed to withstand temperatures of up to 90°C or over.
♦ For correct installation, refer to the relevant paragraph and reference drawings.
♦ The use of a gas cooking appliance produces heat and humidity in the room in which it is
installed. Ensure the kitchen is well ventilated: keep natural ventilation openings open, or install
a mechanical ventilation device (extractor hood with exhaust duct). In the case of intensive or
prolonged use of the appliance it may be necessary to provide additional ventilation, for
example, by opening a window, or more efficient ventilation, for example by increasing the
hood speed.

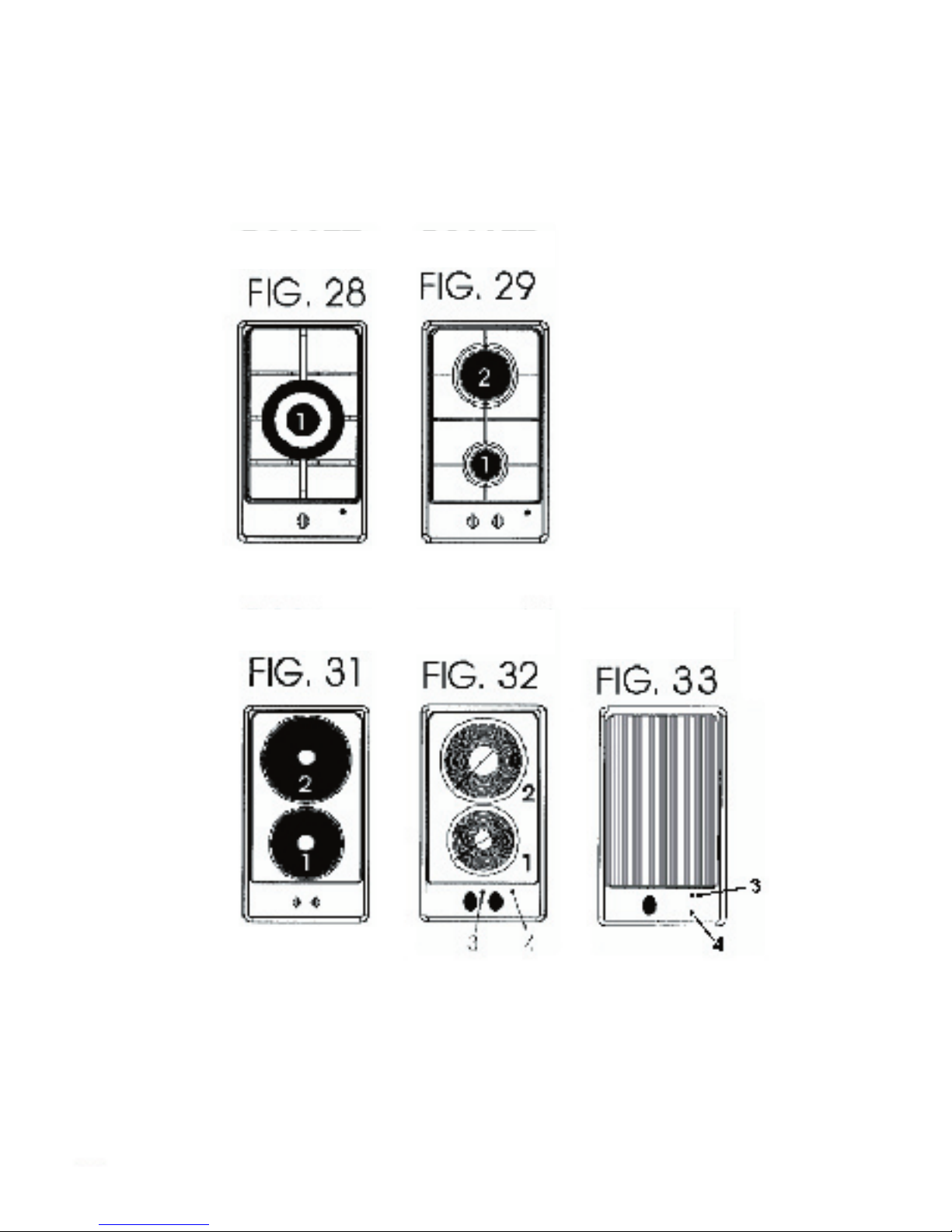

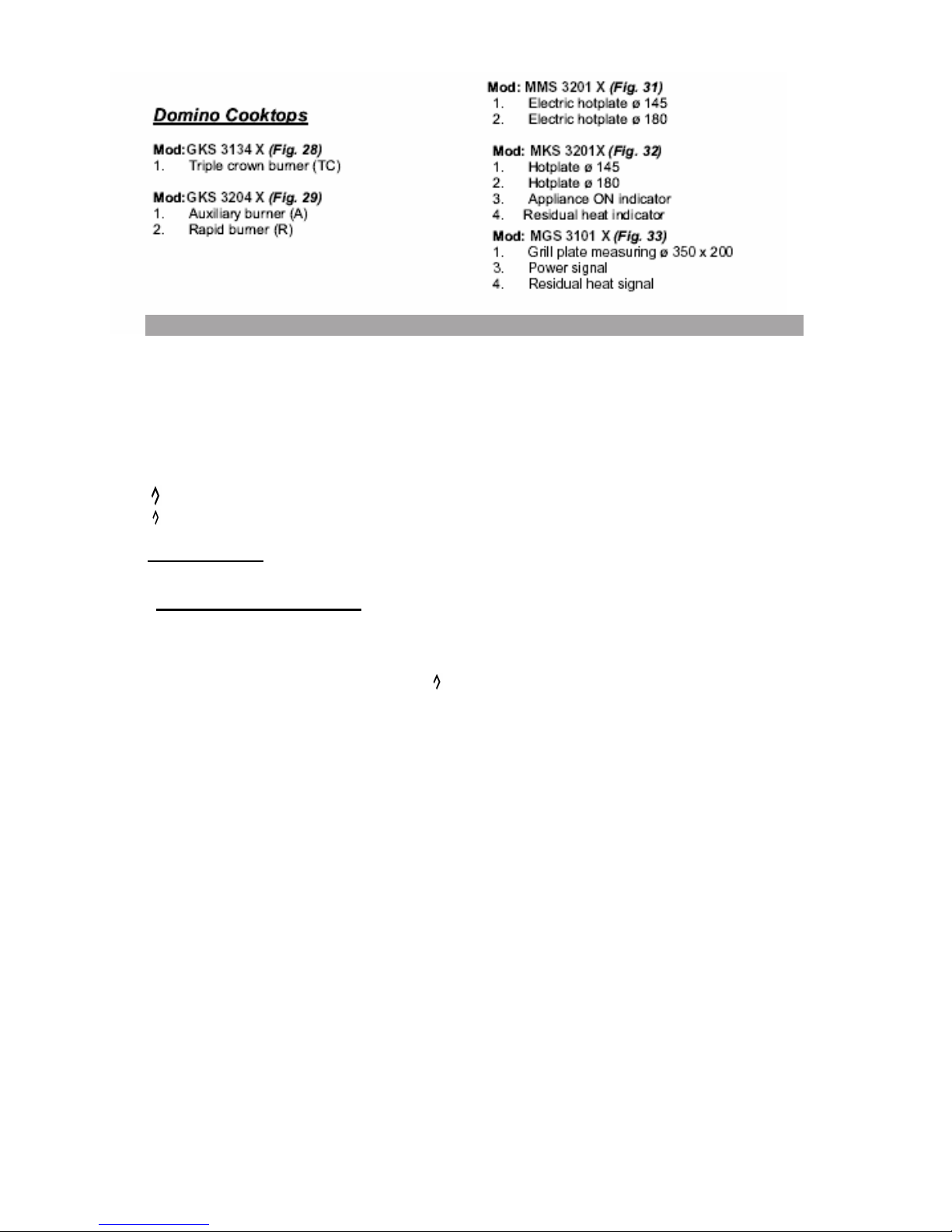

This handbook is valid for several types of cooktop. Refer to the data plate on the back in order to
identify the model (Mod. Tc) that corresponds to your appliance. These initials, together with the
instructions inthefollowing paragraphs andtheillustrations atthebackof the manual (Fig1-33)will
show the particular composition of your appliance.
2

USING THE COOKTOP
Gas burners
The deliveryof gas totheburnersiscontrolled bythe knobs showninfig. 36that inturncontrol the
taps. The symbols, depending on the various versions, may be printed on the knobs or on the
control panel. By moving the indicator to coincide with the printed symbols, the following
adjustments can be made:
OTap closed, no gas delivery
Maximum capacity, maximum gas delivery
Minimum capacity, minimum gas delivery
Burner ignition
- Burners with electric ignition
Models with ignition incorporated in the control knobs
Thesemodels areidentifiedbythesymbol((Maximumdelivery).
To light one of the burners, press the knob down and turn it to the maximum delivery position,
holding down until the burner lights. Next adjust the flame by turning the knob to obtain the desired
intensity.
3

Note:
If the particular nature of the local gas supply makes it difficult to ignite the burners with the knob
turned to the maximum setting, repeat the operation without a pan in position and with the knob
turned to the minimum setting.
- Burners with safety valves
Some models are equipped with safety valves which automatically shut off the gas delivery in the
event the burner should, for any reason, go out.
To relight the burner, turn the knob to position Oand repeat the ignition procedure explained in the
following paragraphs.
Using the burners
Depending on the type of electric ignition fitted, proceed as follows:
)For models fitted with ignition incorporated in the knobs, turn the gas tap knob to the maximum
delivery position, then press and hold down for about 4÷5 seconds. Release the knob and
adjust the flame by turning the knob to the desired intensity.
)'Warning':
The ignition device must not be used for more than 15 seconds.
If after this length of time the burner does not light, or if it goes out again accidentally,
wait 1 minute before trying to ignite the burner again.
)For models fitted with ignition switch, turn the gas tap knob to the maximum delivery position,
then press the ignition switch and the knob, holding down for about 4÷5 seconds. Then release
the knob and adjust the flame by turning the knob to the desired intensity.
Using the grids
The panstand grids are designed to make the appliance easy and safe to use. Always check the
panstand grids are properly positioned before using the appliance. Furthermore, always check the
protective rubber feet are all present and correctly positioned.

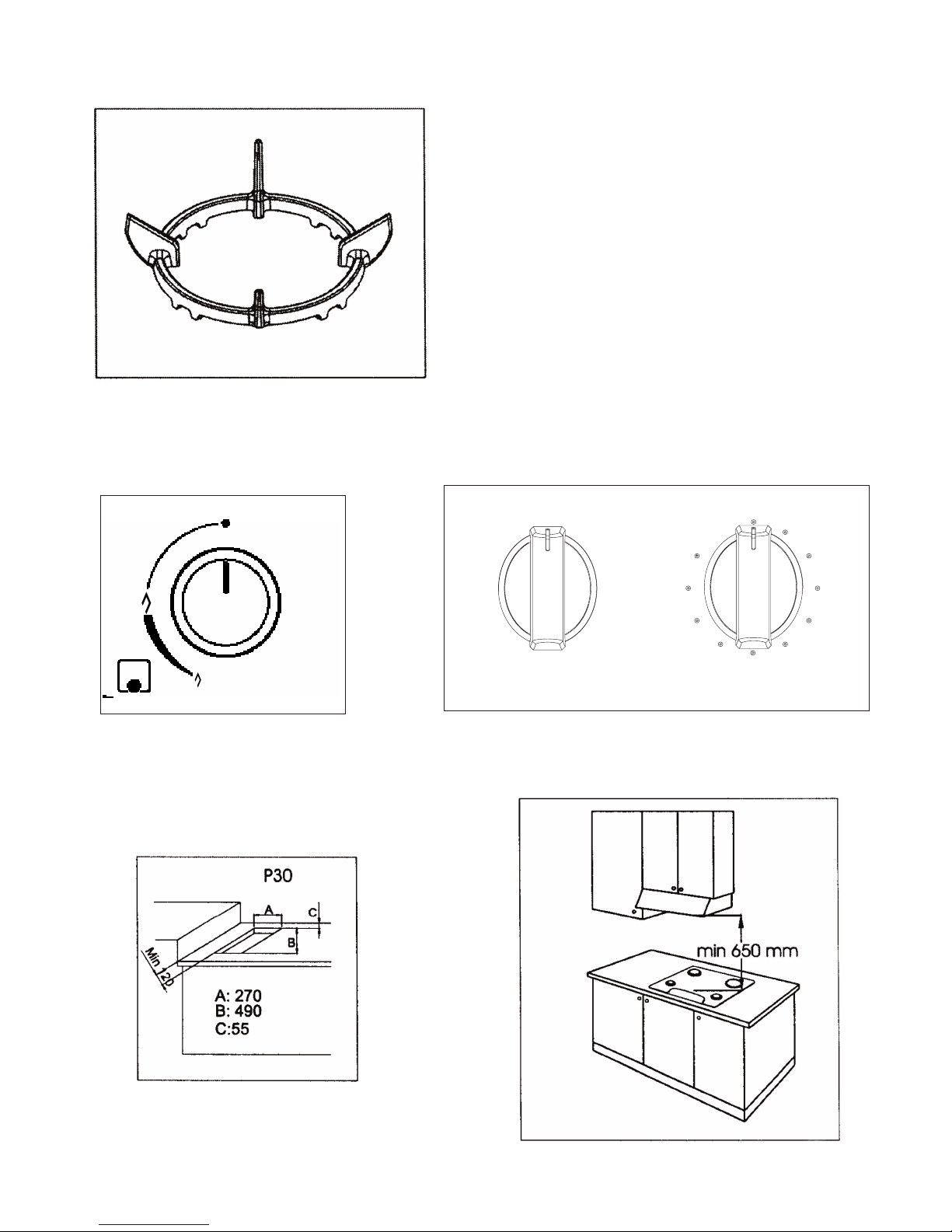

Special“WOK” supportgrid(Fig. 35optional)
This is placed on top of the triple crown burner when using a “WOK” (concave bottom pan). In
order to prevent serious malfunction of the burner,
never use a wok without this special grid
and never use the wok grid for flat bottomed pans
Choosing the right burner
The symbols stamped on the controlpanel (fig.36)nextto the knobs indicate whichknob
corresponds to which burner. To choose the most suitable burner, take into account the diameter of
the pan as well as the pan capacity (see table).
The diameter of the pan must be proportionate to the burner power in order to ensure high yield.
Pan diameter
Burner
Minimum diameter
Maximum diameter
Auxiliary 60 mm
(with
reducer)
140 mm
Rapid 200 mm 240 mm
Triple crown 240 mm 260 mm
Fish kettle Maximum dimensions: 140X350 mm
4

Electric hotplates
Switching on the hotplate
To switch on the electric hotplate, turn the knob to the desired position.
Numbers1to 6,depending on whether the cooktop is fittedwithapower switch
or regulator, indicate the settings in progressing temperature (See Table).
When the electric hotplate is in operation an indicator led on the control panel lights up.
Using the electric hotplate
Once the pan has reached the boil, adjust the power to suit the intensity of heating required,
bearing in mind that the hotplate will continue to emit heat for several minutes after being switched
off.
When using the hotplate, remember:
)Never under any circumstances use the hotplate without a suitable receptacle. Idle
operation of the hotplate, especially for prolonged periods of time, can cause fires.
)
Take all precautions possible to avoid spilling liquids onto the hotplate when it is hot.
)Use flat bottomed pans only with a diameter such as covers the entire burner surface.
Knob position
Type of cooking
1
2For melting (butter or chocolate)
2For keeping food warm or reheating small
amounts of liquids
3Reheating larger quantities, whipping creams
and sauces
4
Simmering, soups, pasta, risottos,
continuation of steaming, cooking steaks and
fries in general
4
5
Browning meats, roast potatoes, fried fish and
for bringing large quantities of water to the boil
6Brisk frying, griddling steaks etc.
Type of hotplate
The cooktop equipped with rapidhotplate.
For technical specifications refer to
“Cooktop Specifications– Cooking point”
Essentially, the rapid hotplate differs from the conventional one because it offers :
)Greater power.
)More rapid reaching of desired temperature.
Glass-ceramic cooktop.
The glass-ceramic cooktop permits rapid vertical transmission of heat from the heating element
below the cooktop to the pots or pans placed on top of it.
Heat does not spread horizontally, thus at a distance of just a few centimetres from the cooking
zone, the glass remains ” cool” to the touch.
The cooking zones are controlled by a power switch with 7 different positions or by a continuous
regulator with 10positions,as shownin figure37
Never cook food directly on the electric hotplates;
always use suitable pots or containers
5
Off
0

The intensity of heating for each zone can be adjusted progressively from “0” (off) to “6” 0R “11”
(max).
When the cooktop is on the indicator light remains lit.
When the temperature of the cooking zone is above 70°C, the corresponding “residual heat”
indicator lamp lights up to warn that the zone is hot.
This lamp remains lit even after the cooking zone is switched off, to signal that the zone is still hot.
Residual heat persists for a relatively prolonged period of time after the cooking zone has been
switched off.
During this time, avoid touching the cooking zone and take precautions to ensure children
cannot touch it.
The indicator lamp switches off automatically once the temperature of the cooking zone falls below
70°C.
Safety tips for using the cooktop
)Before switching on, check which knob controls the desired cooking zone.
It is best to place the pot or pan on the cooking zone before switching on, and remove it only
after switching off.
)Use only flat bottomed pans with a regular surface (exercise caution with cast iron pans).
Irregular bottoms can scratch the glass-ceramic surface. Check the bottom is clean and dry
)Do not use the cooktop if the surface is broken or damaged.
)Bear in mind that the cooking zones remain hot for a relatively long time (about 30 min.) after
switching off.
)Do not allow heavy or sharp objects to fall on the glass-ceramic cooktop.
)
If you find a crack on the cooktop, disconnect the appliance from the mains electricity
immediately and contact the After-sales Service.
)Never cook food directly on the glass-ceramic cooktop; always use suitable pots or containers.
Types of cooking zones
“hi-light” radiant zone
The heating element comprises a tape heating coil which reaches working temperature extremely
quickly.
This zone is controlled by a continuous power regulator.
6

INSTALLATION INSTRUCTIONS
Important!
These instructions are intended for qualified technicians.
The appliance must be installed correctly, in compliance with current laws.
Before carrying out any operation on the appliance, it must be disconnected from the
electricity supply.
Fitting the appliance in the worktop
The cooktop may be fitted into any worktop, as long as it is heat resistant (minimum temperature of
90°C).
The dimensions of the hole to be made in the worktop and the minimum distances between rear
and side walls andthoseabovetheapplianceareshowninfigures 38and 39.
Bear in mind that:
)If the cooktop is installed without an oven below it, a separator panel must be placed between
the bottom of the cooktop and the housing below it, at a minimum distance of 10 mm.
)If the cooktop is installed over an oven, place a separator panel at a minimum distance of 15
mm and follow the oven manufacturer's instructions, ensuring nonetheless sufficient aeration
as specified in fig. 40.
In anyevent, the electrical connection of the twoappliances must
be carried out separately,
both for electrical purposes and to facilitate removal.
It is advisable to use an oven equipped with an internal forced cooling system.
Fixing the cooktop
To fix the cooktop in the housing, proceed as follows:
)Position the special gasket supplied along the outer perimeter of the worktop, following the
diagram showninfig. 38,sothattheends of the gasket meet exactlywithout overlapping.
)Position the cooktop into the worktop, taking care to ensure it is placed exactly in the centre.
)Fix the cooktop to theworktop using the specialbrackets supplied,as shown infig. 41.
Correct installation of the sealing gasket ensures complete protection against infiltration of liquids.
Installation area and removal of combustion fumes
)
The appliance must be installed and operated in suitable areas, and in compliance with
current laws.
The installation technician must observe current laws governing ventilation and removal of
combustion fumes.
The air required for combustion is 2m

/h per kW of power (gas) installed.
Installation area
In the room where the gas appliance is installed, there must be a sufficient natural air supply to
allow the gas to burn correctly.
The natural flow of air must take place through an opening made on an outside wall of the room
and having a working section of at least 100 cm2(A). In the case of appliances without safety
valves,thisopening musthave aminimumworking section of 200 cm2
(fig. 42).
This opening must be made in such a way that it cannot be obstructed from inside or outside. It
should be positioned near floor level, preferably on the side opposite the fume exhaust devices.
If it is not possible to make the necessary openings, the air can be supplied from an adjacent,
suitably ventilated room, as long as this room is not a bedroom, a dangerous area or a low-
pressure area.
Removal of combustion fumes
Combustion fumes produced by gas appliances must be removed by means of a hood connected
directlyeither to an exhaustductor totheoutside (fig. 42).
7

If a hood cannot be installed, an electric extractor fan must be fitted to the outside wall or the
window.
This electric extractor fan must have a sufficient capacity to guarantee a change of air of the
kitchen of at least 3-5 times its volume.
Components showninfig. 4
A : Opening for air supply
C : Hood for exhaust removal of combustion fumes
E : Electric extractor fan for removal of combustion fumes
Connection to gas supply
)Before installation, make sure the type and pressure of the local gas supply are
compatible with the cooktop settings. To do this, check the data on the appliance data
plate on the cooktop as well as on this handbook.
The gas connection must be carried out by a qualified technician in compliance with local current
regulations.
If using metal hoses, ensure these do not come into contact with any movable parts and are at no
point crushed.
Carry out the connection in such a way as does not cause any stress whatsoever on the appliance.
The gas supply connector is threaded G½”.
For ISO R7 connections, the gasket is not required.
For ISO R228 connections, the washer supplied must be fitted.
)After connection operations, check for leaks using a soapy solution.
Electricalconnection (Fig. 44)
Before connecting the appliance to the electricity supply, check that the voltage corresponds to that
on the data plate and that the power supply cable is suitable for the appliance load also stated on
the data plate.
If the appliance is connected directly to the mains, fit an all-pole disconnect switch with minimum
contact gap of 3 mm, adequate for the appliance load and complying to regulations.
)Do not use reducers, adapters or switches for connection to the mains, since these
could overheat and cause burns.
)Regulations require that the appliance is earthed. The manufacturer declines all liability
resulting from failure to observe this regulation.
If the power cable must be replaced, use a cable having identical characteristics to the original
supplied by the manufacturer, suitable for the load and temperature (type T90°C). This is available
from After-sales service. Furthermore, the end of the power cable to be connected to the appliance
must have the Yellow-Green earth conductor 20 mm longer than the other conductors.
Refer to the table below for the size of the power cable
Type of cooktop Size
Only gas burners 3X0.50 mm2
With electric power up to 1000W 3 X 0.75 mm2
With electric power above 1000W 3 X 1.5 mm2
ADJUSTMENT TO DIFFERENT TYPES OF GAS
If a different type of gas from the one indicated on the rating plate is used, the injectors must be
replaced.
If spare injectors are not supplied with the appliance, they are available from the After-sales
service.
For the choice of replacement injectors, refer to the injectors table.
The injectors are identified by their diameter, which is expressed in hundredths of mm, stamped on
the body of the injector itself.
8
