Tumble Dryer Service Handbook
1
INDEX
1. Technical Specifications
2. Components and Dryer Principals
3. Control System
4. Service test program
5. Fault algorithms
6. Wiring schematics
7. Exploded views
8. Spare part list
9. Demounting the dryer

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
2

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
3
1 Technical Specification:
1.1. Product Definition
1.1.1. Manufacturer : Arçelik A.Ş.
Cerkezkoy - Tekirdag / TÜRKĐYE
1.1.2 Model : TKF 8439/8439 A / 8439S
1.1.3 Capacity (kg) : 8
1.1.4 Programs (Qty) : 14 sensor contolled program
1 time program
1 ventilation program (heater off)
1.2. Dimensions
1.2.1. Height (mm) : 846
1.2.2. Depth (mm) : 598
1.2.3. Width (mm) :595
1.3. Package
1.3.1. Material : PE bag (Shrink-pack)
1.3.2. Supporter : Polystrofoam / Wood
1.3.3. Dimensions :
Height (mm) : 880
Depth (mm) : 660
Width (mm) : 650
1.4. Weight
1.4.1. Unpacked (kg) : 38
1.4.2. Packed (kg) : 40
1.5. Working Condition
1.5.1. Temperautre :
Min. room temperature : 5°C
Max. room temperature : 35°C
1.5.2. Humudity : %95 RH
1.6. Electrical Specification
1.6.1. Voltage (V / Hz) : 220-230 V / 50 Hz
1.6.2. Power (kW) : 2,7 kW
1.6.3. Current (A) : 12
1.7. Power Cord
1.7.1. Type : 3 x 1.5 mm2 Cord Copper wire

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
4
1.7.2. Insulation : TS 9760 H05V2V2-F 3G1,5mm
2
1.7.3. Plug : Earthed ,PVC injected
1.7.4. Length (mm) : 1605
1.8. Motor
1.8.1. Type : 2 – phase asenkron
1.8.2. Power (W) : max 250
1.8.3. Main Winding (ohm) : 19,5± 5%
1.8.4. Auxillary Winding(ohm) : 19,5± 5%
1.8.5. Motor speed (7 kg (rpm)) : 2750
1.8.6. Drum speed (rpm) : 52 ± 2
1.8.7. Insulation : Sınıfı : F
1.8.8. Run capacitor : 9 mF ± %5
1.9. Heater
1.9.1. Type : Open wire spiral heating element
1.9.2. Nominal Power&Voltage(W) : 230Vac, 1600+900 = 2500 ± %5
1.9.3. Resistance(ohm) : 1600 W 1. level power (57.63 ohm± %5)
: 900 W 2. level power (32.41ohm± %5)
Warning: NTC (regulating thermistor) is damaged, change the heating element
completely. Also check whether the motor or the fan is blocked or the belt is broken.
1.9.4. Manual resetting thermostat : 160°C ±3°C
Rating : 250Vac – 16A
Type : ELTH 261PB
NOTE: If the heater does not work because of manuel resetting thermostat is open curcuit, do
not change heater with the new one. You should do the following operation that described
below.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
5
With the multimeter manual resetting thermostat is checked from the terminals while heater
is on the dryer. If manual resetting thermostat is open curcuit, the button is up and the heater
does not work. If the button is up position,push the button down,and measure the thermostat
and be sure that it is short circuit.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
6
1.9.5. NTC (regulating thermistor) : 19.500 ohm @ 25°C
Type : ELTH 279
1.10. Door NTC
Door NTC (ohm) : 12.000 ohm @ 25°C
1.11. Body :
1.11.1. Material : Sheet metal
1.11.2. Finish : Acyrlic powder paint
1.12. Drum :
1.12.1. Material : Aluzinc/Stainles steel
1.12.2. Volume ( lt ) : 118
1.12.3. Drum speed( rpm ) : 54±2
1.12.4. Front door opening (mm) : 395x320
1.12.5. Proces air flow (m
3
/h) :190
1.12.6. Maximum loading Capacity:
Cotton(kg) : 8
Delicate, Synthetic (kg) : 4
1.13. Control System Specifications :
1.13.1. On/off Button : 250 V, 16 (4)A
1.13.2. Door Switch : 250 V, 3 (1)A veya 16(4)A
1.13.3. Suppression Fiter : C907C21 0,15 uF(X1) + 1Mohm +
2x0.027uF(Y2)
1.13.4. Program Timer : Elektronic Control Card
220 -240V , 50 Hz
1.14. Pump
1.14.1. Number of turns:2x3250
1.14.2. Wire diameter:0,1 mm
1.14.3. Resistance:956 Ω± %8
1.14.4. PCT C870 Epcos
1.14.5. PA6/66 Grilon TS V0,UL 94V-0,GW-650°C
1.14.6. PA6 Latamid 6H V0, UL 94V-0, GW-650°C

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
7
2. Components and Dryer Principals:
Electronic Board:
Mechanical Pats (Dynamic System) :
The main motor is attached to the chassis with four special self threaded screws. In order to
drive drum a polv-y-V belt ise used between the motor pulley and drum There was used a
elastic belt. The drum is made of galvanized sheet steel. The drum group is mounted into the
front bearing house and rear bearing steel bracket, which is located rear panel. The heater is
mounted to the rear panel wtih two screws.
It is advised that the elastic Poly-V belt will be assembled max 3 times. Due to
damage on the belt on assembling, after 3 times please change the Poly-V belt
also.
Temperature Sensor ( NTC ):
Two NTC temperature sensor are used on electronic controlled dryers, one is located after the
door filter in suction canal, other is located in the heater. As the temperature of the surrounding
of NTC increases, its resistance decreases. At fixed temperature NTC will always have a
specified resistance within the tolerance. With the aid of this principle operates until the desired
temperature is reached. In this way, the selected program completes properly each time in
accordance with the program set an auxiliary function neither selected an is nor influenced by
air temperature etc.
Humidity Sensor:
Humidity level will be measured by the resistance of clothes. With this property of the humudity
sensor, its possible to check and control the humudity level precisely. It is driven by macro.
Humidity Sensor
Connector
L 900W Relay
Programming
Connector
Humidity sensor (NTC)
Rotary
Overflow switch connector.
Door Sensing Drain Pump
Motor Direction 1
Motor Direction 2
N
1600W Relay

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
8
Heater (Open spiral wire):
A 2500W two circuit open spiral wire type heater is driven by the 2 relays. A manual resettable
thermostat is used on these heater, in order to provide IEC safety rules accordingly. This
manual resettable thermostat cut the heater power at 160°C and can be resetted by the
pressing the button on thermostat, so heater can be used after a failure bacause of thermostat
is open curcuit.
The second temperature regulating element on the heater is NTC. When the desired
temperatures is reached, electronic control card reads the resistance of NTC and if the
prescribed resistance ( and hnce temperature) is reached, the heater is switched off.
This mechanical thermostat operates only;
Locked tumble,
Locked rotor,
Broken fan,
Filter and condenser is full, conditions.
Warning: When NTC is broken down, the heater is changed by the new heater. If
thermostat is open curcuit, the same heater will be used by pressing the button on
thermostat.
Door Lock :
Locking and unlocking mechanism of the door lock used in the dryer is a mechanical type of the
door lock. When the door pushed, the door is locked and the door is closed. When the pull from
the handle of the door, it will be open with a suitable force.
Especially, door lock and hinge sould be checked if there is a locking problem.
Door Switch :
The current is sent to electronic card and motor by the door switch. By this way when door is
opened due to any reason, motor stops automaticlly. However because of EN&IEC safety rules,
when the door is closed again, motor does not start. It is necessary to press start/pause/cancel
button to restart dryer.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
9
Motor:
Tumble and fan turns via 2 poles asenkron motor. Motor turns 2750 prm ans has a 9 uF
capacitor. Asenkron motor is controled by two Control panel two relays one of them for
direction, other one is for energy that placed in control.
Auxiliary
Winding
Common
Run
Capasitor
Auxiliary
Winding Main
Winding
Common
Main Winding

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
10
Dryer Principals:
The air heated by the heaters, is directed to the drum and gets moisture of the laundry.
After crossing from the filters, the air pass through the condenser, and condenses.
Then the air is heated again, this circulation continues until the drying process finished.
Condensing occurs by cooling the air. To achieve that, a secondary fan circulates the air in the
condenser. Because of the temperature difference between cooling air and heated air,
condensing process accomplishes.
The condensed water is directed to the water tank by the pump for tank up version.
•Heater
•Process Fan
•Cooling Fan
•Condensed Water
•Condenser

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
11

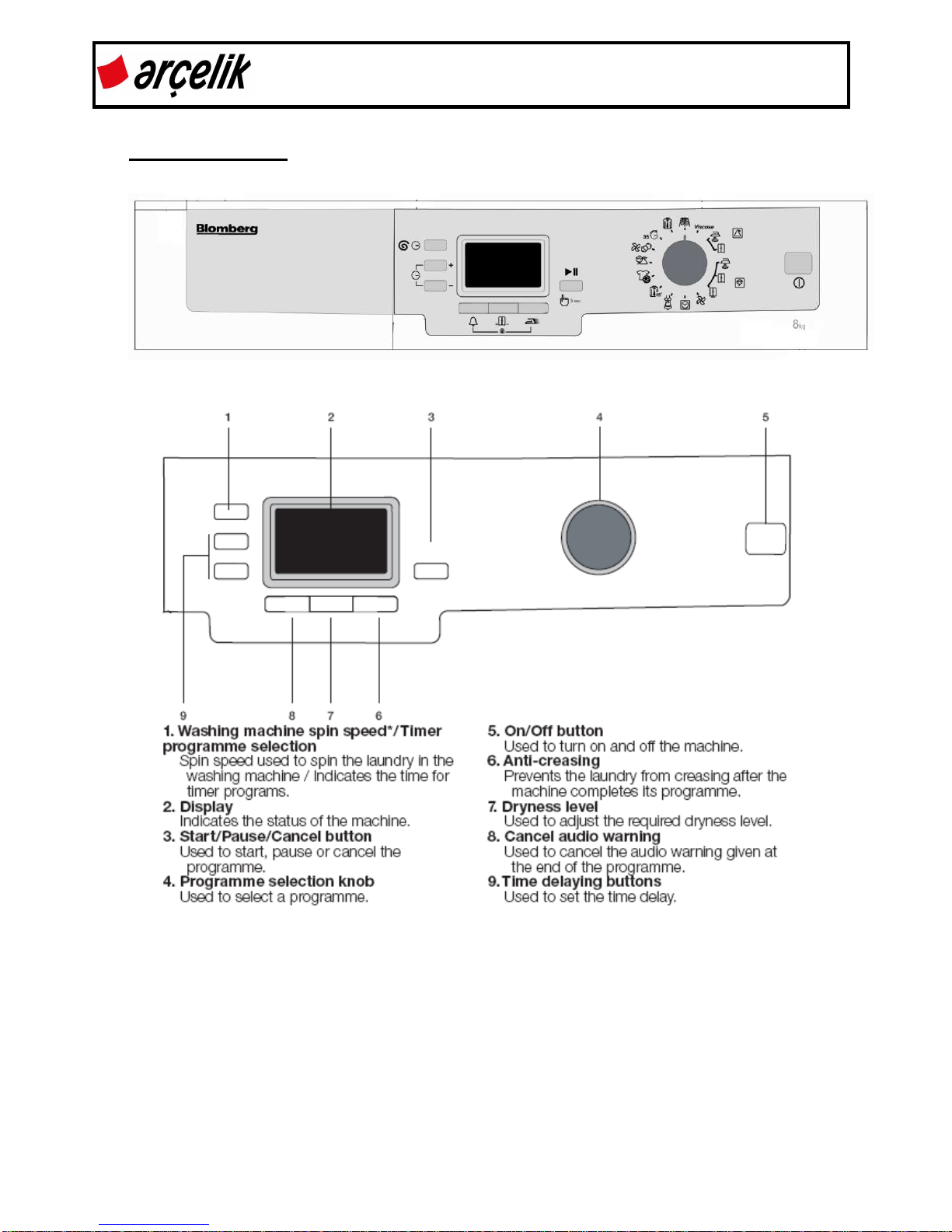

3. Control System:

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
12
Symbol Explanations:

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook

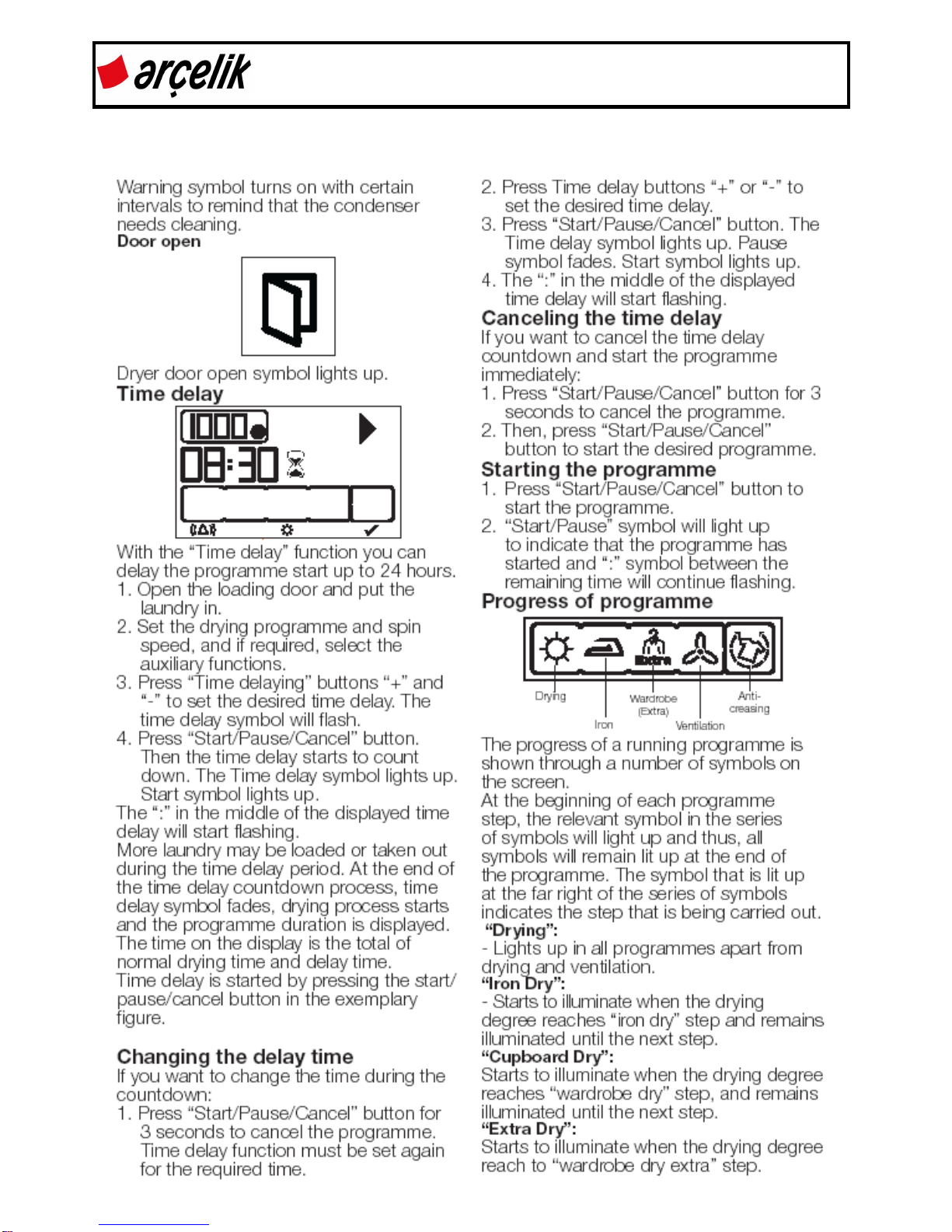

13

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
14

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
15

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
16

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
17
Main programmes
Depending on the type of laundry, the following main programmes are available:
•Cottons
You can dry your durable laundry with this programme. Dries at high temperature. It
isrecommended to use for your cotton items (such as bed sheets, quilt cover,
underclothing,etc.).
•Synthetics
You can dry your less durable laundry with this programme. It dries at a lower temperature
compared to the cottons programme. It is recommended for your synthetic laundry (suchas
shirts, blouses, synthetic/cotton blendedlaundry, etc.).
Warning: Do not dry curtains and lace in yourmachine.
Special programmes
For special cases, there are also extra programmes available:
Warning:Additional programmes may differ according to the model of your machine.
•Mini 35’
You can use this programme to dry your cottonlaundry that you have spun at high speeds in
your washing machine. This programme dries 2 kg cotton laundry (3 Shirts/5 T-shirts)) in 35
minutes.
Warning:To obtain better results from your dryer, your laundry must be washed at suitable
programmes and spun at the recommended spin speeds in the washing machine.
•Shirts
This programme dries the shirts more sensitively and creases them less and thus, helps to iron
them more easily.
Warning: There may be a little humidity on your shirts at the end of the programme. We
recommend you not to leave the shirts in the dryer.
•Jeans
You can use this programme to dry your jeans that you have spun at high speeds in your
washing machine.
Warning: Review the relevant section in the
programme table.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
18
•Mixed
Used to dry synthetic and cotton laundry that do not release colour. Used for laundry that is
suitable for drying.
•Sport
Used to dry the laundry that are made of synthetic, cotton or mixed fabrics and have a tag
indicating that they are suitable for drying.
• Woolen preparation
You can use this function to ventilate and soften your woolen laundry that can be washed in the
washing machine. Do not use this function to dry your laundry completely. Take out your
laundry and ventilate.
•Lingerie
Suitable to dry the 100% synthetic or synthetic-mixture satin type underwear (nightgown,
garments for upper body, pajamas) with the word dryable in the washing instructions.Products
with a high accessory content such as lace, veil, stone, beads and wires and products with a
high content of silk should not be dried.The silk laundry with cotton content or satin look may
remain wet when dried with this program. The level of dryness may depend on the mixture of
the cloth, type of knitting and the humidity content.
•Viscose
You can dry your Viscose laundry that marked as it can dry in tumble dryer(dresses, shirts,
underwear, etc…). Viscose/polymer, viscose/ cotton mixed laundry is also suitable for this
program.
Warning: It is not recommended to dry laundry that has accessory of pile textile, lace,small
stones etc… Drying level can be changeable according to the type and mixture of laundry.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
19
4. Service Test Program:
Step 1: Program selector is set as wool refresh and while pressing the cancel audio warning
button, turn on dryer. After 3 seconds service test program starts. In this program
start/pause/cancel button is used to pass other steps.
Step 2: All leds are blinking and buzzer sounds.

Arçelik/Blomberg 2009 ARES MLCD
8
kg
Tumble Dryer Service Handbook
20
Step 3 :On the display,the supplying voltage and the software version is shown.
Step 4: The values of the heater NTC and door NTC are shown on the display.
