BLUE JAY BJ-MCM1300 User manual

User Manual
Tel: [phone] Email:[email protected]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 1 -
Multi-channel Circuit Metering System
BJ-MCM1300
User Manual
Version：1.7

User Manual
Tel: [phone] Email:[email protected]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 2 -
Read me
When you use BJ-MCM1000 series Multi-channel Circuit Metering system, be sure to
read this user manual carefully, and be able to fully understand the implications, the correct
guidance of operations in accordance with user manual, which will help you make better
use of BJ-MCM1000, and help to solve the various problems at the scene.
1. Before the meter turning on the power supply, be sure that the power supply within the
provisions of the instrument;
2. When installation, the current input terminal must non-open, voltage input terminals must
Non-short circuit;
3. Communication terminal (RS232/RS485 or Ethernet) is strictly prohibited to impose on high
pressure;
4. Be sure the instrument wiring consistent with the internal system settings;
5. When communicating with the PC, instrument communication parameters must be consistent
with the PC.
●Please read this user manual carefully
●Please save this document

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 3 -
Directory
CONTENTS Page
1. - SUMMARIZE.................................................................................................................................- 4 -
2. -ELECTRICITYMETERING........................................................................................................ - 5-
3. - SPECIFICATIONS........................................................................................................................- 6 -
4.- INSTALLATION AND START-UP.................................................................................................- 8 -
4.1.-INSTALLATION............................................................................................................................ - 8-
4.2. -CONNECTION TERMINAL ...........................................................................................................- 11 -
5. SCREEN DISPLAY .......................................................................................................................- 13 -
5.1. -PANEL DIAGRAM...................................................................................................................... - 13 -
5.2.-DISPLAY UNIT CONNECTION ...................................................................................................... - 13 -
6. - OPERATION MODE ...................................................................................................................- 14 -
7. - SETUP PROCEDURE ................................................................................................................- 18 -
7.1.-INPUT PASSWORD.................................................................................................................... - 18 -
7.2.-MENU TREE QUICK GUIDE ......................................................................................................... - 18 -
7.3. –DETAILS EXPLAIN OF MENU STRUCTURE................................................................................... - 20 -
7.4.-DISPLAY CHARACTER INSTRUCTIONS ........................................................................................ - 21 -
8.- COMMUNICATION INTERFACE.................................................................................................- 22 -
8.1.-CONNECTION FOR THE RS485 BUS......................................................................................... - 22 -
8.2.-MODBUS ©PROTOCOL .......................................................................................................... - 22 -
8.3. -REGISTERADDRESS TABLE ...................................................................................................... - 23 -
8.4.-EXAMPLE................................................................................................................................. - 29 -
9. - SAFETY CONSIDERATIONS ....................................................................................................- 30 -
10. - MAINTENANCE........................................................................................................................- 30 -

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 4 -
1. - SUMMARIZE
The MCM1000 Series provides a compact and robust metering solution, enable reliable
monitoring of building electrical loads with a low installation cost-per-point by combining
sub-metering. The unit performs real-time metering, measures energy consumption for max 18
channel circuits for single phase or 6 channel for three phase circuits.
Advanced communications options including Modbus via RS485, I/O communications provide for
extensive reliable data exchange. Multiple units can be connected together to meter unlimited
number of circuits. The versatility of MCM1000 meters are ideal for multi-tenant or departmental
metering applications within office towers, condominiums, apartment buildings, shopping centers
and other multi-user environments.
Measurement Function
Voltage: Line Voltage; Phase Voltage
Current: Total Current; Current per channel
Power and Power Factor: Total power Reactive Power, Apparent Power, Power Factor and for
per channel
Frequency: System Frequency
Energy Function
Energy (kWh) measurement meeting international standards, accuracy is Class 1.0.
Over/Under Limit Alarming
Users can select parameters and set their set points. An alarm will be triggered when the setpoint
is reached. At the same time, sound and light signals could be sent out via relay output. The time
and reason of an alarm event will be recorded.
I/O Option
Standard output ports provide energy (kWh) pulse output and time pulse output; optional 6
channel digital inputs (DI) provide pulse counting from water, electricity and gas meter, and
monitor switch status; optional 2 channel relay outputs (DO) react upon alarming conditions.
Communication and Network
Supports RS485 communication open protocol: Modbus RTU;

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 5 -
2. - ELECTRICITY METERING
MCM1000 series has two models:
MCM13xx - three phase measurement, max connect 6 channel three phase circuit
MCM11xx -single phase measurement, max connect 18 channel single phase circuit.
The MCM delivers the of parameters listed by RS485 ports, Blue Jay Technology also provide
advanced model can connect display unit show visualization information, and do configuration of
the MCM device. In the main display area shows 4 power parameters, with other display area
show the various parameters and state of meter on each page jump. For more details of
measurement parameters please refer to the subsequent for displays introduction.
Metering parameter overall
Function
Parameter
MCM1310
MCM1320
Real-time Parameter
Voltage
Va, Vb, Vc / Vab, Vbc, Vca
●
●
Current
per channel / per phase
●
●
Power
per channel / per phase
●
●
Reactive Power
per channel / per phase
●
●
Apparent Power
per channel / per phase
●
●
Power Factor
per channel / per phase
●
●
Frequency
per channel
●
●
Energy
Active Energy +
per channel
●
●
Reactive Energy +
per channel
●
●
Active Energy -
per channel
●
●
Reactive Energy -
per channel
●
●
Communication
RS485
Modbus-RTU
●
●
Alarming
Over/Under Limit Alarm
○
●
I/O
6DI & 2DO
○
●
Display
External LCD display
(RS485 connection)
●
Notes: "●" for Standard; "○" for Optional; Blank means Not Available

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 6 -
3. - SPECIFICATIONS
Reference standard:
Basic electricity: IEC 61557-12:2007
Active energy: IEC 62053-21:2003
Reactive energy: IEC 62053-23:2003
Accuracy standards
Parameter
Accuracy
A phase
B phase
C phase
All
Voltage
Current
Active Power
Reactive Power
Apparent power
Power Factor
Active Energy
Reactive Energy
Frequency
0.2
0.2
0.5
0.5
0.5
0.5
1
2
0.1
V1
A1
W1
var1
VA1
PF1
V2
A2
W2
var2
VA2
PF2
V3
A3
W3
var3
VA3
PF3
W
var
VA
PF
Wh
varh
Hz
Input
Voltage: Rated 40~400V
Current: Rated 5A (optional 1A)
Frequency: 45-65Hz
Overload
Current: 1.2 times rated continuous; 5 seconds for 10 times the rated
Voltage: 30 seconds for 2 times the rated
Dielectric strength
IEC/EN 61010-1:2010
2kV AC RMS 1 minute, between input / output / case / power supply
EMC Test
standard
Test voltage
Electrostatic discharge immunity
test:
IEC-61000-4-2
level 4
8Kv
Electrical fast transient burst
immunity test
IEC61000-4-4
level 3
Input 1kV; Power supply 2kV
Surge (Shock) immunity test
IEC61000-4-5
level 4
common mode test voltage 4kV

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 7 -
Work environment
Temperature: -15C~ +55C
Humidity: RH 20%~95% (No condensation)
Storage Conditions
Temperature: -25C~+70C
Humidity: RH 20%~95%
Working Power
AC 80-265V, 45-65Hz, DC 100-350V
DC 20-60V (Optional)
Maximum power consumption 6W
Dimensions
L ×H × D =180mm×122mm×48mm
Installation
35mm Din-Rail

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 8 -
4.- INSTALLATION AND START-UP
The manual you hold in your hand contains information and warnings that the user
should respect in order to guarantee a proper operation of all the instrument functions
and keep it in safety conditions. The instrument must not be powered on and used
until its definitive assembly is on the cabinet’s door.
If the instrument is not used as manufacturer’s specifications, the protection of the
instrument will be damaged.
When any protection failure is suspected to exist (for example, it presents external visible
damages), the instrument must be immediately powered off. In this case contact a qualified
service representative.
4.1.- Installation
Mounting
This meter is DIN rail mounted, which fits 35 mm standard rails. Keep all connections into the
cabinet. Note that with the instrument powered on, the terminals could be dangerous to touch and
cover opening actions or elements removal may allow accessing dangerous parts. Therefore, the
instrument must not be used until this is completely
installed.

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 9 -

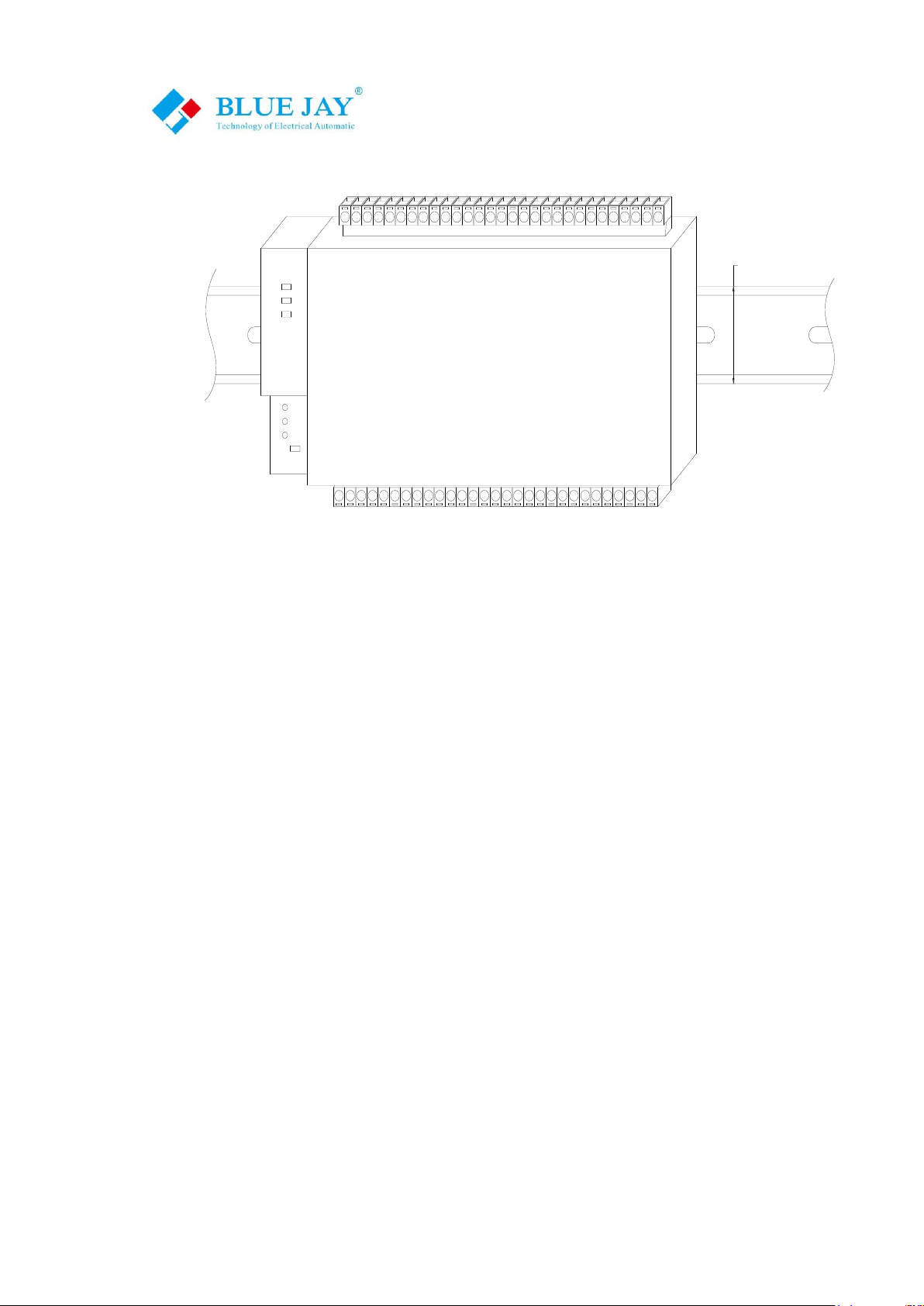

35mm Din Rail
MCM1000
Notes:
Input signal: MCM1000 using a separate acquisition calculate for each measurement channel, to
ensure consistent in use, for different load forms, it's a variety of connection mode. Access wire
shall be met: the current 2.5 square mm, voltage of 1.5 square millimeters.
A. Voltage input:
Input voltage should not exceed the rated input voltage products (100V or 400V),
Otherwise, you should use external CT. Suggest 1Afuse be installed in the voltage input side.
B. Current Input:
Standard input current is 5A, if greater than 5Ashould use external CT.
When the CT is connected with other instruments, make sure wiring methods be used in series.
Before remove the current input connection, must be sure to disconnect the primary circuit or
shorted secondary circuit of CT. In order to facilitate disassembly, please do not connect to CT
directly, and the terminal block is suggested.
C. Please make sure that the input voltage and current corresponding to the same phase
sequence, and the same direction; Otherwise, the Values and symbols will be wrong!!
(Power and Energy)
The input network configuration of instrument depends on the CT number of the system:

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 10 -
in the condition of 2 CT, select the three-phase, three-lines two components;
in the condition of 3 CT, select the three-phase, four-lines three component mode.
Instrument connection mode, set of the instrument (programming input network NET) should be
the same load wiring as measured wiring. Otherwise, the measurement instrument will lead to
incorrect voltage or power.
In three-phase three-wire mode, the measurement and shows the line voltage;
In three-phase four-wire mode, the measurement and shows the phase voltage.
Auxiliary power:
MCM1000 Series with universal (AC / DC) power input, if not for a special statement, we provide
the 220VAC or 110V/DC power interface for standard products. Instruments limit work power
supply:AC: 85-265V / DC: 100~300V, please ensure that the auxiliary power can match with
MCM1000 series meter to prevent damage to the product.
A. Suggest install 1A fuse in the fire line side.
B. For the areas with poor power quality, suggest install lightning surge suppressor and rapid burst
suppressor to prevent lightning strikes.

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 11 -
4.2. - Connection Terminal
Meter Base Terminals:
Upper row: Digital input, Current Sampling (4-6) Pulse Output, Relay Output
Lower row: Voltage sampling, Current Sampling (1-3), Display port, Communication, Power
Supply
22 21 20 19
6 channel DI
Channel 6
Current Sampling
Channel 5
Current Sampling
Channel 4
Current Sampling
DO2 DO1
4.9
4.8
4.7
4.6
4.54.4
IcIc*
IbIb*
IaIa*
70
71
7273
7475
766.9
6.8
6.76.66.56.45.9
5.8
5.7
5.6
5.55.4
COM
1
23
45
6
IcIc*
IbIb*
IaIa*IcIc*
IbIb*
IaIa*
-
+
-
+
14
1312
111.41.5
1.6
1.7
1.8
1.92.42.52.62.7
2.8
2.93.43.53.63.7
3.8
3.962616059
58
2
1
Voltage
Sampling
Channel 1
Current Sampling
Channel 2
Current Sampling
Channel 3
Current Sampling
DISPLAY
RS485
AUX
UNUc
Ub
UcIa*Ia
Ib*Ib
Ic*Ic
B
A BA┴Ia*Ia
Ib*Ib
Ic*IcIa*Ia
Ib*Ib
Ic*Ic
N
L
Notes: The terminal pin will change depends on customer order; please refer to the label on
the meter!

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 12 -
Typical wiring- 3P4W (max 6channel)
22 21 20 19
6 channel DI
Channel 6
Current Sampling
Channel 5
Current Sampling
Channel 4
Current Sampling
DO2 DO1
4.94.8
4.7
4.6
4.54.4
IcIc*
IbIb*
IaIa*
70
71
7273
7475
766.96.86.76.66.56.45.95.8
5.7
5.6
5.55.4
COM
1
23
45
6
IcIc*
IbIb*
IaIa*IcIc*
IbIb*
IaIa*
-
+
-
+
14
1312
111.41.5
1.6
1.7
1.8
1.92.42.52.62.7
2.8
2.93.43.53.63.7
3.8
3.962616059
58
2
1
Voltage
Sampling
Channel 1
Current Sampling
Channel 2
Current Sampling
Channel 3
Current Sampling
DISPLAY
RS485
AUX
UNUc
Ub
UcIa*Ia
Ib*Ib
Ic*Ic
B
A BA┴Ia*Ia
Ib*Ib
Ic*IcIa*Ia
Ib*Ib
Ic*Ic
N
L
ABCN
1
25859
Power Supply
IMPORTANT REMARK!
If power = -0.01 is shown for any of the phases and voltage and current are not zero for this phase,
check out following points:
- Assure that A, B and C phases coincide in voltage and current.
- Correct polarity? Reverse the current transformer placed at this phase.
Note: This connection drawing is for reference only; the actual connecting terminal please refer to
the label on the rear part.

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 13 -
5. SCREEN DISPLAY
5.1. - Panel Diagram
MCM1000 optional LCD screen
module, connect to RS485 wire
to MCM body "DISPLAY" pin,
provide electrical data display
and on-site configuration.
Note: If your MCM do not have
external display unit, please skip
chapter 5 and chapter 6, and
use RS485 port for operation.
5.2.- Display unit
connection
Display unit shape and size are same as 194 series power meter. need 85~265VAC/DC AUX
power, RS-485 cabling must be carried out with a meshed screen cable (minimum 3 wire),
diameter of not less than 0.5mm2, with a maximum distance of 50m between the MCM1000 and
the display unit
This unit is to be mounted on panel (cut-out 70+0.8 x 70+0.8 mm). Keep all connections into the
cabinet.
Note that with the instrument powered on, the terminals could be dangerous to touch and cover
opening actions or elements removal may allow accessing dangerous parts. Therefore, the
instrument must not be used until this is completely installed.
size of display unit
Front view Side view

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 14 -
6. - OPERATION MODE
When the MCM1000 and display unit are powered up, the entire symbol will be on, and the meter
starts to self- test. After some seconds, the meter is ready for operation and shows one of the
available screens.
Parameters on display can be switched by pressing key or . LCD shown on screen
at any moment
When the key is pressed, the screen CURRENT values of each phase are now showing.
Pressing again the key , the screen will show the following parameters successively.
In setting menu, pressing key can move the setting cursor to left;
Pressing can enter the number 0 ~ 9.
This key named "SET" key, pressing it can open the programming menu and return to previous
menu.
This key named “Enter” key, pressing this key you can exit it with saving any modification that you
might have done, in menu operation press “Enter” key, and user can go to the next menu.
Note:
Press key or in normal standby status, and the meter will show different data in
main screen:
In the menu set mode, when changes the parameter and exit setting, the meter will ask to "SAVE",
press exit without saving
press save and exit.

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 15 -
Screen 1: Displays the three phase voltage Ua, Ub, Uc;
As shown: Ua = 380.0V; Ub = 380.0V; Uc = 380.0V;
In the bottom character “Ep” show total active energy is 83.6KWh.
In other display area region show the system information:
DI1, DI2, DI3, DI4 in the close state;
DO1, DO2 in the open state;
Communication transceiver normal;
Note: Detail information for each symbol, please refer chapter 5, following sections as same
Note: in the high voltage measurement, X103 mean the showing voltage value multiplied by
1000, in the screen diagram mean the voltage is 10X1,000=10,000volt

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 16 -
Screen 2: Display the three-phase current Ia, Ib, Ic.
In the bottom Ep shows total negative active energy.
Screen 3: Display the total active power, total reactive power, and total factor.
In the bottom “Eq” shows total active energy.
Screen 4: Display the frequency of a phase.
In the bottom “Eq” shows total negative reactive energy.

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 17 -

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 18 -
7. - SETUP PROCEDURE
This chart just suits MCM1310 and MCM1110, or client optional display unit, other models please
skip this chart to RS485 communication guide, use any series scan programming also can do
same setting!!
Once into the SETUP, use the keyboard to select different options and enter required variables:
7.1.- Input Password
A 4-figure password is required to be entered (in case that in case that the meter will work
without permission.)
At normal display mode, press to enter the programming mode, meter display
Meter display “ ”,
Ask for the password. Press to input the password number, from “0~9”. Press
to move the cursor.After password switch press to confirm the input.
If password is correct, meter can enter next setting.
Notes: the default password is 0001.
7.2.- Menu tree quick guide
In the Setup menu, include following 4 parts:
SYS
-IN-
BUS
DO
Sub-menu please refer to following drawing:

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 19 -

User Manual
Tel: [phone] Email:[e-mail]
www.cqbluejay.com
Add: 1802,Building 2,No.88,Jianxin East Road,Chongqing,400020,China - 20 -
7.3. –Details explain of menu structure
level 1
Level 2
Level 3
Description
(System setting)
SYS
(LCD backlight time)
LCd.t
0000~1000
Factory default is 0005
(Energy counter reset)
CLr.E
Unrecoverable for Clear data
(Display mode) dISP
0-99
0 for manual switching, 1-99 for
X sec auto switch to next screen
Factory default is manual
(Change the password)
CodE
0000~9999
Default is 0001
(Signal input)
-IN-
(Net) Lin.e
N.3.4, N.3.3, N.1
Select the input signal network
measurement
(Voltage Range)
U.SCL
100V, 220V,
380V
Select the range of measured
voltage signal
(Current Range) I.SCL
5A and 1A
Select the range of measured
current signal
(Voltage transformation
ratio) R.PT
1-9999
Setting voltage signal
transformation ratio = 1 / 2 scale
