Blue Ridge FORT DRUM User manual

Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 1

R1 R2 R3 R4 R5 R6
R7 R8 R9 R10 R11 R12
R13 R14 R15 R16 R17 R18 R19 R20 R21
B2
B3
B1
R1 1ea R7 1ea R13 2ea R19 2ea
R2 1ea R8 1ea R14 2ea R20 2ea
R3 1ea R9 1ea R15 1ea R21 1ea
R4 2ea R10 1ea R16 3ea
R5 2ea R11 2ea R17 2ea
R6 1ea R12 1ea R18 3ea
Resin arts Gun Barrels hoto-etch
E-01
E-02
Miscellaneous
B1 4ea
B2 4ea
B3 2ea
E-01 1ea
E-02 1ea
Book 1ea
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 2

R1
R2
R3
E16
E15
E14 E13
E17
1. Main Structure
2. Dock
3. Sally ort
Paint: Concrete
Paint: Concrete
Paint: Concrete
Paint: Grey
Paint: Grey
Paint: Grey
Paint: Grey
Paint: Grey
Paint: Grey
Paint: Wood Brown
Pads grey for
visibility only
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 3

R16
R16
R16
R17
R17
E15
R16
R21
E11
E12
4. Deck Vents
Vents are to protrude from
deck by 1/8 inch.
Paint: All Vents
Silver
Paint: Silver
Paint: Silver
Paint: Grey
Paint: Wood
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 4

5. Deck Railings
E01
E02
E03
E04
E05
E05
E06 E07
E06 E07
E04
Paint: All Railings Grey
Paint: All Railings Grey
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 5

6. Tool Shed
E08
E21
R6
E10
E09
Note: If you do
not plan to add
tool shed, re-
place part E10
with E10a
Paint: All Railings Grey
Paint: Grey
Paint: Grey
Paint: Silver
Paint: Grey
Paint: Wood
Front
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:10 M age 6

Paint: Grey
E21
Paint: Grey
Paint: Grey
Paint: Grey
Paint: Wood
Paint: Silver
R9
Paint: Grey
Paint: Grey
E31
Paint: Grey
E29
Paint: Grey
E30
Paint: Grey
Paint: Wood
E38
Paint: Silver
R8
Paint: Silver
Paint: Silver
Paint: Grey
7. Radio Shack
Back
Back
Front
8. rojector Booth
Back Front
Paint: Silver
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 7

Paint: Silver
E115
Paint: Grey
Paint: Grey
Paint: Grey
E32
Paint: Grey
E33
Paint: Grey
Paint: Wood
Paint: Wood
Paint:
Body Wood
Straps Black
Paint: Silver
R11
R10
Paint: Silver

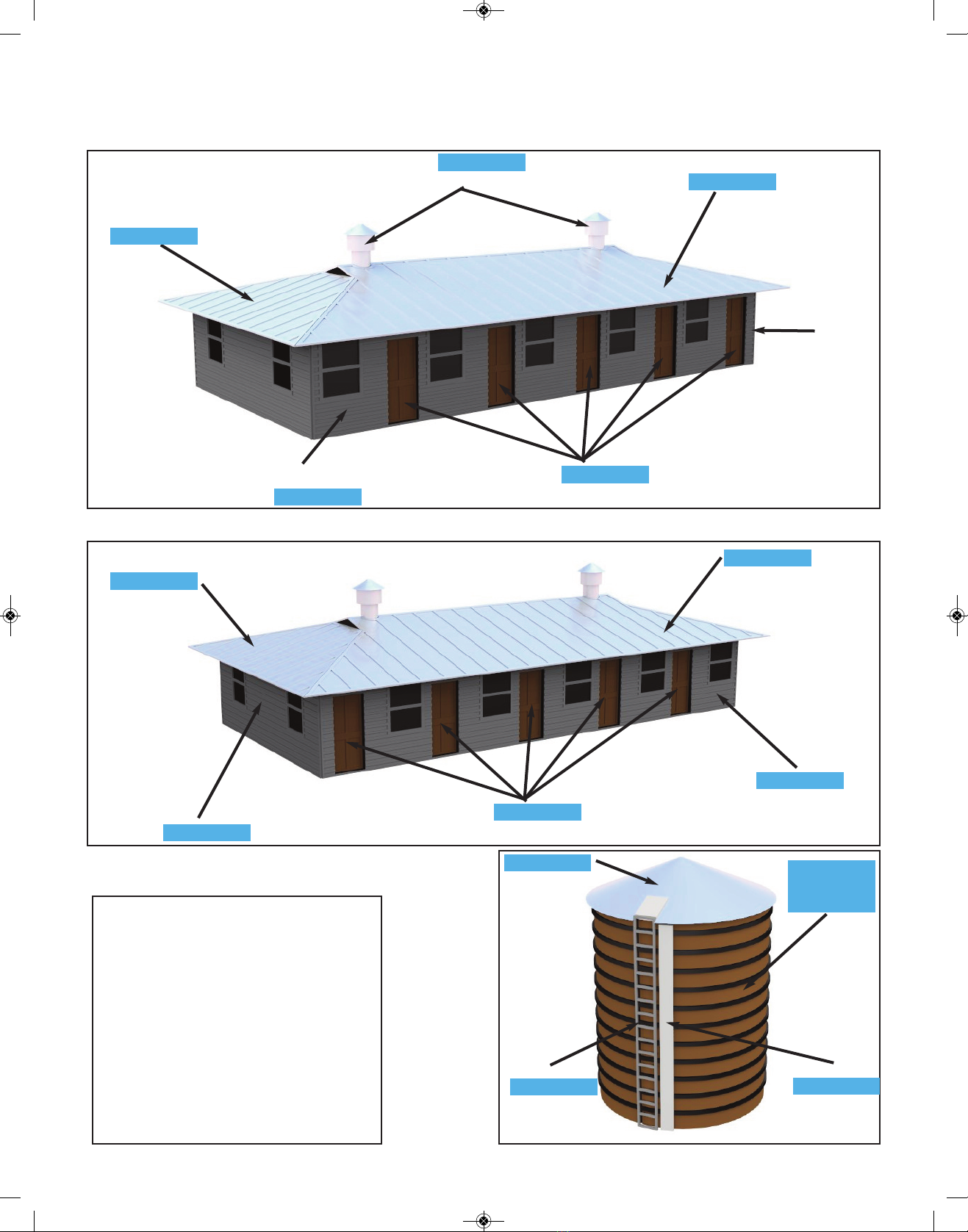

9. Officers Quarters
10. Water Tanks
Front
Paint: Silver
Paint: Silver
Paint: Silver
Back
Note: During Fort Drum’s active duty
career, in addition to the fresh water
storage carried inside the fort, there
was anywhere from 1 to 2 fresh
water tanks on the deck. These
tanks were located towards the rear
of the fort.
You are provided with 2 tanks to
build.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 8

11. Hoist Room
R12
Paint: Silver
Paint: Wood
Paint: Wood
Paint: Wood
Paint: Wood
Paint: Grey
Paint: Grey Paint: Grey
Paint: Grey
Paint: Silver
E44
Paint: Silver
E22
Paint: Grey
E23
Paint: Grey
E23
Paint: Grey
E23
R7
Paint: Grey
E23
Paint: Grey
Paint: Grey
E22
Paint: Grey
Paint: Silver
BackFront

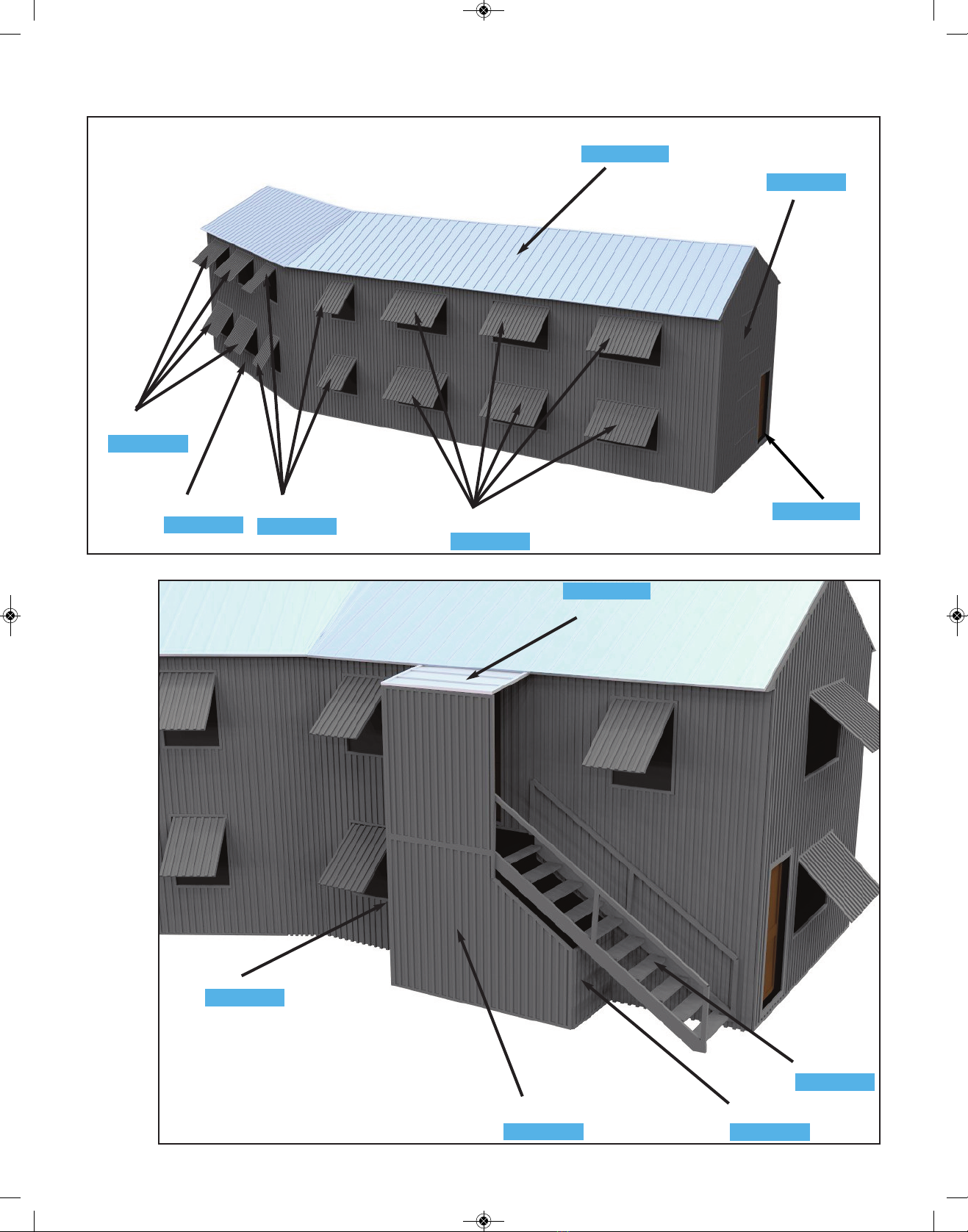

12. Barracks
Right Side
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 9

Paint: Wood
E106
Paint: Grey
Paint: Grey
E22
Paint: Grey
E24
Paint: Grey
E28
Paint: Grey
E26
Paint: Grey
E25
Paint: Grey
E22
Paint: Grey
E23
Paint: Grey
Paint: Silver
E27
Paint: Silver
Right Side
Note: Repeat this procedure for both
front & back porches. The part numbers
are exactly the same.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 10

Front orch
Back orch
R20
Paint: Silver
R19
Paint: Silver
13. 3 Inch AA Guns
14. 14 Inch Main Guns
15. 6 Inch Secondary Guns
E18
Paint: Grey
R5
Paint: Grey
R5
Paint: Grey
B3
Paint: Grey
E19
Paint: Grey
B1
Paint: Grey B1
R1
Paint: Grey
Paint: Grey
E34
Paint: Grey
E20
Paint: Grey
Note: Make 2ea
Note: Make 2ea
Note: Repeat for both
port & starboard sides.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 11

16. Derrick
Note: This Derrick is actually called a “Steel Stiff Leg
Derrick”.
Built by American Hoist & Derrick Company St. aul
Minnesota these cranes were pretty standard equip-
ment for hoisting duties. They were powered by either a
steam or electric winch & were designed to be very mo-
bile. They could be assembled & broken-down in a mat-
ter of hours if needed. Depending on the size, they
could lift anywhere from 5 to 50 tons.
Paint: Grey
R14
Paint: Grey
E36/37
Paint: Grey
E35
Paint: Grey
E34
E38
Paint: Grey
E39
Paint: Grey
E41
Paint: Grey
E40
Paint: Grey
E42
Paint: Grey
E44
Paint: Grey
E42
Paint: Grey
E43
Paint: Grey
E39
Paint: Grey
E34
Paint: Grey
E35
Paint: Grey
Note: arts 36 & 37 are sand-
wiched together to form a single
part. art 36 goes on the bottom
& art 37 goes on top.
Base
Base Cont.
Mast
Boom
Note: Orientation of the parts:
E43 - Top
E44 - Bottom
E42 - Sides
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 12

Mast TopSupports
Note: Do not glue support
feet E58 to bottom of sup-
ports. Simply fold & press fit
for now.
Note: arts E64 &
E67 are actually two
pieces you glue to-
gether to form a single
part. Glue the parts to-
gether with the relief
facing inside to form a
pulley wheel you can
pass wire through.
Note: arts E50, E51 & E54 are actually two
pieces you glue together to form a single part.
Glue the parts together with the relief facing in-
side to form a pulley wheel you can pass wire
through.
Note: Do not glue sup-
ports to top of mast.
Paint: Grey
Paint: Grey
E45
E49
Paint: Grey
E50
Paint: Grey
E47
Paint: Grey
E51
Paint: Grey
E51
Paint: Grey
E53
Paint: Grey
E52
Paint: Grey
E54
Paint: Grey
E54
Paint: Grey
E48
Paint: Grey
E46
Note: Orientation of the parts:
E48 - Top
E49 - Bottom
E47 - Left Side
E46 - Right Side
Note: Make 2 ea.
.005 wire or fishing
line (not included)
When Running this
line, leave lots of slack
for next assembly.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 13

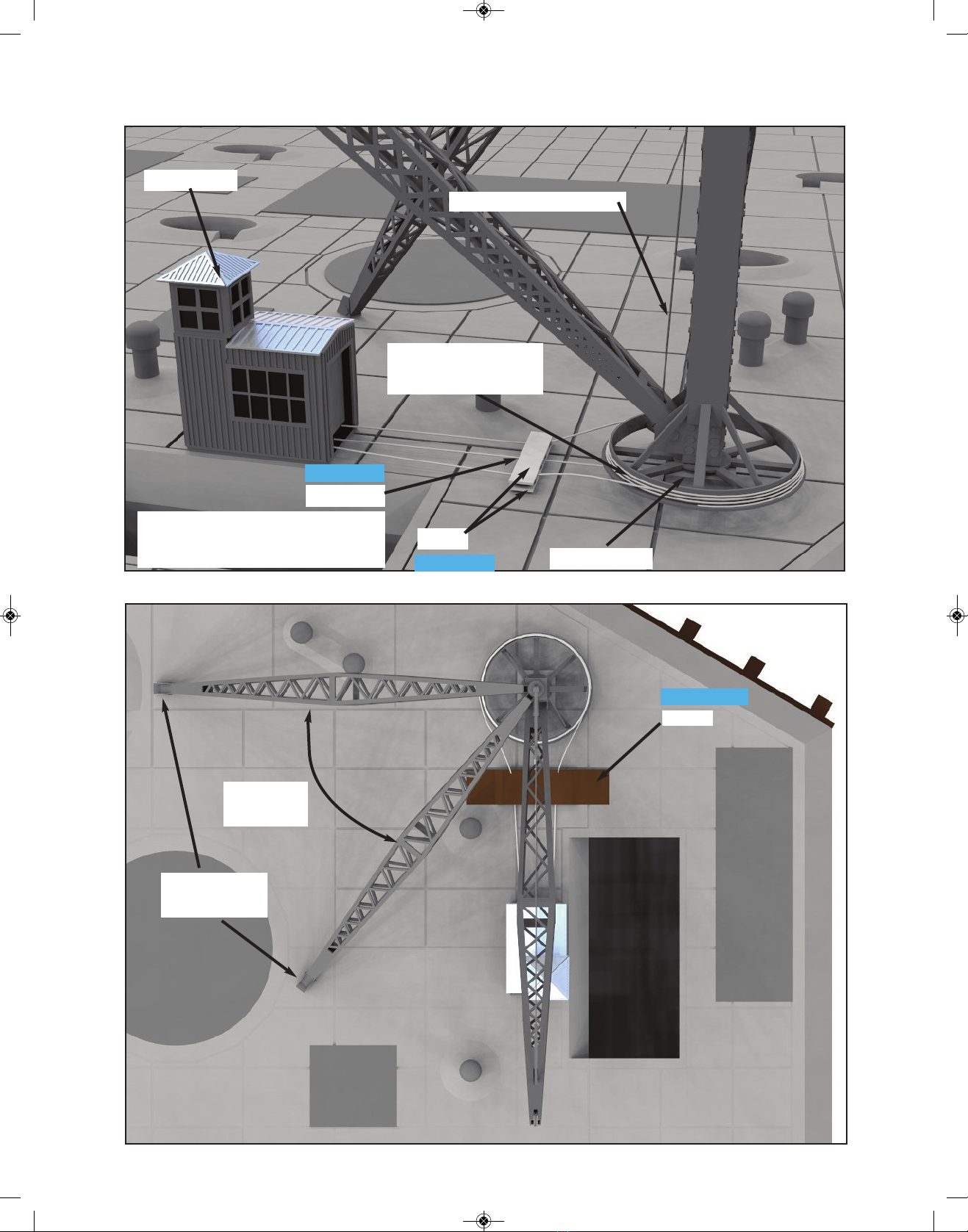

17. Derrick lacement
Hoist Bldg.
Derrick ost
E54 x 4
E55
E56
.005 wire or fishing
line (not included)
Line from Derrick top.
Make 4ea E67. Space them evenly
on E68 & glue. lace E68 on-top
to form a pulley sandwich.
45 Degree
Angle
Glue Support
Feet in-place
Paint: Grey
Paint: Grey
Paint: Wood
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 14

Completed Crane Assembly
18. Cage Mast
Paint: Grey
Paint: Grey
E57
E59 / E60
Fold until they
touch the cage.
Make latform by gluing
E59 & E60 together with
all relief on the outside.
This is the Cage Mast looking from front to
rear. Note the positions of the ladders as you
build the structure. This is what they should
look like when finished.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 15

Note: How to make the Cage Webbing fit together
perfectly.
Layout the part on a flat surface. Using a dowel,
gently begin rolling back and forth across the part.
Once you begin the rolling, apply gentle pressure
downward until the part begins to curl. Continue to
roll back and forth until the part almost completely
curls back upon itself.
Now take the ends and tack them together. Once
you have the ends all lined-up, finish gluing until
you form a cone-shaped part.
Paint: Grey
Paint: Grey
E59 / E60
Paint: O tside Canvas
Inside frame Grey
E61
Paint: O tside Canvas
Inside frame Grey
E67
Paint: O tside Canvas
Inside frame Grey
E68
Paint: O tside Canvas
Inside frame Grey
E62
E64
Paint: Grey
E69
Paint: Grey
E58 Paint: Grey
E63
Paint: Grey - slats Wood
E65 / E66
Glue E63 in-
place before
gluing E62
to E61
Make latform by gluing
E65 & E66 together with
all relief on the outside.
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 16

Paint: Grey - slats Wood
Paint: Grey - slats Wood
Paint: Grey - slats Wood
E73 / E74 E73 / E74
Make latform by gluing
E73 & E74 together with
all relief on the outside.
Make latform by gluing
E78 & E79 together with
all relief on the outside.
E70
E71
E72
Paint: Grey
Paint: Grey
Paint: Grey
E75
Paint: Grey
E78/ E79
E77
Paint: Grey
E76
Paint: Grey
E80
Paint: Grey
R15
Paint: Grey
Lens Silver
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 17

19. Yardarms
20. Cage Mast lacement
E81
Paint: Grey
E82
Paint: Grey
E83
Paint: Grey
E84
Paint: Grey
E85
E77 Ladder
Forward
Paint: Grey
Repeat Assembly for
port & starboard sides.
.005 wire or fishing
line (not included)
Cast Mast ad
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 18

21. Building lacement
22. Weapons lacement
Officer’s Quarters
Barracks
rojector Booth
14 Inch Main Guns
6 Inch Secondary Guns
3 Inch AA Guns
Radio Shack
Hoist Bldg.
Tool Shed
Water Towers
6 Inch Secondary Guns
Ft Drum Instructions_Ft Drum Instructions 4/12/12 9:11 M age 19

Top View
Side View
Stern View
Bow View
Completed Model
Ft Drum 1940
