Blue star Chfsd60dhsw User manual

Hard Top Chest Freezer

Models

CHFSD60DHSW CHFSD100DHPW CHFSD300DGSW CHFDD300DGSW

CHFSD100DHSW CHFSD150DHPW CHFSD300DGPW CHFDD300DGPW

CHFSD150DHSW CHFSD200DHPW CHFDD700DGPW

CHFSD200DHSW

User’s Manual

Hard Top Chest Freezer

Revised edition -

July

2020

No part of this publication may be reproduced in any manner whatsoever

without permission in writing from the President - Sales & Marketing, Products Business &

Corporate Management Representative, Blue Star Limited.

While due care has been taken to avoid errors or misinterpretation,

Blue Star Limited is neither liable nor responsible for consequence of

any action taken on the basis of this publication.

All contents applicable as on date of publication.

Modications may take place subsequently.

Published by

Blue Star Limited,

Vatika Atrium, 6th Floor, Sector-53,

Golf Course Road, Gurugram 122 002, India.

For restricted circulation only. Not for sale.

User’s Manual

Table of Contents

Letter from the President ........................................................................................................................... 4

Safety Information...................................................................................................................................... 5

Product Features ........................................................................................................................................ 8

Models Description ..................................................................................................................................... 9

Installation & Operation ............................................................................................................................. 10

Operational DOs & DON’Ts .......................................................................................................................... 13

Maintenance .............................................................................................................................................. 14

Troubleshooting ......................................................................................................................................... 15

Warranty .................................................................................................................................................... 16

Warranty Obligation for Customer .............................................................................................................. 18

Warranty Certicate ................................................................................................................................... 19

Liability Clause............................................................................................................................................ 21

24x7 Customer Care .................................................................................................................................... 23

E-Waste Management ............................................................................................................ Back Page Inner

Hard Top Chest Freezer

Dear Customer,

Congratulations on the purchase of your new Blue Star HardTop Chest Freezer, just one of the many

world-class products that we market.This superior product has been engineered for convenient and

optimum performance. It has been tested in the factory under actual operating conditions to ensure

you years of satisfactory and troublefree performance.

We are condent that time and performance will justify the trust you have placed in this product.

This manual will help you get the best of your Blue Star Hard Top Chest Freezer. Please spare some

time to go through this manual carefully.

In the unlikely event of your running into a problem, kindly check the Troubleshooting Chart to

diagnose the possible cause and take necessary steps. However, do not hesitate to approach your

dealer or the nearest Blue Star oce, if you require help. The list of Blue Star service oces is given

on page 23.

I do hope that you will enjoy using your Blue Star HardTop Chest Freezer.

With warm regards,

C P Mukundan Menon,

President - Sales & Marketing, Products Business &

Corporate Management Representative

Blue Star Limited

Letter from the President

User’s Manual

1. This appliance conforms to current safety requirements. Improper installation, adjustment, alteration,

service or maintenance or inappropriate use can, however, lead to personal injury and damage to

property.

2. To avoid the risk of accidents and damage to the appliance, please read these instructions carefully

before using it for the first time.

3. Keep these instructions in a safe place and ensure that other users including new users are familiar

with the contents.

4. Do not modify the power cord length or sharing of outlet with other appliances and don’t replace

the power cord with the damaged or unspecified power cord. It will cause electric shock or fire. If

the power cord is damaged, it should be replaced by authorised service person as specified by the

manufacturer.

5. Plug in the power socket properly. Loose plug in causes electric shock or fire due to heat generation.

6. Do not switch ON/OFF the appliance with wet hands. It may cause electric shock.

7. Use only dedicated power socket for supply to the appliance. Do not use an extension cord; it may

cause overloading and intermittent tripping of other appliances or household lights.

8. Never splash water on your appliance. It may cause short circuit.

9. In the event of an electrical short circuit, grounding (earthing) reduces the risk of electric shock by

providing an escape wire for the electric current. In order to prevent possible electric shock, this

appliance must be grounded. Consult a qualified electrician or service person if you have doubts on

whether the appliance is properly grounded. Improper use of the grounding plug can result in an

electric shock.

10. Never unplug your appliance by pulling on the power cord. Always grip plug firmly and pull it straight

out from the outlet.

11. When moving your appliance away from the wall, be careful not to roll over the power cord or damage

it in any way.

12. Unplug the power cord from the outlet for cleaning or other requirements. Never touch it with wet

hands because you can get an electric shock or be hurt.

Safety Information

Warning

Hard Top Chest Freezer

13. Never damage, process, pull out, or twist the power cord, because damage of power cord may cause

a fire or electric shock.

14. Do not place the lit candle within the appliance to deodorise. It may cause explosion or fire.

15. Do not use or store inflammable materials like ether, benzene, alcohol, medicine, LP gas, spray,

cosmetics or aerosol cans with flammable propellant near or in the appliance. It may cause explosion

or fire.

16. When any strange smell or smoke is detected from the appliance, disconnect the power plug

immediately and contact the service centre, for it may cause fire.

17. The appliance should be so positioned that the supply plug is accessible for disconnecting quickly

when an unexpected accident happens.

18. Do not operate any other electrical appliance (e.g. an electric ice cream maker) inside the Chest Freezer.

19. Do not store cans or bottles containing carbonated drinks or liquids (which could freeze in the freezer

mode). The cans or bottles could explode causing injury and damage to the appliance.

20. The cooler mode is for maintaining the pre-cooled products. This mode is not suitable to perform

fast pull down but it can maintain product temperature.

21. When the ambient temperature and relative humidity are high, there may be frost or water condensed

on the appliance. It's a normal phenomenon, please wipe it with the dry towel.

22. This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning the use of the appliance by a person responsible for their safety. Children

should be supervised to ensure that they do not play with the appliance.

23. For assistance and/or additional information, contact the authorised service centre, sales & service

dealer.

Caution

1. Before use, the appliance must be placed horizontally and on a levelled base. Only by this way an

unimpeded circuit of the refrigerant and optimum function can be ensured.

2. When your appliance is in operation, do not touch the cold surface in the cabinet, particularly with

your hands that are damp or wet. Skin could adhere to these extremely cold surfaces. It may cause

frostbite.

User’s Manual

3. Wait for 10 minutes or longer before reconnecting the plug. (It may cause the operation of the

appliance to fail.)

4. Do not install the appliance in a wet place or a place where water or rain splashes. (Deterioration of

insulation of electrical parts may cause electrical leakage.)

5. Deep-frozen ice cream and ice lollies must be eaten only after a few minutes of being taken out from

the appliance to avoid injury to lips and tongue (danger of skin detachment).

6. If you are not using the appliance for an extended period, leave the lid open to prevent odours

building up inside. When the appliance lid is open, always set the lock in closed position and keep

the key away from small children to prevent accidents.

Technical safety

This appliance contains a small amount of natural refrigerant (R290, R600a), a natural gas that is

environment friendly. Though it is ammable, it does not damage the ozone layer and does not increase

the greenhouse eect. When transporting and installing the appliance, care should be taken to ensure that

no parts of the refrigerating circuits are damaged. Refrigerant squirting out of the pipes could ignite or

cause an eye injury. In the event of eye contact with the refrigerant, wash your eyes instantly with plenty

of running water and call/consult an eye specialist immediately. If a leak is detected,

a) avoid any flames or anything which creates a spark,

b) switch off at the mains and unplug the appliance,

c) ventilate the room where the appliance is located for several minutes, and

d) call Blue Star Ltd.

The room must be 1 cubic metre in size for every 8g of R290 or R600a, whichever refrigerant inside the

appliance. The amount of refrigerant in your particular appliance is shown on the identication plate. The

refrigerant charge quantities are as per international standards. Never start up an appliance showing any

sign of damage. If in doubt, consult your dealer. The amount of refrigerant used in the appliance depends

upon the size of the room where it will be installed. This can prevent creation of ammable gas and air

mixture if a leak in refrigerating circuit occurs.

Hard Top Chest Freezer

Product Features

Robust construction for

heavy-duty use

Corrosion resistant body made of

pre-coated sheet

Tropicalised for high subcontinental

ambients

High density PUF insulation for

better holding time

High energy-eciency compressor

Spring-loaded hinges for trouble-free

opening and closing of lid

Locks in all models

Heavy-duty castors for easy

movement

Wide temperature range

convertible series - Freezer or Cooler

User’s Manual

Models Description

Model No. SKU DESCRIPTION

CHFSD60DHSW Chest freezer convertible 60 D series single door stucco inner

CHFSD100DHSW Chest freezer convertible 100 D series single door stucco inner

CHFSD100DHPW Chest freezer convertible 100 D series single door PP inner

CHFSD150DHSW Chest freezer convertible 150 D series single door stucco inner

CHFSD150DHPW Chest freezer convertible 150 D series single door PP inner

CHFSD200DHSW Chest freezer convertible 200 D series single door stucco inner

CHFSD200DHPW Chest freezer convertible 200 D series single door PP inner

CHFSD300DGSW Chest freezer convertible 300 D series single door stucco inner

CHFSD300DGPW Chest freezer convertible 300 D series single door PP inner

CHFDD300DGSW Chest freezer convertible 300 D series double door stucco inner

CHFDD300DGPW Chest freezer convertible 300 D series double door PP inner

CHFDD700DGPW Chest freezer convertible 700 D series double door PP inner

* Due to continuous product development, colours, features and technical specications are subject to change without

prior notice.

Hard Top Chest Freezer

Installation & Operation

Before the technician arrives, please ensure the following:

1. There is clear access to the area for new appliance installation and that it will fit into the space.

2. It is a dry, cool place with good ventilation to enable the appliance to work more efficiently.

3. There is a proper electrical power point (single phase, 230V; 6 Amp power socket with strong earthing)

which should be 2 metres above the floor/ground level.

4. Someone responsible is at home/shop to sign for the installation.

If the customer is uncertain that the appliance installation can meet the requirements listed above, please

do not hesitate to call for discussion on (Toll-free service centre phone 1860 266 6666/1800 209 1177)

the problem.

Installation

Blue Star’s dealer technician will carry out the installation of your Chest Freezer. However, for your general

information, the following aspects need to be taken care of during installation:

1. The appliance should be installed at a suitable site, on a good, firm and level surface.

2. Any floor unevenness should be corrected at the time of installation.

3. A gap of at least 6 inches (150mm) must be allowed on all sides to facilitate adequate air circulation

on all sides of the cabinet.

4. The appliance is full of fluid/refrigerant that is used to cool it. In transit, it may get shaken around,

so it is better to let it settle before it is plugged in.

5. Leave the appliance stand in the final position for at least 3 hours before switching it on, so that the

refrigerant circuit stabilises and no operating problems occur.

6. The appliance should be connected to a single phase 230V 50Hz AC supply by means of a three-pin

plug, suitably earthed. The wires in the mains lead are coloured in accordance with the following code:

Green : Earth Blue/Black : Neutral Red : Phase

7. It is recommended that the interior of the appliance be cleaned before putting it to use. Lukewarm

water containing a little bicarbonate of soda, mixed in the proportion of 1 teaspoonful of bicarbonate

to 500ml of water, should be used for the purpose.

User’s Manual

8. The outside of the appliance should also be cleaned before startup with soft dry cloth.

9. Test the Propane freezer to make sure, there are no leaks of both refrigerant and electrical power.

Operation

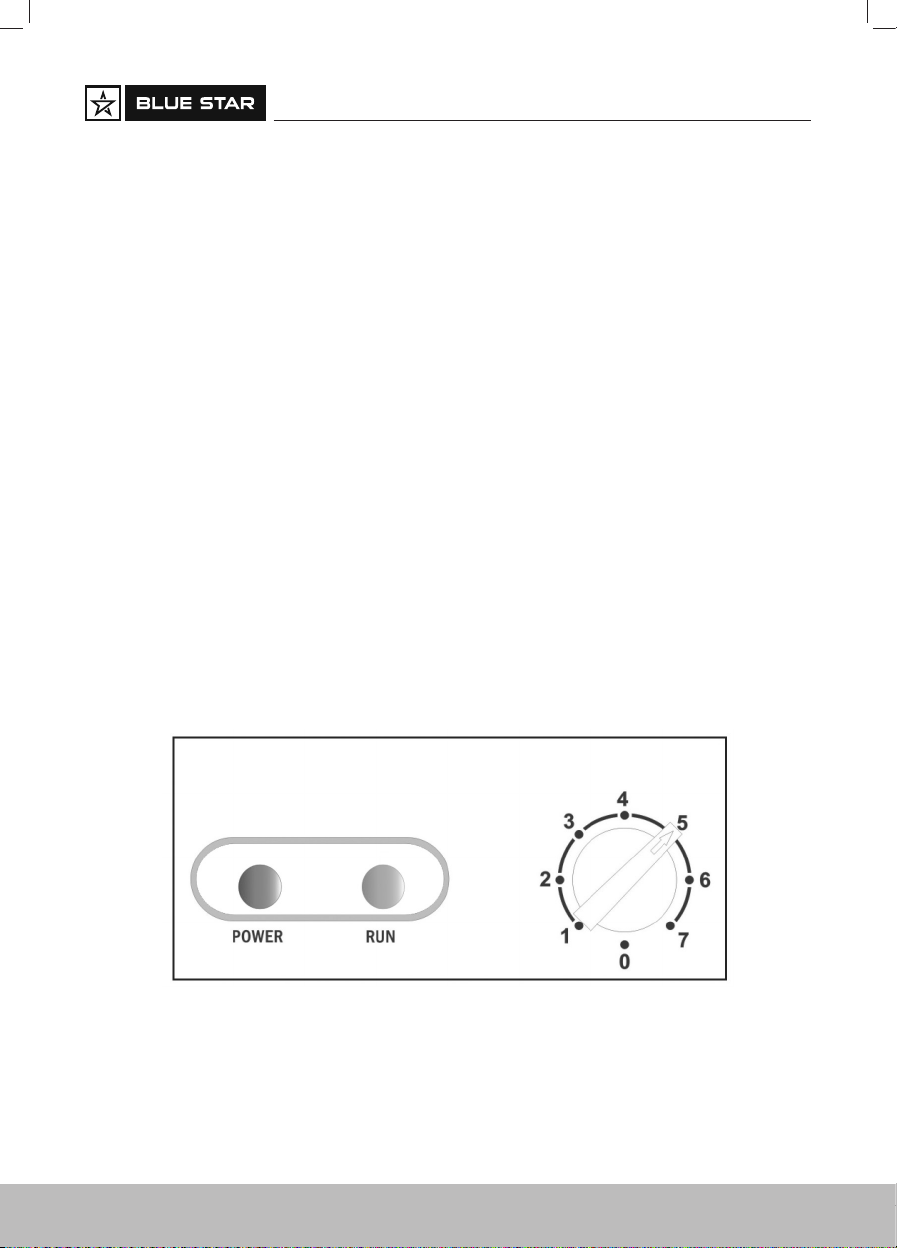

The red lamp lights up whenever the appliance is connected to live electricity supply.

The green lamp indicates that the compressor is running or not. It goes off automatically when the

temperature inside the cabinet reaches to set point as per thermostat knob setting.

The thermostat can be found on the front side of the appliance.

The thermostat knob can be used to set the desired temperature.

It can be adjusted as per the modes given below:

Freezer mode: From –14°C ± 2°C to –27°C ± 2°C.

Cooler mode: From 5°C to –6°C ± 2°C.

Handle

Control Panel

Wheels

Cabinet

Hard Top Chest Freezer

Thermostat

Plug in the appliance. Position of the thermostat knob at factory setting# is in freezer mode to maintain

–18°C inside the cabinet at standard test condition.

Temperature Selection

The temperature of the thermostat is set as described below:

Cooler mode: When the dial is in cooler position, the temperature inside the cabinet can be adjusted from

approximately 5°C to –6°C ± 2°C.

Freezer mode: When the dial is in freezer position, the temperature inside the cabinet can be adjusted

from approximately –14°C ± 2°C to –27°C ± 2°C.

Temperature setting must be according to:

– ambient temperature of the appliance

– quantity of stored food-items

– frequency & duration of lid opening

We recommend a factory setting.

You will soon learn which is the suitable setting for your requirements.

*The gure is indicative; it may vary from actual model

#Under standard test conditions, in controlled ambient temperature

Green LampRed Lamp

User’s Manual

DOs: ()

Store only frozen products.

Ensure that there is adequate air circulation on all sides and at the rear of your appliance.

Carefully clean and prepare each item and wrap in polythene or place in waxed cartons.

Keep the size of each package to a minimum. Square packages will utilise space more efficiently.

Switch on the appliance at least 3 hours before operating.

Clean the condenser with a blower every fortnight.

DON’Ts: ()

Avoid placing unfrozen food items in contact with the food items previously frozen.

Do not load the appliance with fresh produce in front. Frozen food items should be moved to the

front, and therefore packages should be carefully labelled.

Do not keep carbonated or any type of drinks in the appliance.

Do not open the lid of the appliance unnecessarily or frequently.

Do not load the appliance without any space. Some air space is necessary around the packs for

efficient temperature maintenance.

Do not turn the appliance ‘On’ immediately after turning it ‘Off’; wait for at least 10 minutes.

Do not move the appliance while it is in the ‘On’ state.

Do not keep the appliance near heat sources, below a fan or in direct sunlight.

For the Safety of Customers

If the user/customer smells a gas (in rare case):

1. Open windows.

2. Do not touch electrical switches.

3. Extinguish any open flame.

4. Immediately call freezer supplier/service centre.

Operational DOs & DON’Ts

Hard Top Chest Freezer

Maintenance

Frosting

Small amount of frost will accumulate inside the appliance, depending upon the frequency and duration of

the lid operation or the amount of moisture inside and relative humidity outside. It is essential to ensure

that no frost or ice is allowed to form at places where it will aect the close tting of the lid, which might

allow air to penetrate the cabinet, thus encouraging continuous running of the compressor.

Removing frost

Thin frost formation is quite soft and can be removed with a brush or a plastic scraper.

Do not use metal or sharp scrapers which may lead to removal of paint from the surface

of the cabinet.

Remove all dislodged frost from the cabinet floor. For the removal of light frost, it is not necessary

to switch off the appliance.

For removing heavy ice deposits, the appliance should be completely disconnected from

the power supply and emptied.

The contents should be placed in a cardboard box and wrapped in thick blankets or layers of paper

to keep them cold.

Cleaning

Clean the inside with warm water mixed with a little bicarbonate of soda and then dry thoroughly.

Wash all removable parts in the same way and reassemble. Do not forget to insert the drain plug.

Clean the condenser with the blower every fortnight.

Defrost Water Drainage Method

1. There is a water conduit at the bottom of the appliance; when defrosting, pull out the plastic cover;

defrosted water will drip into the hole and flow out. (Note: Please keep the plastic cover safe during

the defrosting and put it back after defrosting is done.)

2. Pull out the water conduit by 20-25mm until the water hole can be seen.

3. Twist the water conduit until the arrow points downward.

4. After defrosting is done, make sure there is no more water coming out; then put the plastic cover

back in place and make the arrow point upward.

User’s Manual

Troubleshooting

Symptoms Possible causes Suggested remedy

The temperature in

your appliance goes

to -10°C or higher

a. The appliance is not turned on • Check power supply and fuse

• Check indicating lights are glowing

b. The appliance is overloaded • Remove some contents from

appliance

c. The lid is not closed properly • Check there is no thick formation

of ice on the sides of the appliance

d. The thermostat is not set right • Adjust the thermostat setting

e. The unit is placed too close to walls • Locate the unit properly

f. The unit is placed near heat source

g. The condenser is choked • Clean the condenser

The temperature in

your appliance is

too low

The thermostat setting is high,

towards maximum Adjust the thermostat at right setting

Note: If you are unable to resolve the problem, please contact the nearest dealer.

Hard Top Chest Freezer

Warranty

1. This Chest Freezer is warranted, to the original purchaser, to be free from defects in material and

workmanship under normal use and service.

2. This Warranty will be limited to repair/replacement of any part, listed in the Warranty Obligation

page and found defective, ex-Branch Office within 48 months from the date of sale.

3. The defective parts must be sent to the Company, freight prepaid and insured, for the Company’s

examination and satisfaction that they are defective. Return freight and insurance on such repaired/

replacement parts plus any excise duty and taxes/levies will be extra.

4. Costs towards gas charging and technician visit will be charged extra after 1 year.

5. This Warranty will be valid only if the Chest Freezer is operated on a power supply of single phase

AC 230V ± 10%.

6. This Warranty ceases to be valid if:

(a) Service/repairs on the equipment are carried out by any person other than the one authorised

by the Company.

(b) The equipment is let on hire.

7. Any consequential damage or loss arising from any cause whatsoever, is excluded from this Warranty.

Any abuse of the machine is not covered under Warranty.

8. Failure/deterioration of any part/assembly, arising in the Company’s opinion, by reasons of shifting to

another location, accident, alteration, abuse/misuse, substitution of original part(s) with unauthorised

part(s) or any damage caused by fire/flood, etc., or exposure to weather conditions, are not covered

under this Warranty.

9. This Warranty will continue to be in force for the term herein specified irrespective of any replacement

parts which may be provided under Warranty and such replacement parts shall not carry any fresh

Warranty.

10. Employees and/or authorised dealers of the Company have no authority to vary the terms of this

Warranty. No person is authorised to assume, in Company’s name or on Company’s behalf, any other

obligation or liability in respect of this appliance.

User’s Manual

11. Any dispute whatsoever covering our Warranty terms, if not amicably settled, shall be referred to

mutually approved arbitrator, in Mumbai.

12. Warranty Registration: You can register your product warranty with Blue Star in two easy ways:

a. Visit https://www.bluestarindia.com/customer-service/warranty-registration and follow in-

structions therein.

b. Fill in the Warranty Certificate Cards in this manual and mail the lower card to the address

printed on the reverse.

Hard Top Chest Freezer

Warranty Obligation for Customer

Product Warranty Parts Covered Range (Parts not covered under

4 years of Warranty period)

Chest Freezer

CHFSD60DHSW

CHFSD100DHSW

CHFSD100DHPW

CHFSD150DHSW

CHFSD150DHPW

CHFSD200DHSW

CHFSD200DHPW

CHFSD300DGSW

CHFSD300DGPW

CHFDD300DGSW

CHFDD300DGPW

CHFDD700DGPW

4 years

comprehensive

warranty

1. Compressor

2. Internal Leak

3. Fan Motor

4. Thermostat

60 litres to

700 litres

1. Electrical cable

2. Bimetal/plastic body/lid

3. Grilles

4. Other plastic parts

(All handles, hinges, locks,

rubber/glass/plastic parts

and lights)

Cut and mail to Blue Star Ltd to the address on reverse. Customer Copy

Customer’s Name: .........................................................................................................................................................................

Address : .......................................................................................................................................................................................

......................................................................................................................................................................................................

Phone / Mobile No.: (O).............................................................. (R) .............................................................................................

Bill No................................................................. Date: .................................................................................................................

Model No. ............................................................. Serial No.........................................................................................................

Dealer’s Name & Address

Hard Top Chest Freezer

.......................................................

State

City



Dealer’s Name & Address

Hard Top Chest Freezer

Customer’s Name: .........................................................................................................................................................................

Address : .......................................................................................................................................................................................

......................................................................................................................................................................................................

Phone / Mobile No.: (O).............................................................. (R) .............................................................................................

Bill No................................................................. Date: .................................................................................................................

Model No. ............................................................. Serial No.........................................................................................................

.......................................................

StateCity

Dealer’s Signature & Stamp
