Blue Steri WTS User manual

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]
MODELS WTS (ICE)
User’s Manual
The WTS (ICE) range has been protecting people from harmful bacterial and viral contamination for decades. Even at low doses, UV radiation provides
protection against chlorine-resistant pathogens such as Cryptosporidium and Giardia. The models are engineered to sterilize the water supply of ice
machines, with results of instantaneous deactivation of contaminant loads and deodorization of water.
CONTENTS
1.1 Warnings for your safety
1.2 Security tags
1.3 Note from the manufacturer
1.4 Marking plate
1.5 Technical specifications of the product
1.6 Product unpacking
1.7 Remote control
1.8 Web APP Connection (options)
1.9 Downloading WiFi application
2.1 Starting WiFi connection
2.2 Safety instructions for maintenance
2.3 Equipment maintenance table
2.4 Electrical diagram
2.5 Device and component design
2.6 Installation instructions and examples
2.7 Reactor maintenance instructions
2.8 Laboratory certifications
2.9 Warranty conditions
3.1 Returns of Goods
3.2 Responsibilities and commitments of manufacturer and distributor
3.3 Certifications

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]
1.1 Warnings for your safety
The appliance must be operated safely, in accordance with the manufacturer's instructions and exclusively for the intended use. Improper handling may
cause damage to the equipmentand possible injury to the user. Do not store explosive substances, such as aerosol products containing flammable propellant.
If the power cord is damaged, it must be replaced by the manufacturer, service representative or similarly qualified persons to avoid danger.
For protection against injury, read and follow all safety instructions as indicated:
•DO NOT EXPOSE YOURSELF TO REFLECTIVE germicidal UV rays, they can be harmful to your eyes.
•All personnel should be alerted to the potential hazards listed on safety labels.
•This equipment is intended for indoor use.
•Do not use this unit for any purpose other than its intended use as described in this manual.
•If the insulation cable or plug is damaged, broken do not use the unit.
•Do not operate the unit if any damage is visible or suspected.
•Do not touch the lamps when the unit is in operation.
•Save these instructions and do not remove the safety and warning labels from the unit.
1.2 Safety labels
The following markings are used to indicate and classify warnings in this manual and on the product safety label. Failure to observe them could result in personal
injury or damage to property.
This symbol is used to identify the risk of electric shock.
This symbol is used to identify ultraviolet light hazards.
This symbol is used to identify the need to wear protective gloves.
This symbol is used to identify parts that should not be disposed
of in the trash.
This symbol is used to identify security alerts.
This symbol indicates that the lamp contains mercury.
1.3 Note from the manufacturer
Thank you for choosing BLUESTERI sterilization technologies. We have designed the devices in accordance with the applicable European directives and standards. We
developed applications for disinfection and cleaning of air, water and surfaces. There are four categories of light wavelengths that we use UV: UV-A, UV-B, Vaccum UV and
UV-C. The high energy from short wavelength UV-C light is absorbed into cellular RNA and DNA, preventing contamination and reproduction of microorganisms. The device's
construction relies on UV-C wavelengths at 254 nm to inactivate microorganisms such as bacteria, viruses and protozoa. UV-C energy is an effective, environmentally friendly
and chemical-free way to prevent the reproduction of microorganisms in any aquatic environment.
1.4 Marking label
The marking plate is located at the back. It contains the main technical data for the
equipment and identifies the MODEL and SERIAL NUMBER, which is vital information
for any queries to the manufacturer.
European Directive on waste electrical and electronic equipment.
The International (WEEE) Directive specifies that, at the end of the life cycle of an
appliance, its components and consumables should be sent separately to be recycled
or reused.
ADDRESS
BRAND NAME
MODELS
PRODUCT CODE
SERIAL NUMBER
YEARS
VOLTAGE FREQUENCY
INPUT POWER
1.5 Product technical specifications
All specifications are approximate and subject to change without notice. It is the operator's responsibility to determine and validate the suitability of the equipment for use in
the system or process.
MODEL
WTS (ICE) 8
WTS (ICE) 10
Product code
WTSICE8 / 00185
WTSICE10 / 00185
Power supply
220-240 V / 50 Hz
220-240 V / 50 Hz
Input power
8 W / 0.3 A
10 W / 0.4 A
Max. Power Consumption (W)
15
17
Flow rate (lt/h)
500
700
Rated flow at dose
30 mJ/cm2@ 95% UVT
30 mJ/cm2@ 95% UVT
UV Chamber Dimensions (mm)
(400 x 42)
(400 x 42)
Dimensions / Width, Depth, Height / (mm)
525 x 200 x 140
525 x 200 x 140
Power per lamp (W)
8
10
Ultraviolet output per lamp (W)
2.4
3.2
Service life (H)
9.000
9.000
Number of lamps
1
1
Weight (kg)
8
8
Operating pressure (bar)
6
6
UV Chamber Material
Copper pipe
Copper pipe
External finish
HPD material high pressure’s
HPD material high pressure’s
UV lamp
Low pressure
Low pressure
Quartz sleeve
Pure quartz (F200)
Pure quartz (F200)
Temperature sensor
OPTIONS TS180P
OPTIONS TS180P
UV sensor
OPTIONS TS1200P
OPTIONS TS1200P
Cabinet material
Stainless steel 304
Stainless steel 304
Approvals
CE marked
CE marked

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]
1.6 Product unpacking
We recommend the use of safety gloves when performing this task. The construction and operation of each piece of equipment is strictly tested at the factory. Confirm that the
features match the order specifications. We remind you that our constant search for technological improvements means that, changes to the equipment described in this
manual may be carried out without prior notice.
•Remove the shipping box.
•Inspect the unit carefully, report any damage immediately.
•Do not operate if there is visible or suspicious damage.
•Carefully inspect all packing materials to prevent loss of components, parts or start-up guide.
•Carefully remove the device from the shipping box.
•The ultraviolet lamp is installed.
•Plug the power into the wall outlet and the unit will automatically turn on.
1.7 Remote control
With the remote control device you can control the device remotely.
1.8 Web APP WiFi Connection (options)
The switch (10) activates a 433 MHz RF receiver. The internal remote control switch allows users to
remotely activate or deactivate connected devices via the EWeLink application from anywhere in the
world.
The wireless device switch transmits data to a cloud platform via the WiFi router, which allows users to
remotely control all connected devices via the eWeLink APP.
Sonoff RF's cloud server is the Amazon AWS global server, with capabilities to set schedules for the
devices, which can include countdown, scheduled on/off, and therefore can help customers maintain an
easy and seamless usage.
The iOS version of the app can be downloaded on the AppStore, while the Android version can be
downloaded on Google Play.
1.9 Downloading the app WiFi
2.1 Launch WiFi connection
After switching on, the device will enter the quick
pairing (Touch) mode in first usemode. The device
will close the Quick Pairing (Touch) mode if the
Wi-Fi connection is not successful within 3
minutes.
If you want to enter this mode, press and hold the
manual button for about 5 seconds until the Wi-Fi
LED changes to a cycle of two short and one long
flash and release.
Press "+" for operation following the message in the app
FCC warning
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20 cm between the radiator of the
appliance and your body. This transmitter should not be located or operated in conjunction with any other
antenna or transmitter.
Shenzhen Sonoff Technologies Co.,Ltd.
Declares that the BASICR2/RFR2 type radio equipment complies with Directive 2014153/EU.
TX frequency:WiFi: 2412-2472 MHz / RX frequency:WiFi: 2412-2472 MHz / SRD: 433.92 MHz (RFR2).
2.2 Safety instructions on maintenance
To carry out maintenance, we recommend the use of protective equipment such as gloves.
Always disconnect the power plug from the power outlet before performing any maintenance or connection.
Technical maintenance and other operations should only be carried out by authorised technicians, using genuine spare parts. The manufacturer accepts no liability arising
from incorrect use of the product or failure to comply with the instructions contained in this manual.
2.3 Equipment maintenance table
Microbicidal lamp.
Recommended cleaning schedule
Once a year and depending on the quality of the
incoming water we treated.
Replacement period
Only if damaged.
Once the life cycle of 9,000 hours of operation is
completed.

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]
2.4 Electric diagram
2.5 Device and component design
1
External protection cover
8
Supply cable
2
External cover hinges
9
Device activation switch
3
Lamp start indicator
10
Activation switch (Wifi options)
4
Water outlet connector
11
UV lamp
5
Water inlet connector
12
Copper reactor
6
Floor wall bracket
13
Installation supply switch
7
Electrical panel
14
Water inlet switch
2.6 Instructions and installation examples
WTS ICE appliances have been designed in a way that allows them to be installed in
multiple locations such as on the floor of internal kitchen cabinets or supported on walls
next to consumption points.
They can serve the supply of the ice maker and at the same time the consumptionof a tap.
The external stainless steel cabinet allows us to place objects on top of the appliance.
For the placement of the device we must have the most ideal
position, without having the possibility of support from
sockets of the device on the point (6).
Insert the cable of the package into the power input of
the device (8) and then into the appropriate socket.
Place the water supply to theappliance at the point
(5) and the return of the appliance (4) to your
consumption.
Switch on the device by the on/off button (9).
Use the wireless on/off control to activate the device
from a distance of up to 8 metres.
When the lamp is switched on you will see the
colour of the indicator lamp (3) is red
.
2.7 Reactor maintenance instructions
A
Lamp disconnection rakor
Β
Electrical supply connector
D
Sealing connector
E
Fixed lamp rakor
F
Consumption supply valves
G
Ultraviolet lamp
K
Internal copper lining
L
Water inlet valve & 10mm hose
The drawing above shows the components that are included in the UV reactor. To replace the lamp, we must have drained the water from the device by closing the water inlet
tap (L) in the reactor and opening the consumption supply (F) to depressurize the internal pressure of the reactor. We then need to rotate the rack (A) counterclockwise and
watch that it will detach from the fixed rack (E). Pull back the fitting pulling the lamp and the rubber connector (D). Disconnect the power supply connector (B) from the lamp
and remove the lamp from the reactor.
Replace the new bulb in the reactor and fit the rubber sealing connector (D) to the fixed connector (E). Connect the power plug (B) to the bulb and screw the rack (A) clockwise
to the fixed connector (E) until it terminates. Open the supply from the valves (F) and check for any leaks between the rack (A+E). If there is no leakage you can switch on the
device.
CAUTION: To replace the lamp. To replace the lamp, disconnect the appliance from the power supply and depressurize the water
pressure. Wear gloves throughout the replacement process.

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]

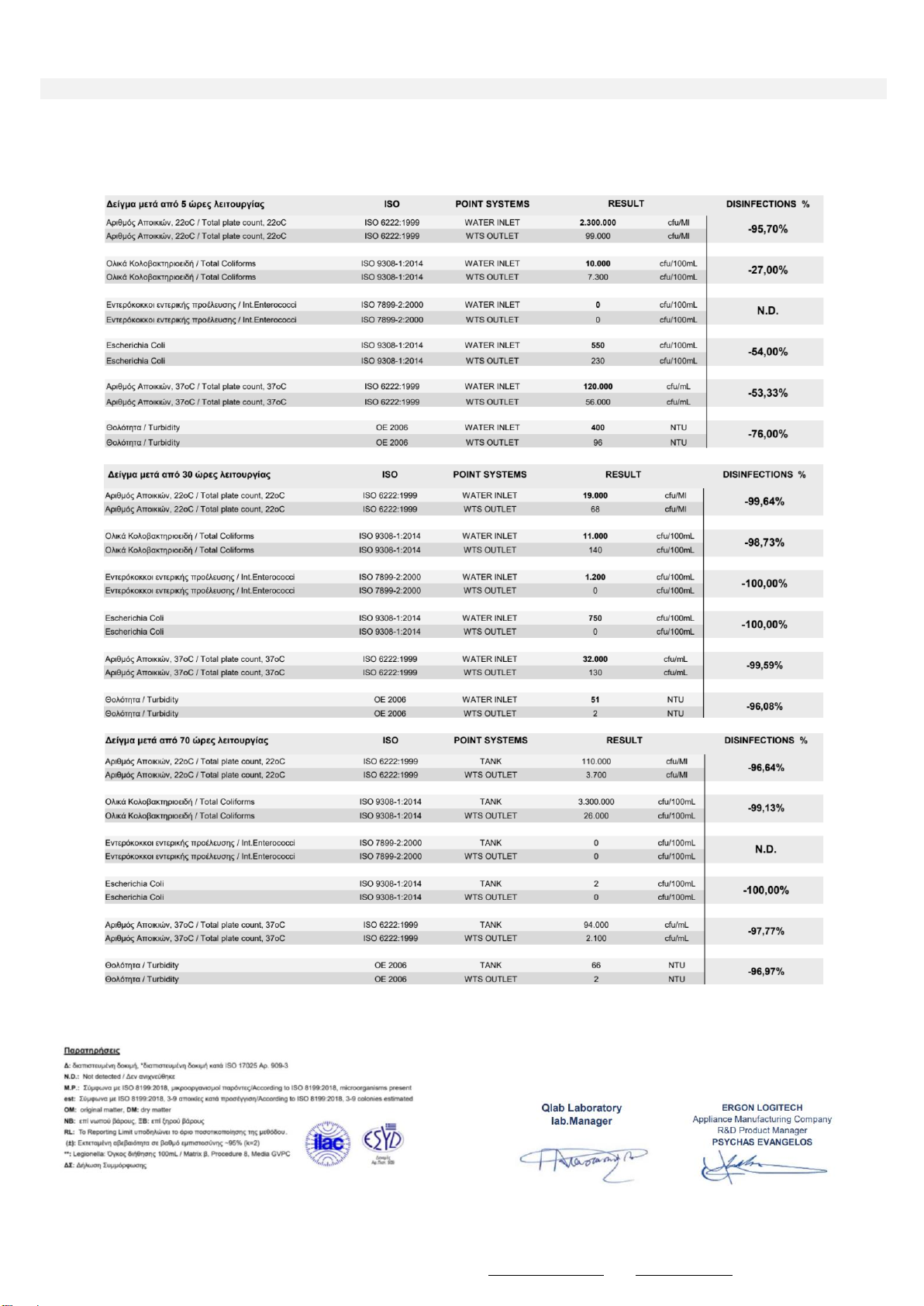

2.8 Laboratory Certifications
CERTIFICATE OF ANALYSIS / Issuing date of certificate: 9/8/2022
REPORTING MICROBIOLOGICAL RESULTS: Our company will not share microbial analysis for its clients' installations as every one of their results are confidential. The following analysis
come from an independent agent that provides the infectious load (contamination) for the devices' microbial certification/ ISO 17025 NO. 909-3 LABORATORY QLAB.
Λεωφ. Κων/νου Καραμανλή 122, Διαβατά, Θεσσαλονίκη, 57008
Konstantinou Karamanli Avenue 122, Diavata, Thessaloniki, 57008
Τ: 2310 784 712 , F: 2310 784 713 Email: [email protected],Web: www.q-lab.gr

ERGON LOGITECH LTD - ΚΑRATASOU 6ΑSINDOS - PC 57400 - GREECE T [phone] / https://www.ergonlogitech.com / e-mail:[e-mail]
2.9 Warranty Conditions
The guarantee is valid only in case of possession of the purchase document. The two (2) year warranty covers, based on proper operation of the device, the electrical
equipment management board. Maintenance, with compatible consumables and by an authorized service is a prerequisite.
Warranty is void for damage caused by failure to follow the instructions accompanying the product at the time of purchase. Failure to comply with periodic inspections,
maintenance, repairs or replacement of parts from normal wear and tear. Use of incompatible spare parts or consumables. Compatibility is ensured only by using products
purchased or recommended by our company. Damage caused by modification of device/system without prior consent of the company. Improper use of the product, drop.
Modifications or repairs by unauthorized personnel.
3.1 Returns of Goods
To return defective materials, you must request a return authorization by sending an email to the store where you purchased the device or by calling their phone number. Only
authorized products will be accepted, otherwise they will be rejected and returned to the sender.
3.2 Responsibilities and commitments of the manufacturer and the distributor
The company assumes no responsibility for any damage to persons or property due to failure to follow the instructions or use of the technology without the prescribed safety
provisions. We recommend that you carefully read all instructions or consult our engineering department. The manufacturer agrees with the purchaser to furnish, upon request,
circuit diagrams, parts lists, instructions for calibrating lamps and other information useful in repairing parts that the manufacturer deems repairable. The company reserves
the right to make changes without notice.
3.3 Certifications
European Community Certifications: EU LVD 2014/35/EU with the following Standards IEC EN 60335 -1 IEC EN 60335 -2 IEC EN 60529 IEC EN 60417.
Microbial certification / ISO 17025 NO. 909-3 LABORATORY QLAB for the devices' microbial certification/ ISO 17025 NO. 909-3 LABORATORY QLAB.
