NDS SMARTCHARGER SCM25 User manual

!
1
SMARTCHARGER
User manual
Valid for the following model
SCM25

!
2
instructions for the proper disposal
This electronic device is subject to the European
Directive 2012/19/EU. According to the local waste
disposal rules, do not dispose of old products with
normal household waste. The proper disposal of
products that can no longer be used prevents potential
negative consequences for the environment and for the
population.

INDEX
1. Introduction 2
2. Contents of the pack 3
3. main features 4
4. Preliminary process 4
5. Installation 5
6. Start the charge 6
7. Charging curves 9
8. Technical features 13
9. warranty 15

1. Introduction
Easy to use, Automatic, Professional battery charger
with advanced microcontroller and the whole New
OPTICHARGE firmware algorithm.
SMARTCHARGER is perfect for daily battery charging
and every technology, and maintenance in every
application, including: Cars, Motorcycles, Nautical,
Campers, Work vehicles, etc…
SAFETY INSTRUCTIONS
• Child Safety: Keep the device Out of Reach.
• Carefully check the integrity of the device and
connectors.
• To avoid overheating and possible fires do not install
the device in a sealed environment, Always choose a
well ventilated area.
• Do not place the device on highly flammable
surfaces or environments (eg: paper, cloth, etc.).
• Do not cover the cooling slits on the side and the fan
on the top.
• Do not install the device near wet batteries: they
produce flammable, corrosive and explosive gas
while working, and it can damage the product.
• Protect the device from sunlight or direct sources of
heat.
• To avoid malfunctions, DO NOT install and use the
device in very humid environments, in contact with
water splashes, various liquids, or exposed to rain.
• To avoid risk of electric shock and/or fire, the
vehicle's fuel system must be in good condition.
• In case of damaged connecting cables or
inadequate section, immediately replace them with
suitable cables as specified by this manual or by a
qualified electrician.
• In case of anomalies in the conformity of the
product do not use it! it is strictly forbidden to open
the device. Repairs may only be carried out by
2

qualified technical personnel using original spare
parts.
• Keep the instruction manual near the device for
easy access to the essential safety, use and
maintenance information.
• The information contained in this manual may be
changed without notice. NDS Energy s.r.l. reserves
the right to make changes and improvements to the
product at any time without notice and without
obligation to apply these changes to the devices
previously distributed.
• The images of the products are purely indicative and
may therefore not be fully representative of the
characteristics of the product, differing in color, size
or accessories.
2. Contents of the pack

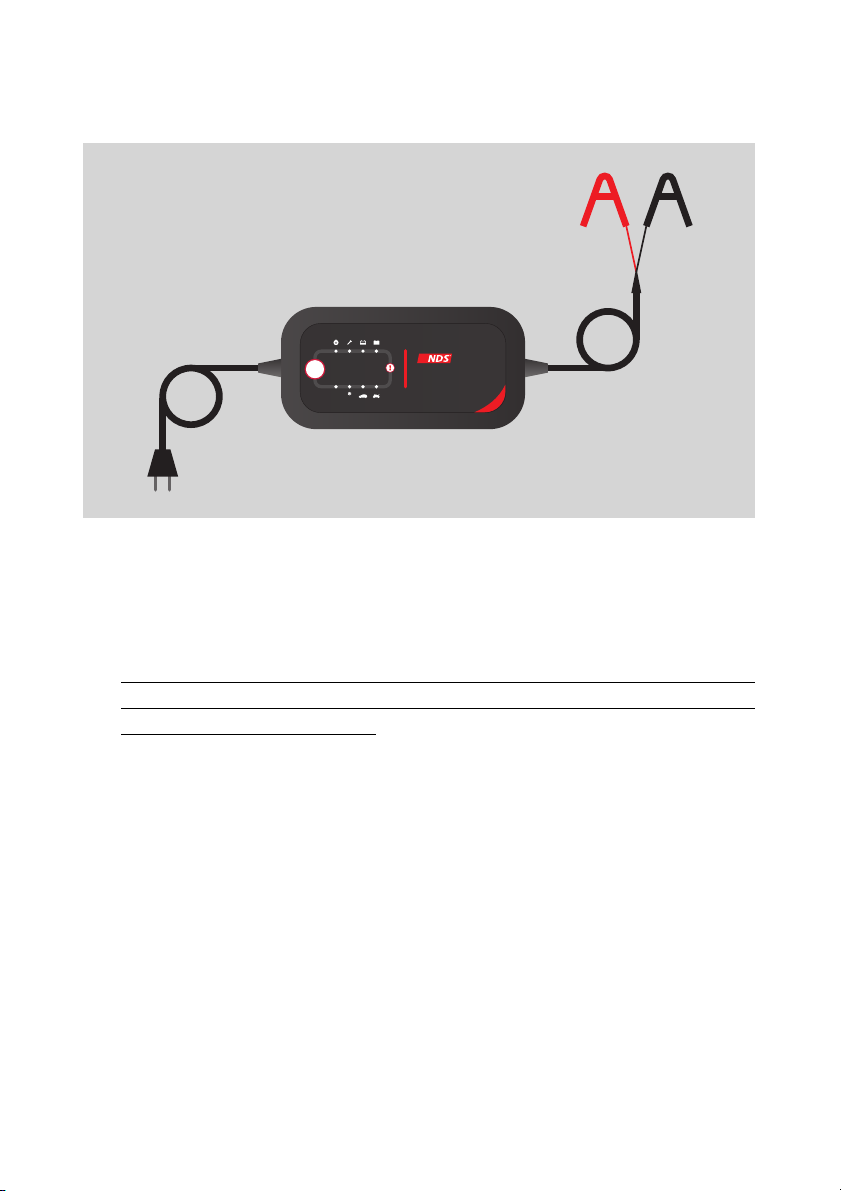

Check the package contents:
•N°1 SMARTCHARGER with clamp connectors
terminals, and power cable connector.
3

3. main features
•Plug and play.
•OPTICHARGE the new firmware algorithm to check
the battery status and optimize the charge.
•Specific Charging curve Ideal for every battery
technology, lithium batteries included.
•Up to 9 charging steps.
•IP20 protection.
4.Preliminary process
1. Remove battery from vehicle (if necessary).
2. Clean the terminals.
3. In case of lead acid Wet battery Add distilled water
in each cell until battery acid reaches level specified
by battery manufacturer. Do not overfill!
4. Before to start, always remove grounded connection
from battery and Make sure all the appliances in the
vehicle are off.
5. Be sure that the area around battery is well
ventilated while battery is charging.
4
CAUTION
To charge an engine battery
directly inside the vehicle
connect the negative clamp
to the vehicle chassis (usually
connected to the battery
negative pole), then the
positive clamp to the battery
positive pole.
POSITIVE
CLAMP ON THE
BATTERY POLE
NEGATIVE
CLAMP ON
THE CHASSIS
+
-

5. Installation
1. CONNECT THE DEVICE CLAMP CONNECTORS
TERMINALS TO THE BATTERY!
The Red terminal to the positive battery pole and
black terminal to the positive battery pole. "
Switching the connection polarity on the battery
poles will stop the charge and SMARTCHARGER will
light up the error led!
2. CONNECT SMARTCHARGER TO AC POWER
SOCKET.
3. IF POWER INDICATOR LED IS ON,
SMARTCHARGER IS READY TO CHARGE.
4. SET THE CORRECT CHARGING CURVE PRESSING
THE MODE BUTTON!
The Charging curve depends on battery technology
and specifications. "
See the curve description at Page 9.
5
AGM
LITHIUM
LiFePO4
SMARTCHARGER
MODE

6. Start the charge
The SMARTCHARGER led menu let immediately
understand the selected charging curve and the
running charge step.
6
ICON
STATE OF CHARGE
Selection Button - Curve selection and reset during charge
Power status Led
Error Led - short circuit, reverse polarity, bad battery
Battery is Charging
Full charge / maintenance mode on
Car battery charging curve
AGM batteries / Cold temperature charging curve
Lithium (LiFePO4) battery charging curve
DC Power Supply mode
Voltage output selection
SCM25
12V SMARTCHARGER
SCM25 12V / 25A
24V / 12,5A
AGM
LITHIUM
LiFePO4
24V MODE
DC
AGM
LITHIUM
LiFePO4
MODE
DC
12V
24V

See the charging curve full description (Page 9).
Follow this steps to start the charge:
1. Connect the SMARTCHARGER to the battery (P.5),
then plug the AC power socket. The power status led
will turn on."
"
"
"
"
2. Select charging voltage by pressing the 12V / 24V
Button
3. If everything is ok SMARTCHARGER will start
charging directly. "
Use the “MODE” selection button to switch between
auto, AGM, Lithium, charging curve. "
"
"
"
When a charging curve or mode is selected, the
process will start.
4. SMARTCHARGER will check battery status before to
start. If the battery is ok the charge will start
normally (step 6), if not the device will try to recover
the battery (step 5).
5. If there’s something wrong with the battery
SMARTCHARGER will try to recover by the Rescue
mode."
Rescue can take 30 to 120 minutes."
"
7
NOTE
If the AC power socket is connected before connecting the
clamps to the battery, the error led will be turned on
Connect the clamps to the battery then push the mode selection
button to restart the process.
MODE
AGM
LITHIUM
LiFePO4
12V
24V

"
Charge will turn to “Normal charge” (step 6) when
the battery is recovered. If battery can’t be recovered
the error led will be light up."
"
"
6. If everything is ok the “Normal charge” will start and
the charging led will light up.
"
7. The full charge / maintenance led will light up when
the battery is fully charged and now is in trickle
charge: If the voltage drops down SMARTCHARGER
sends current to the battery. SMARTCHARGER can
be connected for months without any trouble.
Using the Power Supply function:
The DC Power Supply function is not suitable to charge
batteries, so don’t use this function with a battery
connected.
Selecting this function:"
the device will deliver 27V at 12,5A and 13,5V at 25A.
8
NOTE
If the Lithium battery (LiFePO4) is deeply discharged and the
function UVP (under voltage protection) disconnects the battery
to prevent damages, the SMARTCHARGER will be not able to
charge. In fact this protection interrupts the connection between
battery and chargers/appliances and the SMARTCHARGER will
detect no battery.
To solve this problem press the “MODE” button for 5 seconds and
release until the “LITHIUM LiFePO4”led light will be turned on,
after that the charge will start normally.
DC

8. Charging curves
The new “OPTICHARGE”firmware engineered by NDS
software team optimize the battery charge according
to the battery technology using optimal charging
parameters and constantly checking current and
voltage levels to let you have always ready to go and
healthy batteries. "
With OPTICHARGE you will have the best charging
experience ever created by NDS, the easiest way: just
p l u g t h e d e v i c e i n t o t h e p o w e r s o c k e t ,
SMARTCHARGER will do the rest!"
"
SMARTCHARGER SCM25 - 4 different charging
program: auto, AGM, Lithium, DC. Suitable for auto and
motor vehicle, RV, marine, truck.
9
SCM25 - CHARGING CURVE
14,4V / 25A
14,7V / 25A
14,4V / 15A
13,5V / 25A
28,8V / 12,5A
29,4V / 12,5A
/
27V / 12,5A
AGM
LITHIUM
LiFePO4
DC
2V
RESCUE SOFT START PULSE
CHARGE
RECONDI-
TIONING
BULK
CHARGE
ABSORPTION
CHARGE
FINAL
CHECK
MAINTE-
NANCE
PRELIMINARY
CHECK
BATTERY
VOLTAGE
CHARGING
CURRENT

10
SCM25 at 12V/25A - PHASES DISCUSSION
PRELIMINARY CHECK
Battery status Check. "
Charge will not start with voltage under 2.0V
and more then 15,5V
RESCUE
For deeply discharged battery: current will
be 500-800mA at 16V for 5 seconds until
voltage reduces to 14V (2 hours max timeout)
SOFT START
If battery voltage is between 2.0V–6.0V a 5A
current is delivered to re-activate the battery
elements, until voltage rises above 6V (2
hours max timeout)
PULSE CHARGE
If battery voltage is between 6.0V-10.5V,
current will be at 5A and 12,5A for 5 seconds
alternately (4 hours max timeout)
RECONDITIONING
After Pulse charge, If battery voltage reaches
10.5V–12.0V smartcharger will constantly
deliver 12,5A current to charge the battery
until it has risen over 12.0V. This stage will not
be carrying over 8 hours, otherwise the
battery is classified as defected.
BULK CHARGE
If battery level has reached 12.0V-13.6V. A
constant current 25A, will charge the battery
until it has reached 80% of the capacity.
ABSORPTION
CHARGE
If battery level is between 13.6V-14.4V (14.7V
for AGM), Smartcharger will switch to
Constant voltage mode: output current will
automatically adjust as according to the raise
of battery voltage. The charge will stop at
14.4/14.7V. Smartcharger will turn on the Full
charge icon led if the current reduces to 1.5A.
FINAL CHECK
Battery voltage is monitored for 1 minute. If
voltage has a dramatic drop down under
12.2V, the battery will be classified as
exhausted and the error led will turn on. If
voltage can be retained at 1 minute, then the
Maintenance mode will start.
MAINTENANCE
Battery maintained at 13,7V, a proper work
level to be kept always ready to go. "
If voltage drops below 12V, smartcharger will
restart from bulk charge

11
SCM25 at 24V/12,5A - PHASES DISCUSSION
PRELIMINARY CHECK
Battery status Check. "
Charge will not start with voltage under 2.0V
and < 31V
RESCUE
For deeply discharged battery: current will
be 500-800mA at 16V for 5 seconds until
voltage reduces to 28V (2 hours max
timeout)
SOFT START
If battery voltage is between 2.0V–12.0V a
2.5A current is delivered to re-activate the
battery elements, until voltage rises above
12V (2 hours max timeout)
PULSE CHARGE
If battery voltage is between 12.0V-21V,
current will be at 2,5A and 6A for 5 seconds
alternately (4 hours max timeout)
RECONDITIONING
After Pulse charge, If battery voltage reaches
21V–24.0V Smartcharger will constantly
deliver 6A current to charge the battery until
it has risen over 24.0V. This stage will not be
carrying over 8 hours, otherwise the battery
is classified as defected.
BULK CHARGE
If battery level has reached 24.0V-24.0V. A
constant current 12.5A, will charge the
battery until it has reached 80% of the
capacity.
ABSORPTION
CHARGE
If battery level is between 27.2V-28.8V (29.4V
for AGM), Smartcharger will switch to
Constant voltage mode: output current will
automatically adjust as according to the raise
of battery voltage. The charge will stop at
28.8/29.4V. Smartcharger will turn on the Full
charge icon led if the current reduces to 1.5A.
FINAL CHECK
Battery voltage is monitored for 1 minute. If
voltage has a dramatic drop down under
24.4V, the battery will be classified as
exhausted and the error led will turn on. If
voltage can be retained at 1 minute, then the
Maintenance mode will start.
MAINTENANCE
Battery maintained at 27.4V, a proper work
level to be kept always ready to go. "
If voltage drops below 12V, smartcharger will
restart from bulk charge.

12
SCM25 LITHIUM (12V only) - PHASES DISCUSSION
PRELIMINARY CHECK
Battery status Check. "
Charge will not start with voltage under 2.0V
and < 14V
RESCUE
For deeply discharged battery: current will
be 500-800mA at 13,8V until voltage will be
>11,5V (2 hours max timeout)
CHECK
If battery voltage＞10.8V, Smartcharger
moves to next step
BULK CHARGE
If battery level has reached 13.8V. A constant
current 25A, will charge the battery when the
current reduces to 1.5A
ABSORPTION
CHARGE
If battery level is between 13.8V-14.4V,
Smartcharger will switch to Constant voltage
mode: output current will automatically
adjust as according to the raise of battery
voltage. The charge will stop at 14.4V.
Smartcharger will turn on the Full charge
icon led if the current reduces to 1.5A
FINAL CHECK
Battery voltage is monitored for 1 minute. If
voltage has a dramatic drop down under
12.2V, the battery will be classified as
exhausted and the error led will turn on. If
voltage can be retained at 1 minute, then the
Maintenance mode will start
MAINTENANCE
Battery maintained at 13,8V to be kept always
ready to go. Routine is: 2 minutes charge and
2 minutes pause for 12 hours, then stop. "
If voltage drops below 13,15V, the
maintenance mode routine will restart. "
If voltage drops below 12V, the smartcharger
will restart from bulk charge.
NOTE
THE red DOTTED box underlines the whole rescue
mode section that is activated only in case of battery low
performances.

9. Technical features
13
SMARTCHARGER SCM25
Output rated voltage
12V
24V
Output charging current
25A
12,5A
Input rated voltage
220-240V
220-240V
Input rated current
2,4A
2,4A
14,4V / 25A
28,8V / 12,5A
14,7V / 25A
29,4V / 12,5A
14,4V / 8A
Not supported
13,5V / 25A
27V / 12,5A
Charging curves
AGM, Wet, Lithium
Charging method
9 steps
9 steps
Activation voltage
2V
2V
Battery Charge Capacity
50-350Ah
Battery Maintenance Capacity
Up to 500Ah
Protection
IP20
AGM
AGM
LITHIUM
LiFePO4
DC

14

10. warranty!
15
NDS ENERGY S.r.l. Via G. Pascoli, 169 65010 Cappelle sul Tavo (PE) Italy
email: [e-mail] tel: [phone] fax: [phone]
STAMP AND SIGNATURE OF THE SELLER
WARRANTY COUPON (24 MONTHS)
MODEL_________________________________________________________________________
SERIAL NUMBER________________________________________________________________"
PURCHASE DATE_______________________________________________________________

16

17

18
ALL THE ENERGY YOU NEED
TUTTA L’ENERGIA CHE TI SERVE
0053_MANU_SmartCh_GB01
NDS ENERGY s.r.l."
Via Pascoli, 169"
65010 Cappelle sul Tavo (Pe) Italy"
Tel.:[phone]"
Fax: [phone]"
Web: www.ndsenergy.it"
Email: [e-mail]"
LIKE US: facebook.com/ndsenergysrl
