Blueberry TOMCAT User manual

User Manual

1
Index:
Features, 2
Basicoperation 3
Buttondescription 5
Mainmenu 6
Musicplayer 7
Movie 8
FM 9
FMTRANSMITTER 11
Pictureview 14
E-book 16
Record,Filemanager 18
SD card manager
Game 19
Systemsettings 23
Download 24
UpgradeandVideoConvert
26
Troubleshooting 29
Specifications 30

2
FEATURES:
Support AVI/MP4/3GP various Video formats (other formats can be
converted by software.
Support MP3/ WMA/WAV/AAC various Music formats ，lyrical
display，5 EQ modes etc.
Support Audio formats as following：
MP3：MPEG1 level1～3、MPEG2 level1～3、MEPG2.5（Tiptop
compression ratio 320kbps，48KHz Sample rate）；
AAC/AAC+：320kbps，48KHz Sample rate；
WMA：WMA9.1，192kbps，48KHz；
Support Video formats as following：
MPEG-4 codec：Sample profile level1~3，CIF30fps（decoder）/
CIF15fps（Encoder）；
H263 codec：baseline level1～3，CIF30fps（decoder）/ CIF15fps
（Encoder）；

3
Support Video file formats as following：
3GP、MP4、AVI
3GP = Audio(AAC) + Video(H.263 or MPEG4), General 5-15fps
MP4 = Audio(AAC or MP3) + Vi(H.263 or MPEG4), General <30fps
zSupport E-book.
zSupport browse various picture formats of JPG,BMP,GIF
etc,and also support 90°circumvolve the pictures .
zHigh Quality Digital FM，Support Auto /Manual searching
modes，and European/Japan frequency mode.
zSupport multi games, such as Explode pigboat,Throw egg,Bet
21,Color block, Russian Diamonds and Guess,
zUSB Full speed 2.0
zSupport WIN98SE ／ME WIN2000 ／WIN XP operation
System
zSupport Mini SD card write /reader function;
zSupport Nand flash ；
zSupport Multi-languages
zSupport Playing list management；
zSupport Firmware Upgrade；

4
1．Basic Operation
1. Power on ：Pull the Power key to on position and shortly press
“Play” key
2. Power off：long time press “Play” key and put the power key to
off position.
3. System will auto power off and stand by when low battery
power. Don’t power on the machine again.
4. In the menu, Press “Play” key to confirm the item. Press ““▼”or
“▲ “direction key to move the cursor.
5. Under FM model, music playing or video, press ““+”or“-”
button to change the volume.
6. When playing music and Movie, shortly press Play key to play
or pause.
7. The screen saver program will start when no operation ，
Press any key to return normal displaying.
8. In normal situation, press ESC key to return upper-menu
when playing music or FM. The music and FM will not terminate.

5
2. Button description
1．MIC;
2．▲UP key
3．ESC
4．forward Key

6
5．- Volume Down Key
6．Down key
7．+ volume up Key
8 .Next key
9．MENU
10．Play Key
11．SD card
12．Power key
14. USB interface
15..Earphone interface
Function Description
2．1 Main Menu

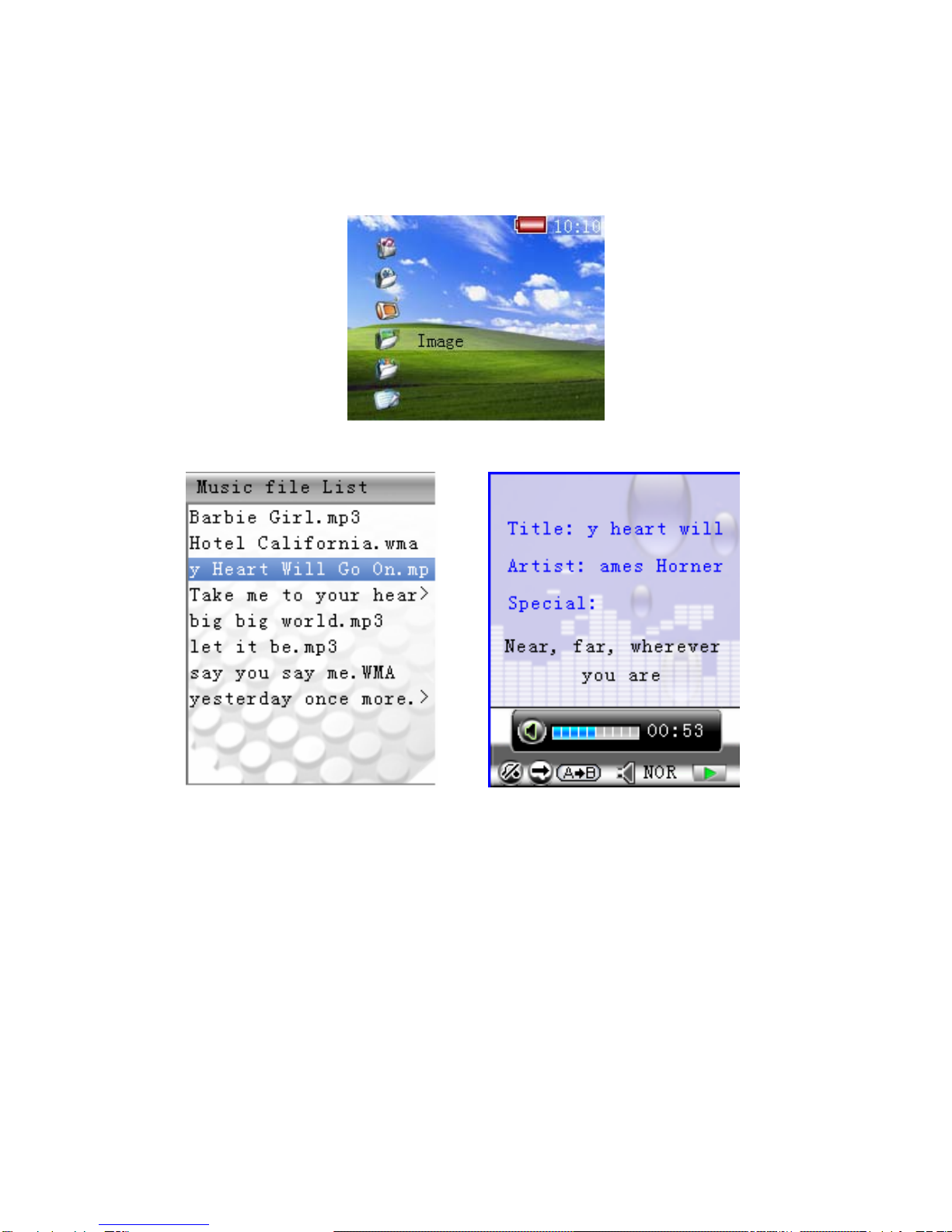

Press OK key to Main Menu. There are 9 functions in the main menu
as following:
Music, movie, FM Radio, Image, E-Book, Audio Recorder, Explorer
Game and Setting. Also include Battery status, time displaying etc.

7
2．2 Music Player
Music player can support various music formats playing：
1．Support various music format，include：MP3、WMA、WAV、
AAC

8
2．Basic operation：
Press OK key to play；
Shortly Press OK key to pause during playing
Press Ok Key 2 seconds to stop
press +/- key to adjust volume , shortly press /to
choose last and next song.
In MP3 playing, AB repeat function can work by pressing
M key.
3．Advance Operation：
Support Pre-listening function(5 second,10 second,15
second,20 second) ；
Support lyrical displaying；
Long pressing “”or“”key to forward or backward；
Playing modes ：Normal 、Single Repeat、All Repeat、
Random Repeat；
Starting music setting；
5 EQ choices: Normal, Classic, pop, Bass, Rock

9
2．3 Movie
Movie playing is one of the main features in this device. It supports
various Movie formats as following:
Hardware support：AVI,3GP,MP4；
Software convert support：AVI,3GP,MP4、DAT,VOB etc.
Special note：（Free Movie convert software include in CD driver）
1. Movie playing speed: Over 25fps，QCIF format。
2. Basic Operation：
1. Press OK key to play；
2. Shortly Press OK key to pause during playing ；
3. Press Ok Key 2 seconds to stop ；
4. Shortly press “-“ or” +” key to adjust volume, shortly
press “”or “” to choose last and next movie.
3. Advance Operation：
Long Press “”or “” key to forward or backward at 2 to
32 times speed.
4. Displaying status（can be shut down）：
Playing Bar；
Now time/Total time;

10
Volume Bar；
Forward/Backward Bar；
2．4 FM( Optional)

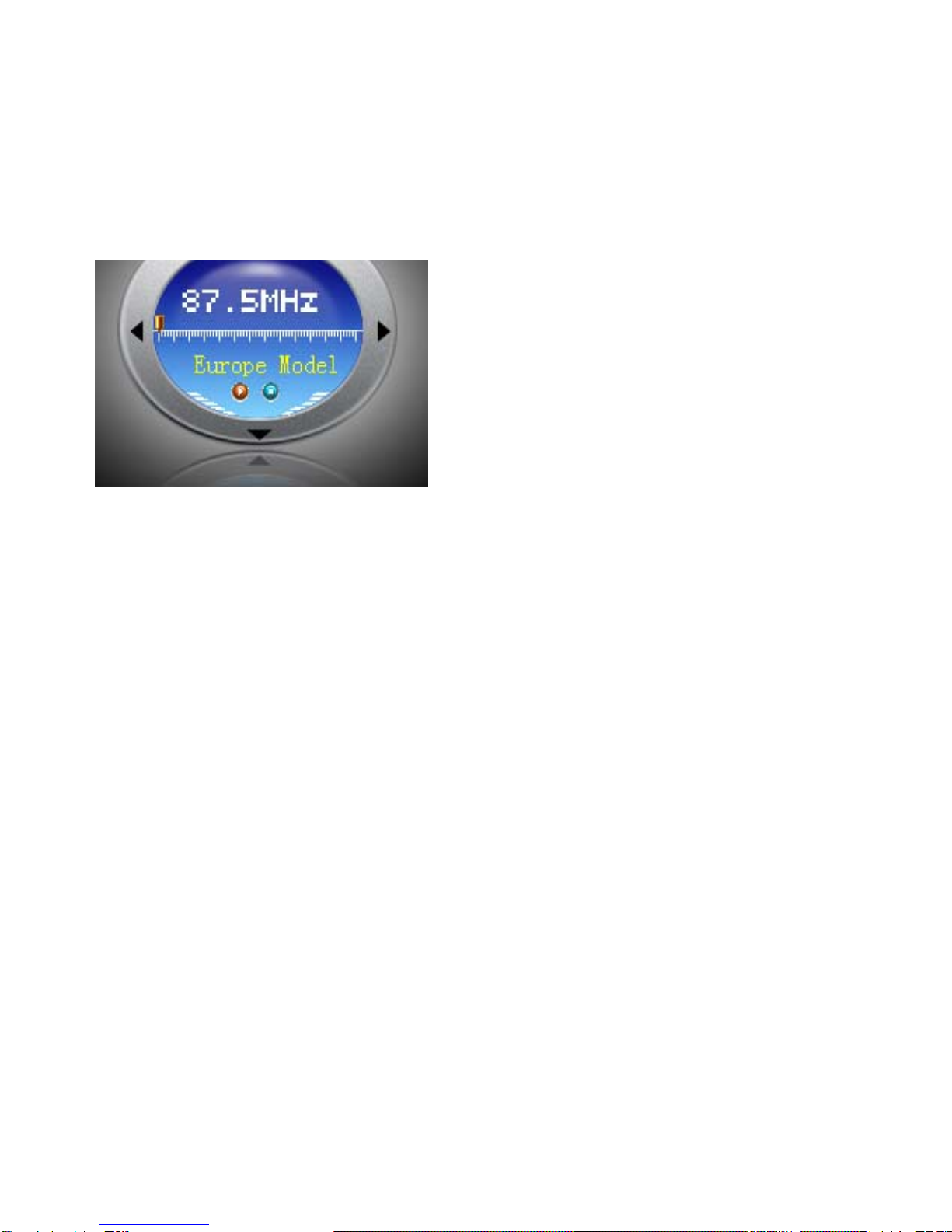

Built-in High quality FM, Japan mode broadcast frequency is from 76
MHz to 91 MHz. Europe model is from 87.5MHz to 108 MHz
broadcast frequency. Functions include
1. Press ok key to display the stored stations.
2. press key to adjust volume
3. press “”or “” key to adjust FM frequency (Definition :
to 0.1 MHz)

11

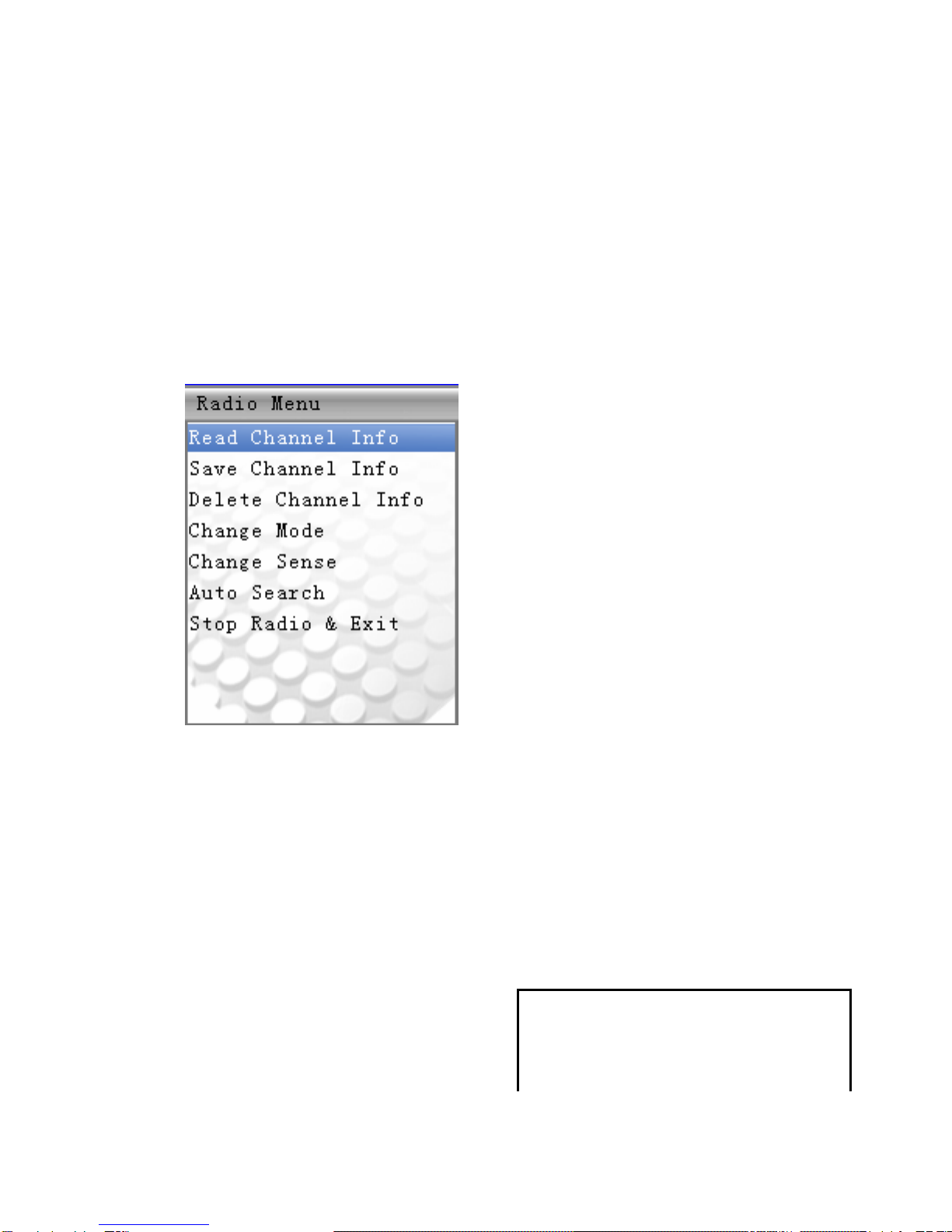

4. Press MENU button to navigation menu and make
setting as read, save, delete etc. Also can preset
maximum 20 channels；
5. Europe/Japan Mode；
FM Transmitter (optional)

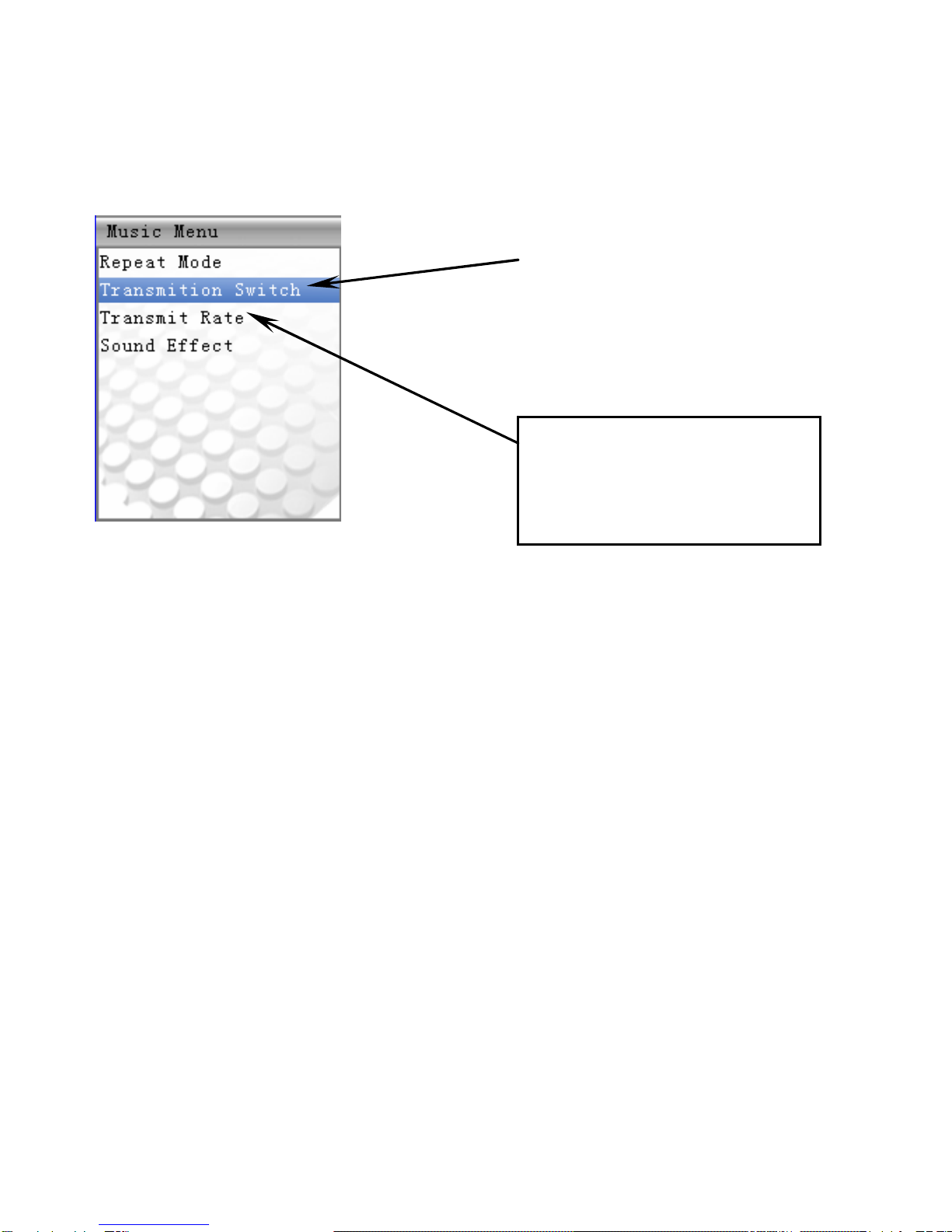

1. Press it and will show turn
on /off
,p
lease choose turn

12
2.choose it first, and press “ok”
button to enter into

13
3. Please press” ok” button
4.Insert earphone into the jack of the MP3 player,the earphone is antenna.
5.Under “Music” playing mode, long press “MODE” 3 seconds to enter
into the FM transmiter;
6. press <</>>to adjust the frequency of MP3 player and fixed one
channel first or the frequency sound of Car and fixed one channel
first ,after you fixed one of them frequency,then please adjust the
other one, when you adjust the MP3 frequency is the same with the
Car frequency , the car will receive all of the music that inside of
MP3 ,and you can play the MP3 Music in the car.
Back to following,

14
REMARK: Please turn off the FM transmitter when
you do not need it for save battery 。
Please must turn off the FM transmitter when you are
listening the music and FM radio for keep the good
sound and controlling volume .
3.Please choose turn off ,then
the FM Transmitter closed

15
2．5
Picture View
1. Support BMP, JPG, GIF picture format
2. Support catalogue preview picture to choose preview or not. .
3. Support picture 90 degree rolling.
4. Support slide play.
5. Support picture information displaying, including mode name,
format,
6. Picture’s setting on Power on, Power off, Standby.

16

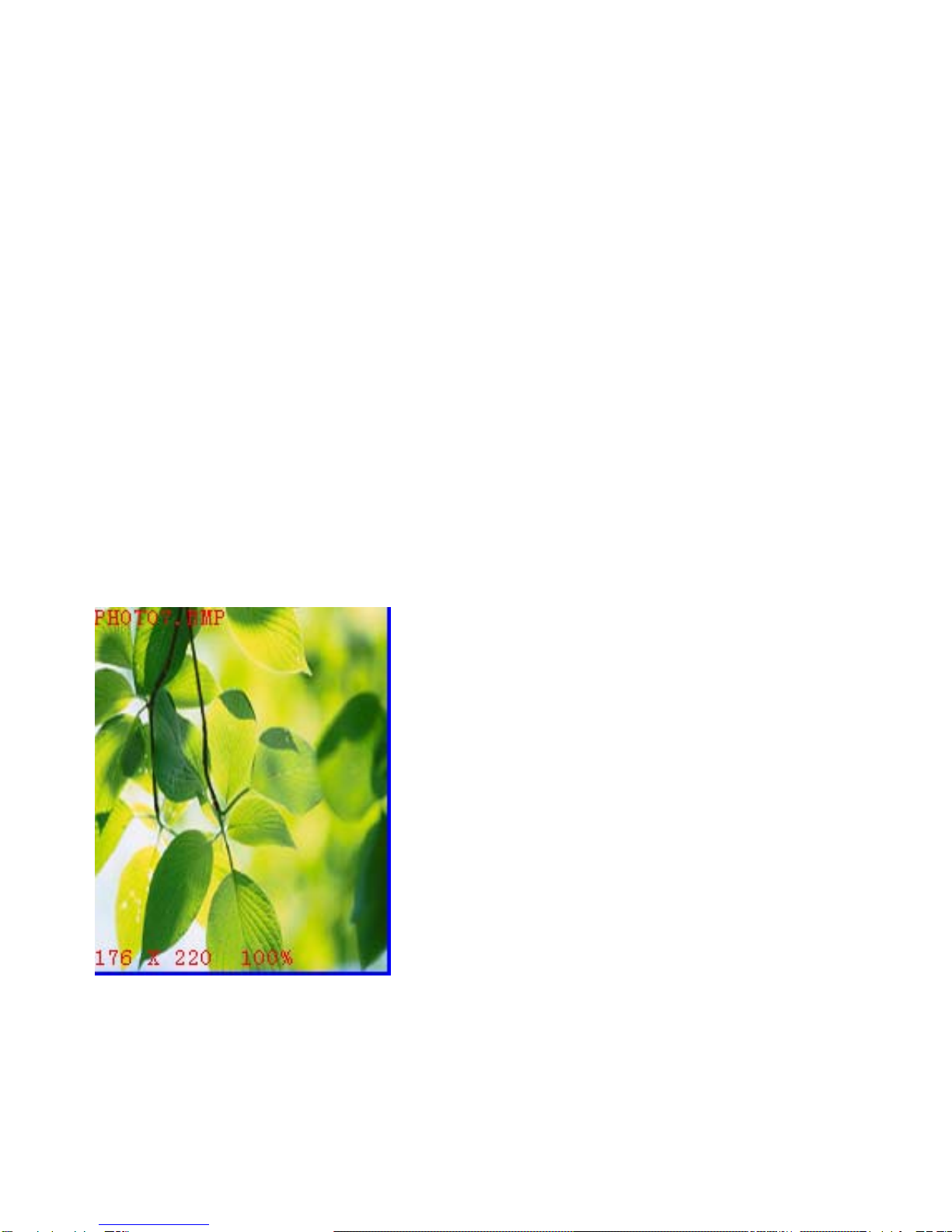

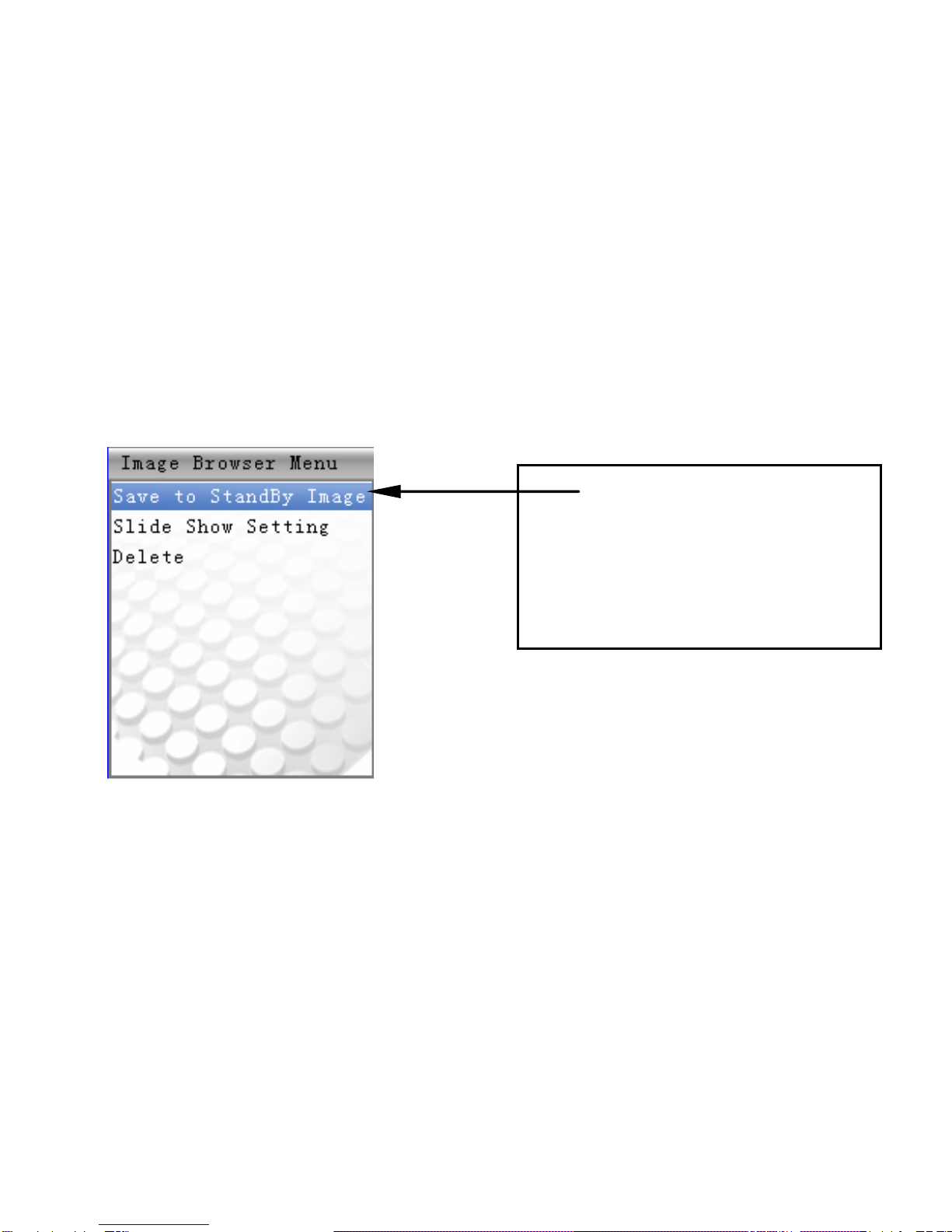

6. On “Image” mode, choose the picture which you want to
set to background. When the picture is displaying,
firstly,long press “M” button 3 seconds to enter into “Image
Browser Menu”, then choose “Save to Standby Image”, press
“OK” button to save it . (the picture pixel must be 176 x220)
On “Setting” mode, enter to “Personal Setup” mode, and
choose “Standby Picture”, then press “Ok” button to
choose “On” ,it will be ok .
1.Please press OK button to
set the picture to background

17
2．6 E-Book
Support E-BOOK function, features as following;
1. Support TXT
2. Support E-Book Browse setting, press Menu
button shortly enter into “E-book operate mode”,
press “Forward” or “Backward” button(or press
“v/+” or “^/-” shortly to choose: setting
Background color, foreground color,
anti-background color, auto rolling screen, delete,
and return ,etc. Press “ok” button entering into
relevant setting, press “ESC” button return back.
3. Press “ok” button(or press “Forward” or
2. Please choose turn on
The standby Picture

18
“backward” button )shortly under e-book Menu
start page viewing; press “^/-” or “V/+” start line
viewing.
4. Support bookmark function(the latest page recall
function)

19
2．7 Record
Choose “record” under main menu, press “ok” button shortly entering
into “Record”.
Record: Press “ok” button start record, re-press “ok” button stop
the record and autosave the record files in the “record file list”, the
format for the record file is WAV, it plays in “record audio player”.
2．8 File Manager (SD card Manager)
Under main menu, press “ok” button entering into “Explorer”
interface.

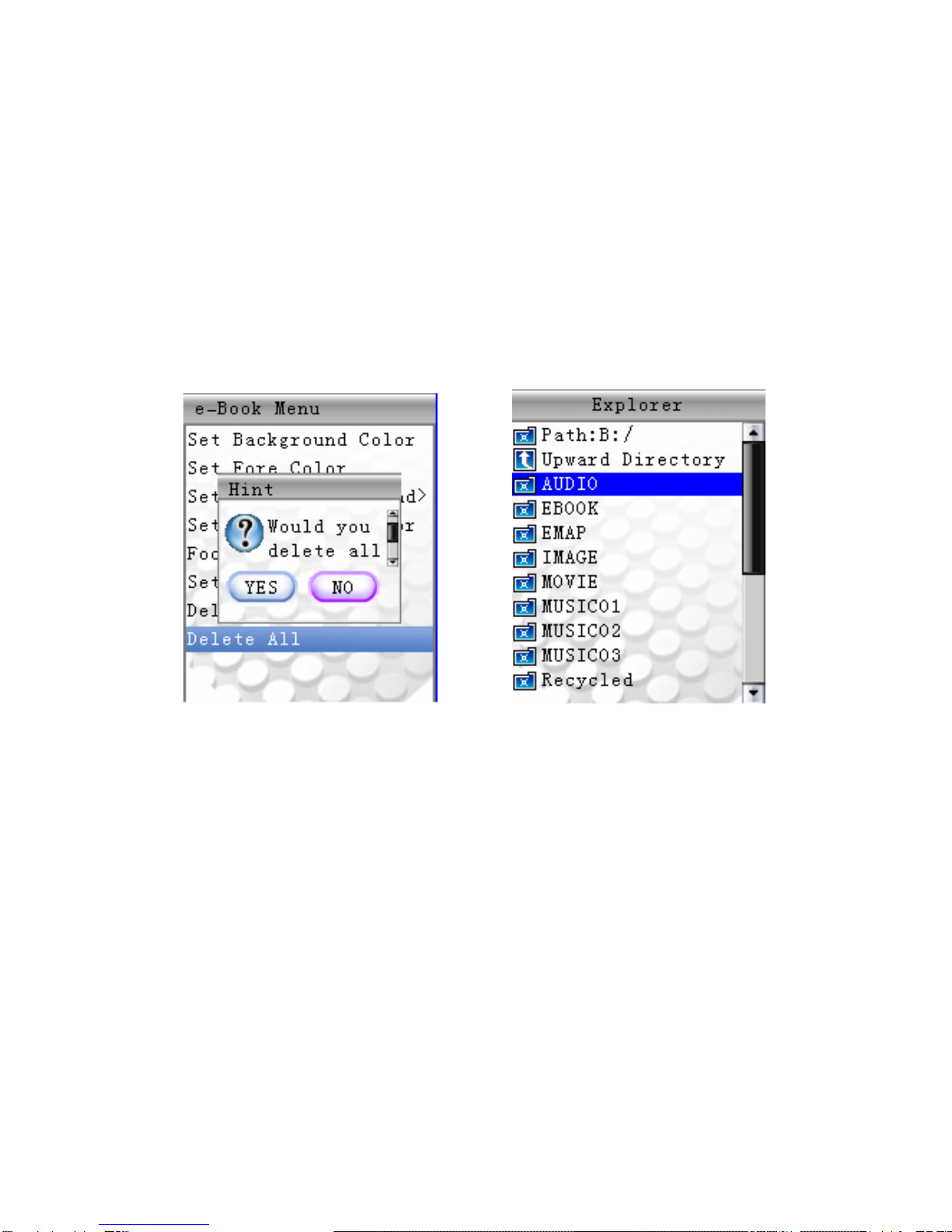

Resource manager can manage all the storage files and SD card
files. The main functions as:
1．Support browsing and deleting function under the SD card. Also can
playing the music and movie. Pictures and E-book and so on.
1．Support Browsing and deleting function，Built-in resource is
undeletable
