Samsung YP-T5V - YEPP 256 MB Digital Player User manual

- MP3 and WMA playback
- Removable Storage Device
- Encoding function
- FM reception
- 3D sound
- Upgradable
- 12 hours of continuous play
YP-T5
AH68-01523A (Rev 0.0)

English
3
Contents
2
Basic Usage
Playing Music and Turning Off the Device 26
Adjusting the Volume/Hold Function 27
Recording Voice 28
MP3 Encoding 29
Searching for Music/Voice Files 30
Listening to FM Radio 31
FM Encoding 33
Preparations
Safety Instructions 4
Features 6
Accessories 9
Location of Controls (yepp) 10
Connection to Computer
Connecting the yepp to a PC 12
Manual Installation of the USB Driver 16
Using the removable storage 20
●Downloading/Uploading files 20
●Disconnecting the USB cable 21
●Formatting 22
Installing yepp Studio 23
●To View Help on yepp Studio 25
Loop Repeating 34
Using Navigation 35
Setting Playlist 36
Setting up MENU 37
Managing Files 38
●Deleting 38
●Formatting 39
Setting the Advanced Functions 40
Selecting the Playmode 41
Setting the EQ mode 42
Display 43
●Scroll Speed/Lyric On/Off/Time 43
●Backlight 44
●Contrast 45
Power Off Time 46
●Time / Sleep 46
Encoding 47
●Bitrate / AutoSync Time 47
WOW Level 48
●Adjusting SRS and TruBass LEVEL 48
●WOW Optimum 48
Default Volume 49
Appendix
MENU Table 50
Customer Support
Troubleshooting 52
Specifications 54
Additional Usage

English
5
Safety Instructions
Earphones
Follow Traffic Safety Instructions
● Do not use the earphones while driving an automobile or riding a bicycle.
It’s not only dangerous, but also against the law.
● An accident may result if you turn up the volume of the earphones too high while walking
down the street, especially when crossing at intersections.
Protect your ears
● Do not turn the volume up too high.
Doctors warn against prolonged exposure to high volumes.
● Stop using the device or turn the volume down if you get ringing in your ears.
● Follow local guidelines for waste disposal when discarding packaging, batteries,and old
electronic appliances.
● yepp packaging uses cardboard, polyethylene etc., and does not use
any unnecessary materials.
● Ambient temperature : 5°C ~ 35°C (41°F ~ 95°F)
● Humidity : 10% ~ 75%
Read and understand all the instructions to avoid injury to yourself and damage to the equipment.
✽ Please be aware that we disclaim all responsibility for damages from loss of saved
or recorded data due to breakdown, repair or other causes.

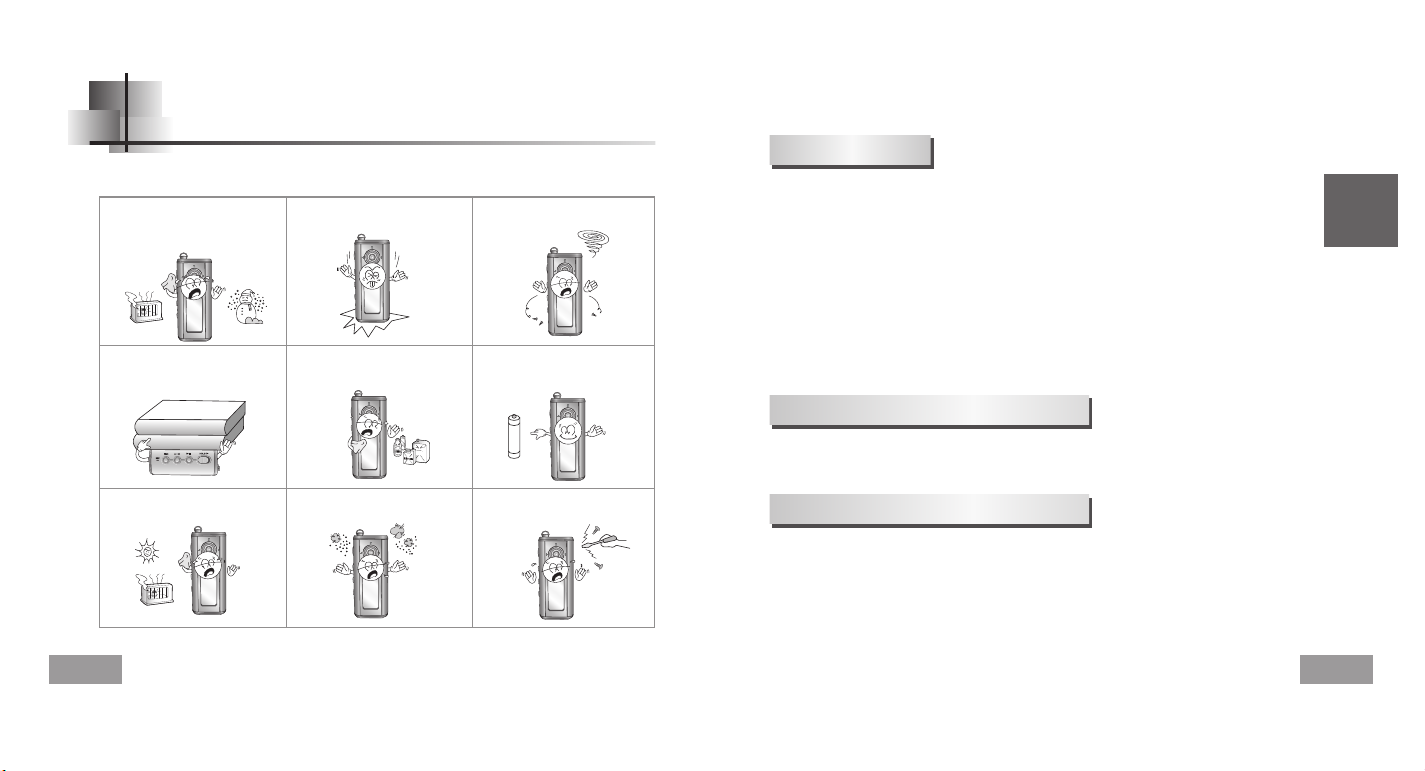

Do not expose to extreme tempera-
tures (above 95°F or below 23°F).
Do not expose to moisture.
Do not apply excessive pressure
to the device.
Do not expose to chemicals such
as benzene and thinners.
Remove batteries when the device
is left unused for a long period of
time.
Do not expose to direct sunlight
or heat sources.
Do not store in dusty areas.
Do not place heavy objects on top
of the device.
Do not let any foreign matter spill
into the device.
Do not try to disassemble and
repair the device yourself.
Ambient operating conditions
Environmental Information
4

MP3 & WMA Playback
●MP3 is an MPEG1 Layer3 audio format.
●WMA is a Microsoft Windows Media audio format.
Removable Storage Device
●You can easily copy and paste files to the yepp player using Windows Explorer.
Encoding Function
●You can make an MP3 file from an external source using the ENC jack
on the main unit.
●You can also convert an FM radio program into an MP3 file in real time.
FM Reception
●Listening to an FM program is made easy with Auto Search and Frequency
Memory functions.
3D Surround Sound
●You will hear deep bass and 3D surround sound.
Upgradable
●You can upgrade the built-in programs when available.
Add functions, CODEC, etc. Please check the yepp home page for upgrades.
67
English

English
9
12-Hour Continuous Play
●This unit uses one AAA/LR03 alkaline battery. Operation can last up to 12hours.
Actual playing time may vary according to the type and capacity of the battery.
Voice Recording Function
●You can do a Voice Recording with high quality and use it for a conference.
Sound
●You can adjust the equalizer manually.
● The capacity of the useable built-in memory is less than indicated as the internal firmware
uses a part of the memory as well.
● Design of accessories is subject to change, for the purposes of improvement, without notice.
Accessories
Player Earphones USB cable User manual
Installation CD
One Battery
(1.5V AAA/LR03 type) Neck Strap
Carrying case
Direct Connect
USB Adaptor Line In Cable
Model
Built-in memory
YP-T5 H
128MB
YP-T5 V
256MB
YP-T5 X
512MB
8

English
Location of Controls (yepp)
11
10
Playtime indicator
Mode indicator
Bit rate indicator
Play mode indicator
Equalizer, SRS indicator
Play/Stop/Pause indicator
Remaining Battery Power indicator
Track Number indicator
Title (track & artist) indicator
Display
Inserting a Battery
Recording Button
Play/Pause Button
Hold Switch
Loop Repeating Button
USB Cable
Connection Port
ENC Jack
Microphone
Neck strap Hook
MENU, Navigation button/
Move to Track/Speed Search/
Volume Button
Display
Earphone Jack
Battery Cover
Slide the cover in the
direction of the arrow to open.
Insert a battery to the right poles
+ , – and push-close the cover in the
direction the arrow as indicated.
1
2
NN
NNoo oott ttee ee
● Do not place heavy objects on the cover.
➡

English
13
Connecting the yepp to a PC
12
Before connecting yepp to PC, make sure to install
USB driver. If “Add New Hardware Wizard”appears,
press the [Cancel] button and install the USB driver.
System
Requirements.
The PC system must meet the
following specifications:
● Pentium 133MHz or greater.
● Windows 98SE/ME/2000/XP.
● 40MB of available hard disk space
● CD-ROM drive.
(double speed or greater)
● USB port (1.1) supported.
● DirectX 8.0 or above.
Continued...
NN
NNoo oott ttee ee
● Install the operating system in
Administrator Account mode for Windows
2000 or XP. Otherwise, installation will not
be completed.
● Windows ME, 2000 and XP can recognize
the driver without installing the provided
program. However, you must install the
program in order to format yepp and
upgrade firmware.
● If the YP-T5 program has not been
installed in Windows 98, then it will not
communicate with your removable disk.
You must install the USB driver file first.
Installing software

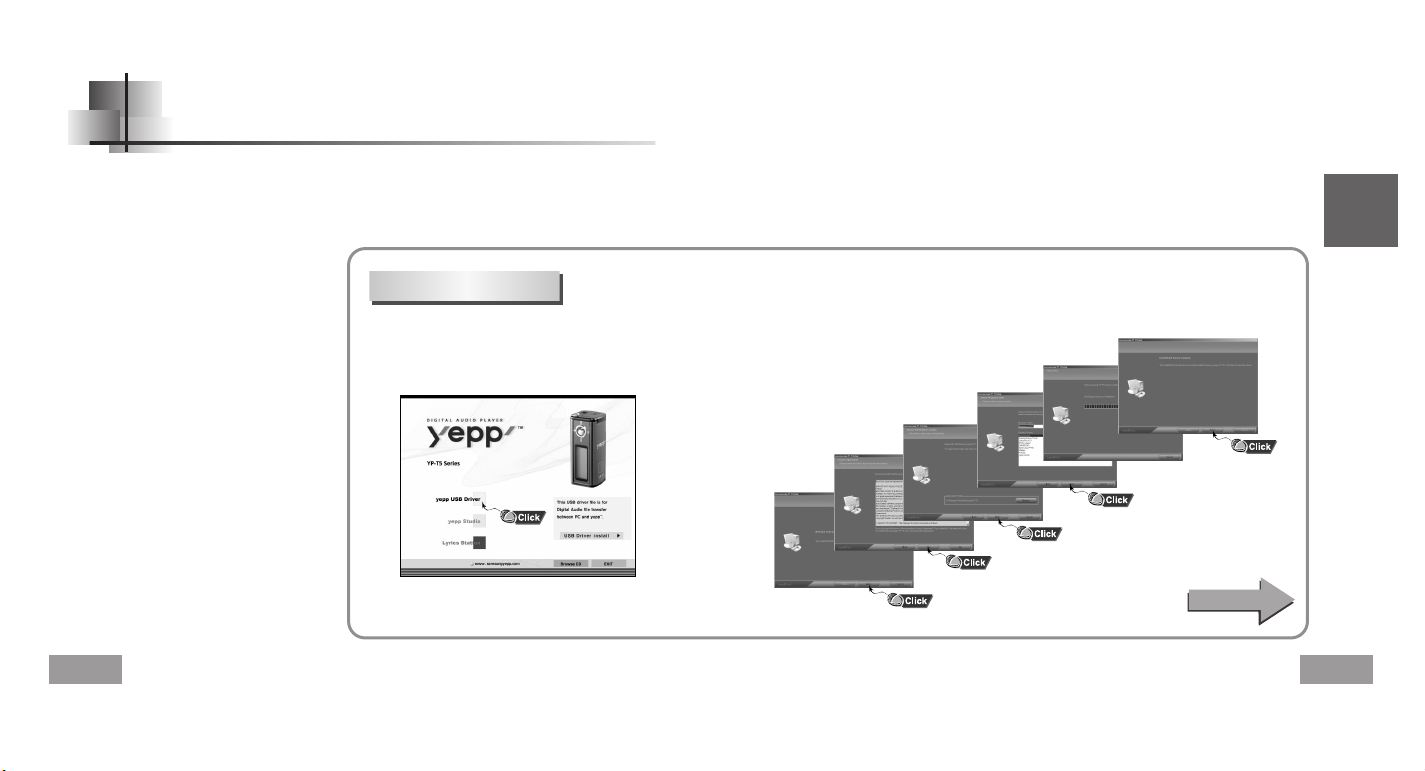

1Insert the Installation CD into the CD-ROM drive.
The picture shown below appears.
Select [yepp USB Driver]
2Click [Next] in the series of windows that appear.
NN
NNoo oott ttee ee
● Lyrics Station is currently available only in Korean songs.

English
15
14
Connect a USB cable to the USB port on the
computer.
Connect the other end of a USB cable to the USB cable
connection port on the bottom of the yepp, and press
the button on the main unit.
● If you disconnect the USB cable from your PC while
implementing a command or initializing during USB
driver installation, your PC may not function correctly.
4
Upon installation of the USB driver
"SAMSUNG YP-T5" will appear in the
[System Properties] → [Device Manager].
6
3
The USB driver is installed with a message saying that
it is searching for a new device. You may not see the
display screen during installation.
Go to the device manager to check that
installation has been successfully completed.
5
How to check the USB driver
● Windows 98:
Control Panel → System → Device Manager →
Universal Serial Bus controllers/Samsung YP-T5 Class
● Windows 2000/ME:
Control Panel → System → Hardware →
Device Manager → Universal Serial Bus controllers →
USB Mass Storage Device
● Windows XP:
Control Pane → System → Hardware → Device Manage →
Universal Serial Bus controllers → USB Mass Storage Device
When the USB driver is not installed automatically,
refer to the next page.
7
Connecting the yepp to a PC with a USB cable
Connecting the yepp to a PC
USB connect cable

English
17
Manual Installation of the USB Driver
16
Go to “Downloading/Uploading files” on page 20 if the USB driver is in place.
Follow these steps if the USB driver is not in place :
Check the device manager.
● Windows 98/ME:
Control Panel → System → Device Manager
● Windows 2000 (Professional):
Control Panel → System → Hardware →
Device Manager
● Windows XP (Professional):
Control Panel → System → Hardware →
Device Manager
1
Check if there is a device listed with an
exclamation point or a question mark
(displayed as unknown device or USB device).
2
Double click on the device listed with an exclamation
point or a question mark.
3

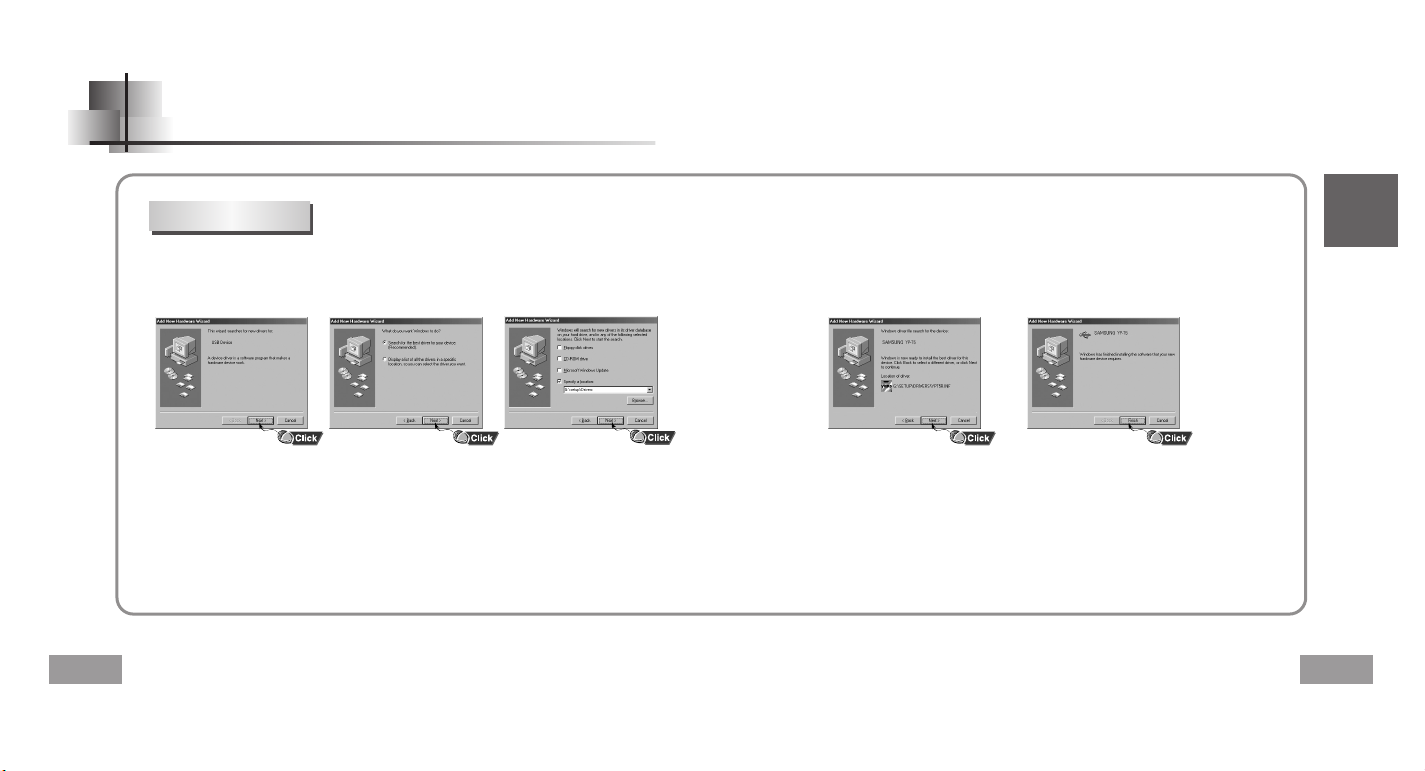

After selecting the driver,
click on [Update Driver].
4Select a compatible driver,
click on [Next] to finish.
5
NN
NNoo oott ttee ee
● If you are using Windows 2000 and your version of Windows does not recognize the USB driver
please download and install the latest service pack from windowsupdate.microsoft.com
● The installation method may vary depending on the type of PC or operating system.
Contact your PC dealer or service center for installation information.
● If errors occur continuously when you install the USB driver,
reconnect the USB cable after rebooting your system.
When an error occurs during installation of the USB driver

English
19
18
In Windows 98
Manual Installation of the USB Driver
● You must reboot your computer to
complete the installation.
USB driver location
[CD ROM]\setup\Drivers NN
NNoo oott ttee ee
● You cannot use it as a removable disk in Windows 98 if the YP-T5 program is not installed.
Make sure to install the USB driver file first.
Click [Next] button in the series of windows that appear.

English
21
20
Using the removable storage
1
2
NN
NNoo oott ttii iicc ccee ee
● The “WRITING/READING” message will appear during file
download or upload. Disconnecting the USB cable while
“WRITING/READING” is displayed may cause
malfunction of the unit.
● The order of music files is not relative to the replay order
when you select a Removable Disk in Windows Explorer.
Turn on the yepp and connect yepp to PC.

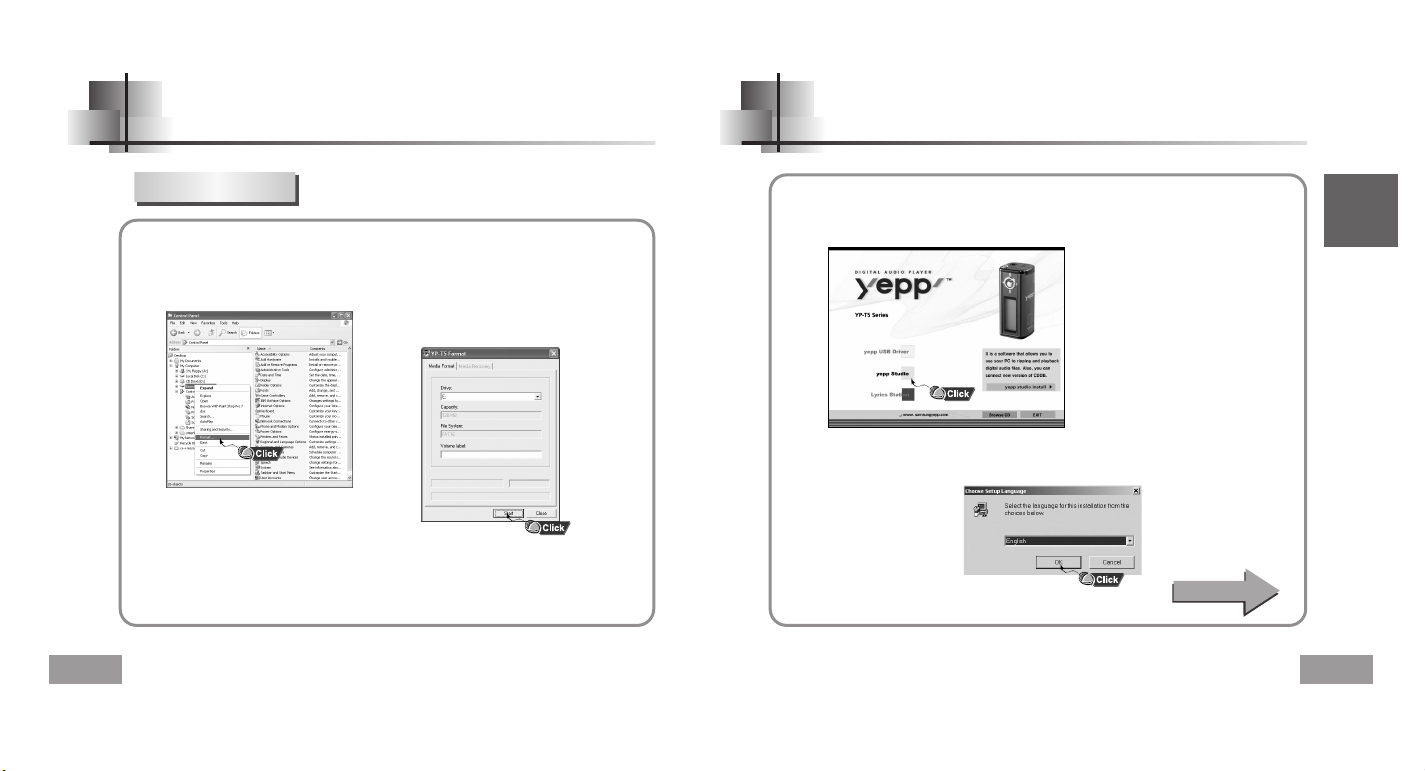

Open Windows Explorer on PC.
3Select the file to save and drag-and-drop it into the removable disk icon.
(In numerical, alphabetical order)

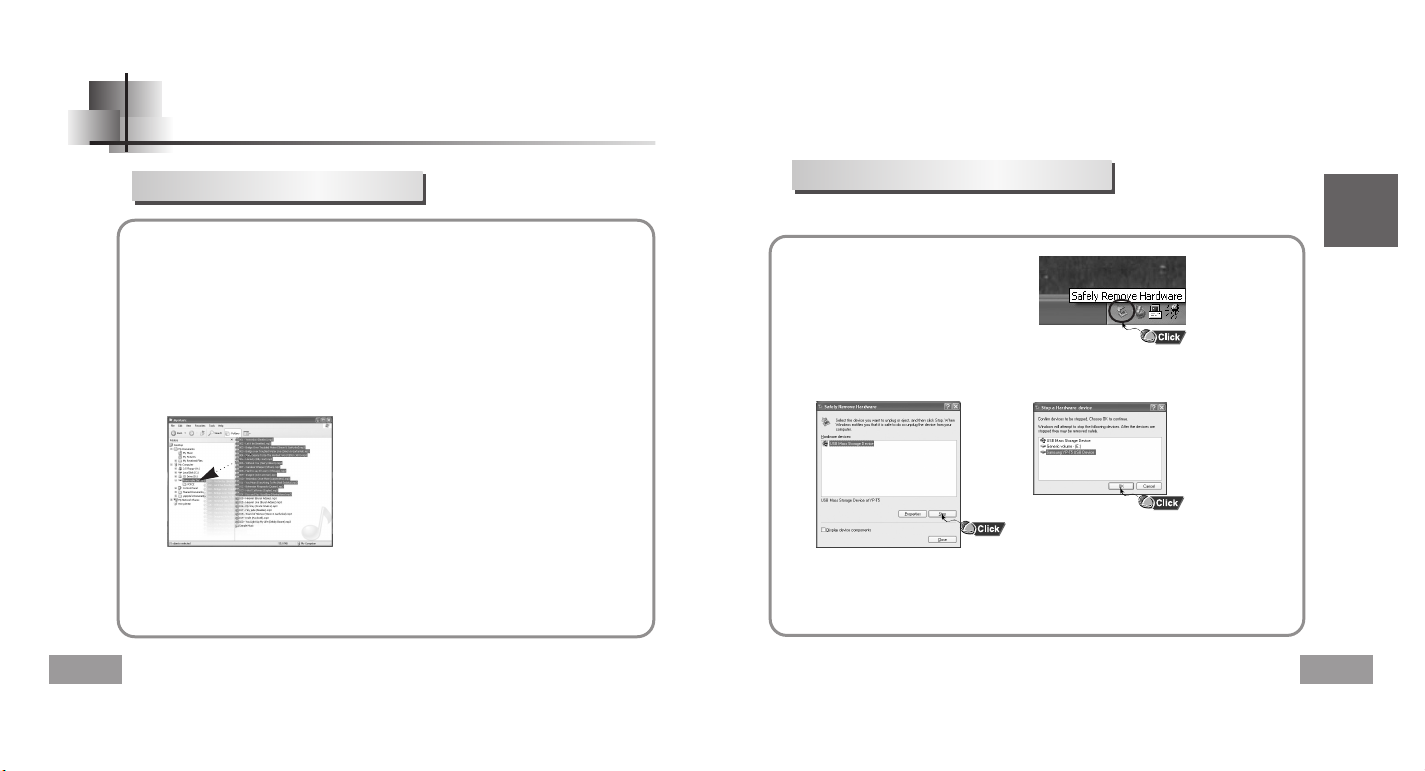

Downloading/Uploading files Disconnecting the USB cable
After completing the file transmission, you must disconnect the cable in the following way:
NN
NNoo oott ttee ee
● The green arrow is not displayed on the Task Bar in Windows 98 system.
If “READY” message is shown in Display window, please disconnect the USB cable.
1Double-click on the green arrow in
the taskbar on the bottom right of
the window.
2When the [ Stop a Hardware device ] message appears,
press the [OK] button and disconnect the USB cable.
➡

Installing yepp Studio
23
English
Using the removable storage
22
1Select the removable disk
icon and click the right mouse
button to select [Format].
2Press the [Start] button.
● All saved files will be formatted.
● You can change the name of
removable disk by selecting
[Volume label].
NN
NNoo oott ttee ee
● By formatting, all previously preset menus will be initialized.
● Care must be taken as formatted files can not be recovered.
Formatting
1Insert the Installation CD into CD-ROM drive.
Select [yepp Studio].
2Select language
Continued...

English
25
Installing yepp Studio
24
3Click [Next] in the series of windows that appear.
● Please refer to Help for more information on how to use yepp Studio.
Run yepp Studio and press F1.
● Help will appear.
Move the arrow to the top of yepp Studio and right click on the mouse.
The following selection window will appear.
● Click on Help and the Help window will appear.
➡
NN
NNoo oott ttee ee
● Music recognition technology and related data are provided by Gracenote and Gracenote
CDDB® Music Recognition ServiceSM.
● CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype,
the Gracenote CDDB logo and logotype, and the "Powered by Gracenote CDDB" logo are
trademarks of Gracenote. Music Recognition Service and MRS are service marks of Gracenote.
NN
NNoo oott ttee ee
● When the [Register Serial Number] message appears, at your first execution of yepp Studio,
enter the yepp’s serial number.
To View Help on yepp Studio

English
Adjusting the Volume/Hold Function
27
Playing Music and Turning Off the Device
26
Press the player’s , key during playback to
adjust the volume.
NN
NNoo oott ttee ee
● Volume ranges from 00 to 30.
● Press once to adjust the volume by one step.
Press and hold to increase or decrease the volume in greater increments.
In Hold mode, all buttons are disabled.
Slide the switch on the player in the
direction of the arrow.
● When the button is pressed, the “ HOLD!”
message will appear on the display.
Adjusting the Volume
HOLD Function
Press the button.
●Playback starts.
●Power On : Press the button to turn on the power.
●Power Off : Press and hold the button to turn off the power.
Press the button to pause playback.
●If no buttons are pressed within 10 seconds
(changes depending on settings),
the yepp automatically powers off.
●While in Pause mode, briefly press
again to resume playback.
NN
NNoo oott ttee ee
● WMA files can be played only as music files with a compression rate of 48Kbps-192Kbps,
that can be created in Windows Media Player (Version 8.0).
● The power off time can be set in the menu.
Playing Music
Turning Power On and Off
Pausing Music

MP3 Encoding
29
English
Recording Voice
28

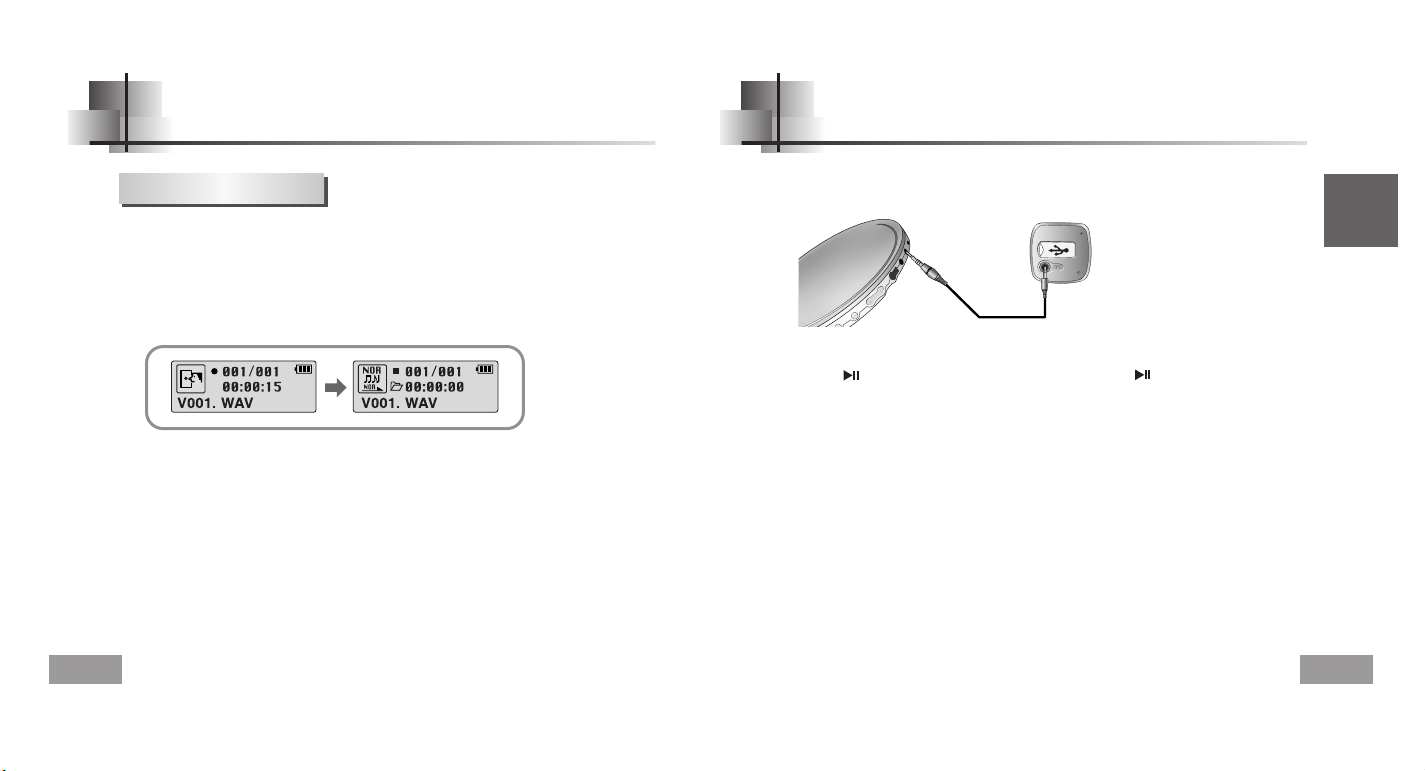

1Press the REC button to start voice recoding.
If the REC button is pressed again, the recording stops and a voice file
is created.
2
NN
NNoo oott ttee ee
● Recording is performed in order (V001, V002, etc.)
and files are saved in the WAV format after recording.
● If the Memory is full, the Voice Recording is stopped automatically.
● Voice Recording does not work in FM Mode or when the Line In cable is connected.
To Record Voice 1Connect the Audio Output port on the external audio source
(or the Line Out port) to the ENC port on the device with the Line cable.
2Press the REC button to start MP3 encoding.
● If the button is pressed, encoding is paused and if the button is pressed again,
the encoding resumes.
3If the REC button is pressed during encoding, the encoding stops and an
encoding file is created.
● Encoding is performed in order (L001, L002, etc.)
and files are saved in the MP3 format after encoding.
NN
NNoo oott ttee ee
● Bit Rates can be set within the range of 32Kbps~128Kbps.
● Volume can be adjusted from level 0 to 10 while monitoring the Encoding.
NN
NNoo oott ttii iicc ccee ee
● Do not disconnect the Line cable during Encoding.
● If the battery is not charged enough, encoding will not be done.
● Adjust the volume of the external audio source to a suitable level and encode it.
If the volume level is extremely high, the sound quality may not be good.

English
31
Searching for Music/Voice Files
30
NN
NNoo oott ttee ee
● VBR(Variable Bit Rate) file: A file that constantly changes the compression rate according
to the type of sounds, such as their pitch, in the file.
● In the case of a VBR file, you cannot move to and play the previous track even if you push the key within
5 seconds after playback starts.
● Files that were downloaded in MP2 or MP1 and had their file extension changed to MP3 may not play.
● Pull and hold the , keys to the left or right during playback to search for
the part you want to listen to.
● Release the key to resume play normally.
To search for specific parts during play
● Pull the key briefly during playback to play the next track.
● Pull the key briefly within 5 seconds after playback starts
to move to and play the previous track. Pull the key briefly after five seconds
to play the current track from the beginning.
To change tracks during play
● Pull the , keys to the left or right in stop mode to move to the previous/next track.
To change tracks when stopped
Listening to FM Radio
First, press the key to display the menu screen and select FM Radio.
● Pull the , keys briefly to search
manually for the frequency you want.
● Pull and hold the , keys to search
for and stop at frequencies with reception.
● After searching manually for the frequency you
want, press and hold the key to display
the Save screen.
● Use the , keys to select the number you
want to assign to save the frequency and then
press the key.
● Press and hold the A ↔ B button
while in FM Mode.
● Frequencies within the range of
88.0MHz to 108.0MHz are automatically
selected and stored.
● Frequencies are automatically stored,
starting from 1.
NN
NNoo oott ttee ee
● To exit from FM Mode press the key.
● Mono (MO) or Stereo (ST) is automatically selected.
Number of channels saved.
Manual Search for a Frequency Automatic Search for a Frequency
Manual Storage of a Frequency Automatic Storage of a Frequency

English
33
Listening to FM Radio
32
FM Encoding
Searching Stored Frequencies
NN
NNoo oott ttee ee
● You can store up to 20 frequencies.
● Press the button in the PRESET screen to exit the PRESET mode.
1Press the button in FM Mode.
● PRESET screen will appear.
Use the , keys to move to the frequency you want.
2
Deleting Stored Frequencies
- After moving to the PRESET number you want to delete, press and hold the key.
● The saved PRESET number will be deleted.
1Press the REC button during FM reception.
● Encoding of the currently transmitted FM broadcast begins.
2Press the REC button again.
● A file is created and the encoding stops.
● Files are saved in order of F001, F002, F003...and stop automatically when the memory is full.

Using Navigation
35
English
Loop Repeating
34
Starting Point
While playing music files, press the
A↔B button briefly at the beginning
of the loop you want to set.
A↔appears in the display.
Ending Point
Press the A↔B button briefly
again to set the end of the loop.
A↔B appears in the display.
The loop is played repeatedly.
NN
NNoo oott ttee ee
● Press the A↔B button briefly to cancel the loop.
● Loop Repeat is automatically released if you Speed Search with the , buttons.
NN
NNoo oott ttee ee
● Press and hold the key in Navigation mode to exit Navigation mode.

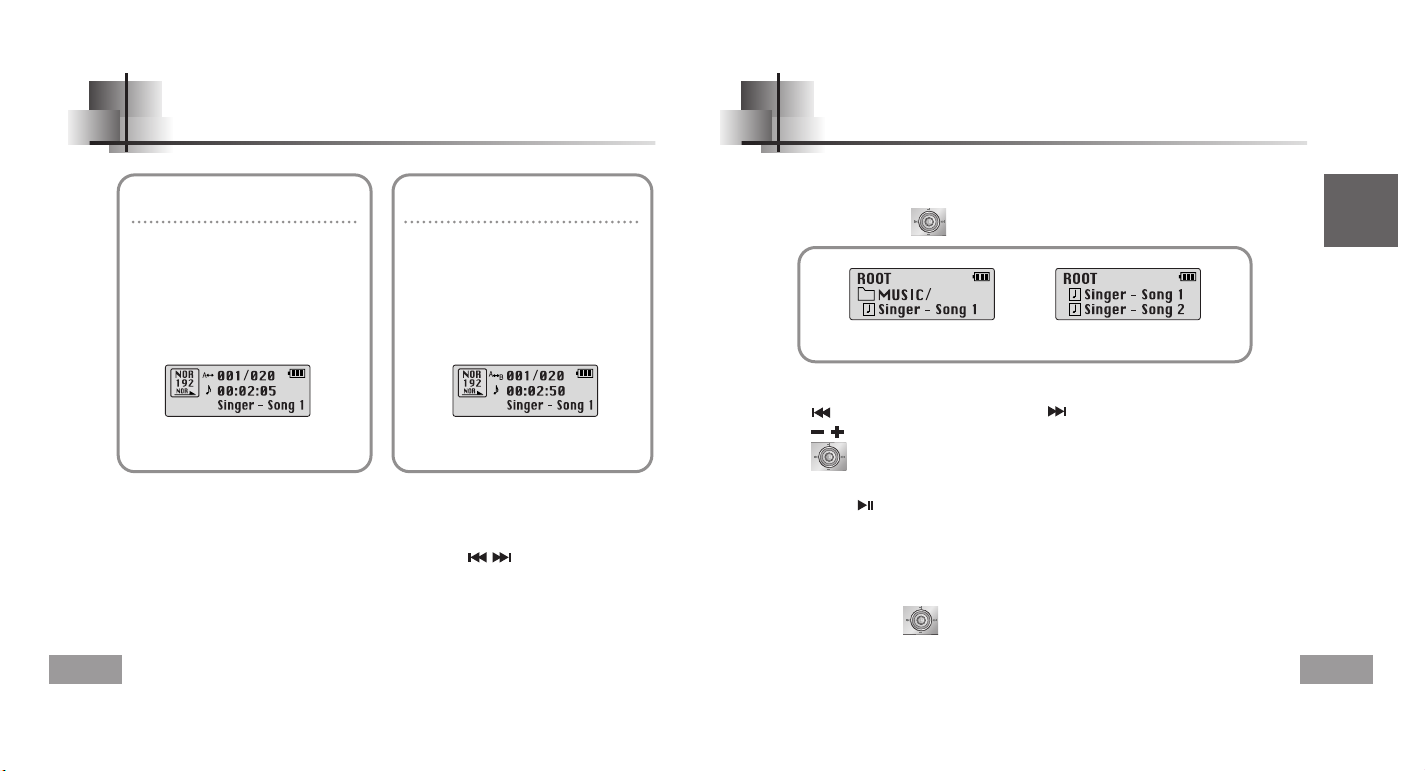

1Press and hold the button to move to Navigation mode.
2Select the file or folder that you want to play.
● : When moving to a higher-level folder. ● : When moving to a lower-level folder.
● , : When moving to a file or folder in the same directory.
● : Move to the next folder down. When there is not a lower folder,
the selected file will be designated as part of the playlist.
When the folder is in play or stop status. When the file is in play or stop status.
3 Press the button.
● The selected file will be played.
● If you select a folder, all the files in the selected folder will be played.
You can easily search for files or switch modes using the Navigation function.

English
Setting up MENU
37
Setting Playlist
36
NN
NNoo oott ttee ee
● Select PLAYLIST in File Delete (see “Deleting”) to release all the playlists you set.
- Move to the file you want in Navigation mode and press the key.
● The selected file will be marked.
● To release the playlist setting,
move to the marked file in Navigation mode and press the key again.
● Now playing :To check the track currently played.
● FM Radio :To listen to FM radio.
● File :To delete or format files.
● Settings :To set the detailed function of yepp.
NN
NNoo oott ttee ee
● In MENU mode, no input for 15 seconds will cancel the MENU mode.

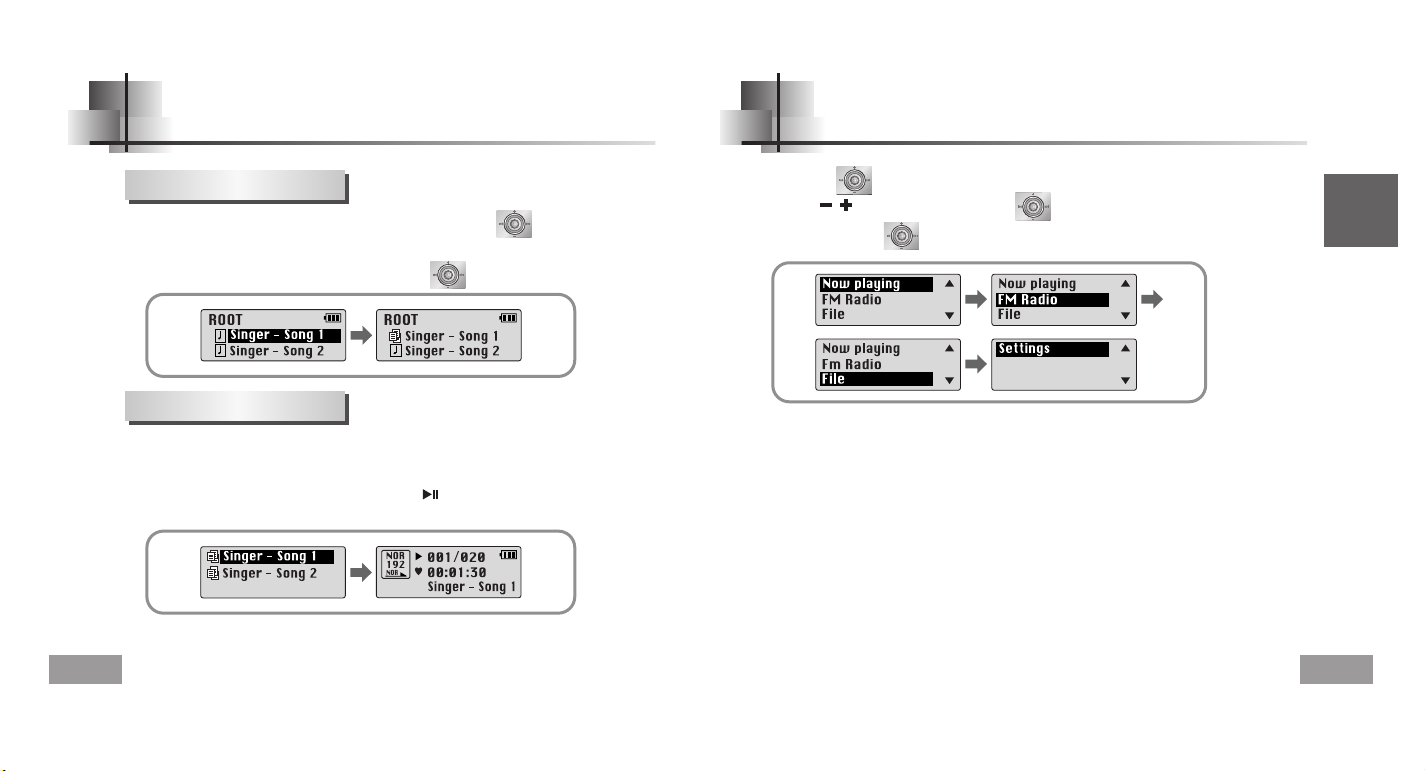

Press the key to switch to MENU mode.
Use the , key to move and press the key briefly to select the menu you want.
Press and hold the key to exit the MENU mode.
Setting Playlist
1Press and hold the A↔B button in Music mode.
● The Playlist you set will be displayed.
2Move to the file you want to play and press the button.
● The selected file will be played.
Playing Playlist

English
39
Managing Files
38

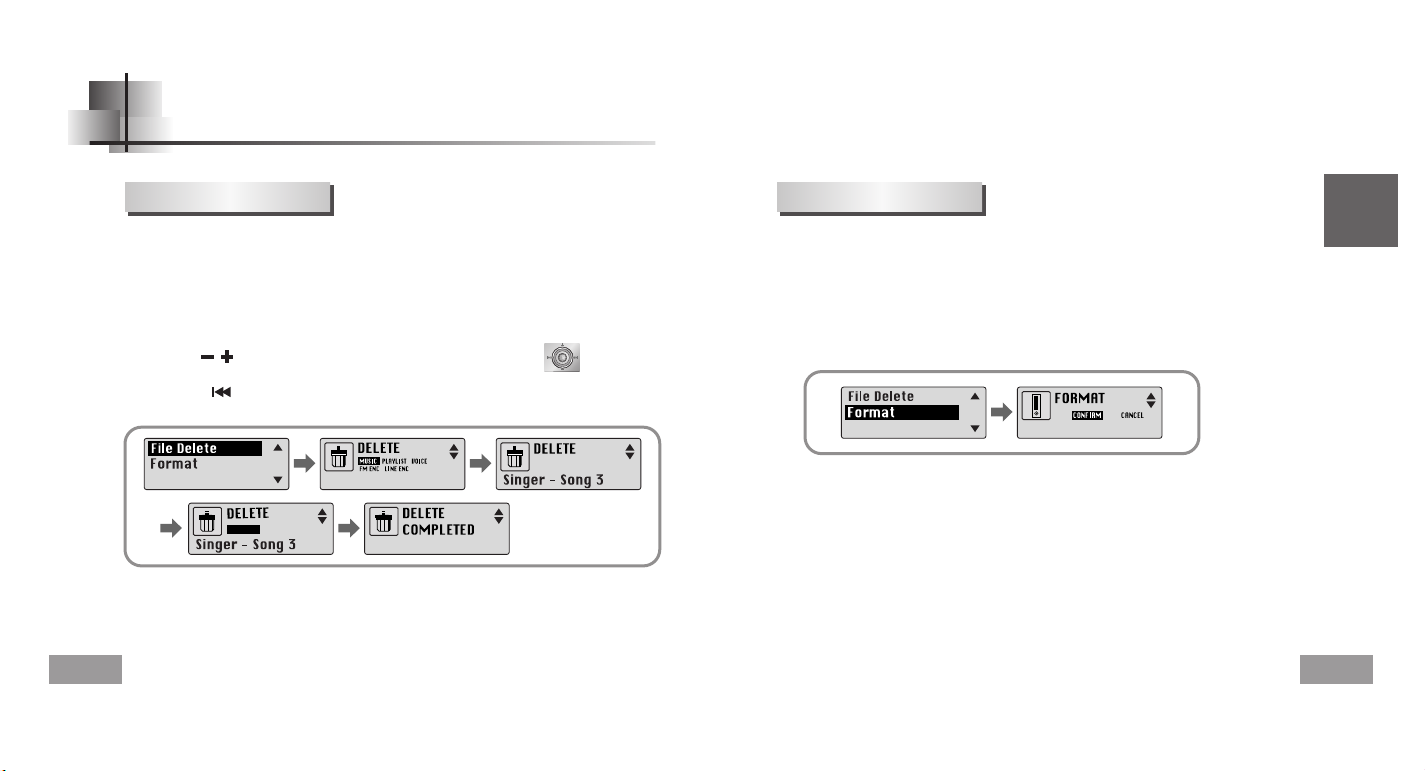

1Select File in the MENU. (refer to “Setting up MENU”)
2In File, select File Delete and the mode the target file is in.
3Use the , key to move to the file you want to delete, press the key and
select CONFIRM.
Press the key briefly to exit the setting.
CONFIRM CANCEL
Deleting
1Select File in the MENU. (refer to “Setting up MENU”)
2Select Format in File.
● Formatting is performed if CONFIRM is selected.
NN
NNoo oott ttee ee
● All files will be deleted when formatting the built-in memory.
● It is recommended that formatting be carried out on a PC that has the provided program installed as
formatting in the Menu may take a long time.
Formatting
