Bluebird BCB 450 ST User manual

BRUSHCUTTER
USE AND MAINTENANCE MANUAL
Translation of Original
instructions
ENGLISH
Rev. 1.0

BRUSHCUTTER
Page 3of 43
Use and maintenance manual
Rev. 1.0
TABLE OF CONTENTS
1PURPOSE AND CONTENT OF THE MANUAL ......................................................................5
1.1 SYMBOLS.......................................................................................................................................... 5
1.2 PURPOSE OF THE MANUAL........................................................................................................... 5
1.3 STORING THE MANUAL .................................................................................................................. 6
1.4 RECIPIENTS ..................................................................................................................................... 6
2GENERAL INFORMATION .....................................................................................................7
2.1 MANUFACTURER'S IDENTIFICATION DATA ................................................................................. 7
2.2 LIMITS OF LIABILITY........................................................................................................................ 7
3GUARD ...................................................................................................................................8
3.1 Intended use ...................................................................................................................................... 8
3.2 Improper use...................................................................................................................................... 8
3.3 Inappropriate use and contraindications............................................................................................ 8
3.4 General instructions........................................................................................................................... 9
3.5 Meaning of the symbols used.......................................................................................................... 10

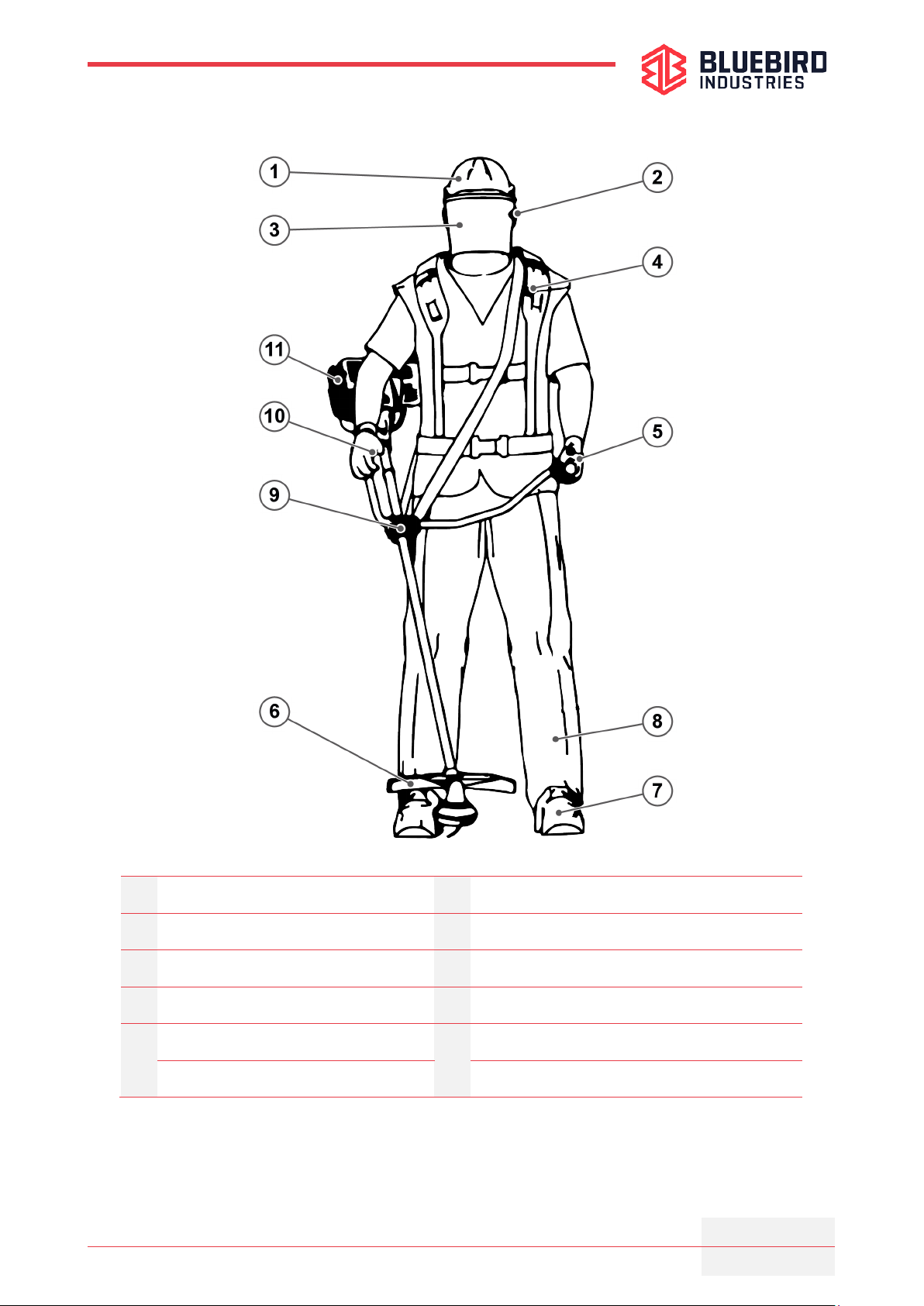

3.6 Appropriate clothing and protective equipment ............................................................................... 11
3.7 Machine safety devices and safety systems ................................................................................... 11
4TECHNICAL FEATURES......................................................................................................13

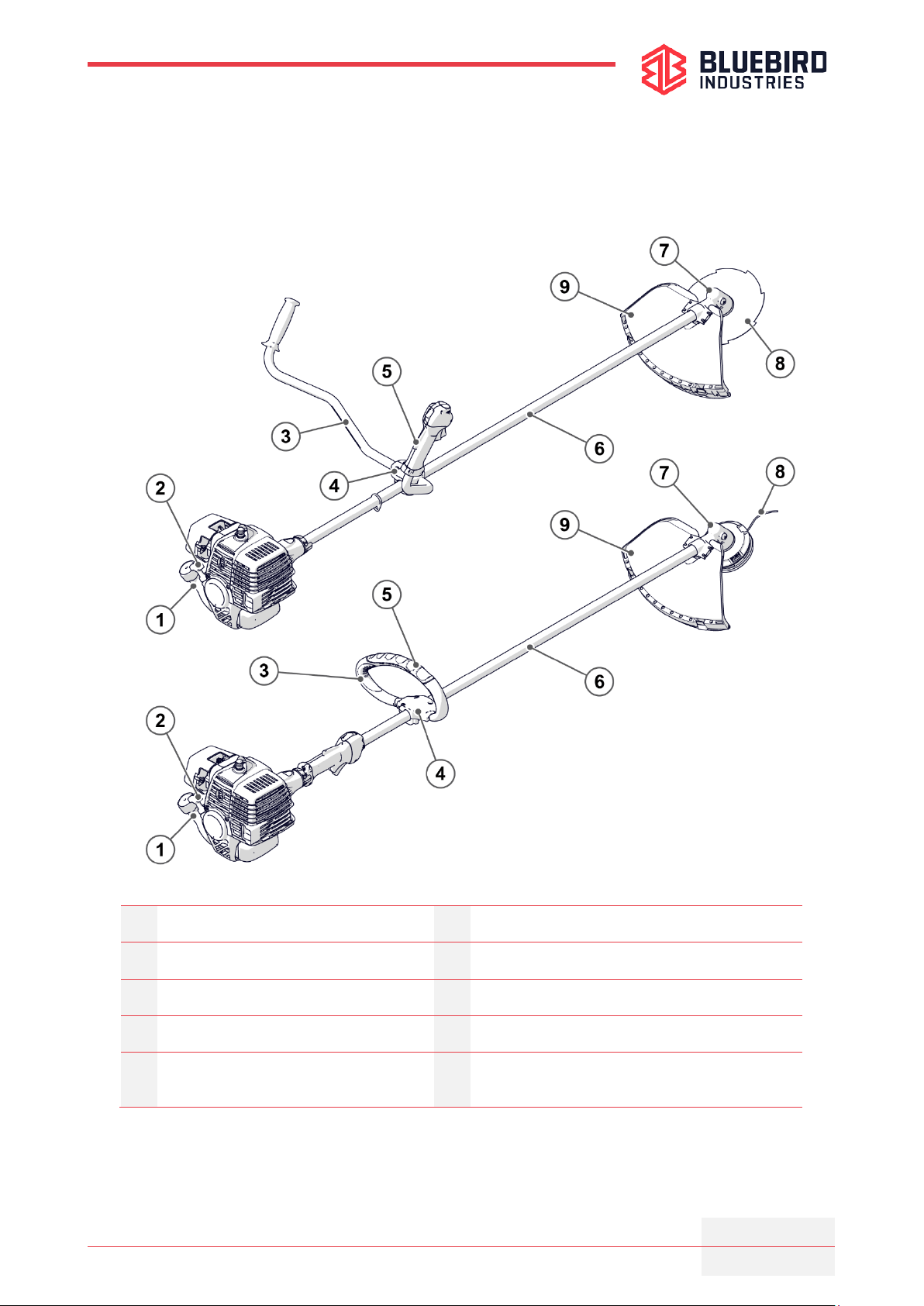

4.1 Main parts ........................................................................................................................................ 13
4.2 Data plate......................................................................................................................................... 14
4.3 Technical data tables....................................................................................................................... 15
5ASSEMBLY...........................................................................................................................19
5.1 Models with rigid shaft ..................................................................................................................... 19

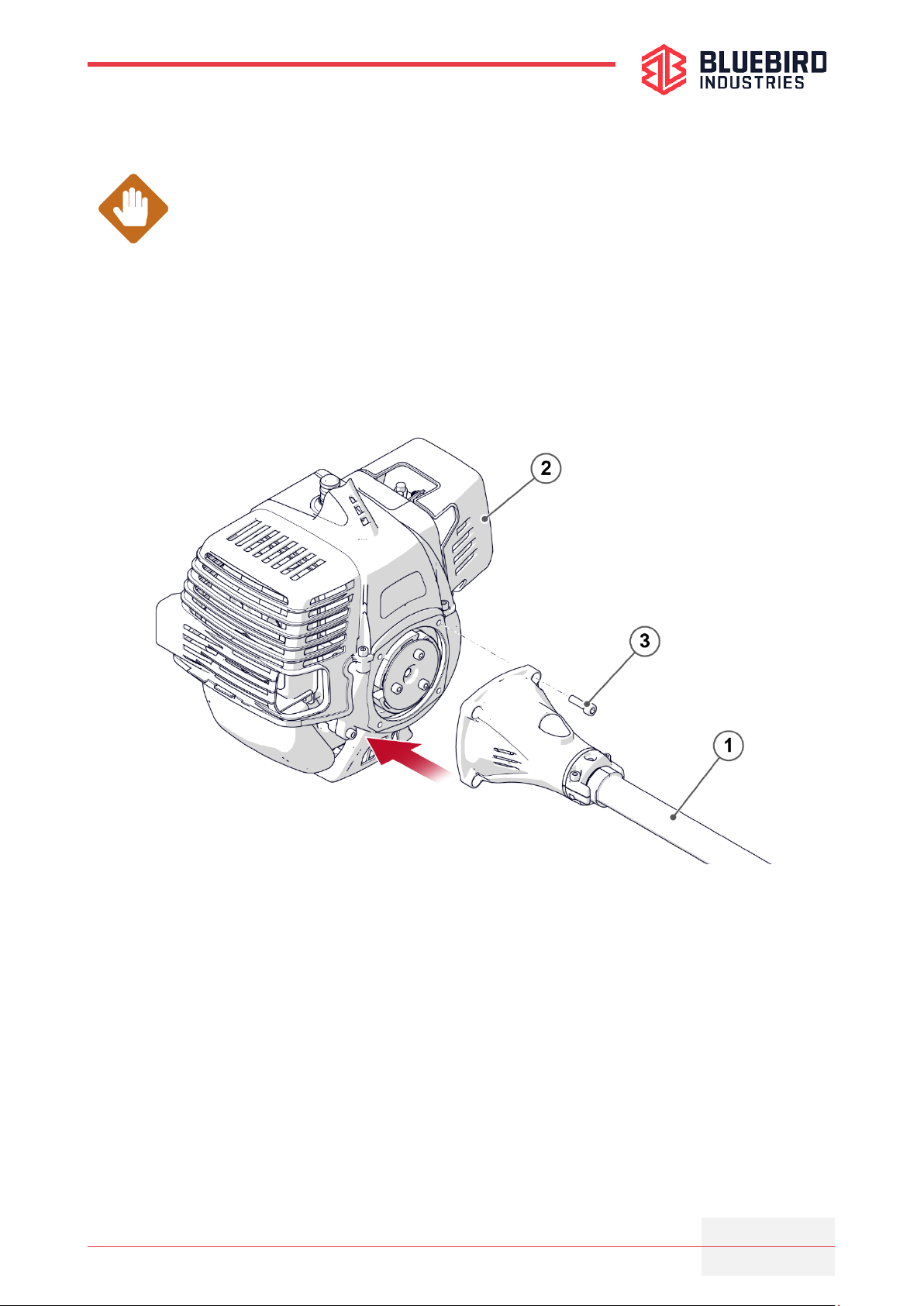

5.1.1 Shaft – engine.......................................................................................................................... 19

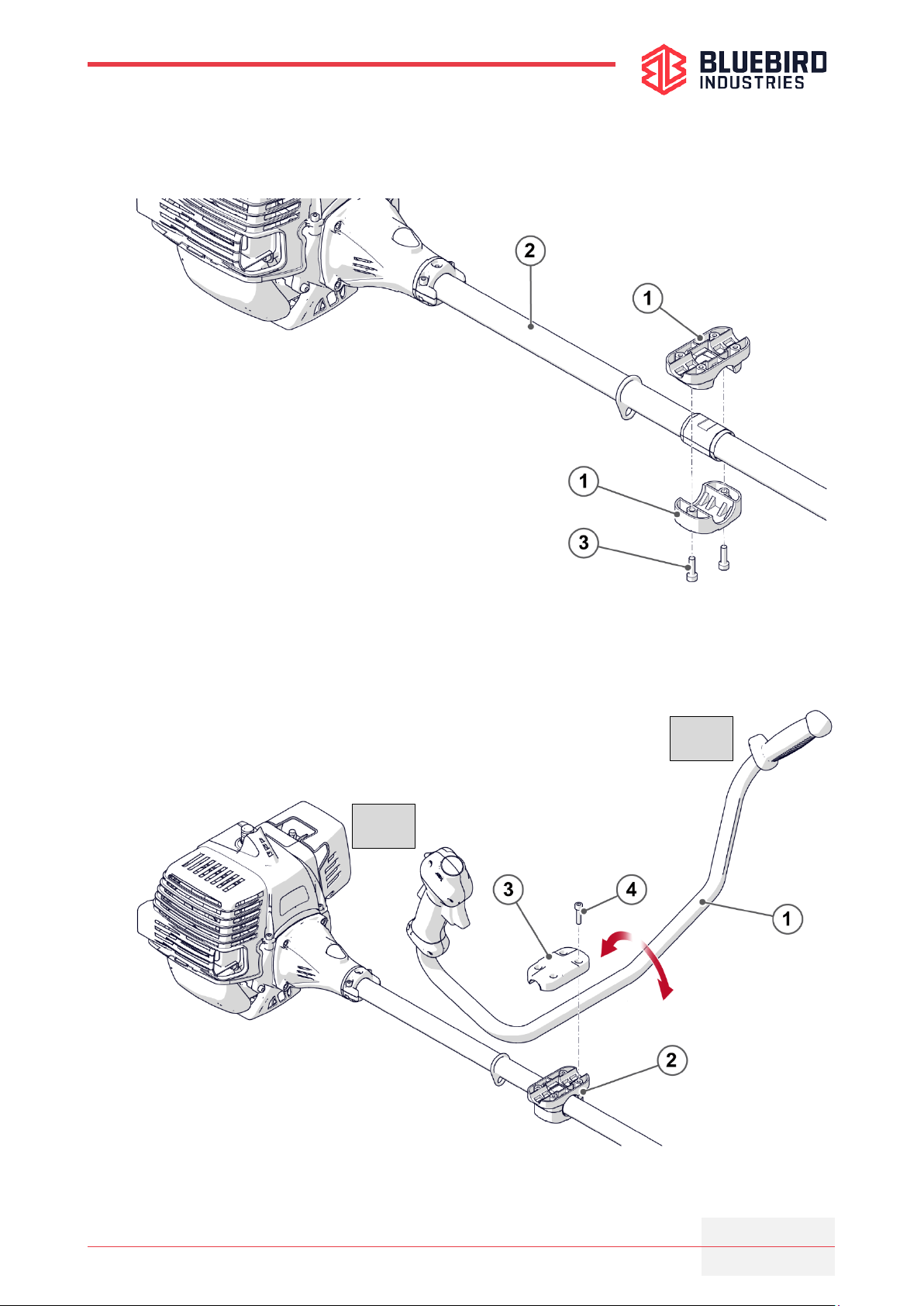

5.1.2 Handlebar ................................................................................................................................ 20
5.1.3 Vibration-damping grip............................................................................................................. 21
5.1.4 Throttle control acceleration cable (models with rigid shaft) ................................................... 22
5.2 For all models .................................................................................................................................. 24
5.2.1 Safety guard............................................................................................................................. 24
5.2.2 Safety straps ............................................................................................................................ 25
5.2.3 Balancing ................................................................................................................................. 25

BRUSHCUTTER
Page 4of 43
Use and maintenance manual
Rev. 1.0
5.2.4 Assembling the cutting tools (for 27 - 28 mm diameter shaft) ................................................. 26
6USING THE MACHINE..........................................................................................................32
6.1 Before starting ................................................................................................................................. 32
6.2 Using the control handle to start the brushcutter............................................................................. 33
6.2.1 For Blue Bird engines .............................................................................................................. 34
6.3 Correct use ...................................................................................................................................... 37
6.4 Using the machine ........................................................................................................................... 38
6.5 After using the machine ................................................................................................................... 40
6.6 Storing the manual........................................................................................................................... 40
7MAINTENANCE ....................................................................................................................41
7.1 Bevel gear box ................................................................................................................................. 41
7.2 Sharpening the grass-cutting blade................................................................................................. 41
7.3 Engine.............................................................................................................................................. 41
8WARRANTY CONDITIONS...................................................................................................42

Section 1
PURPOSE AND CONTENT OF THE MANUAL
BRUSHCUTTER
Page 5of 43
Use and maintenance manual
Rev. 1.0
1 PURPOSE AND CONTENT OF THE MANUAL
1.1 SYMBOLS
To ensure the safety of persons and property, this manual uses symbols to draw attention to
particularly dangerous situations, warnings and important information for using the brushcutter
(hereinafter the "machine") correctly:
DANGER
Hazard that may lead to injury, even fatal.
Accident prevention regulations for the operator.
PAY THE UTMOST ATTENTION TO ANY TEXT INDICATED BY THIS SYMBOL.
CAUTION
Possibility of causing damage to the machine and/or its components or for
communicating important information to the operator.
Be careful.
WARNING
Warning or note about key functions or useful information regarding the
operation being carried out.
1.2 PURPOSE OF THE MANUAL
This operating manual is an integral part of the machine and was written with the aim of
providing all the information necessary to/for:
• Make operators aware of safety issues.
• The correct and safe use of the machine.
• Enable operators to become familiar with the operation and limits of the machine.
• Carry out routine maintenance safety.
WARNING
Carefully read this manual and follow the instructions in it before using,
checking or performing any work on or with the machine.
Please contact the Manufacturer if you have difficulties in understanding this manual.
The Manufacturer reserves the right to make changes to this manual without prior notice, as
long as this does not constitute a safety risk.
Photos and drawings are indicative only.

Section 1
PURPOSE AND CONTENT OF THE MANUAL
BRUSHCUTTER
Page 6of 43
Use and maintenance manual
Rev. 1.0
1.3 STORING THE MANUAL
The manual should be kept carefully and close to the machine, away from liquids and anything
else that could affect its readability, and should be readily accessible at any time.
The manual and Declaration of conformity are integral parts of the machine and must therefore
accompany it for its entire service life.
Do not remove, tear out or modify the contents of this document.
In case the manual is lost or illegible request a copy to the Manufacturer.
1.4 RECIPIENTS
The purpose of this manual is to provide the information required for the correct use of the
machine.
This manual is intended for personnel in charge of carrying out the following operations:
• use;
• adjustments;
• cleaning;
• routine maintenance.

Section 2
GENERAL INFORMATION
BRUSHCUTTER
Page 7of 43
Use and maintenance manual
Rev. 1.0
2 GENERAL INFORMATION
2.1 MANUFACTURER'S IDENTIFICATION DATA
BLUE BIRD INDUSTRIES
Via Due Camini, 19
36010-Zanè (Vi) - Italy
Phone: [phone]
Fax: [phone]
Website: www.bluebirdind.com/
e-mail: [email protected]
2.2 LIMITS OF LIABILITY
The manufacturer shall not be liable for injuries or damage to property caused by:
• the improper use of the machine;
• failure to comply with some or all of the instructions provided;
• use that does not comply with current regulations;
• use that does not comply with national safety and accident prevention regulations;
• tampering with even a single part of the machine;
• carrying out unauthorised modifications or work on the machine;
• the lack of or inadequate preventive maintenance;
• the use of non-original spare parts.

Section 3
GUARD
BRUSHCUTTER
Page 8of 43
Use and maintenance manual
Rev. 1.0
3 GUARD
WARNING
All the machines and accessories undergo continuous development.
The manufacturer reserves the right to modify technical data, weights,
construction characteristics and standard equipment at any time and without
notice.
DANGER
If the cutting tools are not in position and appropriately secured, they may cause
SERIOUS DAMAGE TO PEOPLE AND PROPERTY.
The manufacturer accepts no responsibility if the instructions provided in this manual are not
followed.
3.1 Intended use
The brushcutter must be used exclusively to cut grass, shrubs and bushes.
3.2 Improper use
Improper use means the incorrect use of the machine that does not result in potential accidents,
but may cause serious damage to the machine itself.
Modifying or adjusting the machine in order to obtain a level of performance that is higher or
different to that provided by the manufacturer is considered IMPROPER USE and therefore the
manufacturer declines all liability for injury to persons or damage to property; the machine
warranty will be considered void.
3.3 Inappropriate use and contraindications
CAUTION
The machine must be used for the purposes intended by the manufacturer.
It is PROHIBITED to use the machine in the following cases:
• without the guards indicated and/or with the safety devices disabled, faulty or missing (see
section 3.6 and section 3.7);
• setting it up in a way that is not compliant with the instructions in this manual;
• in explosive atmospheres or in places where there is a fire hazard;
• processing materials other than those intended by the manufacturer;
• dangerous situations or device malfunctions;
• improper use of the machine or use by untrained personnel;
• use contrary to the relevant regulations;
• if there are defects in the fuel supply system of the engine;
• if maintenance has not been carried out;
• after modifications or non-authorized interventions;
• failure to comply with some or all of the instructions provided;
• use with materials and tools different from those intended by the manufacturer.

Section 3
GUARD
BRUSHCUTTER
Page 9of 43
Use and maintenance manual
Rev. 1.0
3.4 General instructions
• Read the manual carefully and make sure you have understood all the instructions and
recommendations given in this manual before starting to use the machine. Keep this
manual carefully and refer to it whenever necessary.
• The machine must only be used by adults who have been trained how to use it by a
qualified technician or your local dealer.
• Contact the manufacturer’s service centre or your local dealer for non-routine machine
maintenance. A list of Blue Bird service centres can be found at:
www.bluebirdind.com/assistenza/
• Make sure that there are no people, animals or objects that can be damaged within the
range of action (15 metres).
• The user of the machine is responsible for any damage to third parties and property within
the range of action of the device.
• Always wear suitable work clothes and adequate protective equipment: close-fitting
overalls, heavy duty shoes, gloves, protective helmet, etc.
• Always wear goggles or a face-mask, earmuffs or earplugs.
• The user of the machine must be in good health and not under the influence of alcohol,
drugs and/or medicines.
• Only carry out work when there is good visibility and in natural daylight.
• DO NOT use cutting tools other than those supplied by the manufacturer. Only original
spare-parts.
• DO NOT use broken, worn-out, deformed, dented, or cracked cutting tools.
• Do not start the brushcutter or keep it running indoors.
• Mix and handle the fuel in the open air, away from sources of heat, sparks or flames and
with the engine switched off. After putting the cap on the tank, check that there are no fuel
leaks by rotating the machine in every possible direction.
• Do not smoke when mixing and handling fuel.
• All maintenance, repair and the replacement of components should always be carried out
with the engine switched off and all rotating parts stopped.
• All the machine’s safety systems and the protective equipment must be kept in operation
during the entire period of use.
• Beware of the effects of vibrations and alternate work with short rest breaks.
• Pay attention to the possible emission of "aerosols", due to the chopping of grass and
shrubs, which can cause allergies.
• Carefully read the instructions regarding clothing and protective equipment below.

Section 3
GUARD
BRUSHCUTTER
Page 10 of 43
Use and maintenance manual
Rev. 1.0
3.5 Meaning of the symbols used
Warning, danger, caution.
Read the product documentation and safety instructions in this manual.
Wear eye and hearing protection devices as well as a protective helmet when
using the product.
Wear protective footwear.
Wear protective gloves.
SHARP ELEMENTS!
Keep your hands or feet away from moving parts and always keep away from
the cutting element, which will continue to rotate even after the engine has
been switched off.
Pay attention to flying objects.
No people, animals and/or objects that can be damaged should be within the
working range shown in the pictogram.
Sound power level guaranteed LWA according to Directive 2000/14/EC +
2005/88/EC
Toxicity hazard

Section 3
GUARD
BRUSHCUTTER
Page 11 of 43
Use and maintenance manual
Rev. 1.0
Risk of fire or explosion
3.6 Appropriate clothing and protective equipment
CAUTION
Carefully read the following instructions regarding the type of clothing and
protective equipment to wear before using the machine.
• Use close-fitting overalls (avoid loose fitting shirts or loose clothing).
• Do not wear jewellery, rings, ties, scarves or anything else that might get caught in
branches or the moving parts of the machine.
• Tie up your hair so that it is above shoulder length.
• Wear closed work shoes or boots with non-slip soles that ensure stability (never use the
machine barefoot or wearing flip-flops or low open shoes).
• Wear a protective helmet whenever there is a risk of contact with falling objects during
pruning operations or when cutting eye-level undergrowth.
• ALWAYS wear a visor and/or anti-fog goggles for effective face and eye protection.
• Protect your hearing by wearing earmuffs or earplugs.
• Always wear work gloves that protect against light impact and cuts when handling blades,
knives, and/or sharp parts.
3.7 Machine safety devices and safety systems
The machine is fitted with a series of “safety devices” to protect the user:
• Safety guards to protect against accidental contact with the hot parts of the device.
• Nylon or rubber spark plug cap that provides protection against accidental contact with the
machine’s high-voltage electrical parts.
• Shaft-engine connection housing fitted with a vibration damping rubber.
• Handlebar cross brace or grip with vibration-damping.
• Large safety guards and protective barriers.
• Fireproof safety harnesses with quick release buckles to release the machine immediately.
• Throttle lever with double safety.

Section 3
GUARD
BRUSHCUTTER
Page 12 of 43
Use and maintenance manual
Rev. 1.0
1
Safety helmet
7
Safety shoes
2
Earmuffs
8
Heavy-duty overalls
3
Chip-guard face-mask
9
Vibration damping support
4
Quick-release safety strap
10
Throttle control handle with “STOP” switch
5
Gloves
11
Engine with overheat protection
6
Safety guard

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 13 of 43
Use and maintenance manual
Rev. 1.0
4 TECHNICAL FEATURES
4.1 Main parts
1
Fuel tank
6
Drive shaft
2
Starting grip
7
Bevel gear box
3
Vibration-damping handlebar/grip
8
Cutting tool
4
Vibration damping support
9
Safety guard
5
Throttle control lever with safety
trigger

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 14 of 43
Use and maintenance manual
Rev. 1.0
4.2 Data plate
A nameplate (1) containing the identification information required when requesting assistance
and/or spare parts is attached to the motor. It includes:
• name;
• model;
• serial number;
• year;
WARNING
DO NOT remove, move or replace the nameplate with that of another machine;
DO NOT modify the data indicated on the nameplate.

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 15 of 43
Use and maintenance manual
Rev. 1.0
4.3 Technical data tables
MODEL
BCB 450
ST
BCB 560
ST
BCB 610
ST
BC 261 BC 341 BC 431 BC 521
Shaft diameter [mm] 28 28 28 24 28 28 28
Weight without fuel, cutting
tools and guard [kg]
12.2 12.2 12.2 5.4 (G) 6.5 (G)
6.6 (G)7.2
(H)
7.2 (G)7.9
(H)
Tank capacity [cm³] 800 800 800 450 700 800 800
Engine type*
B.B.I. N44E
ST 44.3c.c
B.B.I. N56E
ST 53.2c.c
B.B.I. N61E
ST 57.9c.c.
1E34FGN
25.4c.c.
1E36F-2GN
33c.c.
1E40F-5GN
42.7c.c.
1E44F-5GN
51.6c.c.
Maximum power [kW] 1.80 2.00 2.60 0.75 0.90 1.25 1.46
Blade diameter [mm] 255 – 305
Attachment hole diameter
[mm]
25.5
Blade rotation speed [rpm/1’] 8,000
Min. engine speed range
[rpm/1’]
2800/3000
Rotation direction (as seen
from the PTO)
Left
Length [mm] 2760 2760 2760 1785 1785 1785 1785
Width [mm] 385 385 385 385 (G)
560 (H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
Height [mm] 475 475 475 330 (G)
420 (H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
Sound pressure level (LpA
av) according to Directive
2000/14/EC+2005/88/EC [dB]
91 92 92 90 91 92 93
Sound power level (LWA av)
according to Directive
2000/14/EC+2005/88/EC [dB]
111 112 112 112 114 114 114
Vibration: ā(h,w) at minimum
according to Directive
2002/44/EC [m/s2]
0.2(L)
0.4(R)
0.2(L)
0.4(R)
0.2(L)
0.4(R)
1.8(L)
3.1(R)
2.0(L)
2.1(R)
2.2(L)
2.1(R)
2.3(L)
2.1(R)
Vibration: ā(h,w) at maximum
without load according to
Directive 2002/44/EC [m/s2]
4.2(L)
5.3(R)
4.2(L)
5.3(R)
4.2(L)
5.3(R)
5.6(L)
5.9(R)
7.5(L)
6.5(R)
7.5(L)
6.5(R)
7.5(L)
6.5(R)
(G)= Grip – (H)=Handlebar (R)-(L): grip right – left
For the technical characteristics of the engine, please refer to the ENGINE INSTRUCTIONS MANUAL
Uncertainty of measurement: sound pressure/power level: ± 1 dB Uncertainty of level of vibration: 10 % -
All machines and equipment
undergo continuous development and we reserve the right to modify the technical data, weights,
construction characteristics and
standard equipment at any time and without notice. The information and illustrations contained in this manual are purely indi
cative
and not legally binding.

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 16 of 43
Use and maintenance manual
Rev. 1.0
MODEL
BC 450
ST
BC 560
ST
BC 610
ST
BC 280 BC 370
BC 450
ST PRO
BC 560
ST PRO
BC 610
ST PRO
Shaft diameter [mm] 28 28 28 24 28 28 28 28
Weight without fuel, cutting
tools and guard [kg] 7.7 (G)
8.3 (H)
7.7 (G)
8.3 (H)
7.7 (G)
8.3 (H)
6.6 (G)
7.2 (H)
6.6 (G)
7.2 (H)
7.8 (G)
8.4 (H)
7.8 (G)
8.4 (H)
7.8 (G)
8.4 (H)
Tank capacity [cm³] 800 800 800 800 800 800 800 800
Engine type*
B.B.I. N44E
ST
44.3c.c.
B.B.I. N56E
ST
53.2c.c.
B.B.I. N61E
ST
57.9c.c.
B.B.I.
P28E
27.4c.c.
B.B.I.
P35E
34c.c.
B.B.I.
N44E ST
44.3c.c.
B.B.I.
N56E ST
53.2c.c.
B.B.I.
N61E ST
57.9c.c.
Maximum power [kW] 1.80 2.00 2.60 0.90 1.10 1.80 2.00 2.60
Blade diameter [mm] 255 – 305
Attachment hole diameter
[mm]
25.5
Blade rotation speed [rpm/1’] 8,000
Min. engine speed range
[rpm/1’]
2800/3000
Rotation direction (as seen
from the PTO)
Left
Length [mm] 1785 1785 1785 1785 1785 1785 1785 1785
Width [mm] 385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
Height [mm] 330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
Sound pressure level (LpA
av) according to Directive
2000/14/EC+2005/88/EC [dB]
94 94 95 92 93 94 94 94
Sound power level (LWA av)
according to Directive
2000/14/EC+2005/88/EC [dB]
114 114 115 114 114 114 114 114
Vibration: ā(h,w) at minimum
according to Directive
2002/44/EC [m/s2]
3.0 (L)
3.0 (R)
3.0 (L)
3.0 (R)
3.2 (L)
3.1 (R)
2.7 (L)
3.3 (R)
5.7 (L)
3.7 (R)
3.0 (L)
3.0 (R)
3.0 (L)
3.0 (R)
3.0 (L)
3.0 (R)
Vibration: ā(h,w) at maximum
without load according to
Directive 2002/44/EC [m/s2]
3.6 (L)
3.6 (R)
3.6 (L)
3.6 (R)
3.4(L)
3.5(R)
5.5 (L)
8.9 (R)
7.5 (L)
12.2 (R)
3.6 (L)
3.6 (R)
3.6 (L)
3.6 (R)
3.6 (L)
3.6 (R)
(G)= Grip – (H)=Handlebar (R)-(L): grip right – left
For the technical characteristics of the engine, please refer to the ENGINE INSTRUCTIONS MANUAL
Uncertainty of measurement: sound pressure/power level: ± 1 dB Uncertainty of level of vibration: 10 % - All machines and equipment undergo
continuous development and we reserve the right to modify the technical data, weights, construction characteristics and standard equipment at
any time and without notice. The information and illustrations contained in this manual are purely indicative and not legally binding.

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 17 of 43
Use and maintenance manual
Rev. 1.0
MODEL TJ27E TJ35E TJ45E TJ53E TJ45EZ TJ53EZ
Shaft diameter [mm]
24
28
28
28
27
27
Weight without fuel,
cutting tools and guard
[kg]
5.1 (G)
5.8 (H)
6.2 (G)
6.9 (H)
6.9 (G)
7.6 (H)
7.6 (G)
8.3 (H)
11.8
12.1
Tank capacity [cm³]
500
700
900
1100
900
1100
Engine type*
KAWASAKI
TJ27E
26.3c.c.
KAWASAKI
TJ35E
34.4c.c.
KAWASAKI
TJ45E
45.4c.c.
KAWASAKI
TJ53E
53.2c.c.
KAWASAKI
TJ45E
45.4c.c.
KAWASAKI
TJ53E
53.2c.c.
Maximum power [kW]
0.77
1.03
1.42
2.00
1.42
2.00
Blade diameter [mm]
255 – 305
Attachment hole
diameter [mm]
25.5
Blade rotation speed
[rpm/1’]
8,000
Min. engine speed
range [rpm/1’]
2800/3000
Rotation direction (as
seen from the PTO)
Left
Length [mm] 1785 1785 1785 1785 2760 2760
Width [mm] 385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 (G)
560(H)
385 385
Height [mm] 330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H)
330 (G)
420(H) 475 475
Sound pressure level
(LpA av) according to
Directive
2000/14/EC+2005/88/E
C [dB]
87 94 94 92 94 92
Sound power level
(LWA av) according to
Directive
2000/14/EC+2005/88/E
C [dB]
107 114 114 112 114 112
Vibration: ā(h,w) at
minimum according to
Directive 2002/44/EC
[m/s2]
2.4 (L)
5.7 (R)
3.4 (L)
2.6 (R)
3.4 (L)
2.6 (R)
3.2 (L)
6.0 (R)
0.2 (L)
0.4 (R)
0.2 (L)
0.4 (R)
Vibration: ā(h,w) at
maximum without load
according to Directive
2002/44/EC [m/s2]
6.7 (L)
8.8 (R)
8.6(L)
8.7(R)
8.6(L)
8.7(R)
5.2 (L)
9.6 (R)
4.2 (L)
5.3 (R)
4.2 (L)
5.3 (R)
(G)= Grip – (H)=Handlebar (R)-(L):grip right – left
For the technical characteristics of the engine, please refer to the ENGINE INSTRUCTIONS MANUAL
Uncertainty of measurement: sound pressure/power level: ± 1 dB Uncertainty of level of vibration: 10 % -
All machines and equipment
undergo continuous
development and we reserve the right to modify the technical data, weights, construction characteristics and
standard equipment at any time and without notice. The information and illustrations contained in this manual are purely indi
cative and
not legally binding.

Section 4
TECHNICAL FEATURES
BRUSHCUTTER
Page 18 of 43
Use and maintenance manual
Rev. 1.0
MODEL HO25 HO35 HO35Z HO50 ZHO 50
Shaft diameter [mm] 24 28 27 28 27
Weight without fuel, cutting
tools and guard [kg]
5.2 (T)
5.3 (G)
6.0 (H)
7.1 (G)
7.7 (H) 12.2 7.9 (G) 8.5(H) 13.0
Tank capacity [cm³] 580 650 650 630 630
Engine type*
HONDA
GX25
25c.c.
HONDA
GX35
35.8 c.c.
HONDA
GX35
35.8 c.c.
HONDA
GX50
47.9 c.c.
HONDA
GX50
47.9 c.c.
Maximum power [kW] 0.72 1.0 1.0 1.47 1.47
Blade diameter [mm]
255 – 305
Attachment hole diameter
[mm]
25.5
Blade rotation speed [rpm/1’]
8,000
Min. engine speed range
[rpm/1’]
2800/3000
Rotation direction (as seen
from the PTO)
Left
Length [mm]
1535 (T)
1785
1785 2760 1785 2760
Width [mm] 385 (G)
560(H)
385 (G)
560(H)
385 385 (G)
560(H)
385
Height [mm]
330 (G)
420(H)
450 (T)
330 (G)
420(H) 475 330 (G) 420(H) 475
Sound pressure level (LpA
av) according to Directive
2000/14/EC+2005/88/EC [dB]
91 91 91 92 92
Sound power level (LWA av)
according to Directive
2000/14/EC+2005/88/EC [dB]
111 111 111 112 112
Vibration: ā(h,w) at minimum
according to Directive
2002/44/EC [m/s2]
1.1 (L)
2.3 (R)
3.3 (L)
1.1 (R)
0.2 (L)
0.4 (R)
3.5 (L)
1.3 (R)
0.3 (L)
0.5 (R)
Vibration: ā(h,w) at maximum
without load according to
Directive 2002/44/EC [m/s2]
4.9 (L)
11.8 (R)
9.1 (L)
4.2 (R)
3.2 (L)
4.1 (R)
5.6 (L)
4.4 (R)
3.5 (L)
4.3(R)
(G)= Grip – (H)=Handlebar (R)-(L): grip right – left
For the technical characteristics of the engine, please refer to the ENGINE INSTRUCTIONS MANUAL
Uncertainty of measurement: sound pressure/power level: ± 1 dB Uncertainty of level of vibration: 10 % -
All machines and equipment
undergo continuous development and we reserve the right to modify the technical data, weights, construction characteristics a
nd
standard equipment at any time and without notice. The info
rmation and illustrations contained in this manual are purely indicative
and not legally binding.

Section 5
ASSEMBLY
BRUSHCUTTER
Page 19 of 43
Use and maintenance manual
Rev. 1.0
5 ASSEMBLY
CAUTION
Make sure that all parts have been assembled correctly before starting to use
the machine.
5.1 Models with rigid shaft
5.1.1 Shaft – engine
1. Orientate the shaft (1), complete with housing support and connect it to the engine (2).
2. Tighten the four screws (3).

Section 5
ASSEMBLY
BRUSHCUTTER
Page 20 of 43
Use and maintenance manual
Rev. 1.0
5.1.2 Handlebar
1. Insert the two half-bearings (1) onto the shaft (2) and secure with the appropriate screws
(3).
2. Position the handlebar (1) it in its seat as shown in the figure.
3. Mount the cover (3) using the screws (4) but without tightening them.
4. Adjust the position of the handlebar so that it can be gripped with slightly bent arms and
wrists in an ergonomic position when working.
5. Tighten the screws (4).
R
L
