NPA100DA QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail]
NPA100DA
Quick Reference Guide
01
Our NPA100DA networked audio zone amplifier delivers advanced audio integration within a
commercial or residential AV installation.
The NPA100DA features a 2 x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant
voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced /
unbalanced audio outputs.
The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with
48V Phantom power support, optical audio and 2ch balanced / unbalanced analogue audio.
The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should
the switch not support PoE++. The unit also includes the ability to lower the amplifier power
output subject to PoE capabilities, support for combined or independent LAN and Dante
connections, DSP with a 10 band EQ, audio delay for lip sync correction, independent gain
control for audio inputs and control via front panel, IR, RS-232, TCP/IP, web-GUI or 12V trigger.
Introduction
FEATURES:
• Advanced network audio amplifier with Dante Integration
• Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm or 70 / 100V
constant output for multiple speakers with longer cable runs
• Supports power via PoE++ on Dante LAN connection or Local
power supply*
• Dual network option - independent Dante and LAN control ports,
or combined to a single LAN
• Audio inputs include:
- 2ch Dante / AES67 audio input
- HDMI ARC, with CEC volume control
- MIC audio input with phantom power and auto-ducking
- 2ch analogue audio input – unbalanced & balanced
- 1 x optical (S/PDIF) audio input
• Audio outputs include:
- 2ch Dante/AES67 audio output
- 2ch variable / fixed analogue output, unbalanced & balanced
- 1 x LFE subwoofer output
• Independent gain control for input channels
• DSP with 31 band EQ with +/-10dB and audio delay
• Local 12V input trigger for automated power control
• Control via front panel, IR, RS-232 and IP
• Auto standby mode with signal sensing
• In-built web-GUI for setup and control
*Amp power limited when using PoE+
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A

NPA100DA QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk02
Front Panel Description
1Power Status LED
2MIC Gain Rotary Dial - Adjust the microphone gain between -10 to +10dB
3Lock Button - Press to lock or unlock the front panel buttons
4Dante Button - Select Dante audio input
5Opt Button - Select optical audio input
6HDMI Button - Select HDMI ARC audio input
7Line Button - Select analogue line audio input
8Volume - Button - Decrease master output volume
9Volume + Button - Increase master output volume
qVolume Level LED’s - Illuminates to show current volume level
Note: To factory reset this device, press and hold the Lock button and Volume + button for 10 seconds
1Dante (PoE) Port - RJ45 connector supporting PoE power to power NPA100DA
2Network Mode Switch - Mode 1 allows Dante audio and TCP/IP and web-GUI control via the Dante PoE port
- Mode 2 allows Dante audio via the Dante PoE Port, and TCP/IP and web-GUI control via the TCP/IP port
3Optical Digital Audio Input - S/PDIF
4HDMI ARC Audio Input - Supports HDMI ARC audio only, connect to HDMI ARC port on display. Supports 2ch PCM audio only
5Analogue L/R Audio Input - Phoenix connector supports balanced or unbalanced analogue audio signals
6MIC Audio Input - Phoenix connector supports balanced or unbalanced microphone audio signals
748V Phantom Power Switch - Enable or disable 48V phantom power for microphone audio input
8Analogue L/R Audio Output - Phoenix connector supports balanced or unbalanced variable analogue audio signals
9Sub Audio Output - Phoenix connector supports balanced or unbalanced analogue audio signal with fixed 80Hz Low Pass Filter
qTCP/IP Port - RJ45 connector for TCP/IP and web-GUI control of the device
wRS-232 - Phoenix connector for RS-232 control of the device
eTrigger Input - Phoenix connector triggers device power on/o. Low level (0V) to turn amp on, high level (5-12V) to turn amp o
rIR Input - 3.5mm stereo connector to connect to Blustream IR receiver for IR control of the device
tIR Voltage Switch - Select between 5V or 12V IR voltage. Please note: included Blustream IR accessories are 5V
ySpeaker Output - Phoenix connector to connect speaker outputs, see Speaker Connections section for more information
uSpeaker Impedance Switch - Select low impedance (LO-Z, 4-8ohm) speakers, or high impedance (HI-70V or HI-100V) speakers
iPower Port - Use included 36V/5.5A DC power adaptor if not powered via PoE++ device
Rear Panel Description
10 12 13
1 2 3 4 8 9
11
5 6 7
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
1 4 5 632
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
87 9 10
14 15 16 17

NPA100DA QUICK REFERENCE GUIDE
Contact: [e-mail] |[e-mail] |[e-mail]
Web-GUI Control
The NPA100DA features an in-built web-GUI which can be used for control and configuration of the unit. By default the device is
set to DHCP, however if a DHCP server (eg: network router) is not installed the device IP address will revert to below details:
Default Username: blustream Default Password: 1234 Default IP Address: 192.168.0.200
For further information please see the NPA100DA User Manual - available to download from the Blustream website.
03
RS-232 Configuration
The RS-232 port is used for configuration and control of the device. The default RS-232 communication settings are:
Baud Rate: 57600 Data Bit: 8 Stop Bit: 1 Parity Bit: none
For a complete RS-232 command list please see the NPA100DA User Manual - available to download from the Blustream website.

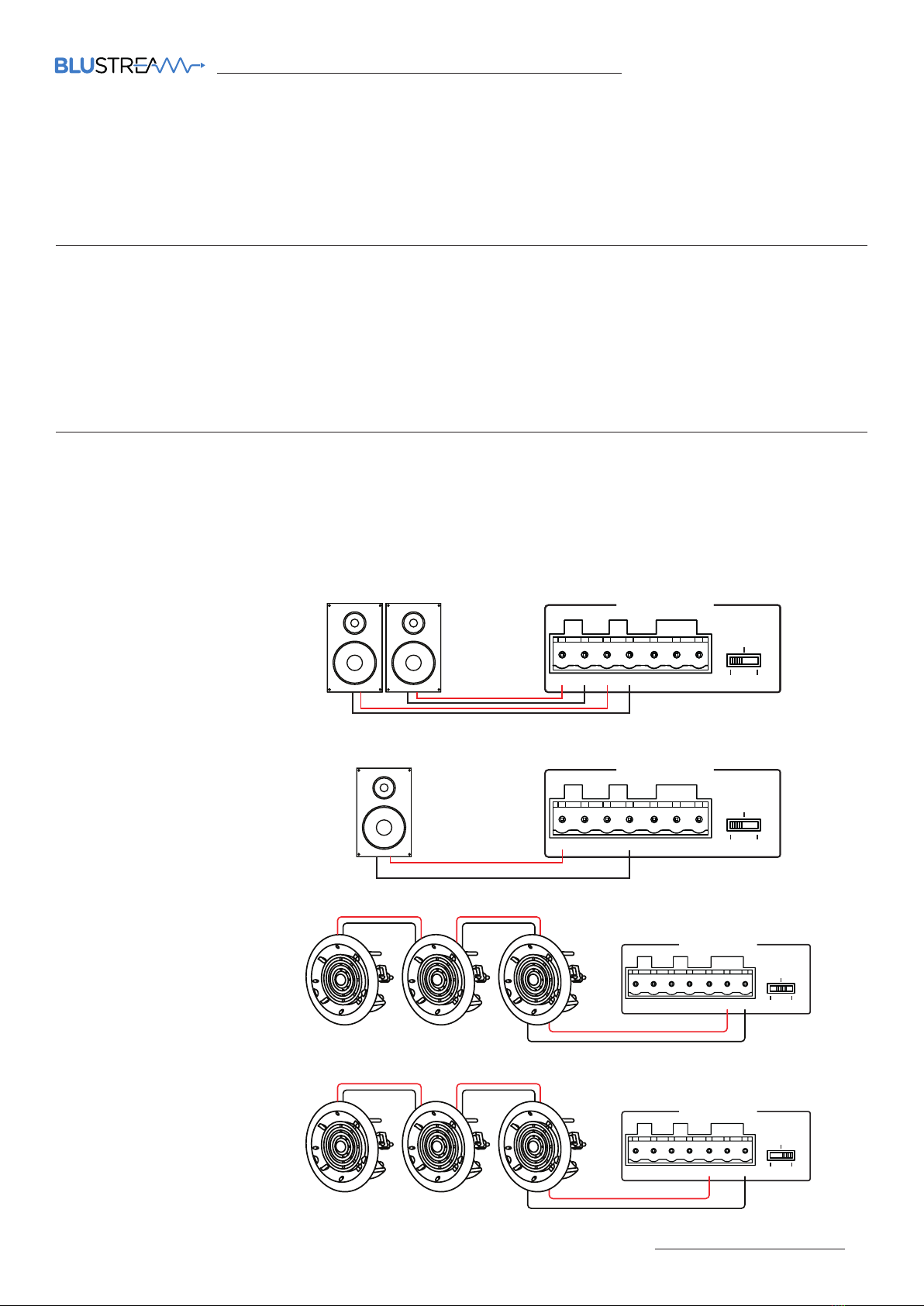

Speaker Connections
The NPA100DA supports both Low Impedance (4-8ohm) speakers as well as High Impedance (70V-100V) speakers. It is necessary
to configure the Speaker Impedance Switch as well as wire up speakers according to the specific speakers you are using. Wiring
examples can be found as follows:
Low Impedance (4-8ohm) Stereo Speakers
Low Impedance (4-8ohm) Mono Speaker
High Impedance 70V Speakers
High Impedance 100V Speakers
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +L+ L- - R- R+ +
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
HI-70V
LO-Z HI-100V
+-
+
-
+
-
+
-
BRIDGED
SPEAKER OUTPUT
100V COM70V
L- R- R+ L+
+
-
+-+-

NPA100DA QUICK REFERENCE GUIDE
www.blustream.com.au |www.blustream-us.com |www.blustream.co.uk
04
REVA4_QRG_NPA100DA
Specifications
AMP POWER SPECIFICATION
NOTE: Specifications are subject to change without notice. Weights and dimensions are approximate.
NPA100DA
• Audio Inputs: 1 x 5-Pin Phoenix connector (analogue)
1 x 3-Pin Phoenix connector (MIC)
1 x HDMI Type A, 19-pin, female, locking (ARC)
1 x Optical (S/PDIF)
• Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker)
1 x 3-Pin Phoenix connector (70 / 100V speaker)
1 x 5-Pin Phoenix connector (analogue audio)
1 x 3-Pin Phoenix connector (LFE subwoofer)
• Ethernet Port: 1 x LAN RJ45 connector (Dante)
1 x LAN RJ45 connector (Network)
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• IR Input Ports: 1 x 3-Pin Phoenix connector
• Trigger Input: 1 x 2-Pin Phoenix connector
• Rack Mountable: 19” Rack mounting and wall / surface mounting kit included
• Casing Dimensions (W x H x D): 250mm x 150mm x 45mm
• Dimensions Including Connections (W x H x D): 252mm x 150mm x 45mm
• Shipping Weight: 2.8kg
• Operating Temperature: 32°F to 104°F (0°C to +40°C)
• Storage Temperature: -4°F to 140°F (-20°C to +60°C)
• Power Supply: PoE++ Type 4, or 36V/5.5A DC 4-pin DIN
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION - changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CANADA, INDUSTRY CANADA (IC) NOTICES
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of the device.
CORRECT DISPOSAL OF THIS PRODUCT
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
Certifications
Acknowledgements
Dante® is a registered trademark of Audinate Pty Ltd.
Networked Power Amplifier with Dante
LOCK DANTE OPT HDMI LINE +
-
MIC GAIN
VOLUME
-10
0dB AUDIO INPUT VOLUME
NPA100DA
+10
ON OFF
5V 12V
TCP/IP
DANTE PoE
OPT
RS-232 TRG IR IN
HDMI (ARC)
LINE MIC
L+ L--
R- R+ +
L+ L-
-
R- R+
+
LINE
48V
HI-70V
LO-Z HI-100V
SUB
IR +-
BRIDGED
AUDIO INPUT AUDIO OUTPUT
CONTROL SPEAKER OUTPUT
100V COM70V
RXTX T S V
L- R- R+ L+
MODE 1 MODE 2
NETWORK
36V 5.5A
Balanced - XLR Unbalanced - RCA
+
-
-
+
Speaker Connections
The NPA100DA supports both balanced and unbalanced analogue
audio connections. The wiring configuration should be as follows:
Package Contents
NPA100DA
• 1 x NPA100DA
• 1 x 36V/5.5A power supply
• 1 x Remote control
• 1 x IR Receiver
• 1 x Rack mounting kit
• 1 x Wall / surface mounting Kit
• 4 x Rubber Feet
• 1 x Quick Reference Guide
POWER SOURCE AMP OUTPUT
36V/5.5A DC 100W
PoE++ Type 4 Class 8 55W
PoE++ Type 4 Class 7 45W
PoE++ Type 3 Class 6 35W
PoE++ Type 3 Class 5 25W
PoE+ Type 2 Class 4 10W
