Bluetti B230 User manual

B230 Portable Power Station
Please read this manual before use and follow its guidance. Keep this manual for future reference.

User Manual
Please read this manual before use and follow its guidance. Keep this manual for future reference.

Contents
01.BRIEF INTRODUCTION ............................ 01
02.ABBREVIATION .................................. 01
03.SAFETY INSTRUCTION............................. 01
04.BLUETTI APP ...................................... 02
05.IN THE BOX ....................................... 03
06.FEATURES ........................................ 05
07.RECHARGE ........................................ 06
08.AC200MAX + B230 EXTRA BATTERY .......... 07
09.TECHNICAL SPECIFICATIONS ................... 08
10.FAQ (Frequently Asked Questions) ........... 09
11.DECLARATION ........................................ 10

01
Just Power On
1.BRIEF INTRODUCTION
B230, extension battery pack owns 2048Wh capacity to support BLUETTI
AC200Max series. This setup can be an emergency power center to run your
home or travel essential appliances , or with enough solar panels, you can even
live off-grid life on the way.
2.ABBREVIATION
● BMS: Battery Management System
● SOC: State of Charge
● AC: Alternating Current
● DC: Direct Current
● PV: Solar Panel(s) Charging (Photovoltaic)
● Grid: Home Power Supplied by Utility
● T500: 500W Additional Adapter
● DOD: Depth of Discharge
3.SAFETY INSTRUCTION
● DO NOT place the power station near heat sources. It is prohibited to place
the equipment in an environment with flammable, explosive gas, or smoke. It
is also prohibited to operate the equipment in this environment.
● DO NOT attempt to replace the internal battery or any other component
of the equipment by anyone other than authorized personnel. There are no
enduser serviceable components.
● DO NOT operate in wet conditions. If the equipment becomes wet, please let
the unit dry completely before using.
● Please ensure proper ventilation while in use and do not obstruct fan
openings. Inadequate ventilation may cause permanent damage to equipment.
● DO NOT stack anything on top of the power station while in storage or while
in use. DO NOT move the unit while operating as vibrations and sudden impacts
may lead to poor connections to the hardware inside.
● Warning: DO NOT insert foreign objects into any ports of the B230. Please
use carefully and keep children away from it.
● In case of fire, only a dry powder fire extinguisher is suitable for the product.

02
BLUETTI
● For safety purposes, please use only the original charger and cables
designed for the equipment. We are not liable for damage caused by third-
party equipment and may render your warranty invalid.
4.BLUETTI APP

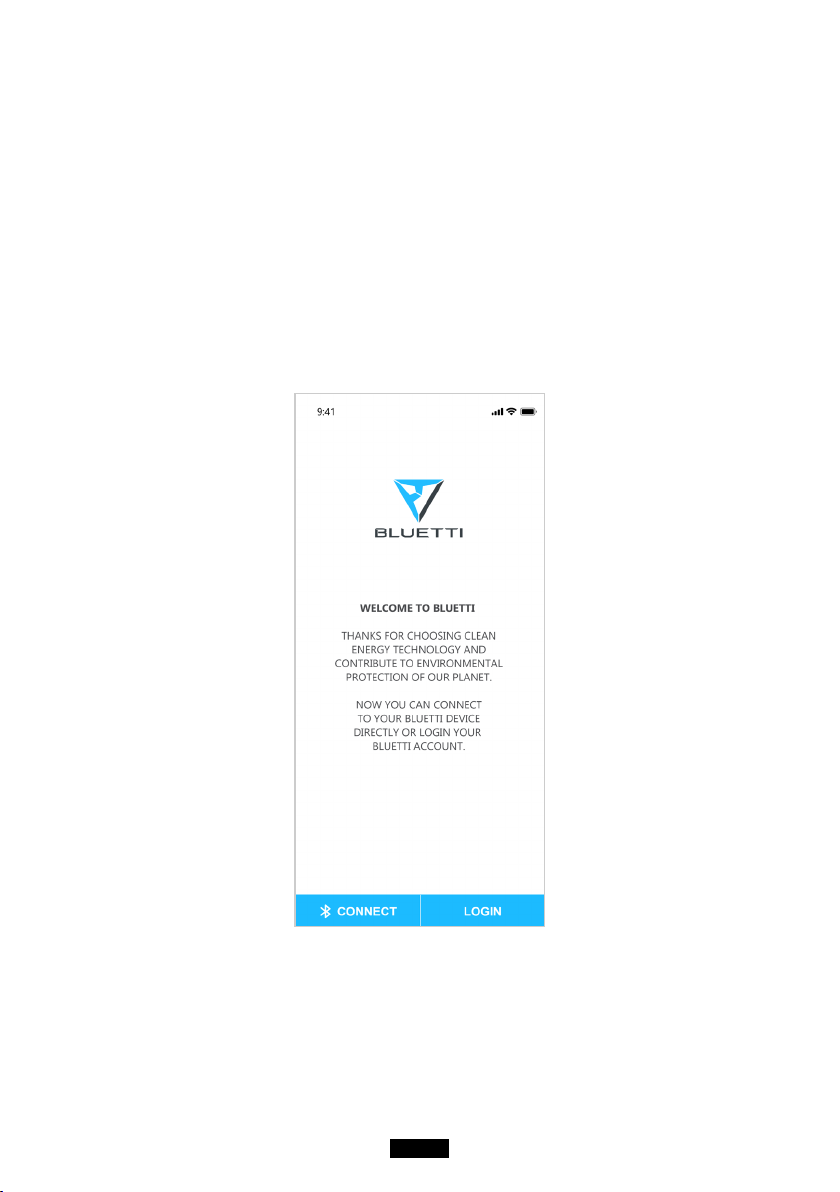

With BLUETTI App, the remaining capacity of B230 can be viewed via Bluetooth
only when B230 has been connected to AC200Max already. Please turn to the
AC200Max User Manual for detailed information.

03
Just Power On

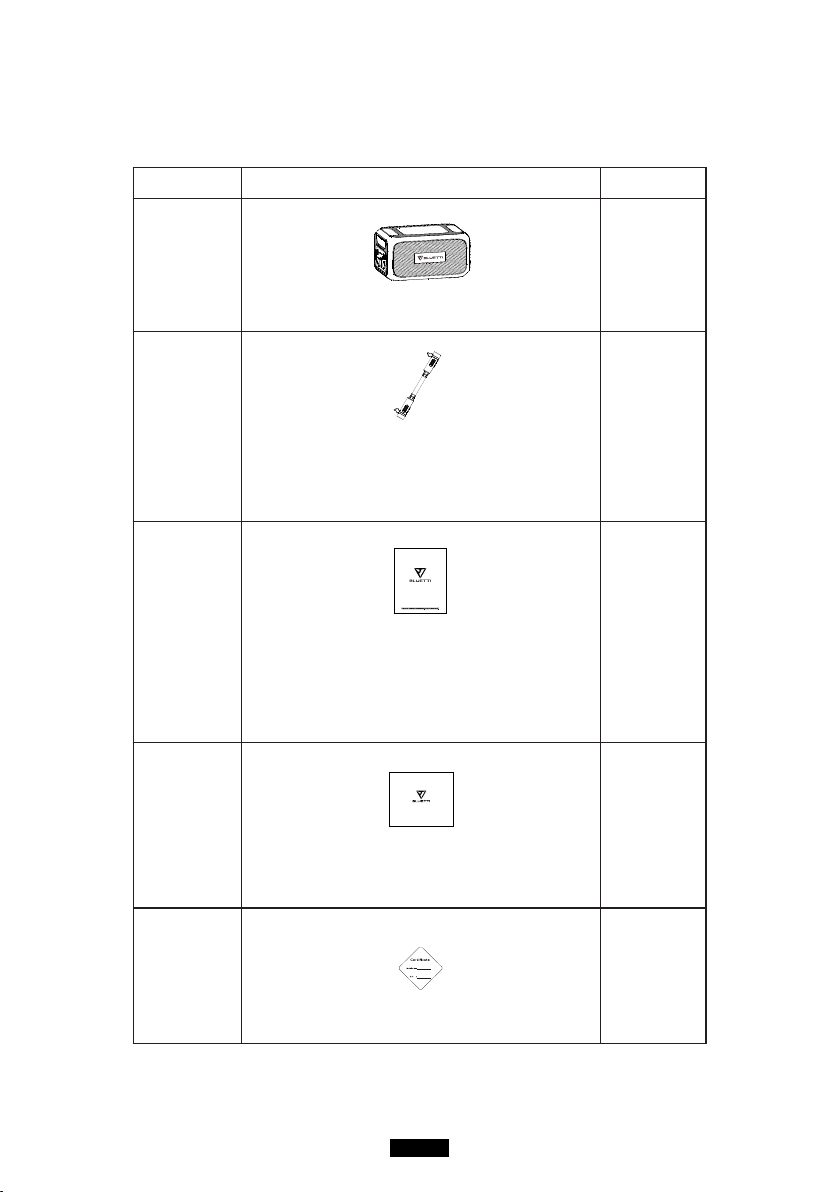

5.IN THE BOX
Standard Accessories
No. Category Quantity
1
B230 Portable Power Station
B230 Extension Battery
1
2
B230 Portable Power Station
Capacity Fusion Cable(P090A)
For battery expansion, connect B230 with
AC200Max.
1
3
B230 Portable Power Station
User Manual
Please read the manual before use and
follow its guidance, keep this manual for
future reference.
1
4
B230 Portable Power Station
Warranty Card
Please keep this Warranty Card properly.
1
5
B230 Portable Power Station
Certicate of QC PASS
1

04
BLUETTI

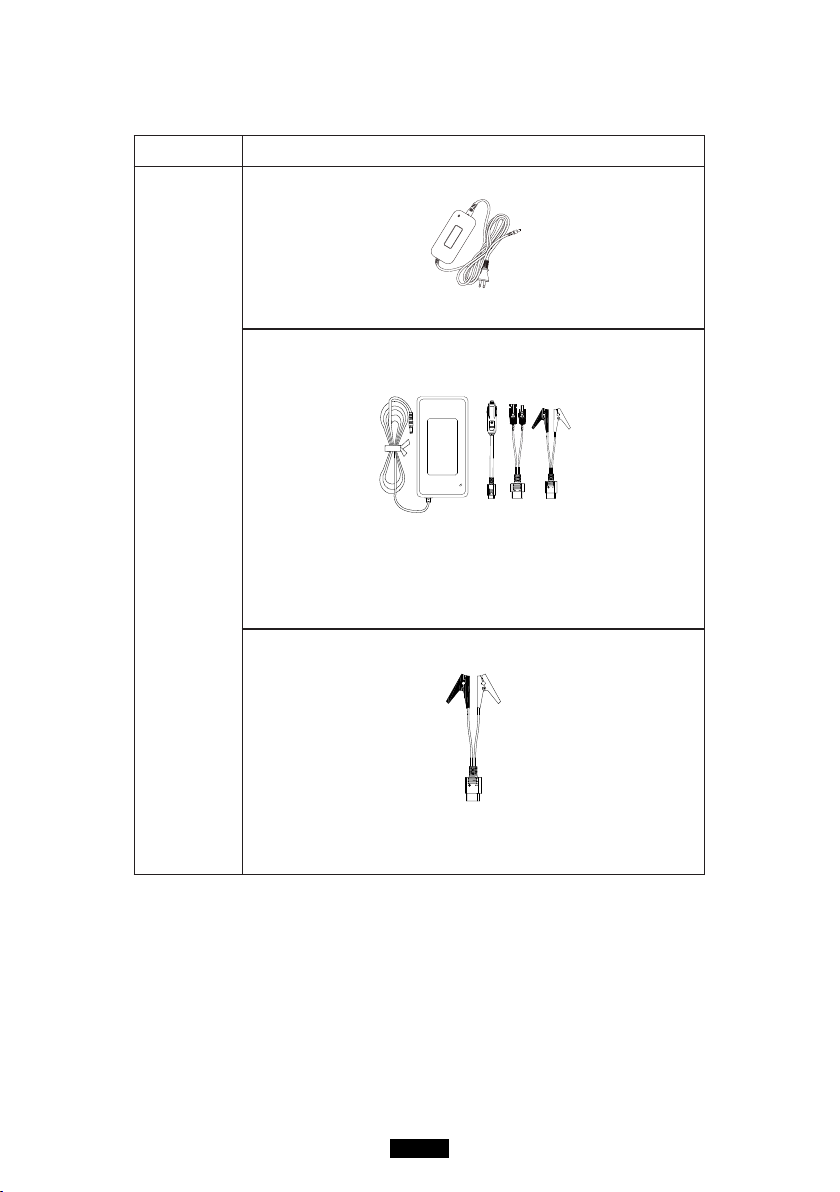

Additional Purchase Accessories
Sold on BLUETTIPOWER.COM
No. Category
Optional
Input Cable
B230 Portable Power Station
T500 Adapter
D050S Charging Kit(Including D050S unit, PV
Charging Cable, Car Charging Cable)
D050S Lead-acid Charging Cable

05
Just Power On
6.FEATURES
1
3
4
2
5
6
7
8
󲁵Power Button
Press to turn ON/OFF the unit.
󲁷LED Capacity Indicator
Show the remaining capacity of the
unit(0-20-40-60-80-100%)
󲁹USB-A Output Port
Supports QC3.0 protocol.
󲁻 USB-C
Can be used via USB-C to USB-C cable to
charge most devices in the market such as
Pixel Phone, Macbook Pro at 100W Max.
󲁽DC Button
Press to turn ON/OFF DC output.
󲁿Cigarette Lighter Port
Output port for devices with corresponding
plug such as vehicle-use vacuum, mini fridge.
󲂁Battery Extension Port
Port of connecting B230 with AC200Max.
󲂃Input Port
To charge B230 via T500 adapter. For
vehicle, extra solar power via D050S.
7.RECHARGE
AC Charging (Default)
(Charge B230 through T500 adapter)

06
BLUETTI
Estimation of Charging Time: 2048Wh / 500W(T500 adapter) + (0.5 - 1 Hrs
Trickle Charging) = 4.6-5.1Hrs for AC200Max fully charged via T500 adapter
only.
Estimation of Running Time: 2048Wh / 100W(Television) *0.9(DoD) * 0.9( η )
= 16.6Hrs.
DoD indicates Depth of Discharge.
η indicates efficiency.
SOC-A: the remaining capacity of AC200Max
SOC-B: B230 battery pack
Extension Charging 01
(T500 adapter on AC200Max)
When SOC-A = SOC-B, both of the two units will be charged simultaneously.
When SOC-A ＜ SOC-B, AC200Max will be charged first by all power source in
the Capacity Fusion System until SOC-A = SOC-B, then both of the two units
will be charged simultaneously.
When SOC-A ＞ SOC-B, only AC200Max will be recharged.

07
Just Power On
Extension Charging 02
(T500 adapter on B230)
When SOC-A = SOC-B, both of the two units will be charged simultaneously.
When SOC-A ＜ SOC-B, B230 will be charged by exterior power source,
AC200Max will be charged by B230.
When SOC-A ＞ SOC-B, B230 will be charged first by all power source in the
Capacity Fusion System until SOC-B = SOC-A, then both of the two units will be
charged simultaneously.
8.AC200MAX + B230 EXTRA BATTERYS

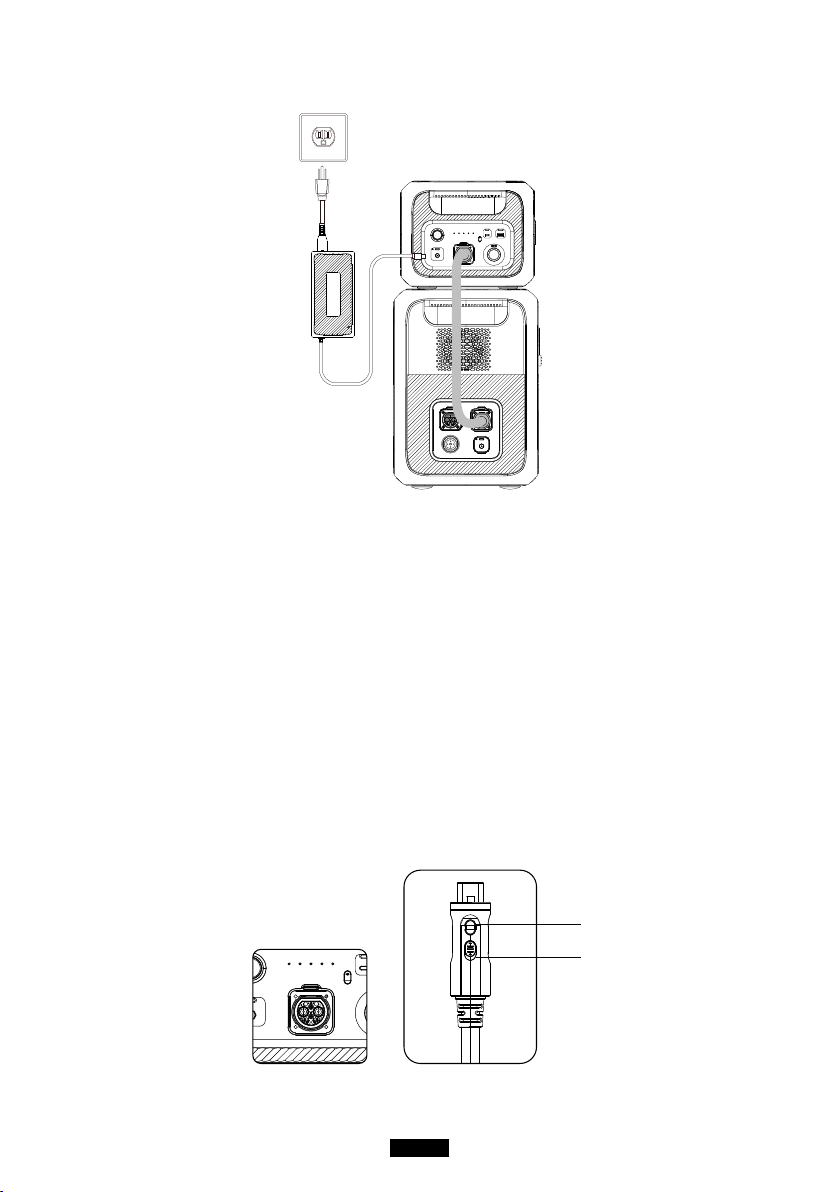

A. Press to turn ON/OFF the power transmission from extended battery.
B. Switch to LOCK/UNLOCK the fusion cable with AC200Max.
C: Plug the Capacity Fusion Cable to the battery expansion port of both
AC200Max and B230.
a:Button 01
b:Button 02
(Hotswap extension battery easy setup.)

08
BLUETTI
(AC200Max + *1 B230 = 4096Wh Capacity)
（AC200MAX with *2 B230)
9.TECHNICAL SPECIFICATIONS
General Specs
Model No. B230
Net Weight 21.8kg (48.0lbs)
Dimensions 420*280*227.5mm (16.5*11.0*8.91in)
Charge Temperature 0-40℃ (32-104 ℉ )
Discharge Temperature -20-40℃ (-4-104 ℉ )
Storage Temperature -20-40℃ (-13-104 ℉ )

09
Just Power On
Working Environment
Humidity 10-90%
Capacity 2048Wh (40Ah)
Battery Type LiFePO4
Standard Battery Voltage 51.2VDC
DC Output
Cigarette Lighter Port *1 12VDC/10A
USB-A *1 3.6-12VDC, 3A,18W
USB-C *1 5-15VDC,3A;
20VDC,5A,100W
AC Input
AC(through 7909 via
T500) 500W Max
Specs 58.8VDC, 8A
PV Input
MPPT(single) Voltage Limit 12-72VDC
Max. Power of Input 200W Max
Max Input Current 10A Max
Battery Extension Port *2
Specs 58.8VDC, 80A
10. FAQ (Frequently Asked Questions)
● How to claim the warranty?
Please refer to the warranty card you received from where you have ordered
the product from.
● Can the unit be upgraded?
When B230 has been connected to AC200Max, the firmware including ARM,
DSP, IoT and BMS can be upgraded online through OTA via BLUETTI APP.
● Can it be charged and discharged at the same time?
Yes B230 supports simultaneous recharge&discharge.

10
BLUETTI
● How to store B230?
We recommend a 3-6 months charging to 80% capacity to extended the
battery life, over-discharge will damage the battery cell.
11. DECLARATION
● Some changes may occur without notice such as external appearance or
specifications due to availability of material supplies or hardware improvements
of the product over time.
● BLUETTI shall not be liable for any damage caused by force majeure such as
fires, typhoons, floods, earthquakes or the user's intentional negligence, misuse
or other abnormal conditions.
● No compensation for damages shall be made for utilizing non-standard
adapters and accessories.
● This unit is not suitable for use on the relevant equipment or machines
involving:
Personal safety, such as atomic energy devices, aerospace devices, emergency
medical devices, etc., or any equipment or machines that require extremely
highly reliable power sources. We are not responsible for accidents, fires,
wrongful or negligent actions caused by such equipment or machines which
results in damage.
P/N:17.0303.0381-00A0
