BLUTOWER
U
s
e
&
M
a
i
n
t
e
n
a
n
c
e
M
a
n
u
a
l
Before Install or use the product read to the precautions and
general recommendations inside.

3
Precautions and general recommendations
This appliance is intended to be used in household and similar
applications such. Appliance for internal use only. Place the
unit away from water jets.
Always connect the product to a water cooler connected to a
water main that supplies drinking water only.
Before each installation, the unit must be sanitized by an
authorized technician.
After installation, ensure that the unit is not resting on the
power cable.
Check that the unit is level and that it is resting on a floor with
sufficient load-bearing capacity, in an environment that is suitable for its dimensions and its
use.
Before any maintenance or cleaning operation is carried out, remove the plug from the
socket or disconnect the power supply.
Ensure that the product is not sited close to sources of heat.
To guarantee adequate ventilation, leave at least 10 cm of space around the unit.
Install the product in a clean, dry, well-ventilated environment. The product is designed
to function in environments with a temperature range of between 5°C and 32°C - Climate
Class N.
Ensure that it is possible to disconnect the power supply either by removing the plug or via
a two-pole circuit-breaker, with an opening distance of the contacts that allows complete
disconnection in the conditions of overvoltage category III, placed upstream of the plug.
Check that the voltage shown on the serial number plate corresponds to the voltage being
supplied at the installation site.
The unit must not be cleaned with a water jet. Do not position other electrical equipment in
the immediate vicinity of the water cooler.
Turn off the main water inlet tap if the unit is not to be used for a long period.
Keep the areas surrounding the unit dry to avoid the risk of people slipping.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person in order to avoid a hazard. Do not use extension
leads or adapters.
This appliance is intended to be used by persons (including children aged from 8
years) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, provided that they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance. The appliance is only to
be installed in locations where it can be overseen by trained personnel.
The Appliance shall be protected by a ground-fault circuit interrupter.
This equipment is to be installed in compliance with the local plumbing codes. Water
pipe connections and fixtures directly connected to a potable water supply shall be
sized, installed, and maintained in accordance with federal, state, and local codes.
This publication is based on information available when approved for printing. Continuing
design refinements could cause changes that may not be included in this publication.

4
Index
• BEFORE INSTALLING THE PRODUCT 5
• RECOMMENDATIONS FOR SAFEGUARDING THE ENVIRONMENT 6
• CERTIFIED 7
• ASSOCIATIONS 8
• INTERNATIONAL AWARDS 8
• DESCRIPTION OF THE UNIT 9
• DESCRIPTION OF THE KEYPAD 12
• FUNCTIONS OF THE VOLUMETRIC KEYPAD 13
• TECHNICAL FEATURES 14
• INSTALLATION 17
• FILTRATION (OPTIONAL) 20
• SANITIZATION – NOTES 21
• ORDINARY MAINTENANCE 22
• SERVICE HISTORY 23
• WARRANTY CONDITIONS 24

5
Before installing the product
Congratulations for choosing a BLUPURA product.
We have designed and manufactured this product with great care to ensure that
it will dispense water of the highest quality.
In order to get the most out of your product, please read the instructions in this
manual and retain the manual for future reference.

6
Recommendations for safeguarding the environment
Packaging materials
The packaging materials are 100% recyclable.
Please follow the local guidelines on waste
disposal. For safety reasons keep the packaging
material out of the reach and sight of children.
Scrappage
The water cooler is made using recyclable material.
This unit is marked in compliance with European Directive 2012/19/UE
on Waste Electrical and Electronic Equipment (WEEE). By ensuring that
the product is scrapped correctly, you are helping to prevent potential
negative consequences for the environment and for health. The symbol
on the unit indicates that the product should not be treated as domestic waste
but should be taken to a dedicated recycling centre for electrical and electronic
equipment. Immediately prior to scrapping, cut off the power cable.
For more information on the treatment, recovery and recycling of this product,
please contact the appropriate local office, the waste disposal service or the
reseller from which the product was purchased.

7
Certified
See official list
Materials compliant for contact with drinking water
This unit is intended for the dispensing of drinking water, and so the materials
that enter into direct contact with water meet the criteria for food-grade
components pursuant to the current legislation. In addition, the unit is
manufactured in compliance with Italian Ministerial Decrees 174 of 06/04/2004
and 25 of 07/02/2012.
Electrical safety
This water cooler is designed, manufactured and marketed in compliance with:
• the safety objectives of the Machinery Directive 2006/42/CE;
• the protection requirements of the Electromagnetic Compatibility Directive
2014/30/EU.
The electrical safety of the product is ensured only when it is properly connected
to an efficient, legally compliant grounding circuit.
D.M. 174
1
0
0
%
M
A
D
E
I
N
I
T
A
L
Y
C
E
R
T
I
F
I
C
A
T
E
I
T
P
I
rosso032 c
UNI EN ISO 9001:2015
UNI EN ISO 14001:2015
ANSI/UL 399

8
Associations
International Awards
2015 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2015, ROME
2015 - BEST ENVIRONMENTAL PRACTICE/GREEN INITIATIVE
EUROPEAN AQUA AWARDS 2015, ROME
2014 - BEST PROMOTION OF HEALTH AND HYDRATION
EUROPEAN AQUA AWARDS 2014, BUDAPEST
2013 - BEST PRODUCT INNOVATION
EUROPEAN AQUA AWARDS 2013, BERLIN
2012 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARDS 2012, ISTANBUL
2011 - BEST PRODUCT DESIGN/INNOVATION
EUROPEAN AQUA AWARDS 2011, ODESSA
2010 - BEST ENVIRONMENTALLY FRIENDLY PRACTICE
EUROPEAN AQUA AWARD 2010, PRAGUE

9
Description of the unit
Perfect for design lovers with limited space and who demand the
performance of professional faucets.
The main features of the unit are as follows:
• A modern design made entirely of stainless steel
• 2 protected sprouts in stainless steel
• 2 or 3 dispensing options: cold still water, cold
sparkling water, room temperature water, semi-
carbonated water, hot water
• Dispensing of pre-set quantities of water; the
quantities are easily programmable thanks to the
volumetric control.
• Can be fitted to any type of water-coolers. Visit the
website www.blupura.com to view our product range.
• Bactericidal UV lamp at exit of each tap (optional).

10
Frontal view
2
3
4
1
2
3
4
1Sparkling water dispensing button
Cold water dispensing button
Dispensing nozzle
SET UP button

11
2
4
4
6
5
7
3
3
4
5
6
7
2

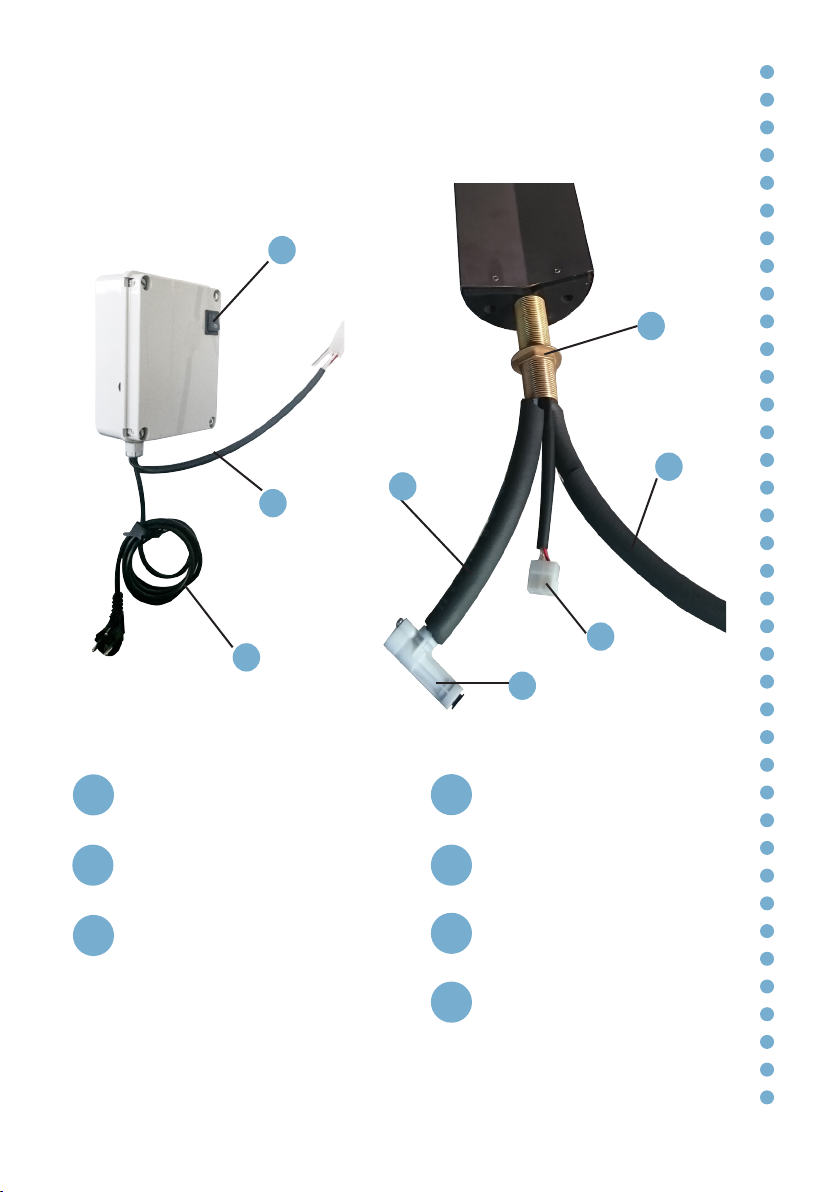

1Sparkling water inlet pipe Ø8mm
Cold water inlet pipe Ø8mm
Nut 1’’
Connection cable
Compensator
Power cable
Power button
Bottom view
1
Electrical box

12

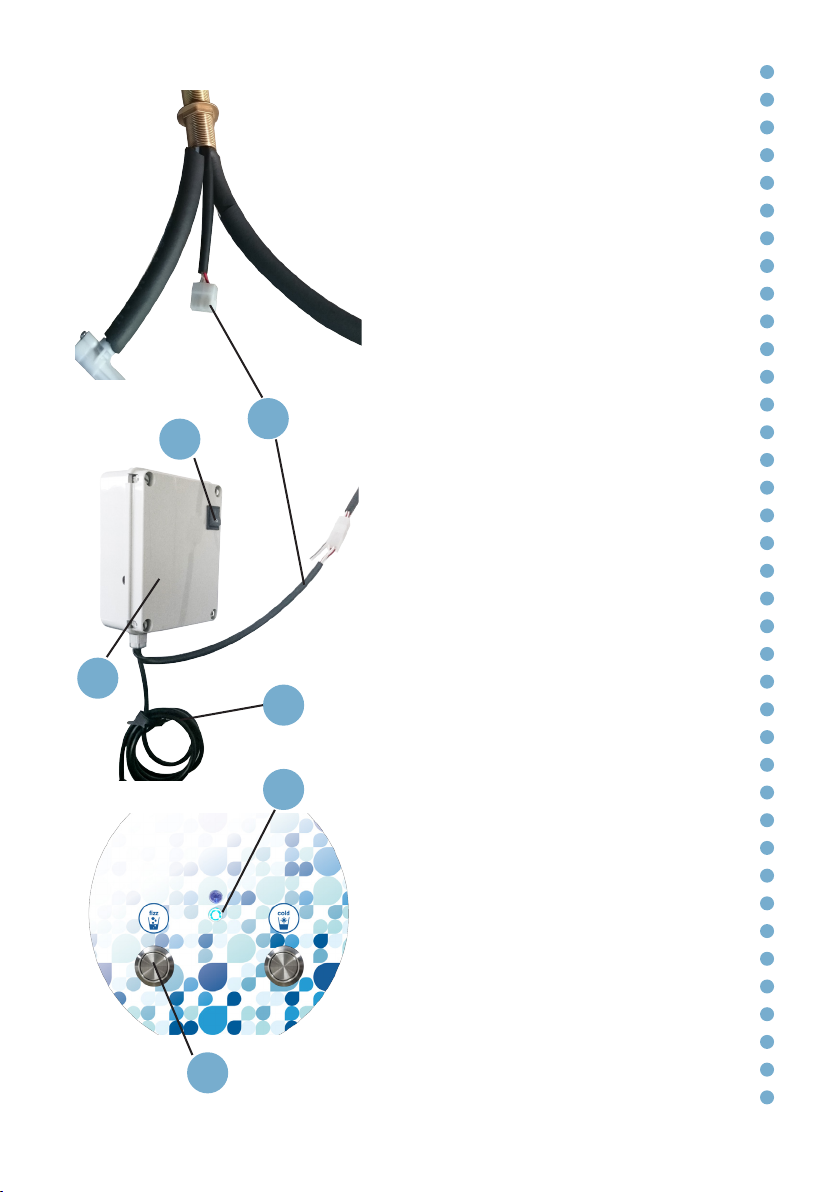

Description of the keypad
P. 3
P.1 Cold sparkling water dispensing button
P.2 Cold still water dispensing button
P. 3 SET UP button*
L.1 BLUE Led*:
Fixed - POWER ON
L.2 GREEN Led*:
L.1 + L.2 flashing - SET UP mode
* Only VOL model
In the version without volumetric programming, the water supply is only
activated by holding down the button.
In Hot model, for safety reasons, to dispense hot water hold down the 2
hot water buttons at the same time.
P. 1 P. 2
L.2 L.1

13
Functions of the volumetric keypad
The dispensing head VOL mod. is equipped with a VOLUMETRIC dispensing
system. The dispensing quantities are easily PROGRAMMABLE during installation.
BUTTON FUNCTIONS:
- SPARKLING WATER UPPER DISPENSER button (P.1)
- COLD WATER UPPER DISPENSER button (P.2)
Push the button for 1 second to dispense a short dose of water (a cupful, 200 cc),
push it for more than 3 seconds for a long dose (1 litre). The dispensing stops
automatically when the pre-set quantity is reached or you can stop it at any time
pushing the button again.
SETTING THE QUANTITIES:
Thanks to the Volumetric dispensing functionality, you can customize the pre-set
quantities dispensed by each of the 2 buttons.
To enter the programming mode, press and hold (for > 4 seconds) the following
combination of buttons: P.2 + P.3 (cold water button + SET UP button). When you
enter the programming phase, you will hear three consecutive beeps.
In this phase, the LEDs L.1 and L.2 start to flash.
To set the maximum dispensing limit for a specific button, press the button in
question to start the dispensing process (1 second for the short dose, more than 3
seconds for the long dose) and press it again once you have reached the desired
quantity.
To exit from the programming mode, press and hold (for > 4 seconds) the
following combination of buttons: P.2 + P.3 (cold water button + SET UP button),
save the data and set the new limits.
The maximum settable quantity for each button is around 3 litres, which equates
to a 65-second dispensing session.

14
Technical Features – Technical Data Plate
14 Year of manufacture
09 Month of manufacture
00101 Serial number
[mod. Blutower]

15
Technical Features - dimensions (mm)
322
444125
1’’(33,7 mm)
60
25
73
76
R70
42
154
200
80
[mod. Blutower]

16
Technical data sheet Blutower
Power supply 230 V - 50 Hz
Power consumption 35W
Inlet pipe connection JG Ø 8mm
Dispensing area height He (mm) 322
Dimensions (mm) ø140 x 574
Electrical box dimensions LxDxH
(mm)
154 x 80 x 200
Packaging dimensions LxDxH
(mm)
710 x 180 x 180
Net weight (kg) 8
Gross weight (kg) 9
For the technical data sheet of other models, examine the technical data plate attacked in the unit.

17
Installation
Unpacking
Remove the two plastic tape and the
internal packing.
Carefully check that the unit has not
been damaged during transport. Any
signs of damage must be reported to the
forwarder immediately.
Ensure that a qualified technician
connects it to the electric supply following
the manufacturer’s instructions and
according to the local safety regulations.
The end user is not permitted to access
the internal service parts of the unit.
Only technical personnel should carry
out operations of this nature.
Siting the unit
Wear safety gloves when handling the
unit. The unit must be handled by two
people.
Site the unit away from sources of heat
and on a flat and strong surface suitable
to support its weight. Do not place on
inclined surfaces.
SANITIZE the machine as described in the
paragraph on page 21.

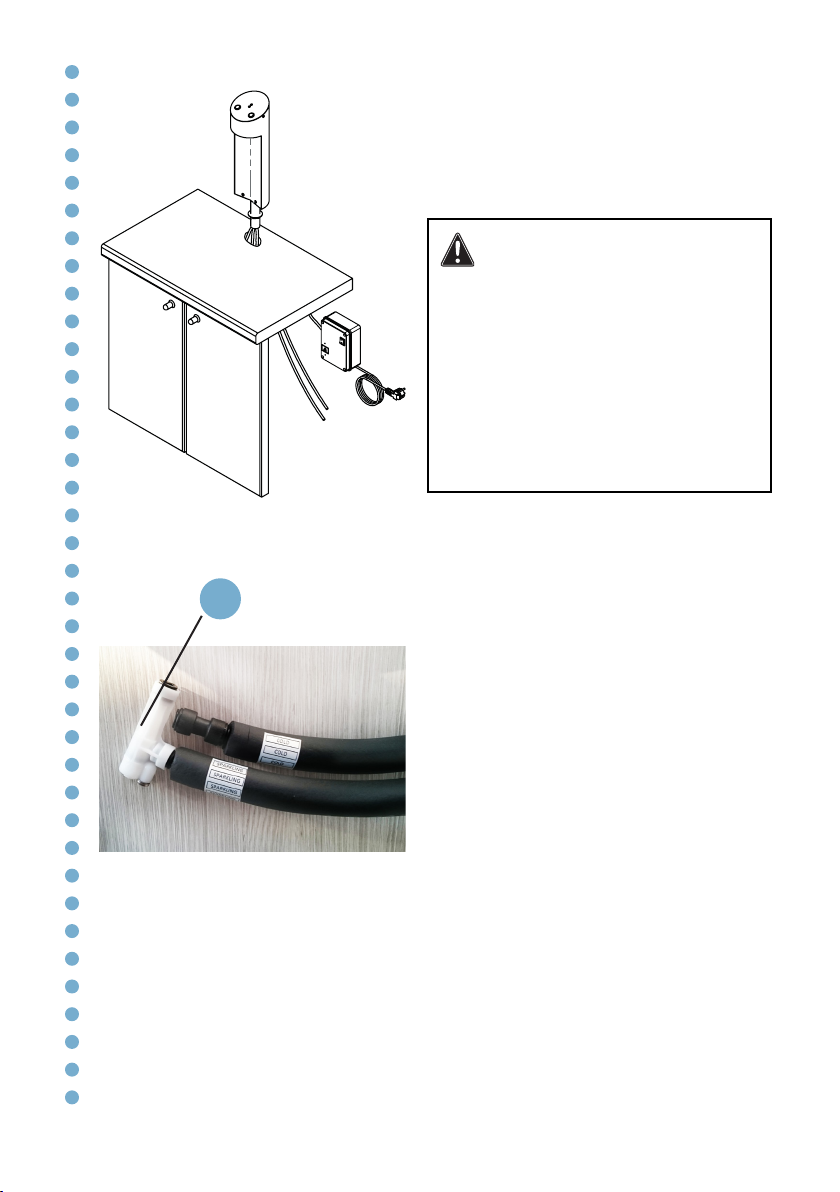

Drill a ø34mm hole on the chosen surface.
Insert the inlet tubes of the dispensing
head through the dedicated hole and
secure the unit firmly to the counter top
with the 1” hut provided.
Open the cover of the electrical box when
the plug is not inserted and secure the
box with screws on the wall below the tap
at a maximum distance of 55 cm.
Fig. 17.1
Fig. 17.2
* Installation. All of the operations must be carried out
exclusively by qualified technical personnel. To view
the video tutorial, scan the QR code.

18
Fig. 18.2
Connection to the water cooler
This supply head must be connected to
an undercounter watercooler. Do not
connect this machine directly to the mains
water supply.
Connect the incoming water tubes of the
supply head (external diameter 8 mm) to
the water cooler, paying attention to the
labels of the pipes (Fig. 18.2).
Once the pipes are attached, open the
main water valve. Ensure there are no
leaks.
Before drinking the water from the
system, perform a thorough rinse of the
circuit by dispensing water from each
product line.
With the screw on the compensator
(1) you can adjust the exit flow of the
sparkling water. Turn the screw clockwise
to decrease the flow or counterclockwise
to increase it.
1
Fig. 18.1
CAUTION!
To connect the water cooler to the mains
water supply, you will need to use a new
set of connectors (joints, gaskets and
pipes).
Do not use a set of connectors that has
already been used elsewhere.
The water pressure entering the unit must
be between a minimum of 1,0 bar (0.10
MPa) and a maximum of 3,5 bar (0.35
MPa).

19
Fig. 19.2
Fig. 19.1
Electrical connection
The connections must comply with local
regulations. The grounding of the unit is
a legal requirement.
Connect the tap to the electrical box (2)
through the cable (1), insert the plug
(3) into a wall outlet and select the “I”
position on the main on/off rocker switch
(4). The electrical tap is now activated
and the POWER ON led L.1 is on.
Press the “Sparkling Water” button (P.1)
in order to release any air in the circuit
and to allow the pump on the under
counter water cooler to start and fill the
carbonator with water.
1
4
2
3
Fig. 19.3
P. 1
L.1

20
Filtration (optional)
Sterilizing UV filter
The supply head is fitted with a BLUPURA
UVC OUT QUARTZ 4W FM 150193 (λ=254
nm) sterilizing filter at the exit point to avoid
backflow contamination.
The UV-C light emitted by the special
4W mercury vapour lamp is lethal for
all microorganisms (bacteria, viruses,
mould, algae, etc.); for this reason, water
treated with the UV-C sterilizer will be
microbiologically pure.
TECHNICAL PROFILE
Material AISI 304 and quartz tube
Power rating 24vac
Power consumption 4Wh
Maximum capacity: 8000 h
The UV sterilizer is made entirely in Italy
and complies with Italian, European and US
quality and safety guidelines.
The light emitted by the ultra-violet
lamp may cause serious burns to the
eyes and skin.
Do not remove it from its stainless-
steel container. The replacement
can only be performed by qualified
personnel.
