BM PRO MiniBoost User manual

OWNER’S MANUAL
MiniBoost
ABrand
www.teambmpro.com

2
Safety Precautions 3
About the MiniBoost 4
Installation 4
Personnel 4
Ventilation, Orientation, and Thermal Considerations 4
Mounting 5
Wiring 6
Wire Size 8
Fusing 8
Specifications 9
Warranty Terms & Conditions 10
CONTENTS
Manual Part #030874
The BMPRO MiniBoost is proudly Australian-made in Melbourne, Australia. Designed by Setec, one of Australia’s leading power
solutions experts. They represent a high quality product that will provide years of service.
Copyright © Setec 2017
Disclaimer
Setec accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products.
Warranty is only valid if the unit has not been modified or misused by the customer.

3
SAFETY PRECAUTIONS
Failure to observe these instructions properly may result in property
damage or personal injury, which may be serious depending on the
circumstances.
Correct installation is the most critical factor in ensuring the safe use of the MiniBoost.
If every consideration of these instructions has been satisfied the MiniBoost will be safe to
operate.
Batteries are electrically live at all times and must be treated with extreme caution.
Do not allow water or other liquids to enter the power supply area.
Contact with water will cause the device to short-circuit or corrode.
Do not use this product where it is excessively hot, cold, dusty or humid, or where it is
exposed to strong magnetic fields or long periods of sunshine. Such exposure may cause
device.
Clean the housing of the device lightly with a dry or moist cotton cloth. Do not use alcohol,
thinners, benzene or any other chemical cleaner.
This device is a high precision electronic product. It contains no user-serviceable parts
inside. Do not try to dismantle, modify or repair it yourself. Disassembly by unauthorised
persons will void the warranty.
CAUTION
Please read the Safety Precautions carefully before installing the power supply.
After completing the installation, conduct a trial operation to check for faults.

4
ABOUT
The MiniBoost is intended for the RV market to enable the effective charging of the
Caravan/Camper house battery from the towing vehicle’s electrical system even if
the voltage delivered from the towing vehicle is lower than that normally required to
charge the house battery.
The MiniBoost has been specially designed to work with the BMPRO BatteryPlus35,
J35, ST-III and Genius power supplies, but might also work with other battery
chargers and configurations.
The input fuse is illuminated from behind with a green light when the input voltage is
sufficient for the unit to operate.
The MiniBoost is not a power supply and must be connected to a battery.
If the battery voltage is too low the MiniBoost will not connect.
INSTALLATION
Personnel
Installation is to be carried out only by suitably qualified personnel.
Ventilation, Orientation, and Thermal Considerations
The MiniBoost may be installed in any orientation, but located such that there is free
air movement around the product. This allows for the lowest operating temperature
of the internal electronics and highest reliability of the product.
The MiniBoost should be located in the Caravan preferably close to the House
Battery. The compartment into which the MiniBoost is installed must be well
ventilated to provide adequate ventilation to the outside world (or larger internal
cavity) to prevent excessive heating of the air within the compartment, resulting in
reduced performance.
Required for Installation
Relay 30A
Wire Connector
Anderson tometor
In Line 30A Fuse
Trailer Connector

5
Figure 1: Mounting Dimensions
Mounting
The MiniBoost should be securely mounted to a suitably strong surface.
Dimensional details are provided in Figure 1 below. It may be mounted in any
orientation.

6
Wiring
It is recommended that the MiniBoost connect to the vehicle battery through a
30A (min) "Isolating Relay" and Fuse (30A min). The relay function is to prevent the
vehicle battery from being discharged when the vehicle is not in use.
Figure 2: Wired to BatteryPlus35
Tow Vehicle
House Battery
In Caravan
30Amp
Fuse
To AX Input
Ignition
Relay
30A

7

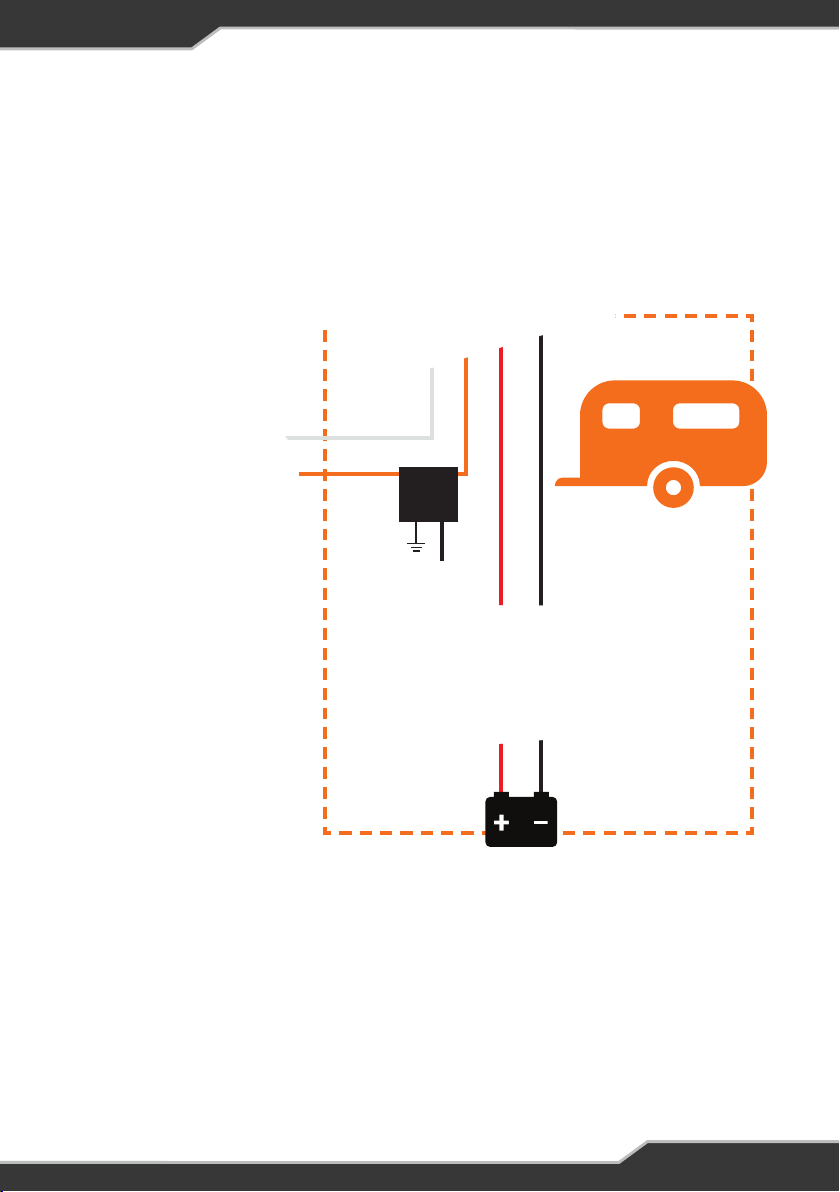

Figure 3: Wired to J35
Tow Vehicle
House Battery
In Caravan
30Amp
Fuse
To AX Input
Ignition
Relay
30A

8

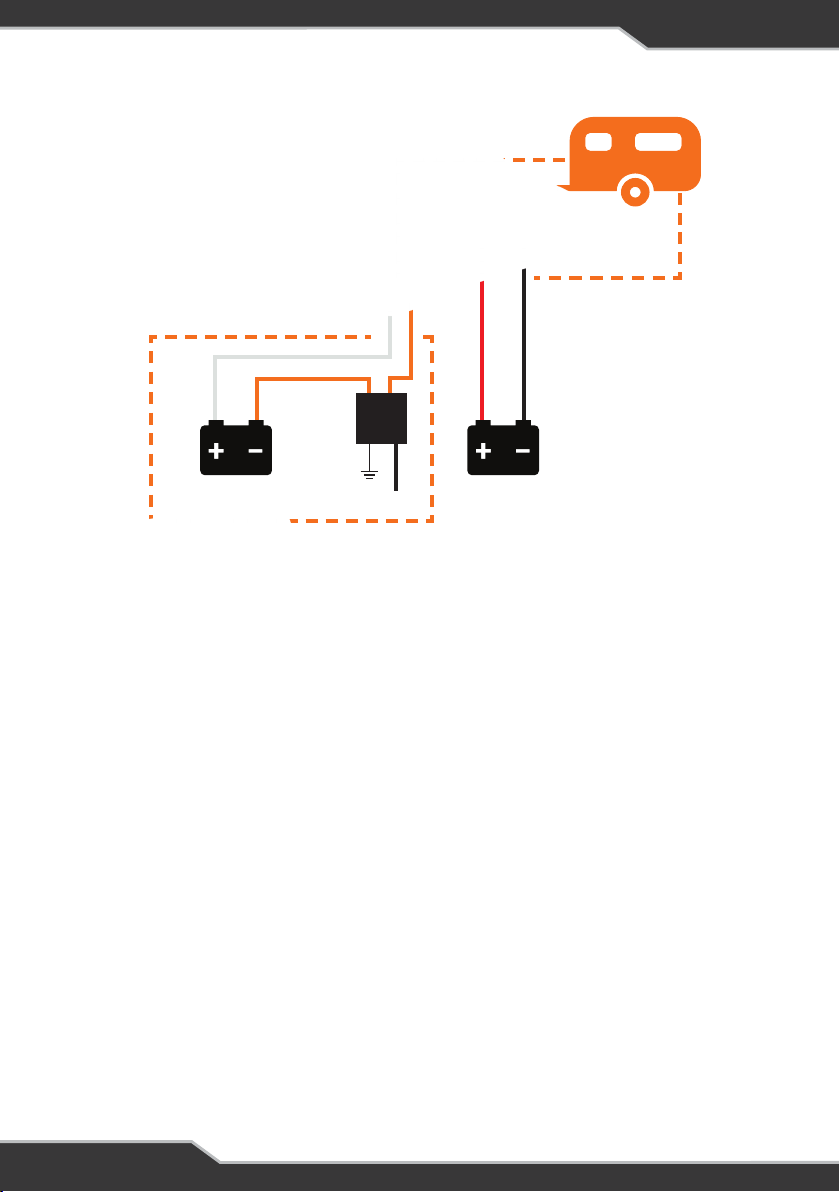

Figure 4: to House Battery
Wire Size
Cables should be sized to carry 30A. The minimum recommended wire size is 5mm²
Wiring resistance inclusive of connectors should be less than 100mR total (Vehicle
battery to MiniBoost input wires). If the circuit resistance (including fuse, relay, and
connectors) is too high, the performance of the MiniBoost may be degraded.
Fusing
Over current protection is provided by a 30A automotive fuse (Green mini-blade).
Always replace with the same type and rating.
House
Battery
30Amp Fuse
Ignition
Relay
30A

9
Input Voltage Range 10V to 15V
Output Current Boost Mode: 20A
Bypass mode: 30A
Output Voltage Boost mode: 14.4V
Bypass mode: <1V Less than Input Voltage
Output Ripple Voltage < 150 mV
Over Current Protection Boost Mode: 21A (electronic)
Bypass mode: 30A (fuse)
Start Voltage 12.2V – 12.9V
Disconnect Voltage 9.1V – 10.5V
Battery Drain
(tow vehicle disconnected) < 20 mA
Efficiency > 80 %
Ambient: 0°C – 50°C
Standards: RCM Approval, EMC CISPR 11
Weight 0.8kg
SPECIFICATIONS

10
WARRANTY TERMS AND CONDITIONS
Registering your BMPRO by Setec product is an important step to ensure that you receive all
of the benefits you are entitled to. Please visit www.teambmpro.com to complete the online
registration form for your new product today.
BMPRO by Setec goods come with guarantees that cannot be excluded under Australian
Consumer Law. You are entitled to a replacement or refund for major failure and for
compensation for any reasonably foreseeable loss or damage. You are entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure. The benefits under this Warranty are in addition to your other rights
and remedies under a law in relation to the goods to which this Warranty relates (the Australian
Consumer Law).
Setec, as the manufacturer of BMPRO by Setec goods warrants products against defects for
a period of two years, commencing from the original date of purchase. Proof of purchase is
required before you can make a claim under this warranty.
HOW TO PROTECT YOUR RIGHTS UNDER THIS WARRANTY: The MiniBoost is designed to
be installed by a suitably qualified installer. You or your installer should carefully inspect the
products before installation for any visible manufacturing defects. We accept no responsibility in
addition to our consumer guarantee obligations where a product has been installed incorrectly.
This warranty does not extend to product failures or defects caused by, or associated with,
but not limited to; failure to install or maintain correctly, unsuitable physical or operating
environment, accident, acts of God, hazard, misuse, unauthorised repair, modification or
alteration, natural disaster, corrosive environment, insect or vermin infestation and failure to
comply with any additional instructions supplied with the product.
Setec may seek reimbursement of any costs incurred by Setec when a product is found to be
in proper working order or damaged as a result of any of the warranty exclusions mentioned
above.
To enquire or make a claim under this warranty, please follow these steps:
a. Prior to returning a BMPRO by Setec product, please email [e-mail]
to obtain a Return Material Authorisation (RMA) number
b. Package and send the product to: BMPRO by Setec Warranty Department,
19 Henderson Road, Knoxfield, VIC 3180.
Please mark RMA details on the outside of the packaging
c. Please ensure the package also includes: a copy of the proof of purchase, a
detailed description of the fault and your contact details including phone
number and return address
Setec will not be liable for any costs, charges or expenses incurred in the process of returning a
product in order to initiate a warranty claim

SWITCH OFF. POWER UP.
BMPRO A Setec Brand
[phone] |[email protected]
19 Henderson Rd, Knoxeld VIC 3180 Australia
www.teambmpro.com
