BM PRO MiniBoost User manual

TEAMBMPRO.COM
OWNER’S MANUAL
MiniBoost

Born by the innovative spirit of our parent company
Setec, with over 50 years’ experience in power
solutions, and design and manufacturing facilities in
Melbourne, we are the leading experts in RV power
management.
Inspired by the great Australian outdoors, we have
created a range of rugged, smart and reliable products
to power your adventures.
Our range of battery chargers, monitors and power
management systems for caravans gives you peace of
mind when you are on the road, so that you can relax in
even the most far-flung destinations, knowing that you
have control over your vehicle power.
To learn more about the BMPRO range of products,
please visit our website teambmpro.com
TEAM
BMPRO
.COM
POWERING YOUR ADVENTURES

Correct installation is the most critical factor in ensuring the safe use of the MiniBoost If
every consideration of these instructions has been satisfied, the MiniBoost will be safe to
operate.
Batteries are electrically live and must be treated with extreme caution. They can supply
high short circuit currents, even if they appear damaged or undamaged.
Do not allow water or other liquids to enter the power supply area.
Contact with water will cause the device to short-circuit or corrode..
SAFETY PRECAUTIONS
Please read the Safety Precautions before installing or using the MiniBoost. Be
sure to observe all precautions without fail. Failure to observe these instructions
properly may result in property damage, or personal injury which depending on
the circumstances may be serious and cause loss of life.
Do not use this product in environments that are excessively hot, cold, dusty or humid or
where it will be exposed to magnetic fields or long periods of sunshine. Such exposure may
cause the product or your battery to fail, catch fire or explode.
Clean the housing of this product lightly with a dry or moist cotton cloth. Do not use alcohol,
thinners, benzene or any other chemical cleaner.
The MiniBoost is a high precision electronic product. It contains no user-serviceable parts
inside. Do not try to dismantle, modify or repair it yourself. Disassembly, service or repair by
an unauthorised person will void the warranty.

4
Designed by BMPRO, one of Australia’s leading power solution experts, the BMPRO
product range is proudly designed and manufactured in Melbourne, Australia, and
represent a high-quality product that will provide years of service.
DISCLAIMER BMPRO accepts no liability for any loss or damage which may occur
from the improper or unsafe use of its products. Warranty is only valid if the unit has
not been modified or misused by the customer.
Copyright © 2019
MANUAL PART 033300
REV 4.0
CONTENTS
SAFETY PRECAUTIONS .........................3
ABOUT THE MINIBOOST .........................5
WHAT’S INCLUDED .........................5
INSTALLATION INSTRUCTIONS .........................6
PERSONNEL .........................6
VENTILATION, ORIENTATION AND THERMAL CONSIDERATIONS .........................6
REQUIRED FOR INSTALLATION .........................6
MOUNTING .........................6
WIRING .........................7
WIRE SIZE .........................7
FUSING .........................7
WIRING THE MINIBOOST TO THE BATTERYPLUS35 .........................8
WIRING THE MINIBOOST TO THE J35 .........................9
SERVICING .......................10
FAQS AND TROUBLESHOOTING .......................10
SPECIFICATIONS .......................10
WARRANTY TERMS AND CONDITIONS .......................11

5
ABOUT THE MINIBOOST
The MiniBoost is intended for the RV market to enable the effective charging of the
Caravan/Camper house battery from the towing vehicle’s electrical system even if the
voltage delivered from the towing vehicle is lower than that normally required to charge
the house battery.
The MiniBoost has been specially designed to work with the BMPRO BatteryPlus35 and
J35.
The input fuse is illuminated from behind with a green light when the input voltage is
sufficient for the unit to operate.
The MiniBoost is not a power supply and must be connected to a battery. If the battery
voltage is too low the MiniBoost will not connect.
The MiniBoost can be used to charge all types of lead acid batteries. While the MiniBoost
can charge LiFePO4batteries to around 90%, please be aware that the output voltage
of the MiniBoost is slightly lower than the LiFePO4optimal charging voltage required to
achieve full charge.
WHAT’S INCLUDED
Included with this product are:
9MiniBoost
9MiniBoost Owner’s Manual

6

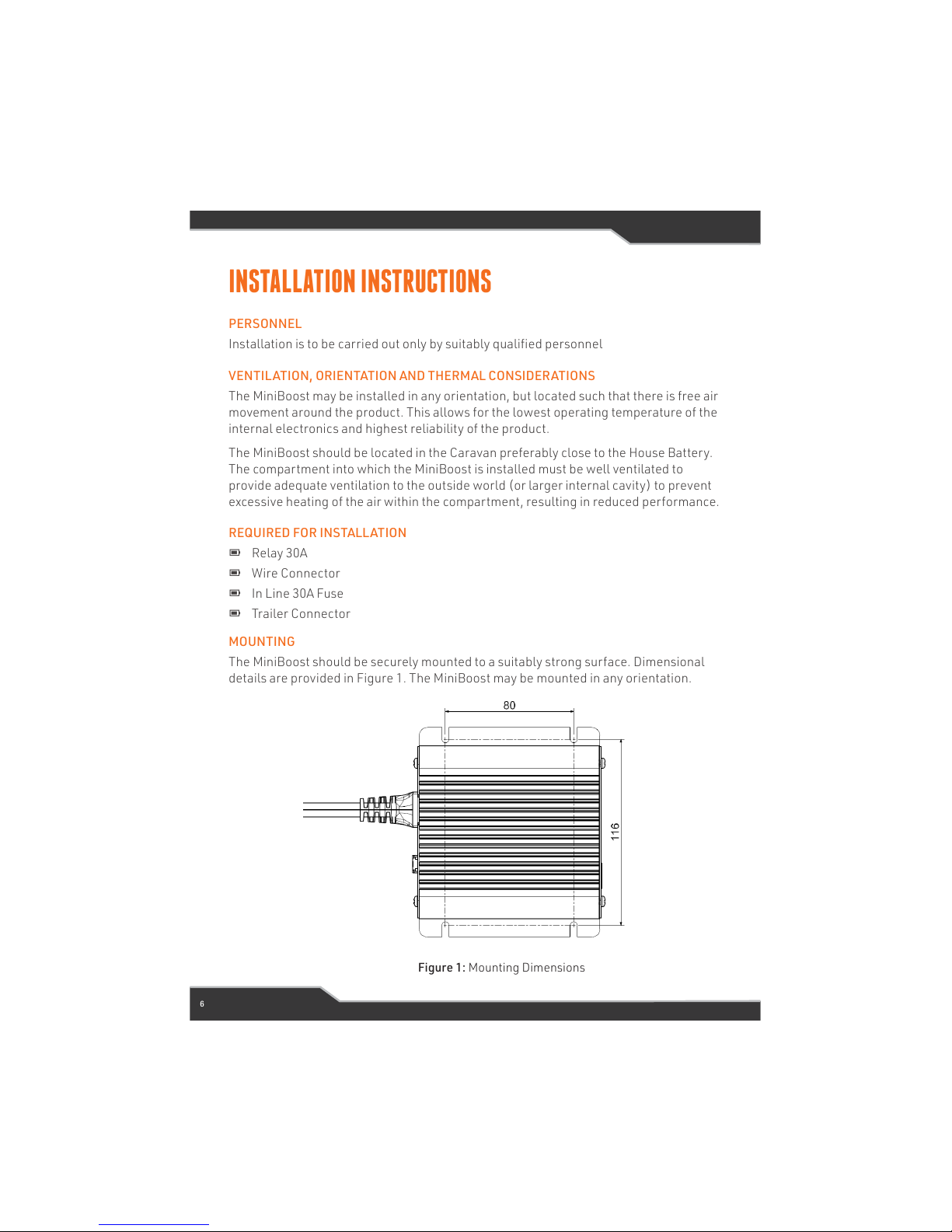

INSTALLATION INSTRUCTIONS
PERSONNEL
Installation is to be carried out only by suitably qualified personnel
VENTILATION, ORIENTATION AND THERMAL CONSIDERATIONS
The MiniBoost may be installed in any orientation, but located such that there is free air
movement around the product. This allows for the lowest operating temperature of the
internal electronics and highest reliability of the product.
The MiniBoost should be located in the Caravan preferably close to the House Battery.
The compartment into which the MiniBoost is installed must be well ventilated to
provide adequate ventilation to the outside world (or larger internal cavity) to prevent
excessive heating of the air within the compartment, resulting in reduced performance.
REQUIRED FOR INSTALLATION
9Relay 30A
9Wire Connector
9In Line 30A Fuse
9Trailer Connector
MOUNTING
The MiniBoost should be securely mounted to a suitably strong surface. Dimensional
details are provided in Figure 1. The MiniBoost may be mounted in any orientation.
Figure 1: Mounting Dimensions

7
WIRING
It is recommended that the MiniBoost connect to the vehicle through a 30A (minimum)
Isolating Relay and 30A (minimum) fuse. The relay function is to prevent the vehicle
battery from discharging when the vehicle is not in use.
WIRE SIZE
Cables should be sized to carry 30A. The minimum recommended wire size is 5mm2.
Wiring resistance, inclusive of connectors should be less than 100mR total (vehicle
battery to MiniBoost input wires).
If the circuit resistance (including fuse, relay and connectors) is too high, the
performance of the MiniBoost may degrade.
FUSING
Over current protection is provided by a 30A automotive fuse (green mini-blade).
Always replace fuse with the same type and rating.

8

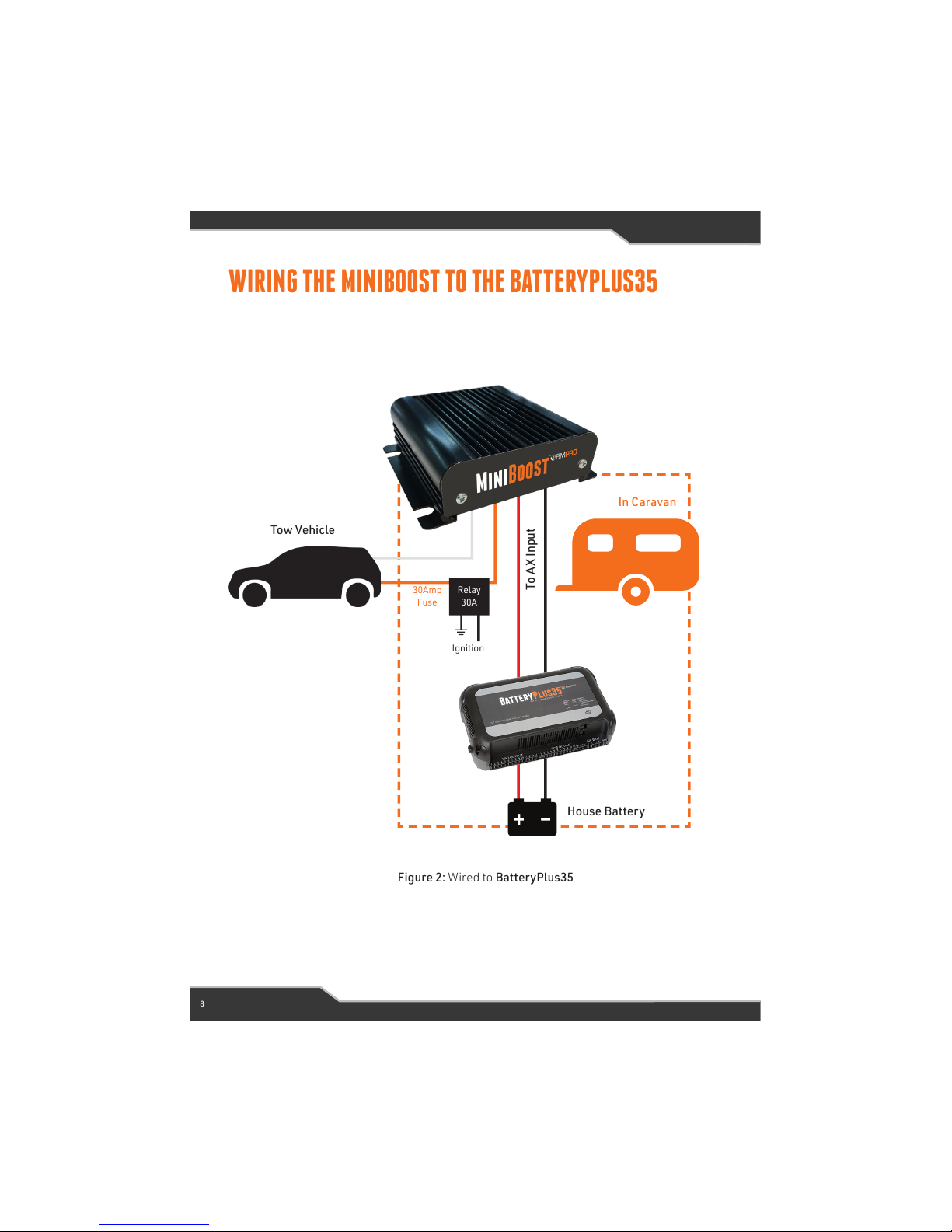

Figure 2: Wired to BatteryPlus35
Tow Vehicle
House Battery
In Caravan
30Amp
Fuse
To AX Input
Ignition
Relay
30A
WIRING THE MINIBOOST TO THE BATTERYPLUS35

9
WIRING THE MINIBOOST TO THE J35
Figure 3: Wired to J35
Tow Vehicle
House Battery
In Caravan
30Amp
Fuse
To AX Input
Ignition
Relay
30A

10
FAQS AND TROUBLESHOOTING
Need help troubleshooting your MiniBoost?
Contact our customer service team online at teambmpro.com/technical-support/
or give us a call on [phone]..
SERVICING
Do not attempt to service the MiniBoost, OR dismantle, modify or repair the MiniBoost
yourself; this will void your warranty. If your MiniBoost requires servicing, please
consult your BMPRO dealer or visit teambmpro.com for assistance.
SPECIFICATIONS
Input Voltage Range 10V to 15V
Output Current Boost Mode: 20A
Bypass mode: 30A
Output Voltage Boost mode: 14.4V
Bypass mode: <1V Less than Input Voltage
Output Ripple Voltage <150 mV
Over Current Protection Boost Mode: 21A (electronic)
Bypass mode: 30A (fuse)
Start Voltage 12.2V – 12.9V
Disconnect Voltage 9.1V – 10.5V
Battery Drain
(tow vehicle disconnected) <20 mA
Efficiency >80 %
Ambient: 0°C – 50°C
Standards: RCM Approval, EMC CISPR 11
Weight 0.8kg

11
WARRANTY TERMS AND CONDITIONS
Registering your BMPRO product is an important step to ensure that you receive all the benefits you
are entitled to. Please visit teambmpro.com to complete the online registration form for your new
product today.
1. BMPRO goods come with guarantees that cannot be excluded under Australian Consumer
Law. You are entitled to a replacement or refund for major failure and for compensation for any
reasonably foreseeable loss or damage. You are entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under this Warranty are in addition to your other rights and remedies under a law in
relation to the goods to which this Warranty relates (the Australian Consumer Law).
2. BMPRO warrants products against defects for a period of two years, commencing from the
original date of purchase. Proof of purchase is required before you can make a claim under this
warranty.
HOW TO PROTECT YOUR RIGHTS UNDER THIS WARRANTY
3. The MiniBoost is designed to be installed by a suitably qualified installer. You or your installer
should carefully inspect the products before installation for any visible manufacturing defects. We
accept no responsibility in addition to our consumer guarantee obligations where a product has
been installed incorrectly.
4. This warranty does not extend to product failures or defects caused by, or associated with, but not
limited to: failure to install or maintain correctly, unsuitable physical or operating environment,
accident, acts of God, hazard, misuse, unauthorised repair, modification or alteration, natural
disaster, corrosive environment, insect or vermin infestation and failure to comply with any
additional instructions supplied with the product.
5. BMPRO may seek reimbursement of any costs incurred by BMPRO when a product is found to be in
proper working order or damaged as a result of any of the warranty exclusions mentioned in point
4 of this statement.
6. To enquire or make a claim under this warranty, please follow these steps:
a. Prior to returning a BMPRO product, please email [e-mail] to obtain a
Return Material Authorisation (RMA) number
b. Package and send the product to:
BMPRO Warranty Department
19 Henderson Road
Knoxfield, VIC 3180
Please mark RMA details on the outside of the packaging
c. Please ensure the package also includes: a copy of the proof of purchase, a detailed
description of the fault and your contact details including phone number and return address.
7. BMPRO will not be liable for any costs, charges or expenses incurred in the process of returning a
product in order to initiate a warranty claim.

TEAM
BMPRO
.COM
POWERING YOUR ADVENTURES.
BMPRO
[phone] | [email protected]
19 Henderson Rd, Knoxeld VIC 3180 Australia
teambmpro.com
