BMB DAR-800II User manual

CONTENTS
OWNER’S MANUAL
Thank you very much for purchasing our DIGITAL ECHO 4CH AV
AMPLIFIER. Prior to use, be sure to read this owner's manual from
cover to cover so that you can make the most out of this unit. The
manual will come in handy whenever you come across any question or
trouble while using the unit.
DIGITAL ECHO AV AMPLIFIER
IMPORTANT SAFETY PRECAUTIONS ................... 2
IMPORTANT SAFETY PRECAUTIONS ................... 3
SPECIAL FEATURES.............................................. 4
PRECAUTIONS FOR HANDLING ........................... 4
BEFORE CONNECTION......................................... 4
SAFETY PRECAUTIONS ........................................ 5

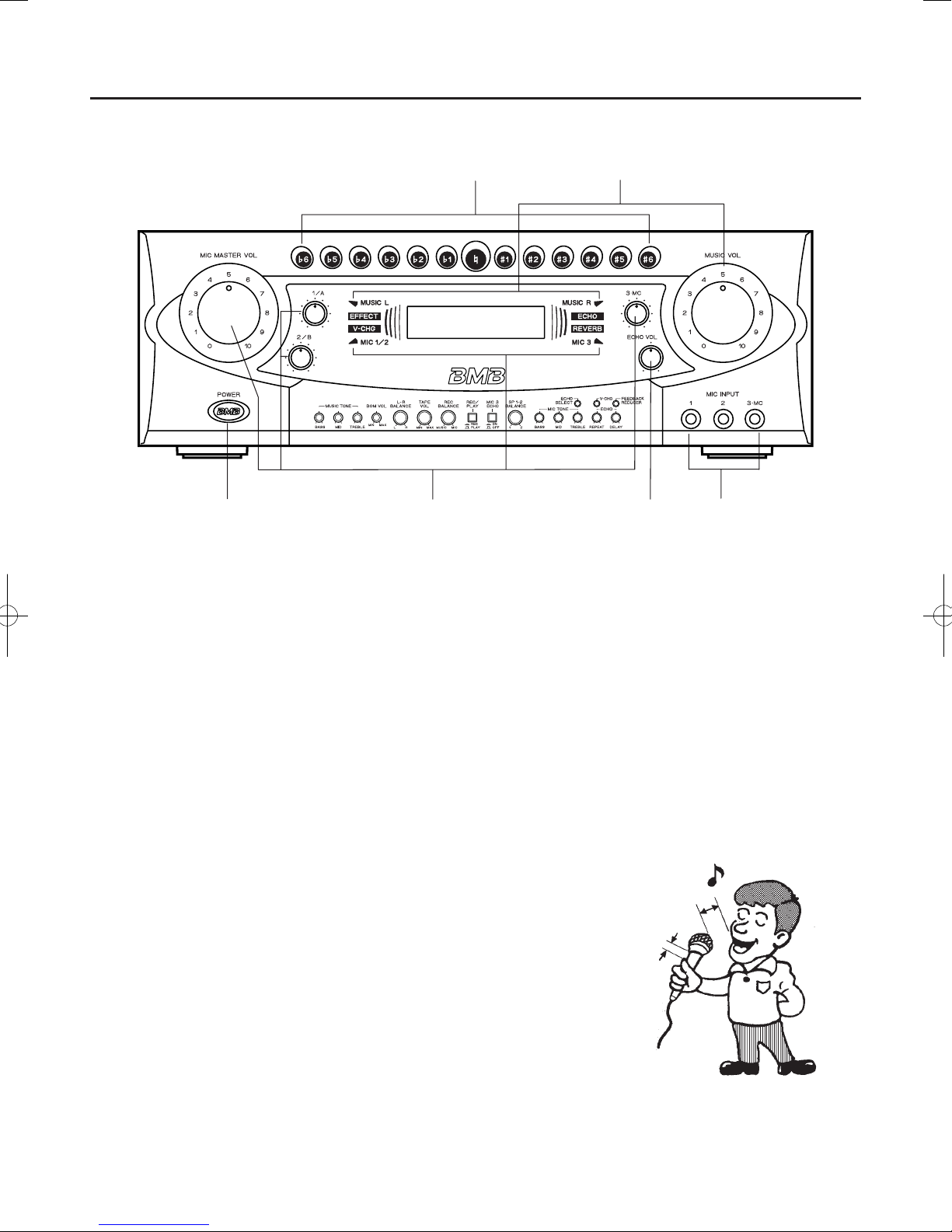

NAMES OF FRONT-PANEL CONTROLS AND
THEIR FUNCTIONS................................... 6

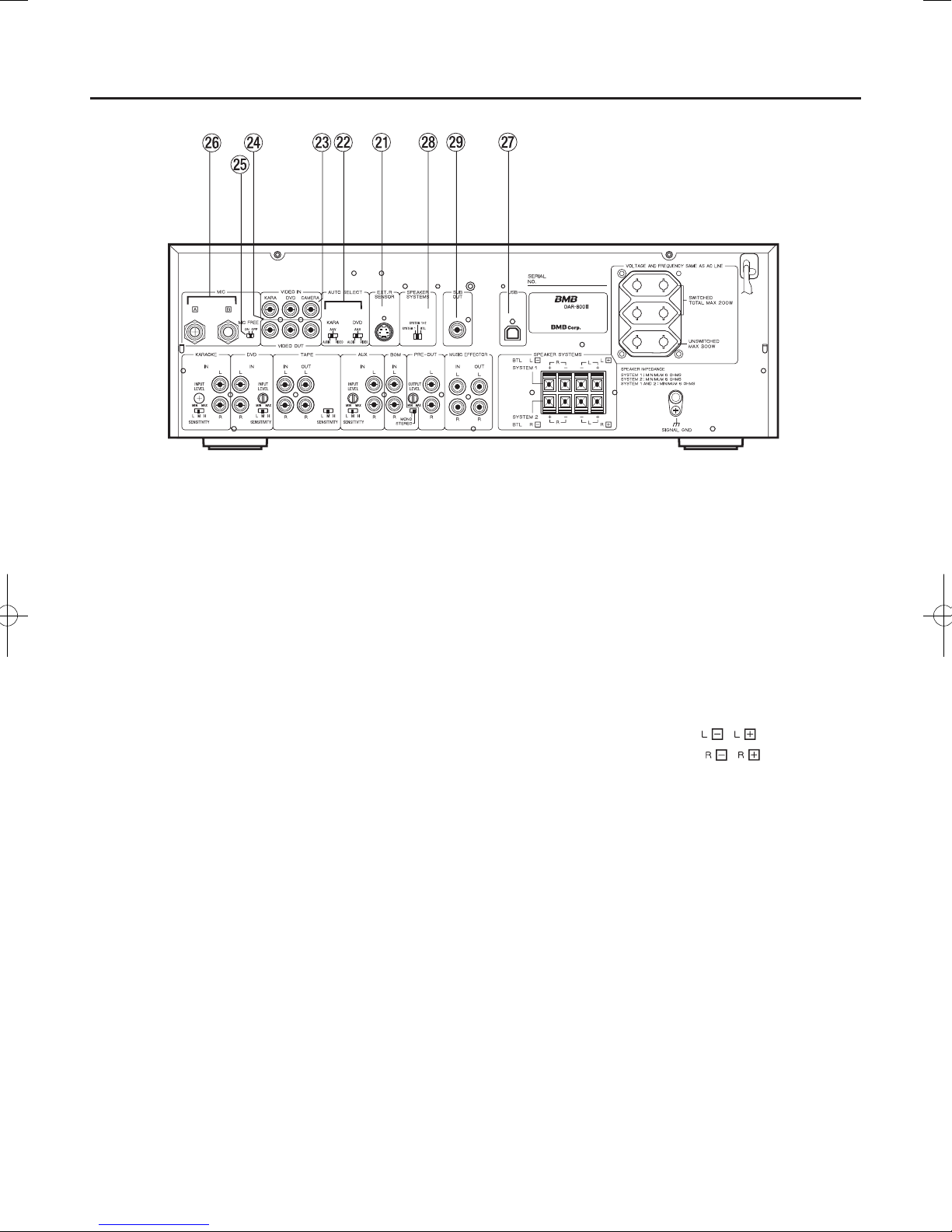

NAMES OF REAR-PANEL CONTROLS AND
THEIR FUNCTIONS................................... 8

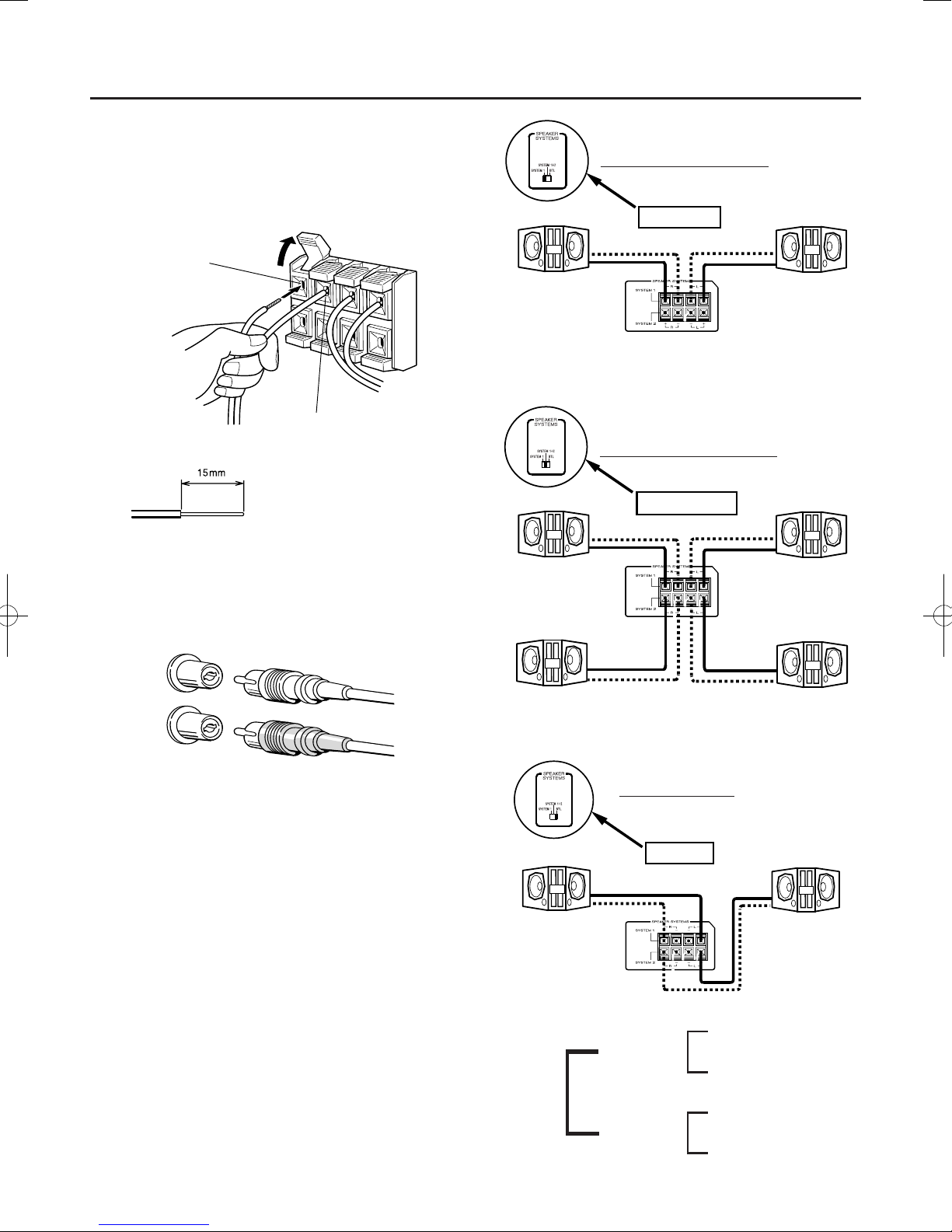

SYSTEM CONNECTIONS......................................11
CONNECTIONS ................................................... 12
MECHANISM TO PREVENT EXCESSIVE VOLUME
LEVELS OF MIC MASTER VOL CONTROL AND
M USIC VOL CONTROL ...................................... 13
DOOR LOCKING.................................................. 13
BASIC OPERATION.............................................. 14
ECHO/EFFECT OPERATION ................................ 15
AUTO/VIDEO SIGNAL DETECTION MODE .......... 16
VIDEO SWITCHING.............................................. 16
REMOTE CONTROL OPERATION........................ 17
TROUBLE SHOOTING ......................................... 18
MAINTENANCE.................................................... 20
AFTER-SALE SERVICING .................................... 20
MANNERS FOR CUSTOMERS............................. 20
COPY RIGHT ....................................................... 20
ABOUT THE PRODUCT ....................................... 20
SPECIFICATIONS ................................................ 21
DAR-800II.indd 1 09.11.5 10:13:24 AM

2
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
The lightning flash with arrowhead symbol, within equilateral triangle, is intended to
alert the user to the presence of uninsulated “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
This appliance has a serial number
located on the rear panel. Please record
the model number and serial number and
retain them for your records.
Model number
Serial number
TO THE USER
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and
receiver.
c) Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
Changes or modifications to this equipment not
expressly approved by BMB Corp. for compliance could
void the user's authority to operate this equipment.
For U.S.A.
IMPORTANT SAFETY PRECAUTIONS
DAR-800II.indd 2 09.11.5 10:13:25 AM

3
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as
vases, on the apparatus.
• Do not install this apparatus in a confined space
such as a book case or similar unit.
• The apparatus draws nominal non-operating power
from the AC outlet with its POWER switch in the off
position.
• The apparatus should be located close enough to
the AC outlet so that you can easily grasp the power
cord plug at any time.
• An appa r atus w ith Cl ass I constructi on shall
be connected to an AC outlet with a protective
grounding connection.
IMPORTANT SAFETY PRECAUTIONS
DAR-800II.indd 3 09.11.5 10:13:25 AM

4
Ultra high performance digital power amplifiers (4CH).
•
3 ways of system configuration;
•
BTL: 360W + 360W (8Ø) stereo amplifier
SYSTEM 1+2 : Two sets of stereo speakers (4CH)
150W x 2 (8Ø) + 150W x 2 (8Ø)
SYSTEM 1 : One set of stereo speakers (2CH)
150W x 2 (8Ø)
Ultra Hi-speed DSP for multi effectors (8 effectors) and
•
feedback reducing function is also equipped.
Five input channel functions are automatically selected
•
in the preset priority sequence.
Easy-to-sing high-performance digital echo.
•
Effector terminal which permits connection of a graphic
•
equalizer.
Five microphones can be used simultaneously, one of
•
which independently permits ON/OFF of echo for use
by an emcee (MC).
Low impedance compatible
•power amplifier
configuration that can drive two pairs of speakers
individually.
A ±6-position key controller that can vary up to 3.0
•
pitch (chromatic intervals) is incorporated. At the end of
a tune, the standard pitch is resumed automatically.
A wireless remote control which permits remote control
•
of music volume, microphone volume, echo level, key
control, echo select and voice change.
Multi-function blue LCD-display indicates input position,
•
effectors, and massage.
The peak indicator of MIC 1/2, MIC 3 and MUSIC
•
L&R input indicates peak level to prevent overhead
saturation.
SPECIAL FEATURES
PRECAUTIONS FOR HANDLING
Avoid placing the unit in the following
·
places:
Where there is direct sunlight or near a heating body
•
such as a heater.
Where ventilation is poor so heat is trapped or there is
•
plenty of humidity or dust.
An unstable place which is subjected to vibrations or
•
inclination.
A place near window where rain may splash onto the
•
unit.
A place near cooking utensils where the unit may be
•
subjected to soot, smoke, fume or heat.
BEFORE CONNECTION
Cautions and warnings
·
When making connections, do so with the power to the
•
unit switched OFF.
As for the input and output jacks on the amplifier,
•
"white" denotes left channel whereas "red" right
channel. Firmly make connections in correct left and
right channels.
Connect cord plugs firmly. Improper connection may
•
lead to no sound output or to generation of noise.
When disconnecting the power cord from the outlet, be
•
sure to hold its plug.
Power consumption of the AC OUTLETS
·
See that the power consumption does not exceed
•
the wattage shown on the rear panel. Do not connect
any unit other than the system equipment to the AC
OUTLETS on the rear of this unit.
Do not connect a TV monitor as it may draw a large
•
current and its wattage may exceed the allowable
value when the power is switched ON, even if the
value indicated on the TV monitor is smaller than the
allowable wattage for this unit.
DAR-800II.indd 4 09.11.5 10:13:25 AM

5
When you leave your home or installation
location
When you leave your home for a long period of time,
turn OFF the power and remove the power cord
from the AC outlet. This will prevent from unexpected
accident and fire.
If malfunction occurs
If malfunction occurs, such as noise in the sound or
odor from the unit, remove the power cord from the
AC outlet and stop using the unit immediately and
consult your local dealer.
Do not disassemble the unit
Do not attempt to modify, repair, or disassemble the
unit, as opening or removing covers may expose you
to dangerous voltage or other hazards. There are no
user serviceable parts inside. If the unit has a problem
or breakdown in case of you attempt to modify the
unit, quality of the unit can not be guaranteed.
Do not overload the AC outlet on the unit
This unit provides AC outlet which can be connected
to the system source components. Do not overload
the AC outlet on the unit. If power consumption
exceeds over the indicated on the rear panel, this can
result in fire or other hazard. The outlet should not be
used for connections of TVs in which may exceed in
a moment over the indicated wattage.
Do not damage the Power Cord
When remove the power cord from AC outlet, always
grasp and pull the plug, not the power cord. Damage
to the power cord may cause short-circuit or shock
hazard. Power cord should not be routed to under
furniture or where it may be likely damaged.
Avoid push or drop any object or
liquid into the unit
Never push or drop any kind of objects into this unit
through openings as they may touch dangerous
voltage points or short-circuit parts that could result
in a fire or electric shock. Never spill any kind of liquid
on this unit. If some object/liquid has been dropped,
remove the power cord from AC outlet and consult
your local dealer.
Check the voltage of your local mains
supply
Singapore: AC230V
Malaysia : AC240V
The power cord should not be connected to a direct
current (DC).
SAFETY PRECAUTIONS
DAR-800II.indd 5 09.11.5 10:13:26 AM

6
1
r
t
ei
o
fs
d
p
au
y
25678
9
0
w
g
h
3
k
4
j
q
FRONT PANEL
NAMES OF FRONT-PANEL CONTROLS AND THEIR
FUNCTIONS
1POWER switch (ON ˘/OFFÒ)
Press to turn ON the power. Press this again to turn it
OFF.
2MUSIC TONE controls
(BASS/MID/TREBLE)
Adjust the music input by boosting low, middle or high
frequency, respectively.
3MIC TONE controls
(BASS/MID/TREBLE)
Adjust the microphone input by boosting low, middle or
high frequency, respectively.
4ECHO controls (REPEAT/DELAY)
REPEAT: Adjust the echo sustaining duration.
DELAY: Adjust the echo's repetition intervals.
5BGM VOL control
Adjust the BGM to an optimum level.
6L-R BALANCE control
Adjust the balance between the right and left channel
levels output from the speakers.
7TAPE VOL control
Adjust the "TAPE" playback volume level.
8REC BALANCE control
Adjust the balance between music source and
microphone sound during recording.
9REC/PLAY selector switch
(REC ˘/ PLAYÒ)
Press this switch to REC (˘) when recording sound
on a tape, and to PLAY (Ò) when playing a tape
(to prevent oscillation, be sure to set to REC when
recording sound).
03.MC/ECHO switch (ON ˘/OFFÒ)
Press this switch to ON when effecting echo to the
third microphone (for use by an emcee) input.
qMIC INPUT jacks (1, 2, 3.MC)
Microphone input jacks.
wREMOTE control sensor
Receive the signal from the provided wireless remote
control unit (RMR-800).
DAR-800II.indd 6 09.11.5 10:13:27 AM

7
eKEY control buttons
Press the required button when changing the pitch of a
song. The buttons can vary the pitch in plus/minus six
steps with each button varying the pitch in chromatic
interval with respect to the standard pitch. The selected
pitch is indicated by the change in color of the pressed
button (when play of a song is over, the standard pitch
resumes automatically).
rMIC MASTER VOL control
Adjust the overall microphone input volume level.
tMIC VOL controls (1/A, 2/B, 3.MC)
1 / A: Adjust the input levels of MIC INPUT 1 and MIC
A (on the rear panel).
2 / B: Adjust the input levels of MIC INPUT 2 and MIC
B (on the rear panel).
3.MC: Adjust the input level of MIC INPUT 3.MC.
…In normal use, it is recommended to set the level to
maximum.
yMUSIC VOL control
Adjust the volume of the equipment connected to the
audio input terminals (This control does not change the
BGM volume. To change its volume level, use the BGM
VOL control).
uECHO VOL control
Adjust the entire echo and effect level of MIC INPUTs 1,
2, 3.MC and MICs A and B (rear).
iEFFECT: Effect Mode Indicator
Indicator for any effector is selected.
oV- CHG: Vocal Change Indicator
Indicator as vocal change is selected.
pECHO: Echo Indicator
Indicator as echo is selected.
aREVERB: Reverb Indicator
Indicator as reverb is selected.
sMUSIC Input peak indicator
Indicate Input peak level of MUSIC (Left and Right).
dMIC Input peak indicator
Indicate peak input level of MIC-1/2/A (Left), MIC-3/B
(Right) (Peak position: -3dB)
fLCD Display 1Function indicator
Center Position
2Peak level indicator (Input level)
9 Dots x 2 (L&R)
 1Function indicator
Indicate each function or situation as bellow:
Input position, Effectors, Feedback reducer, Voice
Change (V-CHG), and Error massage.
 2Peak level indicators
Indicate input level of left and right channel (9 dots/
CH and Center dot).
gSP 1-2 BALANCE
Adjust the balance of output level between SYSTEM1
and SYSTEM2. Please refer to page 12 for more
information.
1. Speakers from SYSTEM1 (BTL mode: L CH)
2. Speakers from SYSTEM2 (BTL mode: R CH)
hECHO SELECT switch
Press this switch to select preferable effectors, and the
selected efffectors will be indicated on LCD display.
Echo ∑REV ∑MIX ∑
jFEEDBACK REDUCER (ON/OFF)
Press this switch to reduce howling (feedback) by
searching howling point and filtering them.
CAUTION:
If feedback reducer could not work sufficiently, check the
MIC, speaker's position and sound level by moving or
changing the position/angle of speaker unit, not to affect
feedback to the MIC.
kV-CHG selector switch
Press this switch when selecting Voice Change
effectors. Indicate LCD of selected Voice Change
effectors.
NOTE:
For more information about i,o,p,a,s,d,h,jand
k, please refer to page 15.
DAR-800II.indd 7 09.11.5 10:13:27 AM

8
REAR PANEL
MODEL
NAMES OF REAR-PANEL CONTROLS AND THEIR
FUNCTIONS
1KARAOKE SENSITIVITY switch
Set the sensitivity at which KARAOKE audio input level
is detected and switched automatically.
L(ow): Set to this position when the function does
not change to "BGM" or other mode even if
KARAOKE play is over.
M(id): Set to this positio n in normal operating
condition.
H(igh): Set to this position when the function changes
to other mode during KARAOKE play.
2KARAOKE INPUT LEVEL control
Adjust this control by balancing with the level of other
inputs (DVD, TAPE, AUX).
3KARAOKE audio input jacks
Connect the audio output jacks of KARAOKE player
here.
4DVD audio input jacks
Connect the audio output jacks of DVD/CD karaoke
player here (do not connect a BGV [background video]
DVD player here).
5DVD INPUT LEVEL control
Adjust this control by balancing with the level of other
inputs (KARAOKE, TAPE, AUX).
6DVD SENSITIVITY switch
Set the sensitivity at which DVD audio input level is
detected and switched automatically.
L(ow): Set to this position when the function does not
change to "BGM" or other mode even if DVD
play is over.
M(id): Set to this positio n in normal operating
condition.
H(igh): Set to this position when the function changes
to other mode during DVD play.
7TAPE audio intput jacks
Connect the audio output jacks of tape deck here.
8TAPE audio output jacks
Connect the LINE IN jacks of tape deck here.
A level set by each input control other than the MIC
MASTER VOL control and MUSIC VOL control is output
here (this level has nothing to do with the speaker
volume level).
DAR-800II.indd 8 09.11.5 10:13:28 AM

9
9TAPE SENSITIVITY switch
Set the sensitivity at which tape playback input level is
detected and switched automatically.
L(ow): Set to this position when the function does not
change to "BGM" or other mode even if tape
play is over.
M(id): Set to this p osition in nor mal op erating
condition.
H(igh): Set to this position when the function changes
to other mode during tape play.
Note:
If there is much noise between prerecorded tunes
on the tape, the sensitivity may not be switched
automatically even if this switch is set to L. Conversely, if
the recording level is too low, the sensitivity may not be
switched automatically even if this switch is set to H.
0AUX INPUT LEVEL control
Adjust this control by balancing with the level of other
inputs (KARAOKE, DVD, TAPE).
qAUX SENSITIVITY switch
Set the sensitivity at which AUX audio input level is
detected and switched automatically.
L(ow): Set to this position when the function does not
change to "BGM" or other mode even if AUX
source play is over.
M(id): Set to this p osition in nor mal op erating
condition.
H(igh): Set to this position when the function changes
to other mode during AUX source play.
wAUX audio input jacks
Connect the audio output jacks of external audio
source equipment here.
eBGM audio input jacks
Connect the audio source such as BGM (background
music) from wired broadcasting system.
rPRE-OUT output level control
Adjust this control by balancing with the level of power
amplifier.
tMONO/STEREO select switch
Select the required position according to the audio
input from BGM (wired broadcasting system). If the
BGM is a stereo source, connect L and R channels
then set this switch to STEREO. If the BGM is a
monaural source, connect either L or R channel, then
set this switch to MONO.
yPRE-OUT output jacks
Output terminals for use in connecting a power
amplifier or mixer.
uMUSIC EFFECTOR IN/OUT jacks
Input and output jacks for use in connecting an
accessory unit such as a graphic equalizer.
Note:
Unless connection is proper, no sound will output.
iSPEAKER SYSTEMS connectors
Connectors to which 6Øto 16Øspeakers are
connected. Please see page 12 for more information.
oSIGNAL GND terminal
It is recommended to ground the unit in order to
prevent this unit from electric shock or noise from
other equipment. If grounding is provided, trouble with
unknown cause may be remedied.
pAC OUTLETS
…SWITCHED TOTAL MAX 200W
Power is supplied to the connected equipment when
the power switch of this unit is turned ON.
…UNSWITCHED MAX 300W
Power is supplied to the connected equipment at all
times irrespective of whether the power switch of this
unit is ON or OFF.
Caution:
Never use the AC OUTLETS with their maximum ratings
exceeded. Do not connect a TV monitor as it draws a
large current when power is switched ON.
DAR-800II.indd 9 09.11.5 10:13:28 AM

10
MODEL
aEXT(ernal) REMOTE SENSOR terminal
Terminal to which an external remote control unit
is connected. If an external remote control unit is
connected, the remote sensor (infrared signal reception
window) on the front panel will be deactivated.
sAUTO SELECT switches
Depending on the switch position, the detection mode
will be switched from among the three modes, AUDIO,
A & V or VIDEO (see page 17).
dVIDEO input jacks
KARAOKE: Connect the video output jack of karaoke
unit here.
DVD : Connect the video output jack of DVD
karaoke unit here.
CAMERA : Connect the video output jack of video
camera here. The video signal input
to this jack appears on the TV monitor
when the function is set to BGM (wired
broadcasting system), TAPE or AUX.
fVIDEO output jacks
Up to three TV monitors can be connected to these
video output jacks.
Note that the emcee microphone (3.MC) can be used
at all times.
gMIC FREE switch
Flipping this switch to ON allows the microphone to be
used at all times. When the function is set to BGM (wired
broadcasting system), this switch allows microphone
sound to be turned ON or OFF. If this switch is set to
OFF, no sound is output in the BGM mode.
hMIC [A][B] jacks
Jack A is a mixing input jack with MIC INPUT 1 on the
front panel whereas jack B is a mixing input jack with
MIC INPUT 2.
jUSB I/F (Interface)
Connect USB cable for maintenance purpose.
Not for normal use.
kBTL Selector switch
BTL: Both speakers are driven by BTL AMP.
SYSTEM 1 = L-Channel
/
SYSTEM 2 = R-Channel
/
SYSTEM1+2:
Each speaker system is driven individually (4
separate amplifiers).
SYSTEM 1 = L-R (Stereo)
SYSTEM 2 = L-R (Stereo)
SYSTEM1:
One pair of speaker is available (factory preset).
Please see page 12 for detailed example of speaker
terminal setting.
lSUB OUT
Connect the jack of the amplifier of Sub woofer for
driving super low frequency (super low frequency =
under 50Hz).
DAR-800II.indd 10 09.11.5 10:13:29 AM

11
2 31
WT-4500
MODEL
Karaoke
player
DVD
playerVideo
camera
Graphic
equalizer
Cassette
deck
TV
monitor
TV
monitor
TV
monitor
BGM
player
Power
amplifier
Left
Remote
sensor
Infrared wireless
Microphone receiver
(option)
Right Left
SYSTEM CONNECTIONAS
Left
Right
Right
DAR-800II.indd 11 09.11.5 10:13:29 AM

12
(L - CH) 150W
SYSTEM 1 Min. 6Ø
(R - CH) 150W
STEREO Min. 6Ø
(L - CH) 150W
SYSTEM 2 Min. 6Ø
(R - CH) 150W
Min. 6Ø
One pair of speakers
SYSTEM 1
NOTE : Never connect speakers to the terminal 2,
since it is not active and causes no sound as
SYSTEM 1 setting.
150W
MIN.6Ø
150W
MIN.6Ø
SYSTEM 1+2
Two pairs of speakers
150W
MIN.6Ø
150W
MIN.6Ø
150W
MIN.6Ø
150W
MIN.6Ø
BTL(L:-)
BTL(R:-)
BTL(L:+)
BTL(R:+)
BTL
For BTL mode
LCH 360W
(SP Input>360W)
MIN.8Ø
RCH 360W
(SP Input>360W)
MIN.8Ø
CONNECTIONS
How to connect speaker cords
·
1. Press the lever, then insert the stripped end of the
cord.
2. Release the lever so that the wire is held securely.
Match ±wire with
±connector.
Match —wire with —connector.
Strip about 15 mm of the outer
covering from the ends of the cords
by using the pliers before making
connections.
When connecting RCA pin plug cords, match the
•
colors. Connect red cord to red jack and white to
white.
Red
Red
White
White
Right
Left
Cautions:
See tha
•t wire frays (straggly conductors) are not
sticking out of the speaker connectors. If the wire frays
come into contact with other conductors, it may lead to
failure of the unit.
Use speakers with a nominal impedance of
•6Øto 16Ø.
If speakers
•with an impedance lower than 6Øare
connected, the protective circuit may go into operation,
defeating normal stereo playback.
When BTL setting is on, use speakers with a nominal
•
impedance of 8Øor more.
DAR-800II.indd 12 09.11.5 10:13:30 AM

13
MECHANISM TO PREVENT EXCESSIVE VOLUME
LEVELS OF MIC MASTER VOL CONTROL AND
MUSIC VOL CONTROL
Although usually the volume level can be varied from level
0 to a maximum level of 10, this feature allows you to
change the maximum volume level to the required setting
(such as up to 7, 8, 9, etc.).
Setting procedure
·
1. Remove the volume knob.
2. Remove the screw behind the knob, then reinstall it to
the required maximum level.
U
The MIC MASTER VOL control knob and MUSIC VOL
control knob cannot turn more than the position where
the screw fixed.
Please set the maximum volume level to prevent over
leveled driven and to protect speakers.
CAUTION:
Please connect higher power handling speakers when
you use this amplifier DAR-800II.
The maximum power of DAR-800II is over 360W/CH
peak.
Please adjust each volume to obtain proper sound level
by confirming the Input peak indicator and the Peak level
indicators to prevent over load level and distortion. It
should be avoided handling the highest power and over
distortion since it would cause the trouble of the system.
Never listen the sound near the speakers because the
high sound pressure level will lead to ear problems.
DOOR LOCKING
The front door is available to lock from door opening for
holding each setting adjust.
To release the door lock, slide the lock lever on the
bottom of the front panel.
Push near the markin
g
of door to open/close.
Door lock lever
Slide the lever for door open/close
OPEN position LOCK position
From the bottom view :
OPEN position : It is possible to open the front door by
pushing right side of the door.
LOCK position : The front door is locked and unable
to open the door. Lock the door for
preventing tinker around setting.
CAUTION :
Never close the door when the door stopper is on
LOCK position, as it would cause the door broken.
DAR-800II.indd 13 09.11.5 10:13:31 AM

14
6
145 2
3
BASIC OPERATION
1Depress the power switch (˘) of this unit and other
equipment.
2Connect the required number of microphones.
3Set the karaoke music machine to the play mode, then
set the MUSIC VOL control to the required level, by
checking the Peak level indicator of music input level.
4Turn the MIC VOL controls and MIC MASTER VOL
control to balance the level with that of music source,
by checking the Peak level indicator of mic input level
(MIC 1/A, 2/B, 3.MC).
Notes: 3and 4
If the peak level indicator blinks with red, input level is too
high, then reduce the input level by adjusting MUSIC VOL,
or MIC MASTER VOL controls.
5Adjust the echo level as required.
6Adjust the pitch using the key control buttons.
Now that the required setting is over, you do not have
to operate this unit. All you need to do is to operate the
music source equipment.
How to use microphones properly and
·
operating precautions
Keep the microphone approx. 5 to 10 cm away from
•
your mouth.
To make the voice sound clearly, leave the proper
•
space between the microphone head and holding
position on the microphone.
Do not cover the lower wind screen of the microphone.
•
As this may muffle the bass sound, defeating proper
vocal reproduction. It may also cause howling.
When you use the IR microphone system, do not cover
•
or shade the IR radiation parts (black plastic window)
of microphone at the bottom as the wireless signal is
weakened.
Provide a space of
approx. 5 to 10 cm.
Leave the proper space.
Do not use the microphone toward the speaker as it
•
may cause the feedback (howling).
DAR-800II.indd 14 09.11.5 10:13:32 AM

15
1
2
3
4
5
2ECHO VOL Control
For adjusting the entire echo and effect level of
microphones 1/A, 2/B and 3.MC. Turn clockwise to
increase it.
3ECHO Controls (REPEAT/DELAY)
REPEAT: Adjust the echo sustaining duration.
DELAY: Adjust the echo's repetition intervals.
4FEEDBACK REDUCER
Push FEEDBACK REDUCER switch to prevent
feedback (peaking of speakers feedback).
LCD indicates as “FEEDBACK ON” when the effect is
working (Please see jon page 7 for CAUTION).
5V-CHG selector switch
Vocal change function is available and V-CHG Indicator
is lit when some effectors are selected.
Please see the table above. "¨" is available and "X" is
not available.
V-CHG UP : Change the voice to high key's tone (like
Female voice).
V-CHG DWN: Change the voice to low key tone (like
Male voice).
1ECHO SELECT
Push this switch when selecting effectors including
ECHO. The selected echo mode is indicated on LCD
display, and it can change the following order;
ECHO ∑REV ∑MIX ∑ROCK ∑
LED indicates "ECHO", "REVERB", "EFFECT".
Effectors
ECHO/EFFECT OPERATIONS
1. Select ECHO mode by pushing 1ECHO SELECT
switch until ECHO Indicator is lit.
2. Adjust ECHO level of microphones to background
music by 2ECHO VOL Control.
3. Adjust ECHO speed, and delay by turning 3ECHO
Controls.
Using Echo effectors
Name LCD FUNCTIONS PARAMETER V-CHANGE
ECHO ECHO ECHO Level, ECHO Rep, ECHO Delay 0~50 X
REVERB REVERB REV REP, REVERB Level 0~50 X
MIX MIX Mix Echo and reverb 0~50 X
ROCK ROCK Rock sound effect level controllable 0~50 ¨
ENKA ENKA Japanese Enka sound effect level controllable 0~50 ¨
BALLAD BALLAD Ballad sound effect level controllable 0~50 ¨
FLANGER FLANGER Flanger effect level controllable 0~50 ¨
PANNING PANNING Pans sound left and right 0~50 ¨
DISTORTION DISTORTION Distortion sound effect level controllable 0~50 ¨
RADIO VOICE RADIO Radio voice sound effect level controllable 0~50 ¨
DUET DUET Duet sound effect level controllable -17~+17 ¨
EFFECT OFF EFFECT OFF
VOICE CHANGE
(V-CHG)
V-CHG OFF
V-CHG UP
V-CHG DWN
Voice change is not available
Voice change as hi-voice (1 octave up=Female voice)
Voice change lo-voice (1 octave down=Male voice)
FEEDBACK
REDUCER
FB-RED ON
FB-RED OFF
Feedback reducer is activated.
Feedback reducer is stopped.
DAR-800II.indd 15 09.11.5 10:13:33 AM

16
AUDIO/VIDEO SIGNAL DETECTION MODE
As for the KARAOKE and DVD functions, the detection
mode will be switched from among the three modes
(AUDIO, A & V or VIDEO) depending on the position of the
AUTO SELECT switches on the rear panel. The AUX and
TAPE functions should be detected by the audio signal.
‚When the switch is set to "AUDIO"
The audio input is detected, and the function will
change in the following priority preset sequence:
1KARAOKE, 2DVD, 3AUX, 4TAPE, and 5BGM.
For example, if there is no KARAOKE audio, and DVD
and AUX are being played, priority will be given to the
DVD audio, and DVD input is played.
‚When the switch is set to "VIDEO"
The video input is detected, and the function will
change in the following sequence:
1KARAOKE, 2DVD, and 3Video camera.
‚When the switch is set to "A & V"
Either the audio input or video input is detected, and
the function will change in the priority sequence.
The audio will change in the following sequence:
1KARAOKE, 2DVD, 3AUX, 4TAPE, and 5BGM.
The video will change in the following sequence:
1KARAOKE, 2DVD, and 3Video camera.
If both audio and video are input, the function will be
switched by the signal detected first.
Monitor 1
Monitor 2
Monitor 3
KARAOKE KARAOKE
DVDDVD
AUX
TAPE
BGM
CAMERA
VIDEO IN
VIDEO OUT
VIDEO SWITCHING
Although video signal is switched simultaneously with the
switching of the audio signal, if the function is set to AUX,
TAPE or BGM, the video signal input to the video camera
will be output.
DAR-800II.indd 16 09.11.5 10:13:33 AM

17
1
2
3
4
56
1KEY control buttons
‚ To increase pitch ( 1 to 6) : This button can
increase up to 3.0 pitches in six steps with a press of
each button varying pitch in chromatic interval with
respect to the standard pitch.
‚ Standard button ( ) : Pressing this button allows the
standard pitch to be resumed.
‚ To lower pitch ( 1 to 6) : This button can decrease
up to 3.0 pitches in six steps with a press of each
button varying pitch in chromatic interval with respect
to the standard pitch.
Note :
When play of a tune is over, the standard pitch resumes
automatically.
2ECHO control button
While holding down the button, the echo level will either
increase or decrease depending on which side of the
button is pressed.
3MIC MASTER control button
While holding down the button, the volume level will
either increase or decrease depending on which
side of the button is pressed. At this time, the LED in
the control knob on the front panel will flicker. Fine-
adjustment of volume is possible by gently pressing the
button.
4MUSIC control button
While holding down the button, the volume level will
either increase or decrease depending on which
side of the button is pressed. At this time, the LED in
the control knob on the front panel will flicker. Fine-
adjustment of volume is possible by gently pressing the
button.
5ECHO SEL (select) button
While holding down the button, the programed effector
is selected.
At this time, the selected effect is indicated to the LCD
display.
Please see detailed information on page 15.
6V-CHG select button
While holding down the button, the vocal change
function is available.
At this time, “V-CHG” function is indicated to the LCD
in the following order.
V-CHG OFF ∑V-CHG UP ∑V-CHG DOWN ∑
V-CHG OFF ∑
Please see detailed information page 15.
7m
ªWireless remote control
The allowable distance between the wireless remote
control unit (RMR-800) and the remote sensor (infrared
signal reception window) is approx. 7 m. Note that the
remote control may not work if it is not properly pointed
toward the remote sensor or if there is any obstacle
between the remote control and the sensor.
REMOTE CONTROL OPERATION
DAR-800II.indd 17 09.11.5 10:13:34 AM

18
Changing the batteries
123
1Slide open the lid on the back side in the direction of
the arrow.
2Insert two dry batteries (AAA,UM-4) as shown in
above diagram.
3Close the lid in the direction of the arrow.
ATTENTION
The improper use of batteries may lead to chemical
leakage or explosion.
Observe the following precautions:
1Insert batteries with their positive (+) and negative
(-) poles positioned correctly according to the
indication on the battery compartment.
2Do not use an old and new batteries together.
3Use batteries of the same type. Never use
batteries of different types together as voltage
may be different, even if they are the same shape.
4Discard exhausted batteries into a designated bin
(so as not to contaminate the environment).
5When you feel ope rating distance become
shorter, the battery is exhausted. Replace with
new batteries.
Trouble Possible cause Remedy
No power is supplied to the unit. The power plug is disconnected from
‚
the power outlet.
Firmly connect the power plug to the
‚
power outlet.
Power ON but no sound. Music Volume control or Mic Volume
‚
control may be set to minimum.
Adjust for the proper sound level.
‚
The speaker cables are disconnected.
‚Connect the speaker cables properly. ‚
Break in the speaker cables.
‚Repair the break in the cables. ‚
Speaker cables are short - circuited.
‚Repair the short - circuit. ‚
Equipment to be connected are dis-
‚
connected.
Properly connect the equipment.
‚
No sound at beginning of the
music when switching function.
Sensitivity switch is set to "low".
‚Set the Sensitivity switch to "high". ‚
Output level of audio component is set
‚
to minimum.
Adjust it for suitable level if it has a
‚
level control.
No sound from microphone (but
music is played back).
Microphone switch is set to OFF.
‚Set it to ON. ‚
Break in the microphone cord.
‚Repair or replace it. ‚
The microphone plug is disconnected.
‚Connect it properly. ‚
No sound from microphone only
when function is set to BGM.
The MIC FREE switch is set to OFF.
‚If it is set to OFF, no sound is output ‚
from microphones 1/2/A/B when the
function is set to BGM.
No music sound (BGM and
microphone sounds are available).
No external unit with music effector
‚
jacks is connected.
Connect external unit to the MUSIC
‚
EFFECTOR jacks properly. If the unit
connected to the IN jacks yet it is not
connected to the OUT jacks, music
sound is not output.
REMOTE CONTROL OPERATION
TROUBLESHOOTING
DAR-800II.indd 18 09.11.5 10:13:34 AM

19
Trouble Possible cause Remedy
No video. VIDEO OUT jacks are not fully con-
‚
nected.
Firmly insert TV monitor plug into
‚
VIDEO OUT jack.
VIDEO IN jacks (KARAOKE, DVD,
‚
CAMERA) are not fully connected.
Firmly insert plugs into VIDEO IN jacks.
‚
Function is switched to AUX, TAPE
or BGM while playing KARAOKE
or DVD.
Input sensitivity of KARAOKE or DVD
‚
is low.
Set SENSITIVITY switch on the rear
‚
panel to H.
No audio is played back even if
KARAOKE or DVD audio signal is
input.
AUTO SELECT switches are set to
‚
VIDEO.
Set AUTO SELECT switches to AUDIO
‚
or A & V.
Playback picture does not appear
even if KARAOKE or DVD signal is
input.
AUTO SELECT switches are set to
‚
AUDIO.
Set AUTO SELECT switches to VIDEO
‚
or A & V.
No sound : Amplifier stops as error “ERROR 01” is indicated on LCD
‚Power amplifier of SYSTEM-1 is error. ‚
Please see information as bellow.
No sound : Amplifier stops as error “ERROR 02” is indicated on LCD
‚Power amplifier of SYSTEM-2 is error. ‚
Please see information as bellow.
No sound : Amplifier stops as error “ERROR 12” is indicated on LCD
‚Power amplifier of SYSTEM-1 and -2 ‚
is error. Please see information as bel-
low.
TROUBLESHOOTING
If an "ERROR" indication appears and no audio is output
while using the unit, switch the power OFF, then check the
following:
1Is the impedance of the connected speakers proper?
See page 12 for more details.
2Isn't the amp temperature too high while using it?
If it is, leave the unit for approx. 20 minutes, then use it
with the volume lowered.
Check the left, then switch the power ON.
At this time, see that the "ERROR" indication does not
appear. If it still does, the unit is faulty; contact the dealer
from whom you purchased it.
DAR-800II.indd 19 09.11.5 10:13:34 AM

20
MAINTENANCE
When the unit gets dirty, wipe with a soft dry cloth.
If the unit is extremely dirty, soak a soft cloth in a diluted
solution of dish-washing detergent (four - five parts of
water to one part of detergent), wring the cloth, wipe the
dirt away, then wipe the unit with a dry cloth. Never use
alcohol, thinner, benzine, insecticide, or other
volatile agents, for they may damage the surface coating
or deprive the luster from the unit. Also, do not wipe the
unit with a chemical-impregnated cloth or leave it on the
unit for a long period of time, for this may degrade the
surface finish or strip off the coating.
This unit is produced by har mless materials in
•
conformity with relevant product safety laws.
ABOUT THE PRODUCT
AFTER-SALE SERVICING
1If this unit is found to be defective, your local dealer will
repair or replace defective parts with charge at your
request.
2Before you request the repair to your local dealer, see
the "TROUBLESHOOTING" section and check it again.
For dealer :
If you are requested the after-sale service from your
customer, check the following contents first.
Confirming the details of the accident.
•
Checking out all cables and connections.
•
Caution of operation and instruction for using the
•
system to your customer.
If the unit is found to be defective and it is difficult to
repair, bring the defective unit to your nearest BMB
authorized service center.
MANNERS FOR CUSTOMERS
Karaoke, though enjoyable, could be noisy at times unless
proper time and place are chosen. Please be sufficiently
thoughtful of your neighbors.
Karaoke volume could be high if you are engrossed in
singing.
Even a small sound can be penetrating especially at
quiet night. Therefore, please give special attention to
audio level especially at night. As no sound leaks to
your neighbors, it is advisable to close the windows
and observe proper manners to maintain pleasant living
environment.
COPYRIGHT
Broadcasting, music source such as recorded music
•
tape, DVD, video tape, CD and so on are strictly
protected under copyright law.
You need to have permission from the copyright
•
hol der to use, distribute, rent these music sources for
commercial use, or sell dubbed media to other people
except when enjoying these sources by yourself.
DAR-800II.indd 20 09.11.5 10:13:35 AM
