BMW Motorrad S 1000 R 2020 Installation and maintenance manual

BMW
MOTORRAD
MAKE LIFE A RIDE

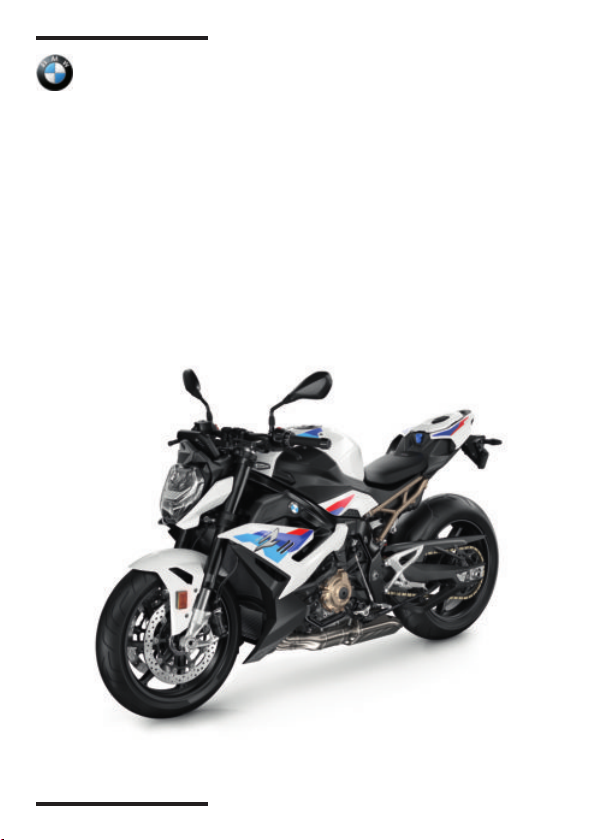

RIDER'S MANUAL
(US MODEL)
S 1000 R

Vehicle data
Model
Vehicle identification number
Color number
First registration
License plate
Retailer data
Contact in Service
Ms./Mr
Phone number
Retailer's address/Phone (company stamp)

YOUR BMW.
We are pleased that you have chosen a BMW Motorrad vehicle
and welcome you to the family of BMW riders. Familiarize your-
self with your new vehicle so that you can ride safely and confi-
dently in all traffic situations.
About these operating instructions
Read these operating instructions before starting your new BMW.
It contains important notes about operating the vehicle that will
enable you to make full use of the technical assets of your BMW.
You will also obtain preventive maintenance and care instructions,
which are beneficial to operating and road safety and help retain
the value of your vehicle as much as possible.
If you should decide to sell your BMW one day, please remember
to hand over these operating instructions as well. They are an
important part of your vehicle.
We wish you many miles of safe and enjoyable riding with your
BMW
BMW Motorrad.

01 GENERAL
INSTRUCTIONS 2
Overview 4
Abbreviations and sym-
bols 4
Equipment 5
Technical data 5
Timeliness of the status
of this manual 6
Additional sources of
information 6
Certificates and operat-
ing permits 6
Data memory 6
02 OVERVIEWS 12
Overall view, left side 14
Overall view, right 15
Under the rider's seat 16
Multifunction switch,
left 17
Multifunction switch,
right 18
Instrument cluster 19
03 DISPLAYS 20
Indicator and warning
lights 22
TFT display in
Pure Ride view 23
TFT display in the
View menu 24
Indicator lights 25
04 OPERATION 52
Ignition switch/steer-
ing lock 54
Ignition with Key-
less Ride 55
EWS electronic immo-
bilizer 58
Emergency-off switch 58
Lighting 59
Dynamic Traction Con-
trol (DTC) 62
Electronic chassis and
suspension adjustment
(DDC) 63
Riding mode 65
PRO riding mode 66
Cruise control 67
Hill Start Control 70
Shiftpoint light 73
Anti-theft alarm sys-
tem (DWA) 73
Tire pressure control
(TPC) 76
Heated grips 76
Rider seat and passen-
ger seat 77
05 TFT DISPLAY 80
General notes 82
Principle 83
Pure Ride view 89
General settings 90
Bluetooth 91
My Vehicle 94
Navigation 97
Media 99

Phone 99
Displaying software
version 100
Displaying license in-
formation 100
06 SETTING 102
Mirrors 104
Headlights 104
Brake 105
Clutch 106
Footrest system 106
Spring preload 108
Damping 112
07 RIDING 116
Safety instructions 118
Regular check 120
Starting 121
Breaking in 124
Shifting gears 125
Brakes 126
Parking your motor-
cycle 128
Refueling 128
Securing vehicle for
transportation 131
08 ON THE RACE-
TRACK 134
Displays for racing
mode 136
LAPTIMER 139
Vehicle settings for
racing mode 140
Launch Control 141
Pit Lane Limiter 143
Removing and in-
stalling license-plate
carrier 144
Removing and in-
stalling front turn sig-
nals 147
M Cover Kit 150
Gearshift-pattern re-
verser 151
Mirror removal and
installation 152
09 TECHNOLOGY IN
DETAIL 154
General notes 156
Anti-lock braking sys-
tem (ABS) 156
Dynamic traction con-
trol (DTC) 159
Dynamic engine
brake control 160
Dynamic Damping
Control (DDC) 161
Riding mode 162
Dynamic Brake Con-
trol 164

Tire pressure control
(RDC) 165
Gear Shift Assistant 167
Hill Start Control 168
Adaptive headlights 169
10 MAINTENANCE 172
General notes 174
Onboard vehicle tool
kit 175
Front-wheel stand 176
Rear-wheel stand 176
Engine oil 177
Brake system 178
Clutch 183
Coolant 184
Tires 185
Rims 187
Wheels 187
Drive chain 195
Light sources 198
Trim panel compo-
nents 198
Jump-starting 203
Battery 204
Fuses 207
Diagnostic socket 208
11 ACCESSORIES 210
General notes 212
Connector for op-
tional accessories 212
USB charging socket 214
12 CARE 216
Care products 218
Washing your motor-
cycle 218
Cleaning sensitive
vehicle parts 219
Care of paintwork 220
Paint preservation 221
Storing the motorcy-
cle 221
Putting the motorcy-
cle into operation 221
13 TECHNICAL DATA 222
Troubleshooting chart 224
Screw connections 226
Fuel 228
Engine oil 229
Coolant 229
Engine 229
Clutch 230
Transmission 230
Rear-wheel drive 231
Frame 231
Chassis 231
Brakes 232
Wheels and tires 233
Electrical system 234
Anti-theft alarm sys-
tem 235
Dimensions 236
Weights 237
Performance data 237

14 SERVICE 238
Reporting safety de-
fects 240
BMW Motorrad
Service 241
BMW Motorrad
Service History 241
BMW Motorrad Mo-
bility Services 242
Maintenance work 242
BMW Motorrad
Service 242
Maintenance sched-
ule 244
Maintenance confir-
mations 245
Service confirmations 257
APPENDIX 260
Certificate for elec-
tronic immobilizer 261
Certificate for Key-
less Ride 263
Certificate for tire
pressure control 267
Certificate for TFT
instrument cluster 268
INDEX 272

GENERAL
INSTRUCTIONS
01

OVERVIEW 4
ABBREVIATIONS AND SYMBOLS 4
EQUIPMENT 5
TECHNICAL DATA 5
TIMELINESS OF THE STATUS OF THIS MANUAL 6
ADDITIONAL SOURCES OF INFORMATION 6
CERTIFICATES AND OPERATING PERMITS 6
DATA MEMORY 6

4 GENERAL INSTRUCTIONS
OVERVIEW
Chapter 2 of this rider's man-
ual will provide you with an ini-
tial overview of your motorcy-
cle. All maintenance and repair
procedures carried out on your
motorcycle will be documented
in the Service chapter. Docu-
mentation of the maintenance
work performed is a prerequi-
site for generous treatment of
claims.
If you should decide to sell your
BMW at some point in the fu-
ture, please remember to hand
over this rider's manual; it is an
important part of the motorcy-
cle.
ABBREVIATIONS AND SYM-
BOLS
CAUTION Hazard with
low risk. Failure to avoid
this hazard can result in minor
or moderate injury.
WARNING Hazard with
moderate risk. Failure to
avoid this hazard can result in
death or serious injury.
DANGER Hazard with
high risk. Failure to avoid
this hazard results in death or
serious injury.
ATTENTION Special
instructions and pre-
cautionary measures. Non-
compliance can cause damage
to the vehicle or accessories
and warranty claims may be
denied as a result.
NOTICE Special informa-
tion on operating and in-
specting your motorcycle as
well as maintenance and ad-
justment procedures.
Instruction.
Result of an activity.
Reference to a page
with more detailed
information.
Indicates the end of
accessory or equip-
ment-dependent infor-
mation.
Tightening torque.
Technical data.
NV National-market ver-
sion.

5
OE Optional equipment.
BMW Motorrad op-
tional equipment is
already completely in-
stalled during motor-
cycle production.
OA Optional accessories.
BMW Motorrad
optional accessories
can be purchased
and retrofitted at
your authorized
BMW Motorrad
retailer.
ABS Anti-Lock Brake Sys-
tem.
DDC Dynamic Damping
Control.
DTC Dynamic Traction Con-
trol.
DWA Anti-theft alarm.
EWS Electronic immobilizer.
TPC Tire Pressure Control
(TPC).
EQUIPMENT
When you ordered your
BMW Motorrad motorcycle,
you chose various items of
custom equipment. These
operating instructions describe
optional equipment (OE)
offered by BMW and selected
optional accessories (OA). This
explains why the manual may
also contain descriptions of
equipment which you have not
ordered. Please note, too, that
your motorcycle might not be
exactly as illustrated in this
manual on account of country-
specific differences.
If your motorcycle features
equipment that is not de-
scribed here, you can find
these features described in a
separate manual.
TECHNICAL DATA
All dimensions, weights and
performance data contained
in these operating instructions
refer to the German Institute
for Standardization i.e. DIN
(Deutsches Institut für Nor-
mung e. V.) and comply with
their tolerance specifications.
The technical data and spec-
ifications in these operating
instructions serve as points of
reference. The vehicle-specific
data may vary, for instance due
to the selected optional equip-
ment, national-market version
or country-specific measuring
procedures. Detailed values can
be obtained from the registra-
tion documents or requested
from your BMW Motorrad re-

6 GENERAL INSTRUCTIONS
tailer or other qualified service
partner or specialist workshop.
The information on the vehicle
documents always takes prece-
dence over the information in
these operating instructions.
TIMELINESS OF THE STATUS
OF THIS MANUAL
The high safety and quality
level of BMW motorcycles are
ensured by consistent, ongo-
ing development efforts em-
bracing their design, equip-
ment and accessories. For this
reason, some aspects of your
motorcycle may vary from the
descriptions in these operat-
ing instructions. In addition,
BMW Motorrad cannot guaran-
tee the total absence of errors.
We hope you will appreciate
that no claims can be recog-
nized that are based on the
data, illustrations or descrip-
tions in this manual.
ADDITIONAL SOURCES OF
INFORMATION
BMW Motorrad retailer
Your BMW Motorrad retailer is
always happy to answer any of
your questions.
Internet
The Operating Instructions for
your motorcycle, the operating
and installation instructions for
optional accessories and gen-
eral BMW Motorrad informa-
tion related to the technology
or other features are available
at bmw-motorrad.com/manu-
als.
CERTIFICATES AND OPERAT-
ING PERMITS
The certificates for the vehi-
cle and the official operating
permits for possible acces-
sories are available at bmw-
motorrad.com/certification.
DATA MEMORY
General information
Control units are installed in
the vehicle. Control units pro-
cess data received from vehicle
sensors, self-generated data or
data exchanged between con-
trol units, for example. Some
control units are required for
safe vehicle operation or pro-
vide riding assistance, such as
driver assistance systems. Con-
trol units also make comfort
and infotainment functions pos-
sible.
Information about the stored
or exchanged data can be ob-

7
tained from the vehicle manu-
facturer, such as in the form of
a separate booklet.
Personal references
Every vehicle is marked with
a unique vehicle identifica-
tion number. Depending on
the country, the vehicle owner
can be identified using the
vehicle identification number
and license plate and with the
help of the relevant authorities.
There are also other ways to
trace data obtained from the
vehicle back to the driver or
vehicle owner, such as via the
ConnectedDrive Account that
was used.
Data privacy laws
In accordance with applicable
data privacy laws, vehicle users
have certain rights over the ve-
hicle manufacturer or company
that collects or processes per-
sonal data.
Vehicle users have the right to
obtain comprehensive informa-
tion without charge from the
locations that store the vehicle
user's personal data.
These locations may be:
The vehicle manufacturer
Qualified service partners
Specialist workshops
Service providers
Vehicle users may request in-
formation about the type of
personal data that is stored, the
purpose for which the data will
be used and the source of the
data. This information can only
be obtained by a registered
owner or a person with written
proof authorizing use of the ve-
hicle.
The right to information also
includes information related
to data transmitted to other
companies or locations.
The vehicle manufacturer's
website contains the appro-
priate privacy policy notices.
The privacy policy notices con-
tain information on the right
to delete or correct data. The
vehicle manufacturer also pro-
vides the manufacturer contact
information and the contact in-
formation of the data security
officer.
The vehicle owner can have
a BMW Motorrad retailer or
other qualified service partner
or specialist workshop read out
the data stored in the vehicle
for a fee if required.

8 GENERAL INSTRUCTIONS
The vehicle data is read out via
the vehicle's legally mandated
socket for onboard diagnosis
(OBD).
Legal requirements for the
disclosure of data
The vehicle manufacture is re-
quired by the law applicable in
this context to provide authori-
ties with the data stored by the
manufacturer. Providing this
data within the scope required
is on a case-by-case basis, for
instance to clarify a criminal of-
fense.
Government agencies are au-
thorized by the law applicable
in this context to read out the
data from the vehicle them-
selves in individual cases.
Operating data in the vehicle
Control units process data so
that the vehicle can run.
Examples of this include:
Status messages from the ve-
hicle and its individual com-
ponents, such as wheel RPM,
wheel speed and deceleration
Environmental conditions,
such as temperature
The data is processed only in
the vehicle itself and is usu-
ally temporary. The data is not
stored beyond the period in
which the vehicle is operating.
Electronic components such
as control units contain com-
ponents for storing technical
information. This may be infor-
mation about the vehicle's con-
dition, component load, events
or faults stored temporarily or
permanently.
This information generally doc-
uments the condition of a com-
ponent, module, system or the
surrounding area; for example:
Operating conditions of sys-
tem components, such as fill
levels and tire pressure
Malfunctions and faults in key
system components, such as
lights and brakes
Vehicle responses in specific
riding situations, such as the
activation of driving stability
control systems
Information about events
causing damage to the vehicle
The data is necessary for pro-
viding control unit functions. In
addition, it is used by the vehi-
cle manufacturer to detect and
eliminate malfunctions as well
as to optimize vehicle func-
tions.
The majority of this data is
temporary and is processed
only within the vehicle itself.
Only a small amount of event-
driven data is stored in the

9
event data recorder and fault
memory.
When a vehicle is serviced,
such as for repairs, servicing
processes, warranty cases and
quality assurance measures,
this technical information can
be read out from the vehicle
together with the vehicle iden-
tification number.
The information can be read
out by a BMW Motorrad re-
tailer or other qualified service
partner or specialist workshop.
The vehicle's legally mandated
socket for onboard diagnosis
(OBD) is used to read out the
data.
The data is collected, pro-
cessed and used by the
respective retailer network
locations. The data documents
the vehicle's technical states
and helps with fault finding,
compliance with warranty
obligations and quality
improvements.
The manufacturer also has
product monitoring obligations
arising from product liability
law. The vehicle manufacturer
requires technical data from
the vehicle in order to fulfill
these obligations. The data
from the vehicle can also be
used to verify customer war-
ranty and guarantee claims.
The fault memory and event
data recorder in the vehicle can
be reset by a BMW Motorrad
retailer or other qualified
service partner or specialist
workshop as part of a repair or
servicing.
Data input and data transfer
in the vehicle
General information
Depending on the equipment,
comfort settings and individual-
ized settings in the vehicle can
be saved and changed or reset
at any time.
Examples of this include:
Windshield position settings
Chassis and suspension ad-
justment settings
It is possible to introduce data
into the vehicle entertainment
and communication system via
a smartphone, for instance.
Depending on the individual
equipment, this includes:
Multimedia data, such as mu-
sic for playback
Address book data for use in
conjunction with a commu-
nication system or integrated
navigation system
Entered navigation destina-
tions

10 GENERAL INSTRUCTIONS
Data about the use of Inter-
net services. This data can
be stored locally in the ve-
hicle or is on a device con-
nected to the vehicle, such
as a smartphone, USB stick
or MP3 player. If this data is
saved in the vehicle, it can be
deleted at any time.
This data is transmitted to third
parties only upon personal re-
quest as part of the use of on-
line services. The data trans-
mitted depends on the selected
settings when using the ser-
vices.
Integrating mobile end de-
vices
Depending on the equipment,
mobile end devices connected
to the vehicle, such as smart-
phones, are controlled using
the vehicle's operating ele-
ments.
This enables audio and visual
output from mobile end de-
vices through the multimedia
system. At the same time, cer-
tain information is transmitted
to the mobile end device. This
includes for instance position
data and other general vehicle
data, depending on the type of
integration, and makes it pos-
sible to optimize the use of se-
lected apps, such as those for
navigation or audio playback.
The way the data is processed
further is determined by the
provider of the particular app
used. The range of possible
settings depends on the par-
ticular app and the operating
system of the mobile end de-
vice.
Services
General information
If the vehicle has a mobile
phone connection, this
connection makes it possible
to exchange data between
the vehicle and other systems.
The mobile phone connection
is made possible through
the vehicle's transmitter and
receiver or via personally
integrated mobile end devices
such as smartphones. Online
functions, as they are called, are
used over this mobile phone
connection. These include on-
line services and apps provided
by the vehicle manufacturer or
other providers.
Vehicle manufacturer services
In the case of the vehicle man-
ufacturer's online services, the
particular functions are de-
scribed at the appropriate lo-
cation, such as in the operating
instructions or on manufactur-

11
er's website. The relevant legal
information on data privacy is
also provided there. Personal
data may be used in order to
provide online services. The
data is exchanged over a se-
cure connection, i.e. with the
vehicle manufacturer's IT sys-
tems which are intended for
this purpose.
Any collection, processing and
use of personal data that goes
beyond the provision of ser-
vices take place only as per-
mitted by law, on the basis of
a contractual agreement or as
a result of consent. It is also
possible to have the entire data
connection activated or deacti-
vated. This is not the case for
legally prescribed functions.
Services of other providers
When using the online services
of other providers, these ser-
vices are subject to the respon-
sibility and the data protection
and usage conditions of the re-
spective provider. The vehicle
manufacturer has no control
over the content exchanged
via these services. Informa-
tion about the type, scope and
purpose of collecting and us-
ing personal data as part of
third-party services can be
obtained from the particular
service provider.

OVERVIEWS
02

OVERALL VIEW, LEFT SIDE 14
OVERALL VIEW, RIGHT 15
UNDER THE RIDER'S SEAT 16
MULTIFUNCTION SWITCH, LEFT 17
MULTIFUNCTION SWITCH, RIGHT 18
INSTRUMENT CLUSTER 19

14 OVERVIEWS
OVERALL VIEW, LEFT SIDE
1Rebound-stage damping
on front wheel ( 113)
Spring preload on front
wheel ( 108)
Compression damping on
front wheel ( 112)
2Compression damping on
rear wheel ( 114)
Spring preload on rear
wheel ( 110)
with Dynamic Damping
Control (DDC)OE
Adjusting damping
( 64).
3Hump cover lock ( 77)
4Tire pressure table
Chain adjustment values
5Rebound-stage damping
on rear wheel ( 115)
6Noise emission sign
