BMW Motorrad DWA 5 User manual

Supplementary Rider’s Manual
Anti-theft alarm system DWA 5
BMW Motorrad
On-board
documentation
Supplementary
Rider's Manual
Anti-theft
alarm system
DWA 5

d  Warning:
This symbol indicates pre-
cautions and measures which
are essential in protecting the
rider or other persons from
severe or fatal injury.
e  Attention:
Instructions and precautions
specifically intended to prevent
damage to the motorcycle.
Disregarding them may render
the warranty invalid.
L  Note:
Specific information on operat-
ing, inspecting and adjusting
work for the motorcycle as well
as maintenance procedures.
Important notes
10DWAbkg1.book Seite 1 Freitag, 22. August 2003 3:22 15

1
Intro
i
Welcome to BMW
Congratulations on your pur-
chase of this BMW anti-theft
alarm.
It acts as a deterrent for poten-
tial thieves, while at the same
time being easy and straightfor-
ward to use.
Your authorised BMW motorcy-
cle dealer will be glad to assist
you in all matters relating to
your motorcycle.
We hope you will enjoy familiar-
ising yourself with these
instructions for use, and we
would like to take this opportu-
nity of sending you our very
best wishes.
Yours sincerely,
BMW Motorrad
Welcome to BMW
10DWAbkg1.book Seite 1 Freitag, 22. August 2003 3:22 15

2
Intro
i
Intro
Welcome to BMW ................. 1
General ................................. 3
Overview and operation
Controls ................................ 4
Functions of the remote
control unit............................ 5
Code card ............................. 6
Central locking
Manual operation .................. 7
Remote control unit............... 8
Emergency unlocking............ 9
Safety shutdown ................. 10
Alarm function
Activation .......................11-12
Activation phases................ 13
Alarm .................................. 14
Deactivating the alarm
function..........................15-16
Reasons for an alarm .....17-19
Lights
Lights.................................. 20
Programming
Customising the anti-theft
alarm................................... 21
Default settings ................... 22
Accessing the programming
mode .................................. 23
Programming ................. 24-25
Remote control units
Registering remote
control units ...................26-28
Exiting registration mode .... 29
Synchronising the remote
control unit.......................... 30
Care and maintenance
Changing the battery .....31-32
Technical data
Technical data .................... 33
Contents
10DWAbkg1.book Seite 2 Freitag, 22. August 2003 3:22 15

3
Intro
i
Any attempt to move the motor-
cycle, change its position, start
it without your permission, or
disconnect the battery will trig-
ger the alarm. The sensitivity of
the system is set in such a way
that slight vibrations of the
motorcycle will not trigger a
false alarm.
Once you have activated the
alarm, any attempted theft is
indicated acoustically by the
siren and visually by all four turn
indicators flashing at the same
time, and the electronic immo-
biliser suppresses engine start.
Your anti-theft alarm is com-
bined with a central locking sys-
tem that enables you to open
and close the cases, the top-
case, and the radio compart-
ment by remote control.
It also enables you to switch on
the map-reading light and the
ground lights automatically.
You can customise the anti-theft
alarm in certain ways to suit your
needs and preferences.
LNote:
In order to protect the motorcy-
cle’s battery and ensure that
the engine can be started, the
alarm system deactivates itself
automatically a certain number
of days after being activated, al-
though it always remains active
for at least 7 days.
General
10DWAbkg1.book Seite 3 Freitag, 22. August 2003 3:22 15

4
Overview and operation
1
1Left button (ribbed)
2Right button
3LED
4Radio remote control unit
5Status LED
(on the vehicle)
Controls
1
4
5
2
3
10DWAbkg1.book Seite 4 Freitag, 22. August 2003 3:22 15

5
Overview and operation
1
Functions of the remote control unit
Operation Button 1 Confirmation
Press once Lock central locking –
Press again Activate alarm func-
tion and immobiliser
Indicators flash 2x
Alarm tone sounds
2x (if programmed)
Press for third time Deactivate motion
sensor (for transport,
for example)
Indicators flash 3x
Alarm tone sounds 3x
Operation Button 2 Confirmation
Press once Deactivate alarm
function and immo-
biliser, unlock cen-
tral locking
Indicators flash 1x
Alarm sounds 1x
(if programmed)
Press again – –
Press for third time – –
10DWAbkg1.book Seite 5 Freitag, 22. August 2003 3:22 15

6
Overview and operation
1
Code card
The anti-theft alarm is supplied
complete with a sealed enve-
lope containing a code card 1.
The number stated on the code
card (remove the adhesive
label) is the code for deactivat-
ing the anti-theft alarm by
means of the ignition (b16).
The code number is stamped in
encrypted form on the anti-theft
alarm and it is also printed on an
adhesive label 2supplied with
the anti-theft alarm. You should
affix the label at a concealed
location on the motorcycle.
If you forget the code and are
unable to find the code card, an
authorised BMW motorcycle
dealer will be able to forward the
encrypted number to BMW on
your behalf and obtain the cor-
rect code.
2
1
10DWAbkg1.book Seite 6 Freitag, 22. August 2003 3:22 15

7
Central locking
2
Manual opening and
closing
You can still open and close the
cases, the topcase and the
radio compartment manually
with the key, as described in the
Rider’s Manual.
Manual operation
1
4
2
3
10DWAbkg1.book Seite 7 Freitag, 22. August 2003 3:22 15

8
Central locking
2
Remote control unit
Closing with the remote
control unit
Press button 1on the remote
control unit once to lock the
cases, the topcase and the
radio compartment. The lids are
locked irrespective of whether
or not a particular lock was
engaged manually beforehand.
Opening with the remote
control unit
Press button 2 on the remote
control unit once to unlock the
cases, the topcase and the
radio compartment. A lock that
was engaged manually remains
locked even after opening with
the central locking system and
has to be unlocked manually.
The only way of manually open-
ing a lock closed by the central
locking system is to perform the
emergency unlocking routine.
10DWAbkg1.book Seite 8 Freitag, 22. August 2003 3:22 15

9
Central locking
2
Emergency unlocking
If the compartments were
locked by the central locking
system and, for some reason,
the remote control unit is not to
hand, you can use the emer-
gency unlocking routine to
open them. Emergency unlock-
ing is independent of the cur-
rent status of the lock barrel.
1Insert the ignition key into
the lock you want to open
2Turn the key to the 45°
position
3You can now press in the
lock barrel with the key in
order to open the lock. Note
that the key cannot be
removed from the lock bar-
rel in this position.
4You must turn the barrel to
the unlocked position or the
locked position in order to
remove the key. The lock
remains locked.
10DWAbkg1.book Seite 9 Freitag, 22. August 2003 3:22 15

10
Central locking
2
Safety shutdown
Overly frequent locking and
unlocking within a short period
of time could cause the motors
of the central locking system to
become very warm. An override
function can cut in and interrupt
operation in order to avoid
damage to the motors: these
interruptions can last for a max-
imum of 30 seconds.
10DWAbkg1.book Seite 10 Freitag, 22. August 2003 3:22 15

3
11

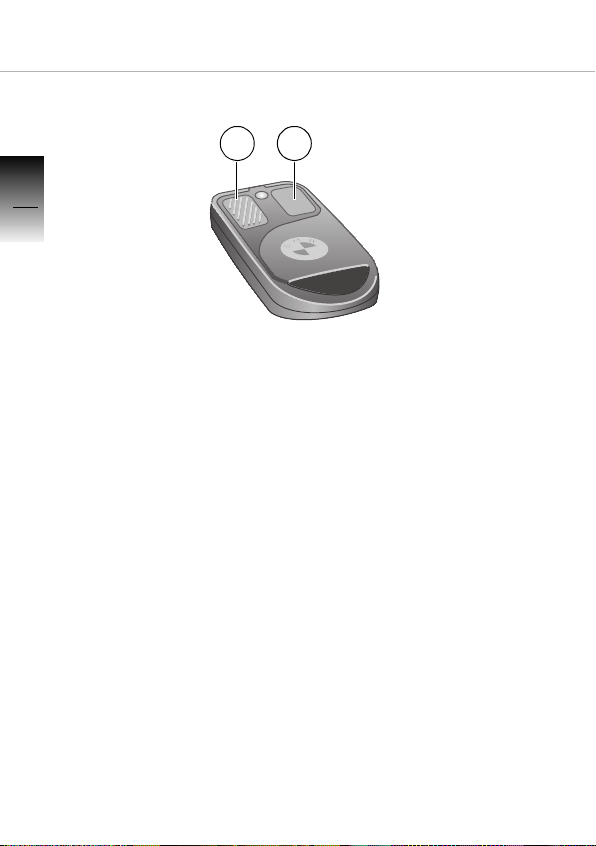

Alarm function
Activation with motion
sensor
The alarm function is activated
• by pressing button 1on the
remote control unit twice
or
• by switching off the ignition
(if programmed (b24))
– when you switch off the igni-
tion, 30 seconds elapse
before the activation phase
– the central locking system is
not activated
Activation is confirmed
• by the indicators flashing
twice
and
• by the alarm tone sounding
twice (if programmed (b24))
Activation
1 2
10DWAbkg1.book Seite 11 Freitag, 22. August 2003 3:22 15

12
Alarm function
3
Activation
Deactivating the motion
sensor
If, for example, you want to
transport your motorcycle by
train, it is advisable to deacti-
vate the motion sensor. Severe
movements while the motorcy-
cle is in transit could trigger a
false alarm.
You deactivate the motion
ensor
• by pressing button 1on the
remote control unit for a sec-
ond time within the activation
phase (b13)
Deactivation is confirmed
•bytheindicatorsflashing
three times
and
• by the alarm tone sounding
three times
10DWAbkg1.book Seite 12 Freitag, 22. August 2003 3:22 15

3
13
Alarm function
Activation phases
15 seconds elapse before the
alarm function is fully active.
Status of the
anti-theft alarm
LED
Activation phase
(15 seconds)
Rapid flashing
(0.1 sec. on/ 0.5 sec. off)
If the motion sensor was switched off:
Rapid flashing
(0.1 sec. on/ 0.2 sec. off)
Anti-theft alarm
active
Slow flashing
(0.1 sec. on/ 0.9 sec. off)
10DWAbkg1.book Seite 13 Freitag, 22. August 2003 3:22 15

14
Alarm function
3
Alarm
Triggering the alarm
The alarm can by triggered
• by the motion sensor
• by an attempt to switch on the
ignition without deactivating
the anti-theft alarm beforehand
• by disconnection of the anti-
theft alarm from the motorcy-
cle's battery (the anti-theft
alarm's internal battery cuts in
to supply power)
Alarm
An alarm lasts for 26 seconds.
The alarm is active again
12 seconds later. You can can-
cel an alarm at any time after it
has been triggered by pressing
button 2on your remote c on trol
unit. This function does not
change the status of the anti-
theft alarm.
An acoustic alarm sounds and
the turn indicators flash for the
duration of the alarm. You can
program the sound of the
acoustic alarm (b24).
1 2
10DWAbkg1.book Seite 14 Freitag, 22. August 2003 3:22 15

3
15
Alarm function
Deactivating the alarm function
Deactivating the alarm
function with the remote
control unit
The alarm function is deactivated
• by pressing button 2on the
remote control unit once (if
the alarm function was acti-
vated automatically before-
hand when you switched off
the ignition, it is reactivated
30 seconds later)
Deactivation is confirmed
• by the turn indicators flashing
once
and
• by the alarm tone sounding
once (if programmed (b24))
1 2
10DWAbkg1.book Seite 15 Freitag, 22. August 2003 3:22 15

16
Alarm function
3
Deactivating the alarm function
Deactivating the alarm
function without remote
control unit
If you do not have the remote
control unit to hand when the
anti-theft alarm is active, you
can still deactivate the system.
To do so, you will need the
code number printed on your
code card (b6).
Deactivation is confirmed
• by the turn indicators flashing
once
and
• by the alarm tone sounding
once (if programmed (b24))
LNote:
The system will permit a maxi-
mum of three successive at-
tempts; if the third attempt in
succession is unsuccessful the
anti-theft alarm engages for 10
minutes.
Step Action Confirmation
1 Switch on the ignition Alarm is triggered
2 Switch off the ignition and
observe the LED
LED flashing,
alarm continues
3 Count the LED flashes until the
number corresponds to the first
digit of your code number.
4 Switch on the ignition LED OFF
5 Repeat steps
2 - 4 for the remaining digits in
your code
10DWAbkg1.book Seite 16 Freitag, 22. August 2003 3:22 15

3
17
Alarm function
Reasons for an alarm
Reasons for an alarm
Once you have deactivated the
alarm function, the LED shows
you reasons for alarms, if any,
that were triggered in your
absence:
• Flash 1x:
Motion sensor
• Flash 2x:
Ignition on while the anti-theft
alarm was primed
• Flash 3x:
Anti-theft alarm disconnected
from motorcycle battery
The LED ceases to output this
signal after 1 minute, or as soon
as you switch on the ignition.
If more than one alarm was trig-
gered, the flashing codes indi-
cate all the reasons.
10DWAbkg1.book Seite 17 Freitag, 22. August 2003 3:22 15

18
Alarm function
3
You can also check the system
at some subsequent time in
order to ascertain the reason
why the most recent alarm was
triggered. In order to do so, you
must first identify yourself by
means of your code number.
If the code number you entered
is correct, two acknowledge-
ment tones sound to indicate
that identification is completed.
If you now switch off the igni-
tion, the LED will flash to indi-
cate once the reason for the
most recent alarm, if any.
Reasons for an alarm
10DWAbkg1.book Seite 18 Freitag, 22. August 2003 3:22 15
