BMW 135i User manual

The new
BMW 1 Series Coupé
135i
123d
120d
Sheer
Driving Pleasure

First it pulls you in. Then it takes off.

Pure energy. Exploited to perfection
by BMW EfficientDynamics.

The long wheelbase, the muscular flanks – a dynamically
elegant design that leaves a lasting impression.

Wins the race before it even starts.

A dream machine, ready and waiting.

sStandard equipment oOptional equipment
oLights package comprises vicinity lights,
which upon unlocking the doors illuminates
the area outside the doors for 20 seconds
to enable safe vehicle access in the dark.
Also included: reading lights front and rear,
footwell illumination at the front, vanity mirror
lights for driver and front passenger and
ambient lighting.

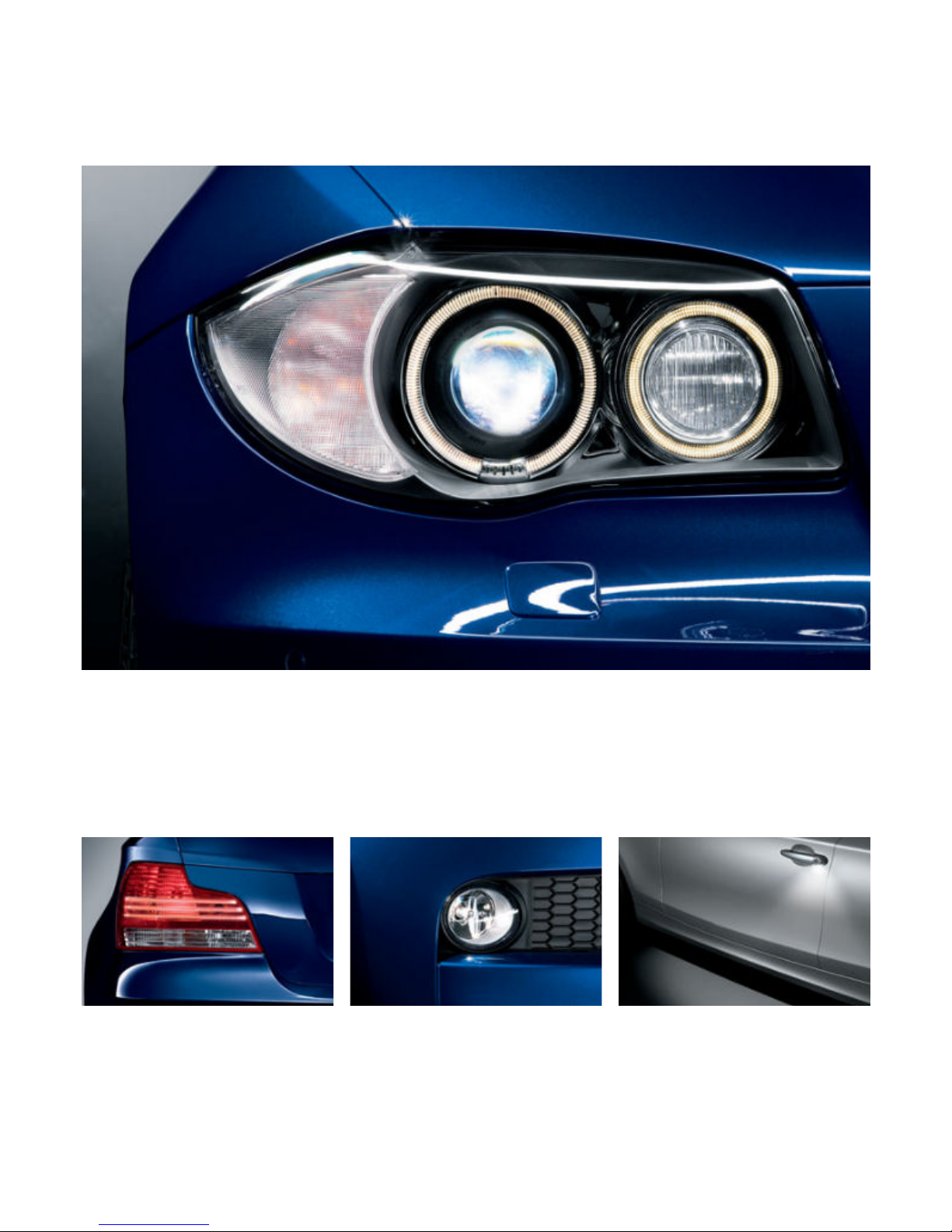

oXenon headlights for high and low beam, incl. daytime driving lights, four parking light rings and automatic headlight range control, for better
road illumination at night or in bad weather.
oAdaptive headlights incl.turning lights, only in conjunction with Xenon headlights, incl. adaptive headlights: optimal and prompt illumination of
bends through electromechanical control of the moveable lamps as soon as the driver turns.
oFoglights integrated in the front apron ensure
extra safety in poor visibility. Option includes
exterior mirror heating and screen washer
nozzles (standard on 123d, not available for 135i).
sRear light with LED indicators: each taillight
is made up of three separate high performance
LED strips, accentuating the tailgate’s dynamic
feel.

sExterior mirrors, painted in body colour, with
electric adjustment, aspheric, heated on 135i
and 123d.
sBrake Force Display helps vehicles
travelling behind you to evaluate your
braking more accurately: in the event of an
emergency stop, the illuminated area of the
brake lights is increased. So traffic following
behind can tell in an instant the difference
between a light tap on the brake pedal and a
hard stop – for increased driving safety.
oTrailer tow hitch with removable ballhead
(not available on 135i).
oHigh-gloss Satin Chrome encompasses
the trimming around side windows front and
rear, the window recess finishers, the mirror
base and the mirror frame in high-gloss Black.
oRain sensor including automatic
driving lights control: Once activated, the
rain sensor will automatically switch on the
windscreen wipers when it begins to rain,
adjusting the wiper frequency in line with
rainfall intensity. The integrated automatic
driving lights control activates the low beam
automatically at dusk and in tunnels.
oChrome Line exterior, encompasses
trimming around side windows at the front
and rear, the window recess finisher, entry
strips with chrome inserts as well as the
mirror base and mirror frame in high-gloss
Black (standard on 135i and 123d).
oGlass roof, electric, with slide and lift
control and remote-operated comfort
opening.
sStandard equipment oOptional equipment

sStandard equipment oOptional equipment
oBMW light-alloy wheels star-spoke 256,
7 J x 17", 205/50 R 17 tyres.
oBMW light-alloy wheels V-spoke 141,
7 J x 17", 205/50 R 17 tyres (standard on 123d).
oBMW light-alloy wheels star-spoke 142
with mixed tyres, 7 J x 17" with 205/50 R 17
tyres at the front, 7.5 J x 17" with 225/45
R 17 tyres at the rear.
oBMW light-alloy wheels star-spoke 262
with mixed tyres, 7 J x 17" with 205/50 R 17
tyres at the front, 7.5 J x 17" with 225/45 R 17
tyres at the rear.
oBMW light-alloy wheels star-spoke 264
with mixed tyres, 7.5 J x 18" with 215/40 R 18
tyres at the front, 8.5 J x 18" with 245/35 R 18
tyres at the rear (standard for the 135i).
oBMW light-alloy wheels W-spoke 263
with mixed tyres, 7.5 J x 18" with 215/40 R 18
tyres at the front, 8.5 J x 18" with 245/35 R 18
tyres at the rear.
sBMW light-alloy wheels double-spoke
222, 7 J x 16", 205/55 R 16 tyres (standard for
120d).

oPark Distance Control (PDC), available for
front and rear or rear only, facilitates parking and
manoeuvring in confined spaces, giving you an
acoustic signal for the distance between your
car and an obstacle – and in conjunction with an
optionally available navigation system*optically
in the control display.

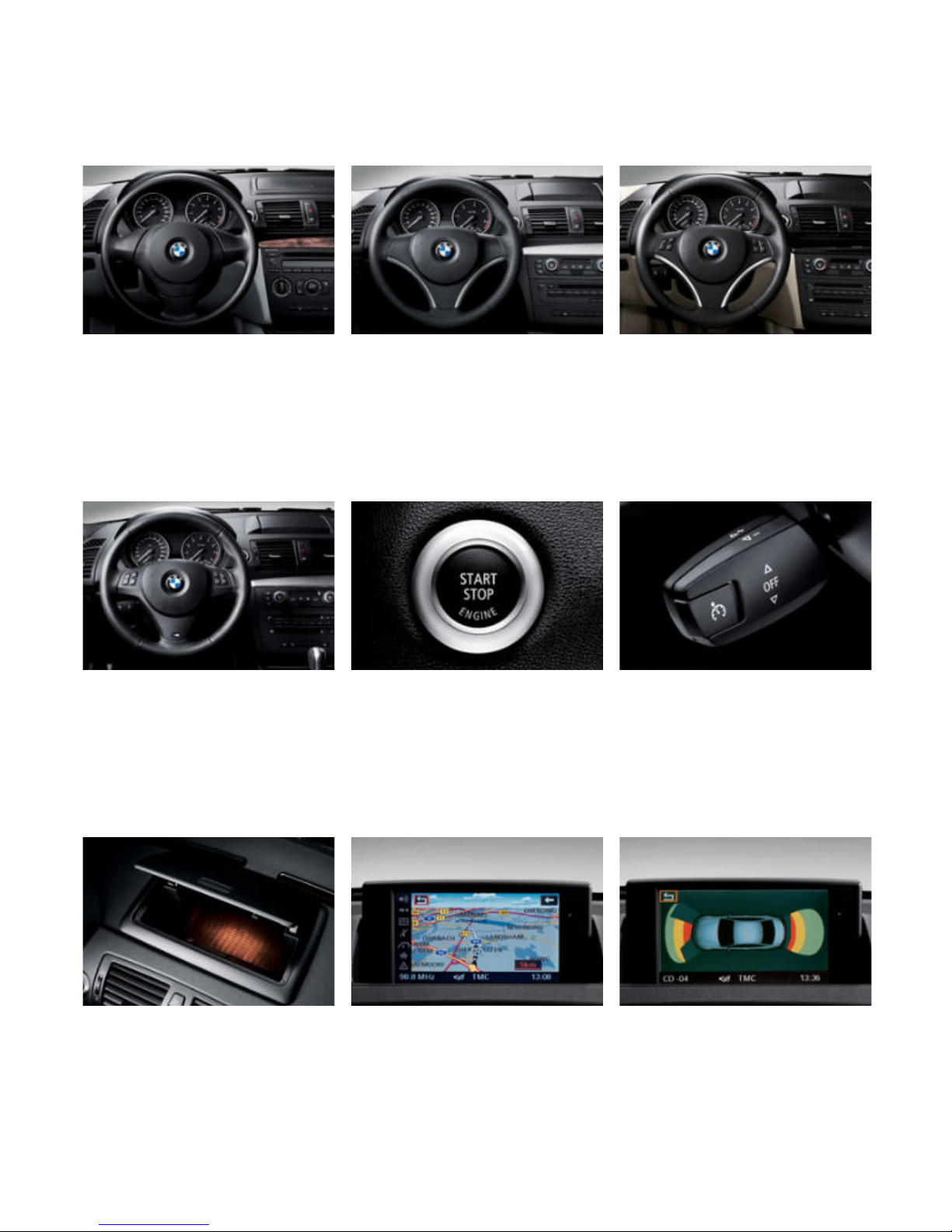

oLeather sports steering wheel with
multifunction buttons (diameter 369 mm),
chrome clasp, three spokes, with multifunction
capability for remote control of radio and
telephone (optional).
oLeather sports steering wheel (diameter
369 mm), chrome clasp, three spokes
(standard on 135i and 123d).
sStandard steering wheel (diameter
375 mm), three spokes.
oCruise control stores and maintains a desired
speed above approx. 30 km/h (activated using
the left-hand steering-column stalk). After
accelerating, the vehicle automatically returns
to the previously stored speed. Braking
cancels the setting.
sStart/Stop button to start the engine.
Insert the car key to start and stop the engine
by pushing this button.
oComfort access system to open and
close the vehicle without having to take the
radio remote control unit into your hands. In
addition, the engine can be started without
the key.
oM leather steering wheel (diameter 369 mm),
three spokes, optionally with multifunction
buttons for remote control of radio/telephone
(optional). An M gear lever knob with the M
emblem is included should you opt for the
manual transmission. The handbrake lever
handle is made of Walknappa leather.
oNavigation system Professional*, incl.
Professional radio with CD and DVD drive, eight
functional bookmarks, holds maps for all of
Europe on a single DVD – with high-resolution
6.5" graphics showing maps and arrows on the
fold-up monitor as well as bird’s eye view.
oNavigation system Business* (including
Professional radio, combined CD/DVD drive),
displays maps and arrows to guide you to your
destination.
oStorage compartment package comprises
cupholder, luggage nets on the backs of front
seats, 12V socket, two foldable fastening points
in the luggage compartment, two tensioning
straps on luggage compartment floor as well
as an illuminated storage tray on top of the
instrument panel (not available in conjunction
with a navigation system*).
* Not available in all countries. Please consult your BMW partner.
sStandard equipment oOptional equipment

sStandard equipment oOptional equipment
s6-speed manual transmission for a
particularly sporty drive. Immensely smooth,
with perfect ratios and precise, short-throw
gearshifts. The addition of a sixth gear means
that the gear ratios are more closely spaced,
enabling you to make even more individual
use of the engine’s power.
sAuto Start/Stop display signals on
the info display when the engine has been
switched off by the Auto Start/Stop function
(e.g. at traffic lights or in a jam). The engine
is re-started automatically when you next
press the clutch, and the signal is turned off
(for the 120d and 123d in conjunction with a
6-speed manual transmission).
sShift Point Display for vehicles with
6-speed manual transmission shows when
switching to another gear would be more fuel-
efficient; the system recommends when to
switch to a higher or lower gear.
sOn-board computer, provides information
about average speed, average and current
consumption, radius and outside temperature.
Also features an acoustic ice warning
system.
sInstrument panel with analogue instruments,
red backlit speedometer and rev counter. Plus
on-board computer with LC display for mileage
counter and trip counter.
o6-speed automatic transmission (here with non-smoker package) with Adaptive
Transmission Management (ATM) and Steptronic. This transmission performs veryfast, flawless
gearshifts – for maximum dynamic performance (available on the 135i and 123d as of March 2008;
available on the 135i with gear shift paddles).

sAUX-IN connection incl. 12-V socket for
an external audio source such as a MP3 player.
oUSB/audio interface for connection of a
USB stick or MP3 player. Stored tracks are
shown on the display of the Radio Professional
(optional) or on the control display included in a
navigation system* option. Tracks are selected
using the buttons on the optionally available
multifunction steering wheel, Professional radio
iDrive controller. A multimedia bag is supplied
along with the optional armrest.
sRadio Business CD with UKW, MW and
LW reception, six station buttons, automatic
volume adjustment, CD player, six loud-
speakers and an AUX-IN connection.
oRadio Professional, features as radio
Business CD, connection for CD changer,
MP3 decoder, two-line display for telephone
numbers, names and CD/MP3 titles (pictured).
oDAB tuner, available in addition.
oHiFi System Professional with powerful
amplifier, equalizer and high-performance
loudspeakers for superb sound. Surround
sound function enables simulation of various
acoustic environments.
oHiFi loudspeaker system with ten
loudspeakers for brilliant sound.
sWindow lifts, electric pull/press switch
and “open/close” fingertip control, all-round
comfort closing function and trap release.
oCD changer located on the left-hand side
of the luggage compartment, can take up to
six CDs.
oAutomatic air conditioning (shown
here), with AAR, microfilter, fogging and solar
sensors and residual heat button, quickly
establishes and maintains the selected
temperature. With separate temperature
control for left and right sides.
oAir conditioning, with microfilter, for a
comfortable interior at any time of the year
(standard on 135i and 123d).
sHeating system with six air outlets.
oBusiness preparation for mobile
telephone with Bluetooth interface (with
hands-free system, connection for recharging
and external aerial). A separately available
snap-in adapter enables connection of a
Bluetooth-compatible mobile phone, which
can also be operated via the iDrive Controller
(in conjunction with navigation system*). For
mobile phone options contact your BMW
partner.
* Not available in all countries. Please consult your BMW partner.
sStandard equipment oOptional equipment

sStandard equipment oOptional equipment

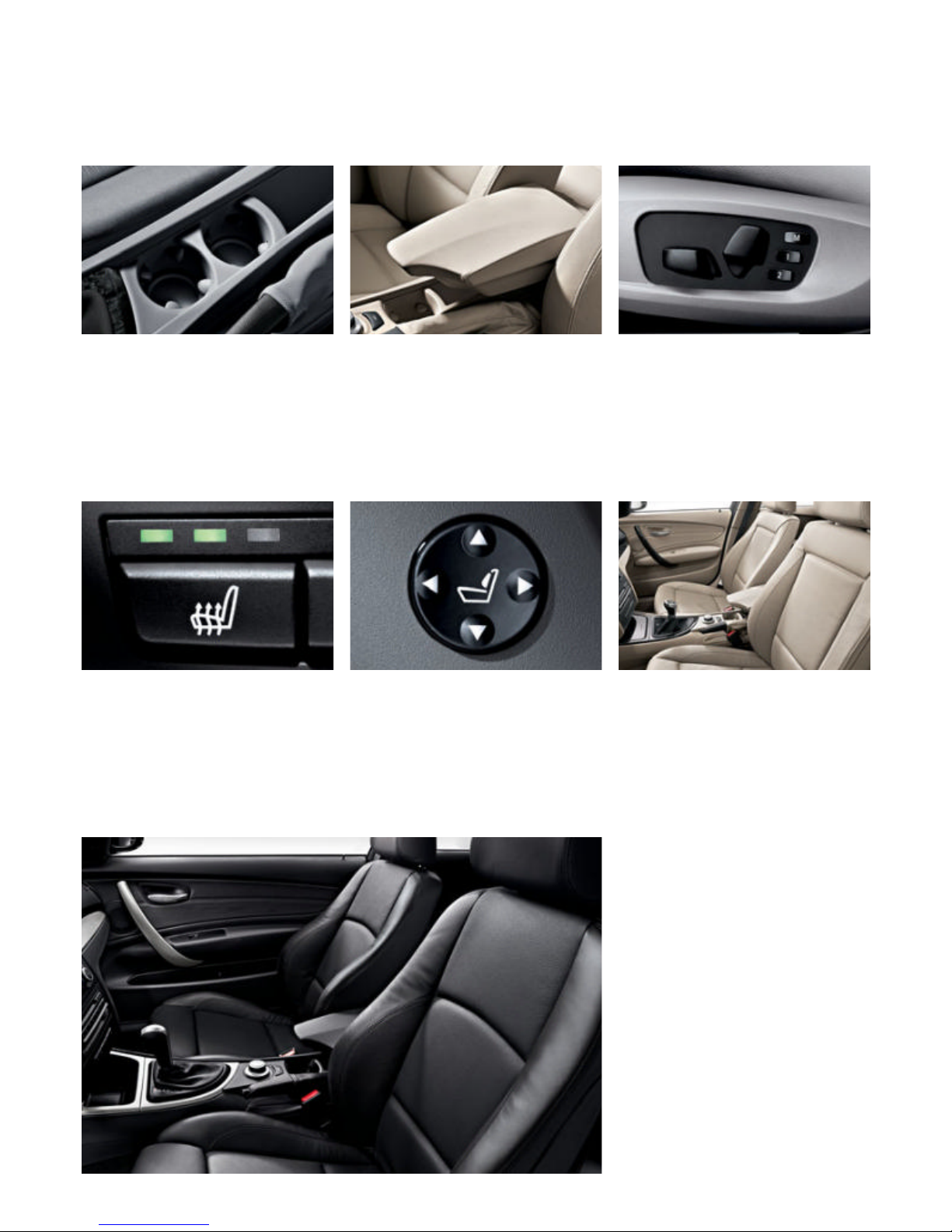

oSeat adjustment for driver and front
passenger with electric seat height and
backrest adjustment, as well as fore/aft and
seat angle adjustment, with memory
function for driver’s seat and exterior
mirrors (including automatic kerb focus).
Two personalised positions can be stored
for the settings of the driver’s seat and the
exterior mirrors.
oFront armrest, folding, with integrated
storage compartment.
oCupholder at the front, integrated in
the centre console and within comfortable
reach for the driver or front passenger. One
cupholder is standard in conjunction with a
navigation system. Cars without navigation
system can optionally be fitted with two
cupholders (as shown).
oLumbar support for driver and front
passenger, electrically adjustable, for an
ergonomically perfect seat position and
support of the back muscles.
oSeat heating (with 3 levels) for driver and
front passenger, seat surface and backrest,
including side supports, can be heated for an
almost instant cosy feeling of warmth.
oSport seats for driver and front passenger
(shown here with optionally available Boston
leather upholstery in Black), with infinitely
variable electric backrest width adjustment
for optimum lateral support, plus manual
adjustment of fore-and-aft position, seat
height, backrest angle, seat angle and thigh
support (standard on 135i).
sStandard seats (shown here with optionally
available Boston leather upholstery in Beige)
with manual adjustment, including seat height
adjustment for the driver’s seat.

sRear seats, ergonomic design, both seats
with three-point belts fitted as standard.
sHeadrests, manually adjustable and
removable.
oHeadrests, foldable, manually adjustable
and removable.
sLuggage compartment, illuminated and
with all-round textile lining; safe transportation
is ensured by an elastic strap on the left-hand
side, a flexible storage net on the right and
lashing points on the inside edge. (Pictured is
the optional storage compartment package).
sRear backrest, 60/40 split, folds down to
create an almost level luggage compartment
floor.
oSki bag enables clean and safe transportation
of skis, for instance. If the ski bag is not
required, it can be stored out of sight to save
space.
sRear storage tray in the rear between the
rear seats, provides additional storage space.
sISOFIX child seat attachment, rear on the
two outer rear seats for safe attachment of a
child seat with clip-in plug connectors plus
additional fastening points on the upper part.
oISOFIX child seat attachment for
passenger seat. Passenger airbag can be
deactivated per key.
sPersonal Profile: The Personal Profile
stores your personal preferences depending
on equipment for settings such as the
temperature and air distribution settings of
the automatic air conditioning, the position
of the driver’s seat and exterior mirrors, and
the volume and sound settings of the radio.
These settings are then activated when your
key is used to unlock the central locking.
oInterior mirror, with automatic anti-glare
function and large surface area; the glare
from following vehicles is automatically
reduced when the amount of incident light
exceeds a defined limit.
sStandard equipment oOptional equipment

sStandard equipment oOptional equipment
sFront apron: under the BMW double
kidney-shaped grille with chrome kidney slats,
the central air intake is a magnet forthe eye as
well. The two side air intakes serve to cool the
brakes and give the front a particularly athletic
profile. Two side flaps accentuate the vehicle's
broad front.
sDouble tailpipe: the exhaust system with
two black, chrome-plated tailpipes is standard
on the 135i.
sRear apron: winning, powerful elegance. The understated rear spoiler adds to the superb
driving dynamics.
sDashboard: the 135i features special
scaling with extra display ranges.
Exclusively for the BMW 135i: the standard
package comes with specifically calibrated
MSports suspension and sporty throttle
character. In addition, the 135i boasts sports
seats, Brushed Aluminium with accentline cut
interior trim as well as 18" mixed tyres (star-
spoke styling 264). The special front apron
adds to the sporty character while the M
aerodynamic kit – comprising side skirts and
an exceptional rear apron – lends the 135i an
even more distinctive, chiseled look.
sHigh performance brakes painted with
BMW logo with inner-vented, 17" front and
rear brake disks. They ensure shorter braking
distances and superior immobility at a
standstill.
oPaddles on steering wheel (in conjunction with 6-speed automatic transmission) for
manual gear changing without using the clutch (planned availability as of March 2008).

sStandard equipment oOptional equipment -Not available
Safety 135i 120d 123d
Airbags:
– Driver and front passenger airbags sss
– Front-to-rear head airbags (curtain) with splinter protection sss
– Side airbags for driver and front passenger, integrated in seat back sss
Anti-lock braking system, incl. braking assistant and Cornering Brake Control (CBC) sss
Brakes:
– Disc brakes at the front, inner-vented sss
BrakeForce Display sss
Central locking with electronic immobiliser and crash sensor;
fuel tank filler flap integrated in central locking sss
Centrelock switch sss
Dynamic StabilityControl (DSC, incl. DTC) -ss
Dynamic StabilityControl (DSC)with additionalfunctions s--
Flattyreindicator sss
ISOFIX child seat fastening system, front ooo
ISOFIXchild seatfastening system,rear sss
Safety bodyshell:
– Bumpers with steel impact absorber units at the front and rear, regenerating after impacts at up to 4 km/h, crumple zones
at front and rear absorb impacts at up to 15 km/h sss
– Side impact protection, integrated in the doors sss
Seatbelts:
– Ergonomic rear seatbelt system with three-point seatbelts for all three seats and
integrated belt catches sss
– Inertia-reel seatbelts at the front with pyrotechnic belt tensioners and belt force limiters sss
Exteriordesign 135i 120d 123d
ChromeLine exterior sos
Exteriormirrorsinbodycolour, electrically adjustable, aspheric (heated on 135i and 123d) sss
Exterior parts in body colour (bumpers, bowdoor handlesand rooffinishers) sss
Indicator lights, white sss
Kidney grillebars inBlack -ss
Kidney grillebars inChrome s--
Metallicpaintwork ooo
Preparationforrearluggagerack (notavailablein conjunctionwith Msports package) -oo
Satin Chrome, high-gloss ooo
Tailgate with locking mechanism integrated in logo sss
Trailer tow hitch with removable ball head, incl. trailer stability control -oo
Tailpipe with Chrome trim (123d and 135i in black Chrome, 135i with twin pipes) sss
Equipmentpackages 135i 120d 123d
AdvantagePackage ooo
Comfort Package ooo
Dynamic Package ooo
Exteriormirrorpackageincluding fold-in function,heated exterior mirrors
withmemory function(via PersonalProfile)andautomaticparkingfunction ooo
MAerodynamics Packagewith front air dam and rear spoiler specially designed for the 135i s--
MSports Package ooo
Storage compartmentpackage incl. illuminated storage compartment(not available in conjunction with navigation system), nets
on frontseat backrests, cupholder, 12 V socket,two straps on luggage compartment floorand two fold-down fastening points ooo

Wheels 135i 120d 123d
Runflat indicator and runflat tyres sss
Wheels:
– Light-alloy wheels double-spoke 222, 7 J x 16", 205/55 R 16 tyres -s-
– Light-alloy wheels V-spoke 141, 7 J x 17", 205/50 R 17 tyres -os
– Light-alloy wheels star-spoke 256, 7 J x 17", 205/50 R 17 tyres -oo
– Light-alloy wheels star-spoke 142 with mixed tyres, front 7 J x 17" with 205/50 R 17 tyres,
rear 7.5 J x 17" with 225/45 R 17 tyres -oo
– Light-alloy wheels star-spoke 262 with mixed tyres, front 7 J x 17" with 205/50 R 17 tyres,
rear 7.5 J x 17" with 225/45 R 17 tyres -oo
– Light-alloy wheels W-spoke 263 with mixed tyres, front 7.5 J x 18" with 215/40 R 18 tyres,
rear 8.5 J x 18" with 245/35 R 18 tyres ooo
– Light-alloy wheels star-spoke 264 with mixed tyres, front 7.5 J x 18" with 215/40 R 18 tyres,
rear 8.5 J x 18" with 245/35 R 18 tyres soo
– M Light-alloy wheels double spoke 261 M with mixed tyres, front 7.5 J x 18" with 215/40 R 18 tyres,
rear 8.5 J x 18" with 245/35 R 18 tyres (only available in conjunction with M Sports Package) ooo
Interiordesign 135i 120d 123d
Doorsillfinishers, chrome-plated s-s
Instrument panel, with round speedometer and rev counter displays,
as well as fuel gauge and on-board computer display sss
Interiortrim:
– Titanium, light -ss
– Brushed Aluminium with accent line soo
–Black,high-gloss ooo
– Cashmere Silver ooo
– Fine-wood trim Poplar Grain, grey ooo
– Fine-wood trim Burr Walnut, light ooo
Rooflinerin Anthracite ooo
Upholstery:
– ClothElektra1-s-
– Cloth Network sos
– Cloth/leather upholstery Pearlpoint2ooo
– Boston leather ooo
Transmission and technology 135i 120d 123d
6-cylinder in-line petrolengine with 4-valve technology s--
4-cylinder diesel engine with4-valvetechnology -ss
6-speed manualtransmission sss
6-speed automatictransmission with Steptronic3, sports suspensionand paddles onsports leathersteering wheel o--
6-speed automatictransmission with Steptronic -o
o3
Activesteering ooo
AutoStart/Stop Function,only inconjunction withmanualtransmission -ss
BrakeEnergyRegeneration sss
CommonRail technology -ss
Dieselparticlefilter -ss
Double-jointspringstrutfrontsuspension sss
Double-VANOS s--
Electric Steering incl. Servotronic (not in conjunction with Active Steering) -ss
1Not in conjunction with sports seats.
2Only in conjunction with sports seats.
3Planned availability as ofMarch 2008.
sStandard equipment oOptional equipment -Not available

sStandard equipment oOptional equipment -Not available
Transmission and technology 135i 120d 123d
Emissionsstandard:EU4 sss
Fuel sensor for diesel models -ss
HighPrecision Injection s--
Multi-armrear axle sss
M Sports suspension, lowered by 15 mm soo
Shift Point Display, only inconjunction with6-speedmanual transmission sss
Turbocharger with variable turbine geometry -ss
Twin Turbo s--
Variable Twin Turbo --s
Driverassistance 135i 120d 123d
Cruisecontrol ooo
ParkDistanceControl(PDC),rear ooo
ParkDistanceControl(PDC),front andrear ooo
Light and sight 135i 120d 123d
AdaptiveHeadlights,incl. turning lights ooo
Interior and exterior mirrors with automatic anti-glare function incl. contentof exterior mirror package ooo
“LightsOn” warning sss
Lightspackage, withvicinity lights integratedin thedoor handles,ambientlighting, readinglights front andrear,footwell
illuminationat the front,and illuminatedvanity mirrors fordriverandfront passenger ooo
Foglights, incl.heated wingmirrors andheated windscreen washerjets -os
Rain sensor, incl. automatic driving light control ooo
Rear lights withLED opticalstrips sss
Sunprotection glazing ooo
Xenon headlights for high and low beam, incl. tail lights with LED strips, daytime driving lights, four parking lightrings and
automatic headlight range control ooo
Interior features 135i 120d 123d
Heating, with microfilter -s-
Airconditioning,incl. microfilter sos
Automatic airconditioning, incl. AAR, microfilter, fogging and solar sensors and residual heat button with separate
temperature adjustment for driver and passenger ooo
Steeringwheels:
– Standard steering wheel -s-
– Sports leather steering wheel sos
– M leather steering wheel ooo
– Multifunction buttons for leather sports steering wheel/M leather steering wheel ooo
Seats/seatcomfort:
– Four-seat option, incl. storage compartment in the rear sss
– Height adjustment for driver and front passenger seat sss
– Lumbar support fordriver andfront passenger,electric ooo
–Rear seatbackrest,foldable,60/40 split sss
– Seat heating for driver and front passenger ooo
–Seat adjustment, electric,with memoryfunctionfor driver’sseat ooo
– Sport seats for driver and front passenger, with electric backrest width adjustment soo
–Standard seat, manualseat adjustment -ss

Comfort and interior equipment 135i 120d 123d
Alarm system with radio remote control ooo
Armrest at front, foldable with integrated storage compartment ooo
Comfort accesssystem ooo
Cupholders,front ooo
Electronicimmobiliser sss
Glasssliding/ventroof,electric, with comfort opening function via car key ooo
Glovecompartment,illuminated sss
Greyshade bandonwindscreen ooo
Interior mirror with automatic anti-glare function ooo
Lined luggage compartment, 370litrescapacity sss
Personal Profile, personalising important userfunctions sss
Radio remote control for central locking sss
Roofgrab handles, four sss
Skibag,modular withinterchangeable frame ooo
Start/Stop button sss
Storage compartment in the front doors sss
Storage compartment in the instrument panel bottom left sss
Windowlifts, pull-pressswitchwith “open/close”fingertipcontrol on thedriver’sside sss
Entertainment,communication and information 135i 120d 123d
Navigationsystem Businesswith 6.5" colour display, combined CD/DVD drive, functional bookmarks,
with arrow and map display, including Radio Professional ooo
Navigationsystem Business*with integratedmobile phonepreparation Bluetooth,Telematics-compatible ooo
Navigationsystem Professionalwith 6.5" colour display, separate CD and DVD drive, functional bookmarks,
with arrow and map display , as well as bird’s-eye view, including Radio Professional ooo
Navigationsystem Professional*with integratedmobile phonepreparation Bluetooth,Telematics-compatible ooo
On-board computer, incl. Check/Control sss
Radio/audio:
– AUX-IN connection, incl.12-Vsocket sss
– CD changer in the luggage compartment, holds up to six CDs ooo
– DAB tuner (only in conjunction with Radio Professional or navigation system) ooo
–HiFi loudspeakersystem ooo
–HiFi SystemProfessional ooo
– Radio Business CD sss
– Radio Professional ooo
– USB/audio interface (for external MP3 players) ooo
– Voice control system ooo
Roof antenna sss
Telephone:
–Preparation for mobilephone withBluetooth interface ooo
Telematics services:*
– BMW Assist ooo
– BMW Online ooo
* Not available in all countries. Please consult your BMW partner.
sStandard equipment oOptional equipment -Not available

Weight 135i 120d 123d
Unladen,EU1kg 1560 1450[1455] 1495
Max. permissible kg 1925 1815 [1820] 1860
Permitted load kg 440 440 440
Permitted axle load,front/rear kg 945/1030 895/985 925/1000
Permitted roof load kg 75 75 75
Permitted trailer load, unbraked2kg -720 740
Permitted trailer load, braked, max. 12% gradient2kg -1200 1200
Permitted trailer load, braked, max. 8% gradient2kg -1200 1200
Permitted towbar download kg 75 75 75
Engine3,4 135i 120d 123d
Cylinders/valves 6/4 4/4 4/4
Capacity cm32979 1995 1995
Stroke/bore mm 89.6/84.0 90.0/84.0 90.0/84.0
Max. output kW/1/min 225/5800 130/4000 150/4400
(PS/1/min) (306/5800) (177/4000) (204/4400)
Max. torque Nm/1/min 400/1300–5000 350/1750–3000 400/2000–2250
Compression ratio :1 10.2 16.0 16.0
Transmission 135i 120d 123d
Standardtransmission ratios I/II :1 4.06/2.40 5.14/2.83 5.08/2.80
III/IV :1 1.58/1.19 1.80/1.26 1.78/1.26
V/VI/R:1 1.0/0.87/3.68 1.0/0.83/4.64 1.0/0.84/4.61
Final drive ratio :1 3.08 2.56 2.81
Performance 135i 120d 123d
Top speed km/h 2505228 [226] 238[238]
Acceleration0–100 km/h s 5.3 7.6 [7.8] 7.0
Acceleration80–120 km/hin 4th/5thgear (withstandard transmission) s5.0/6.0 6.4/8.0 5.5/6.6
Fuelconsumption3, 4 135i 120d 123d
Urban l/100 km 13.0 6.1 [ 7.2] 6.5
Extra-urban l/100 km 7.0 4.1 [4.4] 4.4
Combined l/100 km 9.2 4.8 [5.4] 5.2
CO2emissions g/km 220 128 [144] 138
Tank capacity,approx. l 53 51 51
