BMW
Service Training
E85 Information/Communication
Seminar Working Material

NOTE
The information contained in this training course manual is intended solely for
participants of the BMW Service Training course.
Refer to the relevant "Technical Service" information for any changes/supple-
ments to the Technical Data.
©2001 BMW AG
München, Germany. Reprints of this manual or its parts
require the written approval of BMW AG, München
VS-42 MFP-HGK-BRK-E85-0900-0950

Contents
Page
CHAP 1 Information / Communication 1
Introduction 1
- New features in the E85 2
CHAP 2 Radio and CD changer 6
Introduction 6
- New features of the system 6
System overview 7
- System diagram 8
Components 9
- BMW radio-CD 10
- BMW Business radio-CD 11
- Multi-information radio MIR 12
- BMW central information display radio
CID radio 13
- CD changer 19
- BMW aerial systems 19
Operation 25
- Service mode for radios 25
Notes for Service 27
- FM aerial 27
- Diagnosis 28
- Coding 28
- Car & key memory 28
CHAP 3 Audio systems 29
Introduction 29
- Systems 29
- New features of systems 29
- System comparison - sound pressure 30
- System comparison - linearity 31
- Advantages of the systems 31
System overview - Stereo 32
System diagram - Stereo 33
Components of Stereo audio system 34
- Low-range speakers (woofers) 34
- High-range speakers (tweeters) 35
- Mid-range speakers, rear 36
- Stereo audio system 36
System overview - HiFi 37
System diagram - HiFi 38
Components of HiFi audio system 39

- HiFi amplifier 39
- Low-range speakers (woofers) 40
- High-range speakers (tweeters) 40
- Mid-range speakers 40
- HiFi audio system 41
System overview - Top-HiFi 42
System diagram - Top-HiFi 43
Components of Top-HiFi audio system 44
- Top-HiFi amplifier 44
- Front low-range speaker (woofer) 45
- High-range speakers (tweeters) 45
- Mid-range speaker 46
- Carver woofers (low-range speakers), rear 47
- Top-HiFi audio system 51
Operation 53
- HiFi amplifier 53
- Top-HiFi amplifier 54
Notes for Service 57
- Diagnosis 57
- Coding 57
CHAP 4 Telephone systems E85 58
Introduction 58
- Telephone versions 58
- New features of systems 59
CHAP 5 Car phone, "Professional" 60
System overview 60
System circuit diagram 61
Components 62
- Telematic Control Unit TCU 63
- Eject box 64
- Cordless handset 65
- Hands-free microphone 65
- GSM aerial 66
- Bluetooth aerial 67
System functions 68
- Modem function 69
- Emergency call functions 70
- Power management 71
CHAP 6 Universal charging and hands-free unit, ULF 72
Introduction 72
- What is Bluetooth? 73
- Transmission 75
- Data and voice 76

- Interception security 76
System overview 77
System diagram 78
Components 79
- ULF control unit 79
- Bluetooth mobile phone cradle 82
- Bluetooth mobile phone 85
- GSM aerial and hands-free unit 86
- Compensator 86
- Bluetooth aerial 87
System functions 87
- Telephoning 87
- Charging 91
Operation 92
- Initial operation 92
CHAP 7 Notes and diagnosis 98
Diagnosis 98
Coding 98
Car & key memory 98
CHAP 8 TV 99
Introduction 99
System overview 100
System diagram 101
Components 102
- Central information display CID 102
- CID control panel 102
- Video module 103
- TV aerials 104
- Aerial diversity 106
CHAP 9 Navigation system 107
Introduction 107
- System advantages 107
System overview - Navigation High 108
System diagram - Navigation High 109
System overview - Radio navigation EU 111
System diagram - Radio navigation EU 112
Components 113
- Central information display 114
- CID control panel 114
- Navigation computer DVD 115
- GPS aerial 116
- Wheel speed sensor 116

- Reversing light switch 116
- Video module 117
- Multi-information radio MIR 117
System functions 118
- Introduction 118
- Additional destination inputs 118
- More accurate calculation of arrival time 118
- Improved direction 119
- Improved map presentation 119
- New map presentation 119
Operation 122
- Main menu 122
- Settings selection 122
- Settings Page 1 122
- Settings selection, Page 2 123
- Map and arrow presentation 123
- Settings 123
- Destination input main menu 124
- Destination input submenu 124
- Route selection 124
- Destination input 125
- New route 126
Country-specific version 127
- Country-specific version US 127
Notes for Service 131
- Service information 131
- Service mode 131
- Diagnosis 134
- Coding 134
- Car & key memory 134

E85 Information/Communication
- 1 -
Information / Communication
Introduction
The E85 has soared to be the new dynamic leader in the market
segment of premium roadsters. Thanks to its breathtaking
design and even sportier handling place it distinctly higher than
the E36/7.

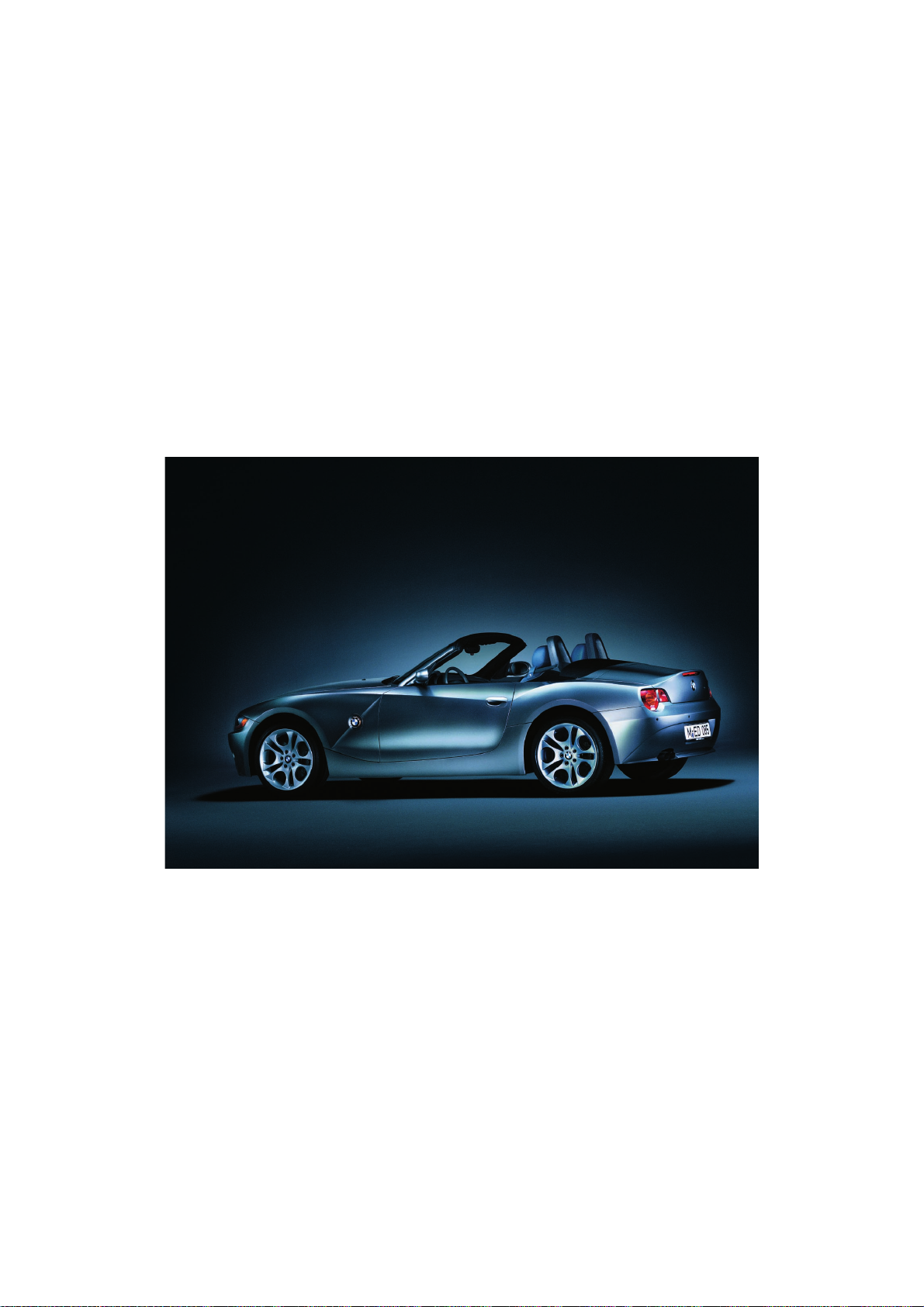

Fig. 1: BMW Z4
In keeping with its top-of-the-range status, the Z4 offers new
features in the field of information and communication systems.
KT-10553

E85 Information/Communication
- 2 -
- New features in the E85
New features: radio systems
The radios have been redesigned and equipped with a CD drive
in line with the vehicle's premium status. It features a new
central information display radio specifically designed for the
menu in the central information display.

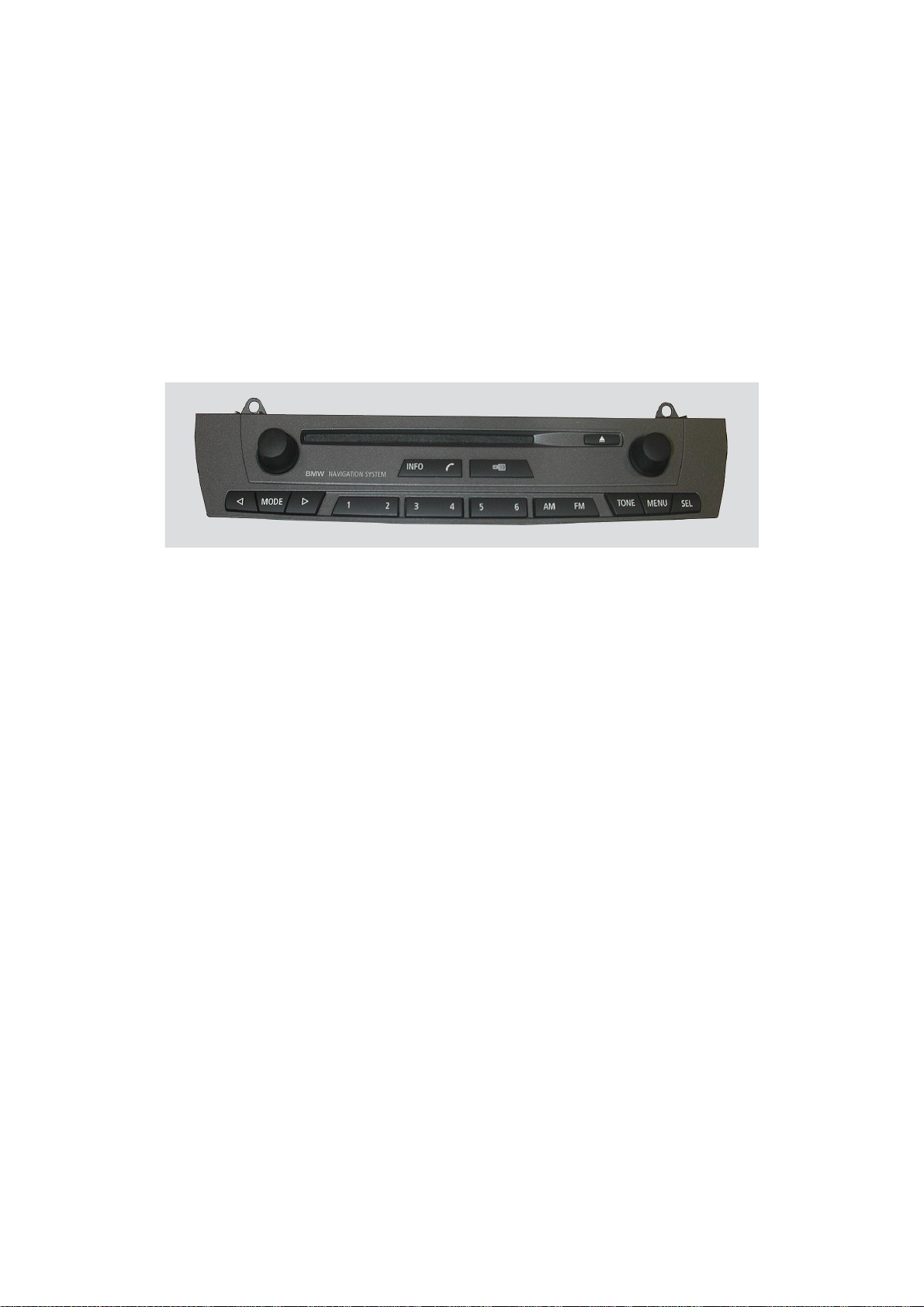

Fig. 2: Central information display radio
New features: audio systems
In addition to the "Stereo" and "HiFi" audio systems, a "Top-
HiFi" system is offered in the Z4. This system satisfies the most
demanding requirements with regard to sound quality and
sound impression. This is achieved by the consistent use of
Carver low-range speakers or woofers. This new speaker
technology enables high sound pressures and distortion-free
basses in conjunction with compact speaker dimensions.
KT-10044

E85 Information/Communication
- 3 -
New features: telephone systems
A new telephone generation is introduced for the first time on
the Z4. The customer has the option of selecting between
several systems.
The customer can order a fixed installation car phone with
cordless keypad handset that is connected to the vehicle based
on Bluetooth technology.
Alternatively, the vehicle can be equipped with equipment
providing the connection for Bluetooth mobile phones.

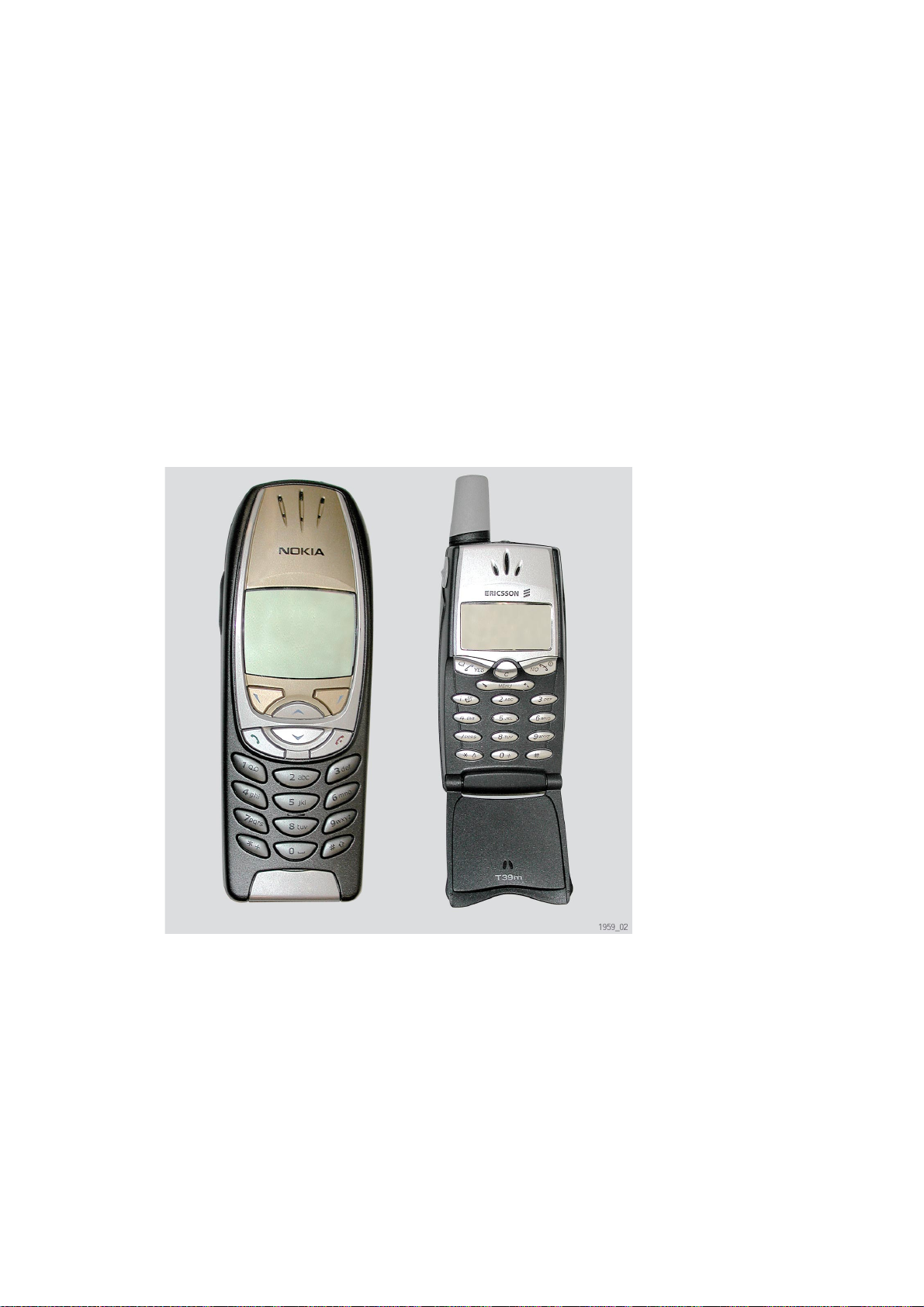

Fig. 3: Possible Bluetooth mobile phones for the Z4 KT-10576

E85 Information/Communication
- 4 -
New features: TV system
In the EU version, the Z4 features a TV function. When the
vehicle is stationary, TV pictures or video text can be shown on
the central information display. This function is legally permitted
only when the vehicle is stationary and, as in other BMW model
series, it is therefore automatically deactivated while driving.
Fig. 4: E85 Central information display with TV function KT-10631

E85 Information/Communication
- 5 -
New features: navigation systems
A further highlight is the high navigation system. The Z4 is the
first BMW roadster equipped with a display for presenting maps
for the navigation system. The navigation information is shown
on a central information display located in the middle of the
instrument panel. The central information display features a
folding function and is folded away neatly in the instrument
cluster when not in use.

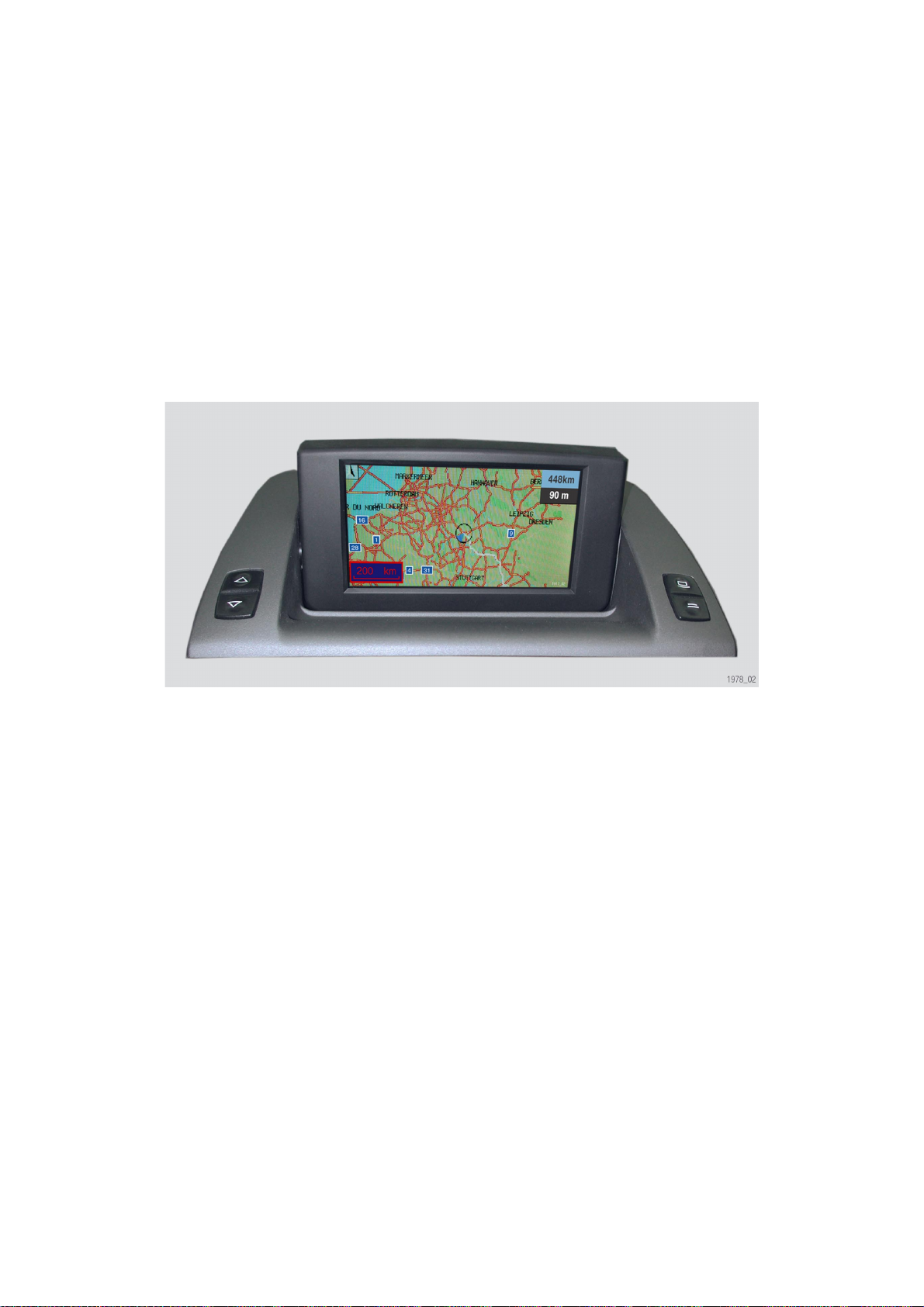

Fig. 5: E85 Central information display with navigation map KT-10603

E85 Information/Communication
- 6 -
Radio and CD changer
Introduction
This technical documentation describes the various radios and
CD changers used in the E85.
The following radios are available for the E85:
- BMW radio-CD (basic in EU)
- BMW Business radio-CD (basic in US)
- BMW Business radio-MD (basic in Japan)
- BMW multi-information radio MIR (EU only)
- BMW central information display radio CID radio
All radios are new generation radios (NG radios). The radios
feature a K-bus connection via which they communicate with
other control units.
The AF input (audio signals) of the CD changer was increased
from 0.5 V to 2.0 V in order to increase the signal-to-noise ratio.
The new generation radios detect whether they communicate
with a 0.5 V CD changer (old) or a 2.0 V CD changer (new) and
switch over the input accordingly.
A 6-CD changer is additionally available for the E85.
A radio with a cassette drive can no longer be ordered.
- New features of the system
New features compared to previous BMW developments
The central information display radio is a new feature on the E85
and serves as the control panel for the CID.
The CID radio combines the radio functions with operation of
the navigation system, TV, on-board computer, DSP amplifier,
telephone, settings as well as deactivation of the CID.

E85 Information/Communication
- 7 -
System overview

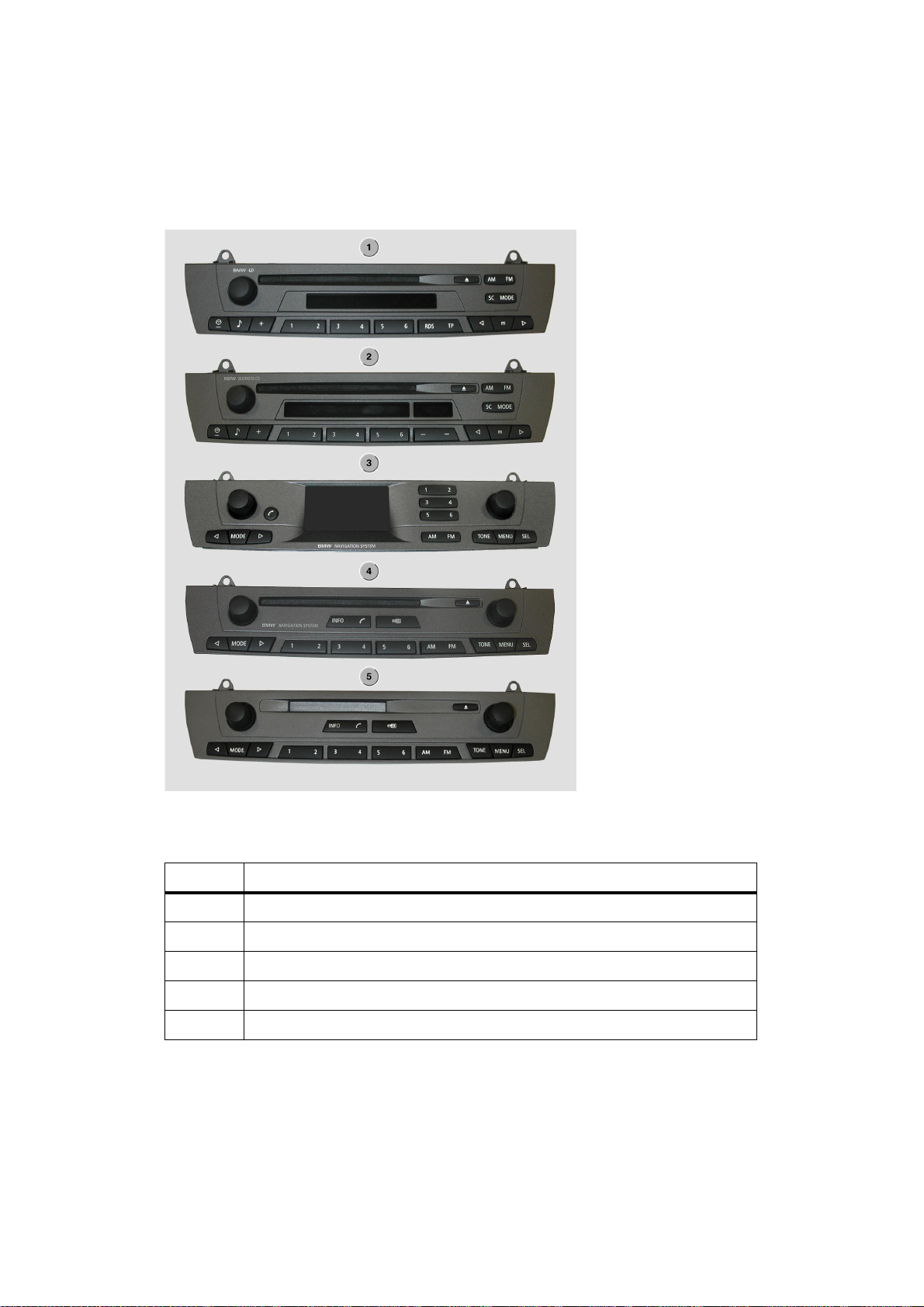

Fig. 6: Overview of the radios in the E85
Index Explanation
1 Radio-CD (basic EU)
2 Business radio-CD (basic EU/US)
3 Multi-information radio MIR (navigation Low EU)
4 Central information radio-CD CID (navigation High EU/US)
5 Central information radio-MD CID (navigation High Japan)
KT-10037

E85 Information/Communication
- 8 -
- System diagram

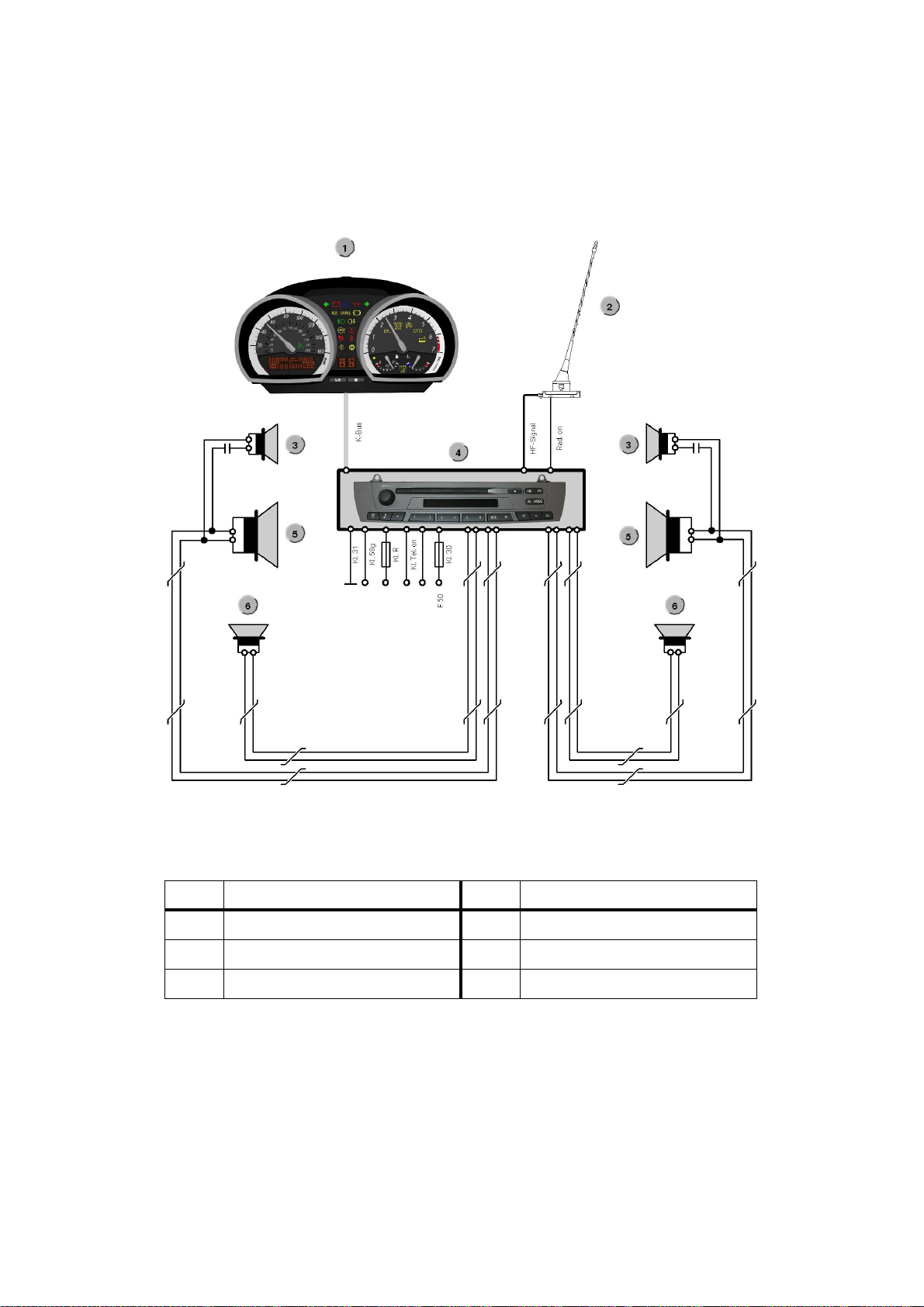

Fig. 7: System diagram, radio
Index Explanation Index Explanation
1 Instrument cluster 4 BMW radio-CD
2 Radio aerial 5 Low-range speaker, front
3 High-range speaker, front 6 Mid-range speaker, rear
KT-10008

E85 Information/Communication
- 9 -
Components
The radios can be optionally fitted in the following
4 combinations: BMW radio-CD, BMW Business radio-CD,
BMW multi-information radio (MIR), BMW central information
display radio (CID radio).
The CD changer can be ordered as option 672 (not for
BMW radio-CD).

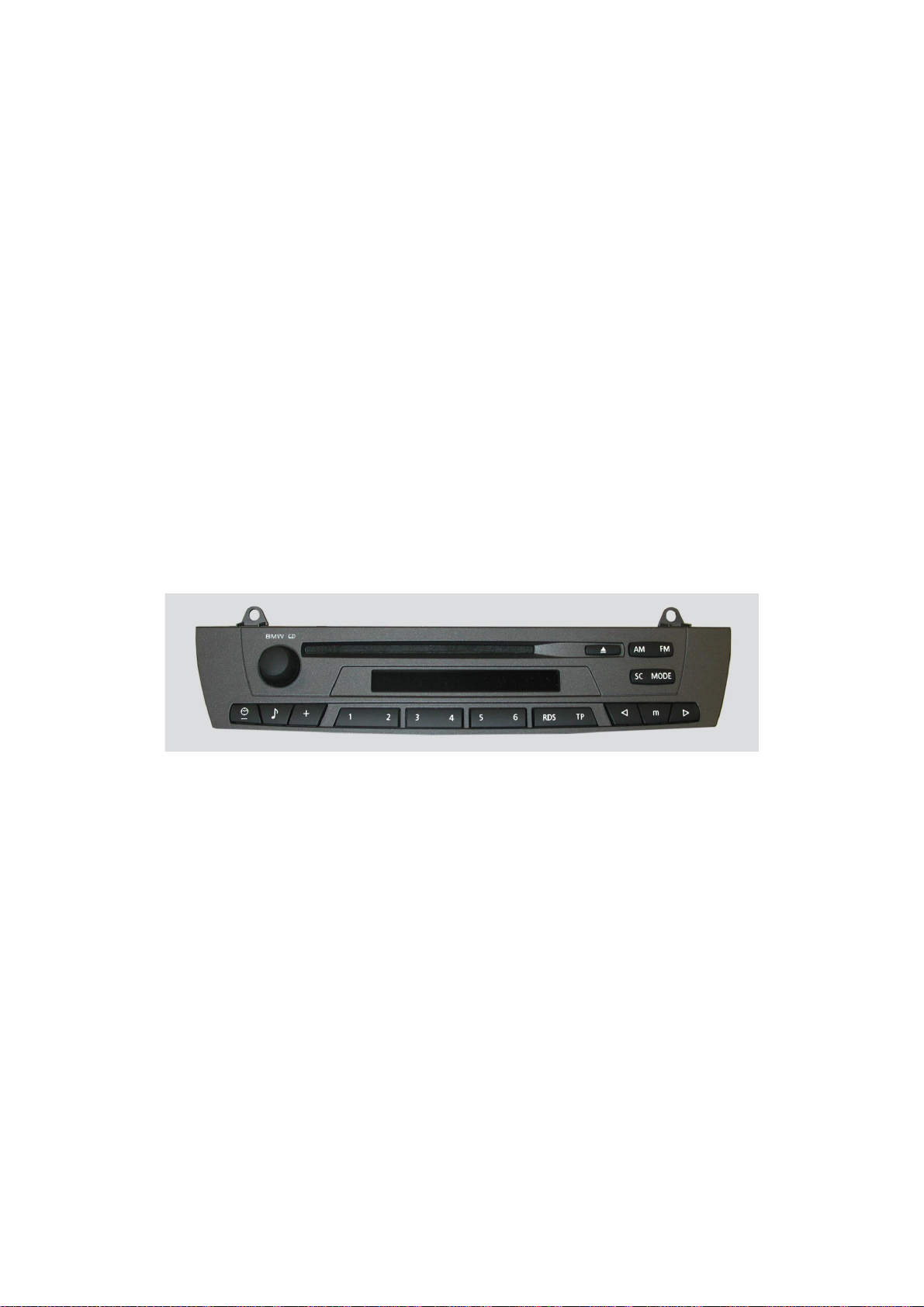

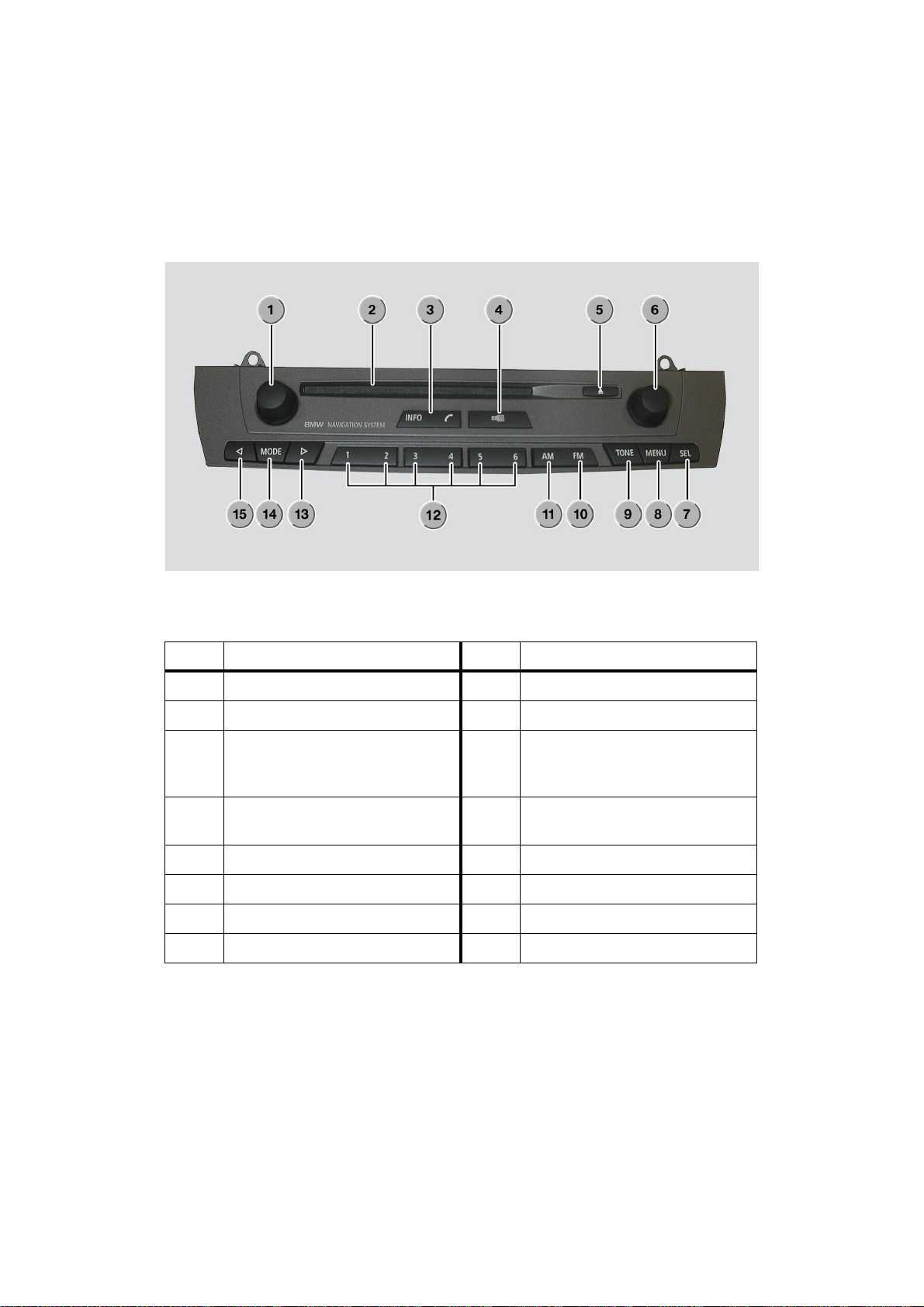

- BMW radio-CD:
The BMW radio-CD is the basic equipment in the EU version
in connection with the stereo audio system. No CD changer is
available for the BMW radio-CD.

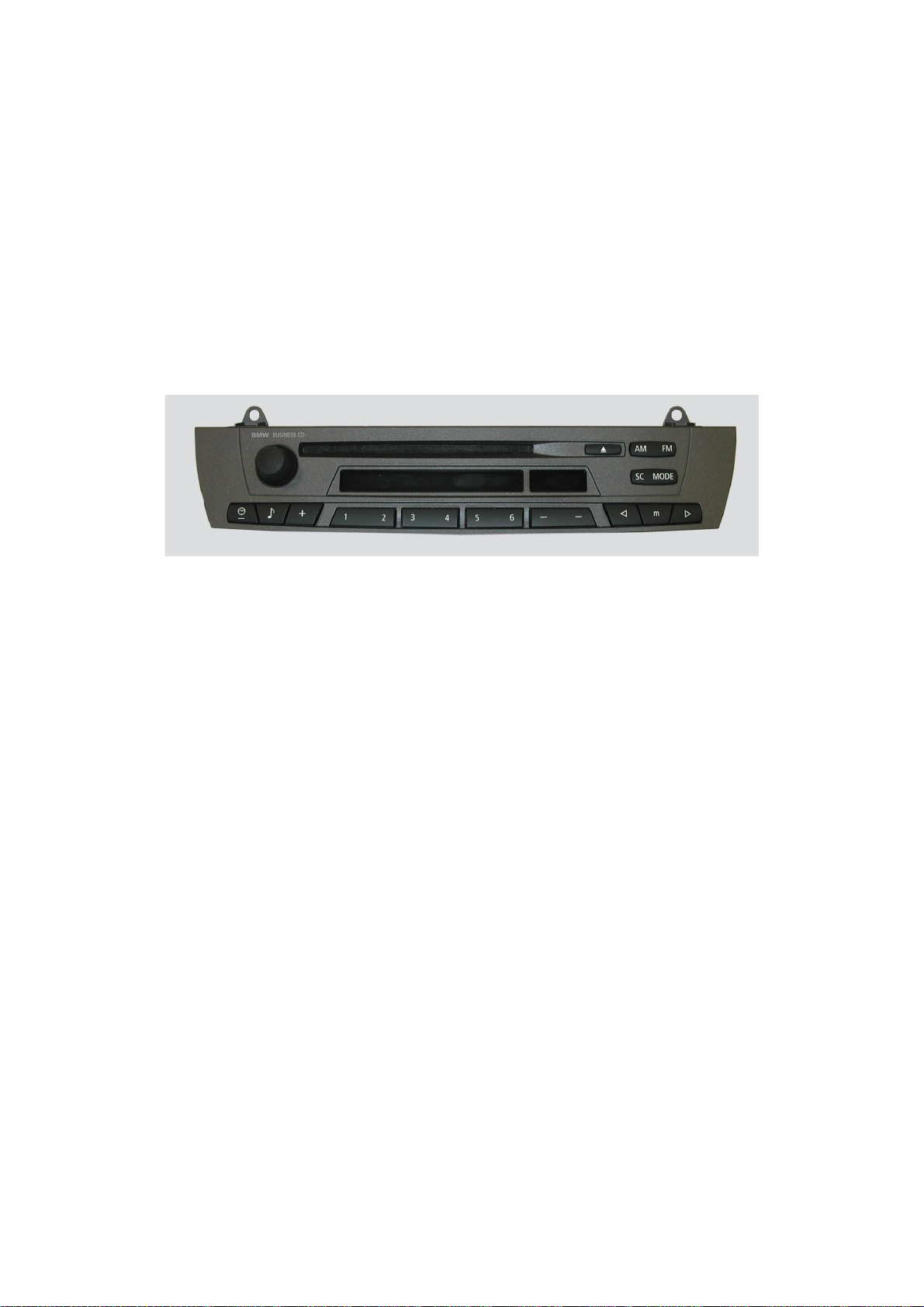

- BMW Business radio-CD:
The BMW Business radio-CD can be ordered worldwide
together with the HiFi or Top-HiFi system.
A CD changer can be additionally connected.
In connection with the HiFi audio system, the BMW Business
radio-CD is the basic unit in the US version.

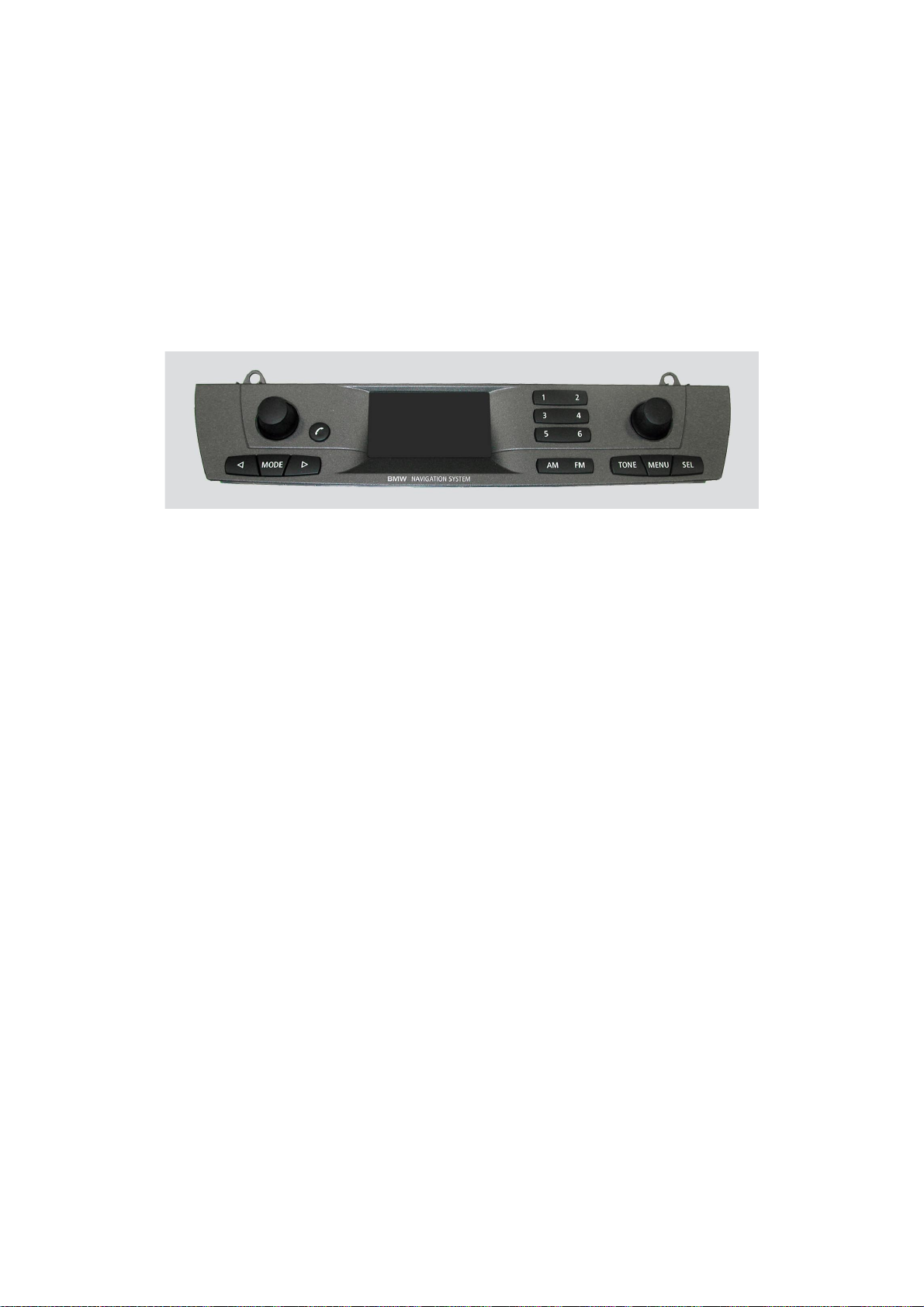

- BMW multi-information radio (MIR):
The MIR is the Low navigation system and corresponds to the
previous radio navigation system in the E46. The BMW multi-
information radio is offered in the EU version only. The MIR can
be ordered only in connection with the HiFi or the Top-HiFi
audio system. A CD changer can be additionally connected.

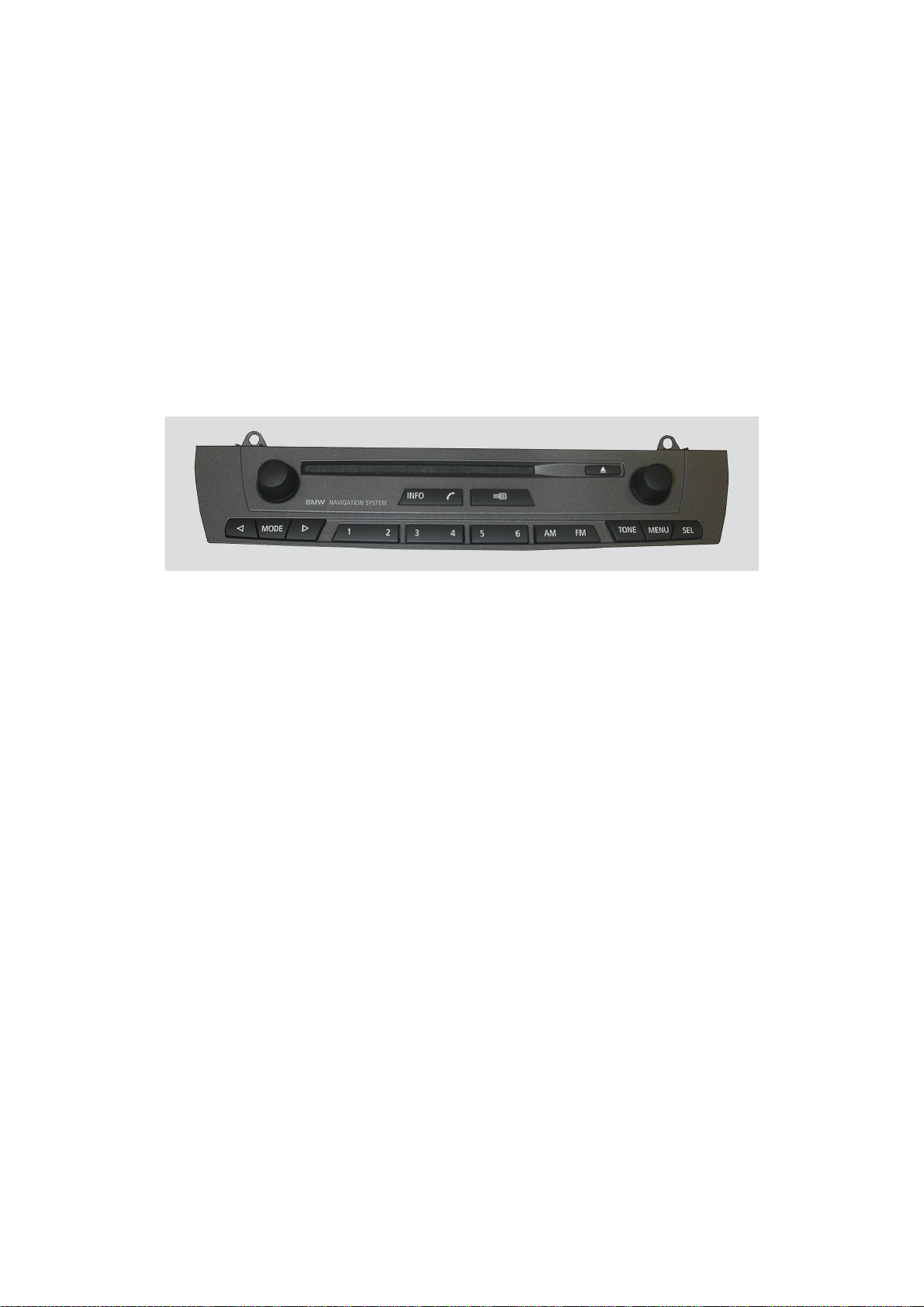

- BMW central information display radio (CID radio):
The CID radio is the control panel for the central information
display. The CID is the High navigation system. The CID radio
is offered together with a CD drive or optionally with MD drive
(Japan). The CID radio is offered worldwide and can be
ordered together with the HiFi or Top-HiFi system. A CD
changer can be additionally connected.

E85 Information/Communication
- 10 -
- CD changer:
The CD changer can be ordered as option 672 for following
radios: BMW Business radio-CD, MIR, CID radio.
- Aerials:
Two different aerial systems can be used corresponding to the
radio system. The BMW radio-CD features the rod aerial of the
E46 convertible. The other radios use an aerial diversity
consisting of rod aerial and additional FM aerial in the rear
bumper.
- BMW radio-CD
The BMW radio-CD is the basic unit in the EU version and is
offered only in connection with the stereo audio system.
The radio functions correspond to the previous BMW Reverse
radio. The only difference is in the drive. The radio is now
equipped with a CD drive. The radio has no aerial diversity.
Fig. 8: BMW radio-CD (basic radio in EU)
In the system network, the BMW radio-CD facilitates the display
and control of following components:
- Stereo settings
- AUX socket if fitted (option)
The AUX socket is an additional connection for auxiliary
devices such as MP3 player, CD player. The source
changeover takes place in the radio.
KT-10041

E85 Information/Communication
- 11 -
- BMW Business radio-CD
The BMW Business radio-CD is a world radio and can be coded
for the different regions.
The Business radio-CD is the basic radio in the US version.
The radio functions correspond to the previous BMW Business
radio. The only difference is in the drive. The radio is now
equipped with a CD drive. The BMW Business radio-CD
features aerial diversity.
Fig. 9: BMW Business radio-CD
In the system network, the BMW Business radio-CD facilitates
the display and control of following components:
- CD changer
- Settings for HiFi and Top-HiFi
- AUX socket if fitted (option)
KT-10042

E85 Information/Communication
- 12 -
- Multi-information radio MIR
The multi-information radio is offered in the EU version only as
the display and operating unit for the Low navigation system.
The radio has no CD drive and should therefore be ordered
together with the CD changer.
The MIR radio features aerial diversity.
Fig. 10: Multi-information radio MIR
In the system network, the multi-information radio facilitates the
display and control of following components:
- Navigation computer
- Telephone
- CD changer
- Settings for HiFi and Top-HiFi
- On-board computer functions
- AUX socket if fitted (option)
KT-10043

E85 Information/Communication
- 13 -
- BMW central information display radio CID radio
The central information display radio is offered worldwide as the
display and operating unit for the High navigation system.
The CID radio consists of the control panel with the radio
functions in the centre console and the central information
display in the instrument panel.
The CID radio features a CD drive and optionally an MD drive.
A CD changer can be ordered additionally.
The CID radio features aerial diversity.
Fig. 11: Central information display radio (CID radio)
In the system network, the central information radio facilitates
the display and control of following components:
- Central information display (CID)
- Navigation computer
- Telephone
- Video module
- CD changer
- Settings for HiFi and Top-HiFi
- On-board computer functions
- AUX socket if fitted (option)
KT-10044

E85 Information/Communication
- 14 -
Design
The design of the CID radio is shown in the illustration below.
Fig. 12: Functions of the CID radio
Index Explanation Index Explanation
1 ON/OFF/volume control 9 Button for sound settings
2 CD compartment 10 FM button
3 Telephone acceptance/info
button
11 AM (medium wave) button
(as well as long wave button in
EU)
4 Selector button for audio and
last menu
12 Station buttons
5 CD eject button 13 Forward scan
6 Push-button/rotary knob 14 Mode button
7 SEL button 15 Backward scan
8 Menu button
KT-10051
