BMW F34 LCI 2016 User manual

Technical Training
The information contained in this manual is not to be resold, bartered, copied or transferred
without the express written consent of BMW of North America, LLC ("BMW NA").
F34 LCI
Reference Manual

Technical�Training
Product�information.
BMW�Service
F34�LCI

General�information
Symbols�used
The�following�symbol�is�used�in�this�document�to�facilitate�better�comprehension�or�to�draw�attention
to�very�important�information:
Contains�important�safety�information�and�information�that�needs�to�be�observed�strictly�in�order�to
guarantee�the�smooth�operation�of�the�system.
Information�status�and�national-market�versions
BMW�Group�vehicles�meet�the�requirements�of�the�highest�safety�and�quality�standards.�Changes
in�requirements�for�environmental�protection,�customer�benefits�and�design�render�necessary
continuous�development�of�systems�and�components.�Consequently,�there�may�be�discrepancies
between�the�contents�of�this�document�and�the�vehicles�available�in�the�training�course.
This�document�basically�relates�to�the�European�version�of�left�hand�drive�vehicles.�Some�operating
elements�or�components�are�arranged�differently�in�right-hand�drive�vehicles�than�shown�in�the
graphics�in�this�document.�Further�differences�may�arise�as�the�result�of�the�equipment�specification�in
specific�markets�or�countries.
Additional�sources�of�information
Further�information�on�the�individual�topics�can�be�found�in�the�following:
• Owner's�Handbook
• Integrated�Service�Technical�Application.
Contact:�[e-mail]
©2016�BMW�AG,�Munich
Reprints�of�this�publication�or�its�parts�require�the�written�approval�of�BMW�AG,�Munich.
The�information�contained�in�this�document�forms�an�integral�part�of�the�BMW�Group�Technical
Qualification�and�is�intended�for�the�trainer�and�participants�in�the�seminar.�Refer�to�the�latest�relevant
information�systems�of�the�BMW�Group�for�any�changes/additions�to�the�technical�data.
Information�status:�March�2016
Technical�Training

F34�LCI
Content
1. Introduction.............................................................................................................................................................................................................................................1
1.1. New�features................................................................................................................................................................................................................. 2
1.1.1. TPMS.......................................................................................................................................................................................................2
1.1.2. Air�conditioning....................................................................................................................................................................... 2
1.1.3. Air�conditioning�control�panel.......................................................................................................................... 3
1.2. Identifying�features..............................................................................................................................................................................................4
1.2.1. Front.......................................................................................................................................................................................................... 4
1.2.2. Rear.............................................................................................................................................................................................................5
1.2.3. Passenger�compartment.......................................................................................................................................... 6
2. Drivetrain...................................................................................................................................................................................................................................................... 7
2.1. Engine�overview.......................................................................................................................................................................................................7
2.1.1. Engine.....................................................................................................................................................................................................7
2.1.2. Further�information............................................................................................................................................................7
2.2. Overview�of�the�transmission.............................................................................................................................................................7
2.3. xDrive�overview..........................................................................................................................................................................................................7
3. General�Vehicle�Electrical�System............................................................................................................................................................... 8
3.1. Bus�overview................................................................................................................................................................................................................. 8
3.2. Lighting..............................................................................................................................................................................................................................10
3.2.1. Headlight........................................................................................................................................................................................10
3.2.2. Rear�lights....................................................................................................................................................................................12

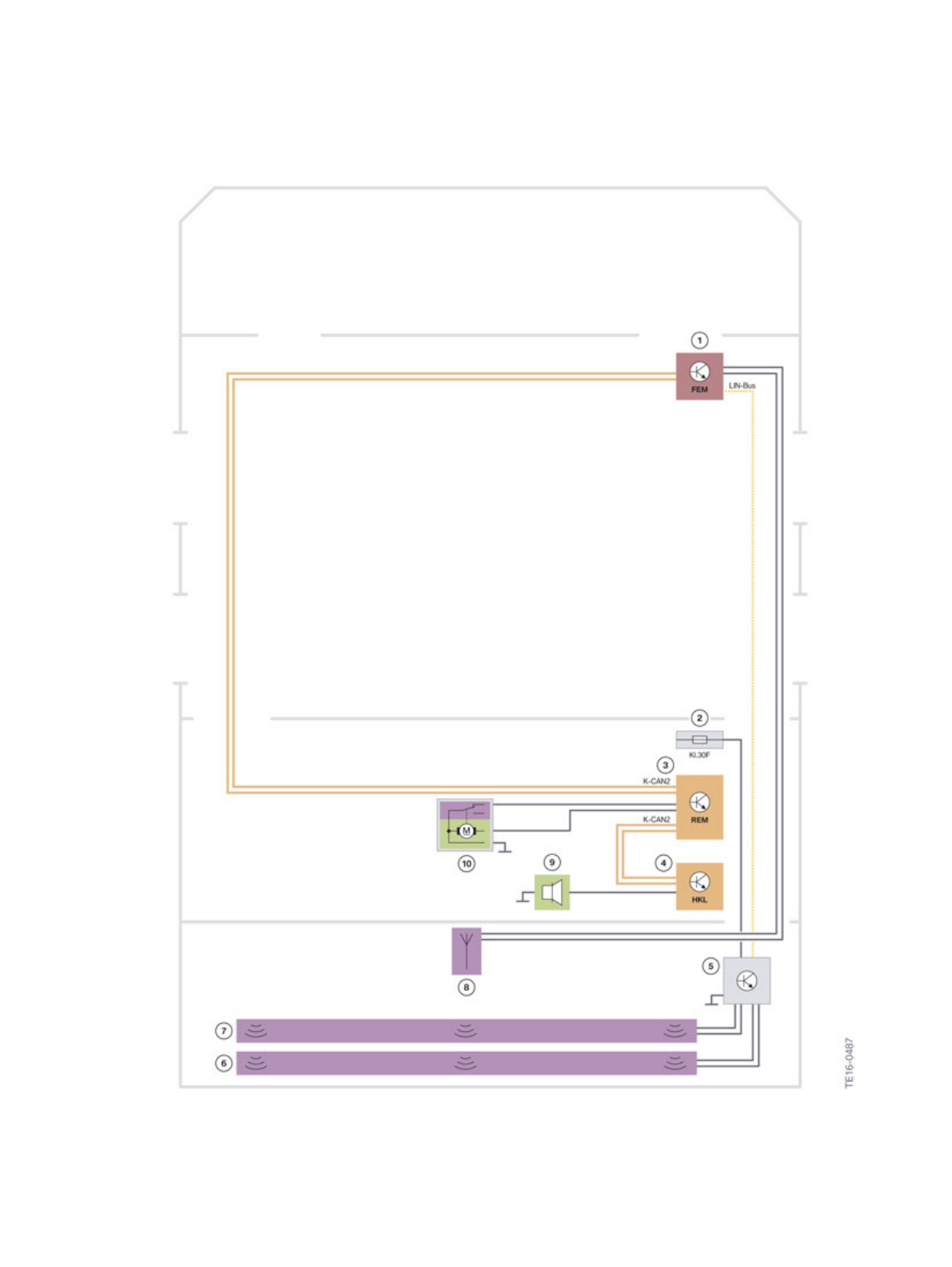

3.3. Contactless�tailgate�opening.......................................................................................................................................................... 14
3.4. Assistance�systems....................................................................................................................................................................................... 16
3.4.1. Overview.........................................................................................................................................................................................16
3.4.2. New�features�in�the�F34�LCI�compared�with�the�F34............................................. 17
4. Displays�and�Controls.....................................................................................................................................................................................................19
4.1. Overview.......................................................................................................................................................................................................................... 19
4.2. Central�information�display................................................................................................................................................................ 19
4.3. Controller........................................................................................................................................................................................................................ 20
5. Information�and�Communication................................................................................................................................................................ 21
5.1. Head�unit.........................................................................................................................................................................................................................21
5.1.1. Apps...................................................................................................................................................................................................... 21
5.2. Apple®�CarPlay................................................................................................................................................................................................... 22
5.2.1. Functions.......................................................................................................................................................................................22
5.2.2. Connection................................................................................................................................................................................. 23
5.3. Telematics..................................................................................................................................................................................................................... 24
5.3.1. Telematic�Communication�Box.................................................................................................................. 24
5.3.2. Telematic�Communication�Box�2............................................................................................................ 24

F34�LCI
Content
5.4. USB�port.......................................................................................................................................................................................................................... 27
5.4.1. Connection................................................................................................................................................................................. 27
5.5. Telephone...................................................................................................................................................................................................................... 29
5.5.1. Variants............................................................................................................................................................................................. 29
5.5.2. Telephone�with�wireless�charging......................................................................................................... 29
5.6. Further�information......................................................................................................................................................................................... 34

F34�LCI
1.�Introduction
1
In�July�2016�the�model�revision�or�the�Life�Cycle�Impulse�(LCI)�of�the�BMW�3�Series�GT�enters�the
market.�The�model�revision�of�the�BMW�3�Series�GT�also�underscores�the�BMW-specific�proportions,
such�as�the�short�overhang�in�front,�the�long�wheelbase�and�the�BMW�kidney�grill.
Infotainment�in�the�F34�LCI�also�contains�some�new�features.�For�example,�the�F34�LCI�is�the�first
vehicle�at�BMW�to�offer�Apple®�CarPlay.

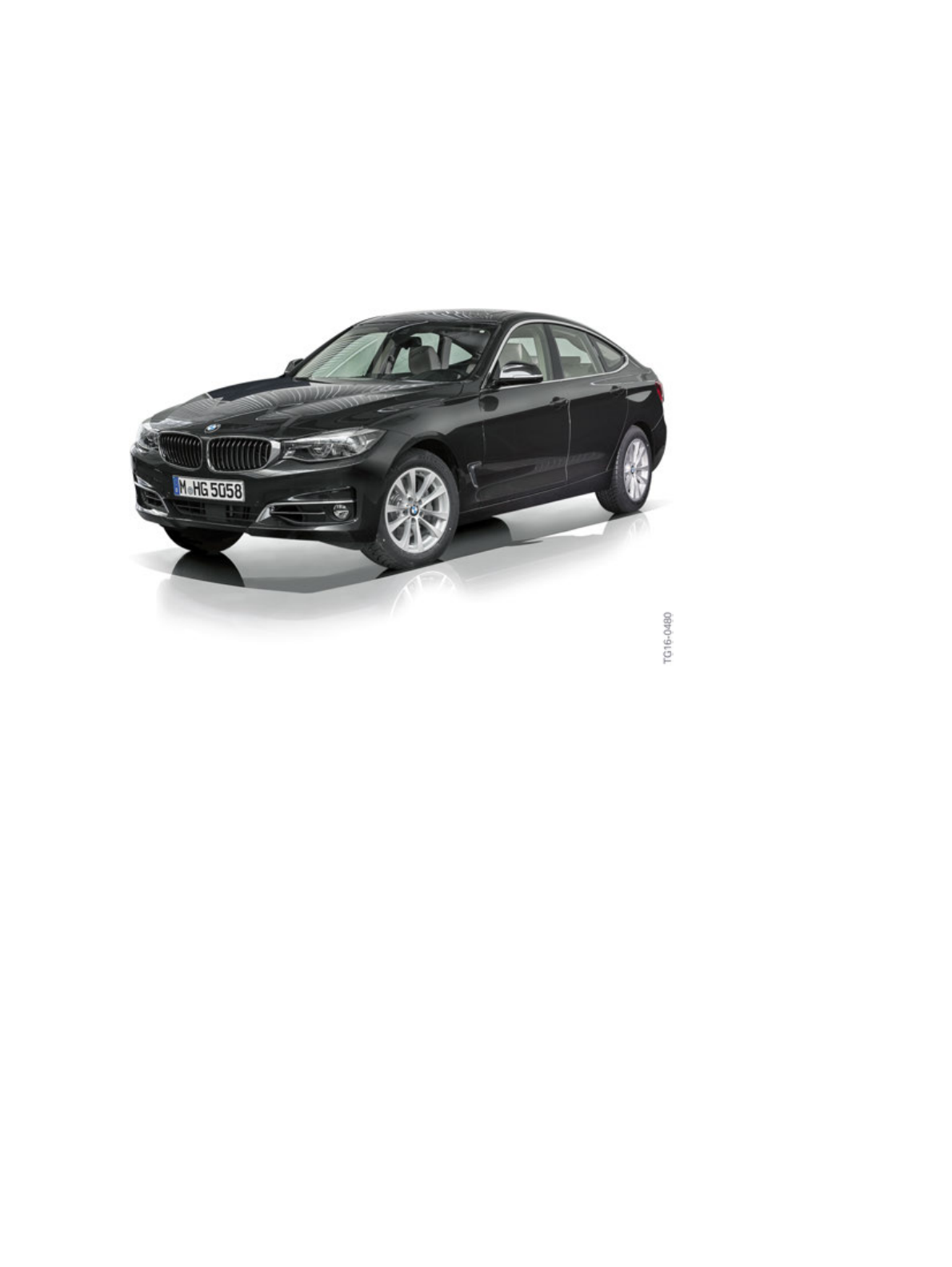

F34�LCI�complete�vehicle
This�document�refers�to�the�BMW3�SeriesGT�model�revision�as�the�"F34LCI".
The�most�important�changes�in�the�F34�LCI�include:
• Modified�bumpers
• Upgraded�vehicle�interior�with�chrome�applications
• LED�headlights
• Newly�designed�rear�lights
• Expanded�assistance�systems
• New�infotainment�applications
In�addition�to�the�comprehensive�offering�of�optional�equipment,�the�F34�LCI�can�also�be�individualized
with�the�following�equipment�packages:
• Luxury�Line
• M�Sport�Package

F34�LCI
1.�Introduction
2
1.1.�New�features
1.1.1.�TPMS
The�F34�LCI�receives�the�tire�pressure�control�system�TPMS�as�standard�equipment.
When�servicing,�the�different�types�of�wheel�electronics�must�be�kept�in�mind.�The�wheel�electronics
of�the�two�different�systems�must�not�be�confused�with�one�another.
Further�information�on�the�TPMS�system�can�be�found�in�the�Technical�Training�manual�"ST1403a�I01
Complete�Vehicle”�Chassis�&�Suspension�section.
F34�LCI�aluminium�screw�valves�RDCi
1.1.2.�Air�conditioning
The�F34�LCI�uses�the�new�refrigerant�R1234yf.
The�design�of�the�filling�valves�of�a�R1234yf�heating�and�air�conditioning�system,�which�are�installed
in�the�refrigerant�circuit,�are�different�from�those�of�a�R134a�heating�and�air�conditioning�system.�The
R1234yf�A/C�service�station�has�different�service�connections�than�the�R134a�service�station.
R1234yf�refrigerant�is�identified�with�grey�screw�caps�on�the�filling�valves�along�with�the�identification
of�the�fill�label�under�the�hood�specifying�the�R1234yf�refrigerant.

F34�LCI
1.�Introduction
3

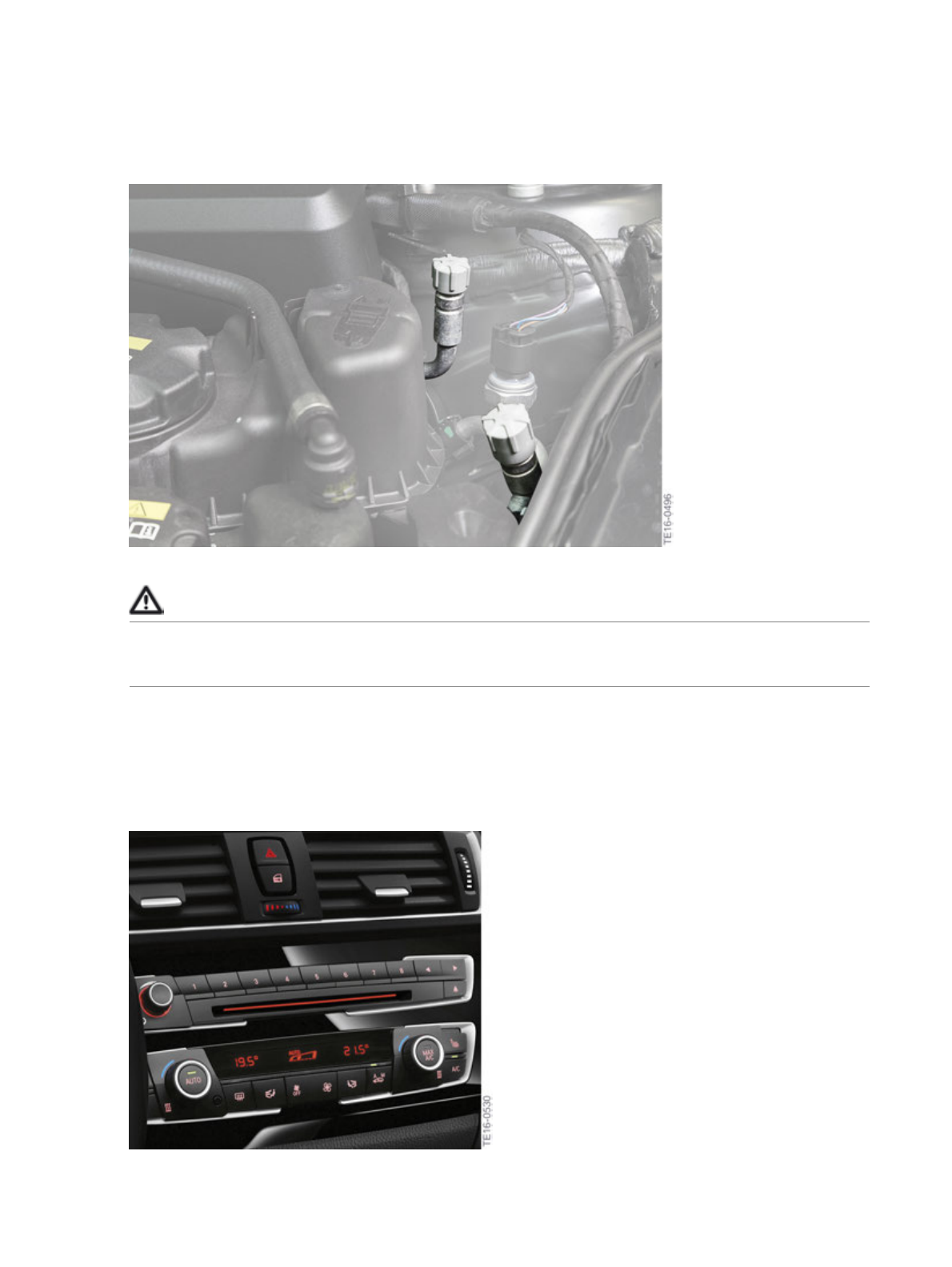

F34�LCI�air�conditioning�screw�caps
A�mixture�of�the�two�gases�(R134a�and�R1234yf)�must�always�be�avoided�and�is�not�permitted�by�law.
If�a�mixture�of�R134a�and�R1234yf�occurs,�the�refrigerant�mixture�must�be�removed�from�the�heating
and�air-conditioning�system�and�A/C�service�station�and�disposed�of�properly.
1.1.3.�Air�conditioning�control�panel
The�liquid�crystal�display�of�the�air�conditioning�control�panel�integrated�automatic�heating/air
conditioning�system�comes�with�automatic�day/night�changeover.�The�liquid�crystal�display�is�white,
during�daytime�driving�and�turns�orange�at�night�time�once�the�headlights�are�illuminated.
F34�LCI�air�conditioning�control�panel

F34�LCI
1.�Introduction
4
1.2.�Identifying�features
1.2.1.�Front
The�following�changes�have�been�implemented�in�the�F34�LCI:
• New�front�bumper�design
• Headlights�with�LED�technology

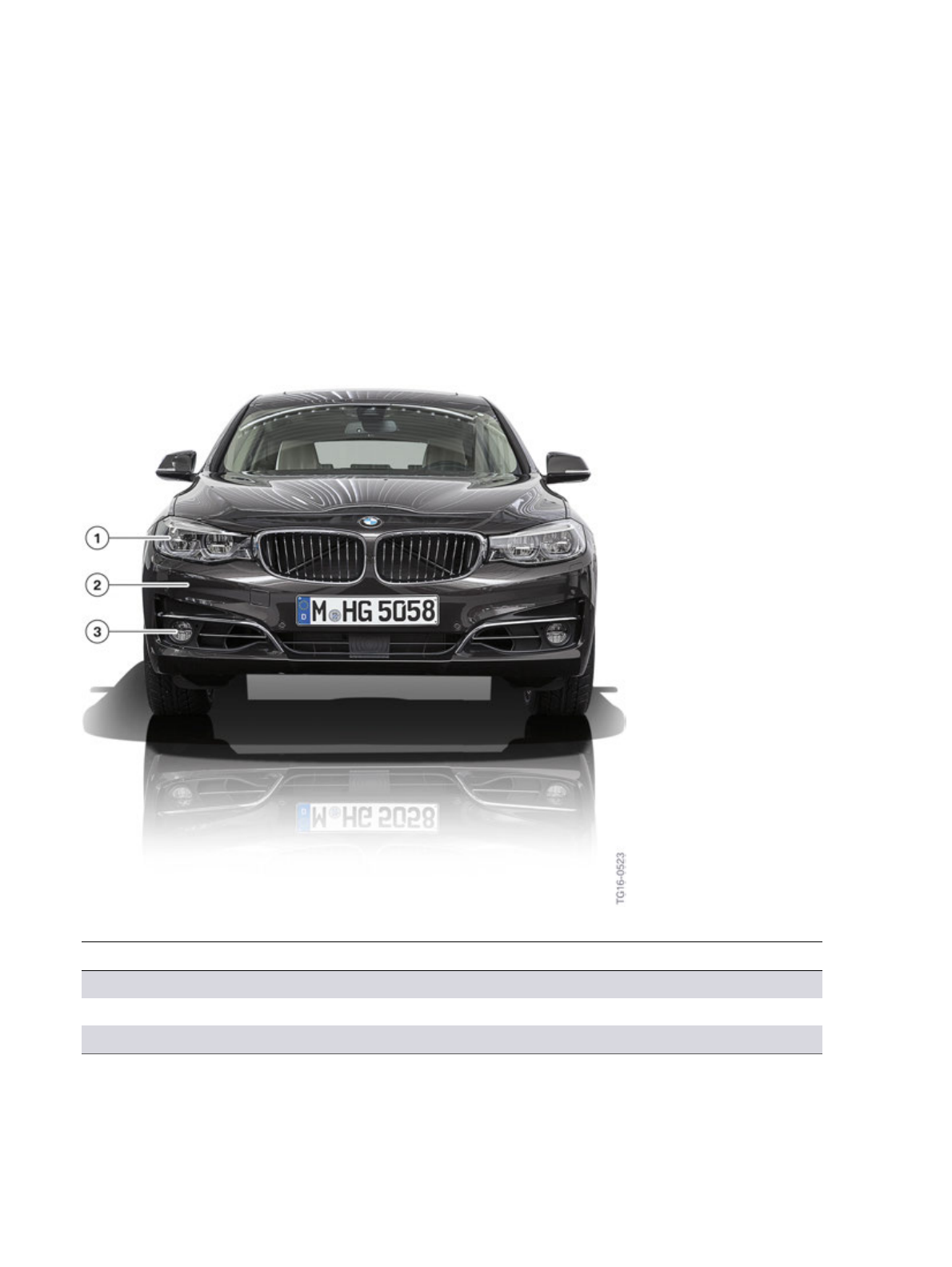

F34�LCI�front�view
Index Explanation
1 LED�headlights�are�standard
2 Modified�bumper
3 LED�fog�lights�are�standard

F34�LCI
1.�Introduction
5
1.2.2.�Rear
The�following�changes�have�been�implemented�in�the�F34�LCI:
• New�rear�bumper�design
• New�rear�light�design
• Exhaust�tailpipes�with�larger�diameter

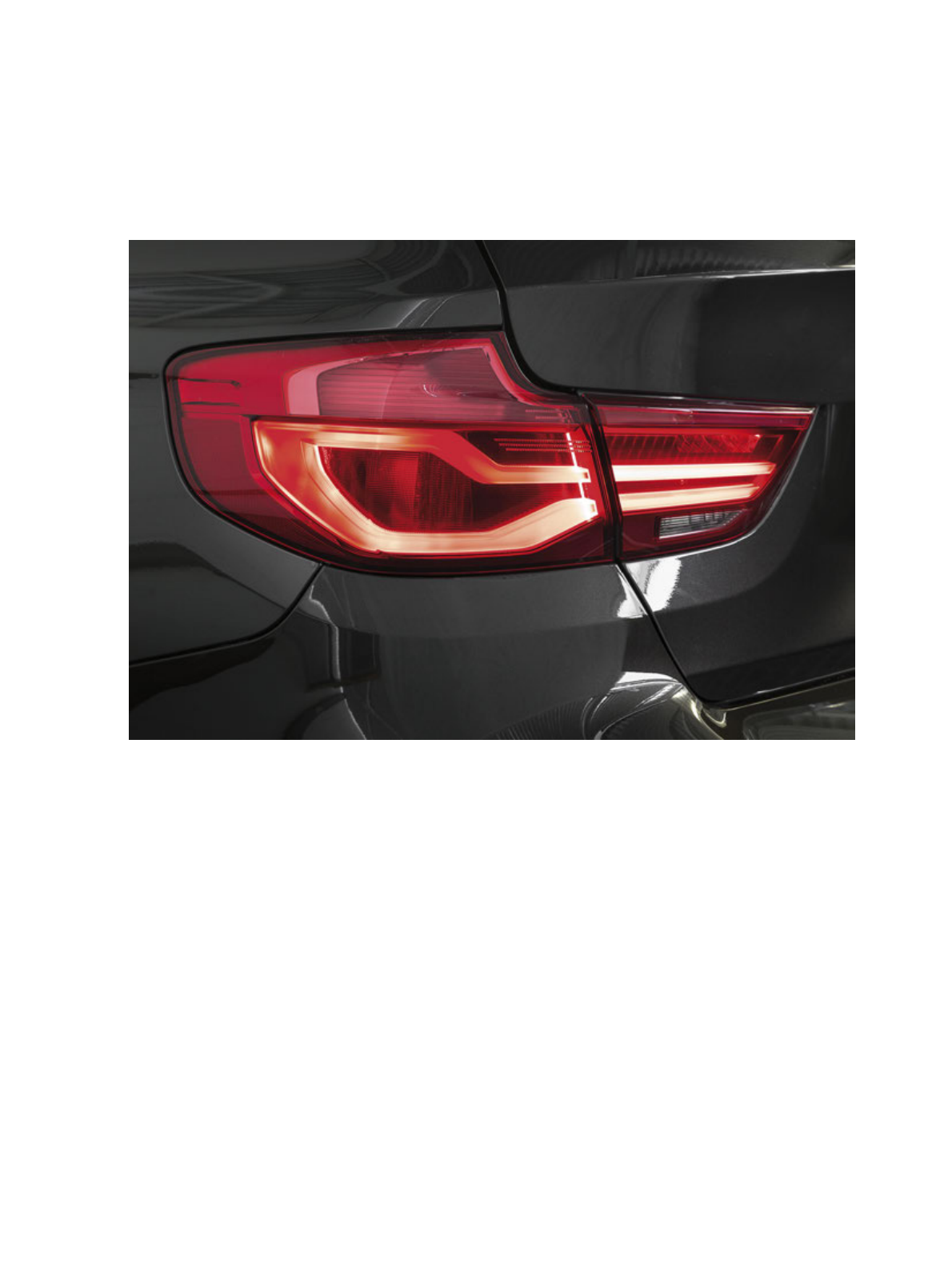

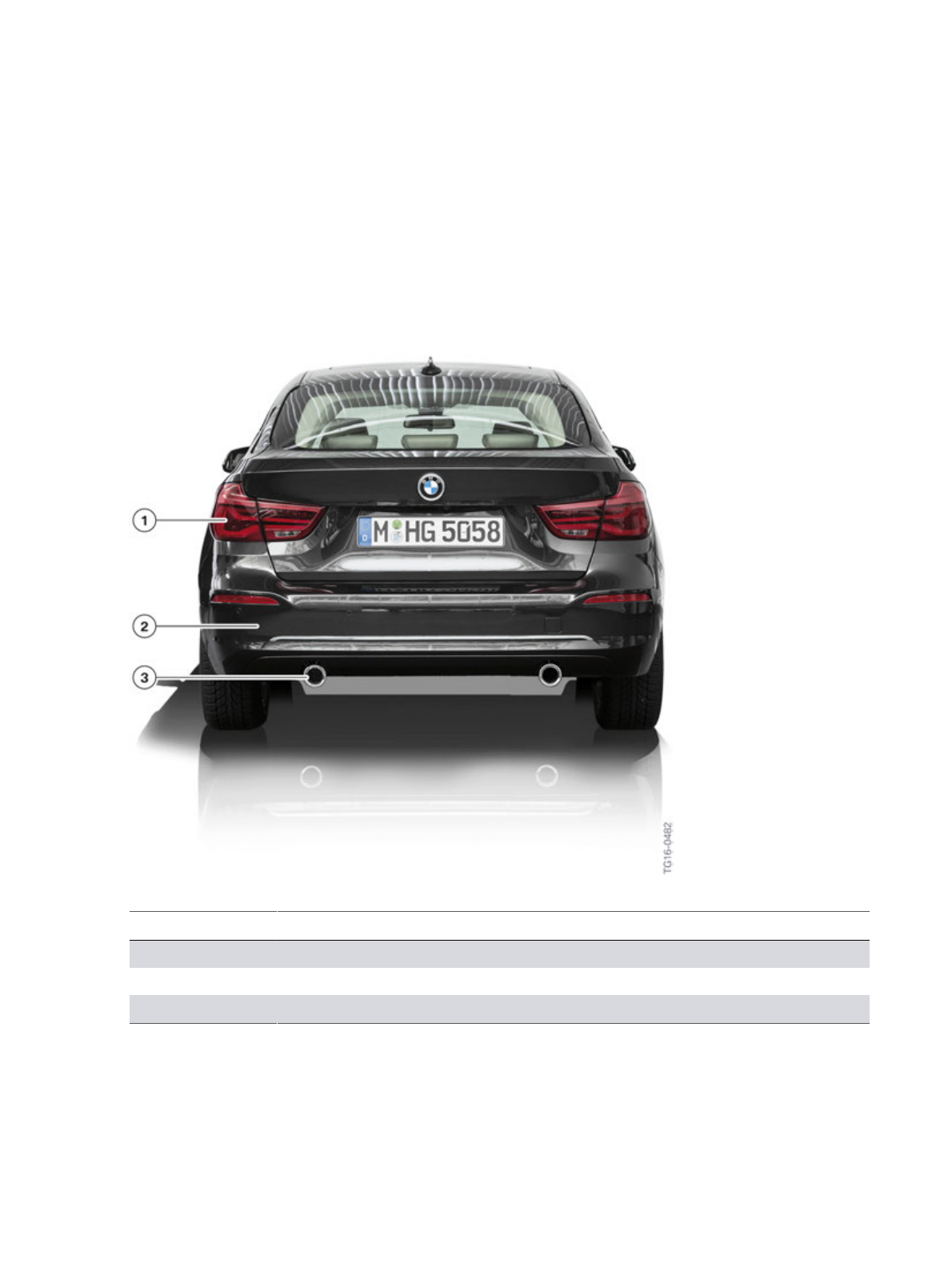

F34�LCI�rear
Index Explanation
1 LED�rear�light
2 Modified�bumper
3 Exhaust�tailpipe

F34�LCI
1.�Introduction
6
Rear�spoiler
The�rear�spoiler�design�is�identical�to�the�F34.�Further�information�on�the�active�rear�spoiler�can�be
found�in�ST1304�"F34�Complete�Vehicle"�Training�material.
F34�LCI�active�rear�spoiler
1.2.3.�Passenger�compartment
The�selective�use�of�chrome�elements�are�used�to�upgrade�the�look�of�the�vehicle�interior.�The�storage
compartment�cover�in�the�center�console�no�longer�folds�out,�but�is�a�sliding�cover.�In�combination�with
the�standard�ambient�light�package,�indirect�lighting�at�selected�places�creates�an�impression�of�high
quality.
F34�LCI�vehicle�interior

F34�LCI
2.�Drivetrain
7
2.1.�Engine�overview
2.1.1.�Engine
F34�LCI�engines�are�exclusively�engines�from�the�modular�engine�strategy�(Bxx).�In�adopting�the�new
engine�generation,�certain�model�designations�have�also�been�changed:
• The�BMW�328i�GT�becomes�the�BMW�330i�GT
• The�BMW�335i�GT�becomes�the�BMW�340i�GT
The�following�table�shows�the�gasoline�engine�models�available�in�the�F34�LCI�together�with�their
most�important�data:
Model Engine Power Torque
BMW�330i�GT�xDrive B46B20O0 185�kW�(252�hp) 350�Nm�(258�lb-ft)
BMW�340i�GT�xDrive B58B30M0 240�kW�(326�hp) 450�Nm�(332�lb-ft)
2.1.2.�Further�information
The�following�technical�training�reference�manuals�feature�further�information�about�each
of�the�engines:
• ST1512�B46�Engine
• ST1505�B58�Engine
2.2.�Overview�of�the�transmission
The�F34�LCI�comes�with�a�8-speed�sport�automatic�transmission.
Model Sport�Automatic�Transmission
BMW�330i�GT�xDrive Standard�equipment
BMW�340i�GT�xDrive Standard�equipment
2.3.�xDrive�overview
BMW�xDrive�is�standard�on�all�F34�LCI�models:
• BMW�330i�GT�xDrive
• BMW�340i�GT�xDrive

F34�LCI
3.�General�Vehicle�Electrical�System
8
3.1.�Bus�overview

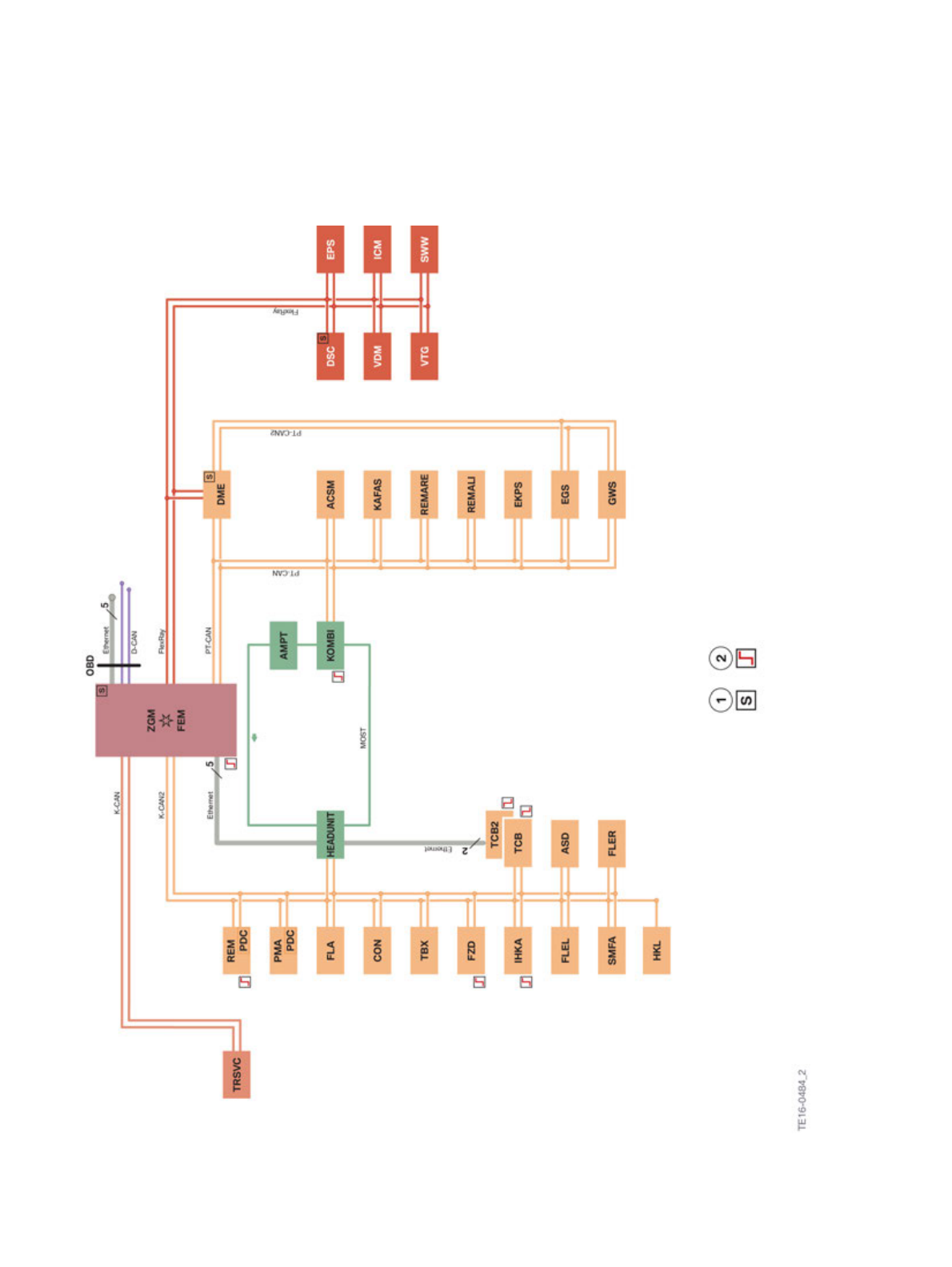

F34�LCI�bus�overview

F34�LCI
3.�General�Vehicle�Electrical�System
9
Index Explanation
1 Start-up�nodes;�control�units�for�starting�and�synchronizing
the�FlexRay�bus�system
2 Control�units�with�wake-up�authorisation
ACSM Crash�Safety�Module
AMPT Amplifier�Top
ASD Active�Sound�Design
CON Controller
DME Digital�Motor�Electronics
DSC Dynamic�Stability�Control
EGS Electronic�transmission�control
EKPS Electronic�fuel�pump�control
EPS Electronic�Power�Steering
FEM Front�Electronic�Module
FLA High-beam�assistant
FLEL Frontal�Light�Electronics�Left
FLER Frontal�Light�Electronics�Right
FZD Roof�function�center
GWS Gear�selector
HEADUNIT Head�unit
HKL Automatic�operation�of�tailgate
ICM Integrated�Chassis�Management
IHKA Integrated�automatic�heating�/�air�conditioning
KAFAS Camera-based�driver�support�systems
KOMBI Instrument�panel
OBD Diagnostic�socket
PMA Parking�Manoeuvring�Assistant
REM Rear�Electronic�Module
REMAFA Reversible�electric-driven�reel,�left
REMABF Reversible�electric-driven�reel,�right
SMFA Seat�module,�driver
SWW Lane�change�warning
TBX Touchbox
TCB Telematic�Communication�Box
TCB2 Telematic�Communication�Box�2
TRSVC Control�unit�for�rear�view�camera�and�side�view

F34�LCI
3.�General�Vehicle�Electrical�System
10
Index Explanation
VDM Vertical�Dynamics�Management
VTG Transfer�box
ZGM Central�gateway�Module
New�control�units�in�the�F34�LCI
FLEL Frontal�Light�Electronics�Left
FLER Frontal�Light�Electronics�Right
TCB2 Telematic�Communication�Box�2
3.2.�Lighting
The�F34�LCI�comes�with�LED�headlights�as�standard�equipment.�Halogen�headlights�or�xenon
headlights�are�no�longer�offered�for�the�F34�LCI.�LED�fog�lights�are�also�standard.�The�rear�lights�have
a�new�light�design�including�LED�technology.
3.2.1.�Headlight
Adaptive�Full�LED�headlights�(OE�552)�may�be�ordered�as�optional�equipment.

F34�LCI
3.�General�Vehicle�Electrical�System
11

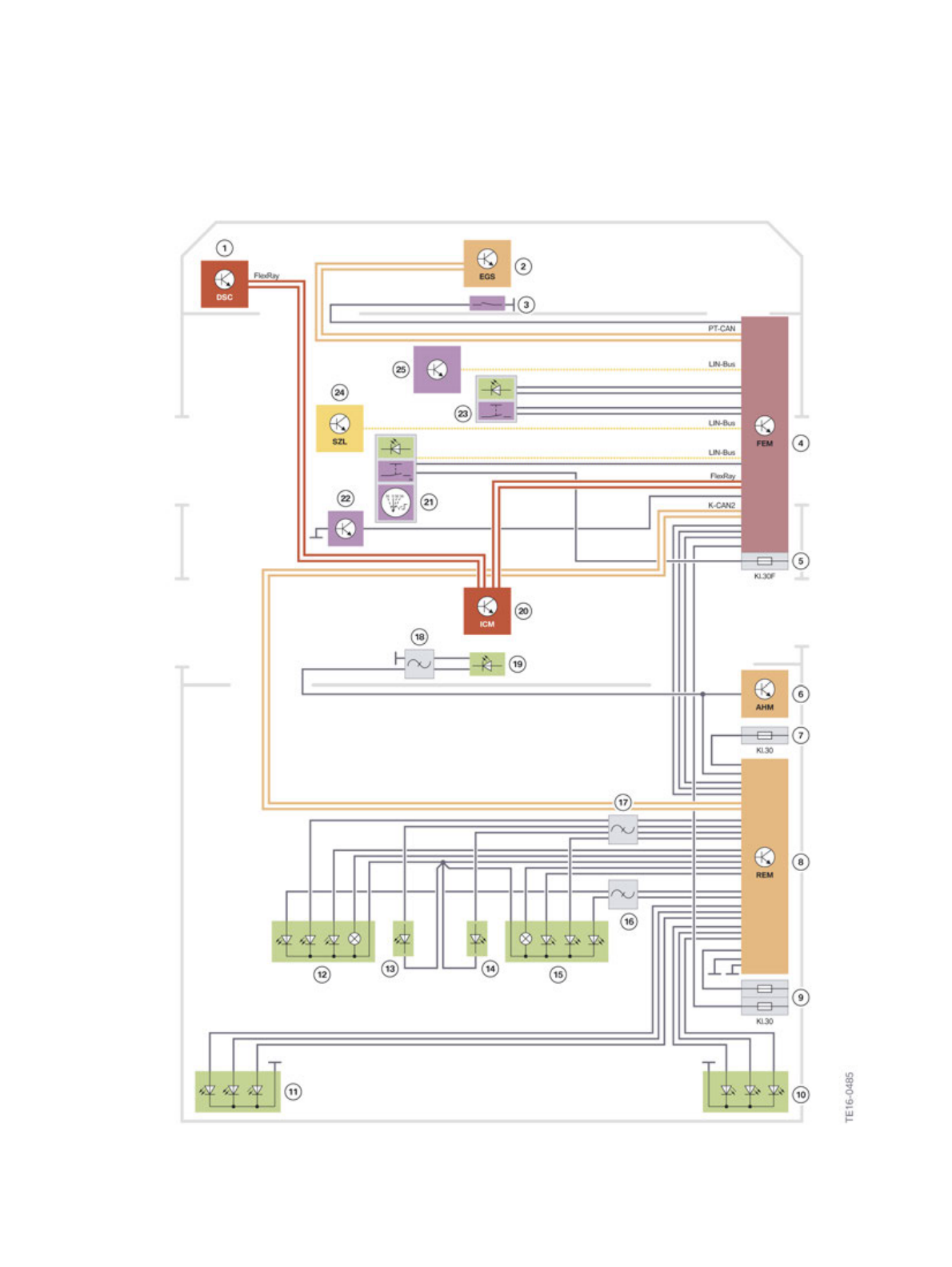

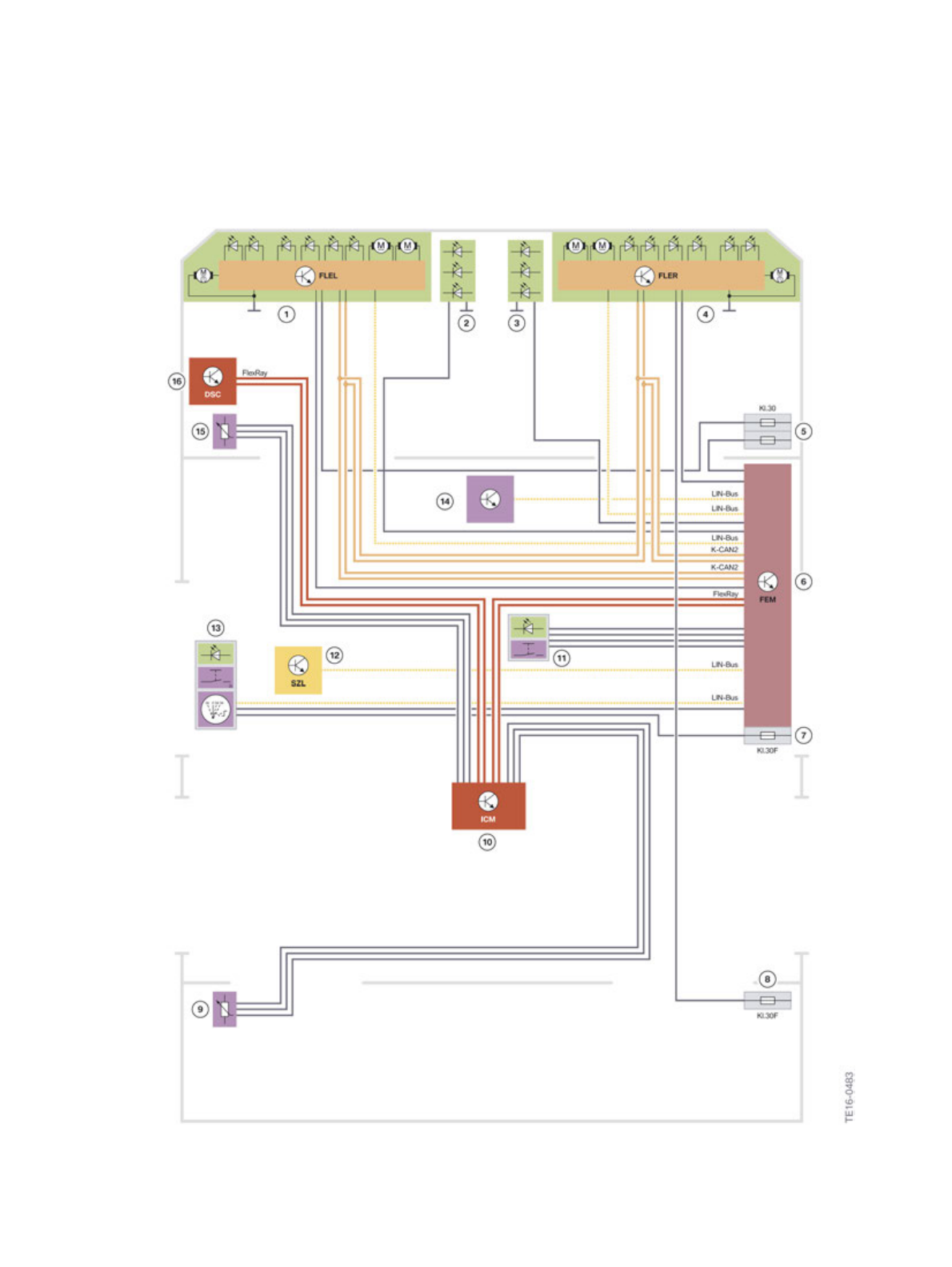

Adaptive�LED�headlight�system�wiring�diagram
F34�LCI�adaptive�LED�headlight�system�wiring�diagram

F34�LCI
3.�General�Vehicle�Electrical�System
12
Index Explanation
1 Frontal�Light�Electronics�Left�(FLEL)
2 LED�fog�light,�left
3 LED�fog�light,�right
4 Frontal�Light�Electronics�Right�(FLER)
5 Front�passenger�power�distribution�box�fuse
6 Front�Electronic�Module�(FEM)
7 FEM�fuse
8 Luggage�compartment�power�distribution�box�fuse
9 Ride-height�sensor,�rear�left
10 Integrated�Chassis�Management�(ICM)
11 Central�locking�button/hazard�warning�switch
12 Steering�column�switch�cluster�(SZL)
13 Light�operating�unit
14 Rain-light-solar-condensation�sensor�(RLSBS)
15 Ride�height�sensor,�front�left
16 Dynamic�Stability�Control�(DSC)
3.2.2.�Rear�lights
All�rear�lighting�functions�are�done�by�LEDs�with�the�exception�of�the�reversing�light�which�is�a
conventional�bulb.�The�turn�indicator�extends�across�the�entire�widths�of�the�rear�lights�for�better
visibility.
F34�LCI�rear�light

F34�LCI
3.�General�Vehicle�Electrical�System
13
System�wiring�diagram
F34�LCI�rear�light�system�wiring�diagram

F34�LCI
3.�General�Vehicle�Electrical�System
14
Index Explanation
1 Dynamic�Stability�Control�(DSC)
2 Electronic�transmission�control�(EGS)
3 Reversing�light�switch�(manual�gearbox)�(not�for�US)
4 Front�Electronic�Module�(FEM)
5 Fuse�in�the�FEM�power�distribution�box
6 Trailer�module�AHM�(not�for�US)
7 Luggage�compartment�power�distribution�box�fuse
8 Rear�Electronic�Module�(REM)
9 Battery�power�distribution�box�fuses
10 Rear�light,�outside�right
11 Rear�light,�outside�left
12 Rear�light,�inside�left
13 License-plate�light,�left
14 License-plate�light,�right
15 Rear�light,�inside�right
16 Interference�suppression�filter
17 Interference�suppression�filter
18 Interference�suppression�filter
19 Additional�brake�light
20 Integrated�Chassis�Management�(ICM)
21 Light�operating�unit
22 Brake�light�switch
23 Central�locking�button/hazard�warning�switch
24 Steering�column�switch�cluster�(SZL)
25 Rain-light-solar-condensation�sensor�(RLSBS)
3.3.�Contactless�tailgate�opening
In�combination�with�the�Comfort�Access�(OE�322)�optional�equipment,�the�F34�LCI�has�contactless
tailgate�opening.�This�includes�not�only�opening�but�also�closing�of�the�tailgate�by�a�specific�foot
motion�under�the�rear�bumper.

F34�LCI
3.�General�Vehicle�Electrical�System
15
F34�LCI�system�wiring�diagram�for�contactless�tailgate�opening
