1.�Exterior�Lights
1
The�following�exterior�light�versions�are�offered�in�the�G12:
• Adaptive�LED�Headlights�(SA�ZAL)
• Icon�Adaptive�LED�headlights�(SA552)

G12�General�Vehicle�Electronics
1.�Exterior�Lights
2
1.1.�System�wiring�diagram
Front�exterior�lights

G12�General�Vehicle�Electronics
1.�Exterior�Lights
3
Index Explanation
1 Left�fog�light
2 Right�fog�light
3 Left�headlight�with�Front�Light�Electronics�Left�(FLEL)
4 Right�headlight�with�Front�Light�Electronics�Right�(FLER)
5 Fuses�in�the�power�distribution�box,�front�right
6 Body�Domain�Controller�(BDC)
7 Fuse�in�the�Body�Domain�Controller
8 Turn�indicator�in�exterior�mirror,�right
9 CAN�terminator
10 Fuse�in�the�power�distribution�box,�rear�right
11 Fuse�in�the�power�distribution�box,�battery
12 Ride-height�sensor,�rear�left
13 Turn�indicator�in�exterior�mirror,�left
14 Light�switch
15 Steering�column�switch�cluster�(SZL)
16 Hazard�warning�switch/Intelligent�Safety�button
17 Rain-light-solar-condensation�sensor�(RLSBS)
18 Ride�height�sensor,�front�left

G12�General�Vehicle�Electronics
1.�Exterior�Lights
4
Rear�exterior�lights

G12�General�Vehicle�Electronics
1.�Exterior�Lights
5
Index Explanation
1 Digital�Motor�Electronics�(DME)
2 Electronic�transmission�control�(EGS)
3 CAN�terminator
4 Fuses�in�the�power�distribution�box,�front�right
5 Body�Domain�Controller�(BDC)
6 Fuse�in�the�Body�Domain�Controller
7 Rear�light�cluster,�right�outer
8 Rear�light�cluster,�right�inner
9 License�plate�light,�right
10 License�plate�light,�left
11 Rear�light�cluster,�left�inner
12 Rear�light�cluster,�left�outer
13 License�plate�light�strip�with�button�for�tailgate
14 Fuse�in�the�power�distribution�box,�battery
15 Additional�brake�light
16 Interference�suppression�filter
17 Light�switch
18 Hazard�warning�switch/Intelligent�Safety�button
19 Steering�column�switch�cluster�(SZL)
20 Rain-light-solar-condensation�sensor�(RLSBS)
21 Brake�light�switch
1.2.�Lighting,�front
Headlight�versions�for�G12:
Headlight�versions
Index Explanation
1 Adaptive�LED�Headlight
2 Icon�Adaptive�LED�Headlight

G12�General�Vehicle�Electronics
1.�Exterior�Lights
6
1.2.1.�Adaptive�LED�Headlight
Basic�LED�headlights
Index Explanation
1 Cornering�light
2 Side�lights�and�daytime�running�lights
3 Low-beam�headlight/High-beam�headlight
4 Side�lights�and�daytime�running�lights
5 Low-beam�headlight/High-beam�headlight
6 Turn�indicator
7 Side�marker�light
On�the�Adaptive�LED�headlight,�the�low-beam�headlight�and�high�beam�are�located�in�the�same
reflector.

G12�General�Vehicle�Electronics
1.�Exterior�Lights
7
1.2.2.�Icon�Adaptive�LED�Headlight
Adaptive�Full�LED�Headlight
Index Explanation
1 Low-beam�headlight
2 Turn�indicator
3 Low-beam�headlight
4 Cornering�lights
5 Side�light,�daytime�running�lights
6 High-beam�headlight
7 Side�light,�daytime�running�lights
8 High-beam�headlight
9 Side�marker�light
On�the�Icon�Adaptive�LED�Headlight,�the�low�beams�have�there�own�projector�lenses�and�are�separate
from�the�high�beam.

G12�General�Vehicle�Electronics
1.�Exterior�Lights
8
1.3.�Lighting,�rear
Taillight
Index Explanation
1 Turn�indicator
2 Taillight
3 Turn�indicator
4 Rear�fog�light�(Not�for�US)
5 Rear�fog�light�(Not�for�US)
6 Reversing�light
7 Brake�light
8 Taillight

G12�General�Vehicle�Electronics
1.�Exterior�Lights
9
1.4.�High-beam�assistant
On�vehicles�with�camera-based�driver�assistance�systems�(KAFAS),�the�function�of�the�high-beam
assistant�is�performed�by�KAFAS.
On�vehicles�without�camera-based�driver�assistance�systems�(KAFAS),�the�high-beam�assistant�is
integrated�in�the�interior�mirror.
High-beam�assistant�(FLA)

G12�General�Vehicle�Electronics
1.�Exterior�Lights
10
1.4.1.�System�wiring�diagram
High-beam�assistant
Index Explanation
1 High-beam�assistant�(FLA)
2 CAN�terminator
3 Fuse�in�the�power�distribution�box,�front�right
4 Body�Domain�Controller�(BDC)
5 Fuse�in�the�Body�Domain�Controller
6 Light�switch
7 Steering�column�switch�cluster�(SZL)
8 Instrument�cluster�(KOMBI)

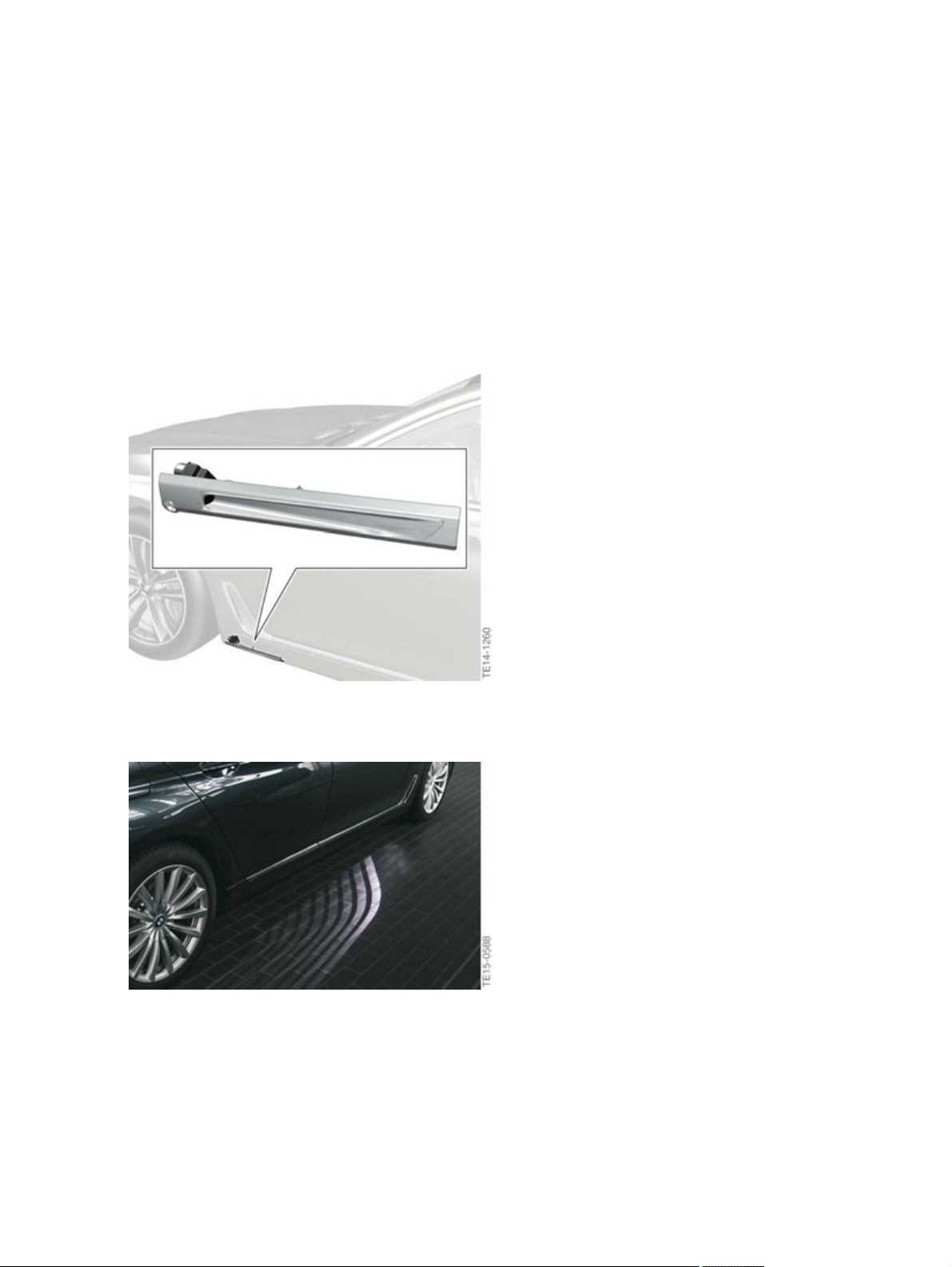

1.5.�Exterior�light�staging
The�exterior�light�staging�for�the�G12�may�include�the�following�items,�depending�on�the�optional
equipment:
• Ground�lights
• Light�carpet

G12�General�Vehicle�Electronics
1.�Exterior�Lights
11
1.5.1.�System�wiring�diagram
Exterior�light�staging

G12�General�Vehicle�Electronics
1.�Exterior�Lights
12
Index Explanation
1 Light�carpet,�left
2 Light�carpet,�right
3 Body�Domain�Controller�(BDC)
4 Door�entry�light�in�front�passenger�door
5 Door�entry�light�in�the�rear�passenger’s�side�door
6 Door�entry�light�in�the�rear�driver's�side�door
7 Door�entry�light�in�the�driver's�door
1.5.2.�Ground�lights
The�ground�lighting�is�integrated�in�the�corresponding�door�modules.�The�LEDs�of�the�ground�lighting
are�activated�by�the�Body�Domain�Controller�(BDC).

G12�General�Vehicle�Electronics
1.�Exterior�Lights
13
1.5.3.�Light�carpet
The�light�source�is�integrated�into�the�side�sill,�where�it�is�invisible�to�the�customer.�This�feature�can
be�in�a�very�small�installation�space�through�the�use�of�a�multi-lens�design�system.�A�very�flat�angle�of
radiation�is�also�possible.�The�graphic�is�superimposed�several�times�by�the�multi-lens�design�system
and�is�therefore�insensitive�to�dirt�contamination.�The�light�carpet�is�activated�by�the�Body�Domain
Controller�(BDC).
LEDs�in�the�side�sill
LEDs�in�the�side�sill
Light�carpet
Light�carpet

G12�General�Vehicle�Electronics
2.�Interior�Lights
14
2.1.�Basic
2.1.1.�System�wiring�diagram
Basic�interior�light

G12�General�Vehicle�Electronics
2.�Interior�Lights
15
Index Explanation
1 Footwell�light,�front�left
2 Ambient�lighting,�dashboard
3 Ambient�lighting,�dashboard
4 Ambient�lighting,�dashboard
5 Footwell�light,�front�right
6 Glove�box�light
7 Fuses�in�the�power�distribution�box,�front�right
8 Glove�box�switch
9 Body�Domain�Controller�(BDC)
10 Door�trim�panel�lighting,�passenger's�side
11 Door�entry�light,�front�passenger�side
12 Door�contact,�front�passenger�side,�front
13 Door�trim�panel�lighting,�passenger’s�side�rear
14 Door�entry�light,�passenger’s�side�rear
15 Door�contact�on�front�passenger�side,�rear
16 Fuse�in�the�power�distribution�box,�rear�right
17 Tailgate�contact�switch�in�the�tailgate�lock
18 Luggage�compartment�light
19 Interior�light,�rear�right�(on�vehicles�with�panorama�glass�roof)
20 Make-up�mirror�light,�rear�right
21 Footwell�light,�rear�right
22 Interior�light,�rear�center�(on�vehicles�without�panorama�glass�roof)
23 Make-up�mirror�light,�rear�left
24 Footwell�light,�rear�left
25 Interior�light,�rear�left�(on�vehicles�with�panorama�glass�roof)
26 Door�contact�on�driver's�side,�rear
27 Door�entry�light,�driver’s�side�rear
28 Door�trim�panel�lighting,�driver’s�side�rear
29 Door�contact,�driver's�side,�front
30 Front�interior�light
31 Door�entry�light,�driver's�side
32 Door�trim�panel�lighting,�driver’s�side
33 Switch�for�make-up�mirror,�left

G12�General�Vehicle�Electronics
2.�Interior�Lights
16
Index Explanation
34 Make-up�mirror�light,�left
35 Center�console�storage�compartment�lighting
36 Make-up�mirror�light,�right
37 Switch�for�make-up�mirror,�right
In�the�basic�interior�lighting�configuration,�the�following�interior�lights�are�connected�with�the
Body�Domain�Controller�via�LIN-bus:
• Interior�light�in�the�roof�function�center�(FZD)
• Interior�light�in�the�center�of�the�rear�passenger�compartment�on�vehicles�without
panorama�glass�roof
• Interior�lights�on�the�left�and�right�of�the�rear�passenger�compartment�on�vehicles�with
panorama�glass�roof
The�glove�box�light�is�switched�by�the�glove�box�switch.
The�luggage�compartment�light�is�switched�by�the�tailgate�contact�switch�in�the�tailgate�lock.
All�other�interior�lights�are�activated�directly�by�the�Body�Domain�Controller.
Depending�on�the�optional�equipment,�the�G12�has�different�light�elements�for�the�interior�lighting.
2.2.�Ambient�lighting
The�ambient�lighting�includes�6�predefined,�selectable�light�designs/colors.
The�light�design/color�and�brightness�can�be�selected�by�means�of�the�controller.
The�selected�design�is�displayed�on�the�CID.
