BMW 1 Series
Coupé
www.bmw.com
Sheer
Driving Pleasure
THE BMW 1 SERIES COUPÉ.
JOY IS A RACING HEART.
BMW EfficientDynamics
Less emissions. More driving pleasure.

FIRST IT PULLS YOU IN. THEN IT TAKES OFF.

PURE ENERGY.
EXPLOITED TO
PERFECTION BY BMW
EFFICIENT DYNAMICS.

THE LONG WHEELBASE, THE MUSCULAR FLANKS –
A DYNAMICALLY ELEGANT DESIGN THAT LEAVES A
LASTING IMPRESSION.

WINS THE RACE BEFORE IT EVEN STARTS.

REACH OUT AND HOLD YOUR DREAMS IN YOUR HAND.

Brake Energy Regeneration
To supply a battery with electrical energy, the
generator (alternator) is permanently driven
using engine power, which demands additional
fuel consumption. Brake Energy Regeneration
means the generator usually only generates
electricity when the driver takes the foot off the
accelerator or the brake – previously unused
kinetic energy is transformed in coasting mode
into electrical energy before being fed into the
battery.
In this way, electricity is generated while
coasting, without consuming fuel.
Some BMW EfficientDynamics features are dependent on
the car’s equipment and are not available for all model variants.
Your BMW partner will be happy to provide you with more
information on all equipment details.
* Not for 135i, optionally available with Servotronic for diesel
engines with automatic transmission.
Tyres with reduced rolling-resistance
While driving, tyres are constantly changing
shape. This uses up energy and thus fuel.
Tyres with reduced rolling-resistance have an
improved design and use special materials for
their road treads and side walls, thus reducing
deformation.
Electric Power Steering
In comparison with conventional, hydraulic
steering systems, the electrical steering only
uses energy during actual steering. When the
steering wheel is in a constant position – for
example at high speed along the motorway –
the electric motor is inactive*.
THIS HAS GONE IN.
The pleasure you get from driving a BMW is the result of fine engineering that has always set the standard by exceeding mere engine performance.
This is the tradition behind BMW EfficientDynamics. It includes the visionary Hydrogen engine, with which BMW Hydrogen 7 vehicles already run
at zero emissions, as well as BMW ActiveHybrid – an intelligent, demand-oriented combination of internal combustion engine and electric motor.
And every BMW already includes a multi-award-winning BMW EfficientDynamics technology package as standard that boosts dynamics even
further whilst simultaneously reducing fuel consumption and CO2emissions.
High Precision Injection
In this cutting-edge generation of petrol
direct injection, the Piezo injectors are
positioned very close to the spark plugs.
They inject the fuel at high pressure and
with extreme precision. This ensures an
outstanding power-to-consumption ratio.
Auto Start/Stop function
BMW four-cylinder engines with six-speed
manual transmission automatically shut down
when the vehicle is stationary, for example at a
red light or in a jam, when the driver activates
the clutch and switches to neutral. The engine
restarts as soon as the clutch is activated
again. This innovation significantly reduces
fuel consumption especially in city traffic.
Optimum Shift Indicator
Timely gear shifts are one of the most effective
and easiest ways to save fuel. This is where the
Optimum Shift Indicator in conjunction with
six-speed manual transmission comes in. It
shows the driver what gear to use in order to
drive more efficiently.
BMW TwinPower Turbo Technology
This innovative exhaust gas turbo charger
efficiently recaptures the energy present in
exhaust through the use of the double-flow
exhaust system of the TwinScroll charger
(135i). Together with Valvetronic fully variable
valve control and High Precision Injection,
this technology significantly reduces fuel
consumption – while noticeably increasing
performance across all engine speeds.
AND THIS IS WHAT COMES OUT.
BMW already offers 26 models with
CO2 emissions of 140 g/km and significantly
less. But that’s just for starters. We’re carrying
on our research with EfficientDynamics – in
the quest to bring you more driving pleasure
and less emissions.
BMW Effi cientDynamics
Less emissions. More driving pleasure.

sStandard equipment oOptional equipment
oLights package comprises vicinity lights,
which illuminate the area outside the doors
for 20 seconds after the door is opened
to enable safe vehicle access in the dark.
Also included: reading lights front and rear,
footwell illumination at the front, vanity mirror
lights for driver and front passenger and
ambient lighting.
oXenon Headlights for high and low beam, incl. daytime driving lights, four light rings and automatic headlight range control, for better road
illumination at night or in bad weather.
oAdaptive Headlights withvariable light distribution incl. turning lights, only in conjunction withXenon Headlights, incl. Adaptive Headlights:
optimal and prompt illumination of bends through electromechanical control of the moveable lamps as soon as the driver turns.
oHigh-beam assistant aides safer night driving by automatically switching between high and low beam when traffic is approaching or ahead, and
when street lighting is sufficient.
oFog lights (shown here with M sports package)
integrated in the front apron ensure extra safety
in poor visibility. Option includes exterior mirror
heating and screen washer nozzles (standard on
125i and 123d, not available for 135i).
sRear lights with LED technology: each
taillight is made up of three separate high-
performance LED sources, accentuating the
tailgate’s dynamic feel.

sStandard equipment oOptional equipment
sExterior mirrors, painted in body colour, with
electric adjustment and aspheric on driver side.
The mirrors on 125i, 135i and 123d are also heated.
sDynamic Braking Lights help vehicles
travelling behind you to evaluate your braking
more accurately: in the event of an emergency
stop, the illuminated area of the brake lights
is increased. So traffic following behind can
tell in an instant the difference between a
light tap on the brake pedal and a hard stop –
for increased driving safety.
oTow bar with removable ballhead
(not available on 135i).
oShadow Line, high-gloss encompasses
the trim around side windows front and rear,
the window recess finishers, the mirror base
and the mirror frame in Black, high-gloss.
oRain sensor including automatic
driving lights control: Once activated, the
rain sensor will automatically switch on the
windscreen wipers when it begins to rain,
adjusting the wiper frequency in line with
rainfall intensity. The integrated automatic
driving lights control activates the low beam
automatically at dusk and in tunnels.
oChrome Line Exterior, encompasses trim
around side windows at the front and rear,
the window recess finisher, entry strips with
chrome inserts as well as the mirror base and
mirror frame in Black, high-gloss (standard
on 125i, 135i and 123d).
oGlass roof, electric, with slide and lift
control and remote-operated comfort
opening.

sStandard equipment oOptional equipment

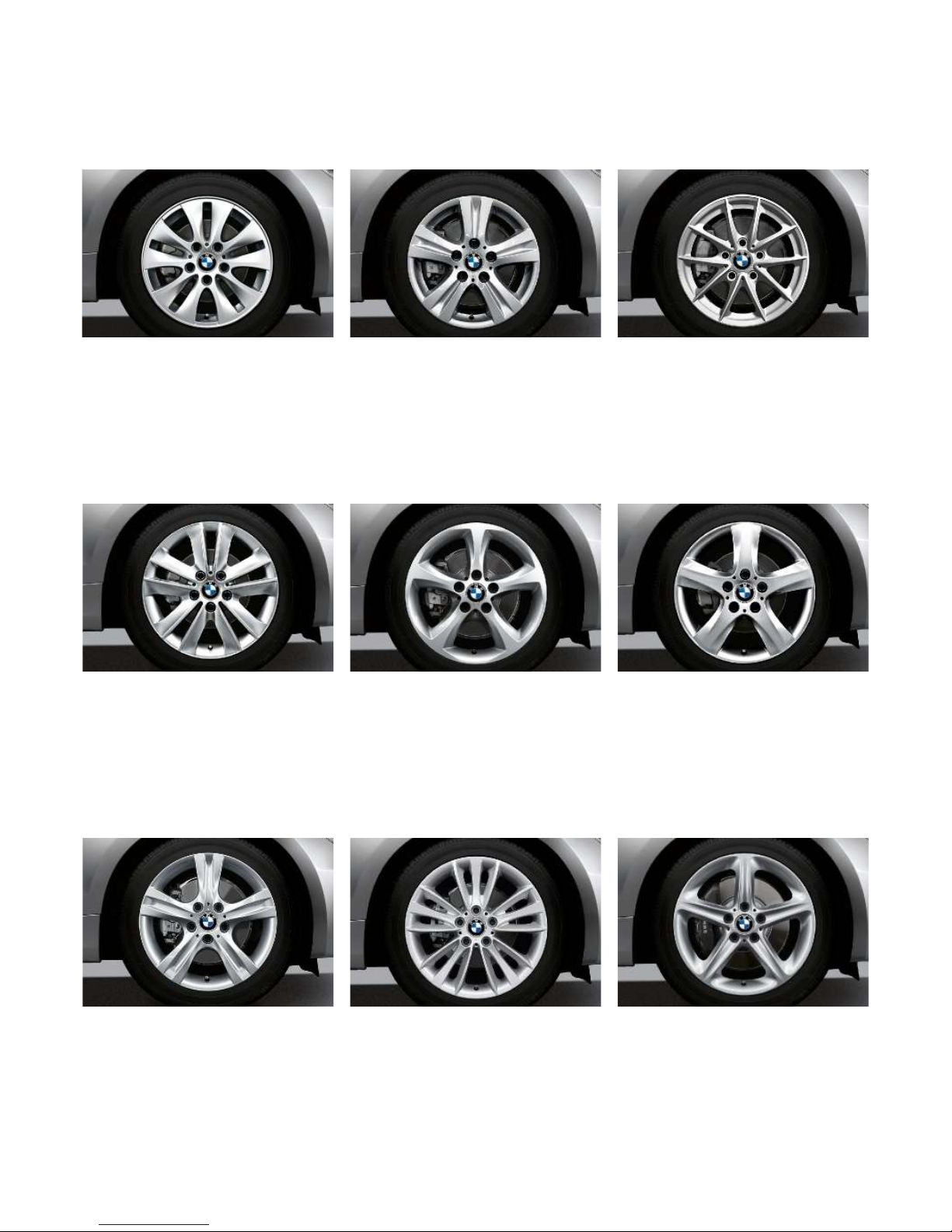

oBMW light-alloy wheels star-spoke 256
with runflat tyres, 7 J x 17", 205/50 R 17 tyres
(standard on 125i, not available for 135i). Also
available as a complete winter wheel-and-tyre
set in the Original BMW Accessories range*.
oBMW light-alloy wheels V-spoke 141
with runflat tyres, 7 J x 17", 205/50 R 17 tyres
(standard on 123d, not available for 135i).
oBMW light-alloy wheels star-spoke 142
with mixed runflat tyres, 7 J x 17" with 205/50
R 17 tyres at the front, 7.5 J x 17" with 225/45
R 17 tyres at the rear (not available for 135i).
oBMW light-alloy wheels star-spoke 262
with mixed runflat tyres, 7 J x 17" with 205/50
R 17 tyres at the front, 7.5 J x 17" with 225/45
R 17 tyres at the rear (not available for 135i).
oBMW light-alloy wheels star-spoke 264
with mixed runflat tyres, 7.5 J x 18" with 215/40
R 18 tyres at the front, 8.5 J x 18" with 245/35
R 18 tyres at the rear (standard on 135i).
oBMW light-alloy wheels W-spoke 263
with mixed runflat tyres, 7.5 J x 18" with 215/40
R 18 tyres at the front, 8.5 J x 18" with 245/35
R 18 tyres at the rear.
1Including BMW MobilitySet or optional with runflat tyres.The availability
of runflat tyres may vary by country.
*The offer may differ by country.
sBMW light-alloy wheels double-spoke
2221,7 J x 16-inch, 205/55 R 16 tyres
(standard on 120i and 120d, not for 125i, 135i
and 123d).
sBMW light-alloy wheels V-spoke 2291,
6.5 J x 16-inch, 195/55 R 16 tyres (standard
on 118d*). Also available as a complete
winter wheel-and-tyre set in the Original
BMW Accessories range*.
oBMW light-alloy wheels V-spoke 3601,
7 J x 16-inch, 205/55 R 16 tyres (not available
for 125i, 135i and 123d).

sStandard equipment oOptional equipment
oSix-speed automatic transmission
Steptronic (here with non-smoker package)
with Adaptive Transmission Management
(ATM). This transmission performs very fast,
flawless gearshifts – for maximum dynamic
performance (not available on 135i).

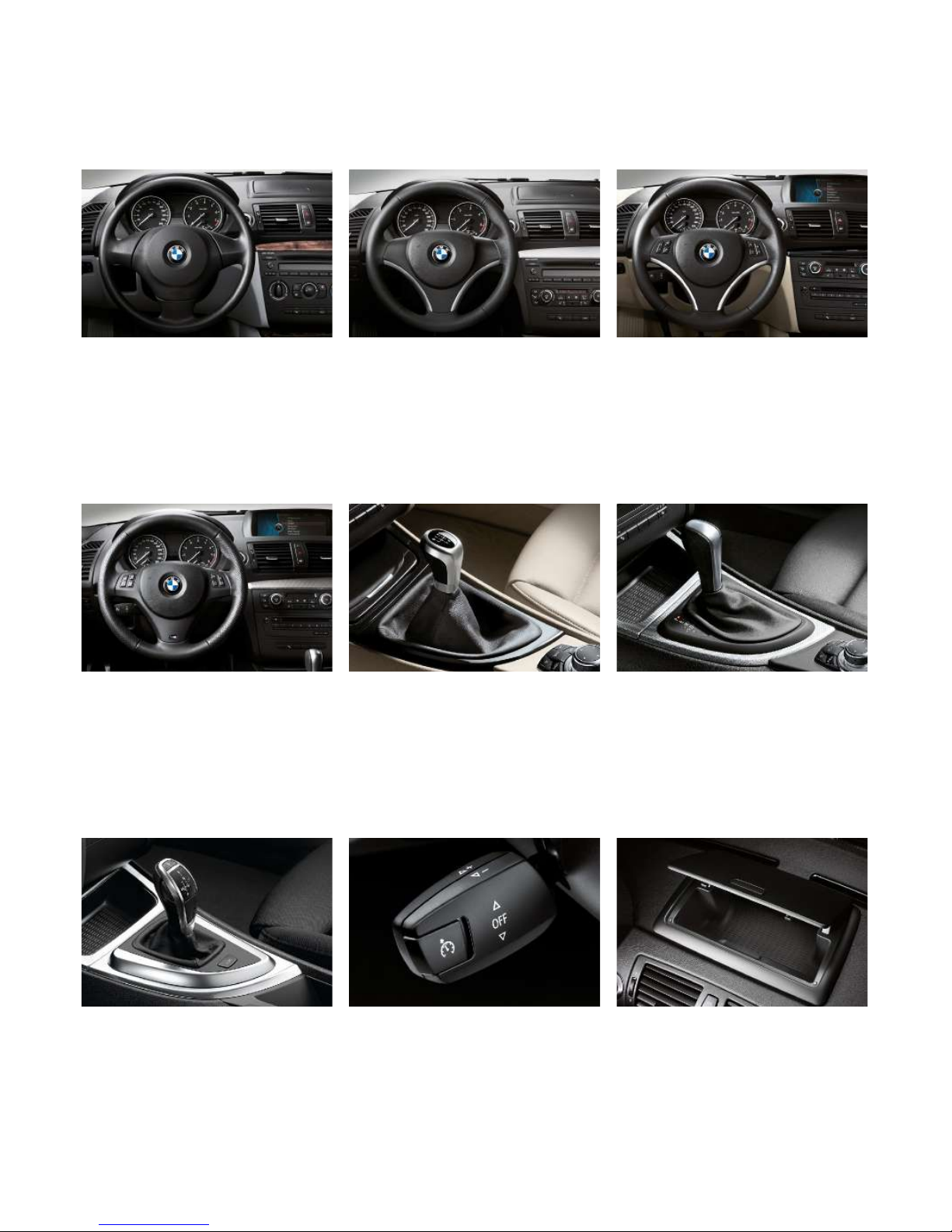

oSports leather steering wheel with
multifunction buttons (diameter 369 mm),
chrome clasp, three spokes, with multifunction
capability for remote control of radio and
telephone (optional).
oSteering wheel heating for sports leather
steering wheel with multifunction: just press a
button to quickly warm up the steering wheel
rim – a particularly pleasant amenity in winter.
oSports leather steering wheel (diameter
369 mm), in conjunction with gearshift paddles
on the steering wheel without thumbrests,
chrome clasp, three spokes (standard on 125i,
135i and 123d).
sStandard steering wheel (diameter
375 mm), three spokes.
oCruise Control stores and maintains a desired
speed above approx. 30 km/h (activated using
the left-hand steering-column stalk). After
accelerating, the vehicle automatically returns
to the previously stored speed. Braking
cancels the setting.
oSeven-speed sports automatic
transmission with double clutch and
gearshift paddles on the steering wheel
for particularly fast gear shifts with no loss
of traction; provides outstanding driving
dynamics and economical fuel consumption
(available for 135i).
oM leather steering wheel (diameter 369 mm),
three spokes, optionally with multifunction
buttons for radio/telephone (optional). An
M gear lever knob with the M emblem is
included should you opt for the manual
transmission. The handbrake lever handle
is upholstered in Walknappa leather.
sSix-speed manual transmission for a
particularly sporty drive. Immensely smooth,
with perfect ratios and precise, short-throw
gearshifts. The addition of a sixth gear
means that the gear ratios are more closely
spaced, enabling you to make even more
individual use of the engine’s power.

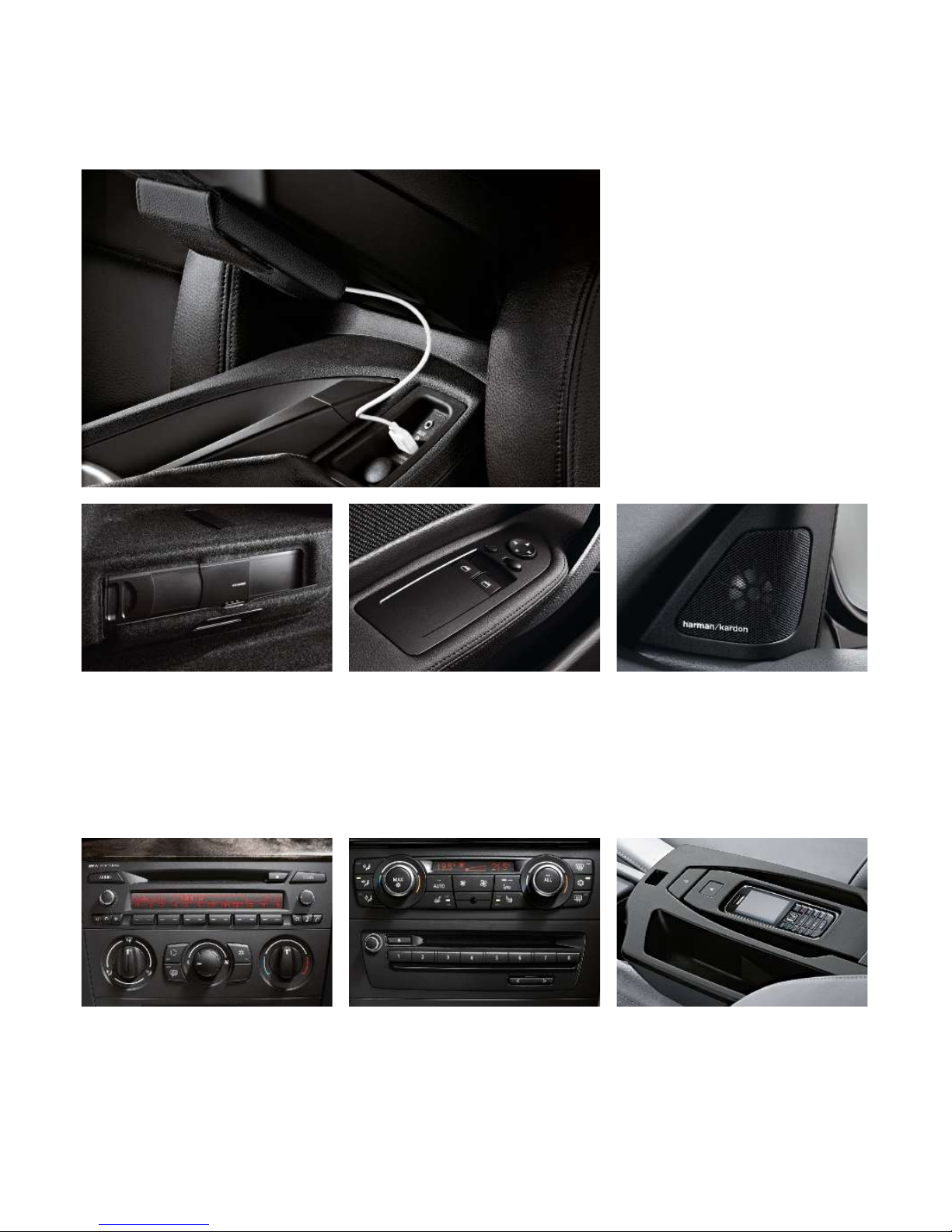

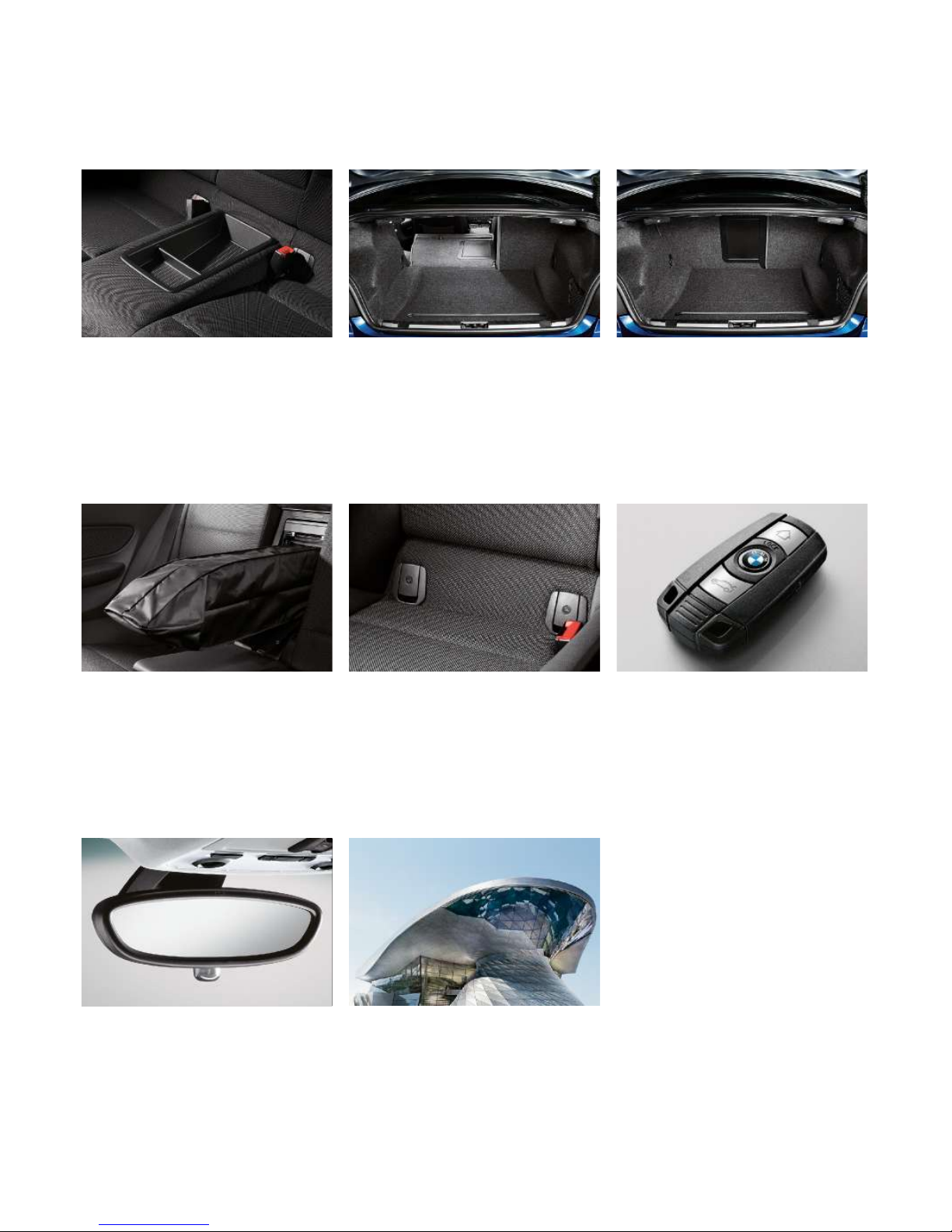

oStorage compartment package comprises
cup holder, luggage nets on the backs of front
seats, 12-V socket, two foldable fastening points
in the luggage compartment, storage net on
the right, two tensioning straps on the luggage
compartment floor as well as a storage tray
on top of the instrument panel (not available
in conjunction with a navigation system*).
* Not available in all countries. Please consultyour BMW partner.

sStandard equipment oOptional equipment
oPark Distance Control (PDC)**,available
for front and rear or rear only, facilitates parking
and manoeuvring in confined spaces, giving
you an acoustic signal for the distance between
your car and an obstacle – and in conjunction
with an optionally available navigation system
optical assistance is provided via the Control
Display.
oBMW Assist*supports the driver with an
automatic and manual emergency call function,
enabling your vehicle’s location to be pinpointed
to the metre, Traffic Info plus and My Info, which
enables SMS and address data to be sent to
your BMW. Additionallyyou benefit from a free,
round-the-clock personal information
service.**
sAuto Start/Stop display on the Info Display
indicates when the engine has been switched
off by the Auto Start/Stop function (e.g. at traffic
lights or in a jam). The engine is re-started
automatically when you next depress the clutch,
and the signal is turned off (for the 120i, 118d,
120d and 123d in conjunction with a six-speed
manual transmission).
sOptimum Shift Indicator for vehicles with
six-speed manual transmission shows when
switching to another gear would be more fuel-
efficient; the system recommends when to
switch to a higher or lower gear.
sOn-board computer, provides information
about average speed, average and current fuel
consumption, radius and outside temperature.
Also features an acoustic ice warning system.
sInstrument panel with analogue instruments,
red backlit speedometer and rev counter. Plus
on-board computer with LC displayfor mileage
counter and trip counter.
oNavigation system Professional*, incl. radio Professional with DVD drive, iDrive Controller
with direct menu control buttons, eight functional bookmarks, integrated hard disc for maps and
audio data, fixed and high-resolution 8.8" graphic display showing 3D maps as well as bird’s eye
view.
oNavigation system Business*incl.
radio Professional with CD drive, iDrive
Controller with direct menu control buttons,
eight functional bookmarks, fixed 6.5" graphic
display with a map or combined arrow and map
display to guide you to your destination.
* Not available in all countries. Please consultyour BMW partner.
** Shown here is the 8.8'' graphic display of the Navigation system Professional*.

sStandard equipment oOptional equipment
sAUX-IN connection incl. 12-V socket for
an external audio source such as an MP3
player.
oUSB audio interface for connection of a USB
stick, MP3 player, upgradeable to comfort
access for a mobile phone music player1. Stored
tracks are shown on the display of the radio
Professional (optional) or on the Control Display
included in a navigation system*option. Tracks
are selected using the buttons on the optionally
available multifunction steering wheel, radio
Professional or the new iDrive controller with
direct menu control buttons. A multimedia
bag
is supplied along with the optional armrest.
* Not available in all countries. Please consult your BMW partner.
1USB cable shown is not part of the package.
sRadio Business CD with UKW, MW
reception, six station buttons, automatic
volume adjustment, CD drive, MP3 decoder
as well as five loudspeakers.
oRadio Professional, same features as radio
Business CD, plus connection for CD changer,
two-line display for telephone numbers, names
and CD/MP3 titles (shown here), as well as a
subwoofer under the front passenger seat.
oDAB tuner, optionally available.
 harman/kardonSurroundSoundSystem
with powerful amplifier, equalizer, centre speaker
and 1 0 loudspeakers for superb sound. Surround
sound function enables simulation of various
acoustic environments.
oHiFi loudspeaker system with eight
loudspeakers for brilliant sound.
sWindow lifts, electric pull/press switch
and open/close fingertip control, all-round
comfort closing function and trap release.
oCD changer located on the left-hand side
of the luggage compartment, can take up to
six CDs.
oAutomatic air conditioning (shown here),
with AAR, microfilter, fogging and solar
sensors and ALL button, quickly establishes
and maintains the selected temperature.
With separate temperature control for left
and right.
oAir conditioning, with microfilter, for a
comfortable interior at any time of the year
(standard on 125i, 135i and 123d).
sHeating system with six air outlets.
oMobile phone preparation Business
with
Bluetooth interface, incl. BMWAssist*
(with
hands-free system, connection for recharging
and external aerial). A separately available snap-in
adapter enables connection of a Bluetooth-
compatible mobile phone, which can also be
operatedvia the iDrive Controller (in conjunction
with navigation system*).
oMobile phone preparation with Bluetooth
interface.

sStandard equipment oOptional equipment

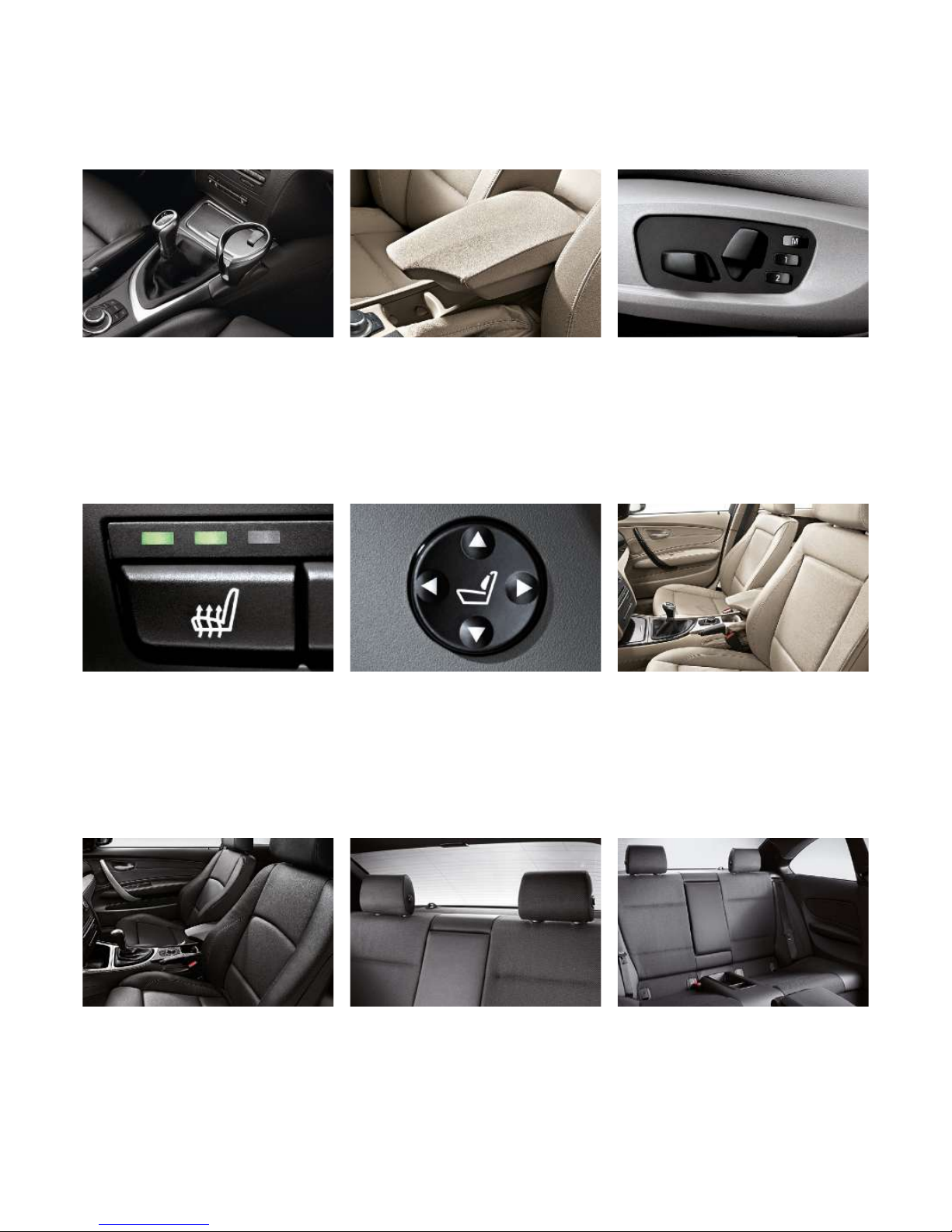

oSeat adjustment for driver and front
passenger with electric seat height and
backrest adjustment, plus lenghtwise seat
position and seat angle adjustment, with
memory function for driver’s seat and
exterior mirrors (including automatic kerb
focus). Two personalised positions can be
stored for the settings of the driver’s seat
and the exterior mirrors.
oFront armrest, folding, with integrated
storage compartment.
oCup holder, detachable, including mount
on centre console.
oLumbar support for driver and front
passenger, electrically adjustable in height
and depth, for an ergonomically perfect seat
position and support of the back muscles.
oSeat heating (with 3 levels) for driver and
front passenger, seat surface and backrest,
including side supports, can be heated
for an almost instant cosy feeling of warmth
(shown here with air conditioning).
sRear seats, ergonomic design, both seats
with three-point belts fitted as standard.
sHeadrests, manually adjustable and
removable.
oHeadrests, foldable, manually adjustable
and removable.
oSport seats for driver and front passenger
(shown here with optionally available Boston
leather upholstery in Black), with infinitely
variable electric backrest width adjustment
for optimum lateral support, plus manual
adjustment of lengthwise seat position, seat
height, backrest angle, seat angle and thigh
support (standard on 135i).
sStandard seats (shown here with optionally
available Boston leather upholstery in Beige)
with manual adjustment, including seat height
adjustment for the driver’s seat.

sStandard equipment oOptional equipment
sLuggage compartment, illuminated and
with all-round textile lining; safe transportation
is ensured by an elastic strap on the left-hand
side and fastening points on the inside edge.
(Shown here with the optional storage
compartment package).
sRear backrest, 60:40 split, folds down to
create an almost level luggage compartment
floor.
oSki bag enables clean and safe transportation
of skis, for instance. If the ski bag is not
required, it can be stored out of sight to save
space.
sStorage tray in the rear between the rear
seats, provides additional storage space.
sISOFIX child seat attachment, rear, on the
two rear seats for safe attachment of a child
seat with clip-in plug connectors plus
additional fastening points on the upper part.
oISOFIX child seat attachment for
passenger seat. Passenger airbag can be
deactivated with a key.
sPersonal Profile: The Personal Profile
stores your personal preferences for settings
such as the temperature and air distribution
settings of the automatic air conditioning,
the position of the driver’s seat and exterior
mirrors, and the volume and sound settings
of the radio depending on equipment. These
settings are then activated when your key is
used to unlock the central locking.
oInterior mirror, with automatic anti-glare
function and large surface area; the glare
from following vehicles is automatically
reduced when the amount of incident light
exceeds a defined limit.
oBMW Welt: Taking delivery of a car has
always ranked among the best moments for
any driver. Now that moment can become a
truly unforgettable day – at the new BMW Welt,
the experience and delivery centre in Munich,
Germany. Visit the Museum, tour the plant
or explore the Technology studio: BMW Welt
brings you the true fascination of BMW.
Experience more online at www.bmw-welt.com

sStandard equipment oOptional equipment
sFront apron: under the BMW double
kidney-shaped grille with chrome kidney slats,
the central air intake is just as eye-catching.
The two side air intakes serve to cool the
brakes and give the front a particularly athletic
profile. Two side flaps accentuate the vehicle’s
broad front.
sDouble tailpipe: the exhaust system with
two black, chrome-plated tailpipes is standard
on the 135i.
sRear apron: winning, powerful elegance. The understated rear spoiler also adds to the superb
driving dynamics.
sInstrument panel: the 135i features
special scaling with extra display ranges.
Exclusively for the BMW 135i: the standard
package comes with specifically calibrated
M Sports suspension and sporty throttle
character. In addition, the 135i boasts sports
seats, Brushed Aluminium with accent line
interior trim as well as 18" light-alloy wheels
with mixed and runflat tyres (star-spoke 264).
The special front apron adds to the sporty
character while the M aerodynamic kit –
comprising side skirts and an exceptional rear
apron – lends the 135i an even more distinctive,
chiselled look.
sHigh-performance brakes painted, with
BMW lettering with inner-vented, 17" front and
rear brake disks. They ensure shorter braking
distances and superior immobility at a standstill.
oGearshift paddles on steering wheel (in conjunction with seven-speed sports automatic
transmission with double clutch) for manual gear changing without using the clutch (shown
here with M
leather steering wheel and Aluminium Glacier Silver interior trim).

sStandard equipment oOptional equipment -Not available
Safety 120i 125i 135i 118d 120d 123d
Airbags:
– Driver and front passenger airbags s s s s s s
– Front and rear head airbags (curtain) with splinter protection s s s s s s
– Side airbags for driver and front passenger, integrated in seat back s s s s s s
Anti-lock braking system, incl. brake assistant and Cornering Brake Control (CBC) s s s s s s
BMW Service Inclusive encompasses all kinds of service and maintenance work carried out at participating BMW
partners worldwide. Individual contract length and service level can be selected o o o o o o
Brakes:
– Disc brakes at the front, inner-vented s s s s s s
Central locking with electronic immobiliser and crash sensor; fuel filler cap integrated in central locking s s s s s s
Centre lock switch - s s - s s
DynamicBraking Lights s s s s s s
Dynamic StabilityControl (DSC, incl. DTC) s - - s s s
Dynamic StabilityControl (DSC)with additionalfunctions - s s - - -
ISOFIX childseat fasteningsystem, front o o o o o o
ISOFIXchildseatfasteningsystem, rear s s s s s s
Safetybodyshell:
– Bumpers with steel impact absorber units at the front and rear, regenerating after impacts at up to 4 km/h, crumple
zones at front and rear absorb impacts at up to 15 km/h s s s s s s
– Side impact protection, integrated in the doors s s s s s s
Seatbelts:
– Ergonomic rear seatbelt system with three-point seatbelts for all seats s s s s s s
– Inertia-reel seatbelts at the front with belt tensioners and belt force limiters s s s s s s
Exterior design 120i 125i 135i 118d 120d 123d
ChromeLine exterior o s s o o s
Exteriormirrorsin bodycolour,electricallyadjustable,aspheric ondriverside (heatedon 125i,135iand 123d) s s s s s s
Exteriorpartsin bodycolour (bumpers, bow doorhandles androof finishers) s s s s s s
Indicatorlights,white s s s s s s
Kidney grilleslats inBlack** s s - s s s
Kidney grilleslats inChrome** - - s - - -
Metallicpaintwork o o o o o o
Preparation for rear luggage rack (notavailable inconjunction withM sports package) o o - o o o
Shadow Line, high-gloss o o o o o o
Tailpipewith chrome trim (123dand 135iinblack chrome,125iand 135iwithtwin pipes) s s s - s s
Tow bar with removableball head,incl. trailerstability control o o - o o o
Equipmentpackages 120i 125i 135i 118d 120d 123d
Advantagepackage o o o o o o
Comfort package o o o o o o
Dynamics package o o - o o o
Exteriormirrorpackage includingfold-in function,heatedexterior mirrors, memory function(via PersonalProfile)
andautomaticparkingfunction o o o o o o
MAerodynamicspackage**with frontair damand rearspoilerspeciallydesigned forthe 135i - - s - - -
MSportspackage withsports suspension (alsowith standardsuspension) o o o o o o
Storagecompartment packageincl. storagecompartment inupper instrumentpanel (notavailable inconjunction
with navigationsystem),nets onfrontseat backrests, cupholder,12-Vsocket,storage neton rightwall ofluggage
compartment, two strapson luggagecompartmentfloorand two fold-downfasteningpoints
o o o o o o
1With runflat tyres. 3Only in conjunction with sports seats. * The availability of runflat tyres may vary by country.
2Not in conjunction with sports seats. ** May not be available in all countries.

sStandard equipment oOptional equipment -Not available
Wheels 120i 125i 135i 118d 120d 123d
Runflatindicator s s s s s s
Wheels withBMW MobilitySet s - - s s -
Wheels:
– Light-alloy wheels V-spoke 229, 6.5 J x 16", 195/55 R 16 tyres - - - s - -
– Light-alloy wheels V-spoke 229, 7 J x 16", 205/55 R 16 tyres o - - o o -
– Light-alloy wheels V-spoke 360, 7 J x 16", 205/55 R 16 tyres o - - o o -
– Light-alloy wheels double-spoke 222, 7 J x 16", 205/55 R 16 tyres* s - - o s -
– Light-alloy wheels V-spoke 141, 7 J x 17", 205/50 R 17 tyres1o o - o o s
– Light-alloy wheels star-spoke 256, 7 J x 17", 205/50 R 17 tyres1o s - o o o
– Light-alloy wheels star-spoke 142 with mixed tyres, front 7 J x 17" with 205/50 R 17 tyres,
rear 7.5 J x 17" with 225/45 R 17 tyres1o o - o o o
– Light-alloy wheels star-spoke 262 with mixed tyres, front 7 J x 17" with 205/50 R 17 tyres,
rear 7.5 J x 17" with 225/45 R 17 tyres1o o - o o o
– Light-alloy wheels star-spoke 264 with mixed tyres, front 7.5 J x 18" with 215/40 R 18 tyres,
rear 8.5 J x 18" with 245/35 R 18 tyres1o o s o o o
– Light-alloy wheels W-spoke 263 with mixed tyres, front 7.5 J x 18" with 215/40 R 18 tyres,
rear 8.5 J x 18" with 245/35 R 18 tyres1o o o o o o
– M light-alloy wheels double-spoke 207 M with mixed tyres, front 7 J x 17" with 205/50 R 17 tyres,
rear 7.5 J x 17" with 225/45 R 17 tyres1(onlyavailable inconjunction withM sports package) o o - o o o
– M light-alloy wheels double-spoke 261 M with mixed tyres, front 7.5 J x 18" with 215/40 R18 tyres,
rear 8.5 J x 18" with 245/35 R18 tyres1(onlyavailablein conjunction withM sports package) o o o o o o
Interiordesign 120i 125i 135i 118d 120d 123d
Doorsill finishers, chrome-plated o s s o - s
Instrument panel, with round speedometer and rev counter displays, as well as fuel gauge and on-board computer display - s s - s s
Interiortrims:
– Satin Silver, matt** s s - s s s
–Black, high-gloss** o o o o o o
–Cashmere Silver o o o o o o
–Brushed Aluminiumwith accentline o o s o o o
–Fine-woodtrimBurr Walnut,light o o o o o o
–Fine-woodtrimPoplar Grain,grey o o o o o o
RooflinerAnthracite o o o o o o
Upholstery:
– ClothElektra2s - - s s -
– Cloth Network o s s o o s
– Pearlpoint upholstery with cloth/leather3o o o o o o
–Boston leather o o o o o o
Transmissionandtechnology 120i 125i 135i 118d 120d 123d
4-cylinder diesel engine with 4-valve technology - - - s s -
4-cylinder in-line petrolengine with 4-valve technology s - - - - -
6-cylinder in-line petrol engine with 4-valve technology - s s - - -
BMW TwinPowerTurbo4-cylinder diesel engine with 4-valve technology - - - - - s
BMW TwinPowerTurbo6-cylinder in-line petrolengine with 4-valve technology - - s - - -
6-speed manualtransmission s s - s s s
6-speed automatictransmissionSteptronic withgearshift paddleson steeringwheel andsports suspension - - o - - -
6-speed automatictransmissionSteptronic o o - o o o
7-speedsports automatictransmission withdouble clutch,incl.gearshift paddleson thesteering wheel - - o - - -
Activesteering,incl. Servotronic - o o - - -
AutoStart/Stopfunction, onlyin conjunction withmanual transmission s - - s s s
BrakeEnergyRegeneration s s s s s s
CommonRailTechnology - - - s s s
Dieselparticle filter - - - s s s
Foran explanation on the footnotes see the previous page.

sStandard equipment oOptional equipment -Not available
Transmissionandtechnology 120i 125i 135i 118d 120d 123d
Double-jointspring strutfrontaxleand multi-armrearaxle s s s s s s
Double-VANOS s s s - - -
Emissionsstandard:EU5 s s s s s s
Fuel sensor for diesel models - - - s s s
HighPrecisionInjection s - s - - -
MSportssuspension, lowered by 15 mm o o s o o o
Optimum Shift Indicator, only in conjunction with 6-speed manual transmission s s s s s s
Power steering s s s s s s
Servotronic o o - o o o
TwinPowerTurbo - - - - - s
Valvetronic - s s - - -
Driverassistance 120i 125i 135i 118d 120d 123d
Cruise Control o o o o o o
Park Distance Control (PDC), rear o o o o o o
Park Distance Control (PDC), front and rear o o o o o o
Light and sight 120i 125i 135i 118d 120d 123d
AdaptiveHeadlights withvariable lightdistribution,incl. turninglights o o o o o o
Fog lights, incl. heated exterior mirrors and heated windscreen washer jets o s - o o s
Headlightwashing system o o o o o o
High-beamassistant (onlyin conjunction withXenon Headlights,rain sensorand interiormirror withautomatic anti-
glarefunction) o o o o o o
Interiorandexterior mirrorswithautomatic anti-glarefunction, exterior mirroraspheric ondriverside, incl.contentof
exterior mirrorpackage o o o o o o
Lightspackage, withvicinity lights integratedinthe doorhandles,ambient lighting, readinglights frontand rear,foot-
wellillumination atthe front,and illuminatedvanity mirrors fordriver andfront passenger o o o o o o
Rainsensor,incl. automaticdrivinglight control o o o o o o
Rearlightswith LEDtechnology s s s s s s
Sunprotection glazing o o o o o o
Xenon Headlights for high and low beam, incl. daytime driving lights, fourlight rings and automatic headlightrange control o o o o o o
Interiorfeatures 120i 125i 135i 118d 120d 123d
Airconditioning,incl. microfilter o s s o o s
Automaticair conditioning,incl. AAR,microfilter,fogging andsolar sensorsand ALLbuttonwith separatetempera-
tureadjustment fordriver andfront passenger o o o o o o
Steeringwheels:
– Gearshift paddles on sports leathersteering wheel/M leather steering wheel (onlyin conjunction with automatic transmissi ons)
- o o - - o
–M leathersteering wheel o o o o o o
–Multifunction buttonsfor sports leathersteeringwheel/M leathersteeringwheel o o o o o o
–Sports leathersteering wheel o s s o o s
–Standard steeringwheel s - - s s -
–Steering wheelheating forsportsleather steeringwheelwith multifunction o o o o o o
Seats/seatcomfort:
–Four-seatoption,incl. storagecompartmentin therear s s s s s s
–Height adjustmentfor driverand frontpassengerseats s s s s s s
–Lumbar support fordriver andfront passengerseats, electric o o o o o o
–Rear seatbackrest, foldable,60/40split s s s s s s

sStandard equipment oOptional equipment -Not available
Interiorfeatures 120i 125i 135i 118d 120d 123d
Seats/seatcomfort:
–Seat heatingfor driver andfront passenger seats o o o o o o
–Seat adjustment,electric, withmemory functionfor driver’sseat o o o o o o
–Sportseats fordriverand frontpassenger,with electric backrestwidthadjustment o o s o o o
–Standard seat,manualseat adjustment s s - s s s
Comfortandinteriorequipment 120i 125i 135i 118d 120d 123d
Alarmsystemwithradio remotecontrol o o o o o o
Armrest atfront, foldable with integrated storage compartment o o o o o o
Comfortaccess system o o o o o o
Cupholders, mountable o o o o o o
Glass sliding/vent roof, electric, with comfort opening function via car key o o o o o o
Glovecompartment,illuminated s s s s s s
Greyshadeband onwindscreen o o o o o o
Interior mirror with automatic anti-glare function o o o o o o
Linedluggage compartment, 370-litrecapacity s s s s s s
PersonalProfile, personalisingimportantuser functions s s s s s s
Radioremotecontrolfor centrallocking s s s s s s
Ski bag, modular withinterchangeable frame o o o o o o
Storage compartment in the instrument panel bottom left and in the doors s s s s s s
Windowlifts, electric, withone-touch open/closefingertip controland traprelease s s s s s s
Entertainment,communicationandinformation 120i 125i 135i 118d 120d 123d
BMWConnectedDrive– TelematicsServices:*
–BMWAssist o o o o o o
–BMW Online o o o o o o
Navigationsystem Businessincl. radioProfessional, CDdrive,iDrive Controllerwith directmenu controlbuttons,
eight functional bookmarks, fixed 6.5-inch display with map or combined arrow and map display o o o o o o
Navigationsystem Business*with integratedmobilephone preparationBluetooth,incl. BMWAssist* and
BMW Online* o o o o o o
Navigationsystem Professional* with high-resolution and fixed 8.8" colour display, DVD drive, eight functional
bookmarks, 3Dmap andarrow display,as wellas bird’s-eyeview, integratedhard discdrivefor mapsand audiodata,
including radioProfessional,iDriveControllerwithdirect menu controlbuttons
o o o o o o
Navigationsystem Professional*with integratedmobile phonepreparation Bluetooth,incl. BMWAssist* and
BMW Online* o o o o o o
On-board computer, incl. Check/Control s s s s s s
Radio/audio:
–AUX-IN connection,incl. 12-Vsocket s s s s s s
– CD changer in the luggage compartment incl. MP3 decoder, holds up to six CDs o o o o o o
–DAB tuner(onlyin conjunction withradio Professionalor navigation system) o o o o o o
–harman/kardonSurround Sound System o o o o o o
–HiFi loudspeakersystem o o o o o o
–Radio Business CD s s s s s s
–Radio Professional o o o o o o
–USB/audiointerface (for external MP3 players, upgradeable to comfort access for a mobile phone music player o o o o o o
Rearwindow aerial** s s s s s s
Telephone:
–Mobile phonepreparationBusiness with Bluetoothinterface,incl. BMWAssist* o o o o o o
–Mobile phonepreparation withBluetooth interface o o o o o o
Voicecontrolsystem o o o o o o
* Notavailable inall countries. Pleaseconsult yourBMWpartner.
** Additional roof antennain conjunction with navigation system*,mobile phonepreparation and DABtuner.
