BODEGA YC-408A User manual

INSTRUCTION MANUAL
COMPRESSOR WINE COOLER
MODEL:YC-408A/YC-510A
115V 60Hz 150W
This manual contains important information including safety and installation instructions of the
appliances. Please read it carefully before use and follow all safety information & instructions.
It is recommended to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.

CONTENTS
IMPORTANT SAFE INFORMATION
3
PARTS BREAKDOWN
5
INSTALLATION INSTRUCTIONS
6
Before the first use
6
Installation of your wine cooler
7
Electrical connection
7
Extension cord
8
Power bar with surge protector
8
Installing stainless steel handle
8
OPERATING YOUR WINE COOLER
9
Recommended temperature settings
9
Storage
10
Door lock
12
Cleaning your wine cooler
12
Shelves
12
Power failure
13
Moving your wine cooler
13
Energy saving tips
13
Charcoal filtration system
13
TROUBLESHOOTING GUIDE
14-15
TECHNICAL DATA
16
WARRANTY
16-17

3
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precaution,
including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an
adapter, and do not use an extension cord.
Replace all panels before operating.
It is recommended that a separate circuit, serving only your appliance be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapour and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power
line of the unit is disconnected.
Do not connect or disconnect the electric plug when your hands are wet.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this material. All other servicing should be referred to a qualified
technician.
Use two or more people to move and install appliance. Failure to do so can result in
back or other injury.
To ensure proper ventilation for your appliance, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 16°C (60°F) and
below 32°C (90°F). This unit must be installed in an area protected from the element,
such as wind, rain, water spray or drips.
IMPORTANT SAFETY INFORMATION

4
The appliance should not be located next to ovens, grills or other sources of high heat.
The appliance must be installed with all electrical, water and drain connections in
accordance with state and local codes. A standard electrical supply (115V/60Hz),
properly grounded in accordance with the National Electrical Code and local codes and
ordinances is required.
Do not kink or pinch the power supply cord of appliance.
The fuse (or circuit breaker) size should be 13 amperes.
It is important for the appliance to be leveled in order to work properly. You may need
to make several adjustments to level it.
Never allow children to operate, play with or crawl inside the appliance.
Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners
may damage or discolour the interior.
Do not use this apparatus for other than its intended purpose.
When positioning the appliance, ensure the supply cord is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
Read all instructions before using the wine chiller.
DANGER or WARNING: Risk of child entrapment. Child entrapment and suffocation
are not problems of the past. Junked or abandoned appliances are still dangerous.
Before you throw away your old wine chiller, take off the door but leave the shelves in
place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire
hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of
this or any other appliance. The fumes can create a fire hazard or explosion.
The symbol is a warning symbol for risk of fire/flammable material.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained

5
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.

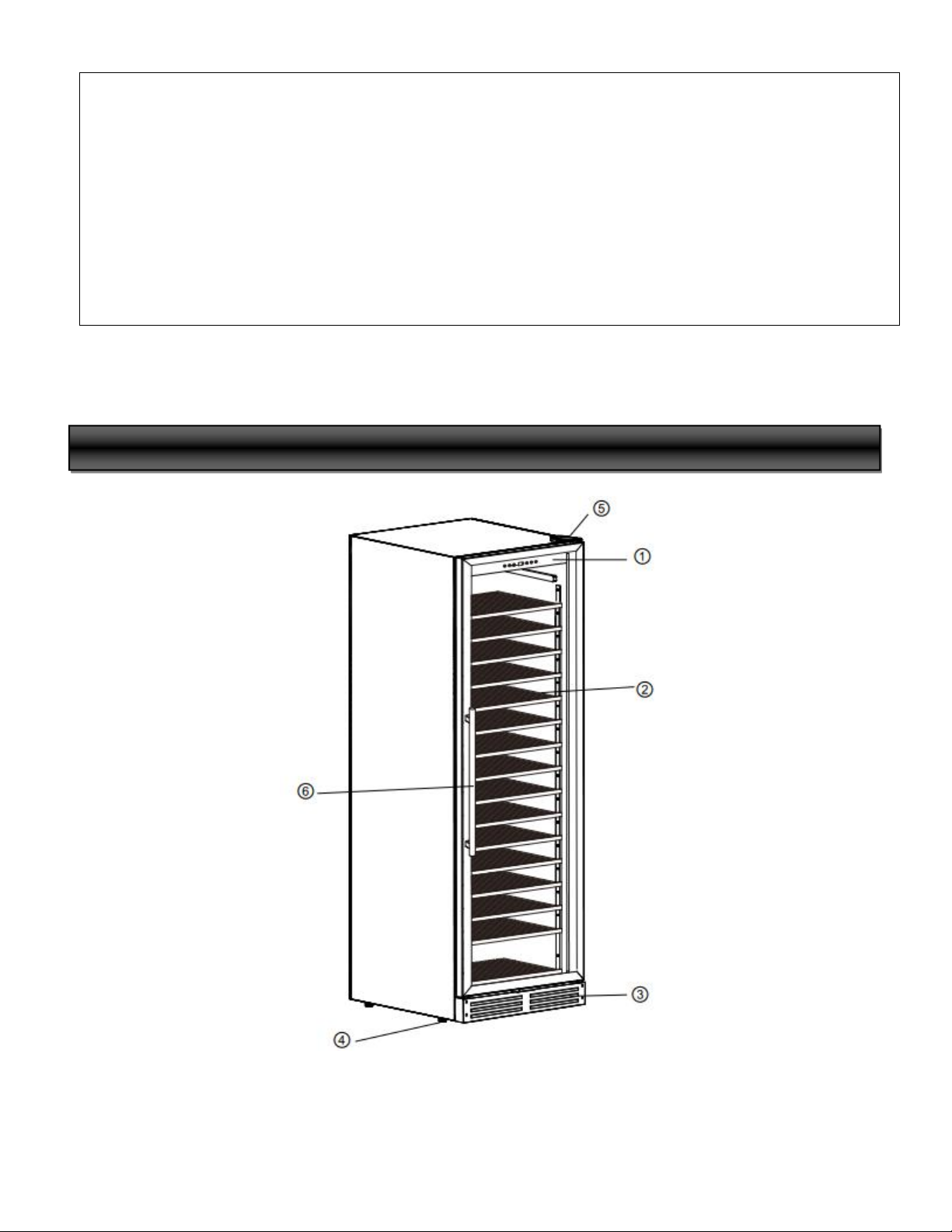

PARTS BREAKDOWN

6
1
Control Panel
5
Top Hinge
2
Wooden Shelves
6
Glass Door with Handle
3
Kick plate
7
Safety Child Lock
4
Leveling Legs
Before the first use
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
oshelves
o2 Keys
INSTALLATION INSTRUCTIONS

7
oStainless Steel Handle
oInstruction Manual
Before connecting the Wine cooler to the power source, let it stand upright for approximately
48 hours. This will reduce the possibility of a malfunction in the cooling system from
handling during transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle on the left side of the door.
Installation of your wine cooler
This appliance is designed to be for free standing installation or flush mounted.
Place your wine cooler on a floor that is strong enough to support it when it is fully loaded.
To level your wine chiller, adjust the front leveling legs at the bottom of the wine chiller.
Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical
consumption. Extreme cold ambient temperatures may also cause the unit not to perform
properly.
Avoid locating the unit in moist areas.
Plug the Wine cooler into an exclusive, properly installed-grounded wall outlet. Do not under
any circumstances cut or remove the third (ground) prong from the power cord. Any
questions concerning power and/or grounding should be directed toward a certified
electrician or an authorized Products service center.
Electrical connection
Warning: Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance
is equipped with a three-prong plug which mates with standard three prong wall outlets to
minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the power cord
supplied. For personal safety, this appliance must be properly grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with three-prong. Have
the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly
grounded. When a standard 2-prong wall outlet is encountered, it is your responsibility and
obligation to have it replaced with a properly grounded
3-prong wall outlet. The cord should be secured behind the appliance and not left exposed or
dangling to prevent accidental injury.
The appliance should always be plugged into its own individual electrical outlet which has a

8
voltage rating that matches the rating label on the appliance. This provides the best
performance and also prevent overloading house wiring circuits that could cause a fire hazard
from overheated. Never unplug the appliance by pulling the power cord. Always grip the plug
firmly and pull straight out from the receptacle. Repair or replace immediately all power cords
that have become frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length or at either end. When moving the appliance, be careful not
to damage the power cord.
Extension cord
Because of potential safety hazards under certain conditions, it is strongly recommended that
you do not use an extension cord with this appliance. However, if you must use an extension
cord with this appliance, it must be operated by professionals.
Power bar with surge protection
Most electrical appliances use a series of electric control boards to operate. These boards are
very susceptible to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges /
outages; it is suggested that you use a power surge protector for all electrical devices /
appliances you use. The surge protector that you select must have a surge block high
enough to protect the appliance it is connected to. If you have any questions regarding the
type and size of surge protector needed contact a licensed electrician in your area.
Damages due to power surges are not considered a manufacturer covered defect and will void
your product warranty.
Installing the stainless steel handle
This wine cooler includes a stainless steel handle. To install the handle please follow the
below instructions:
1. Pull away the door gasket in the area where the handle is to be installed on the left side as
shown below in Illustration # 1. The gasket is easily displaced by hand, no tools are
necessary.
2. Align the handle with the screws installed. Tighten the screws using a Phillips head
screwdriver until the handle sets both flush and secured tightly against the door frame.
(DO NOT over tighten as this will cause damage to the handle assembly).
3. Replace the door gasket to its original position.

9
4. If you choose not to use the handle supplied, simply follow step 1 to access the installation
screws and remove them and then place the two decorative plugs into the two holes
separately. Continue on to step 3 to replace the door gasket to its original position.
Illustration # 1 Illustration # 2
It is recommended you install the wine cooler in a place where the ambient temperature is
between 19ºC-24ºC (66ºF-75ºF), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the unit may be affected.
For example, placing your unit in extreme cold or hot conditions may cause interior
temperatures to fluctuate.
Recommended temperature settings
Wine conservation: 12°C-14ºC (53°F-57ºF)
Rose and sparkling wines: 5°C-8ºC (41°F-46ºF)
Dry/white wines: 9°C-12ºC (48°F-53ºF)
Red wines: 14°C-18ºC (59°F-65ºF)
*Temperature ºC may varies between < + 2 ºC
1
.
Gasket
3
.
Phillips Head Screw Driver
2
.
Phillips Head Screw
4
.
Handle
OPERATING THE WINE COOLER

10
C
F
°
°
F / C
Temperature setting range：5-18℃(40-65℉)
Turns the interior light on or off
F
/ C
Toggles the temperature display between Celsius and Fahrenheit
Press to begin adjusting the temperature for upper or lower zone
Adjusts the temperature in 1 degree increments
Adjusts the temperature in 1 degree decrements
Press for 3 seconds to turn on /off the appliance
Storage

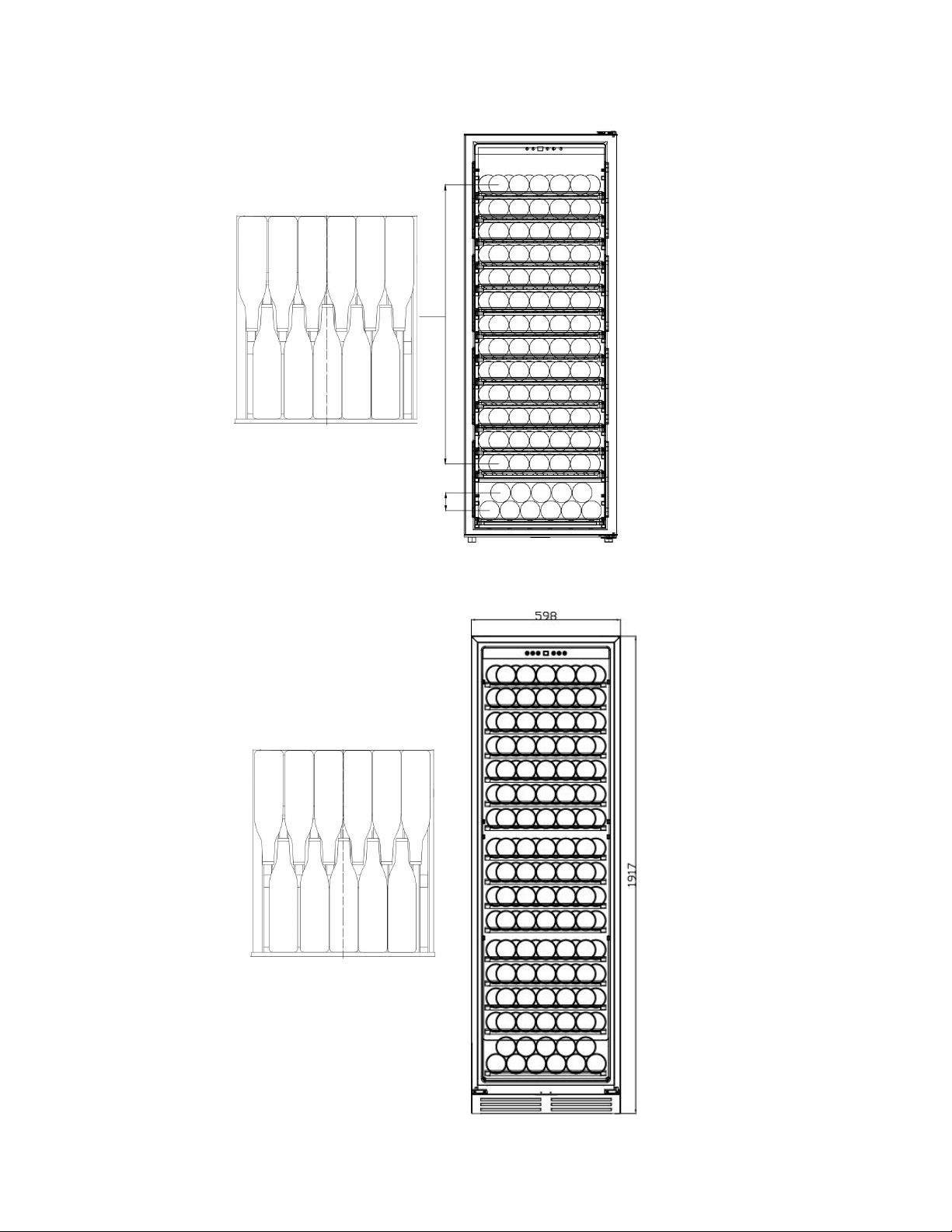

Many bottles may differ in size and dimensions. As such the actual number of bottles you may
be able to store may vary. The bottle capacity is based on standard Bordeaux bottles as
shown below.

11
Storage of YC-408A :154 standard 750ml bottles
Storage of YC-510A: 176 standard 750ml bottles
Shelf 1 to 13: 11 bottles per shelf
Bottom section: 11bottles
Shelf 1 to 15: 11 bottles per shelf
Bottom section: 11bottles

12
Door Lock
Your unit is provided with a lock and key. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it counter clockwise to
unlock the door. To lock the door do the reverse operation making sure metal pin is engaged
completely. Remove the key and place it in a secure place for safekeeping.
Cleaning your wine chiller
Turn off the power, unplug the appliance, and remove all items including shelves. Wash the
inside surfaces with a warm water and baking soda solution. The solution should be about 2
tablespoons of baking soda to 1 cup of water.
Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth
when cleaning area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry
with a clean soft
cloth. Do not use steel wool or steel brush on the stainless steel. These will contaminate the
stainless steel with steel particles and rusting may occur.
Shelves
This appliance is equipped with a telescopic runner assembly (except for the bottom shelf) and
you can move the wooden shelves out and in smoothly.
To prevent damaging the door gasket, make sure to have the door all the way opened when
pulling shelves out of the rail compartment. For easy access to the bottles, you must pull the
shelves approximately 1/3 out of the rail compartment.
To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat
screwdriver to press down the right plastic notch as shown in Figure A and at the same time lift
the left plastic notch as shown in Figure B. Then proceed to pull out the shelf slowly.

13
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of
your appliance if you minimize the number of times the door is opened. If the power is going to
be off for a longer period of time, you need to take the proper steps to protect your contents.
Moving your wine chiller
Remove all items (bottles)
Tape down securely all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. If you
absolutely need to transport the cooler horizontally, transport the cooler on its back (door on
top). Also protect outside of appliance with a blanket, or similar item.
Energy saving tips
The wine cooler should be located in the coolest area of the room, away from heat producing
appliances, and out of the direct sunlight.
Charcoal filtration system
Your wine is a living object that breathes through the cork of its bottle. In order to preserve
the quality and taste of your fine wines, they must be stored at the ideal temperature and
ambient conditions. Your cellar is equipped with an active charcoal filtration system to ensure
air purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine
wines. The filter assembly is located at the rear panel inside your cellar.
Keep in mind, that this filter must be changed every 12 months.
Figure A
Figure B

14

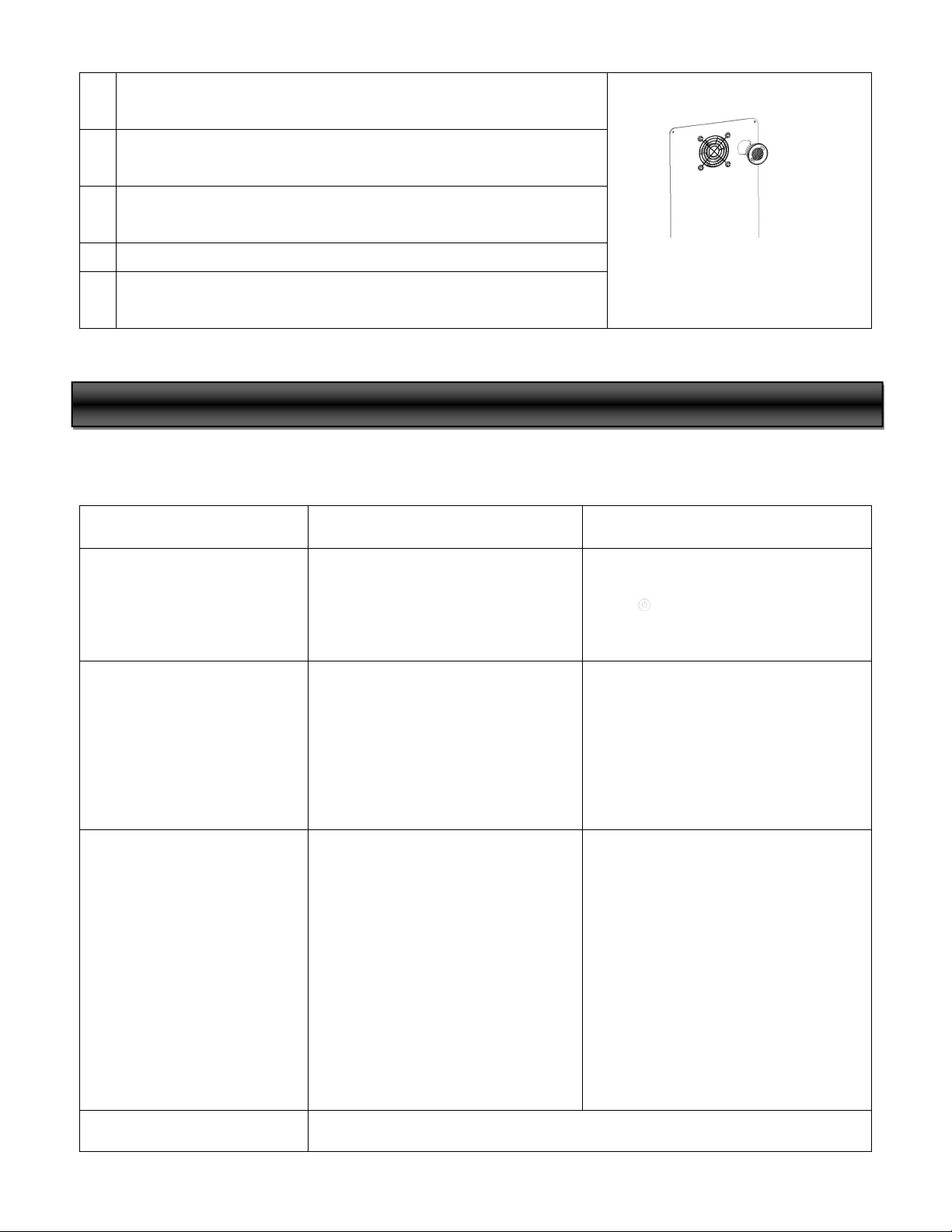

1
Remove the bottles of wine stored on the two (2) shelves in front of
the filter.
Turn Left to remove filter.
2
Remove the shelves and set aside to be replaced once you have
changed the filter
3
Hold the filter and turn it at 45 degrees in the counter-clockwise
direction and then pull it out.
4
Remove the existing filter and replace with a new one.
5
Put the new filter into the hole and then turn the filter at 45 degrees in
clockwise direction.
You can solve many common wine cooler problems easily, saving you the cost of a possible
service call. Try the suggestions below to see if you can solve the problem before calling the
servicer.
PROBLEM
POSSIBLE CAUSE
SOLUTION
Cooler does not operate.
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a
blown fuse.
Plug the unit.
Press to turn on the unit.
Check the breaker and/or fuses.
Cooler is not cold enough.
External environment may require
a higher setting.
The door is opened too often.
The door is not closed completely.
The door gasket does not seal
properly.
Check the temperature control
setting.
Close the door properly.
Check the door gasket.
The compressor turns on
and off frequently.
The room temperature is hotter
than normal.
A large amount of contents has
been added to the chiller.
The door is opened too often.
The door is not closed completely.
The temperature control is not set
correctly.
The door gasket does not seal
properly.
Close the door properly.
Check the door gasket.
The fans turn on and off
frequently.
In order to circulate the air and maintain the set temperature inside the
cabinet the fans must cycle on and off even when the compressor is off. The
TROUBLESHOOTING

15
fans will cycle ON and OFF while the compressor is off approximately every
10 seconds, this is called “Semi-speed status”. This cycle is normal and
meant both to circulate the air as well as ensure the continued operational
status of the fans. If the fan stops completely and does not complete this
cycle the fan is non-operational.
The light does not work.
Not plugged in.
The circuit breaker tripped or a
blown fuse.
The light button is “OFF”.
Plug the unit.
Check the breaker and/or fuses.
Vibrations.
The cooler is not leveled
The bottles are vibrating.
There is an object under the
chiller.
Check to assure that the cooleris
level.
Make sure the bottles don’t touch
each others.
Remove the object.
The cooler seems to make
too much noise.
The cooler is not level.
Level the chiller.
The rattling noise may come from
the flow of the refrigerant, which is
normal. As each cycle ends, you
may hear gurgling sounds caused by
the flow of refrigerant in your chiller.
Contraction and expansion of the
inside walls may cause popping and
crackling noises.
The door will not close
properly.
The cooler is not level.
The door was reversed and not
properly installed.
The gasket is dirty.
The shelves are out of position.
Level the chiller.
Close the door properly.
Clean the door gasket.
Place the shelves properly.
Error Code:
E1-E2-E3-
E4-E7-E8
A sensor has failed.
Contact us for a service call.

16
Model YC-408A YC-510A
Total Volume 14.4Cu.Ft. 18Cu.Ft.
Power 115V 60Hz 115V 60Hz
Amps 1.6A 1.6A
Start-Up Amps 10A 10A
Power Input 150W 150W
Pressure High Side 105 PSI 105 PSI
Pressure Low Side 55 PSI 55 PSI
Refrigerant R600a R600a
Amount 1.41 oz. 1.83 oz.
Dimensions(HxWxD) 63"×23.54"×27.17" 76.78"×23.54"×27.17"
WARRANTY
TECHNICAL DATA
Thank you for choosing BODEGA product. We sincerely hope that you are satisfied
with it.
The manufacturer's warranty covers the product for a period of 12 months from the
date of purchase against manufacturing faults. All warranties are automatically kept
track of in our system, so there is no need to register your product.
Agent/Distributor is welcome to contact us. Email:[e-mail].
Any help or questions during use, please contact us via website
www.bodegacooler.com, send email to [e-mail], or scan our related
QR Codes herein for quick service, we will service you within 24 hours. We suggest to
provide a warranty card, a photo or a video if there’s broken spare part or not working
machine so that we can be much more clear about your problems and offer you the
best solution.
