Body Clock Stimplus Pro User manual

Body Clock Stimplus Pro
Instructions for use
TM
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 1

Contents Page no.
Introduction ..........................................................................................2
Body Clock Stimplus Pro unique features ..............................................2
How to use your Body Clock Stimplus Pro ............................................3
How to achieve best results ..................................................................5
How it works ..........................................................................................8
Body Clock Stimplus Pro controls and indicators ..................................9
ey to acupuncture charts ....................................................................10

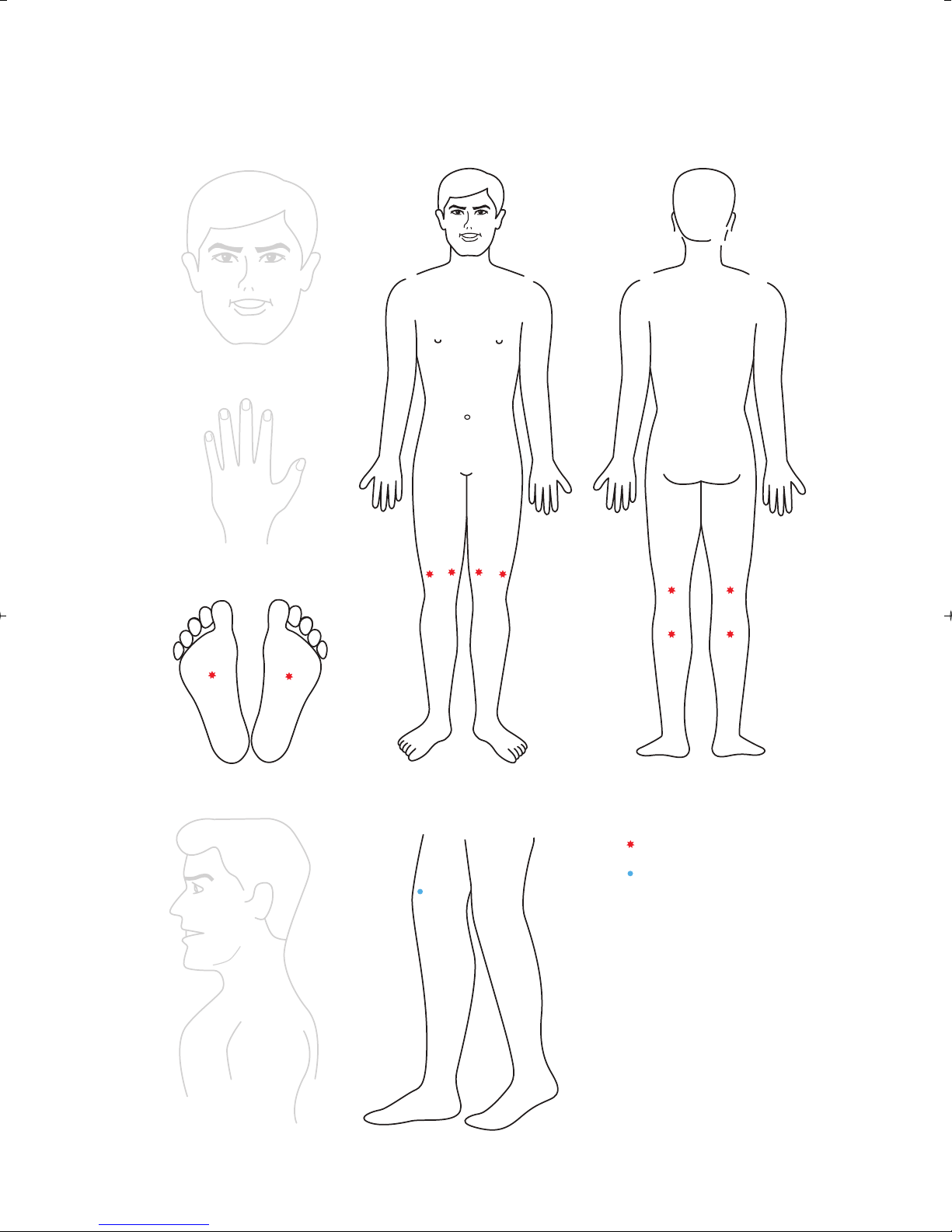

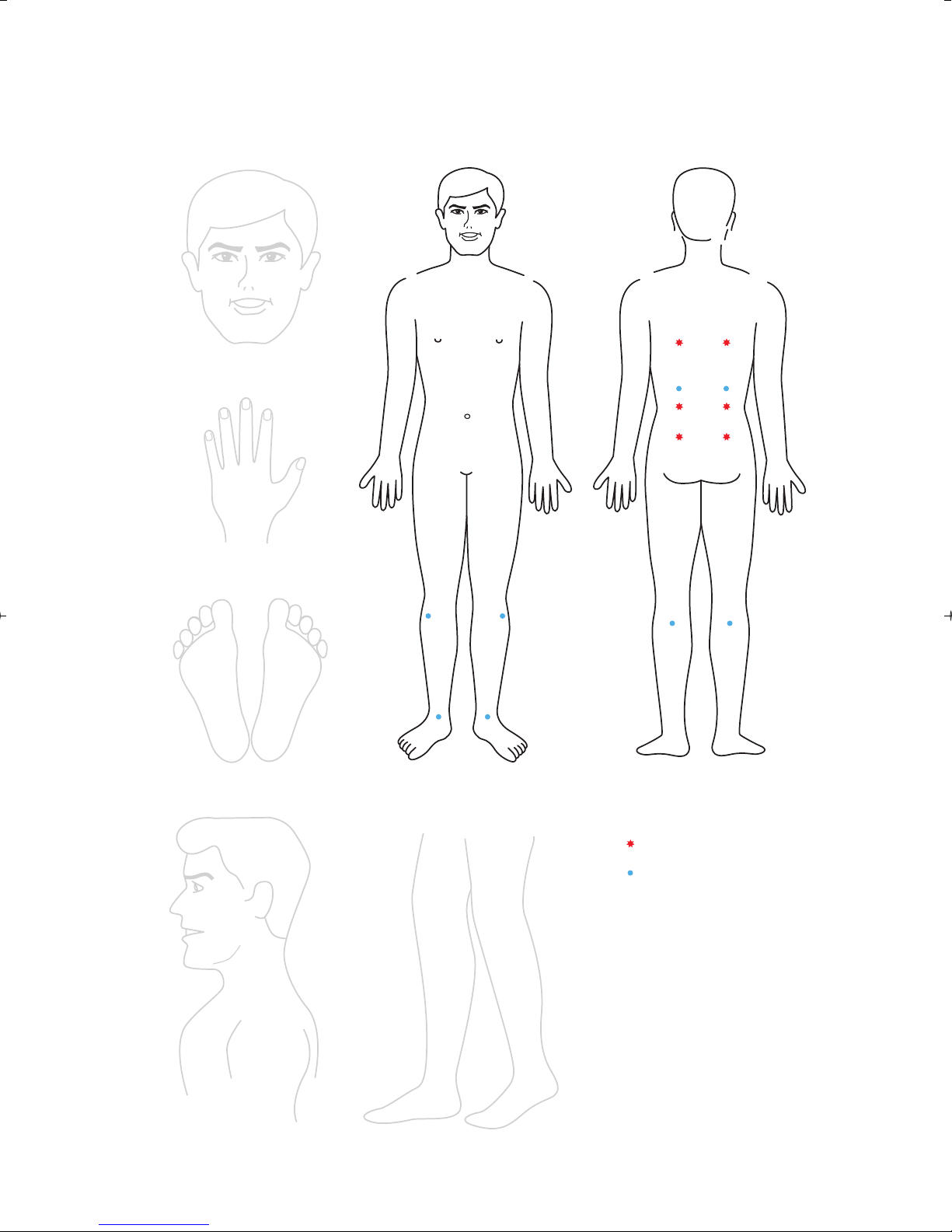

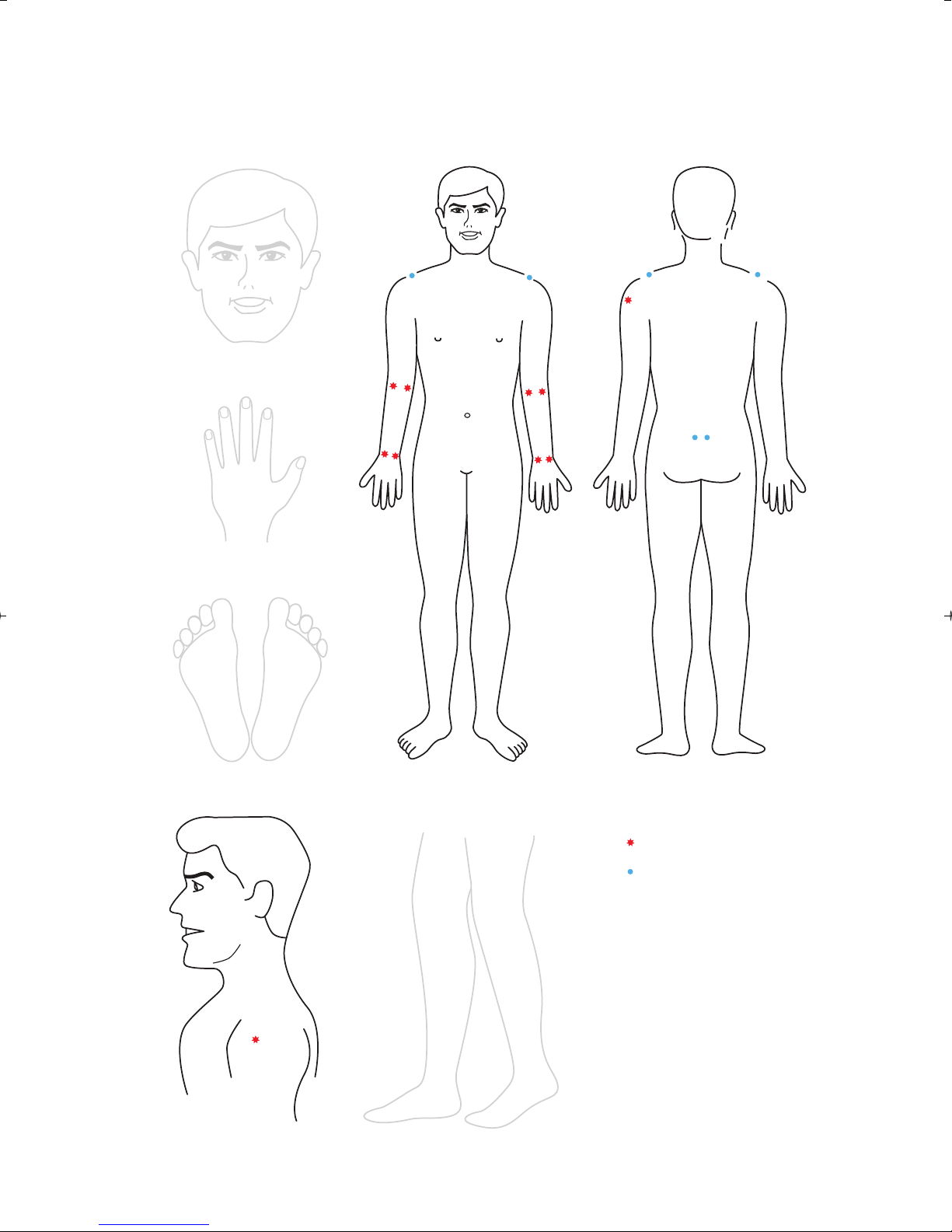

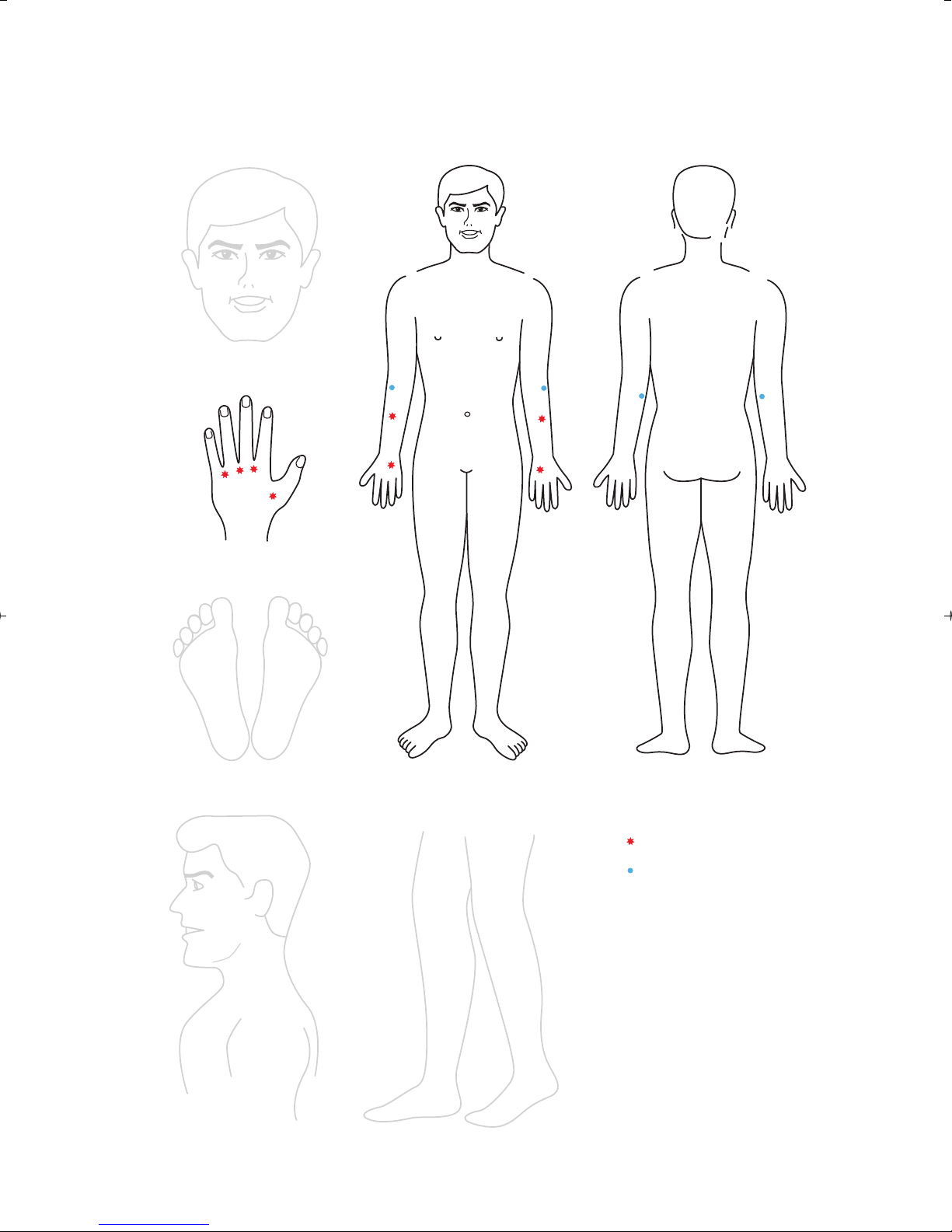

Acupuncture charts ..............................................................................11
Technical data......................................................................................26
Routine maintenance ..........................................................................27
General precautions and safety ..........................................................27
Contraindications and warnings ....................................................28-30
Electromagnetic Emissions Information ..............................................31
Acupuncture is an ancient Chinese therapy in which specific
points on the ody, known as acupuncture points (acupoints)
are stimulated y the use of needles. Each acupoint is related
to a different organ of the ody and when this is stimulated
the organ’s function can e improved.
Guarantee
Your Stimplus Pro machine is guaranteed for a period of
2 years against manufacturer’s defects.
Please record purchase details in the space provided below
for your record purposes.
Excludes earphones, wrist strap, precision tip and batteries.
Applies to purchases only.
Date of purchase:
Invoice number:
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 2

1
Warning instruction indicating
a risk of injury or damage to
ealt
Important safety note
indicating possible
damage to t e accessories
Note on important information
Equipment providing a
particular degree of
protection against electric
s ock particularly regarding
allowable leakage currents
aving an F type (floating)
applied part.
Caution!
Read t e instructions and
refer to p27
Please keep device away from
sprays of water or rain.
Denotes a product w ic must
be disposed of safely and
s ould not be disposed of
wit unsorted municipal
waste (for EU only).
T is symbol indicates t e
serial number of t e device
and includes t e mont and
year of manufacture and can
be found on t e back of t e
unit.
T e first number 2:
Protected against access to
azardous parts wit a finger,
and t e jointed test finger of
12 mmФ, 80 mm lengt , s all
ave adequate clearance from
azardous parts, and
protected against solid
foreign objects of 12.5 mmФ
and greater.
T e second number 2:
Protected against vertically
falling water drops w en
enclosure tilted up to 15˚.
Vertically falling drops s all
ave no armful effects w en
t e enclosure is tilted at any
angle up to 15˚ on eit er side
of t e vertical.
The following symbols appear in these instr ctions:-
The following symbols are sed on the device:-
SN
Warning sym ols
IP22
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 1

2
Introduction
The Body Clock Stimplus Pro is a safe, hi-tech, battery operated
electronic substitute for acupuncture, without the use of needles.
It can detect acupoints and then indicate them by means of
audio and visual signals after which it can treat them with a
choice of three pre-set electronic frequencies (or rhythms).
Intensity is adjustable at any time to ensure maximum comfort.
The Body Clock Stimplus Pro can reduce pain, is user friendly
and ideal for personal or professional use.
Unique Features
• Audio and visual (LED) acupoint detection indicators
• Audio and visual (LED) intensity indicator
• Intensity levels indicated by 6 LEDs
• 3 choices of stimulation rhythm
• Optional timer to select treatment duration
• Stimulation of acupoints with micro current therapy
• Differential amplifier
• Safe to use
• Precise micro computer
controlled
• Ergonomic design
• Compact, light, and user
friendly
• Can be used by patient
or professional with
added wrist strap
• Free precision extension tip
Packing List:
Main unit
Lithium batteries x 2
(CR2032)
Instructions for use
Earphone jack
Extension precision tip
Wrist strap
Protective pouch
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 2

3
How to use your Body Clock Stimplus Pro
1. Turn on the power switch by sliding it to the left. The device
is now in the SEARCH mode which is indicated by a beeping
sound with a low pitch.
2. To start searching for an acupoint you should hold the Body
Clock Stimplus Pro as you would a pen with the web of your
hand in contact with the passive contact plate. See diagram
on page 5. Simply move the tip over the area where the
acupoint is located, keeping an even pressure on the tip.
3. The acupoint will then be indicated to you by one of two
ways, either by sound or visually by means of the row of
LEDS on the top of the unit.
Sound – the pitch emitted by the unit rises the nearer the
tip is to an acupoint and it drops again if you move the tip
away from the point. You will know you have located a point
when the pitch is at its highest.
Visually – the proximity of an acupoint is indicated by the
number of LEDs which are alight. When three or more LEDs
are alight, the tip is very close to a point. If all the LEDs are
lit up, the tip is over a point.
4. Please Note If the skin is very dry we recommend you use
a moisturising gel to optimize acupoint detection.
5. Once the desired point is detected, you are ready to start
stimulation. Select your preferred stimulation time by using
the time selector. Choose either 15 or 30 seconds (see
controls and indicators – page 9), or if preferred, you can
select Manual (Man) which will enable you to stimulate for
as long as you choose. If you have selected a pre-set
stimulation time, just press the stimulation button briefly
and release. The device will stop stimulating as soon as the
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 3

4
time is over. If you have selected the manual setting,
the device will stimulate only for as long as you press the
stimulation button.
6. The intensity level is reset to minimum each time the unit is
switched off and on again. While in search mode you can
see the previous intensity setting by pressing the intensity
button, after which, the previous intensity setting will
appear for five seconds in the 6 LED bar, thereby allowing
the user to decrease or increase the previous intensity level
prior to starting the stimulation mode.
7. You may select one of three rhythms; 5 Hz, 10 Hz or 20 Hz
i.e. whichever provides the best comfort and this can vary
between different areas of the body.
8. As soon as stimulation begins the beeping sound stops and
the green light on the top of the unit flashes indicating
stimulation. Using the intensity control you can adjust the
intensity to a comfortable level by pressing either “+” or “-”
to increase or decrease intensity. The intensity level is also
indicated by the LED scale. If the LED nearest to the tip is
flashing the intensity is set at minimum. If the LED flashing
is furthest from the tip, the intensity is on maximum.
9. Once stimulation is over, the device switches back to the
search mode and the sound is audible again.
10. During stimulation you may feel the electric current at the
stimulation site. However when in search mode you will not
feel it.
11. You can use the ear piece to hear the audible signals from
the Body Clock Stimplus Pro by yourself, thereby avoiding
others having to listen to it if it is not convenient. The ear
piece consists of a lead with a jack plug at one end and the
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 4

earphone at the other end. To activate the ear piece,
insert the jack plug into the earphone jack. See diagram
on page 9. The ear piece is now ready for use.
12. A low battery indicator will flash when the batteries are
weak. See diagram on page 9. This means that you will have
to replace the batteries as soon as possible.
13. When you have finished using your Body Clock Stimplus Pro
do not forget to turn it off.
How to achieve est results from your
Body Clock Stimplus Pro
To ensure proper operation and to achieve best results,
please read the following information for guidance:-
1. When holding the unit, physical contact must be made
between the passive contact plate (-) and the web of
your hand.
2. The Body Clock Stimplus Pro
should be held by the
person being treated as the
passive contact plate (-) acts
as one part of the circuit, the
other being the probe (tip),
which is applied to the
relevant acupoint.
5
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 5

6
3. When treating another person
the operator or practitioner
should position the tip onto the
point(s) to be treated and
ensure that physical contact is
maintained between him/herself
and the person being treated in
order to complete the circuit.
4. As an alternative to 3 above,
you can use the wrist strap to
the same effect. The wrist strap
enables one person to treat
another without having to make
physical contact with their skin.
The wrist strap consists of a
lead with a bracelet attachment
at one end and a jack plug at the other. When the wrist strap
is to be used the jack plug should be inserted into the jack
socket on the underside of the device (see diagram on
page 9). The bracelet section should be worn by the patient.
5. A precision extension tip is also
provided, which can extend the
tip (+) to assist you where an
acupoint is difficult to reach.
This is simply placed over the
tip and is then ready for use.
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 6

6. Good skin care is important in minimizing any potential
skin irritation which could occur with active use of the tip.
Prepare the skin before using the Body Clock Stimplus Pro by:
(a) thoroughly washing the skin sites to be treated with a
mild soap and water solution to remove any non-conductive
skin oils;
(b) rinsing the area with warm water and drying thoroughly.
Electrode Placement (Gold Tip) - see page 6
For pain reduction, place the gold tip on or above the point
of pain.
7
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 7

8
How it works
The Body Clock Stimplus Pro can both SEARCH for acupoints and
STIMULATE them.
Search Mode: A very low current is utilised to measure the body’s
resistance and this information is converted by the device into
pitch variations – the lower the resistance, the higher the pitch.
Since stimulation points are characterised by low resistance,
they can be accurately detected in this way.
Stimulation Mode: Detected points are stimulated by means
of a pulsed electronic signal for selected lengths of time with
adjustable intensity.
During stimulation time the detection beeper sound is replaced
by a green flashing light, which indicates stimulation is taking
place. Three LED flashing light frequencies correspond to the
three stimulation frequencies (rhythms) selected by the user.
Once stimulation is over the device returns automatically to
search mode.
The stimulation signal from the Body Clock Stimplus Pro has a
unique waveform which has been found to be highly effective.
Intensity is controlled by the user and is able to reach a level
sufficient to effectively stimulate the body under most conditions.
WARNING: This device is not a replacement for medical
attention. Consult your doctor in any case of any undiagnosed
pain or illness before using the Body Clock Stimplus Pro.
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 8

9
15s
Man.30s
10Hz
5Hz
20Hz
StimplusPro
TM
‘Stim’ Indicator
Acupoint
Proximity and
Intensity
Indicator
Low Battery
Indicator
2.5mm
Earphone
Jack
‘Stim’ Switch Intensity
Switch
Rhythm
Switch
Tip (gold plate) Passive Contact
Plate (Passive
Electrode)
Time Selector
Switch
Jack Socket (Return Path)
Battery
Compartment
Power
Switch
Body Clock Stimplus Pro
controls and indicators
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 9

10
Some important acupuncture charts and conditions
The following charts indicate acupuncture points with red stars
and blue dots. The red stars indicate primary points and blue
dots indicate secondary and supporting points.
Area of pain Page no.
A. Pain in the arms or elbows 11
B. Pain in the hands 12
C. Pain in the legs 13
D. Pain in the shoulder 14
E. Pain in the neck 15
F. Toothache 16
G. Lower back pain 17
H. Headache, migraine 18
I. Menstrual pain 19
J. Nausea - motion sickness 20
. Insomnia 21
L. Sexual vitality 22
M. Stress 23
N. Smoking severance 24
O. Appetite suppression for weight control 25
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 10

11
A. Pain in the arms or el ows
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 11

12
B. Pain in the hands
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 12

13
C. Pain in the legs
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 13

14
D. Pain in the shoulder
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 14

15
E. Pain in the neck
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 15

16
F. Toothache
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 16

17
G. Lower ack pain
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 17

18
H. Headache, migraine
Primary points
Secondary and
supporting points
BodyclockStimplusProMa ual2016.qx8_Layout 1 10/08/2016 10:23 Page 18
