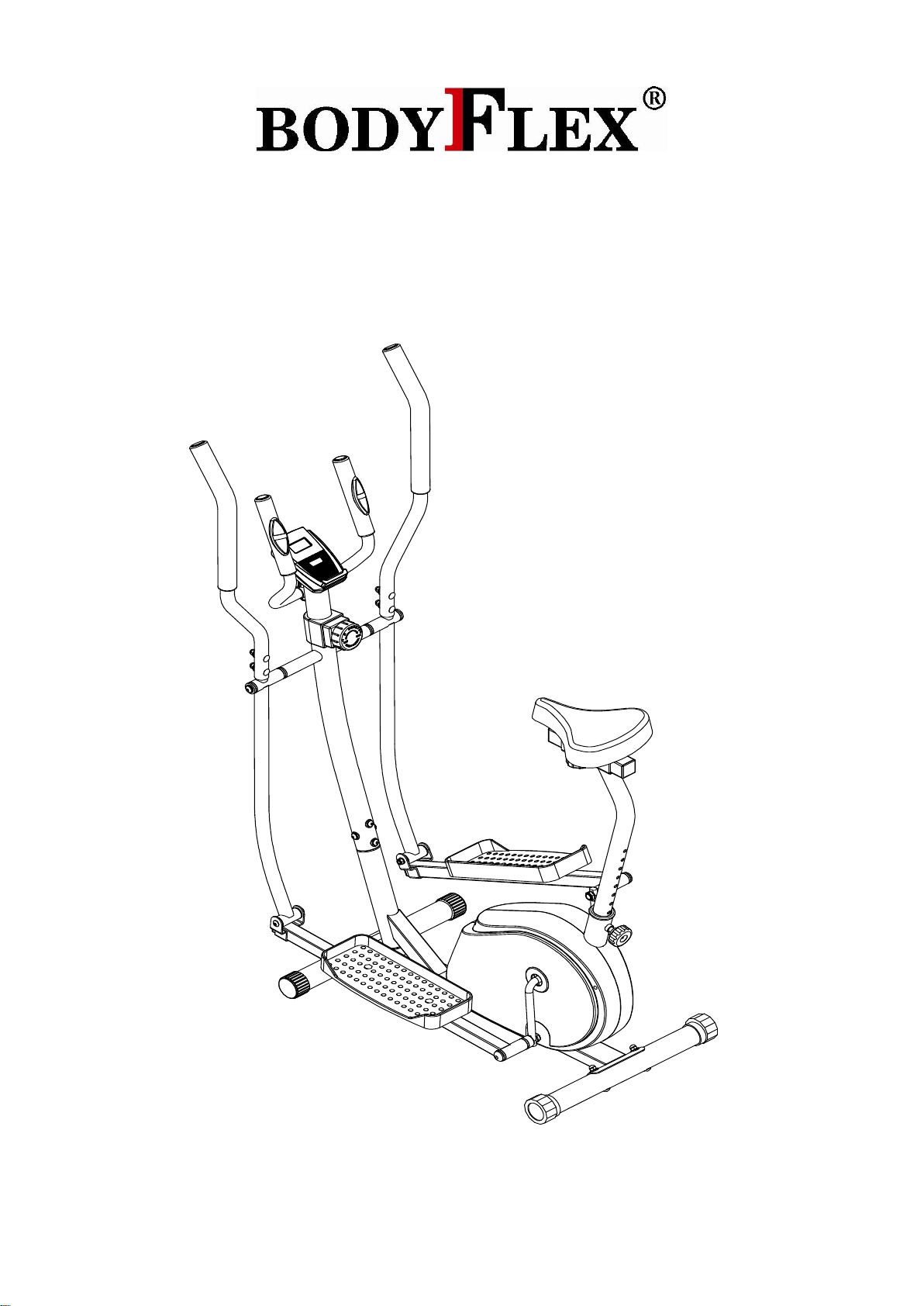

BODYFLEX Kent XS User manual

Crosstrainer 2in1 Kent XS
art. BF40HA1

Упътването на български вижте по-долу
I
Im mp po or rt ta an nt t S Sa af fe et ty y I In nf fo or rm ma at ti io on n
Please keep this manual in a safe place for reference.
1. It is important to read this entire manual before assembling and using the equipment. Safe and efficient use
can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to
ensure that all users of the equipment are informed of all warnings and precautions.
2. Before starting any exercise program you should consult your doctor to determine, if you have any physical or
health conditions that could create a risk to your health and safety, or prevent you from using the equipment
properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood
pressure or cholesterol level.
3. Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if
you experience any of the following symptoms: Pain, tightness in your chest, irregular heartbeat, extreme
shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you
should consult your doctor before continuing with your exercise program.
4. Keep children and pets away from the equipment. The equipment is designed for adult use only.
5. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. For safety
space, the equipment should have at least 0.5 meter of free space all around it.
6. Before using the equipment, check the handlebar, seat, pedals, and the nuts and bolts are securely tightened.
7. The safety level of the equipment can only be maintained if it is regularly examined for damage and/or wear
and tear. (E.g. handle bar, pedals, and seat…..)
8. Replace defective components immediately and keep the equipment out of use until repair.
9. Pay attention to check the connection point and gearing parts before use to prevent danger.
10. Warning that the equipment shall be installed on a stable base and properly leveled. Always use the
equipment as indicated. If you find any defective components while assembling or checking the equipment,
or if you hear any unusual noise coming from the equipment during use, stop. Do not use the equipment until
the problem has been rectified.
11. Wear suitable clothing while using the equipment. Avoid wearing loose clothing which may get caught in the
equipment or that may restrict or prevent movement.
12. The equipment has been tested and certified to EN957 under class H.C, suitable for domestic, home use only.
Maximum weight of user: 100kg/225lbs. Braking is speed independent.
13. The equipment is not suitable for therapeutic use.
14. Care must be taken when lifting or moving the equipment so as not to injure your back. Always use proper
lifting techniques and/or use assistance.

ASSEMBLIBG
R
L
AA
R
L
X1 X1 R/L
X1 X1 X1 X2
R/L X1 X1
AX4
CXR/L X1
X2
GX1
X1
X1
BX4
DX4
EX4
FX2
X1
X1 X1

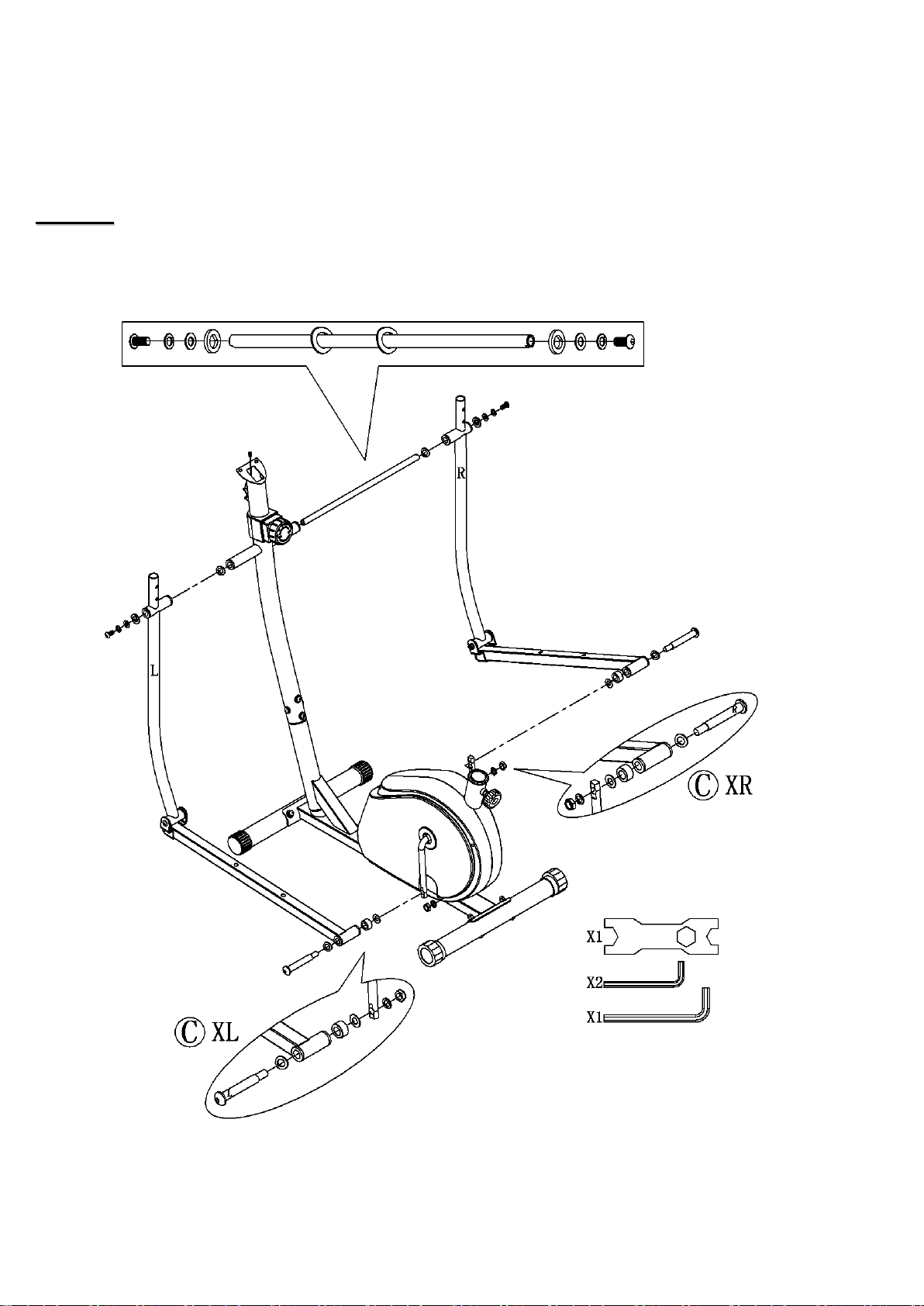

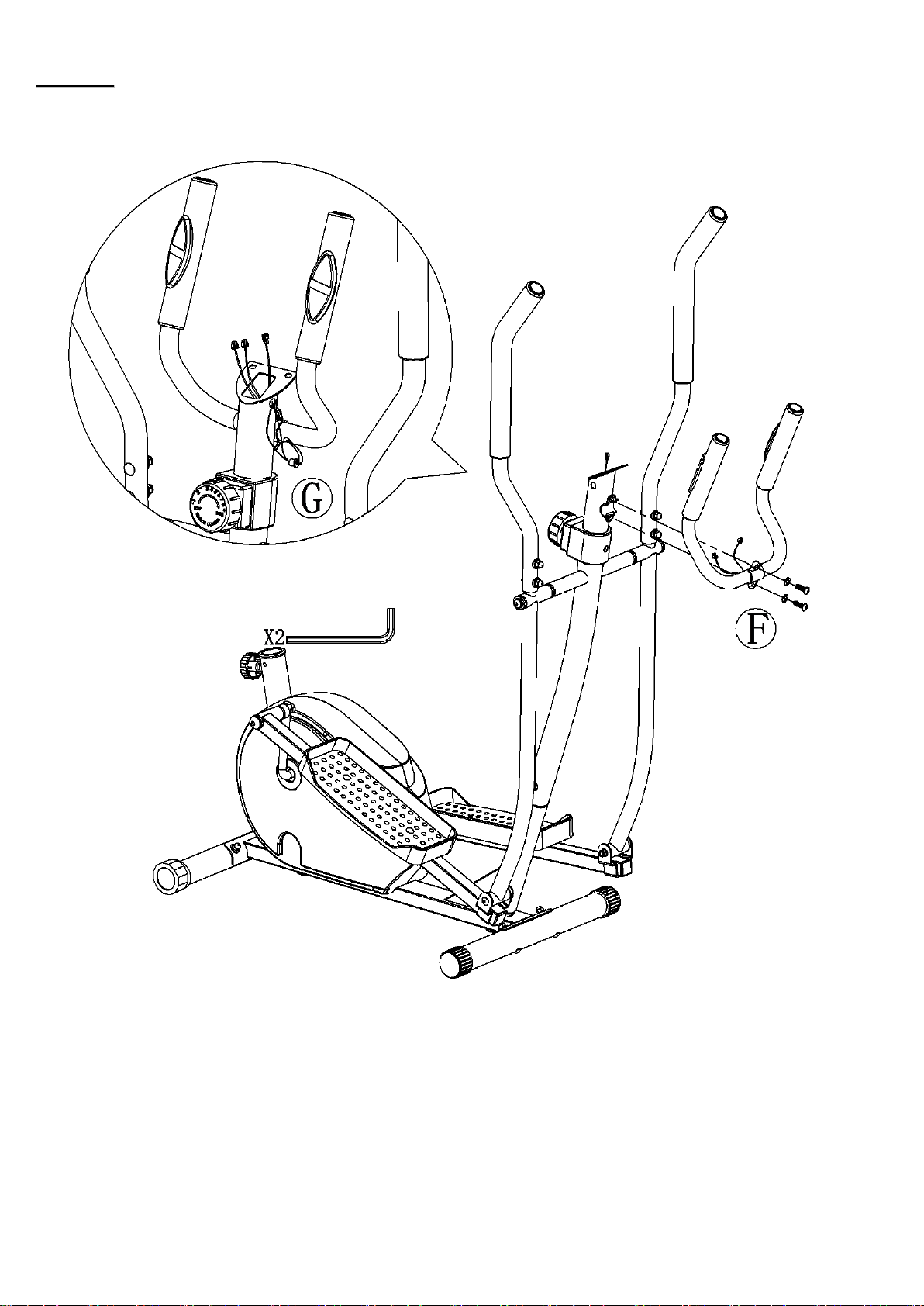

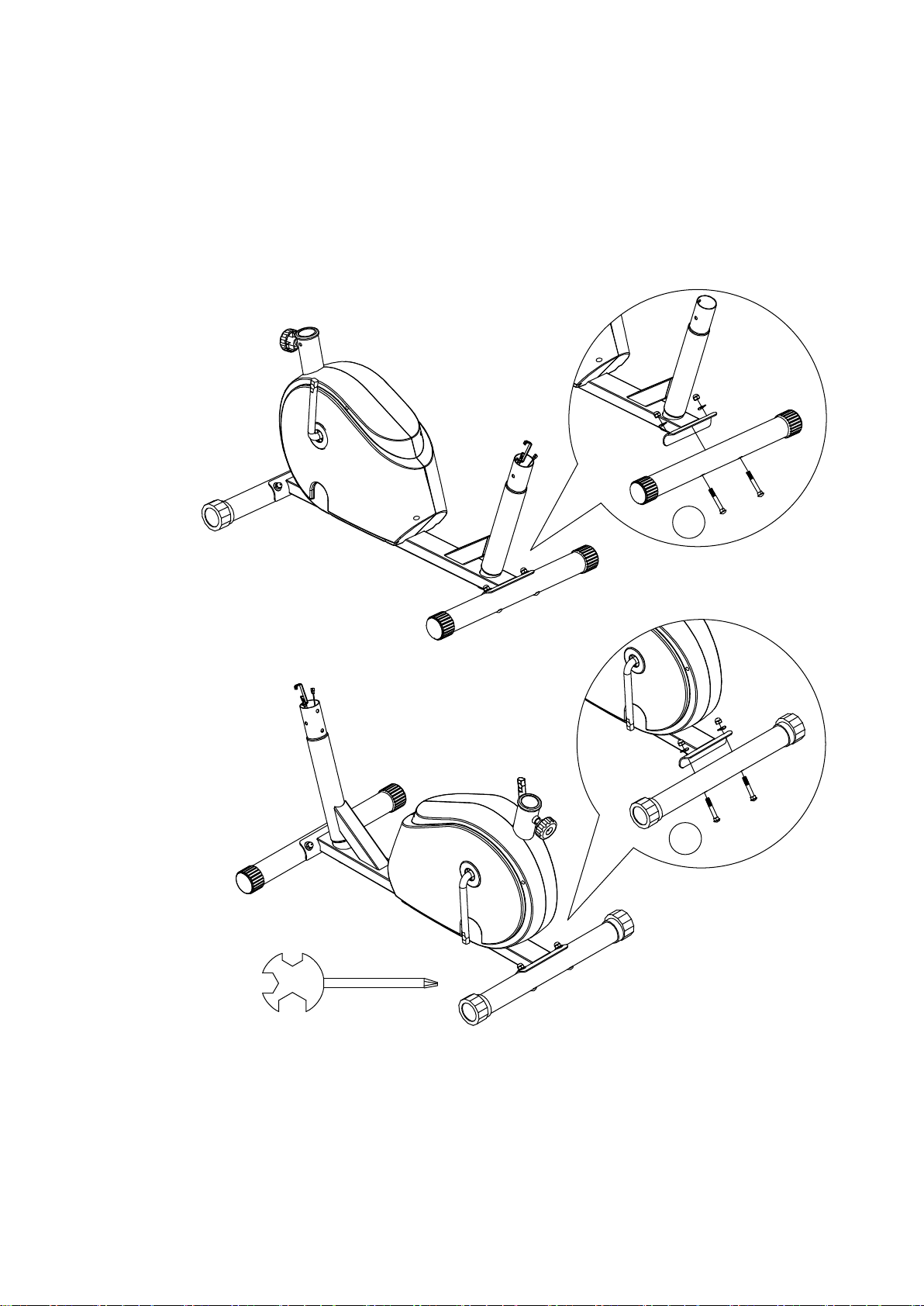

FOLLOW THE STEPS
S
ST TE EP P1 1
.
A
A
X1

S
ST TE EP P2 2
1235
4OK
81
6
B
X2

S
ST TE EP P3 3

S
ST TE EP P4 4
R
L
X1
D
D
L
L
R
R

S
ST TE EP P5 5

S
ST TE EP P6 6

S
ST TE EP P7 7

S
ST TE EP P8 8
X1

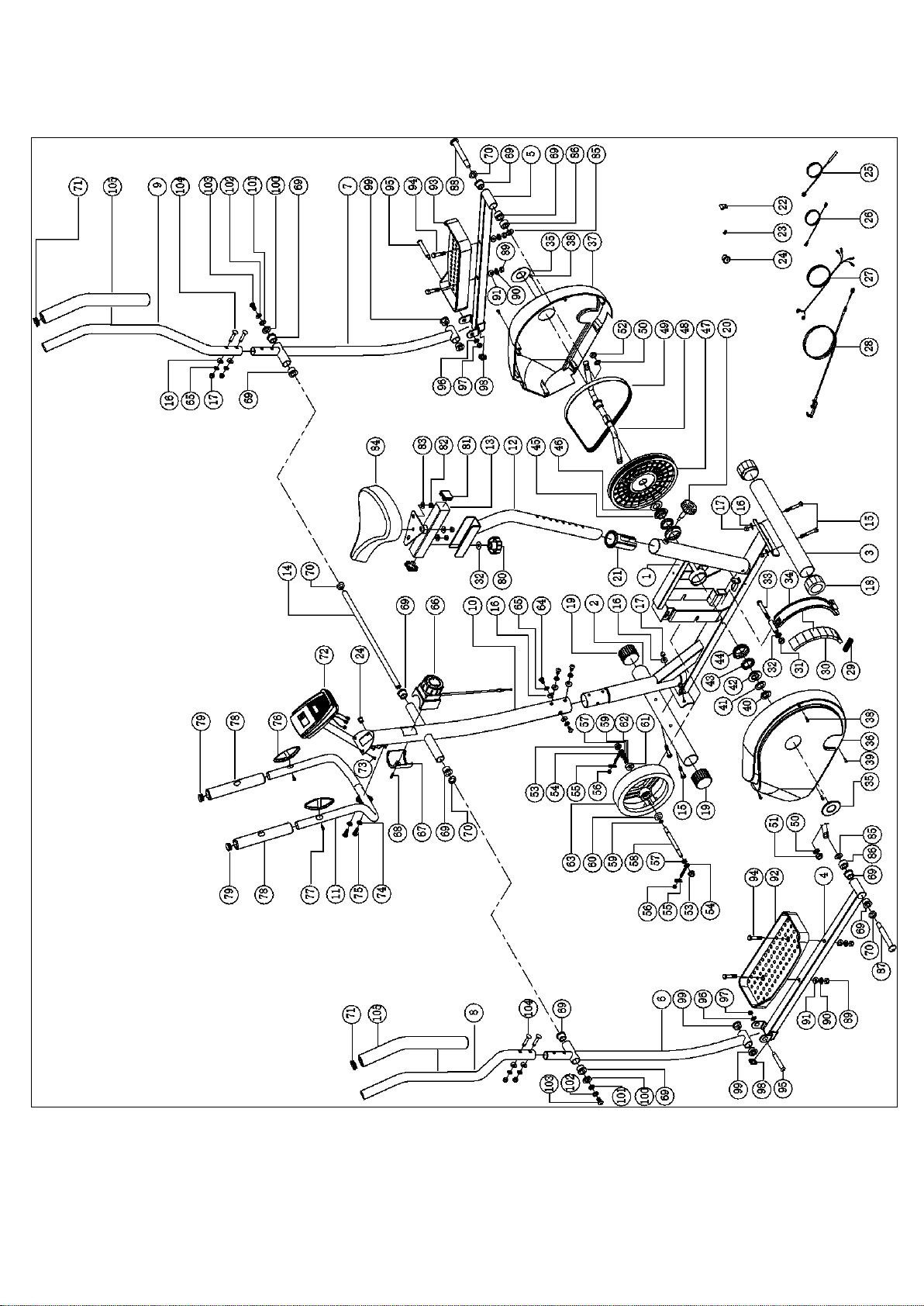

Part list
no
parts
qty
no
parts
qty
no
parts
qty
1
Main frame
1
36
Chain cover(L)
1
71
plug
2
2
Front stabilizer
1
37
Chain cover(R)
1
72
meter
1
3
Rear stabilizer
1
38
Screw for
locking chain
cover
7
73
Screw for meter
2
4
Pedal support
tube(left)
1
39
Screw for
locking chain
cover
4
74
washer16x8MM
2
5
Pedal support
tube(right)
1
40
Bowl 1
1
75
Screw M8X25
2
6
Lower
handlebar(left)
1
41
Bowl 2
1
76
Pulse piece
2
7
Lower
handlebar(right)
1
42
Bowl 3
1
77
Screw for pulse
pcs
2
8
Handlebar(left)
1
43
Bowl 4
2
78
Foam grip
2
9
Handlebar(right)
1
44
Bowl 5
2
79
plug
2
10
Front post
1
45
Bowl 6
1
80
knob
1
11
Fix handlebar
1
46
Bowl 7
1
81
38square end cap
2
12
Vertical Seat post
1
47
Belt plate
1
82
Nylon nut M8
3
13
Horizon seat post
1
48
Crank
1
83
Washer 20x8MM
3
14
axle
1
49
belt
1
84
saddle
1
15
Carriage bolt
M8X60
4
50
1/2 spring
washer
2
85
1/2 washer
2
16
curved washer
8MM
12
51
1/2 nylon nut(L)
1
86
sleeve
2
17
Domed nut M8
8
52
1/2 nylon nut(L)
1
87
1/2 pedal hinger
bolt(L)
1
18
Rear end cap
2
53
Flange nut 3/8
2
88
1/2 pedal hinger
bolt(R)
1
19
Front end cap
2
54
screw
2
89
Nylon nut M10
4
20
knob M12
1
55
Adjusted piece
2
90
Spring washer
M10
4
21
Seat post bellow
1
56
Nylon nut M6
2
91
Washer 22x10MM
4
22
Sensor pole
locked
1
57
Nut 3/8
2
92
Pedal(L)
1
23
Screw M5X15
1
58
Axle of flywheel
1
93
Pedal(R )
1
24
plug
1
59
Jump ring 9MM
2
94
Screw M10X50
4
25
Lower sensor wire
1
60
6900 bearing
1
95
bolt
2
26
upper sensor wire
1
61
6000 bearing
1
96
Washer 16x8MM
2
27
Pulse sensor
1
62
washer
1
97
Nylon nut M8
2

28
Tension cable
1
63
flywheel
1
98
30square end cap
2
29
spring
1
64
Screw M8X15
4
99
32 sleeves
2
30
Magnetic piece
7
65
Spring washer
M8
8
100
D shape washer
2
31
Nylon nut M10
1
66
Tension knob
1
101
Washer 10MM
2
32
Washer 10MM
1
67
Curved cover
1
102
Spring washer
M10
2
33
Screw M10X70
1
68
screw
1
103
Screw M10X25
2
34
Magnetic pcs
support
1
69
Nylon sleeve
10
104
Carriage bolt
M8X45
4
35
Crank cover
2
70
Waved washer
4
105
Foam grip
2

E
EX XE ER RC CI IS SE E C CO OM MP PU UT TE ER R
FUNCTION BUTTON
MODE: Choose each functions by pressing mode key, in scan mode, press mode key can lock the current
function. Press mode key and hold 2 seconds to reset all functions figures.
FUNCTIONS
SCAN: The sequence of display: TMR→SPD→ DST→CAL→PULSE. In scan mode, press mode key to choose
other function.Automatically scan through each mode in sequence every 6 seconds.
SPEED: Display current training speed, the maximum is 999.9KM/H.
TIME: Accumulates workout time from 0:00 to 99:00.
DIST: Accumulates total distance from 0.0 up to 999.9KM.
CAL: Accumulates calories consumption during training from 0.0 CAL to the maximum 999.9 CAL.
(This data is a rough guide for comparison of different exercise sessions which can not be used in medical
treatment.)
PULSE: With pulse signal into for 5 seconds, the current pulse will display.
WARNING! Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury
or death. If you feel faint stop exercising immediately”.
NOTE
1. With no signal transmitted into the computer for 4 minutes, the computer will shut off the LCD display
automatically, and all function values will be reserved.
2. Monitor battery spec: 1.5V UM-3 OR AA (2PCS)
3. If the computer display abnormally, please re-install the batter and try again.
4. When the display of LCD is weak, it mean the batteries need to be changed.
5. WARNING! Heart rate monitoring systems may be inaccurate. Over exercise may result in serious injury or
death. If you feel faint stop exercising immediately”.
TROUBLE SHOOTING:
1. Change the battery. To change the computer battery, please slide the computer from the computer holder,
remove the battery cover on the back of the computer console, and remove the batteries. Replace with AA
batteries. Finally put the cover back on the console, and slide the computer back on the computer holder.
2. Computer not working correctly. If your computer is not working correctly, please check whether the lower
sensor wire is connected to the upper sensor wire, and make sure the upper sensor wire is plugged into the
computer. When you have checked the above, and the computer still not working, then please make sure the
batteries are installed correctly in the computer and that the batteries are still working.
3. No resistance. If there is no tension resistance on the bike, please make sure the upper tension cable is
connected to the lower tension cable.
MAINTENANCE
1. Before using the bike, always make sure all bolts/nuts are fully tightened.
2. A spent battery is hazardous waste, please dispose of it correctly, and do not throw it in the trash.
3. When eventually you want to scrap the machine, you should remove the batteries from the computer, and
dispose separately as hazardous waste.

Кростренажор 2в1 Kent XS
art. BF40HA1

1
Важна информация за безопасност
Моля, съхранявайте това ръководство на сигурно място за справка.
1. Важно е да прочетете цялото ръководство преди да сглобите и използвате оборудването.
Безопасно и ефективно използване може да бъде постигнато само ако оборудването е
монтирано, поддържано и използвано правилно. Ваша отговорност е да гарантирате, че
всички потребители на оборудването са информирани за всички предупреждения и
предпазни мерки.
2. Преди да започнете някоя програма за упражнения, трябва да се консултирате с вашия
лекар, за да определите дали имате физически или здравословни състояния, които биха
могли да създадат риск за вашето здраве и безопасност или да ви попречат да използвате
правилно оборудването. Съветите на Вашия лекар са от съществено значение, ако приемате
лекарства, които влияят на сърдечната честота, кръвното налягане или нивото на
холестерола.
3. Бъдете наясно със сигналите на вашето тяло. Неправилното или прекомерно упражнение
може да навреди на здравето ви. Спрете да спортувате, ако почувствате някой от следните
симптоми: Болка, стягане в гърдите, неравномерен сърдечен пулс, силен задух, усещане за
лек свят, замаяност или гадене. Ако имате някое от тези състояния, трябва да се
консултирате с Вашия лекар, преди да продължите с програмата за упражнения.
4. Дръжте деца и домашни любимци далеч от оборудването. Оборудването е предназначено
само за възрастни.
5. Използвайте оборудването върху твърда, равна повърхност със защитно покритие за пода
или килима. За безопасност оборудването трябва да има най-малко 0,5 метра свободно
пространство навсякъде около него.6. Преди да използвате оборудването, проверете дали
гайките и болтовете са добре затегнати. Някои части като педали и т.н., Лесно е да се
изкривите.
7. Нивото на безопасност на оборудването може да се поддържа само ако редовно се

2
проверява за повреди и / или износване.
8. Винаги използвайте оборудването, както е посочено. Ако по време на сглобяването или
проверката на оборудването откриете дефектни компоненти или чуете необичаен шум,
идващ от оборудването по време на употреба, спрете. Не използвайте оборудването, докато
проблемът не бъде отстранен.
9. Носете подходящо облекло, докато използвате оборудването. Избягвайте да носите
свободни дрехи, които могат да се хванат в оборудването или които могат да ограничат или
възпрепятстват движението.
10. Оборудването е тествано и сертифицирано по EN20957 под клас H.C. Подходящ само за
домашно ползване, за домашна употреба.
Максимално тегло на потребителя, 120 кг. Разрушаването не зависи от скоростта.
11. Оборудването не е подходящо за терапевтична употреба.
12. Трябва да се внимава при повдигане или преместване на оборудването, за да не нараните
гърба си. Винаги използвайте правилни техники за повдигане и / или използвайте помощ.

3
С
СГ ГЛ ЛО ОБ БЯ ЯВ ВА АН НЕ Е
R
L
AA
R
L
X1 X1 R/L
X1 X1 X1 X2
R/L X1 X1
AX4
CXR/L X1
X2
GX1
X1
X1
BX4
DX4
EX4
FX2
X1
X1 X1

4
СЛЕДВАЙ СТЪПКИТЕ
СТЪПКА1
.
A
A
X1
