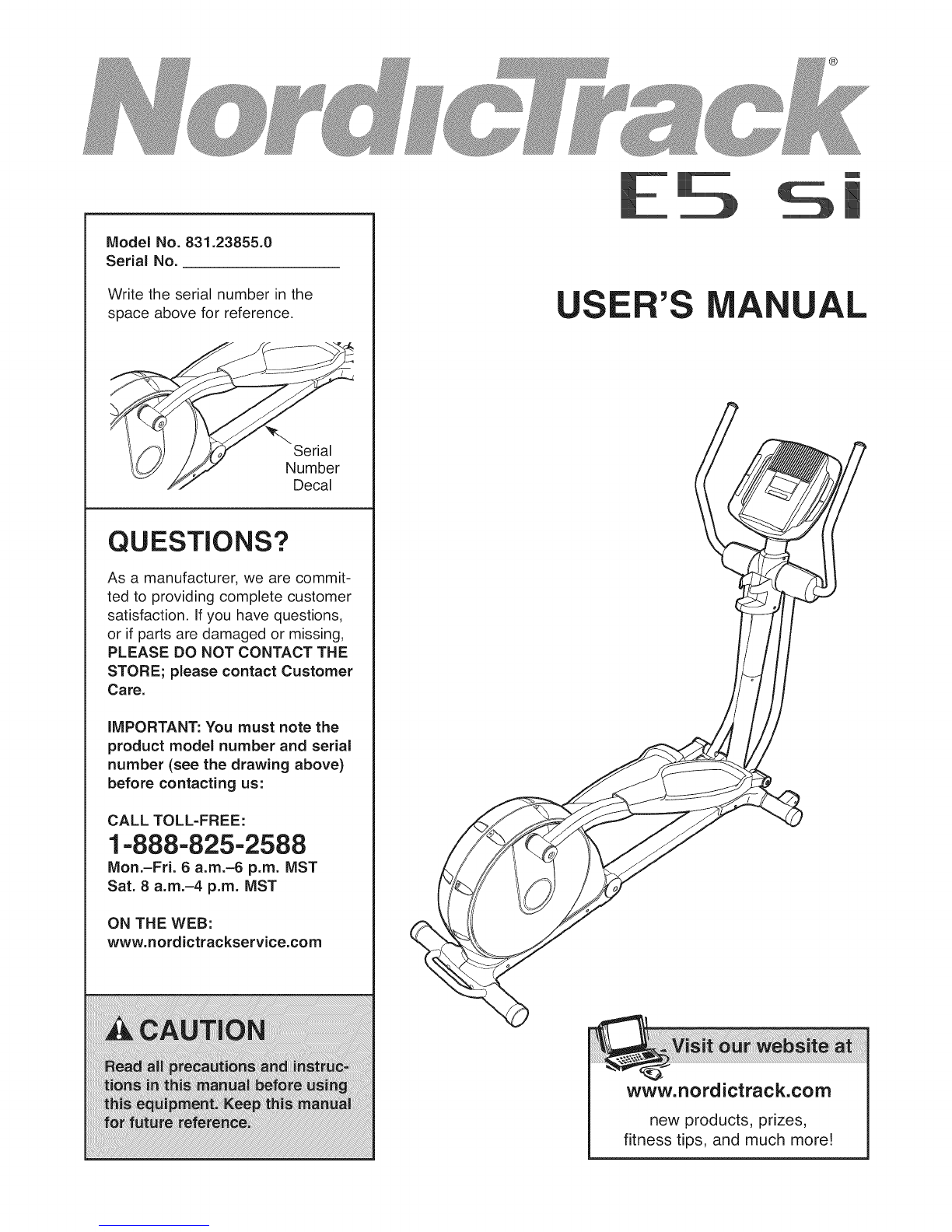

NordicTrack E5 si 831.23855.0 User manual

Model No. 831.23855.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are commit-
ted to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-825-2588
Mon.-Fri. 6 a.m.-6 p.m. MST
Sat. 8 a.m.-4 p.m. MST
ON THE WEB:
www.nordictrackservice.com
R
A UAL
www.nordictrack.com
new products, prizes,
fitness tips, and much more!

TABLE OF CONTENTS
WARNING DECAL PLACEMENT .............................................................. 2
IMPORTANT PRECAUTIONS ................................................................ 3
BEFORE YOU BEGIN ...................................................................... 4
ASSEMBLY ............................................................................... 5
HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 12
MAINTENANCE AND TROUBLESHOOTING ................................................... 20
EXERCISE GUIDELINES ................................................................... 21
PART LIST .............................................................................. 24
EXPLODED DRAWING .................................................................... 26
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
WARNING DECAL PLACEMENT

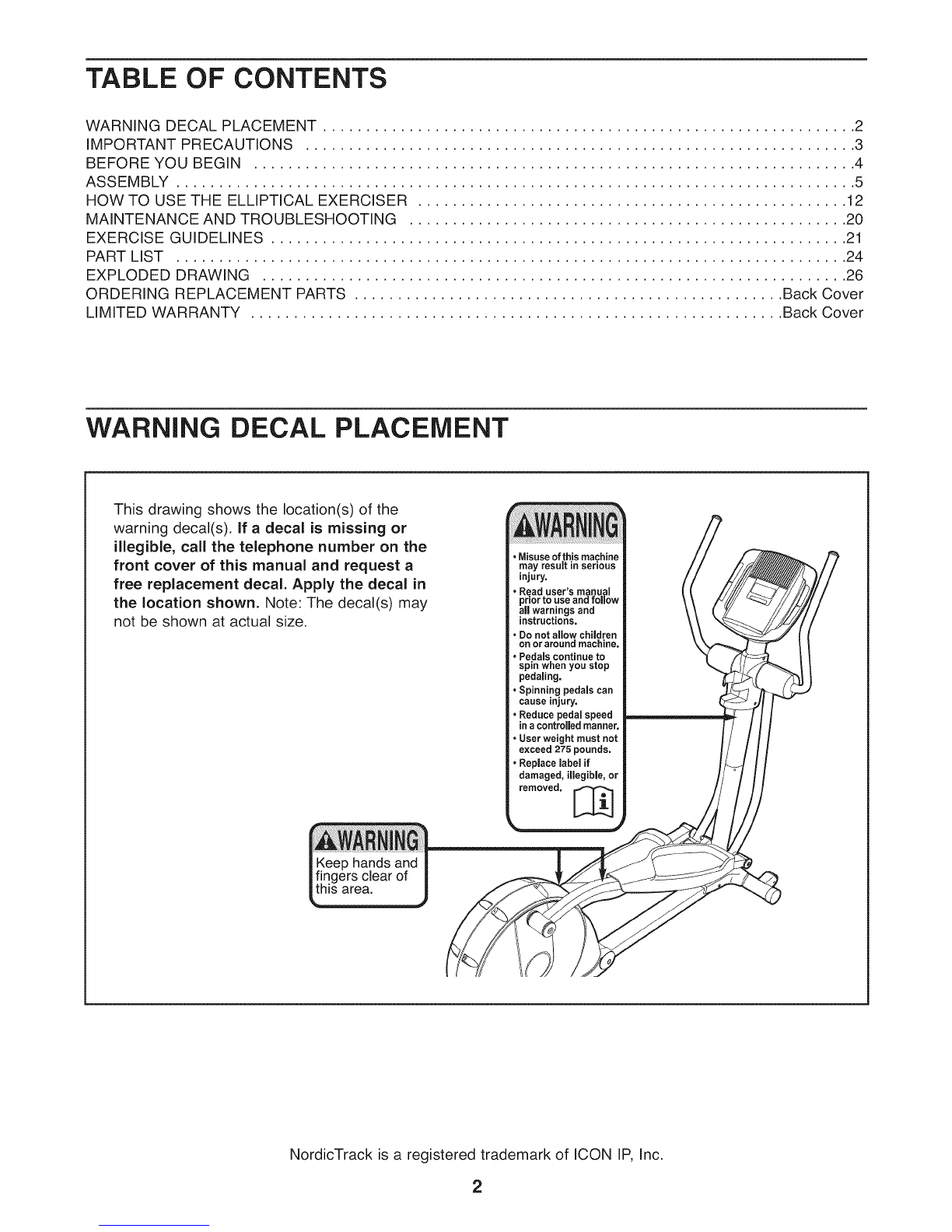

This drawing shows the location(s) of the
warning decal(s), If a decal is missing or
illegible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal in
the location shown. Note: The decal(s) may
not be shown at actual size.
•Misuseof this machine
may result in serious
injury.
• Read user's manual
prior to use and follow
all warnings and
instructions.
• Do not allow children
on oraround machine.
•Pedals continue to
spin when you stop
pedaling.
•Spinning pedals can
cause injury,
•Reduce pedal speed
in acontrolled manner.
•User weight must not
exceed 275 pounds.
•Replace label if
damaged, illegible, or
removed, _
NordicTrack is a registered trademark of ICON IP, Inc.
2

iMPORTANT PRECAUTIONS
AWARNING: Toreducethe.skofso.oosinjury,reada,importantprecaot onsand
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser, iCON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program, 8.
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
.
.
.
.
.
.
it is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional set-
ting.
Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
Keep children under age 12 and pets away
from your elliptical exerciser at all times.
Your elliptical exerciser should not be used
by persons weighing more than 275 Ibs.
(124 kg).
.
10.
11.
12.
13.
14.
Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exer-
ciser. Always wear athletic shoes for foot
protection.
Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
Keep your back straight while using your
elliptical exerciser; do not arch your back.
The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
When you stop exercising, allow the pedals
to s!owly come to a stop.
if you feel pain or dizziness while exercising,
stop immediately and cool down.
Use your elliptical exerciser only as
described in this manual.
3

BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
NordicTrack ®E5 Sl elliptical exerciser. The E5 Sl ellip-
tical exerciser provides a wide array of features
designed to make your workouts at home more effec-
tive and enjoyable--and when you're not exercising,
the unique elliptical exerciser can be folded out of the
way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.

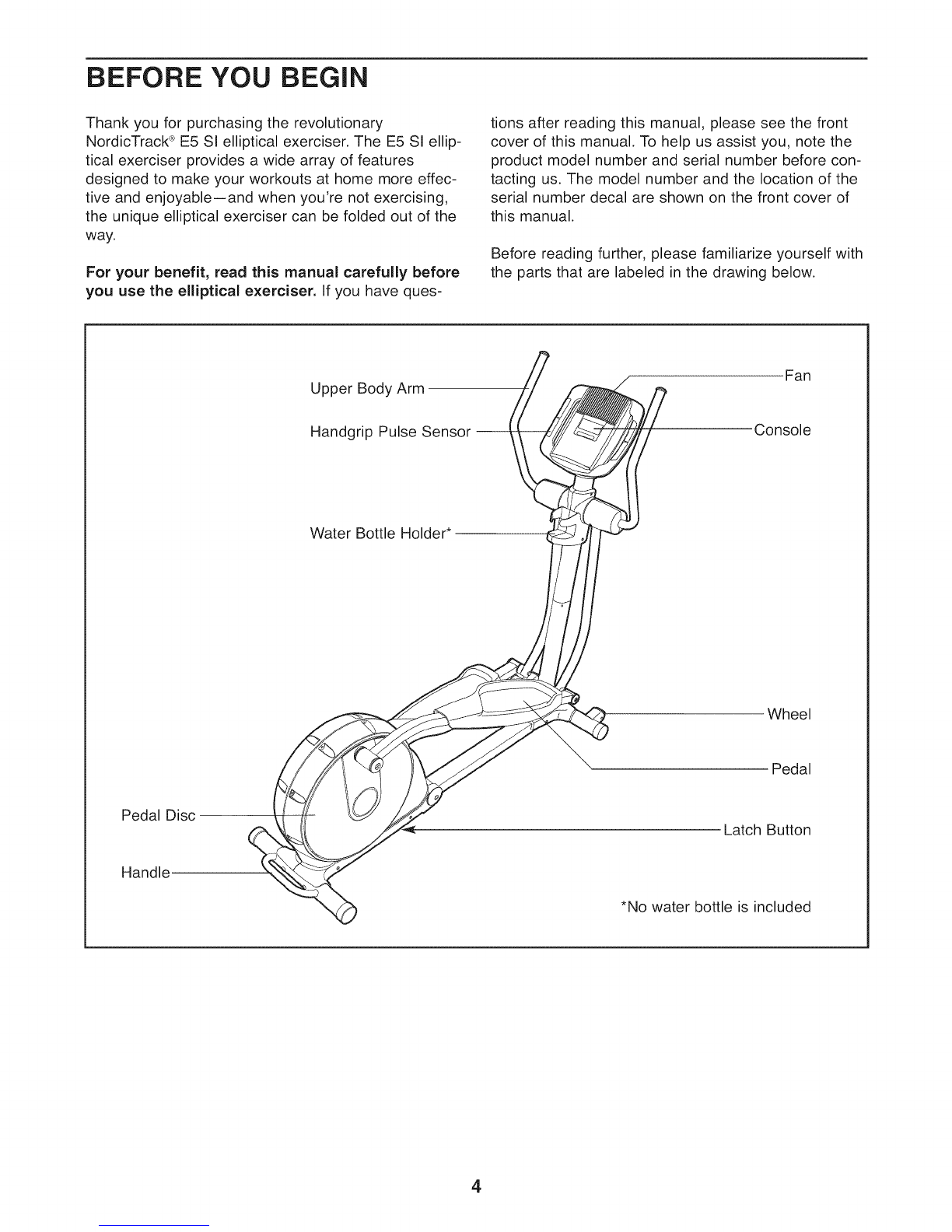

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Upper Body Arm
Handgrip Pulse Sensor
Fan
Console
Water Bottle Holder*
Wheel
Pedal
Pedal Disc Latch Button
Handle
*No water bottle is included
4

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own Phillips screwdriver _, adjustable
wrench _::_:_, and rubber mallet :::z:zz:::z_.

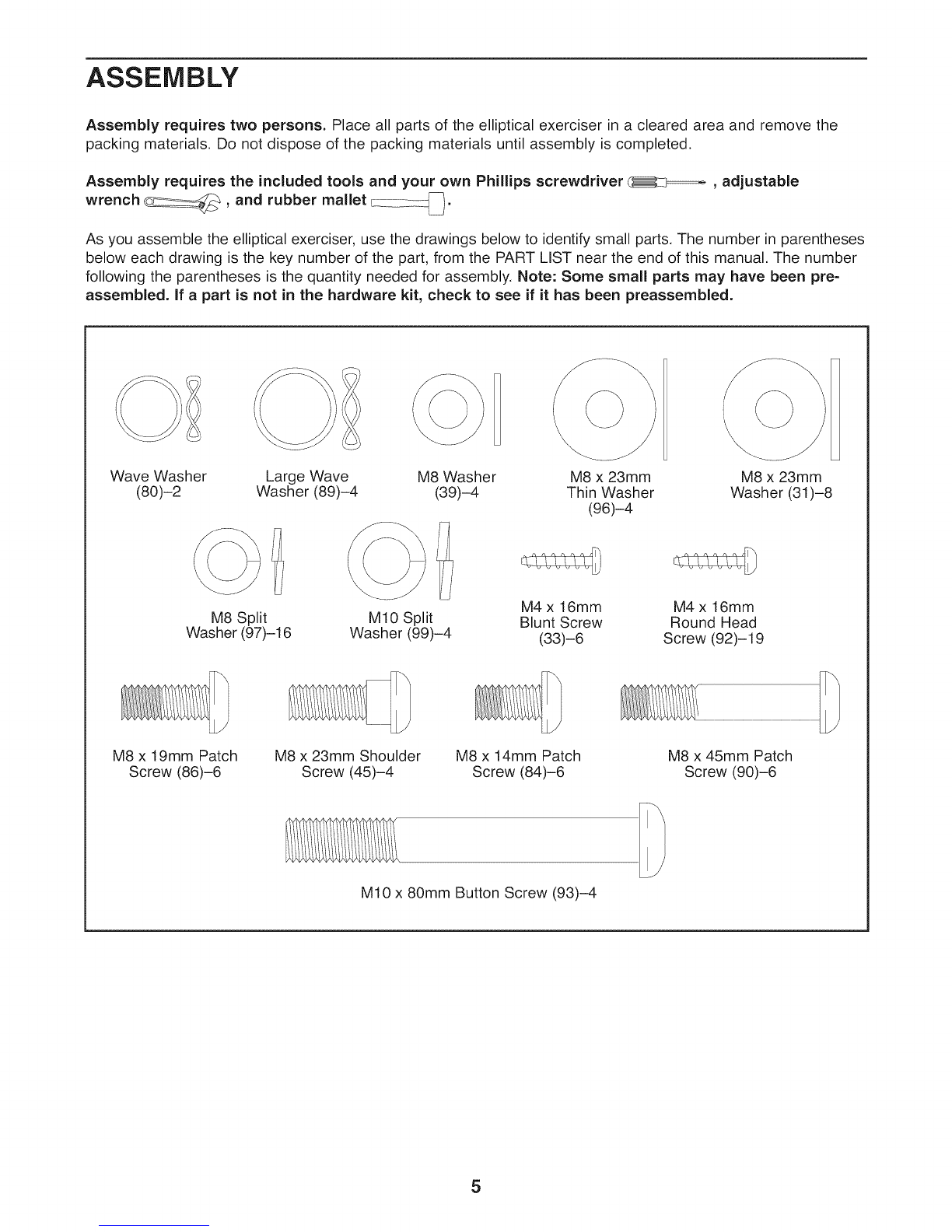

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre=
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
\/
\
Wave Washer Large Wave M8 Washer M8 x 23mm M8 x 23mm
(80)-2 Washer (89)-4 (39)-4 Thin Washer Washer (31)-8
(96)-4
M4 x 16mm M4 x 16mm
M8 Split M10 Split Blunt Screw Round Head
Washer (97)-16 Washer (99)-4 (33)-6 Screw (92)-19
M8 x 19mm Patch
Screw (86)-6 M8 x 23mm Shoulder Screw (45)-4 M8 x 14mm Patch Screw (84)-6 M8 x 45mm Patch Screw (90)-6
M10 x 80mm Button Screw (93)-4
5

See HOW TO FOLD AND UNFOLD THE
ELMPTICAL EXERCISER on page 12 and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 80mm Button Screws
(93) and two M10 Split Washers (99).
99 93
.Attach the Left and Right Frame Covers (36,
37) around the Frame (1) with four M4 x 16mm
Round Head Screws (92).
36
37
.With the help of another person, carefully tip
the elliptical exerciser onto its side. Attach the
Center Foot (40) to the Frame (1) with two
M4 x 16mm Blunt Screws (33). Then, return the
elliptical exerciser to the upright position.
Orient the Rear Stabilizer (3) as shown. While
another person lifts the Folding Frame (2),
attach the Rear Stabilizer to the Folding Frame
with two M10 x 80mm Button Screws (93) and
two M10 Split Washers (99). 3
93
I I
I i
33
6

4. 4

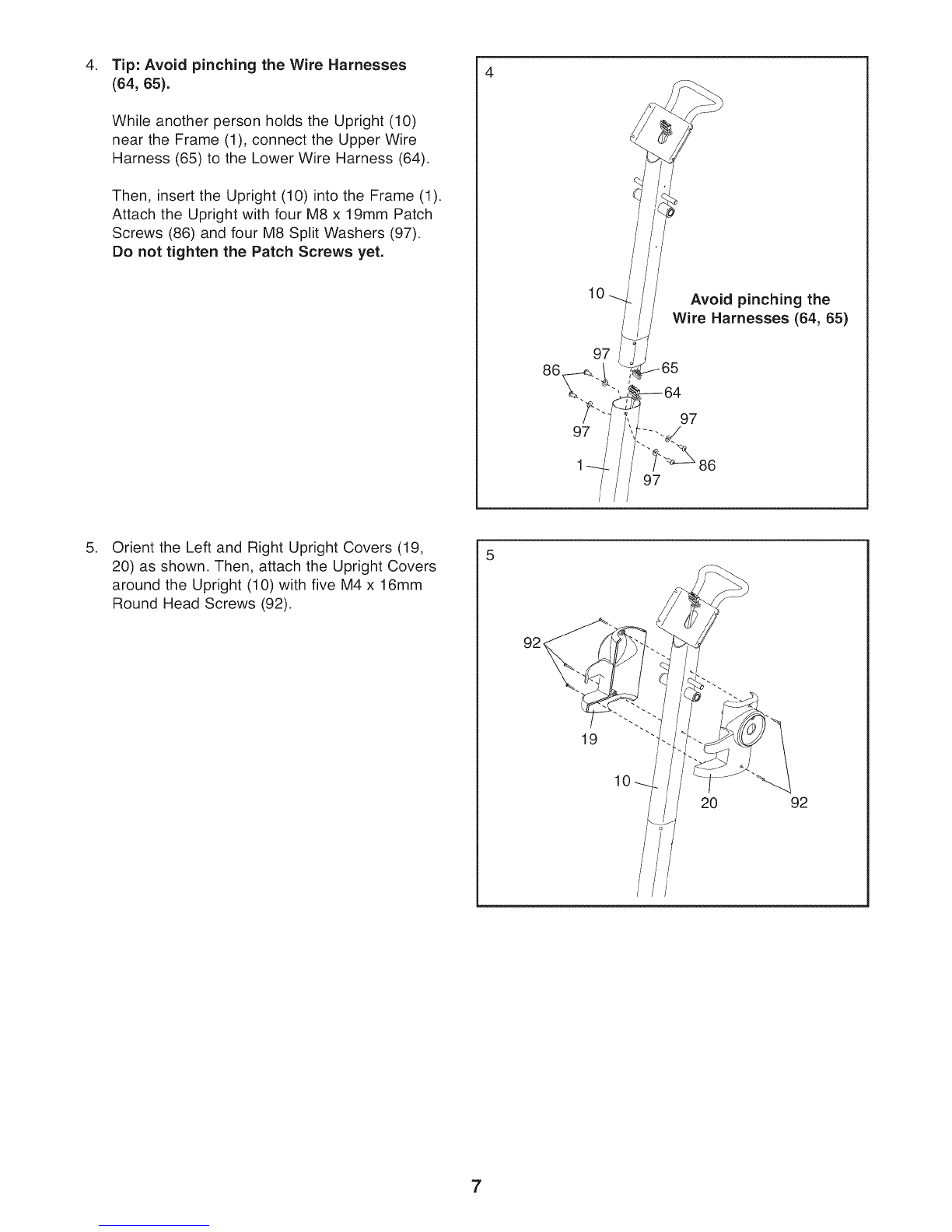

Tip: Avoid pinching the Wire Harnesses
(64, 65).
While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Then, insert the Upright (10) into the Frame (1).
Attach the Upright with four M8 x 19mm Patch
Screws (86) and four M8 Split Washers (97).
Do not tighten the Patch Screws yet.
86
10
97
Avoid pinching the
Wire Harnesses (64, 65)
97
97
.Orient the Left and Right Upright Covers (19,
20) as shown. Then, attach the Upright Covers
around the Upright (10) with five M4 x 16mm
Round Head Screws (92).
5
92.
19
20 92
7

6. 6
Tip: Avoid damaging the Upper Wire
Harness (65).
Apply a generous amount of the included grease
to the Upper Body Axle (71). Insert the Upper
Body Axle through the Upright (10).
Apply a small amount of grease to a Wave
Washer (80). Slide the Wave Washer onto the
left end of the Upper Body Axle (71).
Identify the Left Upper Body Leg (24), which is
marked with an "L" sticker, and orient it as
shown. Slide the Left Upper Body Leg onto the
left side of the Upper Body Axle (71).
Attach the Left Upper Body Leg (24) to the Upper
Body Axle (71) with an M8 x 19mm Patch Screw
(86) and an M8 x 23mm Washer (31).
Repeat this step for the Right Upper Body
Leg (72).
31
Grease 65
0
Grease
31
.Attach the Right Upper Body Arm (23) to the
Right Upper Body Leg (72) with three M8 x
14mm Patch Screws (84) and three M8 Split
Washers (97).
Attach the Left Upper Body Arm (22) in the
same way.
123
--zi
"_'_'_--'_84
97
_72
8

8. 8

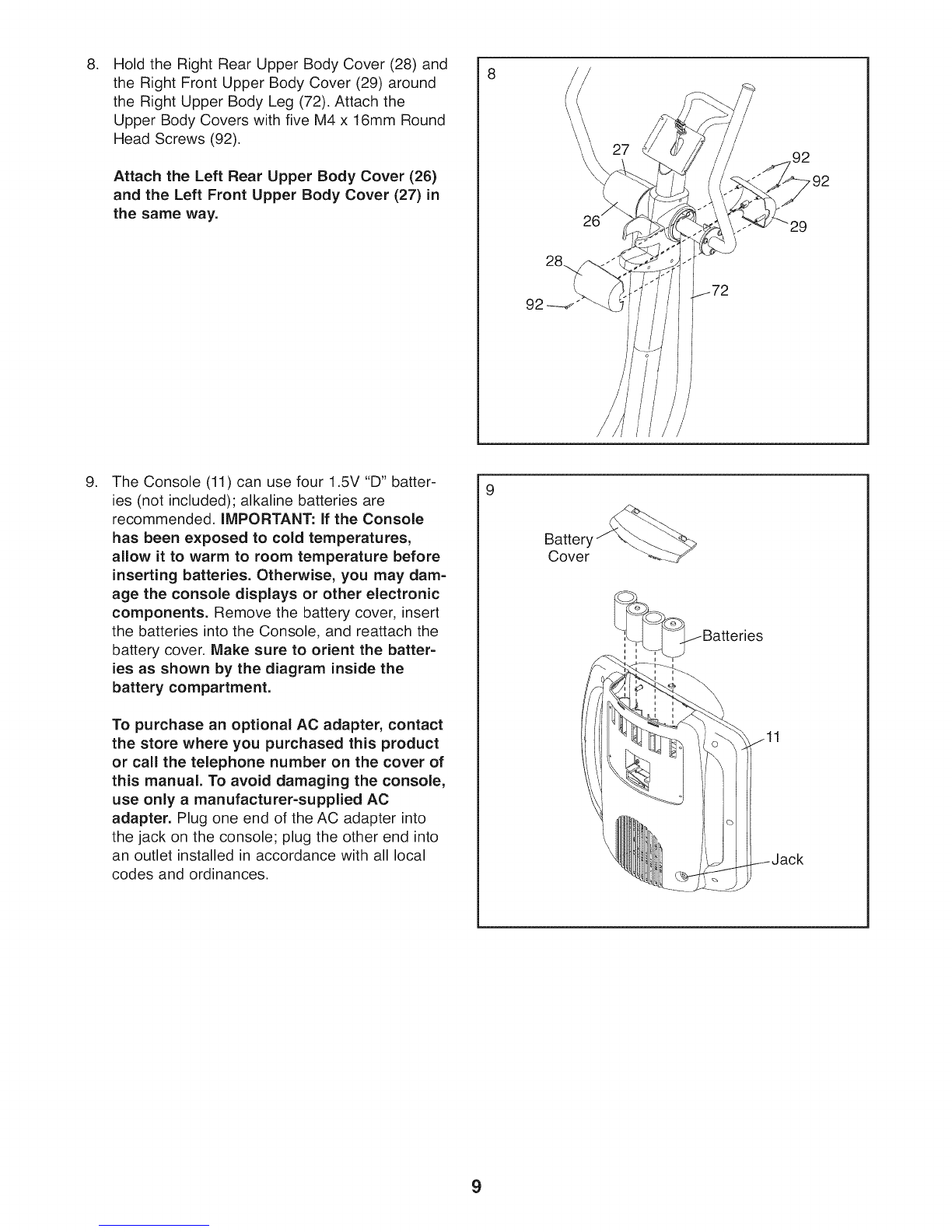

Hold the Right Rear Upper Body Cover (28) and
the Right Front Upper Body Cover (29) around
the Right Upper Body Leg (72). Attach the
Upper Body Covers with five M4 x 16mm Round
Head Screws (92).
Attach the Left Rear Upper Body Cover (26)
and the Left Front Upper Body Cover (27) in
the same way.
92
92
.The Console (11) can use four 1.5V "D" batter-
ies (not included); alkaline batteries are
recommended, iMPORTANT: if the Console
has been exposed to cold temperatures,
allow it to warm to room temperature before
inserting batteries. Otherwise, you may dam-
age the console displays or other electronic
components. Remove the battery cover, insert
the batteries into the Console, and reattach the
battery cover. Make sure to orient the batter=
ies as shown by the diagram inside the
battery compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer=supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
9
Batter
Cover
9

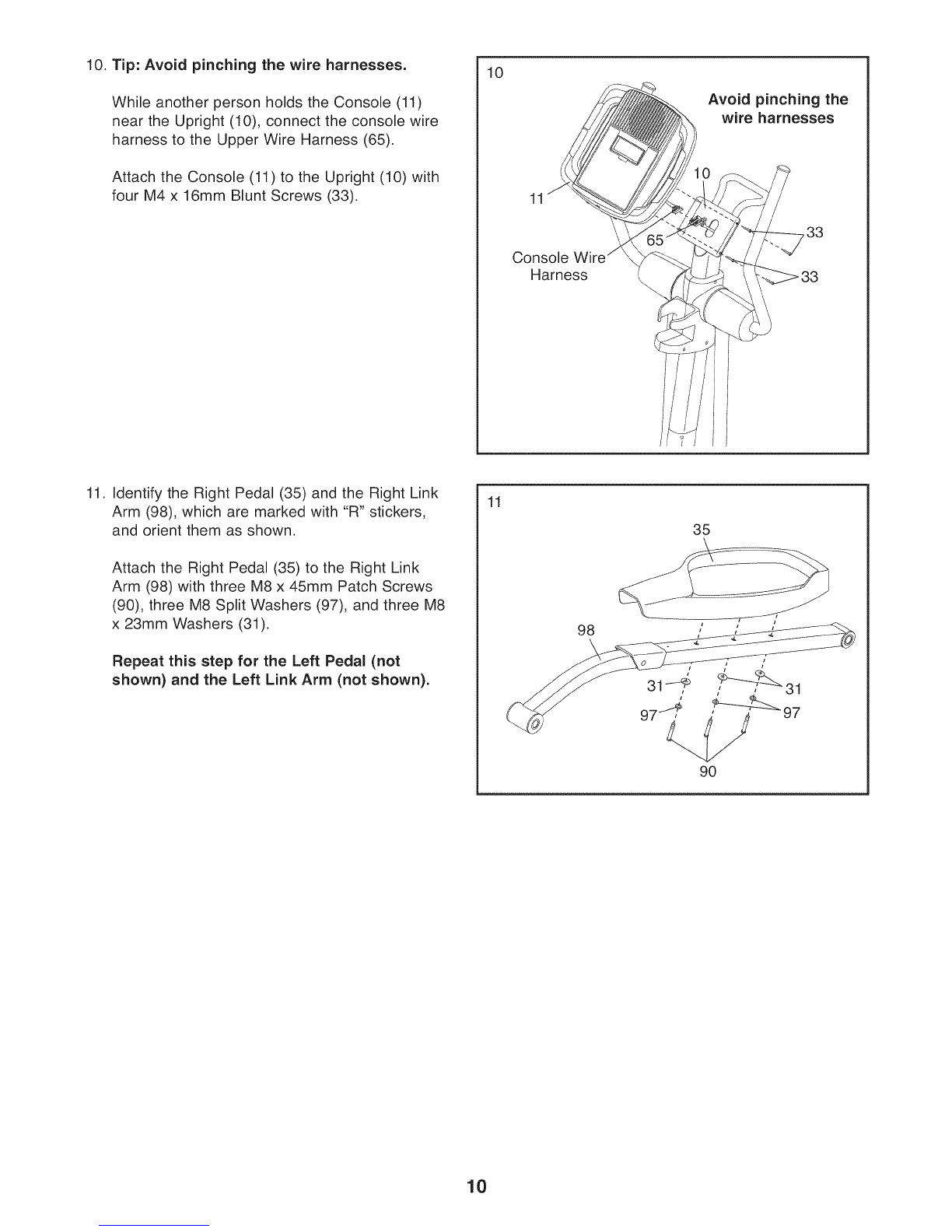

10. Tip: Avoid pinching the wire harnesses.
While another person holds the Console (11)
near the Upright (10), connect the console wire
harness to the Upper Wire Harness (65).
Attach the Console (11) to the Upright (10) with
four M4 x 16mm Blunt Screws (33).
10
11
Console
Harness
Avoid pinching the
wire harnesses
33
11. Identify the Right Pedal (35) and the Right Link
Arm (98), which are marked with "R" stickers,
and orient them as shown.
Attach the Right Pedal (35) to the Right Link
Arm (98) with three M8 x 45mm Patch Screws
(90), three M8 Split Washers (97), and three M8
x 23mm Washers (31).
Repeat this step for the Left Pedal (not
shown) and the Left Link Arm (not shown).
11
35
10

12. Apply a generous amount of grease to the
axle on the Right Upper Body Leg (72) and to
the axle of the right Crank Arm (55), Then,
apply grease to two Large Wave Washers (89).
Slide an Upper Body Leg Spacer (9) and a
Large Wave Washer (89) onto the Right Upper
Body Leg (72), Make sure that the fiat side of
the Upper Body Leg Spacer is facing out-
ward.
Slide a Large Wave Washer (89) onto the right
Crank Arm (55).
Repeat this step on the other side of the
elliptical exerciser.
12
Gtease
989 3tease
Grease
13. Gradually work the right Pedal Arm (32) onto
the Right Upper Body Leg (72) while at the
same time working the Right Link Arm (98)
onto the right Crank Arm (55).
Tip: These parts are designed to fit tightly, it
may be helpful to move the right Crank Arm
(55) while working these parts into place.
Attach the right Pedal Arm (32) to the Right
Upper Body Leg (72) with an M8 x 23mm
Shoulder Screw (45), an M8 Washer (39), an
Axle Cover (66), and an M8 x 23mm Thin
Washer (96).
Attach the Right Link Arm (98) to the right Crank
Arm (55) with an M8 x 23mm Shoulder Screw
(45), an M8 Washer (39), a Link Arm Cover (52),
and an M8 x 23mm Thin Washer (96).
Repeat this step for other side of the ellipti-
cal exerciser.
See step 4. Tighten the M8 x 19ram Patch
Screws (86).
13
55
32 96
66
96
39
14. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11

HOW TO USE THE ELLiPTiCAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLiPTiCAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. To fold the elliptical exer-
ciser, lift the handle on the rear of the elliptical
exerciser until the elliptical exerciser locks into the ver-
tical position.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
cal exerciser and place one foot against the center of
the front stabilizer. Pull the transport handle backward
until the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
position, and then lower it.
Transport
Handle
Handle
To unfold the elliptical exerciser, hold the handle,
press the latch button, and then lower the frame to the
floor.
Handle
Latch
Button
Place
foot
here
12

HOW TO EXERCISE ON THE ELMPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow below; however,
for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the ped-
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Upper Body Arms
Pedals
Crank Arm
13

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the con-
sole will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console also offers four preset workouts. Each
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
In addition, the console features two heart rate work-
outs that change the resistance of the pedals to keep
your heart rate near target heart rate settings while
you exercise.
The console also features the iFIT Interactive Workout
System, which enables the console to accept iFIT
cards containing workouts designed to help you
achieve specific fitness goals. For example, lose
unwanted pounds with the 8-week Weight Loss work-
out. iFIT workouts control the resistance of the pedals
while the voice of a personal trainer coaches you
through your workouts, iFIT cards are available sepa-
rately. To purchase iFIT cards, go to www.iFIT.com
or see the front cover of this manual, iFIT cards
are also available at select stores.
You can even connect your MP3 player or CD player
to the console's sound system and listen to your
favorite music or audio books while you exercise.
To use the manual mode, see page 15. To use a
preset workout, see page 17. To use a heart rate
workout, see page 18. To use an iFIT workout, see
page 19. To use the sound system, see page 19.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
14

HOW TO USE THE MANUAL MODE 4. Follow your progress with the displays.
1. Press any button on the console or begin ped-
aling to turn on the console.
When you turn on the console, the display and the
target pacer will light. A tone will then sound and
the console will be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. Ifyou have selected a workout,
reselect the manual mode by pressing any of the
OneTouch Workouts buttons repeatedly until a
track appears in the left display.
mmmmmmmm
[] []
[] []
[] []
[] []
[] []
==____==__
Time
U'U U
RPM _
U
.Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change
the resistance of the
pedals by pressing the
OneTouch Resistance
buttons. There are ten
resistance levels.
Resistance i
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
The upper right
display can show the
elapsed time, the dis-
tance (total
revolutions) you have
pedaled, the approxi-
mate number of calories you have burned, and the
approximate number of grams of carbs you have
burned. The display will change modes every few
seconds.
The lower right
display can show your
pedaling pace (in revo-
lutions per minute) and
the resistance level of
the pedals. The display
will change modes every few seconds. The display
will also show your heart rate when you use the
handgrip pulse sensor (see step 5 on page 16).
The left display will
show a track repre-
senting 1/4 mile (400
meters). As you exer-
cise, indicators will
appear in succession
around
the track until the
________
[] []
[] []
[] []
[]
[]
____
entire track appears. The track will then disappear
and the indicators will again begin to appear in
succession
To change the display mode, press the Display
button repeatedly until the desired exercise infor-
mation appears in the upper or lower right display.
After several seconds, the display will change
modes automatically as before.
To view the total distance pedaled since the ellipti-
cal exerciser was purchased, press the Odometer
button. The information will appear in the display
for a few seconds. To view the trip distance, press
the Odometer button a second time. To reset the
trip distance, hold down the Odometer button for a
few seconds. Note: The number on the right side
of the display multiplied by the number on the left
side equals the total distance or the trip distance.
15

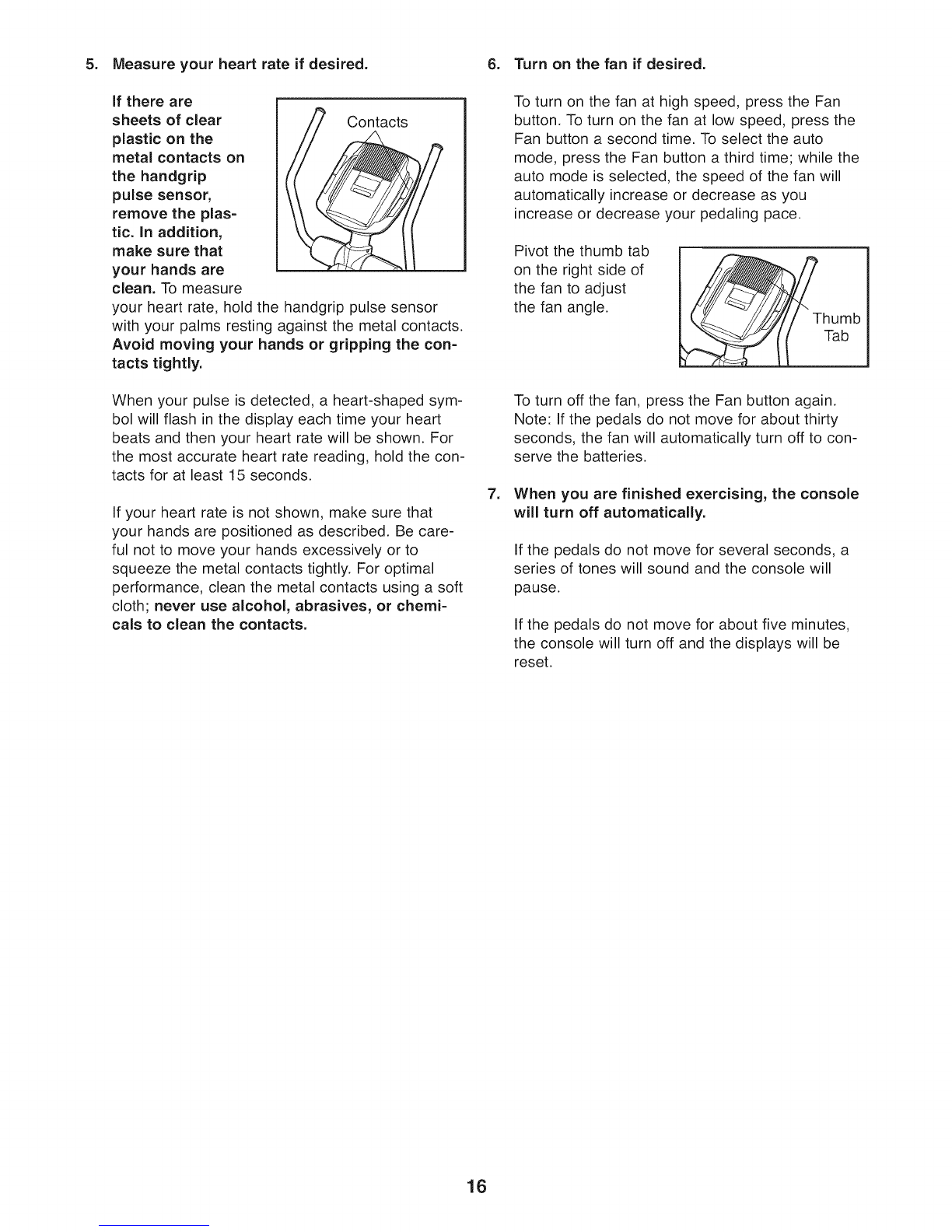

5. Measure your heart rate if desired. 6. Turn on the fan if desired.
if there are
sheets of clear
plastic on the
metal contacts on
the handgrip
pulse sensor,
remove the plas-
tic. in addition,
make sure that
your hands are
clean. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts.
Avoid moving your hands or gripping the con=
tacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the display each time your heart
beats and then your heart rate will be shown. For
the most accurate heart rate reading, hold the con-
tacts for at least 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
.
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
Fan button a second time. To select the auto
mode, press the Fan button a third time; while the
auto mode is selected, the speed of the fan will
automatically increase or decrease as you
increase or decrease your pedaling pace.
Pivot the thumb tab
on the right side of
the fan to adjust
the fan angle. Thumb
Tab
To turn off the fan, press the Fan button again.
Note: If the pedals do not move for about thirty
seconds, the fan will automatically turn off to con-
serve the batteries.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
16

HOW TO USE A PRESET WORKOUT
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 15.
2. Select a preset workout.
To select one of the four preset workouts, press
the Weight Loss, the Aerobic 1, the Aerobic 2, or
the Performance button on the left side of the con-
sole.
When you select a preset workout, the name of
the workout and the maximum resistance level will
appear in the display for a few seconds. A profile
of the resistance levels of the workout will also
scroll across the left side of the display.
3. Begin pedaling to start the workout.
Each workout is divided into 30 one-minute seg-
ments, One resistance level and one target pace
setting are programmed for each segment, Note:
The same resistance level and/or target pace set-
ting may be programmed for consecutive
segments.
P- I
mm
illl
mmmmmm
illlllll IU
Res_nce Res_nce
During the workout, the profile will show your
progress (see the drawing above), The flashing
segment of the profile represents the current seg-
ment of the workout. The height of the flashing
segment indicates the resistance level for the cur-
rent segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
ent resistance level is programmed for the next
segment, the resistance level will appear in the
display for a few seconds to alert you. The resis-
tance of the pedals will then change.
During the workout, the target pacer will prompt
you to keep your pedaling pace near the target
pace setting for the current segment. When a left
indicator lights, increase your pace; when a right
indicator lights, decrease your pace, When the
center indicator lights, maintain your current pace,
iMPORTANT: The target pacer is intended only
to provide a goal. Make sure to pedal at a pace
that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the OneTouch
Resistance buttons, However, when the current
segment ends, the resistance of the pedals will
automatically adjust to the resistance level for the
next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
4. Follow your progress with the displays.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
.
See step 6 on page 16.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
17

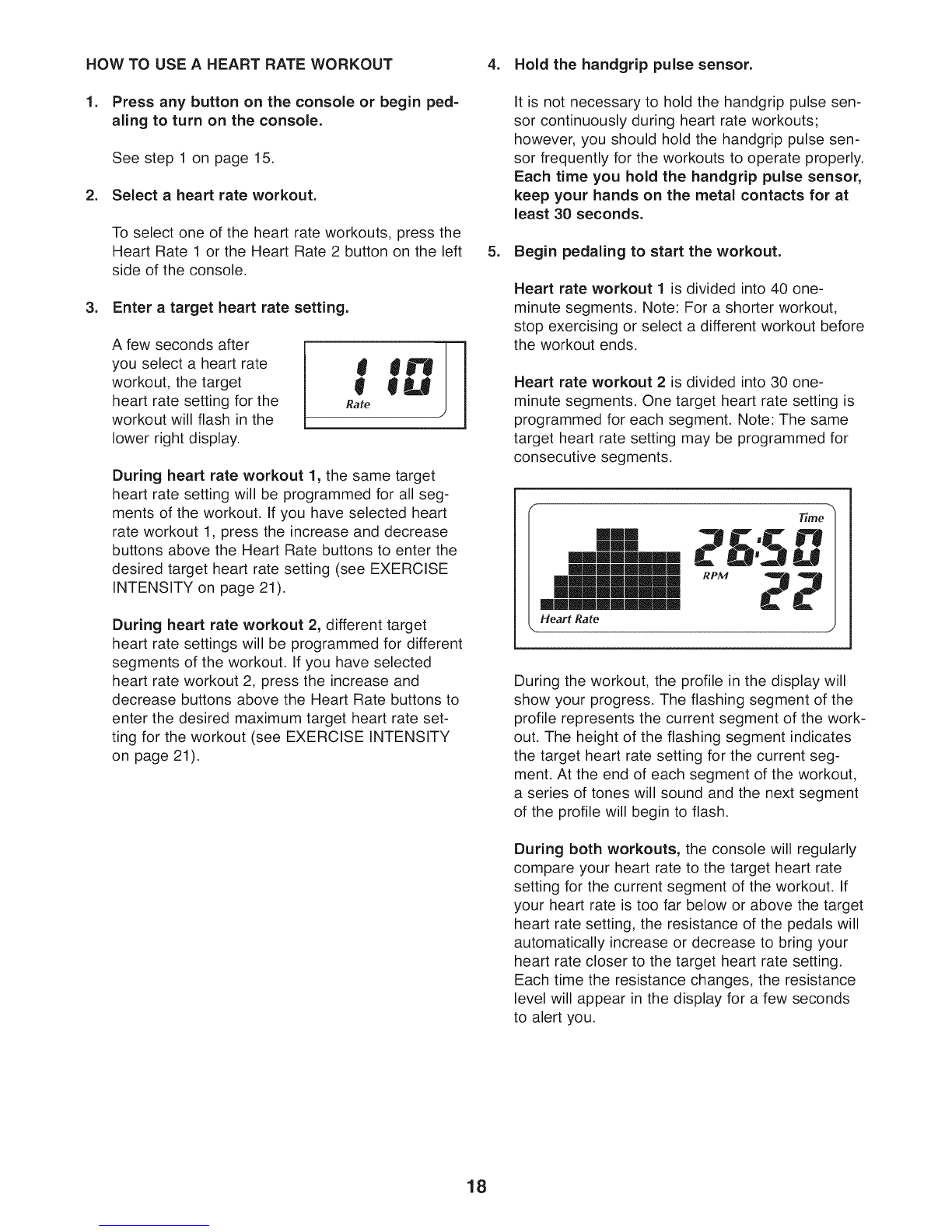

HOW TO USE A HEART RATE WORKOUT 4. Hold the handgrip pulse sensor.
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 15.
2. Select a heart rate workout.
To select one of the heart rate workouts, press the
Heart Rate 1 or the Heart Rate 2 button on the left
side of the console.
3. Enter a target heart rate setting.
A few seconds after
you select a heart rate
workout, the target
heart rate setting for the
workout will flash in the
lower right display. ,,°[
Rate
During heart rate workout 1, the same target
heart rate setting will be programmed for all seg-
ments of the workout. If you have selected heart
rate workout 1, press the increase and decrease
buttons above the Heart Rate buttons to enter the
desired target heart rate setting (see EXERCISE
INTENSITY on page 21).
During heart rate workout 2, different target
heart rate settings will be programmed for different
segments of the workout, if you have selected
heart rate workout 2, press the increase and
decrease buttons above the Heart Rate buttons to
enter the desired maximum target heart rate set-
ting for the workout (see EXERCISE INTENSITY
on page 21).
It is not necessary to hold the handgrip pulse sen-
sor continuously during heart rate workouts;
however, you should hold the handgrip pulse sen-
sor frequently for the workouts to operate properly.
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 30 seconds.
5. Begin pedaling to start the workout.
Heart rate workout 1 is divided into 40 one-
minute segments, Note: For a shorter workout,
stop exercising or select a different workout before
the workout ends.
Heart rate workout 2 is divided into 30 one-
minute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
Time
""" 'C fe
_mm
,,,,,mpm,,. U
mmmmmmmm
mmmmmmmmm .PM _ _
mmmmmmmmmm
Heart Rate
\
During the workout, the profile in the display will
show your progress. The flashing segment of the
profile represents the current segment of the work-
out. The height of the flashing segment indicates
the target heart rate setting for the current seg-
ment. At the end of each segment of the workout,
a series of tones will sound and the next segment
of the profile will begin to flash.
During both workouts, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the workout. If
your heart rate is too far below or above the target
heart rate setting, the resistance of the pedals will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting,
Each time the resistance changes, the resistance
level will appear in the display for a few seconds
to alert you.
18

While you exercise, the target pacer will prompt
you to maintain a constant pedaling speed. When
a left indicator lights, increase your pace; when a
right indicator lights, decrease your pace. When
the center indicator lights, maintain your current
pace. IMPORTANT: The target pacer is intend-
ed only to provide a goal. Make sure to pedal
at a pace that is comfortable for you.
i ° i
faster _ _> _ _ slower
If the resistance level for the current segment is
too high or too low, you can manually override the
resistance level by pressing the OneTouch
Resistance buttons. However, when the console
compares your heart rate to the target heart rate
setting, the resistance of the pedals may automati-
cally increase or decrease to bring your heart rate
closer to the target heart rate setting.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
workout ends.
6. Follow your progress with the displays.
See step 4 on page 15.
7. Turn on the fan if desired.
.
See step 6 on page 16.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of
this manual, iFit cards are also available at select
stores.
1. Press any button on the console or begin ped-
aling to turn on the console.
See step 1 on page 15.
2. Insert an iFIT card and select a workout.
To use an iFIT workout, insert an iFIT card into the
iFIT slot; make sure that the iFIT card is oriented
so the metal contacts are face-down and are fac-
ing the slot. When the iFIT card is properly
inserted, the indicator next to the slot will light and
text will appear in the display.
iFIT Slot
Card
.
Next, select the desired workout on the iFIT card
by pressing the increase and decrease buttons
next to the iFIT slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout, iFIT workouts work in the same way
as preset workouts. To use the workout, see steps
3 to 7 on page17.
When you are finished exercising, remove the
iFIT card.
Remove the iFIT card when you are finished exer-
cising. Store the iFIT card in a secure place.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console's
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
19

MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim or if the console
does not function correctly, the batteries should be
replaced; most console problems are the result of low
batteries. See assembly step 9 on page 9 for replace-
ment instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper-
ly, see step 5 on page 16.
HOW TO ELIMINATE RUBBING OF THE DISCS
If the Discs (12) rub against the Shields (14, 15) during
use, make sure that the Center Foot (40) is installed in
the Frame (1). If the Center Foot is installed, loosen
the two indicated M8 x 25mm Bolt Sets (88) and the
two M4 x 19mm Screws (81) in each side of the ellipti-
cal exerciser.
88
14, 15
81
HOW TO ADJUST THE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
belt may need to be adjusted. To adjust the belt, first
see assembly steps 12 and 13 on page 11 and
remove the left pedal arm and the left link arm.
Then, carefully
pry off the left
Disc Cover (13)
using a flat
screwdriver. Next,
remove the four
screws (not
shown) from the
center of the left 13
Disc (12). Gently 12
rotate the Disc
Cover and the
Disc away from the elliptical exerciser.
Loosen, but do
not remove, the
three indicated
screws (A). Insert
the shaft of a
screwdriver
downward
between the pul- 48
ley (B) and the
Idler Pulley (48).
Pull the top of the
screwdriver
toward the front
of the elliptical exerciser until the Belt (74) is tight.
Then, tighten the three screws.
Reattach the left disc with the four screws and then
reattach the left disc cover. Next, see assembly steps
12 and 13 on page 11 and reattach the left pedal arm
and the left link arm.
Adjust the position of the Shields (14, 15) until the
Discs (12) no longer rub against them, and then tight-
en the Bolt Sets (88) and the M4 x 19mm Screws (81).
20
