Bodyorbit Wonder Core User manual

Before you use the equipment, make sure you read the
”Safety precautions”, so you will use it properly.
After reading, keep it in a safe place so you can refer to it at
anytime.
If you transfer the product to others, the user manual must go
together.
Catalog
Safety precautions...................................................................
Features.................................................................................
Accessories.............................................................................
Assembly................................................................................
Start Use................................................................................
How To Use............................................................................
Storage & Maintenance.........................................................
USER ’S GUIDE
1~2
3
4
5~6
7
8~9
10

Warning: Incorrect posture can cause injury. To avoid injury, follow the safety
information in this manual. If you are new to wonder core, use 30 minutes a
day at maximum is recommend, excessive training might cause muscle pain.
Warning: Whenever you are adding or removing the spring, always remem-
ber to fix the seat back with the long pin.
Install the equipment in a place suitable for exercise.
If the place is inappropriate, it may make you fall backwards or cause injury.
Please use the equipment on level and hard grounds.
If the place is inappropriate, it may make you fall backwards or cause injury.
Must be
Followed
Warning
Safety Precautions
Warning: for your own safety, inspect your wonder core for damage and
wear regularly and before each use especially on seat, springs, screws and
knobs. If you find any missing or damaged parts, nicks, cuts, scratches or
gouges in the wonder core, discontinue its use.
You must read the “safety precautionary notes” before using the equipment.
The cautionary notes recorded here refer to the importance of safety for which you must read.
This equipment is in compliance with EN 957 part 2 class H (H = domestic)
This product is suitable for healthy individuals as its target.
You must consult your doctor before using this product.
1
Please stop immediately if there is strange feeling or discomfort in the body
during exercise.
Possible harm to health.
Do not use the equipment after drinking alcohol.
Accident may occur or discomfort caused to the body so be sure these must
be followed.
Do not use the equipment right after meals ( Avoid doing so within an hour
after meals)
Accident may occur or discomfort caused to the body so be sure these must
be followed.

Warning
Attention
2
Never allow children to use the equipment unattended.
May cause injuries
Appropriate and fitting sportswear must be worn during its use.
Otherwise, it may lead to injury or accident.
If you have long hair, be sure to tie it up before each use. Otherwise it may
be dragged into the sponge roller.
Must warm up your body before exercise.
Doing exercise before warming the body will be burden to the body.
When exercise with the swing mode, hands must hold on the handle.
You may otherwise fall or get injured.
Always disassemble the springs and fold the equipment after each use.
To avoide children using the equipment unattended.
Do not use this product other than for its original purpose.
Otherwise it may cause toppling, damage, malfuction or injury.
Do not use exercise method not recorded in the manual.
Otherwise it may lead to injury or accident.
Do not let 2 people use the product at the same time.
This product is for use by a single person. Otherwise it may cause accident
or injury.
Do not use the product for business purpose to allow an indefinite number
of many individuals to use it.
This product is limited to general household use. Otherwise it may cause
injury or accident.
When in use do not put your hands behind the seat back or under the seat.
Use by
Children
Forbidden
Must be
Followed
Forbidden
Do not
disassemble
Confirmation
Do not allow young children or pets to stay near you when the
equipment is in use.
Never repair or convert the equipment on your own.
May cause abnormal movement or cause an accident.
Contact the original dealer in case of failures or damages.
Before using the equipment, make sure that the screws and knobs are
tightly secured.
May cause accidents like falling backwards or damage.

Features
With Wonder Core, you’re getting resistance on the way down and up with
every rep. With dual resistance, you’re getting double the workout in half
the time!
Wonder Core provides a full 180 degree range of motion. That means you
can isolate and train your lower, middle, and upper abs---more range of
motion means a much tighter core!
Wonder Core is totally adjustable to your fitness level! You’ll get the ideal
amount of resistance on the way down and have the right amount of
support customized to your exact fitness level coming up. That means
everybody can do it!
You can blast away your love handles with the built in Wonder Core twisting
featured for a total core workout!
Best of all, with Wonder Core, you’re nestled in an ultra-comfortable seated
position with your head and neck fully supported through the full range of
motion.
The thick foam cushion supports create an invigorating massage up and
down your back as you train. This feels fantastic and will revitalize your
spine and back so you walk away feeling wonder-ful!
Wonder Core is even great for back pain! Its ergonomic arc design can fully
stretch your back. You will feel incredible relief by simply laying on it.
INTRODUCING WONDER CORE, THE REVOLUTIONARY
NEW WAY TO TIGHTEN YOUR CORE AND HAVE THE
WONDERFUL SEXY SIX PACK ABS YOU HAVE ALWAYS
WANTED.
3

HEAD SUPPORT
SEAT
TUBE PLUG X4
CONNECTOR
CONNECTOR UPPER BACK LOWER BACK LEG SPONGE X 4
SPONGE X 4 SPONGE X 2
BACK X3
FRONT X3
FRONT FRAME
SPRING X3
KNOB (assembled) HANDLE
PIN
HEX WRENCH
HANDLE GRIP
4
Accessories
Main frame
Parts
Accessories

Please confirm the accessories on the previous page to make sure there is no
shortage.
Unfold the seat back and fix it with the
long pin.
Insert head support and fix it with the
shortest pin.
Assemble the parts
Insert the front frame into the main unit
and fix it with knob and short pin.
1
Assemble the connector, make sure it
holds back sponges.
Assemble the leg sponges and tube
plugs.
Tip. You can disassemble the connec-
tor if you mix up the order of back
sponges.
Assemble the sponges
Place the back sponges onto the main
unit follow by the order.
2
A
A
A
A
A
B
B
B
Assembly
5
Assembly

Assemble the springs
Assemble the spring as in the left
drawing.
Tip. You can change the resistance by
adding or removing the springs.
Whenever you are adding or
removing the spring, always
remember to fix the seat back
4
3Assemble the handle
Assemble the handle as in the left
drawing.
Using hex wrench to tighten the screw
as in the below drawing.
6
Assembly

Sit up training
Remove the long pin and store it under
the seat. See left drawing.
Adjust dimensions
1) Adjust the length
2) Adjust the head support
Swing motion training
Remove all the springs.
Turn seat back down to match the
middle hole.
Insert long pin to fix the seat back.
7
Start Use

8
Start position:
Remove the pin underneath the bottom roller so the backrest will move freely towards the
floor.
Seated position = determined by height - adjust machine to sit comfortably with feet
securely locked into position - so no wasted energy in hip flexors.
Lay back onto the backrest / massage rollers. Head does not rest on the head rest. Abs are
to be contracted at all times, so there is slight inwards curve to the spine.
Begin a regular crunch motion- lifting torso up and lowering back down, pushing against the
back roller to engage the resistance.
1. AB EXERCISE:
a. CRUNCH
- Hands by side - easiest
- Hands across chest - Intermediate
- Hands on side of head - advanced
b. Shorter range of motion
- below 180 degrees. Head against head rest, hands by sides.
*After working Abs, you lock in a pin to lower the back rest, for the twister exercises *
How To Use

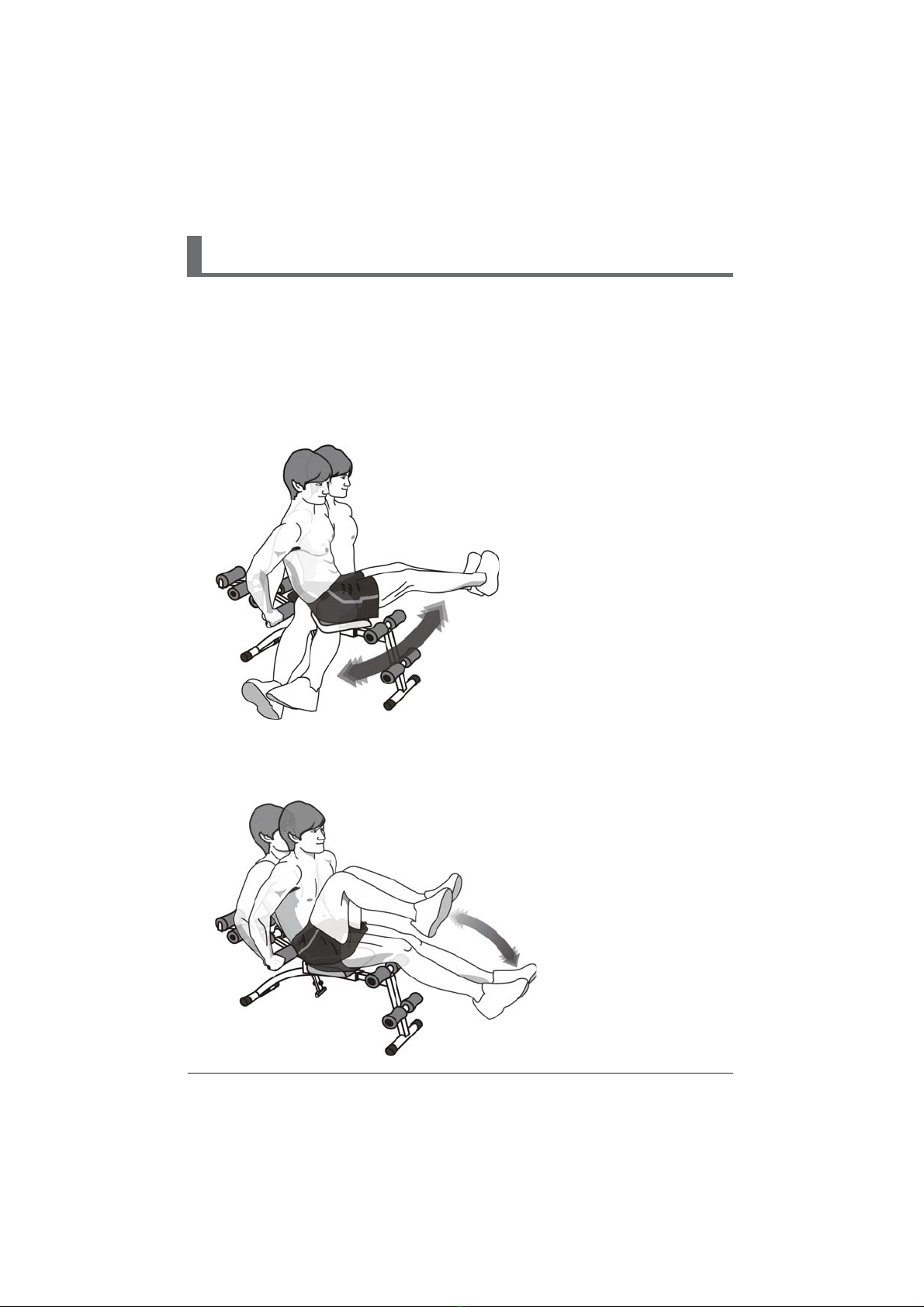

2. OBLIQUES / Lower Abs
Using the Twister seat -Hands on handles, body leaning back slightly.
a. Bent knees = easier
- Raise knees towards body, keep in position and twist side to side.
b. Straight leg twist = advanced.
- Straight legs - Raise off floor, keep in position and twist side to side.
3. LOWER ABS - seated Leg raises
a. Legs out and crunch in to target lower abs
9
How To Use

Storage & Maintenance
10
Please avoid high temperature, dampness or direct sunlight.
Keep it in a clean place with good ventilation.
Fold it up when it is not in use and put it in a place out of
reach of the children.
Fold seat back
Remove all the springs and put them in
a place out of reach of the children.
Take out long pin and fold seat back.
Insert long pin into the hole as in the
left drawing to fix it.
Fold leg
Remove the short pin and fold leg.
Put back the short pin.
Maintenance
When the product is dirty, please dilute some neutral cleansing detergents and wet a
cloth with it to clean. After that, wipe it dry with a dry cloth.
Alkaline cleaning agent or solvents like dilute solvents, volatile oil etc. may damage
this product. Please do not use these.
Maintenance / Inspection
If the product is used after it has been lying idle for a period of time, please make
sure that the product is fine and it can used safely.
If the product gets wet carelessly, please use a dry cloth to wipe it dry to avoid
making it slippery.
In the event of failure or abnormal occurrences, please contact the dealer.
If there is anything about the product that you do not understand, please contact the
customer service center.
Waste Disposal
Due to the different recycling regulations between ecah country, please refer to these
regulations before disposeing this product.

Steel - ABS - PP - TPR - PA - Sponge
In Use / W92xD54xH85cm Folded Up / W105xD54x32cm
About 11kg
120kg
China
Specs
Size
Weight
Material
Maximum Weight
Country of origin
©
