Bohemian Travel Gear WMT-130976 Parts list manual

STITCH LINE
8 PERSON STRAIGHT WALL CABIN TENT -13 x 9
Item No. WMT-130976
Model No. 30160
• Empty contents of bag and confirm all parts are included
and undamaged.
NOTE: Do this at home before you leave on your trip.
• Select a smooth level site and lay out your tent.
• Extend tent poles and place in position ready for installation.
• All poles are color coded for your convenience:
Labeled with orange stickers for four leg poles and two roof
poles. (Sticker color is matching with sleeve fabric color)
Labeled with gray stickers for 2 center leg poles and 1 center
roof pole. (Sticker color is matching with sleeve fabric color)
1
Setup Instructions:
Before you begin
Read all instructions thoroughly before beginning set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to set up your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of potential lightning strikes or falling tree limbs in
inclement weather.
• For best results in windy conditions, position narrow end of tent into the wind.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• Two people can easily setup this tent.

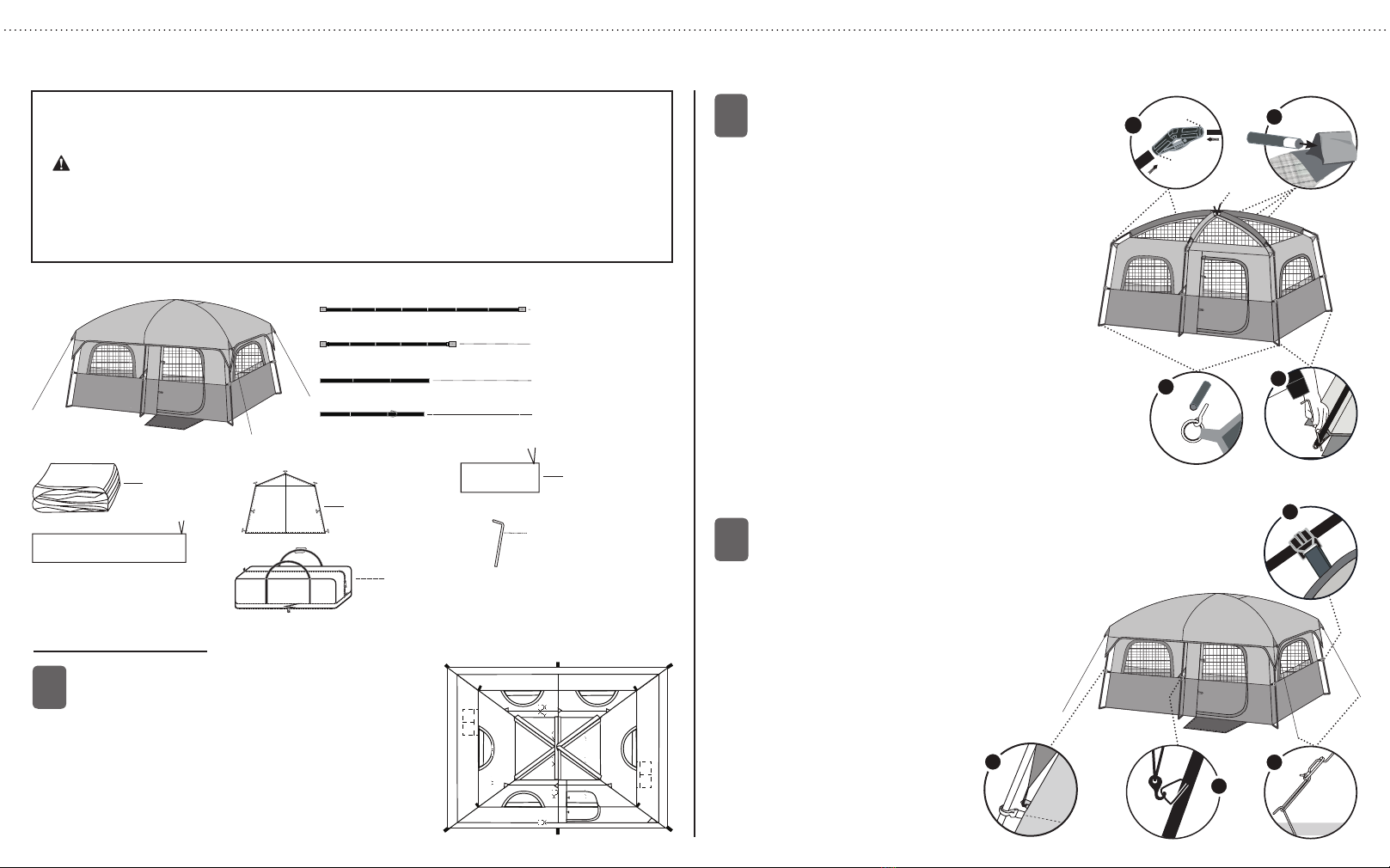

Parts List:
E (1) Rainfly
w/6 S-hooks
I (10) Stakes
H (1) Stake Bag
J (1) Carry Bag
G (1) Pole Bag
F (1) Divider
A (2) Tent Roof Poles with
Orange Sticker
B (1) Tent Center Roof Pole
with Gray Sticker
C (4) Steel Leg Poles with
Orange Sticker
D (2) Steel Center Leg Poles
with Gray Sticker
• Slide the Center Roof Pole B(1) with gray sticker through
middle roof sleeves; then secure by inserting both pole
ends into ribbed end of center Elbow Connectors.
(Details 1 & 2)
• Slide Tent Roof Poles A(2) with orange sticker into sleeves.
Insert one end of first pole into ribbed end of Elbow
Connector. Gently flex pole and insert other end of pole
into ribbed end of elbow connector at opposite corner.
Repeat for second Tent Roof Pole. Tie fabric straps at top
of tent around roof poles to secure. (Details 1 & 2)
• At the back center of tent, place one end of a Center
Steel Leg Pole D(2) with gray sticker into the smooth
end of Elbow Connector, then secure the other end
of the leg pole onto the pin-rings at base of tent.
• At the front of tent, place one end of a Center Steel
Leg Pole D(2) with gray sticker into the smooth end
of Elbow Connector, then secure the other end of
the leg pole onto the pin-rings at base of tent.
• Place one end of a side Steel Leg Pole C(4) with orange
sticker into the smooth end of Elbow Connector, then secure
the other end into the pin-rings at base of tent. Repeat step
above for the remaining 3 poles. (Detail 3)
• To stake out the tent, drive stakes through the pin-ring
assemblies on the tent base. (Detail 4)
2
3
• Snap quick clips (attached to tent body) onto all tent poles to
shape the tent.
(Detail 5)
• Drape rainfly over tent. Connect S-hook on the rainfly into
the fabric loops at the 4 corners of tent.t. Connect S-hook
on the rainfly into the D-ring at the middle steel front and
back leg poles. (Detail 6 & 7)
• Locate hook and loop fasteners on the underside
of the rainfly and secure around tent poles.
• To stabilize the tent, unroll the guylines attached
to the webbing loops on the rainfly. Make a
loop at the opposite end of the guyline
using the plastic slider and place the
loop over the tent stake. Drive the
stake into the ground to secure.
Adjust the plastic slider to tighten
the guyline. Repeat for each
guyline. (Detail 8)
(continued on other side)
4
3
5
8
1
2
Ribbed
End
Smooth
End Fabric
Straps
7
6

Description Part Number
90082 Guyline - Black and white
90239 Rainfly
90240 Room Divider
90241 Long Roof Pole (2 per tent)
90242 Short Roof Pole (1 per tent)
90243 Corner Leg Pole (4 per tent)
90244 Middle Leg Pole (2 per tent)
90245 Pole Joint
90246 Poly Patch Gray
90247 Poly Patch Orange
90248 Poly Patch Bright Orange
REPAIR PARTS LIST
Bohemian Travel Gear Limited
Plot # 30-32, Sector-3, Karnaphuli,
Chittagong 4204, Bangladesh
Made in Bangladesh • Printed in Bangladesh
IMPORTANT:
THE ORIGINAL FIRE RETARDENT AND WATER REPELLENT PROTEC-
TIVE COATINGS MAY BE COMPROMISED IF SPRAYS OR OTHER
CHEMICAL TREATMENTS ARE USED ON THE TENT. FABRIC HAS BEEN
FACTORY‐TREATED. IT IS HIGHLY WATER-REPELLANT; HOWEVER, IT
IS NOT WATERPROOF. ALL TENTS CAN EXPERIENCE SEAM LEAK-
AGE DURING WET WEATHER. IF YOU WANT ADDITIONAL MOISTURE
PROTECTION, TRY A SEAM SEALING COMPOUND ONLY; STRICTLY
FOLLOW THE MANUFACTURER’S DIRECTIONS. IT IS RECOMMENDED
THAT YOU SEAL THE TENT DURING THE INITIAL SETUP AS WELL AS
PRIOR TO EACH CAMPING SEASON. SEAM SEALER COMPOUNDS
CAN BE PURCHASED AT YOUR LOCAL CAMPING PRODUCTS OUTLET.
FOR MISSING PARTS CALL 1-888-774-5840.
PLEASE DO NOT RETURN THIS PRODUCT TO THE RETAIL STORE.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS
TENT FABRIC
This tent is made of flame-resistant fabric which meets CPAI-84 specifications. IT IS NOT FIRE-PROOF. The
fabric will burn if left in continuous contact with any flame source. The application of any foreign substance to
the product fabric may render the flame-resistant properties ineffective.
DO NOT use fuel burning devices inside or near tent materials.
DO NOT permit children to light matches, operate burning appliances, or handle any flame sources in or near the
tent.
• Do not smoke, use matches, candles or open flames of any kind in or near the tent.
• Do not refuel lanterns, stoves or heaters inside tent.
• Do not cook inside tent.
• Do not store flammable liquids inside tent.
6 Month Limited Warranty
Bohemian Travel Gear Limited warrants for a period of 6
months from the original date of purchase, this product against
any defects in materials or workmanship. At its discretion,
Bohemian Travel Gear may provide replacement parts to original
purchaser. Original receipt or proof of purchase as well as proof
of defect is required. Bohemian Travel Gear will not be respon-
sible for shipping costs incurred outside the continental USA.
Warranty is valid for the original purchaser six months from the
date of purchase and is not transferable. This Warranty does not
cover any product purchased through non-authorized dealers
and/or online auction websites.
This Warranty Does Not Cover This
This 6 Month Limited Warranty does NOT cover normal wear
and tear, abuse or misuse of this product including damage
from inclement weather conditions, such as wind, rain, or hail.
In case of inclement weather remove all valuables and persons
and seek appropriate shelter. Under no circumstances will
Bohemian Travel Gear Limited be liable or responsible for any
incidental or consequential damages.
This product is designed and intended for Recreational use
only. Prolonged exposure to UV rays will cause any fabric to
fade and deteriorate and is NOT covered by this 6 Month Limited
Warranty.
All replacement products or parts will assume the remain-
ing warranty of the original product. This warranty gives you
specific legal rights. You may also have other rights which vary
from state to state.
To Obtain Warranty Service
Call Toll Free 1-888-774-5840 for warranty service, repair
parts, or product questions. Mon-Fri, 8:00 a.m. – 5:00 p.m.
Central Time.
NOTICE: DO NOT RETURN PRODUCT TO RETAIL STORE.
Storing the Tent
• Remove guylines and stakes and place in their storage bag.
• All stakes must be placed in their own storage bag before placing in tent carrying case to prevent damage to the
tent fabric.
• Store in a clean, dry area.
Things You Should Know
• Under certain conditions (cold weather, high humidity, etc.) condensation will form on the inside of your tent.
Condensation is caused by water vapor from your breath, perspiration, or any wet clothing inside the tent. It is
NOT LEAKAGE through the tent fabric. It can be minimized by removing wet clothing from your tent and by provid-
ing good ventilation through the tent.
• Never store tent, even for a short period of time, without drying it thoroughly and brushing off caked dirt. Do not
pack stakes inside your tent. Use a separate storage bag.
• STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF. NEVER PULL ON THE TENT TO
REMOVE STAKE.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure to ultraviolet rays from the sun can
seriously damage material and/or cause it to become discolored.
WARNING: Keep all flame and heat sources away from this tent fabric.
This tent meets the flammability requirements of CPAI-84. The fabric may burn if left in continuous contact with any
flame source. The application of any foreign substance to the tent fabric may render the flame-resistant properties
ineffective.
• The divider curtain provides extra
privacy in your tent. To install it,
attach divider’s plastic toggles to
corresponding loops on the wall
inside the tent.
(Detail 8)
4
8
