Christian Brothers 8451 User manual

M o
d
e
l
N o . 8451
- Cust omer Serv i
c
e I n for m ation -
Christian Brothers 5x6 Hub Shelter
S p e
c
if ica
t
i o n
s
▪Height - 72 inches
▪Hub-to-Hub - 70x90 inches
▪Footprint - 60x72 inches
▪Weight – 26 lbs.
- Limitation of Liability -
It is expressly understood that Clam Corporation’s liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is
not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss
of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use,
or the repair or replacement of Clam Corporation products. Clam Corporation reserves the right to make alterations
or modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. It shall not be obligated to make such alterations or modifications to products already in service.
NOTICE: Once used, this shelter cannot be returned to the sto
r
e. If you have a warranty
claim, please contact Customer Service directly at the email address or phone number below.
Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
Phone: [phone]
Fax: [phone]
Email: [email protected]
** Warranty cannot be honored without an original, dated receipt **
Warranty Information:
This product is warranted to the original retail purchaser (not transferable) its product to be free
from manufacturers defects for one (1) year from the date of the original purchase. Warranty
does not cover cracked windows, tent tears, broken or bent hoops due to high
wind weather conditions or unattended use. The part will replaced or repaired
(manufacturer’s option) if found defective within the one (1) year time frame. All parts must be
returned to the address listed below. Before returning any parts, you must first contact customer
service to obtain a RMA (Return Material Authorization). All returns must be returned postage-
prepaid and include the original cash register receipt (date and purchase price).
To obtain a return authorization, please use one of the following methods:
• Email: [email protected] (Preferred)
• Call: 763-231-4120
• Write: Customer Service – Returns
600 Clydesdale Trail
Medina, MN 55340
Information needed: Full name, mailing address, phone number, copy of original receipt, product
purchased, and pictures clearly showing the issue(s) if you have them. Please write the return
authorization number on the outside of the package to help ensure the transaction gets
processed swiftly and accurately.

SAFETY INSTRUCTIONS
Please fully understand and follow all safety instructions
outlined in this booklet. Failure to do so could result in
severe injury.
• Do not use open flame heaters in your ice shelter.
Open vents for cross ventilation.
• Ice Armor fabric will melt when contact is made with
hot surfaces (i.e., heaters).
• Never leave shelter unattended when set up.
• Due to the increase in traffic (snowmobiles, autos,
etc.) on area lakes, ice fishing can be hazardous at
night. If you choose to fish at night or in poor visibility
conditions, be sure to take precautions with lights or
r
eflecto
r
s
t
o show dri
v
e
r
s
y
ou
r
whe
r
eabou
t
s.
Death from asphyxiation may result from use o
f
oxygen depleting heaters. Open all vents fo
r
fresh air ventilation.
Injury or death may result from fire if tent fabric is
exposed to open flame.
Tent fabric is not fireproof. Fabric will burn wit
h
extended exposure to open flame. Do not us
e
open flame products inside tent. Tent fabric i
s
treated with fire retardant. Application of any for
-
eign substance may render the flame retardan
t
properties ineffective.
Night time: exterior reflectors must be visible to
reduce risk of collisions.
This tent is made with flame resistant fabric
which meets C
P
AI-84 s
p
eci
f
ications.
CHRISTIAN BROTHERS 5x6 HUB P
A
R
T S LIST
If you need replacement parts,
contact Customer Service at
763-231-4120 or
[e-mail]
Customer service hours:
9am – 4pm, weekdays,
central time.
ITEM # DESCRIPTION
Q
TY . P
A
R
TNO.
1 HUB ASSY 5 102764
2 ICE ANCHOR 4 102457
3
TIE DOWN ROPE 4 102458
4 FIBERGLASS POLE-Front & Rear 8 102756
5 FIBERGLASS POLE-Sides & Top 12 102753
6 CARRY BAG 1 102960
Ice Anchors and ropes included in small carry pouch.
ASSEMBL YINSTRUCTIONS
BEFORE A TTEMPTING TO USE THIS PRODUCT ON THE ICE practice setting up and taking
down at home in the comfort of a heated area. Repeat several times until comfortable. This will make
your on-ice set-up much easier.
NO TOOLS ARE NEEDED FOR ASSEMBL Y O F YOUR CHRISTIAN BROTHERS 5x6 HUB SHELTER.
1. Unzip the storage bag completely and remove the
shelter. Use care not to misplace the anchor &
rope pouch (Photo 1).
Pa
g
e 2
Photo 1
Anchor & rope pouch

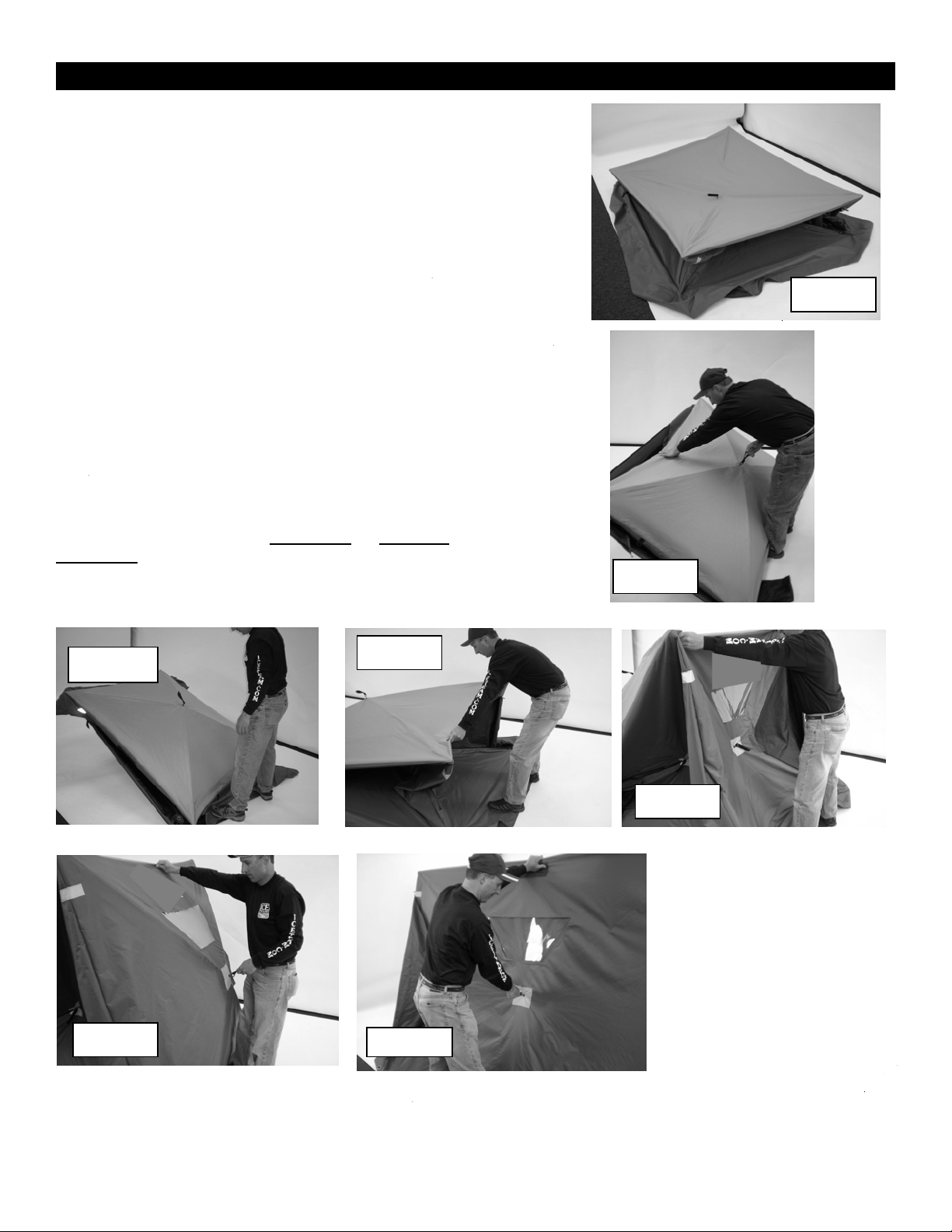

ASSEMBLY INSTRUCTIONS
Pa
g
e 3
4. Once the roof is popped up, go to one of the
short (6 foot) sides of the shelter. Step on the
skirt, feet wide (Photo 4), grab the top corners on
both sides and pull straight up (Photo 5 & 6).
Once the wall is up, grasp the loop sewn onto the
eyelet in the center of the short side wall and pull
outward until the wall pops up (Photo 7).
Repeat this procedure for all the walls, going
around the shelter either clockwise or counter-
clockwise (Photo 8).
3. Stand on the skirt of the long side (8 ft side) of the
shelter, grasp the loop sewn onto the eyelet in the
center of the roof with one hand, and place your other
hand on the opposite side at the roof line. Pull upward
on the loop while pushing down on the roof line until
the roof section pops up. (Photo 3).
2. Open the shelter so that the gray top is facing upward.
Lay the shelter as flat on the ice as you can, making sure
that the tent is not twisted or overlapping any of the poles
(Photo 2). Do NOT force the shelter while unfolding.
Photo 2
Photo 3
Photo 4 Photo 5
Photo 6
Photo 7
Photo 8

ASSEMBLY INSTRUCTIONS
Pa
g
e 4
5. Your shelter should be standing up completely (Photo 9) .
Anchor the shelter to the ice by using the provided ice
anchors and rope.
Screw two or more ice anchors into the ice several feet away from
the shelter using Clam’s Ice Anchor Installation Tool PN 8348 (not
included). Use the provided ropes to tie the hub eyelets to an
anchor, and the adjustment slides on the rope to achieve proper
tension. Next, screw two anchors through the windward corner
shelter grommets completely. This will help keep the shelter in
place. If more anchors are needed, order PN 102457.
Photo 9
TAKE-DOWN INSTRUCTIONS
TAKE-DOWN INSTRUCTIONS
1. Close all windows. Leave door open to allow air to escape.
2. Remove all ropes and ice anchors and store them in the provided
pouch. In windy conditions, remove ice anchors after collapsing the
roof and walls.
3. Step on the skirt of the short (6 foot) side. Push the center hub
until the wall collapses inward (Photo 13).Continue either clockwise
or counter-clockwise pushing each wall inward until all the walls are
collapsed (Photo 14). The shelter will fall to the ice on its own.
4. Push the hub of the roof inward until it collapses (Photo 15).
NOTE: Make sure the roof collapses all the way. You may have to
pull up on the edge of the roof to get the roof hub to collapse.
5. Grab one of the collapsed corners and lift up to start folding up
the shelter (Photo 16).
NOTE: It is extremely important to ensure the hub systems and
poles are not tangled before completely folding the tent up for
storage (Photo 17).
6. Once the hub systems are all free and the tent is completely
folded up store in carry bag. Place the folded shelter and the ice
anchor/rope pouch back into the carrying case with the hubs
toward the bottom end of the bag.
Photo 15
Photo 13
Photo 14
Photo 16
Photo 17
Tangled Untangled Instruction Part # 102961
