Clarke CIG81020 User manual

ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC1117 - ISS1

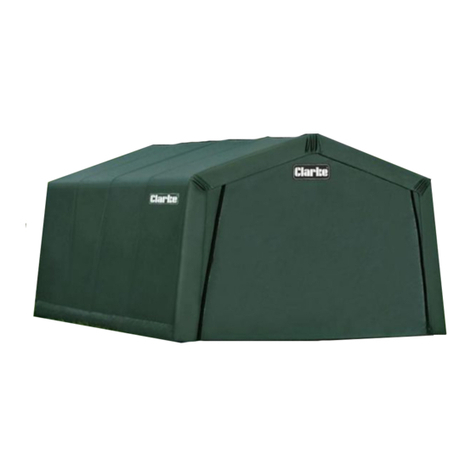

INSTANT GARAGE
MODEL NO: CIG81020
PART NO: 3503572

2
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
INTRODUCTION
Thank you for purchasing this CLARKE Instant Garage. When erected, the
CIG81020 garage will be of the dimensions show below. The product weight is
64kg packed (61 kg unpacked).
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SAFETY INSTRUCTIONS
This Instant Garage is a temporary structure and is not recommended as a
permanent building.
Choose your garage’s location carefully. Check for overhead utility lines,
branches, etc. DO NOT install near roofs or other structures that may shed snow,
ice or excessive run-off onto your shelter. Keep away from power cables.
WARNING: READ ALL SAFETY INSTRUCTIONS TO REDUCE THE RISK OF
INJURY AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

3
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
Erect your garage on a level surface.
Have an overview of all parts before attempting installation. Make sure all
components are available.
DO NOT use this product in environments for which it is not Intended (i.e.
extreme cold, high winds, extreme heat, heavy rainfall, etc).
Always wear safety glasses when assembling this product. Wear gloves when
working with tubing to prevent cuts or abrasions.
Proper anchoring and keeping the cover tight and free of snow and debris is
the responsibility of the user.
Damage caused by improper anchoring are not covered under warranty.
Keep all flame and heat sources away from the garage fabric. The fabric will
burn if left in continuous contact with a naked flame.
DO NOT use open flames or cooking or heating devices inside or in close
proximity to the garage, including all types of stoves, gas heaters, gas lanterns,
torches, fly killers, etc.
In order to reduce risk of burning and avoid damage, DO NOT- cook, smoke,
refuel or use any open flame devices in or around the garage.
DO NOT store flammable liquids (petrol, kerosene, propane, etc.) in the
shelter., operate gas powered vehicles/equipment in or around the garage.
Keep open flames a safe distance away from the garage.
DO NOT use hard-edged tools or instruments, such as rakes or shovels, to
remove snow. These can cause punctures to the cover.
NEVER start the engine of any vehicle or machine inside a closed garage.
Ensure that there is adequate ventilation for engines and for any work with
paints, cleaners. etc.
This garage is NOT designed to support heavy snow, Snow or ice accumulation
may cause your garage to collapse. To avoid overload, brush snow and ice off
the roof top with a broom or mop.
To prevent collapse, damage to property or personal injury, NEVER clear the
roof of snow or debris from inside the garage.
DO NOT use bleach, alkaline or harsh detergents for cleaning. Doing so will
damage the material. Soap and warm water are recommended.
This temporary garage is designed to offer protection from damage caused
by the sun, light rain, light snow, tree sap and bird droppings. It is not designed
to shelter equipment from high winds or heavy snow.

4
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
COMPONENT PARTS LIST

5
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
ASSEMBLY
1. Place all parts in a clear area and arrange them on the ground in front of
you.
2. Remove all packaging materials and place them back in the box. Do not
dispose of the packaging materials until assembly is complete.
3. Check for completeness and for any transport damage.

6
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 1: PREPARING THE ROOF PARTS
Select a suitable location for the garage. The layout of the roof parts is shown
in diagram B.
Note the differences between
the connectors shown in
Diagram C. (connectors are
also individually numbered).
Note: When installed, the
welded socket for the cross rail
must be below the bend.
Parts #8, #9 &#11 are side bend
connectors with sharp bend.
Parts #12 & #7 are top bend
connectors with sloping bend.

7
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 2: ASSEMBLING THE ROOF
1. Assemble the roof frame by connecting the parts layout above.
NOTE: The hole end on Part #3 needs to be connected to Parts #12 and
#7 (See Diagram D1& D2) by the fittings #21, #23 and #24.
There is a spring button on both ends of Part #4. Make sure the button pops up
when connecting with Parts #12 & Part #7, (See Diagram D3)
2. Use a rubber or wooden mallet to ensure all tubes are fully inserted.

8
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 3: ATTACHING THE LEGS
1. There are 10 legs for the whole shelter. Follow Drawing E1. Connect the leg
tubes #1 & #10 to create the 4 x Corner legs.
2. Connect leg tubes #1 & #2 to create the 6 x Center Legs.
3. Insert the Center Legs into the Foot Plate (#18), Align the holes in the pole
and foot plate, push the Pin Bolt (#19) through all the holes, insert the cotter
pin (#20) and split the tongues of the split pin with a flat screwdriver to
secure this connection. (See Diagrams E2, E3 & E4.)
4. Insert the centre legs and corner legs into the side connectors as in
Diagram E4.
5. Repeat to assemble the other side as; shown in Diagram E.

9
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 4: SQUARE AND ANCHOR THE FRAME
1. Check the measurements of the frame are 9'8” at both the front and back
corners, as well as across the center.
2. Take a diagonal measurement as shown in Diagram F. When these two
measures are equal the frame is square. Adjust the frame until they are
equal to within 1".
3. Once equal, check the width measurement again to ensure all widths are
equal at 9'8”.
4. Next, install the anchors
(Parts #15, #16 & #17) at the
4 corner bent legs by
screwing the removable
anchor (#15) into the
ground on the inside of the
shelter.
5. Secure with cable (#16)
and cable clamp (#17) (as
shown in Diagram G).

10
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 5: INSTALLING THE FRONT AND BACK COVERS
The front cover has a zippered door to allow entry to the garage. Be sure to
locate this cover at the desired end and ensure the zipper is in the closed
position while installing.
The back cover is a solid piece of polyethylene. Both the covers are installed in
the same fashion.
1. Thread the strap through the spindle of the ratchet to make sure the strap
will stay in the sleeve when assembled. Raise and lower the handle two or
three times to wind the strap onto the spindle as above.
2. Begin with the front cover and first locate the webbed belt that runs
around the perimeter of the cover.
• The webbing is exposed at the peak, the shoulders and the feet of
the cover.
3. Using a rubber mallet, disconnect the apex tube (#4) from the connector
(#12) located between the leg and the roof tubes.

11
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
4. Wrap the door panel around the tube. Slip the webbing strap between the
tubes and then re-connect.
5. Hook the pre-assembled ratchet tie-down to the corner bottom (#10) and
tighten the ratchet until the door cover is reasonably tight.
6. Repeat the same procedure to install the back panel in position.

12
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
STEP 6: INSTALLING THE MAIN COVER
1. Lay the cover on the ground next to the frame with the inside of the cover
(the side with the pockets) facing down and the strap on the front and rear
of the frame.
2. Tie a rope to the eyelets on the cover, one each side. Another rope in the
middle helps if another person is available.
3. Pull the cover over the frame using the rope as in Diagram J, making sure
to centre the cover on the frame. There should be an equal overhang on
each corner.
4. Assemble the ratchet tie-down (#28) to the strap ends on the four corners
of the cover, one to each corner. Ratchet a few times to tighten the belt to
the ratchet.

13
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
5. Insert the hook on the ratchet into the hole on the bent corner leg. Wind
the ratchet so that the webbing overlaps itself.
6. Slide the bottom Cross Rails through the fabric pockets at each leg and re-
attach with clamps at each leg. Repeat this on the other side. Push down
on the cover rails to tighten the cover before tightening the bolts
completely.
7. When the cover rails are all secured, proceed to the four corners and
tighten the end covers to the end frames using the ratchet action.
NOTE: Over-tightening can cause damage to straps and/or the anchor
point. Do not over-tighten!
The garage is now ready for use.
NOTE: Check periodically (two to three times in the first week and
tighten ratchet tie-downs and all hardware as needed. Monthly
inspection is recommended throughout usage.

14
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
DISASSEMBLY
When disassembling the garage depress the spring-loaded bar to disengage
the ratchet and open the ratchet handle completely to allow the webbing
strap to pull through.
PLEASE RE-READ ALL WARNINGS CONTAINED ON PAGE 2/3 OF THESE
INSTRUCTIONS. SAVE THESE INSTRUCTIONS FOR FUTURE USE.
To dismantle, execute all instructions in reverse order.
Store your garage in a cool, dry location between seasons to prolong the
usable life of all components.
Components are not equally durable and will require replacement over time
at differing intervals.

15
Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
