Bohn BHA Quick start guide

LARGE UNIT COOLER
Technical Guide
Models BHA | Air Defrost • BHE/BHL | Electric Defrost • BHG/BHF | Hot Gas Defrost
www.thecoldstandard.com
bn-LUCTb
May 2008
Replaces 430.2, August 2002

2
Nomenclature
BH A 850 C P A
Voltage
B = 208-230/1/60 M = 460/1/60
C = 208-230/3/60 X = 380-400/3/50
D = 460/3/60 Y = 200-220/1/50
E = 575/3/60
Bohn Large Unit Cooler
Capacity x 100
(standard motor/fan blade)
Fins Per Inch/Defrost
A = 6 or 8 FPI Air Defrost
E = 6 FPI Electric Defrost
L = 4 FPI Electric Defrost
G = 6 FPI Hot Gas Defrost
F = 4 FPI Hot Gas Defrost
©2007 Heatcraft Refrigeration Products LLC
Table of Contents
Features & Benets............................................................................................................................................. 3
60 Hz Performance ......................................................................................................................................... 4-8
50 Hz Performance .......................................................................................................................................9-13
Physical Specications ............................................................................................................................. 14-16

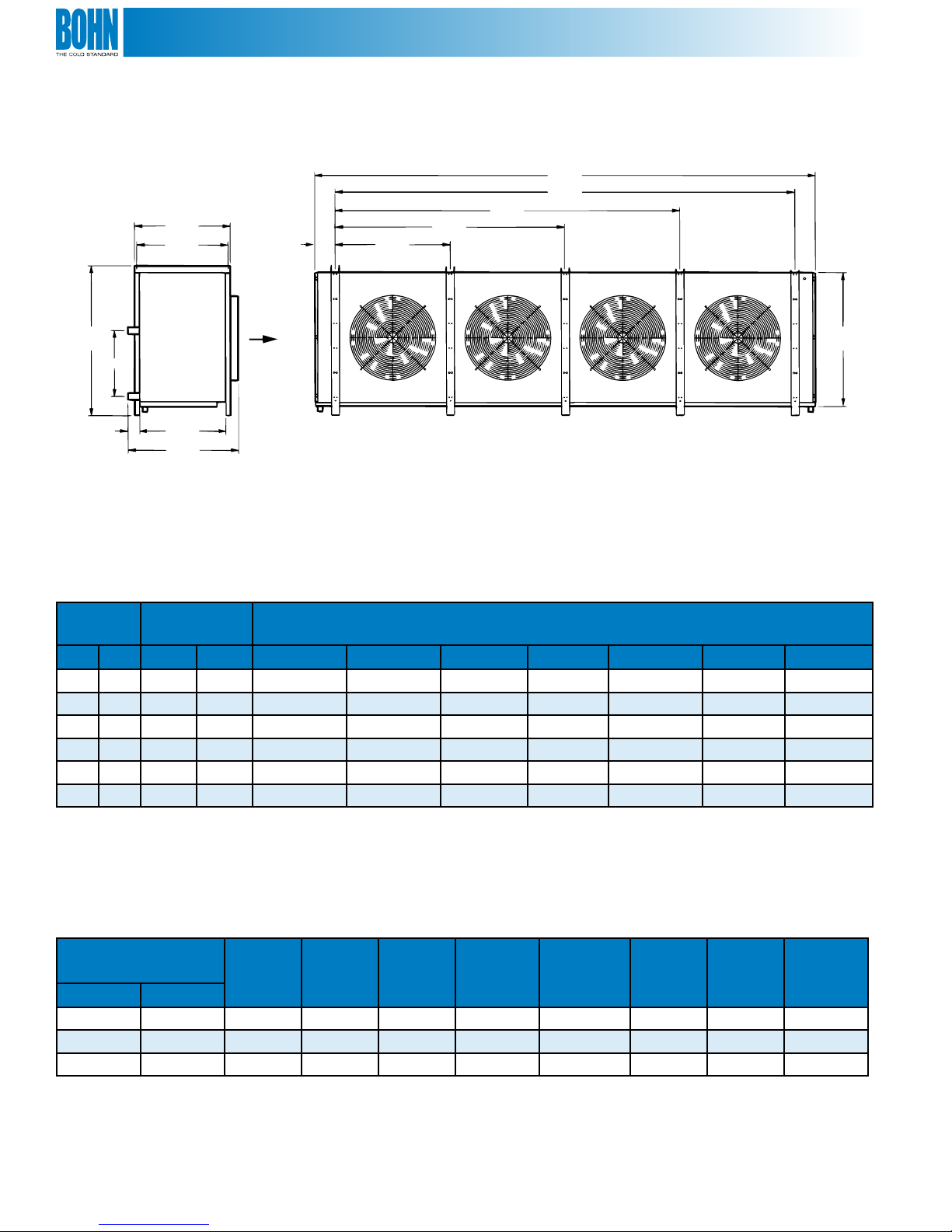

Dimensional Data ...................................................................................................................................... 17-18
Nozzle Selection ................................................................................................................................................19
Replacement Parts..................................................................................................................................... 20-21
Notes............................................................................................................................................................... 22-23
Vintage
Optional Motor
T = Totally Enclosed Motors
V = High CFM Option
P = 3-Phase Motor

3
Features & Benets
Bohn introduces it’s latest line of heavy duty large unit coolers for warehouse
cooler/freezer applications. With a wider capacity range and the patentedThermo-
Flex coil design, these large unit coolers provide ecient, reliable operation. Bohn
has designed many features and options into this product line to give you a superior
heavy duty evaporator.
Features
• Mill nish aluminum provides an
attractive design and structurally
sound cabinet
• Thermo-Flex (with ve-year limited
warranty) is innovative,
eliminates leaks, and reduces risk of
refrigerant loss
• 850 rpm motors are quiet
and reliable
• Liquid line solenoid wiring harness
for faster installation
• Suction Schrader tting for easier
suction temperature measurement
• Hinged drain pan and access panels for
easy servicing
• Captive fasteners on access panels for
easy servicing — no fumbling with
loose bolts and nuts
• Adjustable defrost control can be
customized per application
• Long air throw is ideal for large
warehouse and industrial applications
• Standardized terminal board for easier
eld wiring
• Complete hot gas defrost model
oering meets more applications
Options
• High CFM motor and fan combinations
(208-230/3/60 and 460/3/60)
• Totally enclosed motors (208-230/3/60
and 460/3/60)
• Low temperature motors for blast cooling
and freezing (for room temps -31°F to -50°F)
• Long air throw collars for large warehouse
and industrial applications
• More factory mounted features for easier
eld installation (consult factory)
• Insulated drain pan
Innovative
Thermo-Flex™
Coil Design
Bohn’s innovative coil design utilizes a
unique approach to coil expansion that
virtually eliminates the possibility of
leaks at tube sheets and coil supports.
The Thermo-Flex™ coil design for the
unitcooler*allowsthecoilto“ex”during
periods of defrost resulting in expansion
of the coil surface. By eliminating the
possibility of wear at critical stress areas,
the integrity and longevity of the unit
are dramatically increased.The result is a
product which greatly enhances overall
system reliability and reduces risk of
costly refrigerant loss.
Bohn offers a five-year limited
guarantee against leaks at tube
sheets and center supports for all
medium prole unit coolers.
* Patent number 5,584,340

4
60 Hz Performance
* 208-230/3/60 and 460/3/60 motors are 3/4 HP
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 1. Model BHA 60 Hz Air Defrost
Model
Capacity
BTUH/watts
10°F TD
25°F SST
Fan Data Standard Motor Data
HP
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m208-230/1/60 208-
230
/3/60
460/1/60 460
/3/60
575
/3/60
Standard w/
Collar
Wired
1-Phase
Wired
3-Phase
Wired
1-Phase
Wired
3-Phase
BHA Models 6 Fins Per Inch
BHA520 52,000 15,200 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8
BHA630 63,000 18,500 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8
BHA750 75,000 22,000 12,600 21,400 3 24 610 70 21 85 26 1/2* 9.6 5.5 7.8 - 3.0 3.9 2.7
BHA850 85,000 24,900 12,600 21,400 3 24 610 70 21 85 26 1/2* 9.6 5.5 7.8 - 3.0 3.9 2.7
BHA930 93,000 27,200 16,800 28,600 4 24 610 70 21 85 26 1/2* 12.8 8.7 10.4 - 4.7 5.2 3.6
BHA1100 110,000 32,200 16,800 28,600 4 24 610 70 21 85 26 1/2* 12.8 8.7 10.4 - 4.7 5.2 3.6
BHA1170 117,000 34,300 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8
BHA1400 140,000 41,000 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8
BHA1610 161,000 47,200 24,300 41,300 3 30 762 100 30 115 35 1-1/2 - - 19.8 - - 9.9 7.8
BHA1900 190,000 55,600 26,550 45,100 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4
BHA2200 220,000 64,400 30,400 51,700 4 30 762 120 37 140 43 1-1/2 - - 26.4 - - 13.2 10.4
BHA2440 244,000 71,500 35,400 60,200 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2
BHA Models 8 Fins Per Inch
BHA2160 216,000 63,300 25,950 44,100 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4
BHA2500 250,000 73,200 29,600 50,300 4 30 762 120 37 140 43 1-1/2 - - 26.4 - - 13.2 10.4
BHA2780 278,000 81,400 34,600 58,800 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2

5
60 Hz Performance
Model
Capacity
BTUH/watts
10°F TD
-20°F SST
Fan Data Standard Motor Data Defrost Heaters
HP
Total Amps
Watts
Total Amps
CFM/m
3
hNo. Dia.
in./mm
Air Throw ft./m208-230/1/60 208-
230
/3/60
460/1/60 460
/3/60
575
/3/60
208-
230
/3/60
460
3/60
575
/3/60
Standard w/
Collar
Wired
1-Phase
Wired
3-Phase
Wired
1-Phase
Wired
3-Phase
BHE Models 6 Fins Per Inch
BHE450 45,000 13,200 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 9,900 27.5 13.9 11.1
BHE550 55,000 16,100 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 9,900 27.5 13.9 11.1
BHE640 64,000 18,700 12,600 21,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 12,900 35.8 18.1 14.5
BHE740 74,000 21,700 12,600 21,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 12,900 35.8 18.1 14.5
BHE810 81,000 23,700 16,800 28,600 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 17,050 47.8 24.3 19.1
BHE950 95,000 27,800 16,800 28,600 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 17,050 47.8 24.3 19.1
BHE1020 102,000 29,900 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 21,400 64.2 32.1 22.8
BHE1200 120,000 35,100 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 21,400 64.2 32.1 22.8
BHE1390 139,000 40,700 24,300 41,300 3 30 762 100 30 115 35 1-1/2 - - 19.8 - - 9.9 7.8 21,400 64.2 32.1 22.8
BHE1650 165,000 48,300 26,550 45,100 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4 33,600 87.2 47.5 34.9
BHE2120 212,000 62,100 35,400 60,200 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2 49,600 128.4 70.0 56.0
BHL Models 4 Fins Per Inch
BHL400 40,000 11,700 9,400 16,000 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 9,900 27.5 13.9 11.1
BHL480 48,000 14,100 9,400 16,000 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 9,900 27.5 13.9 11.1
BHL560 56,000 16,400 13,200 22,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 12,900 35.8 18.1 14.5
BHL650 65,000 19,000 13,200 22,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 12,900 35.8 18.1 14.5
BHL710 71,000 20,800 17,600 29,900 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 17,050 47.8 24.3 19.1
BHL840 84,000 24,600 17,600 29,900 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 17,050 47.8 24.3 19.1
BHL890 89,000 26,100 21,600 36,700 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 21,400 64.2 32.1 22.8
BHL1050 105,000 30,800 21,600 36,700 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 21,400 64.2 32.1 22.8
BHL1220 122,000 35,700 25,200 42,800 3 30 762 100 30 115 35 1-1/2 - - 19.8 - - 9.9 7.8 21,400 64.2 32.1 22.8
BHL1440 144,000 42,200 27,600 46,900 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4 33,600 87.2 47.5 34.9
BHL1860 186,000 54,500 36,800 62,600 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2 49,600 128.4 70.0 56.0
Table 2. Models BHE/BHL 60 Hz Electric Defrost
* 208-230/3/60 and 460/3/60 motors are 3/4 HP
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

6
60 Hz Performance
Model
Capacity
BTUH/watts
10°F TD
-20°F SST
Fan Data Standard Motor Data Drain Pan Heaters (Std.)†
HP
Total Amps
Watts
Total Amps
CFM/m
3
hNo. Dia.
in./mm
Air Throw ft./m208-230/1/60 208-
230
/3/60
460/1/60 460
/3/60
575
/3/60
208-
230
/1/60
460
1/60
575
/1/60
Standard w/
Collar
Wired
1-Phase
Wired
3-Phase
Wired
1-Phase
Wired
3-Phase
BHG Models 6 Fins Per Inch
BHG450 45,000 13,200 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 2,100 9.2 4.6 3.7
BHG550 55,000 16,100 9,000 15,300 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 2,100 9.2 4.6 3.7
BHG640 64,000 18,700 12,600 21,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 2,700 11.8 5.9 4.7
BHG740 74,000 21,700 12,600 21,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 2,700 11.8 5.9 4.7
BHG810 81,000 23,700 16,800 28,600 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 4,000 17.4 8.7 6.9
BHG950 95,000 27,800 16,800 28,600 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 4,000 17.4 8.7 6.9
BHG1020 102,000 29,900 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 4,000 17.4 8.7 6.9
BHG1200 120,000 35,100 20,700 35,200 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 4,000 17.4 8.7 6.9
BHG1390 139,000 40,700 24,300 41,300 3 30 762 100 30 115 35 1-1/2 - - 19.8 - - 9.9 7.8 4,000 17.4 8.7 6.9
BHG1650 165,000 48,300 26,550 45,100 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4 4,200 18.2 9.1 7.3
BHG2120 212,000 62,100 35,400 60,200 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2 6,200 17.7** 13.4 10.8
BHF Models 4 Fins Per Inch
BHF400 40,000 11,700 9,400 16,000 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 2,100 9.2 4.6 3.7
BHF480 48,000 14,100 9,400 16,000 2 24 610 70 21 85 26 1/2* 6.4 - 5.2 3.4 - 2.6 1.8 2,100 9.2 4.6 3.7
BHF560 56,000 16,400 13,200 22,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 2,700 11.8 5.9 4.7
BHF650 65,000 19,000 13,200 22,400 3 24 610 70 21 85 26 1/2* - 5.5 7.8 - 3.0 3.9 2.7 2,700 11.8 5.9 4.7
BHF710 71,000 20,800 17,600 29,900 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 4,000 17.4 8.7 6.9
BHF840 84,000 24,600 17,600 29,900 4 24 610 70 21 85 26 1/2* - 8.7 10.4 - 4.7 5.2 3.6 4,000 17.4 8.7 6.9
BHF890 89,000 26,100 21,600 36,700 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 4,000 17.4 8.7 6.9
BHF1050 105,000 30,800 21,600 36,700 3 30 762 100 30 115 35 1 - - 13.8 - - 6.9 7.8 4,000 17.4 8.7 6.9
BHF1220 122,000 35,700 25,200 42,800 3 30 762 100 30 115 35 1-1/2 - - 19.8 - - 9.9 7.8 4,000 17.4 8.7 6.9
BHF1440 144,000 42,200 27,600 46,900 3 30 762 120 37 140 43 1-1/2 - - 21.0 - - 10.5 8.4 4,200 18.2 9.1 7.3
BHF1860 186,000 54,500 36,800 62,600 4 30 762 120 37 140 43 1-1/2 - - 28.0 - - 14.0 11.2 6,200 17.7** 13.4 10.8
Table 3. Models BHG/BHF 60 Hz Hot Gas Defrost
* 208-230/3/60 and 460/3/60 motors are 3/4 HP
** This model with 3-Phase drain pan heaters
†Hot gas drain pan available
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

7
60 Hz Performance
Notes: High CFM models can handle external static pressure up to 1/2” of water
High CFM models are designed for operation below 15°F SST
CFM is at 0.0 external static pressure
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 4. Models BHE/BHL 60 Hz Electric Defrost High CFM
Model
Capacity
BTUH/watts
10°F TD
-20°F SST
Fan Data Standard Motor Data Defrost Heaters
HP
Total Amps
Watts
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m208-
230
/3/60
460
/3/60
208-
230
/3/60
460
/3/60
575
/3/60
Standard w/ Collar
BHE Models 6 Fins Per Inch
BHE450*V 49,500 14,500 11,300 19,200 2 24 610 85 30 100 30 2 12.0 6.0 9,900 27.5 13.9 11.1
BHE550*V 60,500 17,700 11,300 19,200 2 24 610 85 30 100 30 2 12.0 6.0 9,900 27.5 13.9 11.1
BHE640*V 70,400 20,600 15,900 27,000 3 24 610 85 30 100 30 2 18.0 9.0 12,900 35.8 18.1 14.5
BHE740*V 81,400 23,800 15,900 27,000 3 24 610 85 30 100 30 2 18.0 9.0 12,900 35.8 18.1 14.5
BHE810*V 89,100 26,100 21,200 36,000 4 24 610 85 30 100 30 2 24.0 12.0 17,050 47.8 24.3 19.5
BHE950*V 104,000 30,500 21,200 36,000 4 24 610 85 30 100 30 2 24.0 12.0 17,050 47.8 24.3 19.5
BHE1020*V 107,100 31,400 23,300 39,600 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHE1200*V 126,000 36,900 23,300 39,600 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHE1390*V 146,000 42,800 27,200 46,200 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHE1650*V 174,000 51,000 29,700 50,500 3 30 762 130 40 150 50 3 24.6 12.3 33,600 87.2 47.5 34.9
BHE2120*V 223,000 65,300 39,600 67,300 4 30 762 130 40 150 50 3 32.8 16.4 49,600 128.4 70.0 56.0
BHL Models 4 Fins Per Inch
BHL400*V 42,000 12,300 12,200 20,700 2 24 610 85 30 100 30 2 12.0 6.0 9,900 27.5 13.9 11.1
BHL480*V 50,400 14,800 12,200 20,700 2 24 610 85 30 100 30 2 12.0 6.0 9,900 27.5 13.9 11.1
BHL560*V 58,800 17,200 17,000 28,900 3 24 610 85 30 100 30 2 18.0 9.0 12,900 35.8 18.1 14.5
BHL650*V 68,300 20,000 17,000 28,900 3 24 610 85 30 100 30 2 18.0 9.0 12,900 35.8 18.1 14.5
BHL710*V 74,600 21,800 22,600 38,400 4 24 610 85 30 100 30 2 24.0 12.0 17,050 47.8 24.3 19.5
BHL840*V 88,200 25,800 22,600 38,400 4 24 610 85 30 100 30 2 24.0 12.0 17,050 47.8 24.3 19.5
BHL890*V 91,200 26,700 23,800 40,500 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHL1050*V 107,600 31,500 23,800 40,500 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHL1220*V 125,000 36,600 32,800 55,800 3 30 762 110 30 130 40 3 24.6 12.3 21,400 64.2 32.1 22.8
BHL1440*V 147,000 43,100 30,600 52,000 3 30 762 130 40 150 50 3 24.6 12.3 33,600 87.2 47.5 34.9
BHL1860*V 190,000 55,600 40,800 69,400 4 30 762 130 40 150 50 3 32.8 16.4 49,600 128.4 70.0 56.0
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

8
60 Hz Performance
* This model with 3-Phase drain pan heaters
†Hot gas drain pan available
Notes: High CFM models can handle external static pressure up to 1/2” of water
High CFM models are designed for operation below 15°F SST
CFM is at 0.0 external static pressure
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 5. Models BHG/BHF 60 Hz Hot Gas Defrost High CFM
Model
Capacity
BTUH/watts
10°F TD
-20°F SST
Fan Data
Standard Motor
Data Drain Pan Heaters (Std.)†
HP
Total Amps
Watts
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m208-
230
/3/60
460
/3/60
208-
230
/1/60
460
/1/60
575
/1/60
Standard w/ Collar
BHG Models 6 Fins Per Inch
BHG450*V 49,500 14,500 11,300 19,200 2 24 610 85 30 100 30 2 12.0 6.0 2,100 9.2 4.6 3.7
BHG550*V 60,500 17,700 11,300 19,200 2 24 610 85 30 100 30 2 12.0 6.0 2,100 9.2 4.6 3.7
BHG640*V 70,400 20,600 15,900 27,000 3 24 610 85 30 100 30 2 18.0 9.0 2,700 11.8 5.9 4.7
BHG740*V 81,400 23,800 15,900 27,000 3 24 610 85 30 100 30 2 18.0 9.0 2,700 11.8 5.9 4.7
BHG810*V 89,100 26,100 21,200 36,000 4 24 610 85 30 100 30 2 24.0 12.0 4,000 17.4 8.7 6.9
BHG950*V 104,000 30,500 21,200 36,000 4 24 610 85 30 100 30 2 24.0 12.0 4,000 17.4 8.7 6.9
BHG1020*V 107,100 31,400 23,300 39,600 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHG1200*V 126,000 36,900 23,300 39,600 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHG1390*V 146,000 42,800 27,200 46,200 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHG1650*V 174,000 51,000 29,700 50,500 3 30 762 130 40 150 50 3 24.6 12.3 4,200 18.2 9.1 7.3
BHG2120*V 223,000 65,300 39,600 67,300 4 30 762 130 40 150 50 3 32.8 16.4 6,200 17.7* 13.4 10.8
BHF Models 4 Fins Per Inch
BHF400*V 42,000 12,300 12,200 20,700 2 24 610 85 30 100 30 2 12.0 6.0 2,100 9.2 4.6 3.7
BHF480*V 50,400 14,800 12,200 20,700 2 24 610 85 30 100 30 2 12.0 6.0 2,100 9.2 4.6 3.7
BHF560*V 58,800 17,200 17,000 28,900 3 24 610 85 30 100 30 2 18.0 9.0 2,700 11.8 5.9 4.7
BHF650*V 68,300 20,000 17,000 28,900 3 24 610 85 30 100 30 2 18.0 9.0 2,700 11.8 5.9 4.7
BHF710*V 74,600 21,800 22,600 38,400 4 24 610 85 30 100 30 2 24.0 12.0 4,000 17.4 8.7 6.9
BHF840*V 88,200 25,800 22,600 38,400 4 24 610 85 30 100 30 2 24.0 12.0 4,000 17.4 8.7 6.9
BHF890*V 91,200 26,700 23,800 40,500 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHF1050*V 107,600 31,500 23,800 40,500 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHF1220*V 125,000 36,600 32,800 55,800 3 30 762 110 30 130 40 3 24.6 12.3 4,000 17.4 8.7 6.9
BHF1440*V 147,000 43,100 30,600 52,000 3 30 762 130 40 150 50 3 24.6 12.3 4,200 18.2 9.1 7.3
BHF1860*V 190,000 55,600 40,800 69,400 4 30 762 130 40 150 50 3 32.8 16.4 6,200 17.7* 13.4 10.8
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

9
50 Hz Performance
* 380/3/50 motors are 3/4 HP
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 6. Model BHA 50 Hz Air Defrost
Model
Capacity
BTUH/watts
6°C TD
-4°C SST
Fan Data Standard Motor Data
HP
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m220/1/50 380/1/50 380
/3/50
Standard w/ Collar Wired
1-Phase
Wired
1-Phase
Wired
3-Phase
BHA Models 6 Fins Per Inch
BHA520 47,800 14,000 8,100 23,400 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6
BHA630 58,000 17,000 8,100 23,400 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6
BHA750 69,000 20,200 11,300 32,700 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9
BHA850 78,200 22,900 11,300 32,700 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9
BHA930 85,600 25,100 15,100 43,800 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2
BHA1100 101,200 29,600 15,100 43,800 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2
BHA1170 107,600 31,500 18,600 53,900 3 30 762 90 27 100 30 1 - - - 6.9
BHA1400 128,800 37,700 18,600 53,900 3 30 762 90 27 100 30 1 - - - 6.9
BHA1610 148,100 43,400 21,900 63,200 3 30 762 90 27 100 30 1-1/2 - - - 9.9
BHA1900 174,800 51,200 23,900 69,000 3 30 762 110 34 130 40 1-1/2 - - - 10.5
BHA2200 202,400 59,300 27,400 79,100 4 30 762 110 34 130 40 1-1/2 - - - 13.2
BHA2440 224,500 65,800 31,900 92,100 4 30 762 110 34 130 40 1-1/2 - - - 14.0
BHA Models 8 Fins Per Inch
BHA2160 198,700 58,200 23,400 67,500 3 30 762 110 34 130 40 1-1/2 - - - 10.5
BHA2500 230,000 67,400 26,700 77,000 4 30 762 110 34 130 40 1-1/2 - - - 13.2
BHA2780 255,800 74,900 31,200 90,000 4 30 762 110 34 130 40 1-1/2 - - - 14.0

10
50 Hz Performance
Model
Capacity
BTUH/watts
6°C TD
-29°C SST
Fan Data Standard Motor Data Defrost Heaters
HP
Total Amps
Watts
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m380/1/50 380
/3/50
380
/3/50
Standard w/
Collar
Wired
1-Phase
Wired
3-Phase
BHE Models 6 Fins Per Inch
BHE450 41,400 12,100 8,100 23,400 2 24 610 60 18 80 24 1/2* 3.4 - 2.6 6,760 11.5
BHE550 50,600 14,800 8,100 23,400 2 24 610 60 18 80 24 1/2* 3.4 - 2.6 6,760 11.5
BHE640 58,900 17,300 11,300 32,700 3 24 610 60 18 80 24 1/2* - 3.0 3.9 8,800 15.0
BHE740 68,100 19,900 11,300 32,700 3 24 610 60 18 80 24 1/2* - 3.0 3.9 8,800 15.0
BHE810 74,500 21,800 15,100 43,800 4 24 610 60 18 80 24 1/2* - 4.7 5.2 11,640 20.1
BHE950 87,400 25,600 15,100 43,800 4 24 610 60 18 80 24 1/2* - 4.7 5.2 11,640 20.1
BHE1020 93,800 27,500 18,600 53,900 3 30 762 90 27 100 30 1 - - 6.9 14,600 26.5
BHE1200 110,400 32,300 18,600 53,900 3 30 762 90 27 100 30 1 - - 6.9 14,600 26.5
BHE1390 127,900 37,500 21,900 63,200 3 30 762 90 27 100 30 1-1/2 - - 9.9 14,600 26.5
BHE1650 151,800 44,500 23,900 69,000 3 30 762 110 34 130 40 1-1/2 - - 10.5 22,930 39.2
BHE2120 195,000 57,100 31,900 92,100 4 30 762 110 34 130 40 1-1/2 - - 14.0 33,850 57.8
BHL Models 4 Fins Per Inch
BHL400 36,800 10,800 8,500 24,500 2 24 610 60 18 80 24 1/2* 3.4 - 2.6 6,760 11.5
BHL480 44,200 12,900 8,500 24,500 2 24 610 60 18 80 24 1/2* 3.4 - 2.6 6,760 11.5
BHL560 51,500 15,100 11,900 34,300 3 24 610 60 18 80 24 1/2* - 3.0 3.9 8,800 15.0
BHL650 59,800 17,500 11,900 34,300 3 24 610 60 18 80 24 1/2* - 3.0 3.9 8,800 15.0
BHL710 65,300 19,100 15,900 45,700 4 24 610 60 18 80 24 1/2* - 4.7 5.2 11,640 20.1
BHL840 77,300 22,600 15,900 45,700 4 24 610 60 18 80 24 1/2* - 4.7 5.2 11,640 20.1
BHL890 81,900 24,000 19,500 56,200 3 30 762 90 27 100 30 1 - - 6.9 14,600 26.5
BHL1050 96,600 28,300 19,500 56,200 3 30 762 90 27 100 30 1 - - 6.9 14,600 26.5
BHL1220 112,200 32,900 22,700 65,500 3 30 762 90 27 100 30 1-1/2 - - 9.9 14,600 26.5
BHL1440 132,500 38,800 24,900 71,800 3 30 762 110 34 130 40 1-1/2 - - 10.5 22,930 39.2
BHL1860 171,100 50,100 33,100 95,800 4 30 762 110 34 130 40 1-1/2 - - 14.0 33,850 57.8
Table 7. Models BHE/BHL 50 Hz Electric Defrost
* 380/3/50 motors are 3/4 HP
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

11
50 Hz Performance
Model
Capacity
BTUH/watts
6°C TD
-29°C SST
Fan Data Standard Motor Data
DefrostHeaters(Std.)†
HP
Total Amps
Watts
TotalAmps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m220/1/50 380/1/50 380
/3/50
380
/1/50
Standard w/
Collar
Wired
1-Phase
Wired
1-Phase
Wired
3-Phase
BHG Models 6 Fins Per Inch
BHG450 41,400 12,100 8,100 23,400 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6 1,430 3.8
BHG550 50,600 14,800 8,100 23,400 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6 1,430 3.8
BHG640 58,900 17,300 11,300 32,700 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9 1,840 4.9
BHG740 68,100 19,900 11,300 32,700 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9 1,840 4.9
BHG810 74,500 21,800 15,100 43,800 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2 2,730 7.2
BHG950 87,400 25,600 15,100 43,800 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2 2,730 7.2
BHG1020 93,800 27,500 18,600 53,900 3 30 762 90 27 100 30 1 - - - 6.9 2,730 7.2
BHG1200 110,400 32,300 18,600 53,900 3 30 762 90 27 100 30 1 - - - 6.9 2,730 7.2
BHG1390 127,900 37,500 21,900 63,200 3 30 762 90 27 100 30 1-1/2 - - - 9.9 2,730 7.2
BHG1650 151,800 44,500 23,900 69,000 3 30 762 110 34 130 40 1-1/2 - - - 10.5 2,870 7.5
BHG2120 195,000 57,100 31,900 92,100 4 30 762 110 34 130 40 1-1/2 - - - 14.0 4,230 11.1
BHF Models 4 Fins Per Inch
BHF400 36,800 10,800 8,500 24,500 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6 1,430 3.8
BHF480 44,200 12,900 8,500 24,500 2 24 610 60 18 80 24 1/2* 6.4 3.4 - 2.6 1,430 3.8
BHF560 51,500 15,100 11,900 34,300 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9 1,840 4.9
BHF650 59,800 17,500 11,900 34,300 3 24 610 60 18 80 24 1/2* 9.6 - 3.0 3.9 1,840 4.9
BHF710 65,300 19,100 15,900 45,700 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2 2,730 7.2
BHF840 77,300 22,600 15,900 45,700 4 24 610 60 18 80 24 1/2* 12.8 - 4.7 5.2 2,730 7.2
BHF890 81,900 24,000 19,500 56,200 3 30 762 90 27 100 30 1 - - - 6.9 2,730 7.2
BHF1050 96,600 28,300 19,500 56,200 3 30 762 90 27 100 30 1 - - - 6.9 2,730 7.2
BHF1220 112,200 32,900 22,700 65,500 3 30 762 90 27 100 30 1-1/2 - - - 9.9 2,730 7.2
BHF1440 132,500 38,800 24,900 71,800 3 30 762 110 34 130 40 1-1/2 - - - 10.5 2,870 7.5
BHF1860 171,100 50,100 33,100 95,800 4 30 762 110 34 130 40 1-1/2 - - - 14.0 4,230 11.1
Table 8. Models BHG/BHF 50 Hz Hot Gas Defrost
* 380/3/50 motors are 3/4 HP
†Hot gas drain pan available
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

12
50 Hz Performance
Notes: High CFM models can handle external static pressure up to 1/2” of water
High CFM models are designed for operation below 15°F SST
CFM is at 0.0 external static pressure
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 9. Models BHE/BHL 50 Hz Electric Defrost High CFM
Model
Capacity
BTUH/watts
6°C TD
-29°C SST
Fan Data Standard Motor Data Defrost Heaters
HP
Total Amps
Watts
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m380
/3/50 380/3/50
Standard w/ Collar
BHE Models 6 Fins Per Inch
BHE450*V 45,500 13,300 10,200 17,300 2 24 610 80 24 90 27 2 6.0 6,760 11.5
BHE550*V 55,700 16,300 10,200 17,300 2 24 610 80 24 90 27 2 6.0 6,760 11.5
BHE640*V 64,800 19,000 14,300 24,300 3 24 610 80 24 90 27 2 9.0 8,800 15.0
BHE740*V 74,900 21,900 14,300 24,300 3 24 610 80 24 90 27 2 9.0 8,800 15.0
BHE810*V 82,000 24,000 19,100 32,500 4 24 610 80 24 90 27 2 12.0 11,640 20.1
BHE950*V 95,700 28,000 19,100 32,500 4 24 610 80 24 90 27 2 12.0 11,640 20.1
BHE1020*V 98,500 28,800 21,000 35,700 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHE1200*V 115,900 33,900 21,000 35,700 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHE1390*V 134,300 39,300 24,500 41,700 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHE1650*V 160,100 46,900 26,700 45,400 3 30 762 120 37 140 43 3 12.3 22,930 39.2
BHE2120*V 205,200 60,100 35,700 60,700 4 30 762 120 37 140 43 3 16.4 33,850 57.8
BHL Models 4 Fins Per Inch
BHL400*V 38,600 11,300 11,000 18,700 2 24 610 80 24 90 27 2 6.0 6,760 11.5
BHL480*V 46,400 13,600 11,000 18,700 2 24 610 80 24 90 27 2 6.0 6,760 11.5
BHL560*V 54,100 15,800 15,300 26,000 3 24 610 80 24 90 27 2 9.0 8,800 15.0
BHL650*V 62,800 18,400 15,300 26,000 3 24 610 80 24 90 27 2 9.0 8,800 15.0
BHL710*V 68,600 20,100 20,400 34,700 4 24 610 80 24 90 27 2 12.0 11,640 20.1
BHL840*V 81,100 23,800 20,400 34,700 4 24 610 80 24 90 27 2 12.0 11,640 20.1
BHL890*V 83,900 24,600 21,400 36,400 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHL1050*V 99,000 29,000 21,400 36,400 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHL1220*V 115,000 33,700 29,500 50,200 3 30 762 100 30 120 37 3 12.3 14,600 26.5
BHL1440*V 135,200 39,600 27,600 46,900 3 30 762 120 37 140 43 3 12.3 22,930 39.2
BHL1860*V 174,800 51,200 36,700 62,400 4 30 762 120 37 140 43 3 16.4 33,850 57.8
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

13
50 Hz Performance
Notes: High CFM models can handle external static pressure up to 1/2” of water
High CFM models are designed for operation below 15°F SST
CFM is at 0.0 external static pressure
Notes: TD = Temperature Dierence = (Room temperature - saturated suction temperature)
Table 10. Models BHG/BHF 50 Hz Hot Gas Defrost High CFM
Model
Capacity
BTUH/watts
6°C TD
-29°C SST
Fan Data Standard Motor Data Drain Pan Heaters (Std.)
HP
Total Amps
Watts
Total Amps
CFM/m3hNo. Dia.
in./mm
Air Throw ft./m380
/3/50
380
/1/50
Standard w/ Collar
BHG Models 6 Fins Per Inch
BHG450*V 45,500 13,300 10,200 17,300 2 24 610 80 24 90 27 2 6.0 1,430 3.8
BHG550*V 55,700 16,300 10,200 17,300 2 24 610 80 24 90 27 2 6.0 1,430 3.8
BHG640*V 64,800 19,000 14,300 24,300 3 24 610 80 24 90 27 2 9.0 1,840 4.9
BHG740*V 74,900 21,900 14,300 24,300 3 24 610 80 24 90 27 2 9.0 1,840 4.9
BHG810*V 82,000 24,000 19,100 32,500 4 24 610 80 24 90 27 2 12.0 2,730 7.2
BHG950*V 95,700 28,000 19,100 32,500 4 24 610 80 24 90 27 2 12.0 2,730 7.2
BHG1020*V 98,500 28,800 21,000 35,700 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHG1200*V 115,900 33,900 21,000 35,700 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHG1390*V 134,300 39,300 24,500 41,700 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHG1650*V 160,100 46,900 26,700 45,400 3 30 762 120 37 140 43 3 12.3 2,870 7.5
BHG2120*V 205,200 60,100 35,700 60,700 4 30 762 120 37 140 43 3 16.4 4,230 11.1
BHF Models 4 Fins Per Inch
BHF400*V 38,600 11,300 11,000 18,700 2 24 610 80 24 90 27 2 6.0 1,430 3.8
BHF480*V 46,400 13,600 11,000 18,700 2 24 610 80 24 90 27 2 6.0 1,430 3.8
BHF560*V 54,100 15,800 15,300 26,000 3 24 610 80 24 90 27 2 9.0 1,840 4.9
BHF650*V 62,800 18,400 15,300 26,000 3 24 610 80 24 90 27 2 9.0 1,840 4.9
BHF710*V 68,600 20,100 20,400 34,700 4 24 610 80 24 90 27 2 12.0 2,730 7.2
BHF840*V 81,100 23,800 20,400 34,700 4 24 610 80 24 90 27 2 12.0 2,730 7.2
BHF890*V 83,900 24,600 21,400 36,400 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHF1050*V 99,000 29,000 21,400 36,400 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHF1220*V 115,000 33,700 29,500 50,200 3 30 762 100 30 120 37 3 12.3 2,730 7.2
BHF1440*V 135,200 39,600 27,600 46,900 3 30 762 120 37 140 43 3 12.3 2,870 7.5
BHF1860*V 174,800 51,200 36,700 62,400 4 30 762 120 37 140 43 3 16.4 4,230 11.1
Saturated Suction Temperature °F [phone]
Saturated Suction Temperature °C -7 -23 -29 -34 -40
Multiply Capacity By 1.15 1.04 1.00 0.90 0.80
Capacity Correction Factors for Electric and Hot Gas Defrost Units

14
Physical Specications
Model No. of
Fans
Connections (in.) Approx.
Net Wt.
(lbs./kg.)
Coil Inlet
ODF
Suction
ODF
External Equalizer
ODF
Drain
FPT
BHA Models 6 Fins Per Inch
BHA520 2 1-1/8 1-5/8 1/4 1-1/4 270 120
BHA630 2 1-1/8 1-5/8 1/4 1-1/4 300 140
BHA750 3 1-3/8 2-1/8 1/4 1-1/4 390 180
BHA850 3 1-3/8 2-1/8 1/4 1-1/4 430 200
BHA930 4 1-3/8 2-1/8 1/4 1-1/4 515 230
BHA1100 4 1-3/8 2-1/8 1/4 1-1/4 565 260
BHA1170 3 1-3/8 2-1/8 1/4 1-1/4 738 330
BHA1400 3 1-5/8 2-1/8 1/4 1-1/4 800 360
BHA1610 3 1-3/8 (2 conns) 2-1/8 (2 conns) 1/4 (2 conns) 1-1/4 850 390
BHA1900 3 1-3/8 2-5/8 1/4 1-1/4 1,160 530
BHA2200 4 1-3/8 2-5/8 1/4 1-1/4 1,500 680
BHA2440 4 1-5/8 2-5/8 1/4 1-1/4 1,600 730
BHA Models 8 Fins Per Inch
BHA2160 3 1-3/8 2-5/8 1/4 1-1/4 1,160 530
BHA2500 4 1-3/8 2-5/8 1/4 1-1/4 1,500 680
BHA2780 4 1-3/8 2-5/8 1/4 1-1/4 1,600 730
Table 11. Model BHA Air Defrost

15
Physical Specications
Model No. of
Fans
Connections (in.) Approx.
Net Wt.
(lbs./kg.)
Coil Inlet
ODF
Suction
ODF
External Equalizer
ODF
Drain
FPT
BHE Models 6 Fins Per Inch
BHE450 2 1-1/8 1-5/8 1/4 1-1/4 280 130
BHE550 2 1-1/8 1-5/8 1/4 1-1/4 310 140
BHE640 3 1-3/8 2-1/8 1/4 1-1/4 405 180
BHE740 3 1-3/8 2-1/8 1/4 1-1/4 445 200
BHE810 4 1-3/8 2-1/8 1/4 1-1/4 535 240
BHE950 4 1-3/8 2-1/8 1/4 1-1/4 585 270
BHE1020 3 1-3/8 2-1/8 1/4 1-1/4 753 340
BHE1200 3 1-5/8 2-1/8 1/4 1-1/4 815 370
BHE1390 3 1-3/8 (2 conns) 2-1/8 (2 conns) 1/4 (2 conns) 1-1/4 865 390
BHE1650 3 1-3/8 2-5/8 1/4 1-1/4 1,175 530
BHE2120 4 1-5/8 2-5/8 1/4 1-1/4 1,620 730
BHL Models 4 Fins Per Inch
BHL400 2 1-1/8 1-5/8 1/4 1-1/4 277 130
BHL480 2 1-1/8 1-5/8 1/4 1-1/4 306 140
BHL560 3 1-3/8 2-1/8 1/4 1-1/4 400 180
BHL650 3 1-3/8 2-1/8 1/4 1-1/4 440 200
BHL710 4 1-3/8 2-1/8 1/4 1-1/4 528 240
BHL840 4 1-3/8 2-1/8 1/4 1-1/4 578 260
BHL890 3 1-3/8 2-1/8 1/4 1-1/4 744 340
BHL1050 3 1-5/8 2-1/8 1/4 1-1/4 805 370
BHL1220 3 1-3/8 (2 conns) 2-1/8 (2 conns) 1/4 (2 conns) 1-1/4 854 390
BHL1440 3 1-3/8 2-5/8 1/4 1-1/4 1,160 530
BHL1860 4 1-5/8 2-5/8 1/4 1-1/4 1,600 730
Table 12. Model BHE/BHL Electric Defrost

16
Physical Specications
Model
No.
of
Fans
Connections (in.) Approx.
Net Wt.
(lbs./kg.)
Coil Inlet
ODF
Suction
ODF
External
Equalizer
ODF
Drain
FPT
Hot Gas
Side Port
Hot Gas Drain
Pan Ref. Conn.
(when supplied)
BHG Models 6 Fins Per Inch
BHG450 2 1-1/8 1-5/8 1/4 1-1/4 5/8 1-1/8 280 130
BHG550 2 1-1/8 1-5/8 1/4 1-1/4 5/8 1-1/8 310 140
BHG640 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 405 180
BHG740 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 445 200
BHG810 4 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 535 240
BHG950 4 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 585 270
BHG1020 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-3/8 753 340
BHG1200 3 1-5/8 2-1/8 1/4 1-1/4 1-1/8 1-3/8 815 370
BHG1390 3 1-3/8 (2 conns) 2-1/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-3/8 865 390
BHG1650 3 1-3/8 (2 conns) 2-5/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-5/8* 1,175 530
BHG2120 4 1-3/8 (2 conns) 2-5/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-5/8* 1,620 730
BHF Models 4 Fins Per Inch
BHF400 2 1-1/8 1-5/8 1/4 1-1/4 5/8 1-1/8 277 130
BHF480 2 1-1/8 1-5/8 1/4 1-1/4 5/8 1-1/8 306 140
BHF560 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 400 180
BHF650 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 440 200
BHF710 4 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 528 240
BHF840 4 1-3/8 2-1/8 1/4 1-1/4 7/8 1-1/8 578 260
BHF890 3 1-3/8 2-1/8 1/4 1-1/4 7/8 1-3/8 744 340
BHF1050 3 1-5/8 2-1/8 1/4 1-1/4 1-1/8 1-3/8 805 370
BHF1220 3 1-3/8 (2 conns) 2-1/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-3/8 854 390
BHF1440 3 1-3/8 (2 conns) 2-5/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-5/8* 1,160 530
BHF1860 4 1-3/8 (2 conns) 2-5/8 (2 conns) 1/4 (2 conns) 1-1/4 7/8 (2 conns) 1-5/8* 1,600 730
Table 13. Model BHG/BHF Hot Gas Defrost
* Opposite end connections

17
Dimensional Data
A
B
C
26 1/4
24 1/4
21 5/32
29 1/2
4 9/16
GF
Diagram 1. All Models
6 7/8
Refrigerant
Piping End
Accepts 1/2” Hanger Rod Electrical
End
8
Air Defrost
Models
Electric & Hot Gas
Defrost Models Dimensions (in./mm.)
6 FPI 6 FPI 4 FPI A B C F G
520 450 400 83-3/32 2,111 68-1/8 1,730 --37-3/16 945 40-11/32 1,025
630 550 480 83-3/32 2,111 68-1/8 1,730 --37-3/16 945 40-11/32 1,025
750 640 560 105-5/32 2,671 90-3/16 2,291 45-3/32 1,145 37-3/16 945 40-11/32 1,025
850 740 650 105-5/32 2,671 90-3/16 2,291 45-3/32 1,145 37-3/16 945 40-11/32 1,025
930 810 710 135-7/32 3,435 120-1/4 3,054 60-1/8 1,527 37-3/16 945 40-11/32 1,025
1100 950 840 135-7/32 3,435 120-1/4 3,054 60-1/8 1,527 37-3/16 945 40-11/32 1,025
Table 14. All Models Dimensions

18
Dimensional Data
Diagram 2. All Models
Table 15. All Models Dimensions
A
B
C
DE
35 21/32
34
233/4
32
47/16
413/32
79/16
GF
Refrigerant
Piping End
Electrical
End
Accepts 5/8” Hanger Rod
Air Defrost
Models
Electric & Hot Gas
Defrost Models
Dimensions (in./mm.)
6 FPI 8 FPI 6 FPI 4 FPI A B C D E F G
1170 - 1020 890 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 --44-1/2 1,130 50-5/16 1,278
1400 - 1200 1050 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 --44-1/2 1,130 50-5/16 1,278
1610 - 1390 1220 135-13/32 3,439 120-9/32 3,055 40-3/32 1,018 80-3/16 2,037 --50-7/32 1,276 55-13/16 1,418
1900 2160 1650 1440 142-1/2 3,620 127-25/32 3,246 42-19/32 1,082 85-3/16 2,164 --50-7/32 1,276 55-13/16 1,418
2200 2500 - - 185-1/2 4,712 170-3/8 4,328 42-19/32 1,082 85-3/16 2,164 127-25/32 3,246 44-1/2 1,130 50-5/16 1,278
2440 2780 2120 1860 185-1/2 4,712 170-3/8 4,328 42-19/32 1,082 85-3/16 2,164 127-25/32 3,246 50-7/32 1,276 56-1/4 1,429
* 3-Phase Motors are 1140 RPM
Air throw data based on 30 ft. ceiling height with no obstructions where velocity drops to 50 fpm
Table 16. Electric & Hot Gas Defrost Models Air Throw
Electric & Hot Gas
Defrost Models
Standard
Motor
RPM
Standard
HP
Air
Throw
Air Throw
w/ Collar
Optional
High CFM
Motor RPM
Optional
HP
Air
Throw
Air Throw
w/ Collar
6 FPI 4 FPI
450 - 950 400 - 840 850 1/2* 70 85 1,750 2 80 100
1020 - 1390 890 - 1220 850 1 & 1-1/2 100 120 1,750 3 115 145
1650 - 2120 1440 - 1860 1,140 1-1/2 120 145 1,750 3 130 150

19
Nozzle Selection
Table 17. Standard Nozzle Selections
*Also suitable for R-507, R-502, R-134A, R-401A, R-402A
Nozzles sized for 90-100°F liquid temp. at expansion valve. Refer to manual H-IM-64 if liquid temp. is not 90-100°F
Consult Bohn Application Engineering if evaporator TD is not 10° - 15°F, (room temp. - saturated suction temp.)
Type No. of
Fans
Distributor Tube (in.) Model No. of
Circuits
R-404A*
Nozzle
R-22
Nozzle
OD Length
BHA
Air
Defrost
2 3/16 25.5 520 14 E-4 E-2-1/2
2 3/16 25.5 630 14 E-5 E-3
3 3/16 25.5 750 21 C-6 C-4
3 3/16 25.5 850 28 C-6 C-4
4 3/16 25.5 930 21 C-8 C-4
4 3/16 25.5 1100 28 C-10 C-5
3 3/16 28 1170 25 C-10 C-5
3 3/16 28 1400 34 A-12 A-8
3 3/16 21.5 1610 19 x 2 C-6 x 2 C-4 x 2
3 1/4 32 1900 24 C-17 C-12
3 1/4 32 2160 19 C-20 C-12
4 1/4 32 2200 21 C-20 C-12
4 1/4 32 2440 32 A-20 A-15
4 1/4 32 2550 21 C-20 C-15
4 1/4 32 2780 24 C-25 C-17
BHE/BHL
Electric
Defrost
2 3/16 25.5 400/450 14 E-5 E-3
2 3/16 25.5 480/550 14 E-8 E-4
3 3/16 25.5 560/640 21 C-8 C-5
3 3/16 25.5 650/740 28 C-10 C-5
4 3/16 25.5 710/810 21 C-12 C-6
4 3/16 25.5 840/950 28 C-15 C-8
3 3/16 28 890/1020 25 C-15 C-8
3 3/16 28 1050/1200 34 A-17 A-10
3 3/16 21.5 1220/1390 19 x 2 C-10 x 2 C-5 x 2
3 1/4 32 1440/1650 24 C-20 C-17
4 1/4 32 1860/2120 32 A-30 A-20
BHG/BHF
Hot Gas
Defrost
2 3/16 25.5 400/450 14 E-5 E-3
2 3/16 25.5 480/550 14 E-6 E-4
3 3/16 25.5 560/640 21 C-8 C-5
3 3/16 25.5 650/740 28 C-10 C-5
4 3/16 25.5 710/810 21 C-12 C-6
4 3/16 25.5 840/950 28 C-12 C-8
3 3/16 28 890/1020 25 C-15 C-10
3 3/16 28 1050/1200 34 A-17 A-12
3 3/16 21.5 1220/1390 19 x 2 C-10 x 2 C-4 x 2
3 5/16 19.5 1440/1650 16 x 2 C-12 x 2 C-8 x 2
4 5/16 19.5 1860/2120 16 x 2 C-15 x 2 C-10 x 2
Caution: Refrigeration system will not perform properly without Correct Nozzle!

20
Replacement Parts
Table 18. Motor/Fan Blade/Guards
Part Number Description Unit Voltage Model Wire Lead Color Code
24711201 Heater 230V 1300W 208-230V & 460V 400, 450, 480, 550 Black
24711202 Heater 230V 1700W 208-230V & 460V 560, 640, 650, 740 Black
24711203 Heater 230V 2300W 208-230V & 460V 710, 810, 840, 890, 950, 1020,
1050, 1200, 1220, 1390 Black
24711801 Heater 288V 1300W 575V 400, 450, 480, 550 Black, Red
24711802 Heater 288V 1700W 575V 560, 640, 650, 740 Black, Red
24711803 Heater 288V 2300W 575V 710, 810, 840, 890, 950, 1020,
1050, 1200, 1220, 1390 Black, Red
23308101 Heater Clip - 400-1390 -
24712301 Heater 230V 2100W 208-230V & 460V 1440, 1650 Black
24711403 Heater 230V 1550W 208-230V & 460V 1860, 2120 Black
24712302 Heater 288V 2100W 575V 1440, 1650 Black, Red
24712003 Heater 288V 1550W 575V 1860, 2120 Red
23307101 Heater Clip - 1440-2120 -
Table 19. Coil Defrost Heaters
Part Number Description
25305701 Motor 208-230V/1PH PSC 1/2 HP 850 RPM
25305801 Motor 460V/1PH PSC 1/2 HP 850 RPM
7072102 Motor 208-230/460V/3PH 3/4 HP 1140 RPM
2538000 Motor 208-230/460V/3PH 1 HP 850 RPM
25301701 Motor 208-230/460V/3PH 1-1/2 HP 850 RPM
25301801 Motor 208-230/460V/3PH 1-1/2 HP 1140 RPM
25307901 Motor 575V/3PH 1/2 HP 1140 RPM
25301901 Motor 575V/3PH 1-1/2 HP 850 RPM
25302001 Motor 575V/3PH 1-1/2 HP 1140 RPM
25301001 Motor 208-230/460V/3PH 1 HP 1140 RPM TE
25301101 Motor 208-230/460V/3PH 1-1/2 HP 1140 RPM TE
5916F Motor 208-230/460V/3PH 2 HP 1750 RPM
5926J Motor 208-230/460V/3PH 3 HP 1750 RPM
25308901 Motor 208-230/460V/3PH 1 HP 1140 RPM TE (LT)
22901101 Fan Blade 24” 850 RPM
5133C Fan Blade 24” 1140 RPM
22901201 Fan Blade 24” 1750 RPM Cast Aluminium
22900101 Fan Blade 30” 1140 RPM
22900301 Fan Blade 30” 850 RPM
22900401 Fan Blade 30” 850 RPM
22901401 Fan Blade 30” 1750 RPM Cast Aluminium
22901501 Fan Blade 30” 1140 RPM
23102203 Fan Guard 24” Beige
23102303 Fan Guard 30” Beige
