Bohn BMA Quick start guide

MEDIUM PROFILE UNIT COOLERS
Technical Guide
Models BMA | Air Defrost • BME/BML | Electric Defrost • BMG/BMF | Hot Gas Defrost
BNMPTB
April 2008
Replaces BN-MPTB, June 2007
www.thecoldstandard.com

2
©2008 Heatcraft Refrigeration Products LLC
Nomenclature.........................................................................................................................................................................................................2
Features & Benets ...............................................................................................................................................................................................3
Performance Data & Specications
Air Defrost............................................................................................................................................................................................................4-5
Electric Defrost...................................................................................................................................................................................................6-7
Hot Gas Defrost..................................................................................................................................................................................................8-9
Physical Data..................................................................................................................................................................................................10-11

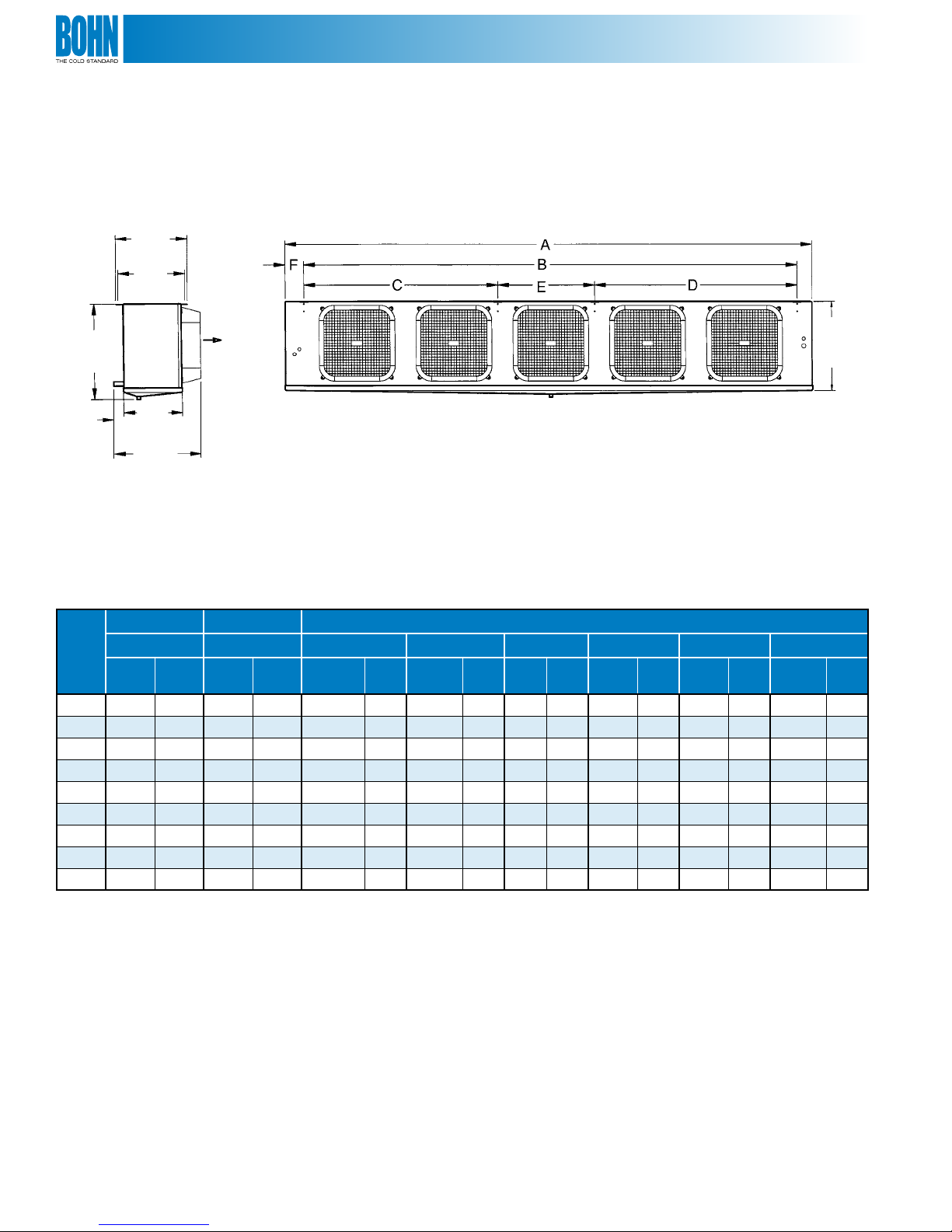

Dimensional Data................................................................................................................................................................................................12
Replacement Parts by InterLink™ ..................................................................................................................................................................13
Standard Nozzle Selection...............................................................................................................................................................................14
Table of Contents
Nomenclature
BM A 130 B A
Model Series Model Type Capacity Electrical Code Design Revision
Bohn Medium
Prole Unit Coolers
A = Air defrost
E = Electric defrost, 6 FPI
L = Electric defrost, 4 FPI
G = Hot gas defrost, 6 FPI
F = Hot gas defrost, 4 FPI
# BTUH x 100 A = 115/1/60
B = 208-230/1/60
C = 208-230/3/60
D = 460/3/60
M = 460/1/60
E = 575/3/60
L = 575/1/60
N = 110/1/50
Q = 220/1/50
R = 380/1/50
V = 380/3/50
AE = 115/1/60 (EC)
BE = 208-230/1/60 (EC)
CE = 208-230/3/60 (EC)
We have made a commitment to customer needs, innovation and environmental stewardship and have dedicated
ourselves to delivering energy-ecient choices. PSC and EC motors will reduce costs, improve the bottom line and
enhance equipment performance and service life.
Choose the most energy-ecient motor available for evaporators.
The EC motor is an Energy Solutions® option on new Bohn Medium Prole
evaporators. Available on all new equipment or as an easy-to-install,
drop-in replacement aftermarket part from InterLink™ Commercial
Refrigeration Parts. Because they’re a drop-in replacement for existing
PSC motors, installation is quick and easy. It’s a high impact, quick
payback solution for reducing costs and achieving green initiatives
without replacing the entire system.
EC motors by InterLink are up to 75% ecient - that’s a 30-35%
increase over permanent-split capacitor (PSC) motors. With all of
this added eciency, you can count on more energy savings and lower
operational costs while taking a step in the right direction toward
conserving our planet’s resources.
To learn more about EC motors, visit www.interlinkparts.com/ec.

3

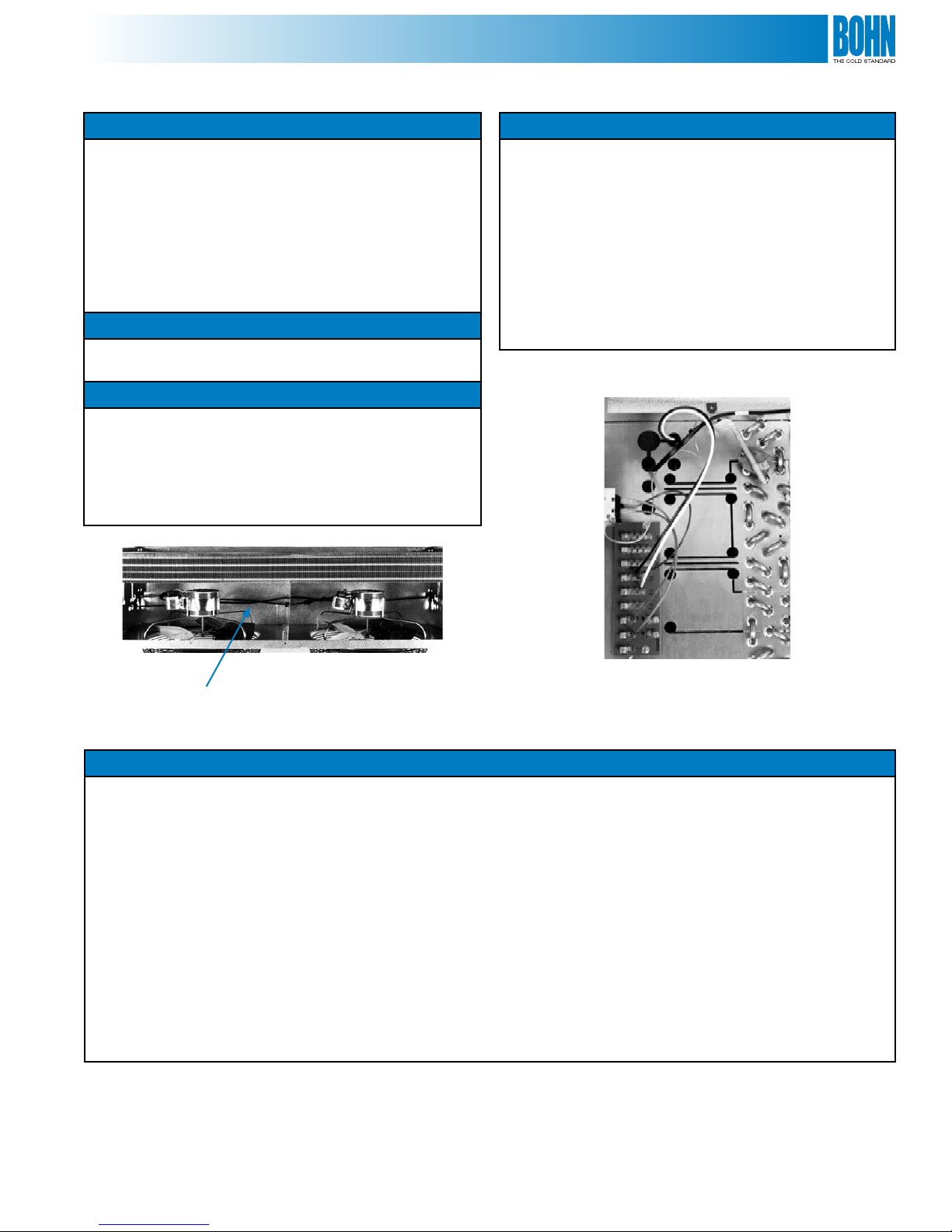

Features & Benefits
Cabinet
Schrader valve provided for suction pressure measurement
External equalizer connection
Heavy-guage textured aluminum cabinet
All electrical components factory wired to terminal board
and identified, making it easy to field wire the unit
Sweat connections to reduce potential for leaks
Internal panels are isolated for quiet operation
Liquid line solenoid wire harness is factory-installed for
quick installation
•
•
•
•
•
•
•
Drain Pan
Front hinged drain pan for easy access
Large diameter drain fitting (3/4" ID)
•
•
Motors
Motors plug into wiring harness for easier servicing
Single phase EC motors available factory-installed or as
a drop-in replacement through InterLink™ Commercial
Refrigeration Parts in 115 and 208-230 voltages
Thermally protected, lifetime-lubricated single phase
PSC motors
•
•
•
Coil
Patented Thermo-Flex™ coil design allows the coil to
“flex” during periods of defrost resulting in expansion of
the coil surface. By eliminating the possibility of wear at
critical stress areas, the integrity and longevity of the unit
are dramatically increased (Patent Number 5,584,340)
Coil heater slots have been enlarged for easier
installation and replacement
Electric defrost models have fixed defrost termination /
fan delay and heater limit thermostats
Reliable nickel steel alloy defrost heater elements
Heaters are coil face mounted for easy access
•
•
•
•
•
Options
Totally enclosed single phase PSC motors available as an option for 208-230 and 460 voltages
Unit Configurations: mounted components, pre-assembled, pre-charged and Beacon II™
- Units available with mounted TXV and mounted TXV / solenoid valve
- Pre-assembled units come with mounted TXV, liquid line solenoid valve and room thermostat
- Pre-charged units come with mounted TXV, liquid line solenoid valve, room thermostat and quick connect fittings
(limited availability)
- Room thermostat option mounted on the back of unit
- Beacon II units come with electronic expansion valves, pressure transducer, temperature sensors and Beacon control board
Most models available with glycol circuiting (see glycol product brochure)
Units available with stainless steel housing and drain pan
Units available with copper fins. Air defrost units also available with polyester coated fins or various coil coatings options
Units available with insulated drain pan
Ship-loose air sock collar available
Wire fan guards for air diffusion
Adjustable defrost termination / fan delay thermostat
•
•
•
•
•
•
•
•
•
Bohn oers a ve-year limited guarantee against leaks at tube sheets and center supports for all medium prole unit coolers
Factory-installed liquid line
solenoid wiring harness for
faster installation
Innovative Thermo-Flex™ coil

4
Model BMA Air Defrost | 60 Hz
Model
Capacity Fan Data Air Throw*†
10°F TD
25°F SST
6°C TD
- 4°C SST No. CFM m3hDiameter Extended (Standard)
Diused
(Optional)
BTUH Watts in. mm ft. mft. m
BMA130 13,000 3,810 1 2,300 3,910 18 457 65 20 50 15
BMA155 15,500 4,540 1 2,200 3,740 18 457 65 20 50 15
BMA245 24,500 7,180 2 4,600 7,820 18 457 65 20 50 15
BMA300 30,000 8,790 2 4,400 7,480 18 457 65 20 50 15
BMA365 36,500 10,690 3 6,900 11,730 18 457 65 20 50 15
BMA450 45,000 13,180 3 6,600 11,220 18 457 65 20 50 15
BMA510 51,000 14,940 4 9,200 15,640 18 457 65 20 50 15
BMA600 60,000 17,570 4 8,800 14,960 18 457 65 20 50 15
BMA710 71,000 20,790 5 10,500 17,850 18 457 65 20 50 15
Performance Data
Model BMA Air Defrost | 50 Hz‡
Model
Capacity Fan Data Air Throw*†
10°F TD
25°F SST
6°C TD
- 4°C SST No. CFM m3hDiameter Extended (Standard)
Diused
(Optional)
BTUH Watts in. mm ft. mft. m
BMA130 11,960 3,500 1 2,070 3,520 18 457 60 18.5 45 13.5
BMA155 14,260 4,180 1 1,980 3,370 18 457 60 18.5 45 13.5
BMA245 22,540 6,600 2 4,140 7,040 18 457 60 18.5 45 13.5
BMA300 27,600 8,080 2 3,960 6,730 18 457 60 18.5 45 13.5
BMA365 33,580 9,840 3 6,210 10,560 18 457 60 18.5 45 13.5
BMA450 41,400 12,130 3 5,940 10,100 18 457 60 18.5 45 13.5
BMA510 46,920 13,740 4 8,280 14,080 18 457 60 18.5 45 13.5
BMA600 55,200 16,170 4 7,920 13,460 18 457 60 18.5 45 13.5
BMA710 65,320 19,130 5 9,450 16,070 18 457 60 18.5 45 13.5
* Standard molded fan guards allow for extended air throw; optional wire guards promote air diusion
†Air throw data based on 12-ft. high ceilings with no obstructions where velocity drops to 50 FPM
‡For EC motors, use 60 Hz capacity and airow values (Units with EC motors operating at 50 Hz will not see a reduction in performance due to the
electronic control of the motor)

5
Model BMA Air Defrost | 60 Hz
Model
PSC Motor EC Motor
HP*115/1/60 208-230/1/60 460/1/60 575/1/60 115/1/60 208-230/1/60
Amps Watts Amps Watts Amps Watts Amps Watts Amps Watts Amps Watts
BMA130 1/4 4.0 300 1.8 305 1.0 305 0.7 310 2.8 210 1.4 205
BMA155 1/4 4.0 300 1.8 305 1.0 305 0.7 310 2.8 210 1.4 205
BMA245 1/4 8.0 600 3.6 610 2.0 610 1.4 620 5.6 420 2.8 410
BMA300 1/4 8.0 600 3.6 610 2.0 610 1.4 620 5.6 420 2.8 410
BMA365 1/4 12.0 900 5.4 915 3.0 915 2.1 930 8.4 630 4.2 615
BMA450 1/4 12.0 900 5.4 915 3.0 915 2.1 930 8.4 630 4.2 615
BMA510 1/4 16.0 1,200 7.2 1,220 4.0 1,220 2.8 1,240 11.2 840 5.6 820
BMA600 1/4 16.0 1,200 7.2 1,220 4.0 1,220 2.8 1,240 11.2 840 5.6 820
BMA710 1/4 -1,500 9.0 1,525 5.0 1,525 3.5 1,550 14.0 1,050 7.0 1,025
Model BMA Air Defrost | 50 Hz
Model
PSC Motor EC Motor
HP 110/1/50 220/1/50 380/1/50 110/1/50 220/1/50
Amps Amps Amps Amps Amps
BMA130 1/4 4.0 1.8 1.0 2.8 1.4
BMA155 1/4 4.0 1.8 1.0 2.8 1.4
BMA245 1/4 8.0 3.6 2.0 5.6 2.8
BMA300 1/4 8.0 3.6 2.0 5.6 2.8
BMA365 1/4 12.0 5.4 3.0 8.4 4.2
BMA450 1/4 12.0 5.4 3.0 8.4 4.2
BMA510 1/4 16.0 7.2 4.0 11.2 5.6
BMA600 1/4 16.0 7.2 4.0 11.2 5.6
BMA710 1/4 - 9.0 5.0 14.0 7.0
* 575/1/60 motors are 1/3 HP
Specifications

6
Model BME/BML Electric Defrost | 60 Hz
Model
Capacity Fan Data Air Throw*†
10°F TD
-20°F SST
6°C TD
-29°C SST
No. CFM m3hDiameter Extended
(Std.)
Diused
(Opt.)
BTUH Watts in. mm ft. mft. m
6 Fins Per Inch
BME101 10,100 2,960 1 2,350 4,000 18 457 65 20 50 15
BME140 14,000 4,100 1 2,250 3,830 18 457 65 20 50 15
BME190 19,000 5,570 2 4,700 7,990 18 457 65 20 50 15
BME260 26,000 7,620 2 4,500 7,650 18 457 65 20 50 15
BME310 31,000 9,080 3 7,050 11,990 18 457 65 20 50 15
BME390 39,000 11,420 3 6,750 11,480 18 457 65 20 50 15
BME430 43,000 12,590 4 8,800 14,960 18 457 65 20 50 15
BME520 52,000 15,230 4 8,400 14,280 18 457 65 20 50 15
BME620 62,000 18,160 5 10,000 17,000 18 457 65 20 50 15
4 Fins Per Inch
BML100 10,000 2,930 1 2,325 3,950 18 457 65 20 50 15
BML165 16,500 4,830 2 4,900 8,330 18 457 65 20 50 15
BML220 22,000 6,440 2 4,650 7,910 18 457 65 20 50 15
BML250 25,000 7,320 3 7,350 12,500 18 457 65 20 50 15
BML330 33,000 9,670 3 6,975 11,860 18 457 65 20 50 15
BML370 37,000 10,840 4 9,100 15,470 18 457 65 20 50 15
BML440 44,000 12,890 4 8,700 14,790 18 457 65 20 50 15
BML530 53,000 15,520 5 10,350 17,600 18 457 65 20 50 15
Model BME/BML Electric Defrost | 50 Hz‡
Model
Capacity Fan Data Air Throw*†
10°F TD
-20°F SST
6°C TD
-29°C SST
No. CFM m3hDiameter Extended
(Std.)
Diused
(Opt.)
BTUH Watts in. mm ft. mft. m
6 Fins Per Inch
BME101 8,832 2,590 1 2,115 3,600 18 457 60 18.5 45 13.5
BME140 12,236 3,580 1 2,025 3,440 18 457 60 18.5 45 13.5
BME190 16,652 4,880 2 4,230 7,190 18 457 60 18.5 45 13.5
BME260 22,724 6,660 2 4,050 6,890 18 457 60 18.5 45 13.5
BME310 27,140 7,950 3 6,345 10,790 18 457 60 18.5 45 13.5
BME390 34,132 10,000 3 6,075 10,330 18 457 60 18.5 45 13.5
BME430 37,628 11,020 4 7,920 13,460 18 457 60 18.5 45 13.5
BME520 45,448 13,310 4 7,560 12,850 18 457 60 18.5 45 13.5
BME620 54,188 15,870 5 9,000 15,300 18 457 60 18.5 45 13.5
4 Fins Per Inch
BML100 8,740 2,560 1 2,093 3,560 18 457 60 18.5 45 13.5
BML165 14,444 4,230 2 4,410 7,500 18 457 60 18.5 45 13.5
BML220 19,228 5,630 2 4,185 7,120 18 457 60 18.5 45 13.5
BML250 21,896 6,410 3 6,615 11,250 18 457 60 18.5 45 13.5
BML330 28,888 8,460 3 6,278 10,670 18 457 60 18.5 45 13.5
BML370 32,384 9,490 4 8,190 13,920 18 457 60 18.5 45 13.5
BML440 38,456 11,260 4 7,830 13,310 18 457 60 18.5 45 13.5
BML530 46,368 13,580 5 9,315 15,840 18 457 60 18.5 45 13.5
* Standard molded fan guards allow for extended air throw; optional wire guards promote air diusion
†Air throw data based on 12-ft. high ceilings with no obstructions where velocity drops to 50 FPM
‡For EC motors, use 60 Hz capacity and airow values (Units with EC motors operating at 50 Hz will
not see a reduction in performance due to the electronic control of the motor)
Performance Data
Capacity Correction
Factors For Electric and
Hot Gas Defrost Units
Saturated
Suction
Temperature °F
[phone]
Saturated
Suction
Temperature °C
-7 -23 -29 -34 -40
Multiply
Capacity By 1.15 1.02 1.00 0.90 0.80

7
Model BME/BML Electric Defrost | 60 Hz
Model
PSC Motor EC Motor Defrost Heater
HP*
208-
230/1/60 460/1/60 575/1/60 208- 230/1/60 Watts
208-
230/1/60
208-
230/3/60 460/1/60 460/3/60 575/3/60
Amps Watts Amps Watts Amps Watts Amps Watts Total Amps
6 Fins Per Inch
BME101 1/4 1.8 275 1.0 275 0.7 310 1.4 275 2,730 11.9 8.2 5.9 4.1 3.3
BME140 1/4 1.8 275 1.0 275 0.7 310 1.4 275 2,730 11.9 8.2 5.9 4.1 3.3
BME190 1/4 3.6 550 2.0 550 1.4 620 2.8 550 5,350 23.3 16.0 11.6 8.3 6.6
BME260 1/4 3.6 550 2.0 550 1.4 620 2.8 550 5,350 23.3 16.0 11.6 8.3 6.6
BME310 1/4 5.4 825 3.0 825 2.1 930 4.2 825 7,750 33.7 23.2 16.8 12.0 9.6
BME390 1/4 5.4 825 3.0 825 2.1 930 4.2 825 7,750 33.7 23.2 16.8 12.0 9.6
BME430 1/4 7.2 1,100 4.0 1,100 2.8 1,240 5.6 1,100 10,200 - 30.5 22.2 15.8 12.6
BME520 1/4 7.2 1,100 4.0 1,100 2.8 1,240 5.6 1,100 10,200 - 30.5 22.2 15.8 12.6
BME620 1/4 9.0 1,375 5.0 1,375 3.5 1,550 7.0 1,375 11,600 - 34.7 25.2 18.1 14.4
4 Fins Per Inch
BML100 1/4 1.8 275 1.0 275 0.7 310 1.4 275 2,730 11.9 8.2 5.9 4.1 3.3
BML165 1/4 3.6 550 2.0 550 1.4 620 2.8 550 5,350 23.3 16.0 11.6 8.3 6.6
BML220 1/4 3.6 550 2.0 550 1.4 620 2.8 550 5,350 23.3 16.0 11.6 8.3 6.6
BML250 1/4 5.4 825 3.0 825 2.1 930 4.2 825 7,750 33.7 23.2 16.8 12.0 9.6
BML330 1/4 5.4 825 3.0 825 2.1 930 4.2 825 7,750 33.7 23.2 16.8 12.0 9.6
BML370 1/4 7.2 1,100 4.0 1,100 2.8 1,240 5.6 1,100 10,200 - 30.5 22.2 15.8 12.6
BML440 1/4 7.2 1,100 4.0 1,100 2.8 1,240 5.6 1,100 10,200 - 30.5 22.2 15.8 12.6
BML530 1/4 9.0 1,375 5.0 1,375 3.5 1,550 7.0 1,375 11,600 - 34.7 25.2 18.1 14.4
Model BME/BML Electric Defrost | 50 Hz
Model
PSC Motor EC Motor Defrost Heater
HP 220/1/50 380/1/50 220/1/50 Watts
220/1/50 380/3/50
Amps Amps Amps Total Amps
6 Fins Per Inch
BME101 1/4 1.8 1.0 1.4 2,510 11.4 3.4
BME140 1/4 1.8 1.0 1.4 2,510 11.4 3.4
BME190 1/4 3.6 2.0 2.8 4,910 22.3 6.9
BME260 1/4 3.6 2.0 2.8 4,910 22.3 6.9
BME310 1/4 5.4 3.0 4.2 7,090 32.2 9.9
BME390 1/4 5.4 3.0 4.2 7,090 32.2 9.9
BME430 1/4 7.2 4.0 5.6 9,340 - 13.1
BME520 1/4 7.2 4.0 5.6 9,340 - 13.1
BME620 1/4 9.0 5.0 7.0 10,620 - 15.0
4 Fins Per Inch
BML100 1/4 1.8 1.0 1.4 2,510 11.4 3.4
BML165 1/4 3.6 2.0 2.8 4,910 22.3 6.9
BML220 1/4 3.6 2.0 2.8 4,910 22.3 6.9
BML250 1/4 5.4 3.0 4.2 7,090 32.2 9.9
BML330 1/4 5.4 3.0 4.2 7,090 32.2 9.9
BML370 1/4 7.2 4.0 5.6 9,340 - 13.1
BML440 1/4 7.2 4.0 5.6 9,340 - 13.1
BML530 1/4 9.0 5.0 7.0 10,620 - 15.0
* 575/1/60 motors are 1/3 HP
Specifications

8
Model BMG/BMF Hot Gas Defrost | 60 Hz
Model
Capacity Fan Data Air Throw*†
10°F TD
-20°F SST
6°C TD
-29°C SST
No. CFM m3hDiameter Extended
(Std.)
Diused
(Opt.)
BTUH Watts in. mm ft. mft. m
6 Fins Per Inch
BMG190 19,000 5,570 2 4,700 7,990 18 457 65 20 50 15
BMG260 26,000 7,620 2 4,500 7,650 18 457 65 20 50 15
BMG310 31,000 9,080 3 7,050 11,990 18 457 65 20 50 15
BMG390 39,000 11,420 3 6,750 11,480 18 457 65 20 50 15
BMG430 43,000 12,590 4 8,800 14,960 18 457 65 20 50 15
BMG520 52,000 15,230 4 8,400 14,280 18 457 65 20 50 15
4 Fins Per Inch
BMF165 16,500 4,830 2 4,900 8,330 18 457 65 20 50 15
BMF220 22,000 6,440 2 4,650 7,910 18 457 65 20 50 15
BMF250 25,000 7,320 3 7,350 12,500 18 457 65 20 50 15
BMF330 33,000 9,670 3 6,975 11,860 18 457 65 20 50 15
BMF370 37,000 10,840 4 9,100 15,470 18 457 65 20 50 15
BMF440 44,000 12,890 4 8,700 14,790 18 457 65 20 50 15
Performance Data
Capacity Correction
Factors For Electric and
Hot Gas Defrost Units
Saturated
Suction
Temperature °F
[phone]
Saturated
Suction
Temperature °C
-7 -23 -29 -34 -40
Multiply
Capacity By 1.15 1.02 1.00 0.90 0.80
Model BMG/BMF Hot Gas Defrost | 50 Hz‡
Model
Capacity Fan Data Air Throw*†
10°F TD
-20°F SST
6°C TD
-29°C SST
No. CFM m3hDiameter Extended
(Std.)
Diused
(Opt.)
BTUH Watts in. mm ft. mft. m
6 Fins Per Inch
BMG190 16,652 4,880 2 4,230 7,190 18 457 60 18.5 45 13.5
BMG260 22,724 6,660 2 4,050 6,890 18 457 60 18.5 45 13.5
BMG310 27,140 7,950 3 6,345 10,790 18 457 60 18.5 45 13.5
BMG390 34,132 10,000 3 6,075 10,330 18 457 60 18.5 45 13.5
BMG430 37,628 11,020 4 7,920 13,460 18 457 60 18.5 45 13.5
BMG520 45,448 13,310 4 7,560 12,850 18 457 60 18.5 45 13.5
4 Fins Per Inch
BMF165 14,444 4,230 2 4,410 7,500 18 457 60 18.5 45 13.5
BMF220 19,228 5,630 2 4,185 7,120 18 457 60 18.5 45 13.5
BMF250 21,896 6,410 3 6,615 11,250 18 457 60 18.5 45 13.5
BMF330 28,888 8,460 3 6,278 10,670 18 457 60 18.5 45 13.5
BMF370 32,384 9,490 4 8,190 13,920 18 457 60 18.5 45 13.5
BMF440 38,456 11,260 4 7,830 13,310 18 457 60 18.5 45 13.5
* Standard molded fan guards allow for extended air throw; optional wire guards promote air diusion
†Air throw data based on 12-ft. high ceilings with no obstructions where velocity drops to 50 FPM
‡For EC motors, use 60 Hz capacity and airow values (Units with EC motors operating at 50 Hz will
not see a reduction in performance due to the electronic control of the motor)

9
Model BMG/BMF Hot Gas Defrost | 60 Hz
Model
PSC Motor EC Motor Drain Pan Heater (Std.)
HP*115/1/60
208-
230/1/60
460/1/60 575/1/60 115/1/60
208-
230/1/60
Watts
115/1/60 208-
230/1/60 460/1/60 575/1/60
Amps Watts Amps Watts Amps Watts Amps Watts Amps Watts Amps Watts
Total Amps
6 Fins Per Inch
BMG190 1/4 8.0 550 3.6 550 2.0 550 1.4 620 5.6 420 2.8 410 950 8.3 4.1 2.1 1.7
BMG260 1/4 8.0 550 3.6 550 2.0 550 1.4 620 5.6 420 2.8 410 950 8.3 4.1 2.1 1.7
BMG310 1/4 12.0 825 5.4 825 3.0 825 2.1 930 8.4 630 4.2 615 1,350 11.7 5.9 2.9 2.3
BMG390 1/4 12.0 825 5.4 825 3.0 825 2.1 930 8.4 630 4.2 615 1,350 11.7 5.9 2.9 2.3
BMG430 1/4 16.0 1,100 7.2 1,100 4.0 1,100 2.8 1,240 11.2 840 5.6 820 1,800 15.7 7.8 3.9 3.1
BMG520 1/4 16.0 1,100 7.2 1,100 4.0 1,100 2.8 1,240 11.2 840 5.6 820 1,800 15.7 7.8 3.9 3.1
4 Fins Per Inch
BMF165 1/4 8.0 550 3.6 550 2.0 550 1.4 620 5.6 420 2.8 410 950 8.3 4.1 2.1 1.7
BMF220 1/4 8.0 550 3.6 550 2.0 550 1.4 620 5.6 420 2.8 410 950 8.3 4.1 2.1 1.7
BMF250 1/4 12.0 825 5.4 825 3.0 825 2.1 930 8.4 630 4.2 615 1,350 11.7 5.9 2.9 2.3
BMF330 1/4 12.0 825 5.4 825 3.0 825 2.1 930 8.4 630 4.2 615 1,350 11.7 5.9 2.9 2.3
BMF370 1/4 16.0 1,100 7.2 1,100 4.0 1,100 2.8 1,240 11.2 840 5.6 820 1,800 15.7 7.8 3.9 3.1
BMF440 1/4 16.0 1,100 7.2 1,100 4.0 1,100 2.8 1,240 11.2 840 5.6 820 1,800 15.7 7.8 3.9 3.1
Specifications
Model BMG/BMF Hot Gas Defrost | 50 Hz
Model
PSC Motor EC Motor Drain Pan Heater (Std.)
HP 220/1/50 380/1/50 220/1/50 Watts
220/1/50 380/1/50
Amps Amps Amps Total Amps
6 Fins Per Inch
BMG190 1/4 3.6 2.0 2.8 860 3.9 1.7
BMG260 1/4 3.6 2.0 2.8 860 3.9 1.7
BMG310 1/4 5.4 3.0 4.2 1,230 5.6 2.4
BMG390 1/4 5.4 3.0 4.2 1,230 5.6 2.4
BMG430 1/4 7.2 4.0 5.6 1,650 7.5 3.2
BMG520 1/4 7.2 4.0 5.6 1,650 7.5 3.2
4 Fins Per Inch
BMF165 1/4 3.6 2.0 2.8 860 3.9 1.7
BMF220 1/4 3.6 2.0 2.8 860 3.9 1.7
BMF250 1/4 5.4 3.0 4.2 1,230 5.6 2.4
BMF330 1/4 5.4 3.0 4.2 1,230 5.6 2.4
BMF370 1/4 7.2 4.0 5.6 1,650 7.5 3.2
BMF440 1/4 7.2 4.0 5.6 1,650 7.5 3.2
* 575/1/60 motors are 1/3 HP

10
Physical Data
Model BMA Air Defrost
Model
No.
of
Fans
Connections (in.) Approx. Net Weight
Coil Inlet
ODF
Suction
ODF
External Equalizer
ODF
Drain
FPT lbs. kg
BMA130 1 1/2 7/8 1/4 3/4 115 52
BMA155 1 1/2 1-1/8 1/4 3/4 123 56
BMA245 2 7/8 1-1/8 1/4 3/4 134 61
BMA300 2 7/8 1-1/8 1/4 3/4 148 67
BMA365 3 7/8 1-3/8 1/4 3/4 200 91
BMA450 3 1-1/8* 1-3/8 1/4 3/4 227 103
BMA510 4 1-1/8* 1-5/8 1/4 3/4 230 104
BMA600 4 1-1/8* 1-5/8 1/4 3/4 255 116
BMA710 5 1-1/8* 1-5/8 1/4 3/4 285 129
* Supplied with adapter to 7/8 ODF
Model BME/BML Electric Defrost
Model
No.
of
Fans
Connections (in.) Approx. Net Weight
Coil Inlet
ODF
Suction
ODF
External Equalizer
ODF
Drain
FPT lbs. kg
6 Fins Per Inch
BME101 1 1/2 7/8 1/4 3/4 118 54
BME140 1 1/2 7/8 1/4 3/4 126 57
BME190 2 7/8 1-1/8 1/4 3/4 138 63
BME260 2 1-1/8* 1-3/8 1/4 3/4 153 69
BME310 3 1-1/8* 1-3/8 1/4 3/4 210 95
BME390 3 1-1/8* 1-3/8 1/4 3/4 237 108
BME430 4 1-1/8* 1-5/8 1/4 3/4 267 121
BME520 4 1-1/8* 1-5/8 1/4 3/4 300 136
BME620 5 1-1/8* 1-5/8 1/4 3/4 338 153
4 Fins Per Inch
BML100 1 1/2 7/8 1/4 3/4 125 56
BML165 2 7/8 1-1/8 1/4 3/4 136 62
BML220 2 1-1/8* 1-3/8 1/4 3/4 151 68
BML250 3 1-1/8* 1-3/8 1/4 3/4 207 94
BML330 3 1-1/8* 1-3/8 1/4 3/4 234 106
BML370 4 1-1/8* 1-5/8 1/4 3/4 262 119
BML440 4 1-1/8* 1-5/8 1/4 3/4 295 134
BML530 5 1-1/8* 1-5/8 1/4 3/4 332 151
* Supplied with adapter to 7/8 ODF

11
Model BMG/BMF Hot Gas Defrost
Model
No.
of
Fans
Connections (in.) Approx.
Net Weight
Coil Inlet
ODF
Suction
ODF
External
Equalizer
ODF
Drain
FPT
Side Port
ODF
Hot Gas
Pan Conns.**
ODF
lbs. kg
6 Fins Per Inch
BMG190 2 1-1/8* 1-1/8 1/4 3/4 5/8 7/8 175 79
BMG260 2 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 190 86
BMG310 3 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 210 95
BMG390 3 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 237 108
BMG430 4 1-1/8* 1-5/8 1/4 3/4 5/8 7/8 267 121
BMG520 4 1-1/8* 1-5/8 1/4 3/4 5/8 7/8 300 136
4 Fins Per Inch
BMF165 2 1-1/8* 1-1/8 1/4 3/4 5/8 7/8 173 78
BMF220 2 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 188 85
BMF250 3 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 207 94
BMF330 3 1-1/8* 1-3/8 1/4 3/4 5/8 7/8 234 106
BMF370 4 1-1/8* 1-5/8 1/4 3/4 5/8 7/8 262 119
BMF440 4 1-1/8* 1-5/8 1/4 3/4 5/8 7/8 295 134
* Supplied with adapter to 7/8 ODF
** Supplied with electric drain pan heater as standard, hot gas pan is optional
Physical Data

12
Dimensional Data
All Models Dimensions
Model
6 FPI Models 4 FPI Models Dimensions
Defrosts Defrosts A B C D E F
Elec. Hot
Gas Elec. Hot Gas in. mm in. mm in. mm in. mm in. mm in. mm
BMA130 BME101 - - - 39-5/16 1,000 30-1/4 770 ------4-15/16 125
BMA155 BME140 - BML100 - 39-5/16 1,000 30-1/4 770 ------4-15/16 125
BMA245 BME190 BMG190 BML165 BMF165 67-5/16 1,710 58-1/4 1,480 ------4-15/16 125
BMA300 BME260 BMG260 BML220 BMF220 67-5/16 1,710 58-1/4 1,480 ------4-15/16 125
BMA365 BME310 BMG310 BML250 BMF250 95-5/16 2,420 86-1/4 2,190 ------4-15/16 125
BMA450 BME390 BMG390 BML330 BMF330 95-5/16 2,420 86-1/4 2,190 ------4-15/16 125
BMA510 BME430 BMG430 BML370 BMF370 123-5/16 3,130 114-1/4 2,900 56 1,420 58-1/4 1,480 --4-15/16 125
BMA600 BME520 BMG520 BML440 BMF440 123-5/16 3,130 114-1/4 2,900 56 1,420 58-1/4 1,480 --4-15/16 125
BMA710 BME620 - BML530 - 138-13/16 3,530 129-3/4 3,300 51 1,300 53-1/4 1,350 25-1/2 650 4-15/16 125
NOTE: Evaporator mounting brackets accept up to 1/2" hanger rod
All Models Dimensional Data
22-3/4"
578 mm
15-1/2"
390 mm
23 -1/4"
590 mm
2-1/2"
64 mm
24"
608 mm
18-7/8"
480 mm
17-1/2"
444 mm
Electrical
Connection
End
Refrigerant
Connection
End
Air
Flow

13
Motor/Fan/Blade/Guards
Part # Description
5020-S Motor 115V
5020-T Motor 208-230V
4567-T Motor 208-230V Totally Enclosed
25302201 Motor 460V
25304601* Motor 460V Low Temp Totally Enclosed
25308101* Motor 208-230V Low Temp Totally Enclosed
5599-M Run Capacitor (5 MFD) - Used with most PSC Motors
5779-G Run Capacitor (7.5 MFD) - Used with 25304601
Motor Only
22511601 Run Capacitor (7.5 MFD) - Used with 25399301
25399301 Motor 575V
5064-E Motor Mount
5130-C Fan Blade
4339-X Fan Guard Molded with Logo
5063-E Fan Guard Beige Wire
* Special motors to be used in room ambients -31°F to -50°F
Cabinet Components
Part # Description No. of Fans
40491902 Drain Pan* 1
40492102 Drain Pan* 2
40492302 Drain Pan* 3
40492502 Drain Pan* 4
40492702 Drain Pan* 5
40830101 Header Side Panel 1-5
40830201 Electrical Side Panel 1-5
40830901 Header Connection Panel 1-5
92864003 Drain Fitting 1-5
* Includes provision to mount drain pan heater
Electrical Components
Part # Description
2891040 Room Thermostat
5709-L Defrost Term. / Fan Delay Thermostat Sealed
Bimetal Type
2890109 Defrost Term. / Fan Delay Thermostat
Adjustable Type
5708-L Heater Limit Thermostat
NOTE: Contact factory for hot gas defrost components not listed
Drain Pan Defrost Heater(1 per unit)
Part # Description Voltage Color Code
24710301 1 Fan Unit, 530W 208-230V Black
24710302 2 Fan Unit, 950W 208-230V Black
24710303 3 Fan Unit, 1350W 208-230V Black
24710304 4 Fan Unit, 1800W 208-230V Black
24710305 5 Fan Unit, 2000W 208-230V Black
24710401 1 Fan Unit, 530W 460V Red
24710402 2 Fan Unit, 950W 460V Red
24710403 3 Fan Unit, 1350W 460V Red
24710404 4 Fan Unit, 1800W 460V Red
24710405 5 Fan Unit, 2000W 460V Red
24710502 2 Fan Unit, 950W 115V Black, White
24710503 3 Fan Unit, 1350W 115V Black, White
24710504 4 Fan Unit, 1800W 115V Black, White
24710901 1 Fan Unit, 530W 575V Black, Red
24710902 2 Fan Unit, 950W 575V Black, Red
24710903 3 Fan Unit, 1350W 575V Black, Red
24710904 4 Fan Unit, 1800W 575V Black, Red
24710905 5 Fan Unit, 2000W 575V Black, Red
Coil Defrost Heaters(4 per unit)
Part # Description Voltage
24710201 1 Fan Unit, 550W 230-460V
24710202 2 Fan Unit, 1100W 230-460V
24710203 3 Fan Unit, 1600W 230-460V
24710204 4 Fan Unit, 2100W 230-460V
24710205 5 Fan Unit, 2400W 230-460V
24711101 1 Fan Unit, 550W 575V
24711102 2 Fan Unit, 1100W 575V
24711103 3 Fan Unit, 1600W 575V
24711104 4 Fan Unit, 2100W 575V
24711105 5 Fan Unit, 2400W 575V
23308001 Heater Clip (1-3 fans) -
23308101 Heater Clip (4-5 fans) -
Right source. Right parts. Right now.
InterLink™ is your link to a complete line of dependable and
certied commercial refrigeration parts, accessories and
innovative electronic controls for all Bohn equipment. At
InterLink, we provide our wholesalers with a comprehensive
selection of product solutions and innovative technologies
for the installed customer base. And every product is built
to ensure the same high performance standards with which
all Heatcraft Refrigeration Products (HRP) brands are built
— backed by a dedicated team to serve every customer
need, delivering at the best lead times in the industry.
Dependable. Versatile. Courteous.
Finally, one simple source for all your replacement needs
from a name you can trust.
For parts, please contact [phone] or
visit www.interlinkparts.com.
Replacement Parts
Commercial Refrigeration Parts

14
Nozzle Selection
Model BMA Air Defrost
Model No. of
Fans
Distributor Tube (in.) No. of Circuits R-404A*
Nozzle
R-22
Nozzle
OD Length
BMA130 1 3/16 21-1/2 3 L-1 L-3/4
BMA155 1 3/16 21-1/2 5 L-1 L-3/4
BMA245 2 3/16 21-1/2 9 G-2-1/2 G-1-1/2
BMA300 2 3/16 21-1/2 9 G-2-1/2 G-1-1/2
BMA365 3 3/16 21-1/2 9 G-3 G-2
BMA450 3 3/16 21-1/2 12 E-4 E-2-1/2
BMA510 4 3/16 21-1/2 13 E-5 E-3
BMA600 4 3/16 21-1/2 18 E-5 E-3
BMA710 5 3/16 21-1/2 18 E-6 E-4
Model BME/BML Electric Defrost
Model No. of
Fans
Distributor Tube (in.) No. of
Circuits
R-404A*
Nozzle
R-22
Nozzle
OD Length
6 Fins Per Inch
BME101 1 3/16 21-1/2 5 L-1-1/2 L-3/4
BME140 1 3/16 21-1/2 6 L-1-1/2 L-1
BME190 2 3/16 21-1/2 9 G-2-1/2 G-1-1/2
BME260 2 3/16 21-1/2 12 E-3 E-2
BME310 3 3/16 21-1/2 13 E-4 E-2-1/2
BME390 3 3/16 21-1/2 18 E-5 E-3
BME430 4 3/16 21-1/2 12 E-5 E-3
BME520 4 3/16 21-1/2 17 E-6 E-4
BME620 5 3/16 21-1/2 17 E-8 E-5
4 Fins Per Inch
BML100 1 3/16 21-1/2 6 L-1-1/2 L-1
BML165 2 3/16 21-1/2 9 G-2-1/2 G-1-1/2
BML220 2 3/16 21-1/2 12 E-3 E-2
BML250 3 3/16 21-1/2 13 E-4 E-2-1/2
BML330 3 3/16 21-1/2 18 E-5 E-3
BML370 4 3/16 21-1/2 12 E-5 E-3
BML440 4 3/16 21-1/2 17 E-6 E-4
BML530 5 3/16 21-1/2 17 E-8 E-5
Model BMG/BMF Hot Gas Defrost
Model No. of
Fans
Distributor Tube (in.) No. of
Circuits
R-404A*
Nozzle
R-22
Nozzle
OD Length
6 Fins Per Inch
BMG190 2 1/4 21-1/2 9 E-3 E-1-1/2
BMG260 2 1/4 21-1/2 12 E-4 E-2-1/2
BMG310 3 3/16 21-1/2 13 E-4 E-2-1/2
BMG390 3 3/16 21-1/2 18 E-5 E-3
BMG430 4 3/16 21-1/2 13 E-5 E-3
BMG520 4 3/16 21-1/2 18 E-6 E-4
6 Fins Per Inch
BMF165 2 1/4 21-1/2 9 E-3 E-1-1/2
BMF220 2 1/4 21-1/2 12 E-4 E-2-1/2
BMF250 3 3/16 21-1/2 13 E-4 E-2-1/2
BMF330 3 3/16 21-1/2 18 E-5 E-3
BMF370 4 3/16 21-1/2 13 E-5 E-3
BMF440 4 3/16 21-1/2 18 E-6 E-4
*Also suitable for R-507, R-502, R-134A, R-401A, R-402A
Nozzles sized for 90° - 100°F liquid temp. at expansion valve. Refer to manual H-IM-64 if liquid temp. is not 90° - 100°F
Consult Bohn Application Engineering if evaporator TD is not 10° - 15ºF, (room temp. - saturated suction temp.)
Caution: Refrigeration system will not perform properly without Correct Nozzle!

15
Notes

A Brand of Heatcraft Refrigeration Products LLC
2175 West Park Place Blvd. • Stone Mountain, GA • 30087
800.537.7775 • FAX [phone]
www.thecoldstandard.com
For more information on Bohn refrigeration products, contact
your Sales Representative or visit us at www.thecoldstandard.com.
Since product improvement is a continuing eort, we reserve the right to
make changes in specications without notice.
BN-MPTB-0408 | Version 000
