Bolink R/C LEGENDS User manual

R/C LEGENDS
CHASSIS KIT
ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING BOLINK’S R/C LEGENDS CHASSIS KIT. PLEASE REFER TO THE
TEXT, IMAGES AND EXPLODED VIEW DRAWING THAT FOLLOWS TO COMPLETE THE KIT
ASSEMBLY.
TOOLS REQURED:
A SMALL PAIR OF PLIERS
1/4” SOCKET OR WRENCH
7/16” SOCKET (USED TO ADJUST THE DIFFERENTIAL)
LIGHT LUBRICATING OIL
HEX WRENCHES TO FIT ALL OF THE SOCKET HEAD SCREWS ARE INCLUDED WITH THE KIT.
TO COMPLETE YOUR RACE CAR YOU WILL NEED TO PURCHASE THE FOLLOWING
MOTOR
4-CELL BATTERY PACK
2 CHANNEL RADIO, ONE SERVO AND AN ELECTRONIC SPEED CONTROLLER (ESC)
SERVO SAVER
YOUR CHOICE OF LEGENDS BODY
A LIST OF AVAILABLE BODY STYLES IS PROVIDED ON THE EXPLODED DRAWING PAGE.
TO FINISH YOUR BODY YOU WILL ALSO WILL NEED PAINT MADE SPECIFICALLY FOR LEXAN
BODIES.
1

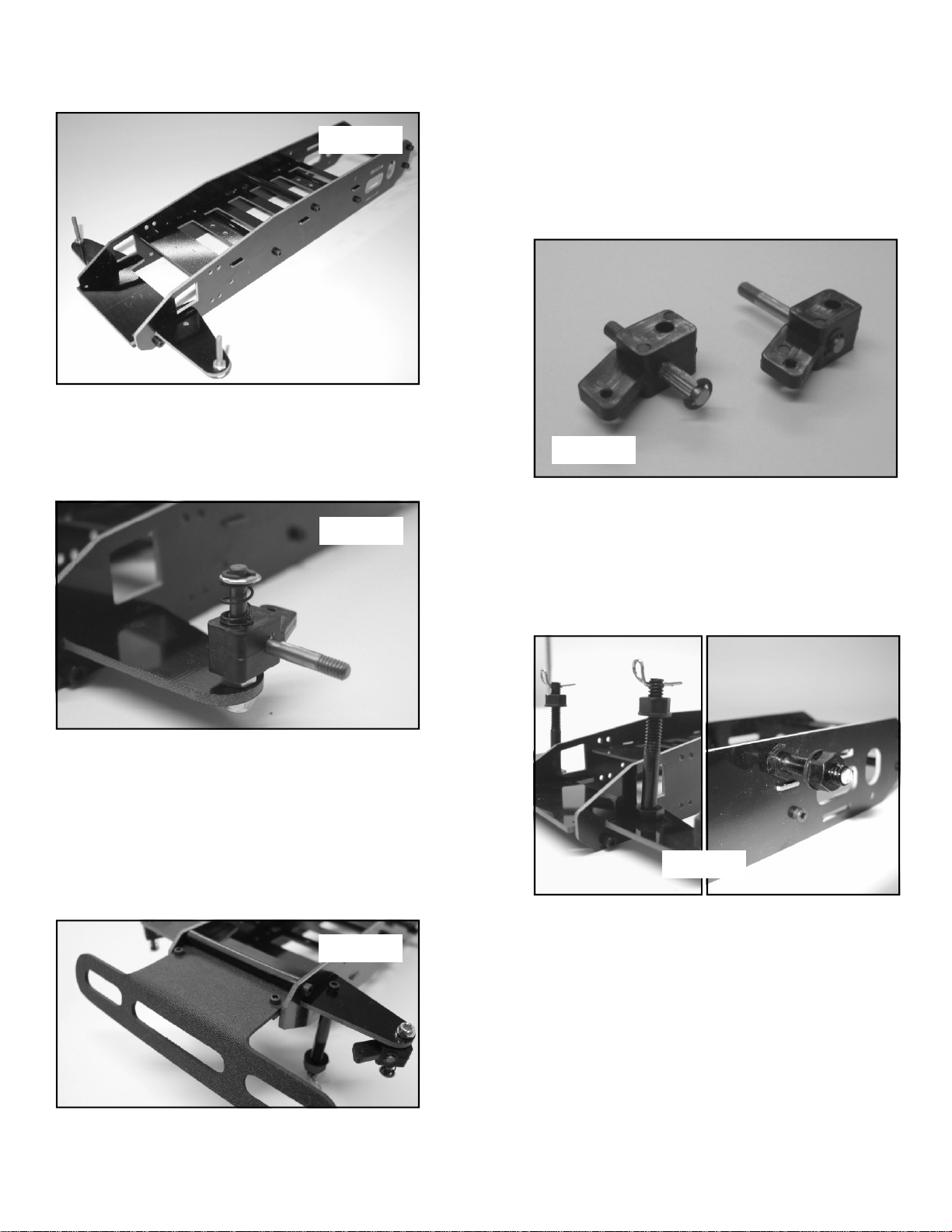

STEP 1 THE CHASSIS COMES PARTIALLY ASSEMBLED.
PLACE IT ON A TABLE TO SEE IF IT SITS FLAT. IF NOT, HOLD
IT BY BOTH ENDS AND GENTLY TWIST IN THE PROPER
DIRECTION TO STRAIGHTEN. RECHECK AND REPEAT AS
NEEDED.
STEP 1
STEP 2 OPEN BAG 1L2 AND PRESS ONE STUB AXLE INTO
EACH STEERING BLOCK AND RETAIN WITH AN E-CLIP. STEP 2
STEP 3 STEP 3 LUBE EACH KINGPIN WITH A LIGHT OIL. INSTALL A
STEERING BLOCK, SPRING, WASHER, AND E-CLIP ON EACH.
SET ASIDE THE TWO REMAINING LOCKNUTS AND FRONT
BUSHINGS. THEY WILL BE USED LATER DURING THE FRONT
WHEEL ASSEMBLY.
STEP 4
STEP 4 OPEN BAG 9L AND INSTALL A 2” BODY POST ON
EACH SIDE OF THE FRONT AXLE PLATE WITH A 3/8” LONG
SOCKET HEAD SCREW. INSTALL A 1” BODY POST ON EACH
SIDE OF THE CHASSIS AGAIN USING A 3/8” SOCKET HEAD
SCREW. ADD A BODY POST NUT TO EACH OF THE FOUR
POSTS. SET ASIDE THE CLIPS AND REMAINING NUTS. THEY
WILL BE USED LATER WHEN MOUNTING THE BODY.
2
STEP 5 STEP 5 OPEN BAG 1L3 AND INSTALL THE BUMPER TO THE
FRONT AXLE PLATE FROM THE BOTTOM OF THE CHASSIS
WITH TWO 1/4” LONG SOCKET HEAD SCREWS. THE SCREWS
WILL SELF TAP INTO THE AXLE PLATE.

STEP 6 STEP 6 OPEN BAGS 2L AND 2L1 AND INSTALL A BUSHING
ADAPTOR INTO EACH CHASSIS SIDE PLATE. BOTH
ADAPTERS MUST BE INSTALLED IN THE SAME WAY WITH
EITHER THE HOLE UP OR DOWN AS SHOWN. FOLLOW THIS
BY PRESSING A REAR AXLE BUSHING INTO EACH ADAPTER.
STEP 7

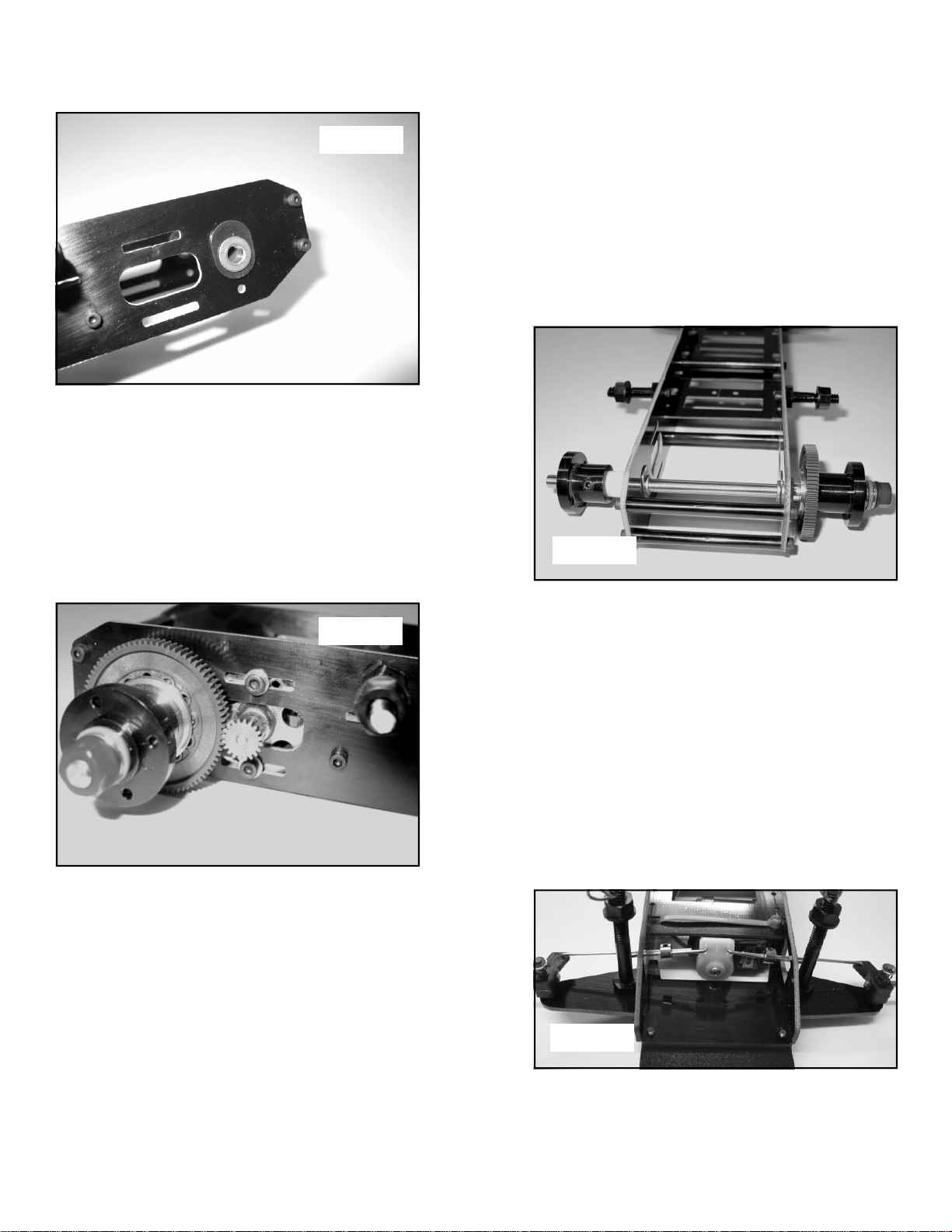

STEP 7 SLIDE ONE OF THE THIN AXLE WASHERS ON THE
PREASSEMBLED DIFFERENTIAL, THEN SLIDE IT THRU THE
BUSHINGS AS SHOWN. LUBE EACH BUSHING WITH A DROP
OF LIGHT OIL. SLIDE ANOTHER THIN WASHER ON, THEN ADD
THE 1/2” WIDE SPACER, FOLLOWED BY THE NYLON HUB.
INSTALL TWO SETSCREWS IN THE HUB CAREFULLY. MAKE
SURE YOU HAVE A SMALL AMOUNT OF SIDEPLAY IN THE
AXLE. TIGHTEN EACH SETSCREW A LITTLE AT A TIME TO
KEEP FROM WARPING THE HUB.
STEP 8 OPEN BAG 3L1 AND INSTALL THE MOTOR YOU
HAVE CHOSEN INTO THE CHASSIS WITH THE SOCKET HEAD
MOTOR SCREWS AND WASHERS. INSTALL THE PINION GEAR
WITH THE SETSCREW AND ALIGN IT WITH THE AXLE SPUR
GEAR THEN TIGHTEN. SLIDE THE MOTOR BACK UNTIL YOU
HAVE A VERY SMALL AMOUNT OF PLAY IN BETWEEN THE
GEARS. TURN THE GEAR A COUPLE OF TIMES TO RECHECK
THE MESH, THEN TIGHTEN THE MOTOR SCREWS SECURELY.
STEP 8
3
STEP 9 INSTALL YOUR SERVO UNDER THE BATTERY TRAY
AS SHOWN WITH A PORTION OF THE SERVO TAPE
PROVIDED IN BAG 6L. MOUNT THE SERVO AS FAR TO ONE
SIDE AS YOU CAN TO GET THE SERVO OUTPUT SHAFT AS
CLOSE TO THE CENTER AS POSSIBLE. USE A LARGE TIE
STRAP TO HELP HOLD THE SERVO IN PLACE. OPEN BAG 3L2
AND INSTALL A SHORT AND LONG STEERING LINK ON EACH
SIDE BETWEEN THE SERVO AND STEERING BLOCK. SLIDE A
COLLAR WITH SETSCREW OVER EACH PAIR THEN ALIGN
THE STEERING AND TIGHTEN EACH SET SCREW.
STEP 9

STEP 11
STEP 11 USE THE TWO SMALL TIE STRAPS TO ATTACH
THE ANTENNA TUBE INSIDE THE CHASSIS NEXT TO THE
STEERING SERVO. RUN YOUR ANTENNA WIRE THRU THE
TUBE AND TAPE IT AT THE TOP. TAKE THE EXCESS
ANTENNA WIRE AND OTHER RADIO WIRES AND SECURE
THEM NEAR THE RECEIVER TO KEEP THINGS NEAT AND OFF
THE GROUND.

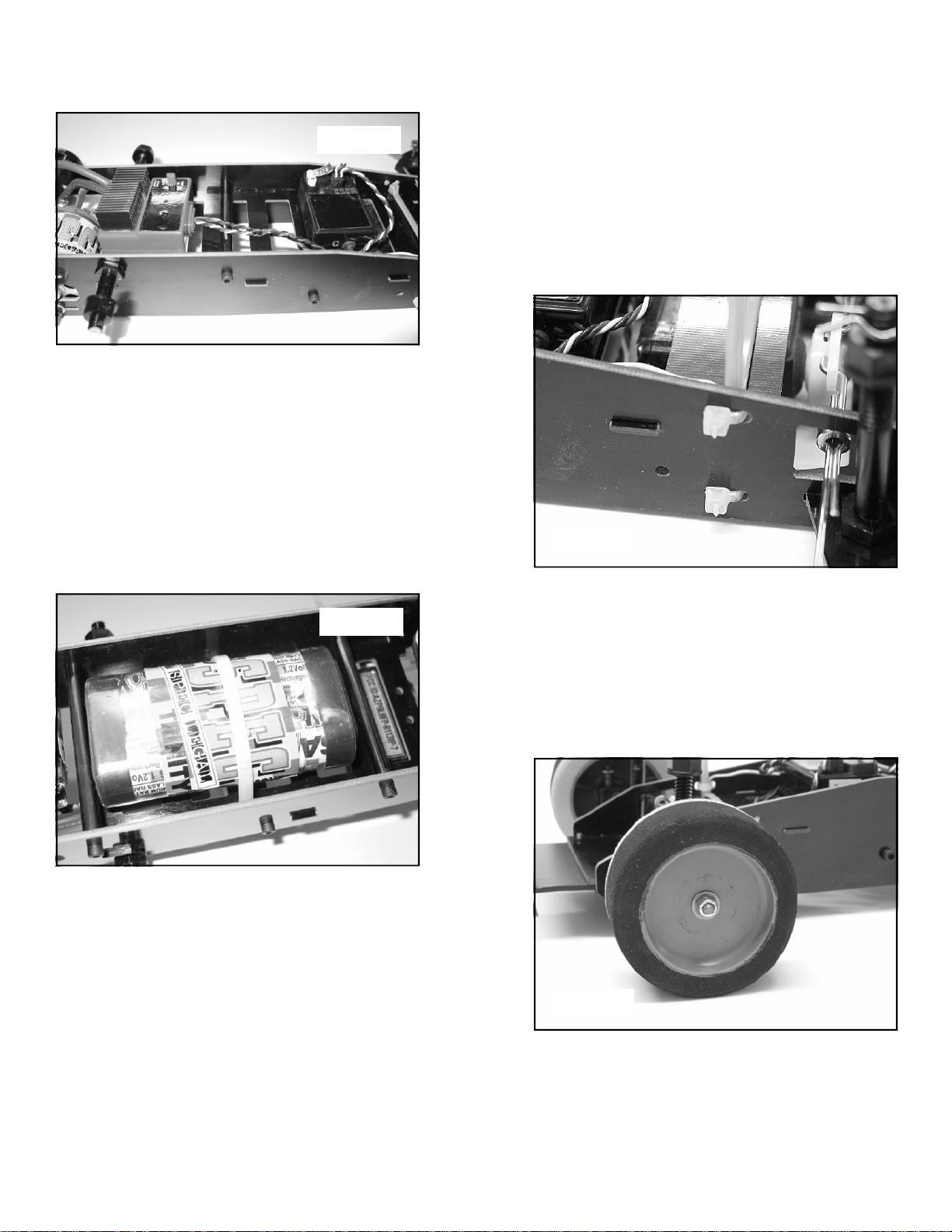

STEP 12 INSTALL YOUR BATTERY PACK UNDER THE
BATTERY TRAY WITH A LARGE TIE STRAP. ROUTE THE PLUG
THRU THE TRAY AT THE FRONT OR REAR SO YOU CAN
ATTACH IT TO THE ESC.
STEP 12
4
STEP 10 STEP 10 INSTALL YOUR ESC AND RECEIVER ON TOP OF
THE BATTERY TRAY WITH THE SERVO TAPE PROVIDED.
PLUG THE SPEED CONTROL AND SERVO INTO THE
RECEIVER. SOLDER THE MOTOR WIRES TO THE MOTOR AND
ESC OR ADD PLUGS AND PLUG THEM IN. MOUNT YOUR
RADIO SWITCH UNDER THE BATTERY TRAY BEHIND THE
STEERING SERVO. THIS WILL ALLOW YOU TO TURN THE CAR
ON OR OFF WITHOUT REMOVING THE BODY.
STEP 13 INSTALL ONE SMALL BUSHING FROM BAG 1L2
INTO EACH SIDE OF THE FRONT WHEELS. LUBE EACH STUB
AXLE WITH A DROP OF LIGHT OIL, THEN INSTALL THE FRONT
WHEELS AND RETAIN WITH A 5-40 LOCKNUT. LEAVE JUST
ENOUGH PLAY SO THAT THE WHEELS SPIN FREELY. THE
FRONT AND REAR BUSHINGS WILL LAST AND PERFORM
WELL IF YOU KEEP THEM CLEAN AND LUBRICATED. STEP13

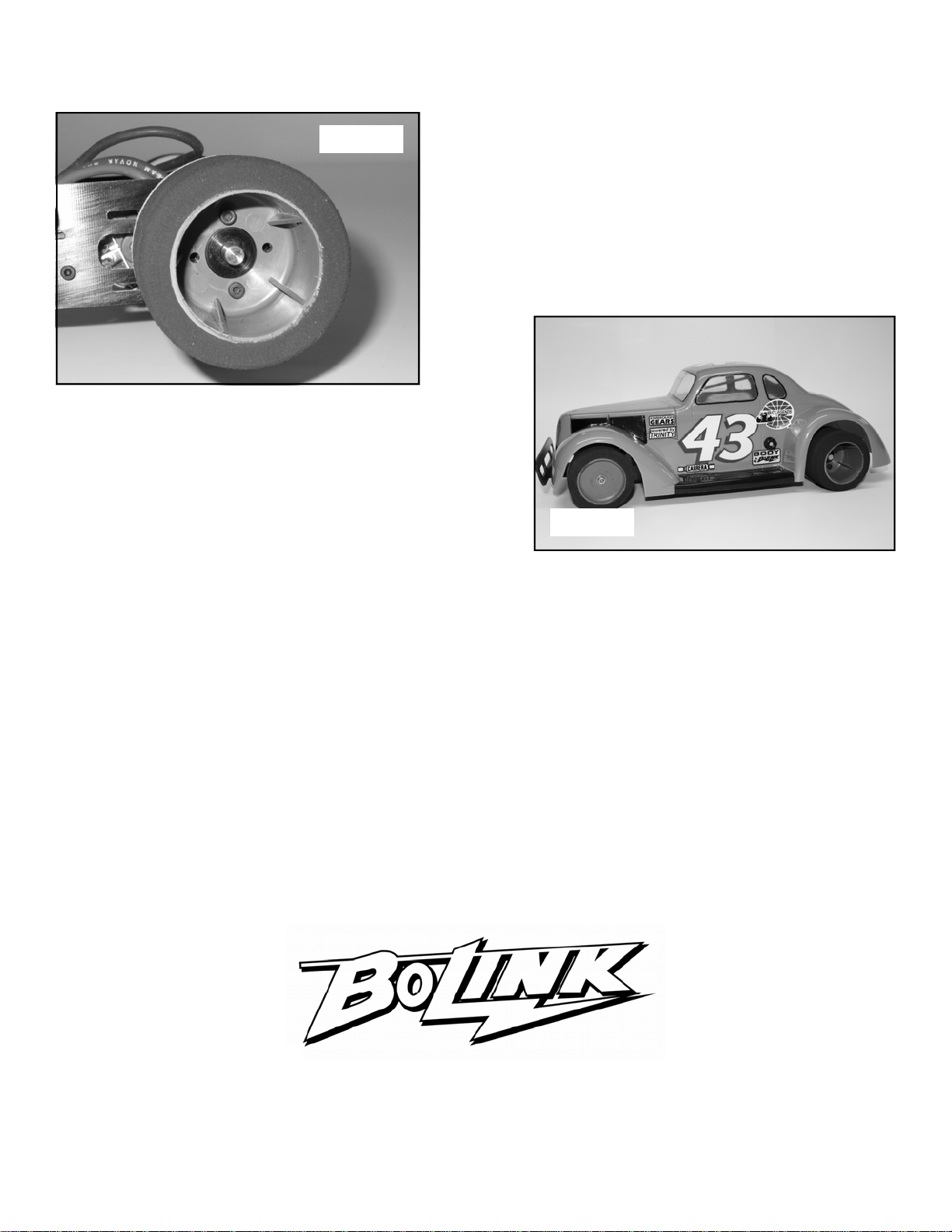

STEP 15 PAINT THE BODY YOU HAVE CHOSEN AND TRIM IT
OUT. DRILL THE MOUNTING HOLES FOR THE BODY POSTS
AND A HOLE FOR THE ANTENNA TUBE. ATTACH THE BODY
WITH THE REMAINING POST NUTS AND CLIPS FROM BAG 9L.
TURN THE FRONT WHEELS LEFT TO RIGHT TO MAKE SURE
THAT THEY DON’T RUB ON THE BODY WHEN YOU STEER
THE CAR.
RECOMMENDED MAINTENANCE TIPS:
THE DIFF SHOULD BE ADJUSTED SO THAT IT SLIPS
SLIGHTLY AS THE CAR STARTS OFF
KEEP YOUR DIFFERENTIAL CLEANED AND
LUBRICATED USING SILICON DIFF LUBE
KEEP THE BUSHINGS CLEAN AND LUBRICATED
LIGHTLY OIL THE MOTOR BUSHINGS
KEEP THE GEAR MESH ADJUSTED TO PREVENT THE
STRIPPING OF THE AXLE SPUR GEAR
CLEAN AND RE-LUBE THE KINGPINS SO THAT THE
FRONT SUSPENSION WORKS SMOOTHLY.
ABOVE ALL, HAVE FUN RACING YOUR
R/C LEGENDS CAR!!
STEP 15
STEP14 ATTACH EACH OF THE REAR WHEELS TO THE
REAR HUBS WITH TWO 3/8” LONG SOCKET HEAD SCREWS.
MAKE SURE YOU TIGHTEN THEM EVENLY TO ASSURE THAT
THE TIRES RUN TRUE.
STEP 14
5

R/C LEGENDS BL 2403 BODY CLIPS
BL 2425 BODY MOUNTS, 1”
BL 2427 BODY MOUNTS, 2”
BL 5042 CHASSIS PLATES (PR)
BL 5188 AXLE HEIGHT ADAPT.
BL 5228 FRONT SPRINGS
BL 5242-L LONG BATTERY TRAY
BL 5243 BUMPER
BL 5244 FRONT AXLE PLATE
BL 5245-B NYLON CHASSIS SPACERS (6)
BL 5308 STEERING LINKAGE
BL 5351 STEERING BLOCKS
BL 5364 STUB AXLES
BL 5377 KINGPINS
BL 5452 REAR BUSHINGS
BL 5457 FRONT BUSHINGS
BL 5551 21 TOOTH PINION GEAR
HARDWARE
BL 5221 E-CLIPS
BL 7025 BUMPER SCREWS
BL 7030-B CHASSIS SCREWS
BL 7150 PINION SETSCREWS
BL 7160 REAR HUB SETSCREWS
BL 7206 5-40 JAM NUTS
BL 7207 5-40 LOCK NUTS
BL 3511 NYLON HUBS
BL 3513 SET SCREW HUBS
BL 5611 81 TOOTH DIFF GEAR
BL 5730 DIFF AXLE
BL 5735 THRUST BEARING KIT
BL 5737 CONE WASHER
BL 5740-A ALUM. ADAPTOR
BL 5751 DIFF BALLS
BL 5752 DRIVE RINGS
BL 7218 DIFF NUTS
LEGENDS BODY LIST
BL2244 LEGENDS 34 F COUPE
BL2267 LEGENDS 34 F SEDAN
BL2270 LEGENDS 37 D COUPE
BL2290 LEGENDS 37 C COUPE
BL2291 LEGENDS 37 F SEDAN
BL2294 LEGENDS 37 F COUPE
BL2295 LEGENDS 37 C SEDAN
BL2296 LEGENDS 40 F COUPE
