BOMBARDIER Alpine II User manual

,
operators
manual

model
V.I.N. ___________ _
purchase date
warranty expiry date
To be completed by dealer at time of sale
DEALER IMPRINT AREA
AFTER SALES SERVICE
The following are trademarks of Bombardier Inc.
BOMBARDIER INC.
VALCOURT (QUEBEC) ALPINE® FORMULA* SAFARI*
CANADA JOE 2LO BLIZZARD® FUTURA® SKANDIC®
liB]
BOMBARDIER® GRAND PRIX SPECIAL® SKI-DOO®
CARRY-BOOSE® MIRAGE® SONIC®
CITATION®
MOTO-SKI® SPIRIT®
ELAN® NORDIK®
STRATOS*
. ELITE® NUVIK®
T'NT®
ESCAPADE*
OLYMPIQUE® TUNDRA*
EVEREST® ROTAX®
Litho'd in Canada ®*Trademarks of Bombardier Inc.
All rights reserved© Bombardier Inc.

FOREWORD __________________ _
The operator manual and the Snowmobile
Safety Handbook have been prepared to
acquaint the owner/operator or passenger
of a new snowmobile with the various
vehicle controls, maintenance and safe
operating instructions.
Each is indispens-
able
for the proper use of the product,
and should be kept
with the vehicle at
all times.
Should you
have any questions pertaining
to the warranty and its application, please
consult the "Often Asked Question" sec-
tion
of this manual, or your authorized
dealer.
This manual uses the following symbols.
.A. WARNING: Identifies an instruc-
T tion which, if not foHowed, could
cause
serious personal injuries including
possibility
of death.
,.,. CAUTION: Denotes an instruction
T which, if not followed, could se-
verely damage vehicle components.
0 NOTE: Indicates supplementary in-
formation needed to fully complete
an instruction.
Although the mere reading of such infor-
mation does
not eliminate the hazard,
your understanding
of the information
will promote its correct use.
.A. WARNING: The engines and the
T corresponding components iden-
tified
in this manual should not be uti-
lized on product(s) other than those
mentioned on
the cover page of this
manual.
.A. WARNING: Maintenance proce-
T dures and tightening torques must
be strictly adhered to, never
attempt
repairs unless the appropriate tools are
available.
The information and components/system
descriptions contained
in this manual are
correct at time of pubtication. Bombardier
Inc. however, maintains a policy
of con-
tinuous improvement of its products with-
out imposing upon itself any obligation
to install them on products previously
manufactured.
Bombardier Inc. reserves the right at any
time to discontinue or change specifica-
tions, designs, features, models or equip-
ment without incurring obligation.
The illustrations
show the typical con-
struction of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape of the parts shown,
however, they represent parts which have
the same or a similar function.
Most specifications
are given in both met-
ric and customary units. Where precise
accuracy
is not required, some conver-
sions are rounded
to even numbers for
easier
use.
A shop manual can be obtained for com-
plete maintenance and repair in-
formation.
,.,. CAUTION: Most components of
T this vehicle are built with part:; di-
mensioned
in the metric system. Most
fasteners are metric and must not be
replaced by customary fasteners or vice
versa. Mismatched or incorrect fasten-
ers could cause damage
to the vehicle
or possible personal injury.

SAFETY
MEASURES __________________________ __
Observe the following
precautions:
• Throttle mechanism should be check-
ed for free movement before starting
•
Do not operate vehicle near snow mak-
ing equipment.
• Engine should
be running only when
belt guard and/or pulley guard
is se-
cured
in place.
•
Never run the engine without drive belt
installed. Running
an unloaded engine
can prove to
be dangerous.
• Never run the engine
when the track
is raised off the ground.
•
It can be dangerous to run engine with
the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always ma-
nipulate
in a well ventilated area. Do
not smoke or allow open flames or
sparks
in the vicinity. If gasoline fumes
are noticed while driving, the cause
should
be determined and corrected
without
• Maintain your vehicle in top mechan-
ical condition at all times.
• Your snowmobile is
not designed to
be driven or operated on black top,
bare or other abrasive surfaces.
On such surfaces abnormal and ex-
cessive wear of critical parts
is inevi-
table.
• Your snowmobile
is not designed to
be operated on public streets, road
or highways.
In most States and
Provinces, it
is considered an illegal
operation.
• Installation
of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could se-
verely
affect the stability and safety
of your vehicle. Avoid adding on ac-
cessories that alter the basic vehicle
configuration.
• The snowmobile engine can
be stop-
ped
by activating the emergency cut-
out switch/ tether switch or
by turning
off the
• Whenever the vehicle
is parked out-
doors, overnight or for a long period,
it is suggested to protect it against
the inclemency
of the weather with a
snowmobile cover.
• Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as detailed in
this manual. Unless otherwise speci-
fied, engine should
be turned OFF for
all lubrication and maintenance pro-
cedures.
•
Clean and check operation of the head-
light, taillight and brake light.
• These vehicles are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal
of a locking device
be required when undergoing repairs/
disassembly, always replace
by new
ones. Tighten fasteners as specified
in the applicable Shop Manual.
PLEASE READ AND UNDERSTAND ALL
WARNINGS
AND CAUTIONS IN THIS
MANUAL AND ON THE VEHICLE
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE
AT THE TIME OF RESALE
2

INDEX ____________________ __
THE 1988 ULIMITED WARRANTY" . ................ .
OFTEN ASKED QUESTIONS . ...................... .
LISTING OF AREA DISTRIBUTORS . ...................... .
HOW TO IDENTIFY YOUR SNOWMOBILE
CONTROLS/INSTRUMENTS
Throttle lever, brake lever, ignition switch, headlamp dimmer switch, emer-
gency cut-out switch, rewind starter handle, primer, adjustable steering han-
dle, gear shift lever/ speedometer, trip meter reset button, high beam pilot
Iampl hood opening, console, fuel gauge/tank cap, seat compartment, fuse
4
6
8
9
holder, hitch, accessories . . . . . . . . . . . . . . . . . . 10
BREAK-IN PERIOD
Engine and belt break-in, 10 hour-inspection, break-in fuel/oil mixing charts,
inspection check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
FUEL & OIL
Recommended gasoline, recommended oil, fuel mixture ratio, fuel mixing
procedure, fuel/oil mixing charts . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19
PRE-START CHECK
Check points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
STARTING PROCEDURE
Manual starting, electric starting, before riding, emergency starting 22
LUBRICATION
Frequency, mechanism, drive axles, slide suspension, gearbox, oil
level
........ .
MAINTENANCE
Chart/ belt guard removal, drive belt removal and installation, drive belt con-
dition, new drive belt, brake condition, brake adjustment, spark plugs, battery,
suspension condition, stopper strap condition, suspension adjustment, track
condition, track tension and alignment, drive pulley, steering mechanism,
steering adjustment, muffler attachment, engine head nuts, engine
mount
nuts, carburetor adjustment, high altitude fan belt, drive chain tension,
headlamp beam aiming, bulb replacement, general inspection
...... .
STORAGE
suspension, ski, controls, gearbox, drive pulley, engine and primer
lubrication, fuel tank and carburetor, battery, chassis/ general inspection, sus-
pension stopper strap
..................................... .
PRE-SEASON PREPARATION
Pre-season preparation chart ................................ .
TROUBLE SHOOTING GUIDE . ................. .
TOOLS.............. . ................ .
SPECIFICATIONS
Sl METRIC INFORMATION GUIDE ................... .
WIRING DIAGRAM
25
28
42
46
47
49
50
52
54
3

THE 1988 SNOWMOBILE
LIMITED WARRANTY _________ _
1 -PERIOD
BOMBARDIER® INC. as manufacturer, warrants FROM THE DATE OF DELIVERY
TO THE FIRST CONSUMER, every 1988 BOMBARDIER snowmobile, sold as
NEW
AND UNUSED, and predelivered by an authorized BOMBARDIER dealer
for a period of:
• 12
consecutive months.
2- WHAT BOMBARDIER WILL DO
BOMBARDIER will repair and/or replace, at its option, components defective in
material and/or
workmanship (under normal use and service), with a genuine
BOMBARDIER
component without charge for parts or labour, at any authorized
BOMBARDIER dealer during said
warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER Warranty
Registration card or proof of purchase received by the customer from the selling
dealer
at time of delivery.
4 - WARRANTY TRANSFER
This warranty is transferable to subsequent owner(s) for remainder of warranty
period from original date of delivery.
5 - EXCLUSIONS - ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
-drive belts bulbs
slider shoes -runners on skis
spark plugs
• Replacement parts and/or accessories
which are not genuine BOMBARDIER
parts and/or accessories.
• Damage resulting
from installation of parts other than genuine BOMBARDIER
parts.
• Damage caused by failure
to provide proper maintenance as detailed in the
Operator's Manual. The labour, parts and lubricants costs of all maintenance
services, including
tune-ups and adjustments will be charged to the owner.
• Vehicles designed and/or used
for racing purposes.
•
All optional accessories installed on the vehicle.
{The normal
warranty policy for parts and accessories, if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse or ne-
glect.
• Damage resulting
from operation of the snowmobile on surfaces other than
snow.
• Damage resulting
from modification to the snowmobile not approved in writ-
ing by BOMBARDIER.
4

• Losses incurred by the snowmobile owner other than parts and labour, such
as,
but not limited to, transportation, towing, telephone calls, taxis, or any
other incidental or consequential damage.
6- BATTERY WARRANTY:
• 12 consecutive months. {Pro-rated)
100% warranty coverage will start on the date the snowmobile was delivered
and run
to the following April 30th. The remainder of the 12 month-period
will be pro-rated as follows:
50o/o from April 30th to December 1st.
-
40o/o from December 1st to December 31st.
-
30% from January 1st to end of warranty.
7 - EXPRESSED OR IMPLIED WARRANTIES
This warranty gives you specific rights, and you may also have other legal
rights which may vary from state to state, or province to province. Where
applicable this warranty is expressly in lieu of all other expressed or im-
plied warranties of BOMBARDIER, its distributors and the selling dealer,

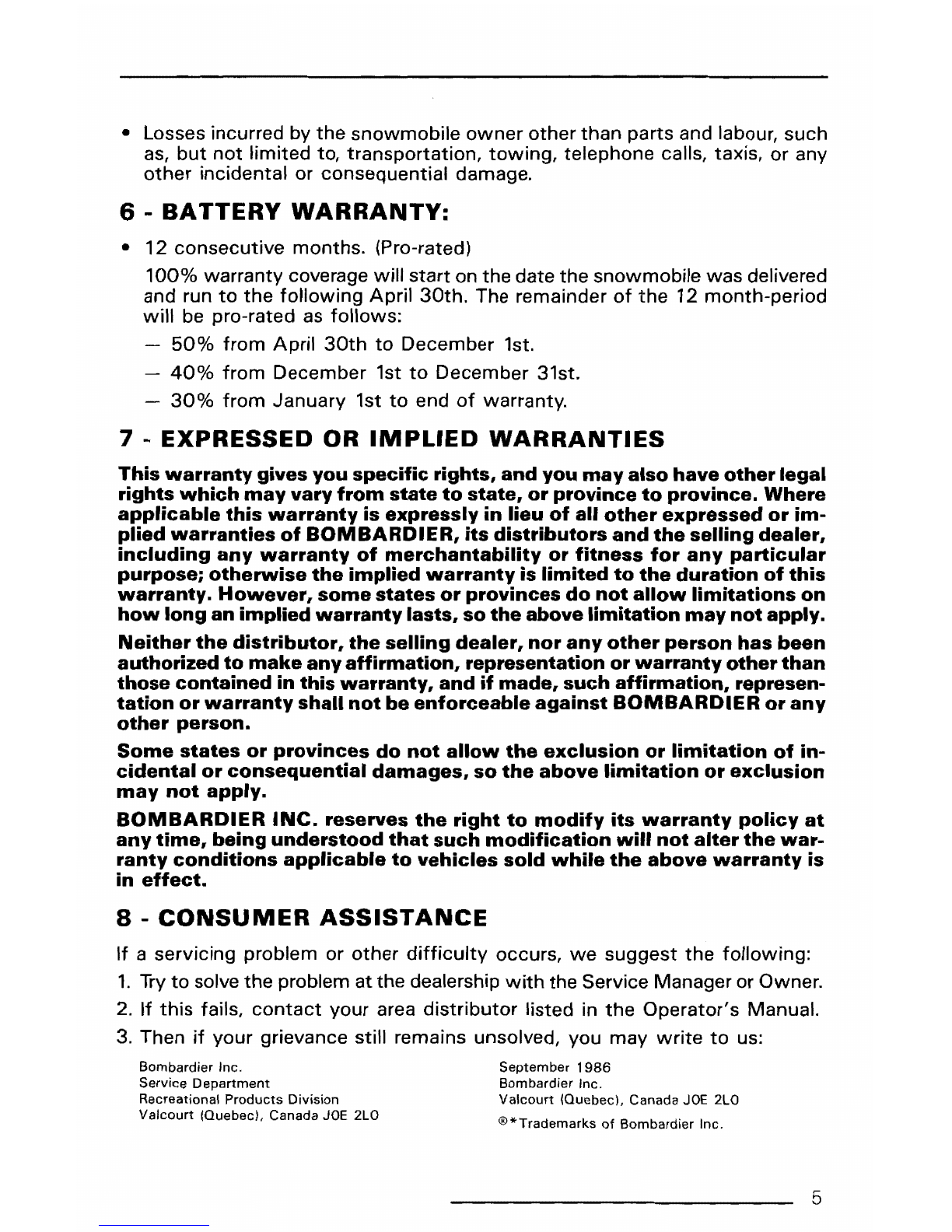

including any warranty of merchantability or fitness for any particular
purpose; otherwise the implied warranty is limited to the duration of this
warranty. However, some states or provinces do not allow limitations on
how long an implied warranty lasts, so the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been
authorized to make any affirmation, representation or warranty other than
those contained in this warranty, and if made, such affirmation, represen-
tation or warranty shall not be enforceable against BOMBARDIER or any
other person.
Some states or provinces do not allow the exclusion or limitation of in-
cidental or consequential damages, so the above limitation or exclusion
may not apply.
BOMBARDIER INC. reserves the right to modify its warranty policy at
any time, being understood that such modification will not alter the war-
ranty conditions applicable to vehicles sold while the above warranty is
in effect.
8- CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2.
If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us:
Bombardier Inc.
Service Department
Recreational Products Division
Valcourt (Quebec}, Canada JOE 2LO
September 1986
Bombardier Inc.
Valcourt (Quebec), Canada JOE 2LO
®*Trademarks of Bombardier Inc.
5

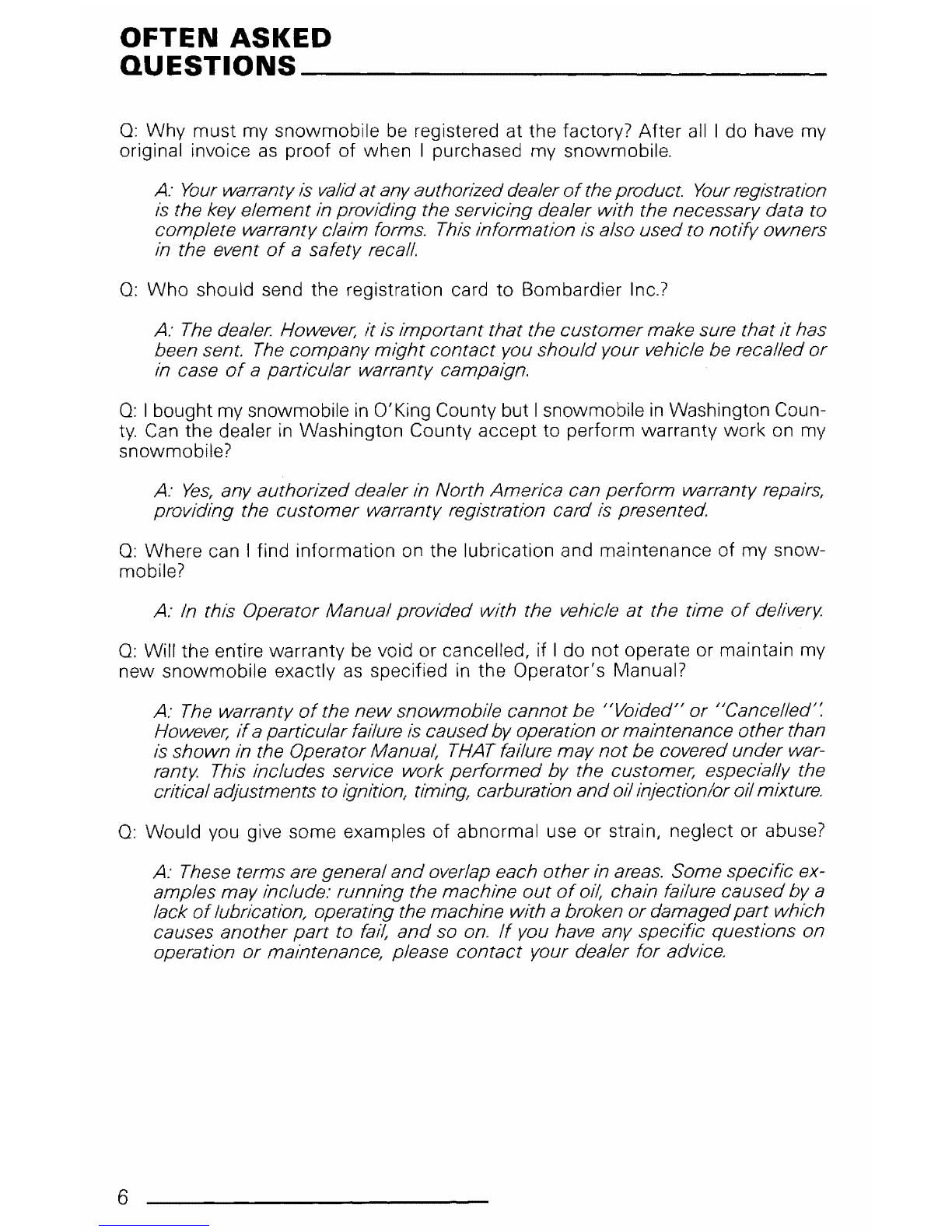

OFTEN ASKED
QUESTIONS ________________________ __
0: Why must my snowmobile be registered at the factory? After all I do have my
original invoice
as proof of when I purchased my snowmobile.
A: Your warranty is valid at any authorizeddealer of the product. Your registration
is the key element in providing the servicing dealer with the necessary data to
complete warranty claim forms. This information is also
used to notify owners
in the event
of a safety recall.
0: Who should send the registration card to Bombardier Inc.?
A: The dealer However, it is important that the customer make sure that it has
been sent.
The company might contact you should your vehicle be recalled or
in case of a particular warranty campaign.
0: I bought my snowmobile in O'King County but Isnowmobile in Washington Coun-
ty. Can the dealer in Washington County accept to perform warranty work on my
snowmobile?
A: Yes, any authorized dealer in North America can perform warranty repairs,
providing the
customer warranty registration card is presented.
0: Where can I find information on the lubrication and maintenance of my snow-
mobile?
A: In this Operator Manual provided with the vehicle at the time of delivery.
0: Will the entire warranty be void or cancelled, if I do not operate or maintain my
new snowmobile exactly
as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be IF Voided" or "Cancelled'~
However, if a particular failure is causedby operation or maintenance otherthan
is shown in the Operator Manua~ THAT failure may not be covered under war-
ranty. This includes service work
performed by the customer, especially the
criticaladjustments to ignition timing, carburation
and oilinjection/oroilmixture.
0: Would you give some examples of abnormal use or strain, or abuse?
6
A: These terms are general and overlap each other in areas. Some specific ex-
amples may include: running the machine
out of oi~ chain failure caused by a
lack
of lubrication, the machine with a broken or damaged part which
causes another
part to and so on. If you have any specific on
"'~'""~'"'"~'T'.n., or maintenance, please contact your dealer for advice.

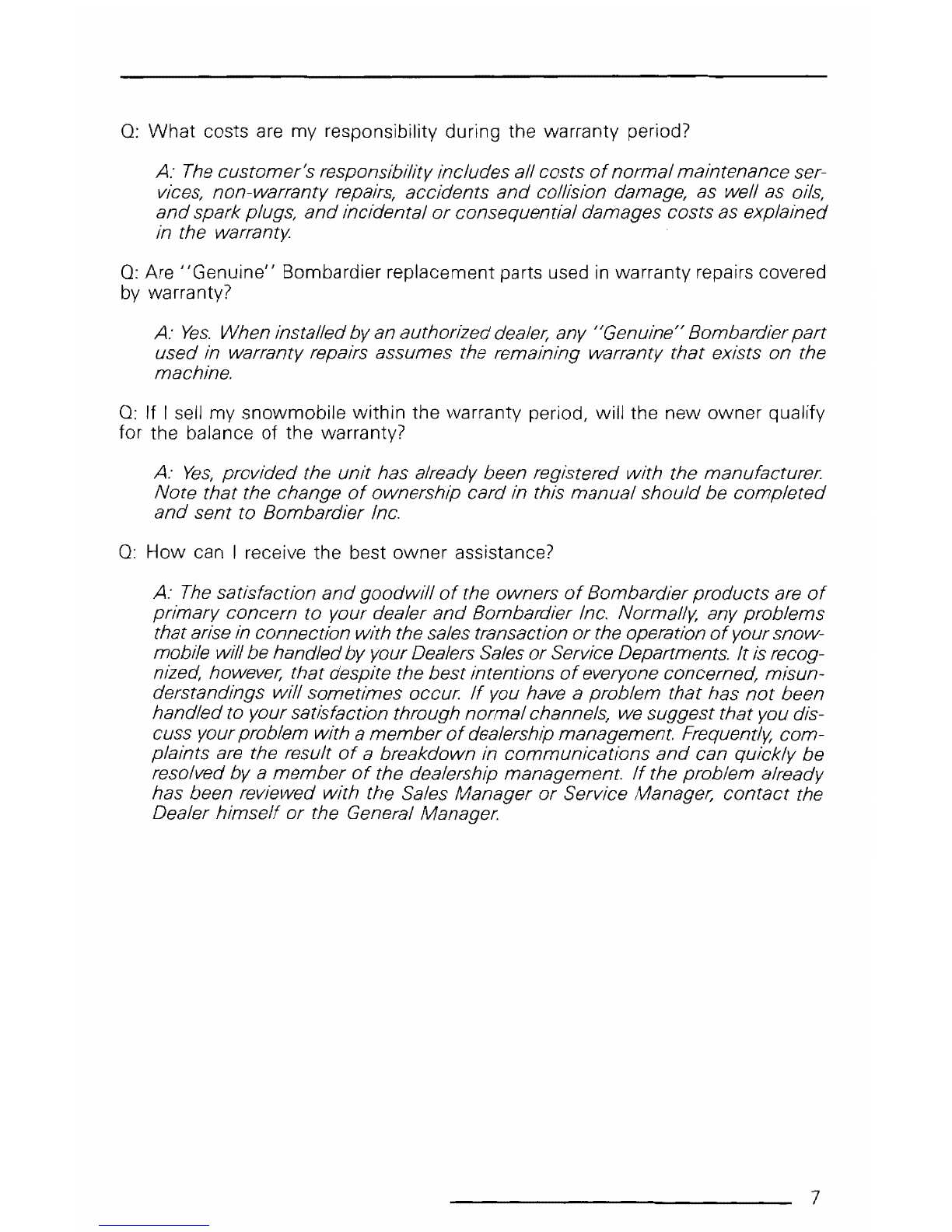

0: What costs are my responsibility during the warranty period?
A: The customer's responsibility includes allcosts of normalmaintenance ser-
vices, non-warranty repairs, accidents
and collision damage, as well as oils,
and spark plugs, and incidental or damages costs as explained
in the warranty
0: Are J JGenuinel' Bombardier
by warranty? used
in warranty repairs covered
A: Yes. When installedby an authorizeddealer, any "Genuine" Bombardier part
used in warranty assumes the remaining warranty that exists on the
machine.
0: If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance of the warranty?
A: Yes, provided the unit has already been re>rYJC'TClrC~rt with the manufacturer.
Note that the change
of ownership card in manual should be completed
and sent to Bombardier Inc.
0: How can I receive the best owner assistance?
A: The satisfaction and goodwill of the owners of Bombardier products are of
primary concern to your dealer and Bombardier Inc. Normallv, any problems
thatarise in connection with the sales transaction
or the operation of yoursnow-
mobile willbe handledby your Dealers Sales
or Service Departments. It is recog-
nized, however, that despite the bestintentions
of everyone concerned, misun-
derstandings
will sometimes occur. If you have a problem that has not been
handledto your satisfaction through
normal channels, we suggest that you dis-
cuss yourproblem with a member
of dealership management. Frequently, com-
plaints
are the result of a breakdown in communications and can quickly be
resolved by a
member of the dealership management If the problem already
has been reviewed with the Sales Manager
or Service Manager, contact the
Dealer
himself or the General Manager.
7

LISTING OF AREA
DISTRIBUTORS ______________________ __
CANADIAN DISTRIBUTORS
Quebec Branch
1350, Nobel
Bouchervi/le (Quebec)
J4B 1A1
[phone]
Province of Quebec
Ontario Branch
230, Bayview Drive
Barrie (Ontario) L4N
4Y8
[phone]
Province of Ontario
Technical office
P.O. Box 7 060
Riverview (New Brunswick) E1B 1VO
[phone]
Atlantic Region
BROOKS EQUIPMENT LIMITED
1616, King Edward Street
P.O. Box 985
Winnipeg (Manitoba} R3C 2V8
[phone]
British Columbia, Manitoba, Saskatchewan,
Alberta, Yukon
CHARLES R. BELL LIMITED
Riverside Drive
P.O. Box 1050
Corner Brook (Newfoundland) A2H
6J3
[phone]
Newfoudland, labrador
HUDSON'S BAY CO. LTD.
165, Hymus Blvd
Pointe-Claire (Quebec) H9R
1G2
[phone]
North-West Territories, Franklin District &
Keewatin
8
AMERICAN DISTRIBUTORS
BOMBARDIER CORPORATION
All States (excluding Alaska)
SERVICE OFFICES
East Main Street Road
Malone,
New York 12953
[phone]
Technical office
[phone]
Eastern Region
- 4505, West Superior Street
P.O. Box 16106
Duluth, Minnesota 55816-0106
[phone]
East-Central, Central Region
- P.O. Box 1569
Idaho Falls, Idaho
83403
[phone]
Western Region
NATIONAL SALES OFFICE
0' Hare Lake Plaza
2350, Devon Avenue
Suite 150
Des Plaines, Illinois 60018
(312)
298-9540
MILLER EQUIPMENT AND RECREATIONAL
CENTER
1049, Whitney Road
Anchorage, Alaska 99501
[phone]
Alaska

HOW TO IDENTIFY
YOUR SNOWMOBILE _________ _
The main components of your snowmobile (engine, track and frame) are identified
by different serial numbers. It may sometimes become necessary to locate these
numbers for warranty purposes or to trace your snowmobile
in the event of theft.
Engine serial
number
Vehicle serial number
A017005012
Vehicle serial number meaning:
0000 00000
--r- I
Model no Vehicle no
A000000013
A009005002
Track
serial number
1988Alpine has 3345 as model number.
0 NOTE: We strongly recommend that you take note
of all the serial numbers
on your vehicle and supply them to your insurance company. It will surely help
in the event your snowmobile is stolen.
9

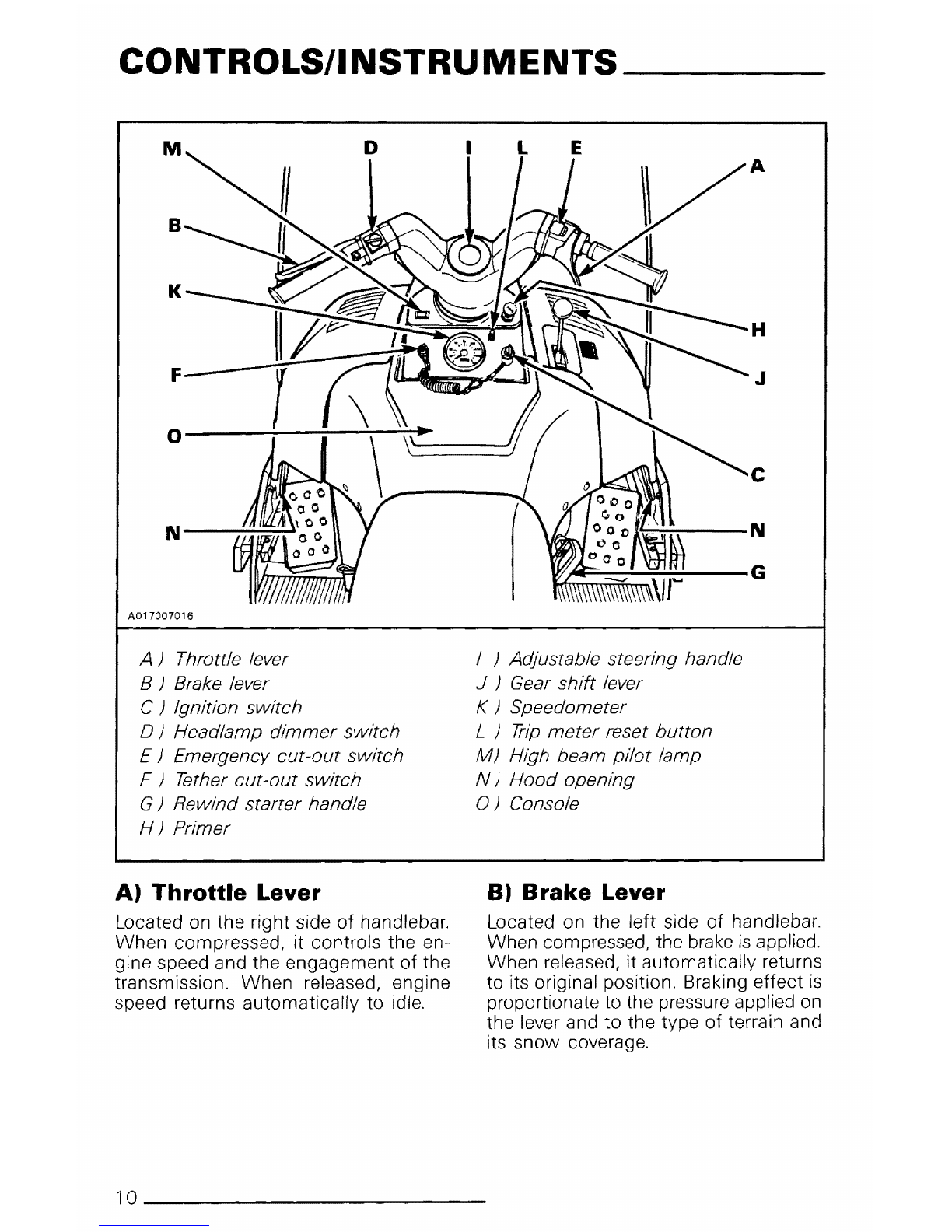

CONTROLS/INSTRUMENTS ___ _
A017007016
A ) Throttle lever
8 ) Brake lever
C ) Ignition switch
D ) Head/amp dimmer switch
E )
cut -out switch
F ) Tether
cut-out switch
G) Rewind starter handle
H) Primer
A) Throttle Lever
Located on the right side of handlebar.
When compressed, it controls the en-
gine speed and the engagement
of the
transmission. When released, engine
speed returns automatically
to idle.
) Adjustable steering handle
J ) Gear shift lever
KJ
L J Trip meter reset button
MJ High beam pilot lamp
N) Hood opening
0) Console
8) Brake Lever
Located on the left side of handlebar.
When compressed, the brake
is applied.
When released/ it automatically returns
to its original position. Braking effect
is
proportionate to the pressure applied on
the lever and to the type of terrain and
its snow coverage.
10----------------------------

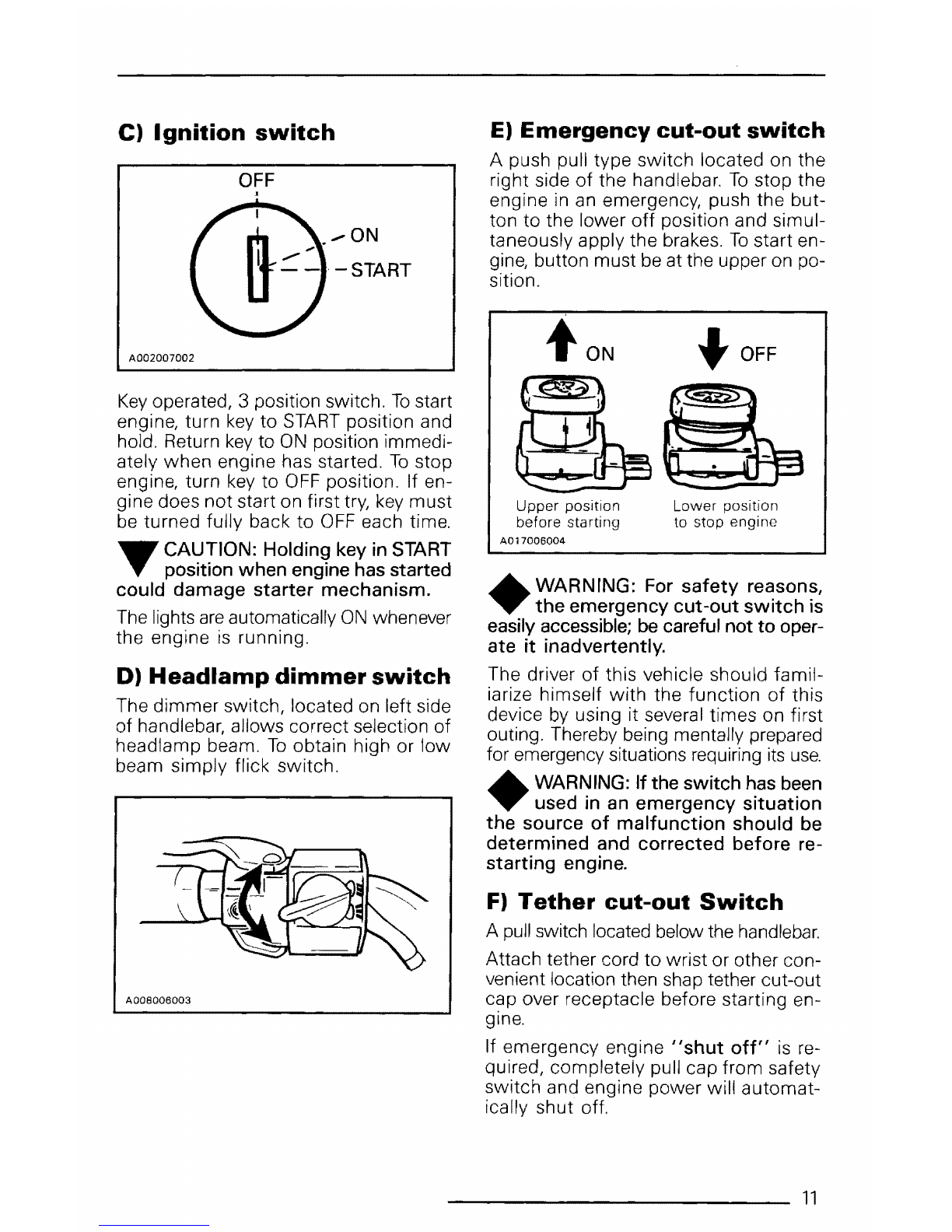

C) Ignition switch
OFF
J
A002007002
Key operated, 3 position switch. To start
engine, turn
key to START position and
hold. Return
key to ON position immedi-
ately when engine has started.
To
engine, turn key to OFF position. If en-
gine does
not start on first try, key must
be turned fully back to OFF each time.
,.,. CAUTION: Holding key in START
T position when engine has started
could damage starter mechanism.
The lights are automatically ON whenever
the engine
is running.
D) Headlamp dimmer switch
The dimmer switch, located on left side
of handlebar, allows correct selection of
headlamp beam.
To obtain high or low
beam simply flick switch.
A008006003
E) Emergency cut-out switch
A push pull type switch located on the
right side
of the handlebar. To stop the
engine
in an emergency, push the but-
ton to the lower
off position and simul-
taneously apply the brakes.
To start en-
gine, button must be at the upper on po-
sition.
A017006004
+OFF
Lower position
to stop engine
...A.. WARNING: For safety reasons,
T the emergency cut-out switch is
easily accessible; be careful not to oper-
ate it inadvertently.
The driver of this vehicle should famil-
iarize himself with the function of this
device
by using it several times on first
outing. Thereby being mentally prepared
for emergency situations requiring
its use.
...A.. WARNING: If the switch has been
T used in an emergency situation
the source of malfunction should be
determined and corrected before re-
starting engine.
F) Tether cut-out Switch
A pull switch located below the handlebar.
Attach tether cord to wrist or other con-
venient location then shap tether cut-out
cap over before starting en-
gine.
If emergency engine
"shut off" is re-
quired, completely pull cap from safety
switch and engine power will automat-
ically shut off.
11

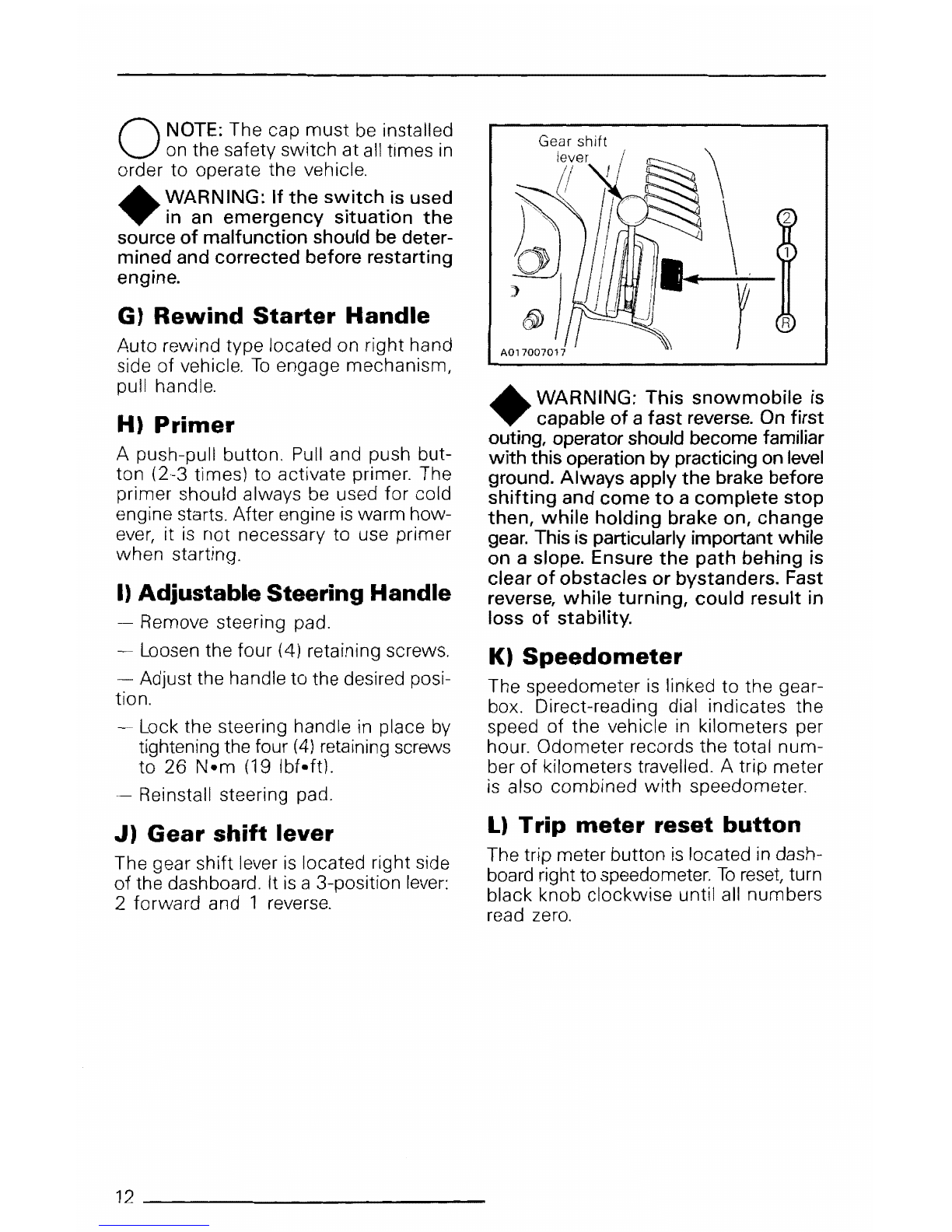

0 NOTE: The cap must
be installed
on the safety switch at all times
in
order to operate the vehicle.
+WARNING:
If the switch is used
in an
emergency situation the
source of malfunction should be deter-
mined and corrected before restarting
engine.
G) Rewind Starter Handle
Auto rewind type located on right hand
side of vehicle.
To engage mechanism,
pull handle.
H) Primer
A push-pull button. Pull and push but-
ton (2-3 times) to activate primer. The
primer should always
be used for cold
engine starts. After engine
is warm how-
ever, it is not necessary to use primer
when starting.
I) Adjustable Steering Handle
-Remove steering pad.
Loosen the four (4) retaining screws.
Adjust the handle
to the desired posi-
tion.
-Lock the steering handle
in place by
tightening the four (4) retaining screws
to 26 N •m (19 lbf•ft).
-Reinstall steering pad.
J) Gear shift lever
The gear shift lever is located right side
of the dashboard. It is a 3-position lever:
2 forward and 1 reverse.
12 -----------------------------
Gear shift
+WARNING: This
snowmobile is
capable
of a fast reverse. On first
outing, operator should become familiar
with this operation by practicing on level
ground.
Always apply the brake before
shifting and come to a complete stop
then, while holding brake on, change
gear. This is particularly important while
on a slope. Ensure
the path behing is
clear
of obstacles or bystanders. Fast
reverse,
while turning, could result in
loss
of stability.
K) Speedometer
The speedometer is linked to the gear-
box. Direct-reading dial indicates the
speed of the vehicle
in kilometers per
hour. Odometer records the total num-
ber
of kilometers travelled. A trip meter
is also combined with speedometer.
L) Trip meter reset button
The trip meter button is located in dash-
board right to speedometer.
To reset, turn
black knob clockwise until all numbers
read
zero.

Trip meter
Odometer
A01 7007018
M) High beam pilot lamp
Lights up when headlamp is on high
beam.
N) Hood opening
Pull down the latches to unlock the hood
from the anchors.
0
NOTE: Always lift hood gently up
until stopped by restraining device.
+WARNING: It
is dangerous to run
an engine with the hood opened,
unfastened or removed.
0) Console
To gain access to the engine, carburet-
or, fuel
pump and spark plugs, tip seat
over
from right raise rear part of con-
sole then pull rearward.
Tip seat
over
A017007020
Raise and pull
rearward
A017007019
When installing console to vehicle, ensure
to insert console tabs into dashboard
slots.
Slots
Fuel gauge/tank cap
Open hood to access fuel gauge/tank cap.
The fuel tank cap features a built-in nee-
dle fuel level gauge
which indicates the
amount of fuel remaining in tank.
+WARNING: Remove fuel tank cap
slowly. Fuel may be under pres-
sure and spray may cause fire and in-
juries.
---------------------------- 13

Fuel gauge/tank cap
A017002012

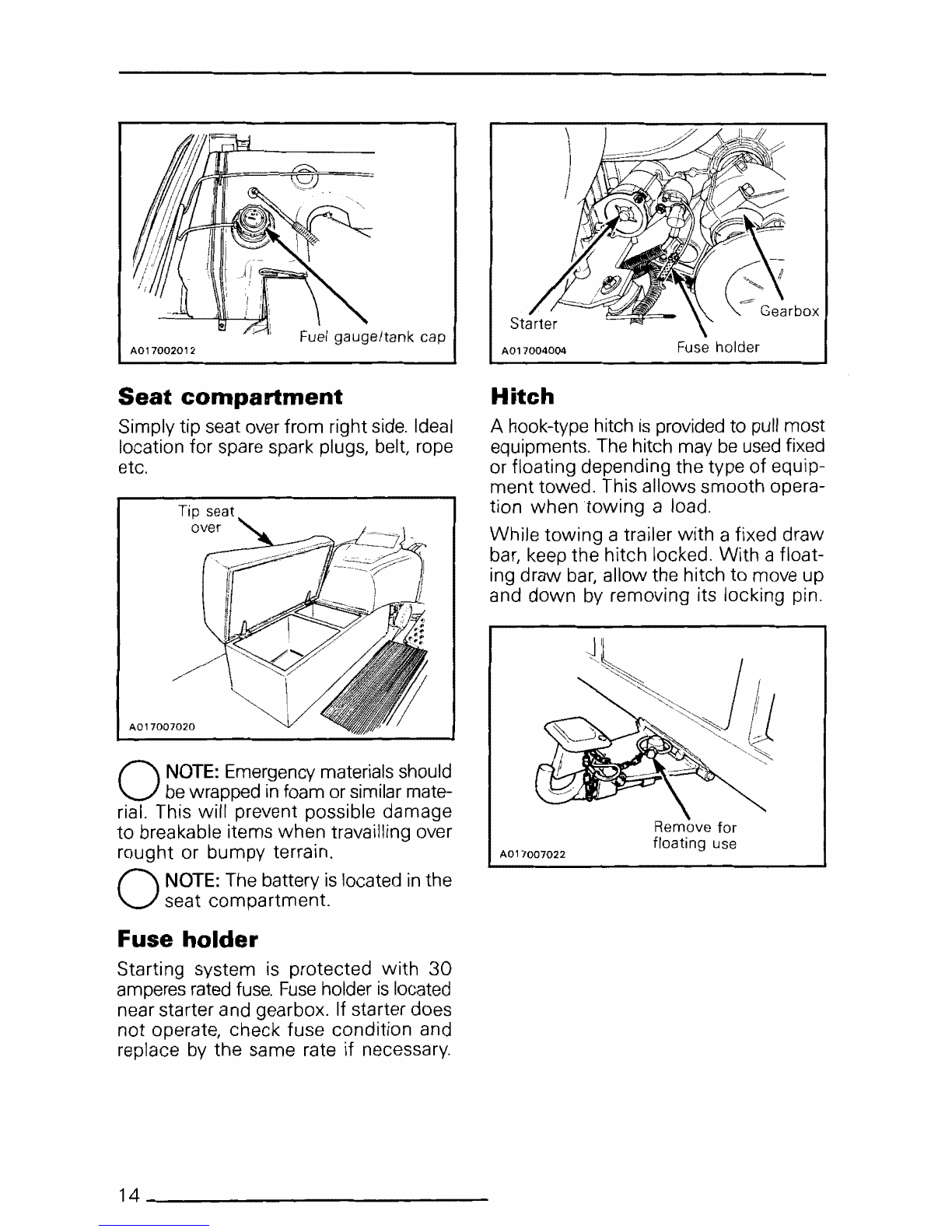

Seat compartment
Simply tip seat over from right side. Ideal
location for spare spark plugs, belt, rope
etc.
Tip seat
A017007020
0
NOTE: Emergency materials should
be wrapped in foam or similar mate-
rial. This will prevent possible damage
to breakable items when travailling over
rought or bumpy terrain.
0
NOTE: The battery is located in the
seat compartment.
Fuse holder
Starting system is protected with 30
amperes rated fuse. Fuse holder is located
near starter and gearbox. If starter does
not operate, check fuse condition and
replace
by the same rate if necessary.
14----------------------------
A017004004
Fuse holder
Hitch
A hook-type hitch is provided to pull most
equipments. The hitch may
be used fixed
or floating depending the type of equip-
ment towed. This allows smooth opera-
tion when towing a load.
While towing a trailer with a fixed draw
bar, keep the hitch locked. With a float-
ing draw
bar, allow the hitch to move up
and down
by removing its locking pin.
A017007022
Remove for
floating use

A017007023
The locking pin can be installed into hair
pin when the hitch
is used floating.
Locking pin ring
closed over hair pin
0
NOTE: To maintain the hitch locked/
install the locking
pin into hitch post
and place its flat side against the hitch
plate.
A hair pin
is provited to lock the hook
of the hitch.
A017007022
Hair pin
A WARNING: When towing any sled
T or trailer, always ensure to lock
the hook type attachment with the hair
pin.
Trailers or sleds towed behing a snow-
mobile should always
be loaded with the
lowest possible center
of gravity. Use a
sled with a rigid draw
bar. When pulling
passengers
in a tower vehicle, drive at
moderate speed and avoid rough terrain
for their safety. Besides,
have all passen-
gers
out of the towed vehicle and
walk across all roads.
Accessories
Some optional accessories might be add-
ed to your vehicle such as speedometer,
tachometer, hitch, electric starter, etc, if
not standard on your vehicle. Ask your
authorized dealer for more information.
--------------------------15

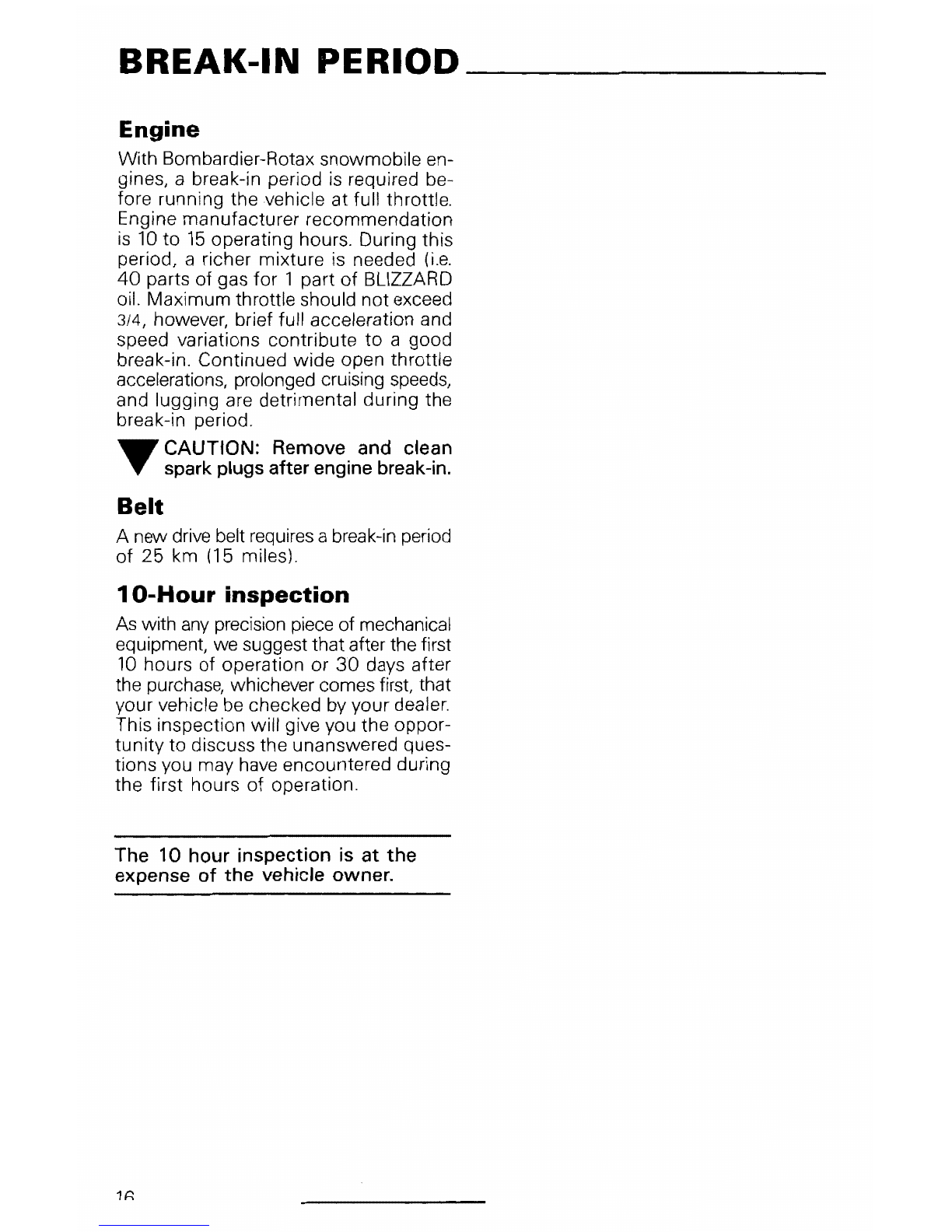

BREAK-IN PERIOD ______ _
Engine
With Bombardier-Rotax snowmobile en-
gines, a break-in period
is required be-
fore running the vehicle at full throttle.
Engine manufacturer recommendation
is 10 to 15 operating hours. During this
period, a richer mixture
is needed (i.e.
40 parts of gas for 1 part of BLIZZARD
oil. Maximum throttle should not exceed
3/4, however, brief full acceleration and
speed variations contribute to a good
break-in. Continued
wide open throttle
accelerations, prolonged cruising
speeds,
and lugging are detrimental during the
break-in period.
,.,. CAUTION: Remove and clean
T spark plugs after engine break-in.
Belt
A new drive belt requires a break-in period
of 25 km (15 miles).
1 0-Hour inspection
As with any precision piece of mechanical
equipment, we suggest that after the first
10 hours of operation or 30 days after
the purchase, whichever comes first, that
your vehicle be checked
by your dealer.
This inspection will give you the oppor-
tunity
to discuss the unanswered ques-
tions you may have encountered during
the first hours of operation.
The 10 hour inspection
is at the
expense of the vehicle owner.
1R

Break-in fuel/oil mixingcharts
,., CAUTION: The following chart
T only applies to break-in period to
give a richer mixture of 40 to 1 ratio.
51 UNITS
500 ml oil to 20 liters= 40:1
IMPERIAL UNITS
16 oz oil to 4.6 imp. gals= 40:1
or
500 ml oil to 4.8 imp. gals= 40:1
U.S. UNITS
16 oz oil to 5.1 U.S. gals= 40:1
or
500 ml oil to 5.3 U.S. gals= 40:1
GAS
(liter)
8.8
7
6
GAS 5
(Imp. gal.)4
3
2
GAS
(U.S. gal.) 6
A000000018
100
8
METRIC (SI)
250 300 400 500
OIL (mil
IMPERIAL
16 24
32 36.2
OIL (Imp. oz)
UNITED STATE
8 16 24
33.8
OIL (U.S. ozl
-----------------------------17

10-HOUR INSPECTION CHECKLIST
./
Engine timing
Fan belt tension
Spark plugs condition (Remove and clean)
Carburetor
adjustment
Engine head nuts
Drive pulley screw (torque)
Engine
mount nuts
Muffler attachment
Gearbox oil level
Drive chain tension
Battery electrolyte level
Brake operation and lining
condition
Ski alignment (runner condition)
Handlebar bolts, retorque to 26 N•m (19 lbf•ft)
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubrication (steering, suspension, drive axles, etc.)
Electrical
wiring, tighten all loose bolts, nuts and linkage
Operation
of lighting system (HI/ LO beam, brake light, etc.),
test operation of emergency cut-out switch and tether switch
We recommend that you have your dealer sign this inspection list.
Date of 10 hour inspection Dealer signature
18--------------------------
