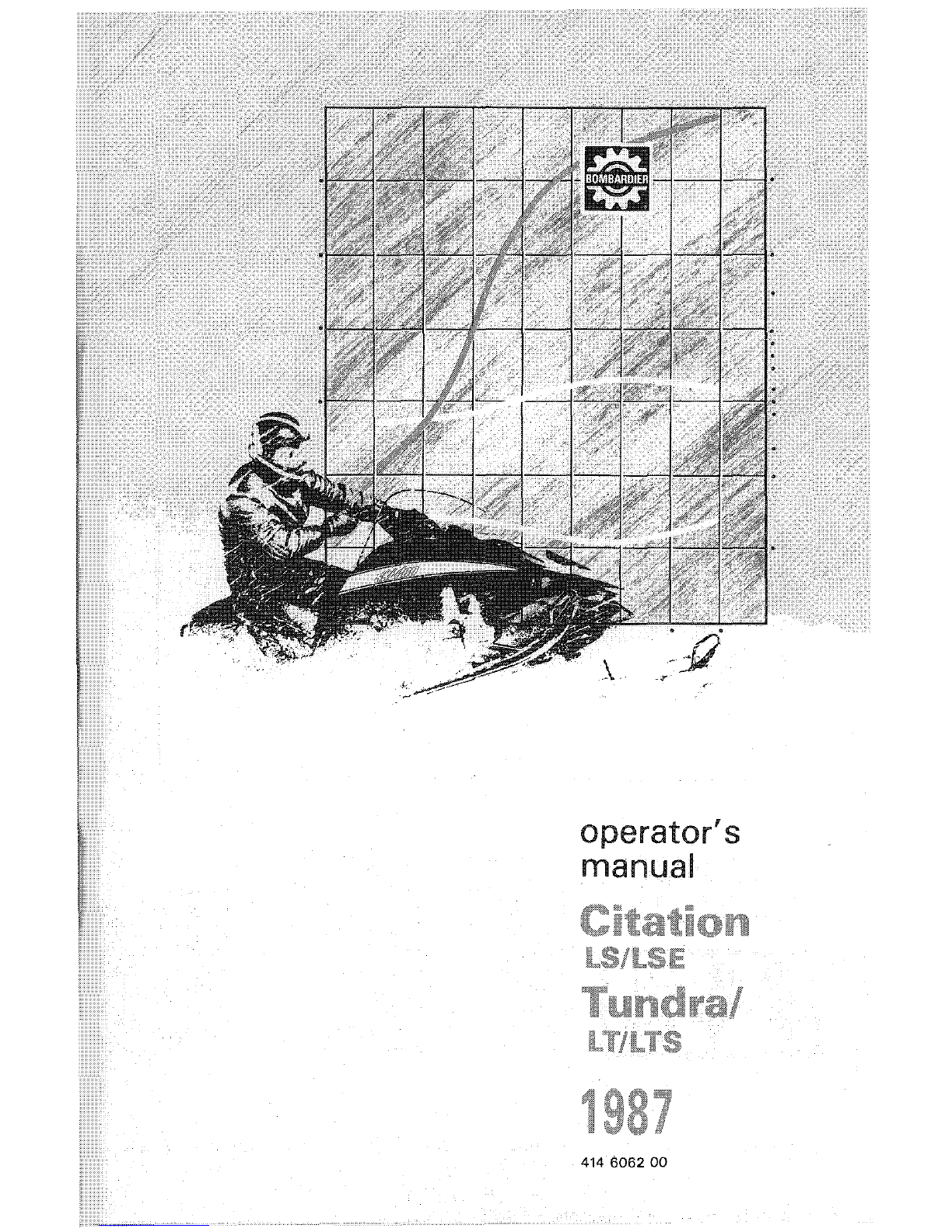

BOMBARDIER Citation LS User manual

operator's
manual
1
414 6062 00

model
V.I.N.
purchase date
warranty expiry date
To be completed by dealer at time of sale
DEALER IMPRINT AREA
AFTER SALES SERVICE The following
are trademarks of Bombardier Inc.
BOMBARDIER INC. ALPINE®
FORMULA*
SAFARI*
VALCOURT, QUEBEC BLIZZARD® FUTURA® SKANDIC®
CANADA, JOE 2LO BOMBARDIER®
GRAND PRIX SPECIAL® SKI-DOO®
CARRY-BOOSE® MIRAGE® SONIC®
H ~ CITATION® MOTO-SKI® SPIRIT®
ELAN® NORDIK® STRATOS*
Quality
ELITE® NUVIK® T'NT®
ESCAPADE*
OLYMPIQUE®
TUNDRA*
Service
EVEREST® ROTAX®
Litho'd in Canada ®*Trademarks
of Bombardier Inc. All rights reserved © Bombardier Inc.

FOREWORD __________________ _
The operator manual and the Snowmo-
bile Safety Handbook
have been prepa-
red to acquaint the owner I operator of
a new snowmobile
with the various ve-
hicle controls, maintenance and safe
operating instructions.
Each is indispen-
sable for the proper use
of the product,
and should
be kept with the vehicle at
all times.
Should you have any questions pertain-
ing to the warranty and its application,
please consult the " Often Asked Ques-
tion" section of this manual, or your au-
thorized dealer.
This manual
uses the following symbols.
• WARNING: Identifies
an instruc-
tion which, if not followed, could
cause personal injury or death.
~CAUTION: Denotes an instruction
T which, if not followed, could se-
verely damage vehicle components.
0 NOTE: Indicates supplementary in-
formation needed to fully comple-
te
an instruction.
Although the mere reading of such in-
formation does not eliminate the hazard,
your understanding of the information
will promote its correct use.
• WARNING: The engines and the
corresponding components iden-
tified
in this manual should not be uti-
lized
on product(s) other than those
mentioned
on the cover page of this
manual.
The information, illustrations and com-
ponents/system descriptions contained
in this manual are correct at time of pu-
blication. Bombardier
Inc. however, main-
tains a policy of continuous improvement
of
its products without imposing upon it-
self
any obligation to install them on pro-
ducts previously manufactured.
Bombardier
Inc. reserves the right at any
time to discontinue or change specifica-
tions, designs, features, models or equip-
ment
without incurring obligation.
The illustrations show the typical cons-
truction of the different assemblies and,
in all cases, may not reproduce the full
detail or exact shape of the parts shown,
however, they represent parts which have
the same or a similar function.
Most specifications
are given in both me-
tric and customary units. Where precise
accuracy
is not required, some conver-
sions are rounded to
even numbers for
easier
use.
A shop manual can be obtained for com-
plete service, maintenance and repair in-
formation.
~CAUTION: Several components
T of this vehicle are built with parts
dimensioned
in the metric system. Most
fasteners are metric and must not be
repalced by customary fasteners or vice
versa. Mismatched or incorrect fasten-
ers could cause damage to the vehicle
or possible personal injury.

SAFETY
MEASURES __________________________ _
Observe the following
precautions:
• Throttle mechanism should be check-
ed for free movement before starting
engine.
• Engine should
be running only when
belt guard and/or pulley guard
is se-
cured
in place.
• Never run the engine
without drive
belt installed. Running
an unloaded
engine can prove to be dangerous.
• Never run the engine when the track
is raised off the ground.
• It
can be dangerous to run engine with
the hood removed.
• Gasoline
is flammable and explosive
under certain conditions. Always ma-
nipulate
in a well ventilated area. Do
not smoke or allow open flames or
sparks in the vicinity. If gasoline fumes
are noticed while driving, the cause
should
be determined and corrected
without delay.
• Maintain your vehicle
in top mechan-
ical condition at all times.
• Your snowmobile
is not designed to
be driven or operated on black top,
bare earth, or other abrasive surfaces.
On such surfaces abnormal and ex-
cessive wear
of critical parts is inevi-
table.
• Your snowmobile
is not designed to
be operated on public streets, road
or highways.
In most States and Pro-
vinces, it
is considered an illegal oper-
ation.
• Installation of other than standard
equipment, including ski-spreaders,
bumpers, pack racks, etc., could se-
verely affect the stability and safety
of your vehicle. Avoid adding on ac-
cessories that alter the basic vehicle
configuration.
• The snowmobile engine can
be stop-
ped by activating the emergency cut-
out switch, tether switch or by tur-
ning
off the key.
• Whenever the vehicle is parked out-
doors, overnight or for a long period,
it
is suggested to protect it against
the inclemency of the weather
with
a snowmobile cover.
•
Do not lubricate throttle and/or brake
cables and housings.
• Only perform procedures
as detailed
in this manual. Unless otherwise spe-
cified, engine should
be turned OFF
for all lubrication and maintenance pro-
cedures.
•
Clean and check operation of the head-
light, taillight and brake light.
• These vehicles are designed for the
driver only. No provisions have been
made for a passenger.
• Should removal of a nylon lock nut
be
required when undergoing repairs/dis-
assembly, always replace by new ones.
Tighten as specified in the applicable
Shop Manual.
PLEASE READ AND UNDERSTAND ALL
WARNINGS AND CAUTIONS
IN THIS
MANUAL AND
ON THE VEHICLE.
THIS MANUAL SHOULD REMAIN WITH THE VEHICLE
AT
THE TIME OF RESALE.
2----------------------------

INDEX ________________________ _
THE 1987 "LIMITED WARRANTY" ..

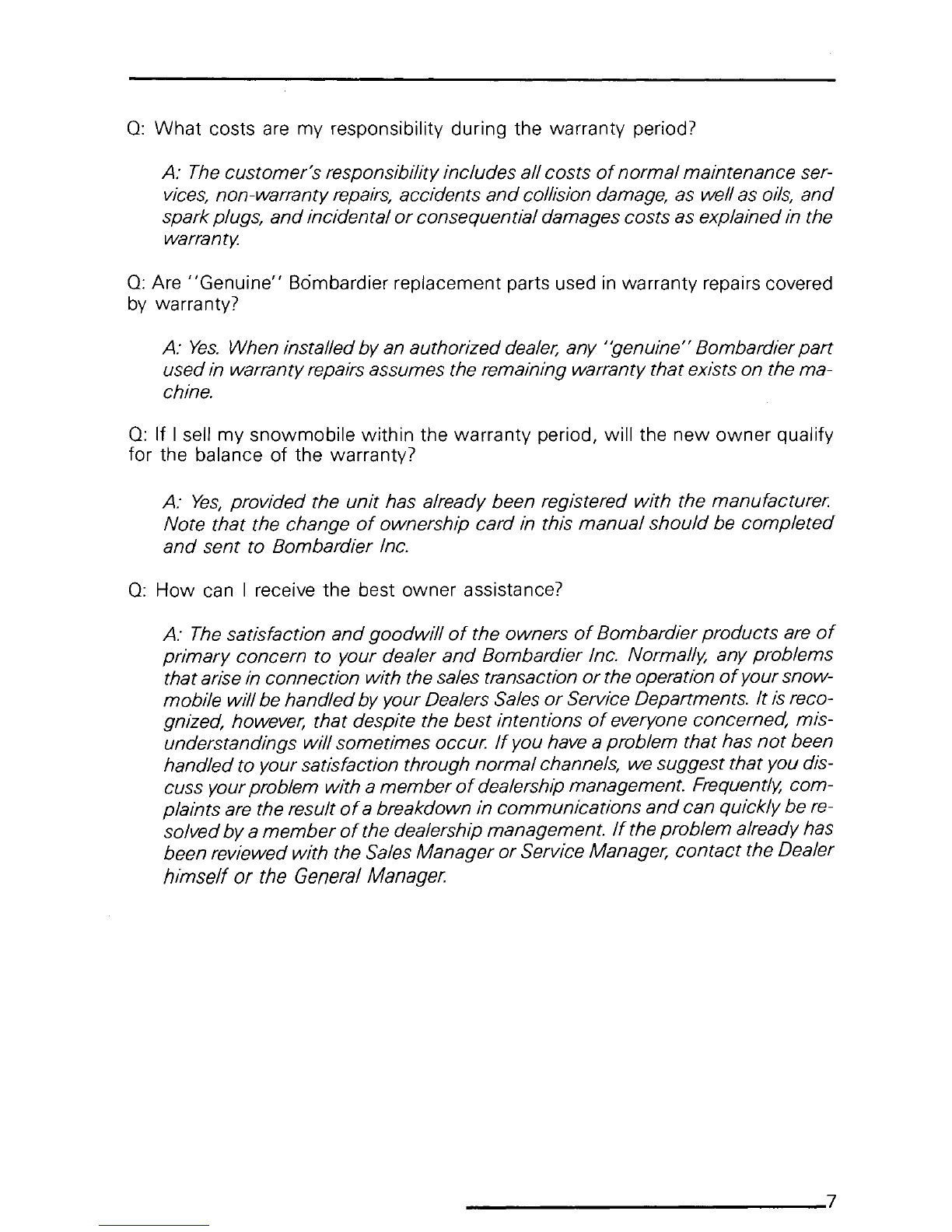

OFTEN ASKED QUESTIONS ....................... .

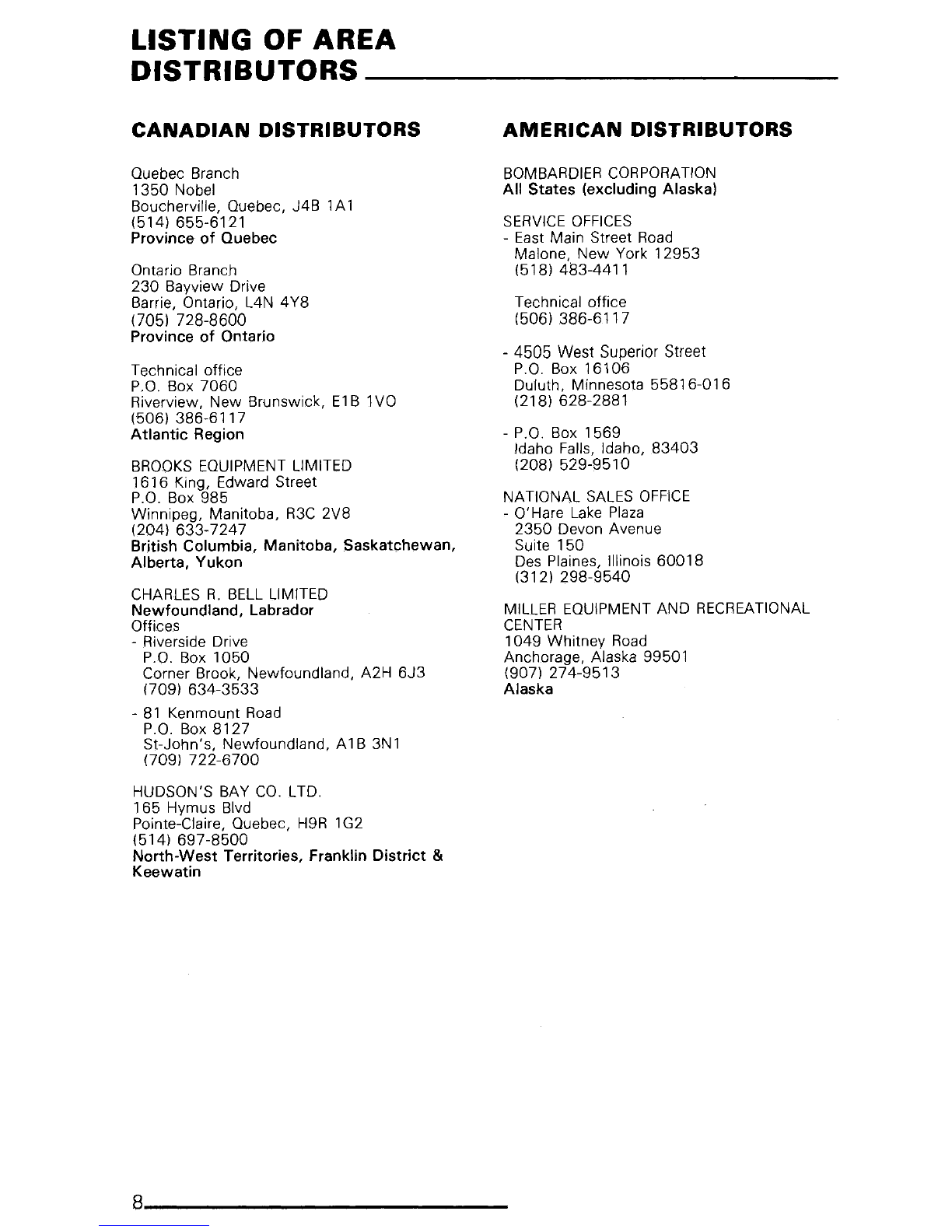

LISTING OF AREA DISTRIBUTORS . ...................... .

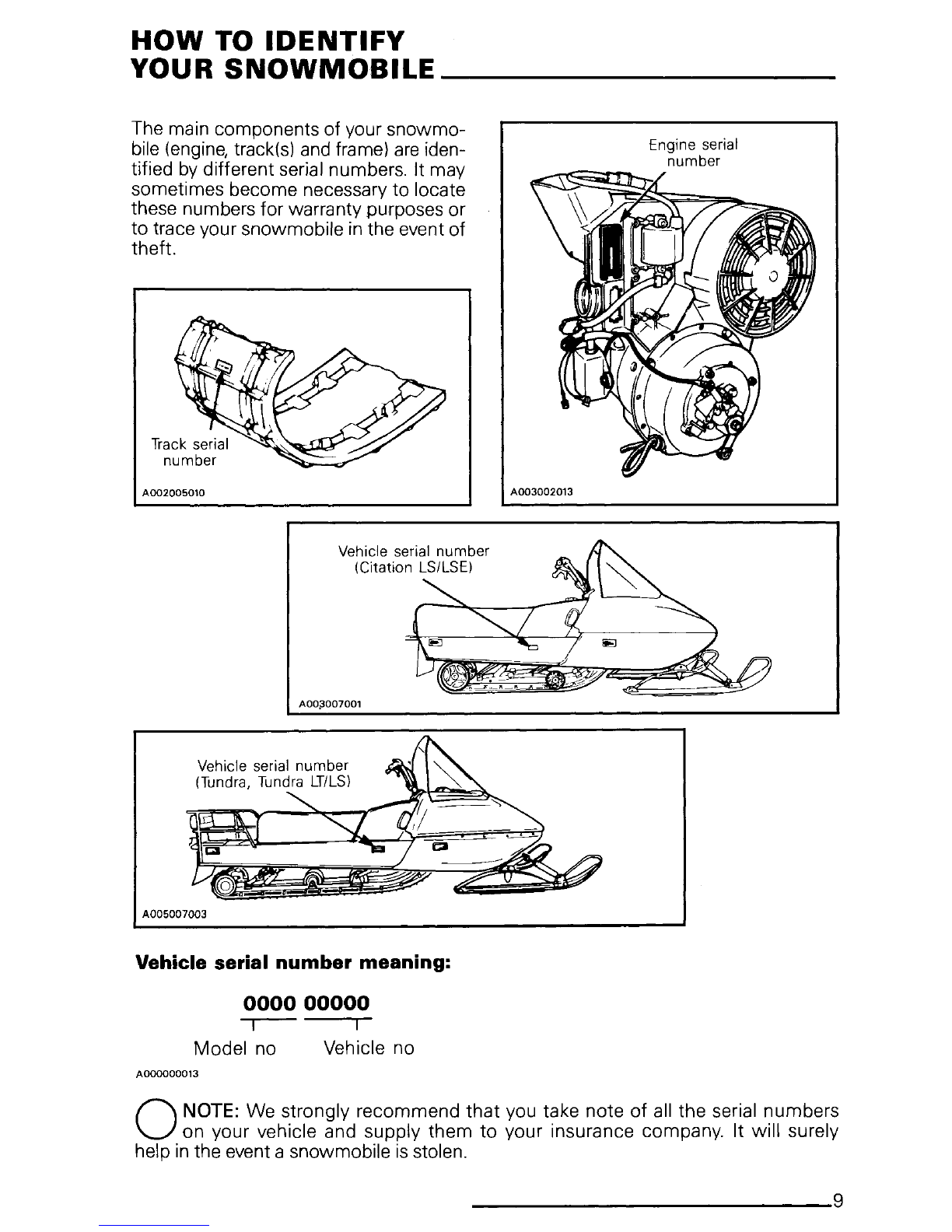

HOW TO IDENTIFY YOUR SNOWMOBILE
CONTROLS/INSTRUMENTS
Throttle lever, brake lever, ignition/light switch, headlamp dimmer switch,
emergency cut-out switch, tether cut-out switch, rewind starter handle, pri-
mer, adjustable steering handle, fuel gauge/tank cap, hood opening, tool box,
4
6
8
9
fuse holder, hitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
BREAK-IN PERIOD
Engine and belt break-in, 10 hour-inspection, check list ............ .
13
FUEL & OIL

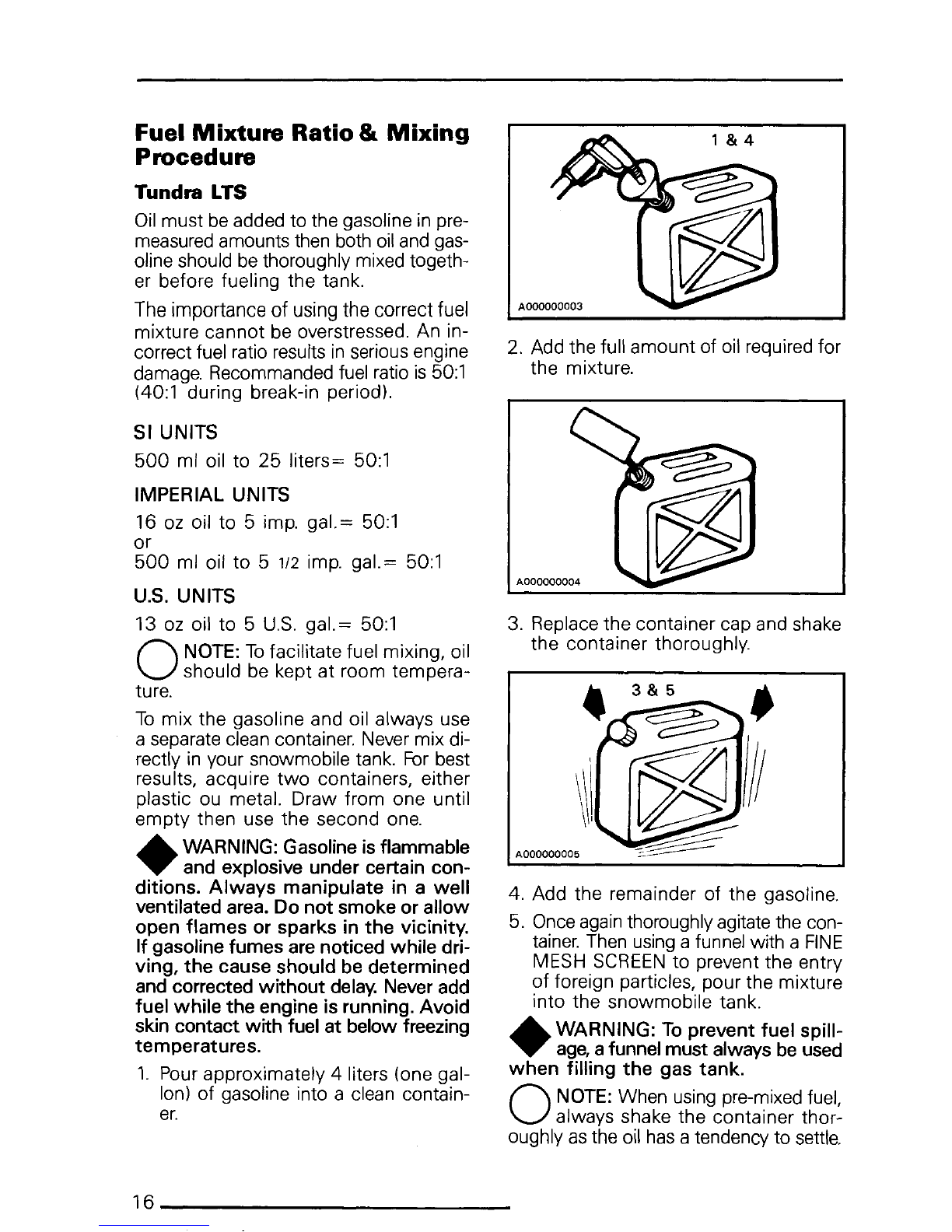

Recommended gasoline, recommended oil, fuel mixture and mixing proce-
dure, fuel/oil mixing chart, oil injection system . . . . . . . . . . . . . . . . . .
15
PRE-START CHECK
Check points ........................................ .
STARTING PROCEDURE
Manual starting, electric starting, before riding, emergency starting ....
LUBRICATION
Frequency, steering mechanism, drive axle, slide suspension, chaincase oil
level, oil injection system, drive pulley
......................... .
MAINTENANCE
Chart, belt guard removal, drive belt removal and installation, drive belt con-
dition, new drive belt, brake condition, brake adjustment, brake light switch
adjustment, spark plug, battery, suspension condition, stopper strap condi-
tion, suspension adjustment, track condition, track tension and alignment,
drive pulley, steering mechanism, steering adjustment, muffler attachment,
engine mount nuts, carburetor adjustment, oil injection system, fan belt, head-
lamp beam aiming, bulb replacement, general inspection
.......... .
STORAGE
Track, suspension, ski, controls, chaincase, drive pulley, engine and primer
lubrication, fuel tank and carburetor, battery, chassis, general inspection, sus-
pension stopper strap . . . . . . . . . . . .
...................... .
PRE-SEASON PREPARATION
Pre-season preparation chart, ........................... .
TROUBLE SHOOTING GUIDE ......... .
TOOLS
...................... .
SPECIFICATIONS ............. .
WIRING DIAGRAMS ...
Sl METRIC INFORMATION GUIDE ..
18
18
20
22
34
37
38
40
41
45
47
----------------------------------------------------3

THE 1987 SNOWMOBILE
LIMITED WARRANTY----------
1 -PERIOD
BOMBARDIER® INC. as manufacturer, warrants FROM THE DATE OF FIRST
CONSUMER SALES, every
1987 BOMBARDIER snowmobile, sold as NEW AND
UNUSED, and predelivered by an authorized BOMBARDIER dealer
for a period of:
• 12
consecutive months.
2 - WHAT BOMBARDIER WILL DO
BOMBARDIER will repair and/or replace, at its option, components defective
in material and/or workmanship (under normal use and service,) with a genuine
BOMBARDIER component without charge for parts or labour, at any authorized
BOMBARDIER dealer during said warranty period.
3- CONDITION TO HAVE WARRANTY WORK PERFORMED
Present to the servicing dealer, the hard copy of the BOMBARDIER Warranty
Registration card or proof of purchase received by the customer from the sel-
ling dealer
at time of purchase.
4 - WARRANTY TRANSFER
This warranty is transferable to subsequent owner(s) for remainder of warran-
ty period from original date of sale.
5 - EXCLUSIONS - ARE NOT WARRANTED
• Normal wear on all items such as, but not limited to:
-drive belts -bulbs
-slider shoes -runners on skis
-spark plugs
• Replacement parts and/or accessories
which are not genuine BOMBARDIER
parts and/or accessories.
• Damage resulting from installation
of parts other than genuine BOMBARDIER
parts.
• Damage caused by failure
to provide proper maintenance as detailed in the
Operator's Manual. The labour, parts and lubricants costs of all maintenance
services, including tune-ups and
adjustments will be charged to the owner.
• Vehicles designed and/or used
for racing purposes.
•
All optional accessories installed on the vehicle.
(The normal
warranty policy for parts and accessories, if any, applies).
• Damage resulting
from accident, fire or other casualty, misuse, abuse orne-
glect.
• Damage resulting
from operation of the snowmobile on surfaces other than
snow.
• Damage resulting
from modification to the snowmobile not approved in writ-
ing by BOMBARDIER.
4----------------------------

• Losses incurred by the snowmobile owner other than parts and labour, such
as,
but not limited to, transportation, towing, telephone calls, taxis, or any
other incidental or consequential damage.
6 - BATTERY WARRANTY:
• 12 consecutive months. (Pro-rated)
100% warranty coverage will start on the date the snowmobile was pur-
chased and run
to the following April 30th. The remainder of the 12 month-
period will be pro-rated as follows:
-
50% from April 30th to December 1st.
-
40% from December 1st to December 31st.
-
30% from January 1st to end of warranty.
7 - EXPRESSED OR JMPLIED WARRANTIES
This warranty gives you specific rights, and you may also have other legal
rights which may vary from state to state, or province to province. Where
applicable this warranty is expressly in lieu of all other expressed or im-
plied warranties of BOMBARDIER, its distributors and the selling dealer,
including any warranty of merchantability or fitness for any particular pur-
pose; otherwise the implied warranty is limited to the duration of this war-
ranty. However, some states or provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply.
Neither the distributor, the selling dealer, nor any other person has been
authorized to make any affirmation, representation or warranty other than
those contained in this warranty, and if made, such affirmation,
representation or warranty shall not be enforceable against BOMBAR-
DIER or any other person.
Some states or provinces do not allow the exclusion or limitation of inci-
dental or consequential damages, so the above limitation or exclusion
may not apply.
BOMBARDIER INC. reserves the right to modify its warranty policy at
any time, being understood that such modification will not alter the war-
ranty conditions applicable to vehicles sold while the above warranty is
in effect.
8 - CONSUMER ASSISTANCE
If a servicing problem or other difficulty occurs, we suggest the following:
1. Try to solve the problem at the dealership with the Service Manager or Owner.
2. If this fails, contact your area distributor listed in the Operator's Manual.
3. Then
if your grievance still remains unsolved, you may write to us:
Bombardier Inc.
Service Department
Recreational Products Division
Valcourt (Quebec), Canada, JOE 2LO
February
1986
Bombardier Inc.
Valcourt (Quebec), Canada, JOE 2LO
®*Trademarks of Bombardier Inc.
---------------------------5

OFTEN ASKED
QUESTIONS
________________________ __
0: Why must my snowmobile be registered? After all I do have my original invoice
as proof of when I purchased my snowmobile.
A: Your warranty is valid at any authorizeddealer of the product. Your registra-
tion is the key elementin providing the servicing dealer with the necessary data
to complete warranty claim forms. This information
is also usedto notifyowners
in the event
of a safety recall.
0: Who should send the registration card to Bombardier
Inc.?
A: The dealer. However, the customer must make sure that it has been sent.
The company might contact you should your vehicle be recalled or in case of
a particular warranty campaign.
0: I bought my snowmobile in O'King County but Isnowmobile in Washington Coun-
ty. Can the dealer in Washington County accept to perform warranty work on my
snowmobile?
A: Yes, any authorized dealer in North America can perform warranty repairs,
providing the customer warranty registration card is presented.
0: Where can I find information on the lubrication and maintenance of my snow-
mobile?
A: In this Operator Manual provided with the vehicle at the time of first sale.
0: Will the entire warranty be void or cancelled, if I do not operate or maintain my
new snowmobile exactly
as specified in the Operator's Manual?
A: The warranty of the new snowmobile cannot be "Voided" or "Cancelled':
However, if aparticularfailure is causedbyoperation or maintenance otherthan
is shown in the Operator Manual, THAT failure may
not be covered under war-
ranty. This includes service workperformedby the customer, especially the crit-
icaladjustments to ignition, timing, carburation
and oil injection/or oil mixture.
0: Would you give some examples of abnormal use or strain, neglect or abuse?
A: These terms are general and overlap each otherin areas. Some specific ex-
amples may include: running the machine
out of oil, chain failure caused by
a lack
of lubrication, operating the machine with a broken or damagedpart which
causes another
part to fail, and so on. If you have any specific questions on
operation
or maintenance, please contact your dealer for advice.
6--------------------------

0: What costs are my responsibility during the warranty period?
A: The customer's responsibility includes allcosts of normalmaintenance ser-
vices, non-warrantyrepairs, accidents and collision damage, as well as oils, and
sparkplugs, and incidental or consequentialdamages costs as explainedin the
warranty.
0: Are "Genuine" Bombardier replacement parts used in warranty repairs covered
by warranty?
A: Yes. When installedbyan authorized dealer, any "genuine" Bombardier part
usedin warrantyrepairs assumes the remaining warranty thatexists on the ma-
chine.
0: If I sell my snowmobile within the warranty period, will the new owner qualify
for the balance of the warranty?
A: Yes, provided the unit has already been registered with the manufacturer.
Note that the change
of ownership card in this manual should be completed
and sent to Bombardier Inc.
0: How can I receive the best owner assistance?
A: The satisfaction and goodwill of the owners of Bombardierproducts are of
primary concern to your dealer and Bombardier Inc. Normally, any problems
thatarise in connection with the sales transaction
or the operation of yoursnow-
mobile willbe handledby your Dealers Sales
or Service Departments. Itis reco-
gnized, however, that despite the best intentions
of everyone concerned, mis-
understandings willsometimes occur.
If you have aproblem that has not been
handledto yoursatisfaction through normalchannels, we suggest that you dis-
cuss yourproblem with a member
of dealership management. Frequently, com-
plaintsare the result
of a breakdown in communications and can quicklybe re-
solvedbya member
of the dealership management. If the problem already has
been reviewed with the Sales Manager
or Service Manager, contact the Dealer
himself or the General Manager.
-----------------------------7

LISTING OF AREA
DISTRIBUTORS ______________________ __
CANADIAN DISTRIBUTORS
Quebec Branch
1350 Nobel
Boucherville, Quebec, J4B 1A1
[phone]
Province of Quebec
Ontario Branch
230 Bayview Drive
Barrie, Ontario, L4N 4Y8
[phone]
Province of Ontario
Technical office
P,O. Box 7060
Riverview, New Brunswick,
E1 B 1 VO
[phone]
Atlantic Region
BROOKS EQUIPMENT LIMITED
1616 King, Edward Street
P.O. Box 985
Winnipeg, Manitoba,
R3C 2V8
[phone]
British Columbia, Manitoba, Saskatchewan,
Alberta, Yukon
CHARLES R. BELL LIMITED
Newfoundland, Labrador
Offices
-Riverside Drive
P.O. Box 1050
Corner Brook, Newfoundland, A2H 6J3
[phone]
-
81 Kenmount Road
P.O. Box 8127
St-John's, Newfoundland, A1B
3N 1
(709)
722-6700
HUDSON'S BAY CO. LTD.
165 Hymus Blvd
Pointe-Claire, Quebec,
H9R 1 G2
[phone]
North-West Territories, Franklin District &
Keewatin
AMERICAN DISTRIBUTORS
BOMBARDIER CORPORATION
All States (excluding Alaska)
SERVICE OFFICES
-East Main Street Road
Malone, New York 12953
[phone]
Technical office
[phone]
-4505 West Superior Street
P.O. Box 16106
Duluth, Minnesota 55816-016
[phone]
-
P,O. Box 1569
Idaho Falls, Idaho,
83403
[phone]
NATIONAL
SALES OFFICE
-O'Hare Lake Plaza
2350 Devon Avenue
Suite 150
Des Plaines, Illinois
60018
[phone]
MILLER EQUIPMENT AND RECREATIONAL
CENTER
1049 Whitney Road
Anchorage, Alaska 99501
[phone]
Alaska
8----------------------------

HOW TO IDENTIFY
YOUR SNOWMOBILE----------
The main components of your snowmo-
bile (engine, track(s) and frame)
are iden-
tified
by different serial numbers. It may
sometimes become necessary to locate
these numbers for warranty purposes or
to trace your snowmobile
in the event of
theft.
A002005010
A005007003
Vehicle serial number meaning:
0000 00000
--r-
Model no Vehicle no
A000000013
A003002013
Engine serial
number
0 NOTE: We strongly recommend that you take note of all the serial numbers
on your vehicle and supply them to your insurance company. It will surely
help
in the event a snowmobile is stolen.
-----------------------------9

CONTROLS/INSTRUMENTS ___ _
B
I
K
AJ Throttle Control Lever
8) Brake Control Lever
CJ Ignition/Light Switch
D) Head/amp Dimmer Switch
E) Emergency Cut-Out Switch
A003007002
A) Throttle Lever
Located on right side of handlebar. When
compressed, it controls the engine speed
and the engagement
of the transmission.
When released, engine speed returns au-
tomatically to idle.
B) Brake Lever
Located on the left side of handlebar.
When compressed, the brake
is applied.
When released, it automatically returns
to its original position. Braking effect
is
proportionate to the pressure applied on
the lever and to the type of terrain and
its
snow coverage.
C) Ignition/Light Switch
The lights are automatically ON whenever
the engine
is running.
FJ Tether Cut-Out Switch
G) Rewind Starter Handle
HJ Primer
/} Adjustable steering handle
J) Fuel gauge/tank cap
KJ Hood Opening
Manual starting
ON
~,QFF
A
c
H
K
J
~-NOT IN USE
A002007002
Key operated, 3 position switch. To start
engine, first turn
key fully clockwise to
START position and hold. Return key to
ON popition immediately when engine has
started. To stop engine, turn key counter-
clockwise
to OFF position. The 3rd po-
sition
is not in use.
10-------------------------

Electric starting
OFF
f1':i~oN
~START
A002007002
Key operated, 3 position switch. To start
engine, turn key fully clockwise to START
position and hold. Return key to ON po-
sition immediately when engine
has star-
ted.
To stop engine, turn key counter-
clockwise to
OFF position.
-.r CAUTION: Holding key in START
T position when engine has started
could damage
starter mechanism.
D) Headlamp Dimmer Switch
The dimmer switch, located on left side
of handlebar, allows correct selection of
headlamp beam.
To obtain high or low
beam simply flick switch.
E) EmergencyCut-Out Switch
A push pull type switch located on the
right side
of the handlebar. To stop the
engine
in an emergency, push the but-
ton to the lower
off position and simul-
taneously apply the brakes.
To start en-
gine, button must
be at the upper ON
position.
+ ON t OFF
~~
Upper position
before starting
A017006004
Lower position
to stop engine
• WARNING: For
safety reasons,
the emergency cut-off switch is
easily accessible; be careful
not to op-
erate
it inadvertently.
The driver of this vehicle should familiar-
ize himself with the function of this de-
vice
by using it several times on first out-
ing. Thereby being mentally prepared for
emergency situations requiring its use.
• WARNING: If the switch has been
used in
an emergency situation
the source of malfunction should be
determined
and corrected before restar-
ting engine.
F) Tether Cut-Out Switch
Attach tether cord to wrist or other con-
venient location then snap tether cut-out
cap over receptacle before starting en-
gine.
If emergency engine
"shut off" is re-
quired, completely pull cap from safety
switch
and engine power will be automa-
tically shut
"off".
0 NOTE: The cap must
be installed
on the safety switch at all times in
order to operate the vehicle.
•
WARNING: If the switch is used
in an emergency situation the
source of malfunction should be de-
termined and corrected before restart-
ing engine.
G) Rewind Starter Handle
Auto rewind type located on right hand
side
of vehicle. To engage mechanism,
pull handle.
--------------------------11

H) Primer
A push-pull button. Pull and push but-
ton (2-3 times)
to activate primer. The
primer should always
be used for cold
engine starts. After engine is warm how-
ever, it is not necessary to use primer
when starting.
I) Adjustable Steering Handle
-Remove steering cover.
- Loosen the four (4) retaining screws.
-Adjust the handle to the desired posi-
tion.
• WARNING: Do not adjust too
high
as the brake lever may contact
the windshield when turning.
-Lock the steering handle in place by
tightening the four (4) retaining screws
to 26 N•m (19 lbf•ft).
-Reinstall steering cover.
J) Fuel Gauge/Tank Cap
Unscrew fuel tank cap and withdraw dip-
stick
to check fuel level.
• WARNING: Never use a lit match
or open flame to check fuel level.
K) Hood Opening
Pull down the latches to unlock the hood
from the anchor.
0 NOTE: Always lift hood gently up
until stopped by restraining device.
• WARNING: It
is dangerous to run
an engine with the hood open un-
fastened or removed.
Tool Box
Located under the hood. To gain access,
tilt hood. Ideal location for spare rope,
first aid kit, etc.
Fuse Holder
(Electric Starting Only)
Starting system is protected with a 30
amperes rated fuse. Fuse holder is loca-
ted close to the battery. If starter does
not work, check fuse condition and if re-
quired replace with one of the same val-
ue.
Hitch
(Tundra models only)
Carry-boose
adapter
~
A007007005
0 NOTE:
For convenience, a carry-
boose adapter
is supplied in the tool
box.
•WARNING:
When towing a sled
or trailer, always ensure
to lock
the hook
or plate type attachment with
the hair pin.
12------------------------

Trailers or sleds towed behind a snow-
mobile should always
be loaded in a way
to obtain the lowest possible center of
gravity.
Use a rigid tow bar when pulling
atow
sled behind your snowmobile. When
you are pulling passengers
in a trailer or
tow sled,
use moderate speed and avoid
rough terrain for their safety. Also, have
all passengers get out of a towed vehicle
and walk across all roads.
BREAK-IN PERIOD ______ _
Engine
This Bombardier-Rotax snowmobile en-
gine, has a critical break-in period require-
ment before running the vehicle at full
throttle.
Engine manufacturer strongly rec-
ommends 10 to 15 operating hours. Max-
imum throttle
should not exceed 3/4, how-
ever, brief full acceleration and speed vari-
ations contribute to a good break-in. Con-
tinued wide open throttle accelerations,
prolonged cruising speeds, and lugging
are detrimental during the break-in pe-
riod.
Citation LS/LSE, Tundra, Tundra LT
0 NOTE:
For the break-in period on-
ly, 450 ml (16 oz) of Bombardier
Snowmobile Injection oil should
be ad-
ded to fuel for the first full fuel tank filling.
Tundra LTS
0
NOTE: Recommended fuel/oil ratio
is 40:1 during engine break-in pe-
riod.
This will assure additional protection dur-
ing the initial engine break-in.
._, CAUTION: Remove and cleanspark
T plug after engine break-in.
Belt
A new drive belt requires a break-in pe-
riod of
25 km (15 miles).
10-Hour Inspection
As with any precision piece of mechani-
cal equipment, we suggest that after the
first 10 hours of operation or
30 days
after the
purchase, whichever comes first,
that your vehicle
be checked by your
dealer. This inspection will give you the
opportunity to discuss the unanswered
questions you may have encountered
during the first hours of operation.
Re-
member that it is easier to remedy at
this time than to allow the snowmobile
to operate until a possible failure occurs.
The 10 hour inspection is at the ex-
pense of the vehicle owner.
----------------------------13

10-HOUR INSPECTION CHECKLIST
./
Engine timing
Fan belt tension
Spark plug condition: (Remove and clean)
Carburetor
adjustment
Oil injection pump adjustment (not applicable to Tundra LTS)
Battery electrolyte level (electric starting only)
Engine
mount nuts
Muffler attachment
Chaincase oil level
Injection system oil level (not applicable
to Tundra LTS)
Brake operation and lining condition
Ski alignment (runners condition)
Steering arm, retorque
to 50 N•m (37 lbf•ft)
Handlebar bolts, retorque to 26 N•m (19 lbf•ft)
Pulley alignment and drive belt condition
Track condition, tension and alignment
Lubrication (steering, suspension, drive axle)
Electrical
wiring (loose connections, stripped wires, damaged insula-
tion),
tighten all loose bolts, nuts and linkage
Operation
of lighting system (HI I LO beam, brake light, etc.), test
operation of emergency cut-out switch and tether switch
We recommend that you have your dealer sign this inspection list.
Date
of 10 hour inspection Dealer signature
14----------------------------------------------

FUEL & OIL _________ _
Recommended Gasoline
Use regular leaded or unleaded gasoline
available from all service stations.
'W' CAUTION: Never experiment with
T different fuel or fuel ratios. Never
use naphtha, methanol, gasohol or sim-
ilar products.
• WARNING: Never
"top up" the
gas tank before placing the vehi-
cle in a warm area.
At certain temper-
atures, gasoline will expand and over-
flow. Always wipe
off any gasoline spil-
lage
from the snowmobile.
Recommended Oil
Citation LS/LSE, Tundra, Tundra LT
Use "Bombardier Snowmobile Injection
Oil" (P/N 496 0133 00- 1 liter).
Tundra LTS
Use BLIZZARD oil (P/N 496 0135 00-
500 ml).
Available from your authorized dealer,
this type of oil will flow at temperatures
as low as minus 40°C (-40°F).
It is a blend of specially selected base
oils and additives which provides out-
standing lubrication, engine cleanliness
and minimum spark plug fouling.
Should "Bombardier Snowmobile Injec-
tion
Oil" is unavailable, substitute with
BLIZZARD oil or vice versa.
'W' CAUTION: Never use outboard or
T straight mineral oils.
Oil Injection System
Citation LS/LSE, Tundra, Tundra LT
Always maintain a sufficient amount of
"Bombardier Snowmobile Injection Oil"
in the injection oil tank.
'W' CAUTION: Check level and refill
T every time you refuel.
0 NOTE:
For the break-in period on-
ly,
450 ml (16 oz.) of Bombardier
Snowmobile Injection
Oil should be add-
ed to fuel for the first full fuel tank filling.
This will assure additionnal protection
during the initial engine break-in.
----------------------------15

Fuel Mixture Ratio & Mixing
Procedure
Tundra LTS
Oil must be added to the gasoline in pre-
measured amounts then both oil and gas-
oline should be thoroughly mixed togeth-
er before fueling the tank.
The importance of using the correct fuel
mixture cannot
be overstressed. An in-
correct fuel ratio results
in serious engine
damage. Recommanded fuel ratio is 50:1
(40:1 during break-in period).
Sl UNITS
500 ml oil to 25 liters= 50:1
IMPERIAL UNITS
16 oz oil to 5 imp. gal.= 50:1
or
500 ml oil to 5 112 imp. gal.= 50:1
U.S. UNITS
13 oz oil to 5 U.S. gal.= 50:1
0 NOTE:
To facilitate fuel mixing, oil
should
be kept at room tempera-
ture.
To mix the gasoline and oil always use
a separate clean container.
Never mix di-
rectly
in your snowmobile tank. For best
results, acquire
two containers, either
plastic ou metal. Draw from one until
empty then use the second one.
• WARNING: Gasoline
is flammable
and explosive under certain con-
ditions.
Always manipulate in a well
ventilated area. Do not smoke or allow
open flames or sparks
in the vicinity.
If gasoline fumes are noticed while dri-
ving, the cause should be determined
and corrected without delay. Never add
fuel while the engine
is running. Avoid
skin contact with fuel at below freezing
temperatures.
1. Pour approximately 4 liters (one gal-
lon) of gasoline into a clean contain-
er.
2. Add the full amount of oil required for
the mixture.
3. Replace the container cap and shake
the container thoroughly.
4. Add the remainder of the gasoline.
5. Once again thoroughly agitate the con-
tainer. Then using a funnel with a FINE
MESH SCREEN to prevent the entry
of foreign particles, pour the mixture
into the snowmobile tank.
•WARNING:
To prevent fuel spill-
age, a funnel must always be used
when filling the gas tank.
0 NOTE: When
using pre-mixed fuel,
always shake the container thor-
oughly
as the oil has a tendency to settle.
16--------------------------

FUEUOIL MIXING CHARTS
(50.1 ratio)
METRIC (SI)
25:;:- .. ·····
24
20
,.
"
Gas
"
Iliters)
,.
,
12
10
·~++1-r~~+~+H+~++rl~
50 100 150 200 250 300 350 400 450 500
OIL lmll
IMPERIAL
5 ,,., ,.,. ,., ..................... .
Gas
limp. gal. I 3 H++-1H+t.-!'++H++-'H--1
5 6.5
10
1516
OIL limp. ozl
UNITED STATES
Gas
IU.S. gal.I 3 t-++-H+-¥t++-t-+*l-l
5 10
OIL IU.S. ozl
A000000006
USE BLIZZARD OIL
---------------------------17

PRE-START CHECK
Check Points
• ACTIVATE THE THROTTLE CONTROL
LEVER SEVERAL TIMES to check that
it operates easily and smoothly. The
throttle control lever
must return to
idle position
when released.
• Check fuel level.
• Check injection oil level.
• Check that the skis and the track are
not frozen to the ground or snow sur-
face and that steering operates freely.
STARTING
• Activate the brake control lever and
make sure the brake fully applies be-
fore the brake control lever touches
the handlebar grip.
• Verify that the path ahead
of the ve-
hicle
is clear of bystanders and obsta-
cles.
• WARNING: Only start your snow-
mobile once
all components are
checked and functioning properly.
PROCEDURE __________________________ _
Test throttle control lever.
Check that the emergency cut-out switch
is in the ON position.
A017006004
Upper position
before starting engine
Ensure the tether cut-out cap is in posi-
tion and that the cord
is attached to your
clothing.
Activate the primer (2 or 3 times).
0
NOTE: The use of the primer is not
necessary when the engine
is warm.
Manual Starting
Insert the key in the ignition and turn to
ON position.
Grasp manual starter handle firmly and
pull slowly until a resistance
is felt then
pull vigorously. Slowly release the rewind
starter handle.
• WARNING: Do not apply throttle
while starting.
Electric Starting
'W' CAUTION: Never operate your
T snowmobile with the battery re-
moved
or disconnected. As it reduces
voltage fluctuations, operating vehicle
without battery might cause instru-
ments
or bulbs failure.
Insert
key in ignition switch.
Turn ignition
key clockwise until starter
engages.
18---------------------------
