Bona AMO310002 User manual

Operating Manual
Bona FlexiSand 1.9 by
AMO310002

2bona.com
Bona FlexiSand 1.9 Manual
bona.com 2
Foreword
We congratulate you on your purchase of your new Bona FlexiSand 1.9, a
powerful and versatile machine for sanding, cleaning, buing and oiling
wooden floors! Equipped with a Concrete Disc (accessories) it can also
be used for the preparation of concrete floors, levelling compounds,
cementitious screeds and so on. With the Bona Power Drive attached, you
are able to perform direction-free sanding to bare wood. Four counter-
rotating discs provide a high cut rate which can reach very close to the
wall and as such reducing the need for edge sanding.
For a new manual contact:
Bona AB
Murmansgatan 130
P.O. Box 21074
SE-200 21 Malmö, Sweden
Tel [phone]
www.bona.com
ATTENTION:
This manual contains important information on the safe use and operation
of this machine.
Carefully read through the entire user manual before you begin working
with the machine. This machine is intended for professional or commercial
use.
Failure to read this manual before operating, adjusting or servicing this
machine could cause injury or damage to persons or objects.
Anybody operating the machine should understand how to use and operate
it before starting it up.
If anything is unclear, turn to your reseller with confidence or directly to
Bona AB. Keep this manual for future reference.

3
Table of Contents
Foreword 2
Table of Contents 3
Material Specification 4
Drive Plate & Accessories 5
Machine Key Symbols 6
Operator Safety 6
Storage 8
Transporting and Handling 9
With two people 9
Introduction 10
Safe and correct use 10
Machine data plate 10
Commencing Operation 11
Assembly the dust skirt 11
Attaching dust containment 11
Instructions for electrical connenction 11
Cable, exstensions and plugs 12
Prevention Measures for User 13
Personal safety measures 13
Compliance with safety measures and warnings 13
Instruction on Correct Machine Use 15
Machine Specifications 16
Machine Warnings 16
Prohibited use 16
Starting the machine 17
Using the FlexiSand 17
Working with the Machine 18
Working with abrasive (Diameter 407mm (16”), Grit size P60-P220) 18
Working with Sanding Screens (Diameter 407mm (16”), Grit size P60-P220) 18
Routine Maintenace and Spare Parts 20
Maintenace 20
Service 20
Spare parts and exploded views 20
Warranty 21
Declaration of Conformity 23
Disposal 24

4bona.com
Bona FlexiSand 1.9 Manual
Material specification
Standard (included on delivery)
Key Article Article Number
1BonaFlexiSand AMO310002
2BonaPad Driver ASO312501
3 Rubber pad ASO312007
4 Dust skirt ASO312102
5 Dust tube ASO316600
6 Extension cable, 10 m 4799940023
7 Face mask, ear caps (compl.) ASO991232
8 "L" type wrench 19 mm ASO990640

5

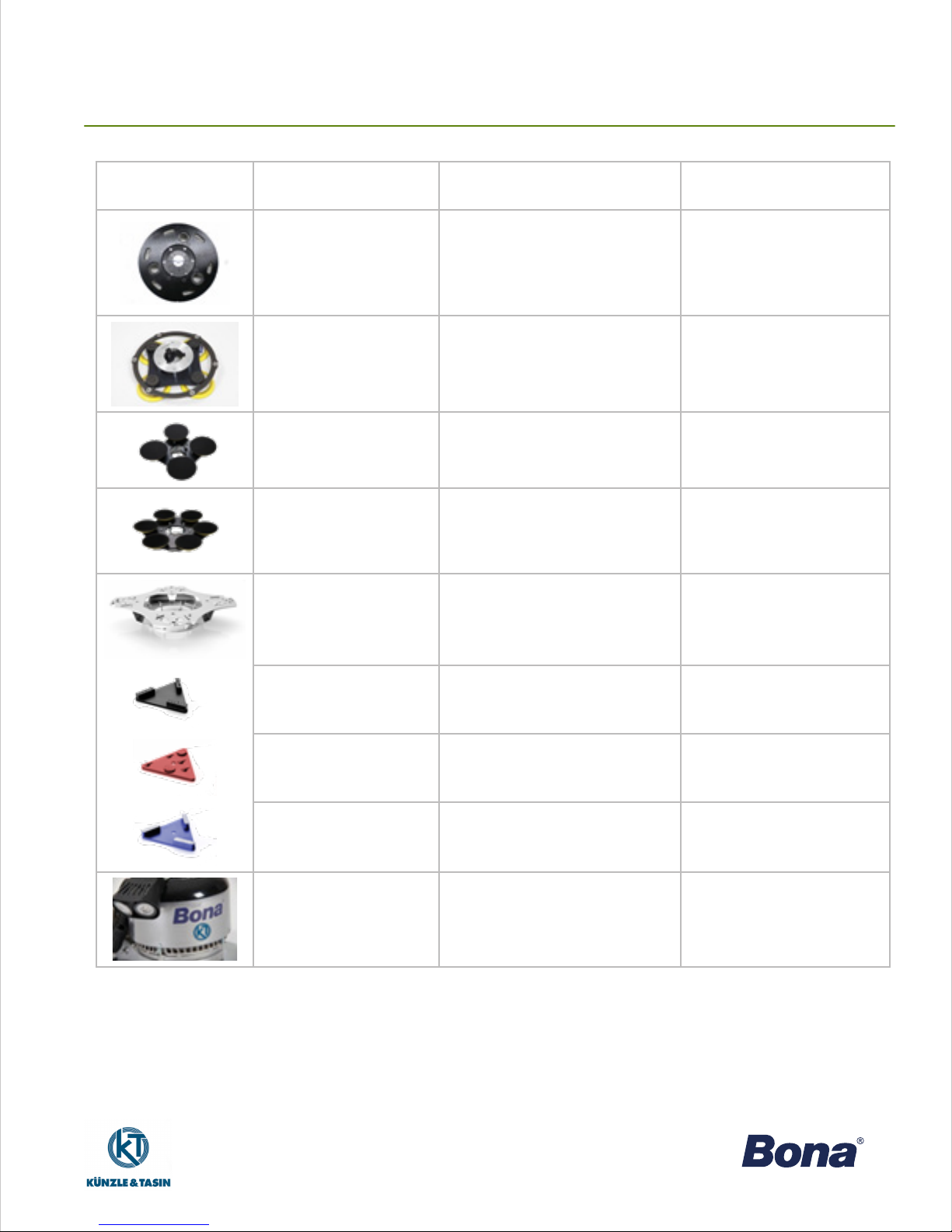

Article Application Recommended abrasives/
equipment
Bona Pad Drive, 16”
Standard
Included on delivery
Art. nr. ASO312501
Standard drive plate for a wide variety
of jobs. Equip with a suitable pad for
cleaning, oiling, buing and fine sand-
ing of untreated and treated wood.
Bona Nylon Pads
Bona Screen
Bona Scrad System
Bona WoolPad
Bona Cloths
Bona Power Drive
4 x 150 mm
Art. nr. ASO312540
Geared drive plate for high power
wood sanding. Removes old lacquer
and paint coatings while flattening the
surface for a perfectly smooth finish.
Bona 8700 Abrasives
Bona 8300 Abrasives
Bona Quattro Disc
4 x 150 mm
Art. nr. ASO312530
Fine sanding of wooden floors. Suitable
as a final finish after belt sanding.
Bona 8300 Abrasives
Bona Diamond Abrasives
Bona Multi Disc
6 x 125 mm
Art. nr. ASO312520
Fine sanding of wooden floors. Suitable
as a final finish after belt sanding.
Bona 8300 Abrasives
Bona Diamond Abrasives
Concrete Disc
Art. nr. ASO312570
Base plate with 8 strong magnets.
Strong construction.
Gives a smooth and eicient sanding
result.
Diamonds and PCD segments
PCD Splitt (4 segments set)
Art. nr. ASO312582 Removes paint and thin layers of glue. N/A
PCD Maxi (4 segments set)
Art. nr. ASO312581
Aggressive sanding.
Suitable for removal of adhesive resi-
dues, epoxy, carpet foam and paint.
N/A
Diamond segment (4 pcs. set)
Art. nr. ASO312571
Medium and hard concrete floors
sanding (diamonds keep the same
sharpness during their whole life).
N/A
LED Lamp
Art. nr. ASO319000
For better visibility while sanding. The
sanding result becomes easier to see. N/A
Drive Plates & Accessories

6bona.com
Bona FlexiSand 1.9 Manual
6
Machine Symbols Key
Read the instructions
contained in this user
and maintenance manual
before using the machine.
Hearing protection during
use is recommended.
Protection of the airways
during use
is recommended.
Hazard due to
moving parts.
Hazard due
to electricity.
HAZARD means: Serious injury or death may occur to the operator or others if 'HAZARD' warnings on the
machine or in this manual are ignored or not kept to. Read and follow all 'HAZARD' warnings on this machine
or in this manual.
WARNING means: Injury may occur to the operator or others if 'WARNING' notices on the machine or in this
manual are ignored or not kept to. Read and follow all 'WARNING' notices on this machine or in this manual.
CAUTION means: Damage may occur to the operator or others if 'CAUTION' alerts on the machine or in this
manual are ignored or not kept to. Read and follow all 'CAUTION' alerts on this machine or in this manual.
Operator Safety
Failure to read the Bona FlexiSand 1.9 machine manual before operating, adjusting or performing
maintenance operations on the machine could cause injury or damage to persons or objects.
Anyone operating the machine should understand how to use and operate it before starting it up.
KEEP AWAY FROM CHILDREN
Children should be supervised to ensure that they do not play with the appliance. This machine is not
intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge unless they have received instructions regarding the use and are
supervised by a person responsible for their safety.

7
Operator Safety (Cont.)
Sanding/finishing can create an environment that can be explosive.
The following safety procedures must be adhered to:
• Cigarette lighters, pilot lights, and any other sources of ignition can create an explosion when active
during a sanding session. All sources of ignition should be extinguished or removed entirely, if possible,
from the work area.
• Work areas that are poorly ventilated can create an explosive environment when certain combustible
materials (solvents, thinners, alcohol, fuels, certain finishes, wood dust,etc) are in the atmosphere.
Floor sanding machines can cause flammable material and vapors to ignite. Read the manufacturer’s label
on all chemicals being used to determine combustibility. Keep the work area well ventilated.
• Hitting a nail while sanding can cause sparks and create an explosion or fire. Always use a hammer and
punch to countersink all nails before sanding floors.
Electrocution could occur if the machine is used on a power circuit that repeatedly trips or is undersized.
Have a licensed electrician check the fuse, breaker, or power supply.
Electrocution could occur if maintenance and repairs are performed on a unit that is not properly
disconnected from the power source. Disconnect the machine from all power.
Electrocution could occur if the machine is used on an ungrounded electrical circuit. Never remove or
disable the grounding supply conductor on the electrical cord.
Consult an electrician if the grounding conductor is missing or if you suspect your circuit is not grounded
properly.
Use of this machine with a damaged power cord or plug could result in an electric shock. DO NOT pull
or carry by cord, use power cord as a handle, close a door on cord, or pull cord around sharp edges or
corners.
DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the power cord. DO NOT handle plug or
operate machine with wet hands. DO NOT put any objects into motor openings.
Electrocution or injury could occur if the power cord is run over and damaged by the sanding machines.
Keep the cord away from contact with the sanding heads. Always lift the cord over the machine and sand
away from the cord.
Moving parts on this machine can cause serious injury and or damage. Keep hands, feet, hair, and loose
clothing away from all moving parts of the unit.
Operating the machine without all guards, doors, or covers in place can cause an injury or damage.
DO NOT pass with the machine on objects that are hot, burning or smoking, such as cigarettes, matches or
cinders.

8bona.com
Bona FlexiSand 1.9 Manual
8
Operator Safety (Cont.)
This equipment is for dry use only and must not be used or kept outside in wet conditions. Store the machine
in a dry building, otherwise the machine could be damaged. Storage temperature
from -20°C to 50°C.
Storage
It is advisable to store the machine in its original packaging. Doing so makes it possible to form a column of three packages maximum, with one
on top of the other.
Injury to the operator or bystanders could occur if the machine is plugged in while performing
maintenance, servicing, changing filter, or inspecting. Always unplug machine when not in use.
DO NOT use solvents or other flammable products to clean this machine.
Dry use only. DO NOT use for liquid recovery, which could result in motor failure, electric shock,
and electrocution.
Airborne sanding dust should not be breathed in while operating a sanding machine. Always wear an
approved particulate respirator while operating sanding equipment.
Injury to the eyes and or body can occur if protective clothing and or equipment is not worn while sanding.
Always wear hearing protection, and a dust mask while sanding.
Exposure to high noise levels can cause hearing loss or impairment. Wear EN-ISO approved hearing
protection (earmus) when using this equipment.
Bodily injury could occur if power is supplied to the machine with the power switch already in the “ON”
position. Always check to assure the power switch is “OFF” before connecting the machine to its power
source.
DO NOT use this machine to sand steps or furniture. DO NOT ride on this machine.
DO NOT put any objects into openings. DO NOT use with blocked openings. Keep free from dust, lint, hair or
anything that may reduce airflow.

9
With two people
Tansporting and Handling

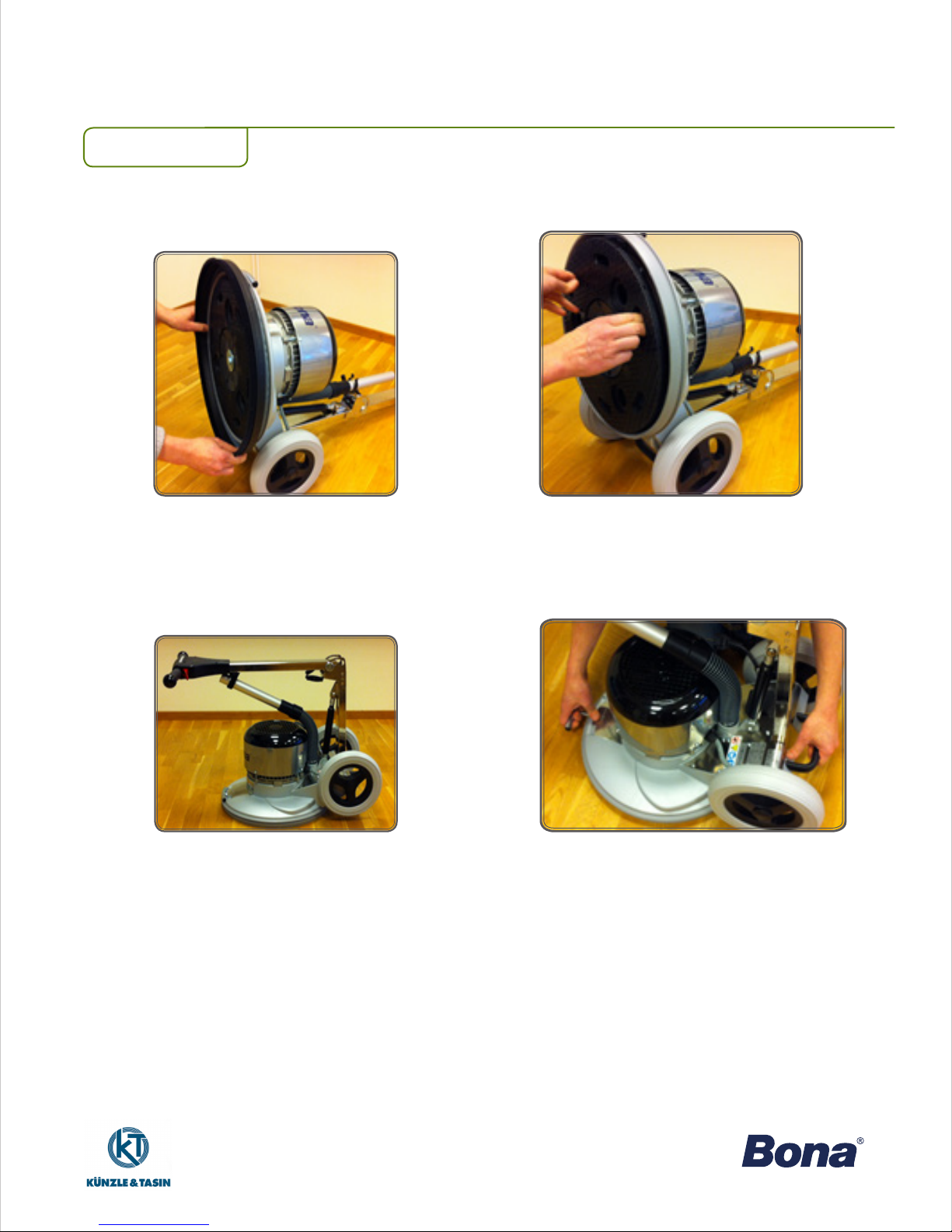

1) Tip the machine backwards and
remove the dust skirt.
2) Remove the drive plate.
3) Raise the handle to an upright position, pull
out the front carry handle and fold the handle
shaft.
4) Grip the machine (two people) by the
two handles shown in the photo.
NOTE! Always remove the dust skirt and the sanding disc before transportation!
When transporting the machine on a vehicle, make sure that the machine is securely fasten through the wheels to avoid
movement!

10bona.com
Bona FlexiSand 1.9 Manual
10
Introduction
Safe and correct use
This instruction manual should be read carefully before using the Bona FlexiSand floor sanding machine for the first
time.
The instruction manual contains important information on safety and preventing improper use of the machine and will resolve any doubts
or questions, making possible to operate the machine safely and with ease. Removing safety features could cause death or physical injury.
Familiarize yourself with the machine before using it for the first time.
The Bona FlexiSand 1.9 machine is suitable for the dry sanding of floors. Any other use without the consent of the manufacturer is prohibited. DO
NOT use on wet floors.
See ‘Machine Warnings’ on page 16.
Keep hands and clothing away from moving mechanical parts.
If a situation arises which has not been described in this manual, contact your distributor or Bona Representative.
1) Name of the manufacturer
2) Machine model and P/N
3) Year of manufacture (see 7)
4) Motor power
5) Supply voltage and Frequency
6) Rated current
Machine data plate
7)Serial number:
• The first two numbers refer to the year of manufacture (15= 2015)
• The second group of three numbers indicates the day of the year the
machine was manufactured (185 = July 4th)
• The last two numbers indicate the progressive number of machines
produced that day of manufacture
(44= 44th machine produced that day)
The following information can be found on the machine data plate:

11
Commencing Operation
Place the dust skirt in the intended notch on the rubber strip.
Never use the dust skirt when oiling. Always remove the
skirt when transporting the machine.
Assembling the dust skirt
Attaching dust containment
Attach the dust containment hose to the dust tube on the
Bona®FlexiSand 1.9.
If using Bona®DCS™, connect DCS™cu to dust tube.
The air flow on the vacuum should be at least 245m³/h.
This machine only operates with the voltage and frequency shown on the machine data plate. Before
connecting the cable to the power supply ensure the correct voltage and frequency
are available.
DO NOT expose the machine to rain. This machine is intended for dry use only.
Keep the machine in a dry building and DO NOT use it in damp or wet places.
If the machine is not connected correctly to the electricity network, death due to electrocution may
occur. To prevent electric shocks always use a grounded three wire electrical system. For maximum
protection against electric shocks use a circuit protected with a dierential cut-out switch.
Tampering with the grounding plug in any way may result in death from electrocution. DO NOT cut,
remove or break the grounding plug. If the socket does not match the plug consult a
qualified electrician.
Instructions for electrical connection

12bona.com
Bona FlexiSand 1.9 Manual
If the machine is used with a damaged plug or power supply cable, death may occur from electrocution.
If cables or plugs are worn or damaged in any way, have them replaced by the manufacturer or certified
machine repair center in order to prevent risks to safety.
Instructions for electrical connection (Cont.)
Commencing Operation (Cont.)
Cables, extensions and plugs
Using the machine with unsuitable and/or excessively long cables may cause injury or damage to people or
objects.
The machine must never be moved using its cable and the cable must never be pulled when disconnecting
from the socket.
Keep the cable away from sources of heat, oil and sharp edges.
Only use approved cables. The maximum recommended cable length is 10m; for greater lengths use cables with a larger
cross-section.
MACHINE WITH 230V~50Hz MOTOR 1.9kW
For machines with a 230V~50Hz motor (EU), a HO5VV-F-3x2,.5mm2HAR-approved power supply cable must be used along with an approved
SCHUKO 2P+E 16A 200÷250V plug.

13
Prevention Measures for Users
Personal safety measures
Compliance with safety measures and warnings
Sawdust can spread through the air and be inhaled when using the sanding machine. Always wear a dust
mask when using the sanding equipment.
The eyes and/or body may suer injury if personal safety clothing is not used. Always wear safety goggles,
protective clothing and a dust mask during sanding operations.
Lengthy exposure to noise levels during sanding operations may damage the hearing. Always use ear
protectors during sanding operations.
Never become distracted during sanding operations, check what is happening continually. Use common
sense. DO NOT use the machine when tired.
Using the machine when not fully assembled may cause injury or damage to people or objects. DO NOT
use the machine when it is not fully assembled. Keep all fittings tightly closed. Maintain machine settings in
accordance with the specifications.
Using the machine without the safety guards and covers in position may cause injury or damage. Always
ensure that all safety guards and covers are in position and secured well.
The sanding machine may create an explosive environment. Cigarettes, cigars, pipes, lighters, pilot flames,
or any other source of fire may create an explosion if lit during sanding operations. No sources of fire
should be kept near the work area.
Poorly ventilated work areas may create an explosive environment when some combustible materials
are present in the atmosphere, such as solvents, thinners, alcohol, fuel, some paints, wood dust or
other combustible materials. Floor sanding may cause various materials and fumes to ignite. Read the
manufacturer’s instructions for each chemical product used and establish its combustibility. Always keep
the work area well-ventilated.
Striking nails when sanding may generate an explosion or fire. Always ensure all nails are sunk before
sanding surfaces.
Serious damage may occur if the power supply circuit trips repeatedly or is undersized. Have the fuses,
safety circuit and power supply line checked by an authorized electrician.
Performing maintenance and/or repairing the machine when it is not fully disconnected from the power
supply may cause death due to electrocution. Disconnect the power supply before carrying out any
maintenance and/or repair work.

14bona.com
Bona FlexiSand 1.9 Manual
The use of this machine on a circuit which is not grounded may cause death due to electrocution. Never
disconnect or disable the grounding conductor. Consult an electrician if the ground conductor is missing or
it is suspected that the circuit is not suitably grounded.
The use of this machine with a damaged power supply cable may cause electric shock. Check the
power supply cable regularly for damage such as splitting or wear and tear. DO NOT use
the machine if the power supply cable is damaged. DO NOT use the electric cable to move
the machine.
Injury or damage may occur if the machine runs over the power supply cable and it becomes damaged.
Keep the cable away from the lower part of the machine to avoid contact with the abrasive. Always keep
the power supply cable raised above the machine.
The moving parts on this machine may cause serious injury and/or damage. Keep hands, feet and loose
clothing away from all moving parts of the machine.
Performing maintenance or replacing the dust bag may cause injury to the operator or people nearby if the
machine is connected to the power supply.
Prevention Measures for Users
Compliance with safety measures and warnings
Failure to comply with instructions on this machine and in this manual may cause serious injury and/or
damage. Read and comply with all safety instructions. Ensure that all plates, labels,
warnings and instructions are secured to the machine. New plates can be obtained from an authorized
Bona dealer.
Injury or damage may occur if maintenance operations or repairs are carried out by any unauthorized
personnel.
The machine may become damaged if it is not kept in a dry building. Keep in a dry building.

15
Instructions on Correct Machine Use
Read this manual carefully and become familiar with the machine.
The equipment is suitable for industrial use (e.g. in hotels, schools, hospitals, oices, factories and shops).
The following information highlights particularly hazardous situations for the operator and/or machine. Understand when these conditions may be
present. Removing safety features could cause death or physical injury. Take all steps necessary to instruct personnel who may use the machine.
Report any damage on the machine or incorrect operation immediately.
1) Keep hands and clothes away from rotating parts.
2) Keep hands on the handle when the motor is operating.
3) DO NOT leave the machine unattended when the motor is operating.
4) Always disconnect the power supply cable from the machine before performing maintenance.
5) Transport the machine with care due to its heavy weight.
6) Always use the machine in well-ventilated areas.
7) Always keep the work area well-lit.
8) Always dispose of the sanding dust appropriately.
9) Use the type and amount of abrasive specified in the instruction manual.
10) The use of accessories other than those recommended in this manual may cause injury.
11) The machine is for indoor use only.

16bona.com
Bona FlexiSand 1.9 Manual
Machine Specifications
Motor type: 1 phase
Voltage (± 5%): 230VAC
Frequency: 50Hz
Power: 1.9kW
Rated current: 11A
Safety devices: 16A overload switch (manual reset),
thermal protection in motor (automatic reset)
Recommended fuses: 16A
Capacitors: 50µF+145-174µF
Motor insulation class: F
Motor protection class: IP44
Final drive speed (unloaded): 145rpm
Total weight: 50kg
Diameter of disc: 407mm
Hour counter: <99,999 hours
Height/Width/Depth: 1170mm/490mm/640mm
Machine Warnings
This equipment is not suitable for collecting hazardous dust.
Using the machine to move objects or moving on an incline may cause injury or damage. The machine
must only be used to sand dry floors which are level or have a maximum incline of 2%. DO NOT use the
machine to sand steps or furniture. DO NOT sit astride the machine when it is operating.
Work surfaces may be seriously damaged if the machine is left turning on one point while
the tool is in contact with the surface. Move the machine at constant speed.
Prohibited use
Children should be supervised to ensure that they do not play with the appliance. This machine is not
intended for use by persons (including children) with reduced physical, sensory or mental capabil-
ities, or lack of experience and knowledge unless they have received instructions regarding the use
and are supervised by a person responsible for their safety.

17
Starting the Machine
Become familiar with the machine and read all instructions &
safety notices. Ensure that all operators read this manual.

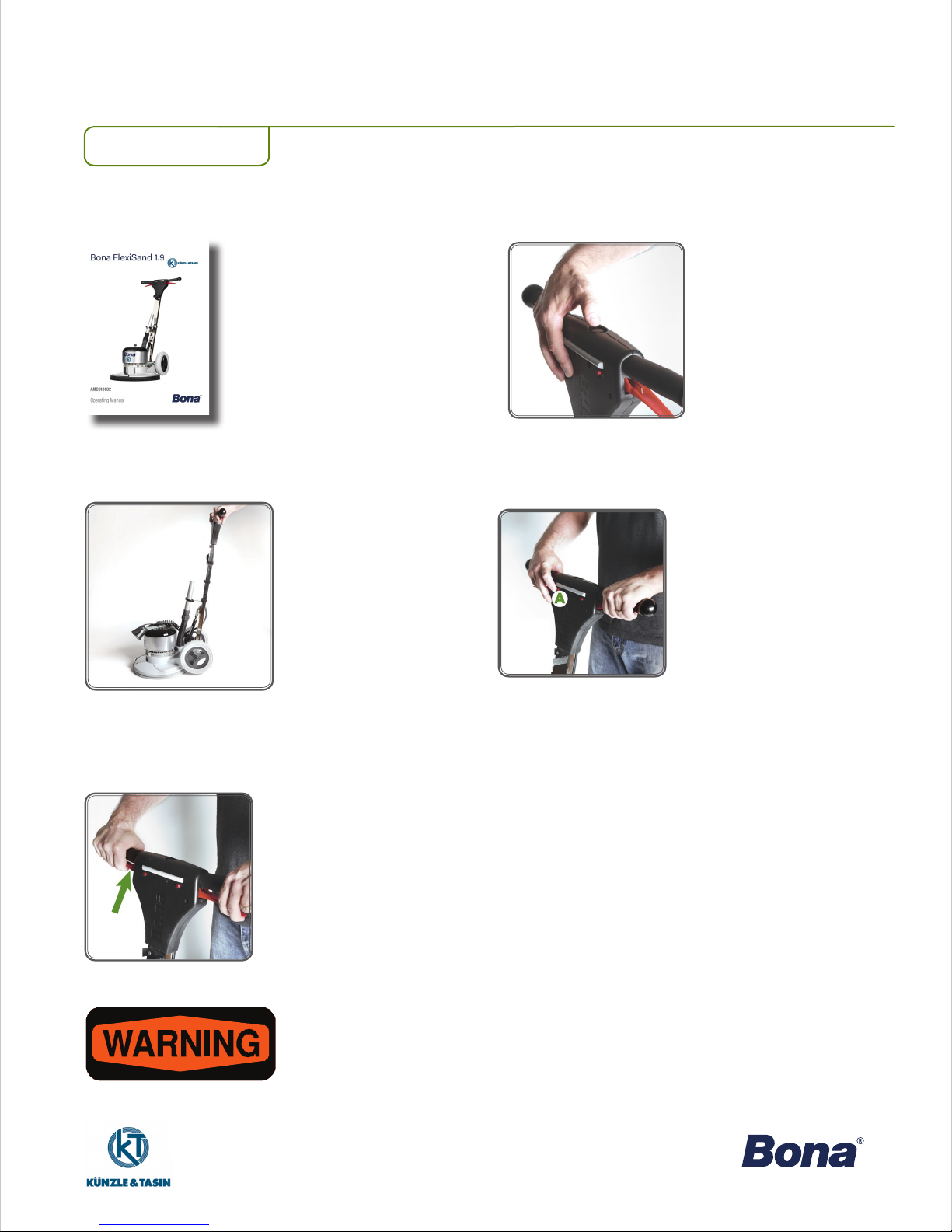

Using the FlexiSand
1) Lower the handles to a comfortable working position by pressing
the button located on the top of the handle.
If the machine becomes diicult to handle, release the start
handles and the machine will stop immediately.
Remember to connect the machine to a Bona®DCS™or other suitable
vacuum system before starting work.
3) Press the start handle. Once the start handle is pressed down the
switch lock button can be released.
3) Press and hold one of the buttons (A) to activate the
switch lock.
If you have not operated a Bona®FlexiSand previously, ensure that no one or nothing is
nearby before you start the machine.
2) The shaft must be lowered at least 10˚ or the machine will not
start.

18bona.com
Bona FlexiSand 1.9 Manual

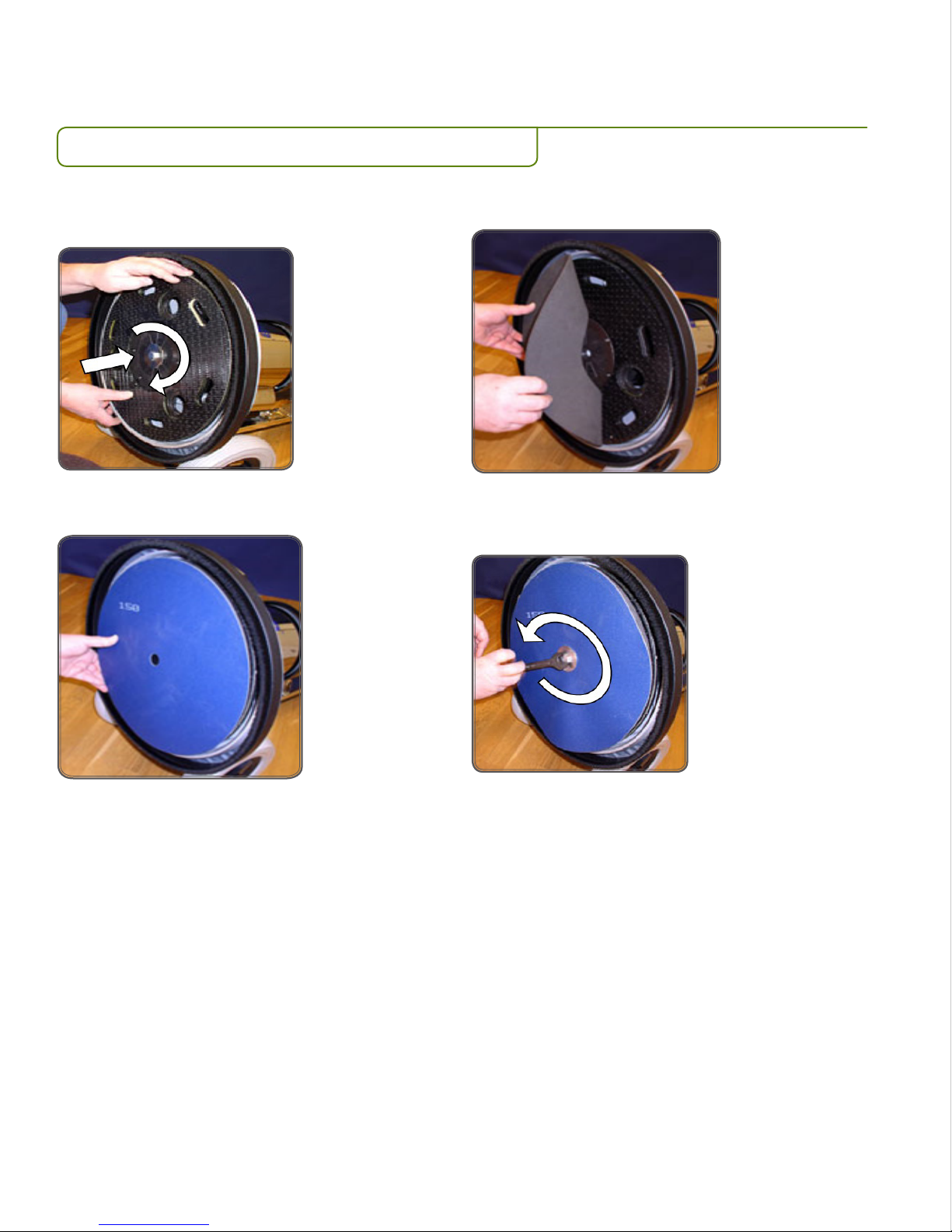

Working with abrasive (Diameter 407mm (16”), Grit size P16-P220)
1) Mount the Pad Drive and loosen the center screw.
NOTE! Loosen clockwise!
2) Mount the rubber pad.
3) Hold the abrasive in place. 4) Insert and tighten the centre screw.
NOTE! Tighten counter clockwise!
Working with the Machine

19
Working with Sanding Screens (Diameter 407mm (16”), Grit size P60-P220)
1) Place the sanding Screen on the floor. 2) Place a 16” pad over the Screen.
3) Mount the Pad Drive.
NOTE! Mount counterclockwise!
4) Place the machine over the pad.

20bona.com
Bona FlexiSand 1.9 Manual
Daily maintenance
• Remove accessories when not in use.
• Use compressed air and a vacuum cleaner to remove dust after each use.
• Wipe the machine and cord o with a clean cloth.
• Check start and stop function
• Check cord and plug.
Every 250 work hours or at least once a year control of
• Wheels
• Cable stand
• Dust skirt
• Micro switches
• Motor and gearbox
• Handle shaft function including hydraulic system
Routine Maintenace and Spare Parts
Maintenace
Always disconnect the power cable to the machine before it is cleaned, tools are changed, maintenence is performed or
when worn parts are replaced.
To keep the machine in a safe and functioning condition, perform maintenance on the machine regurarly.
Bona FlexiSand 1.9 is a high quality machine and is tested by authorized test sta at the factory before delivery. However, electrical and
mechanical parts wear down and age during long-term use.
Only Bona's original parts may be used because the machine is considered unique, otherwise safety functions can become impaired.
When you contact us in the event of a fault or to order spare parts, always specify the type and serial number of your machine.
This information is located on the type sign of the machine.
The machine may never be cleaned using a high pressure washer or hose.
Service
On the Internet, you will find a list of spare parts and exploded views for Bona FlexiSand 1.9 and other machines in our product range.
The address is: http://spareparts.bona.com/
During the factory warranty period, repairs may only be carried by sta at Bona AB or sta approved by Bona AB.
Other repairs (after the warranty period) of mechanical or electrical parts on the machine may only be carried out by Bona AB approved
sta or authorized technician who has experience and knowledge concerning safety regulations.
Spare parts and exploded views
