Jobsite CT0827 User manual

115MM ANGLE GRINDER CT0827
ORIGINAL INSTRUCTIONS
Cannon Tools Limited
Address:20 Station Road, Rowley Regis, West Midlands, B65 0JU.UNITED KINGDOM
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.
READ ALL PRECAUTONS AND INSTRUCTIONS BEFORE USE.

1
EC DECLARATION OF CONFORMITY
WeCANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety and
health requirements of the EC Directive based on its design and type, as brought
into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: 115MM ANGLE GRINDER
Model: CT0827
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
EC Directive of Electromagnetic Compatibility 2014/30/EU
Harmonized standards：
EN 60745-1:2009/A11:2010, EN 60745-2-3:2011/A13:2015,
EN 55014-1:2017, EN 55014-2:2015
EN 61000-3-2:2014, EN 61000-3-3:2013,
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2016-08-18

2
1. TECHNICAL SPECIFICATIONS
Model:
CT0827
Voltage:
220 -240V~ 50 Hz
Power consumption:
900 W
Rated speed:
12000min-1
Drive spindle diameter
M14
Max disc diameter:
115 mm
Disc thickness
6mm for grinding disc
Sound pressure level LpA
90.7dB(A) K=3dB(A)
Sound power level LwA
101.7dB(A) K=3dB(A)
Vibration level
6.39 m/s² K=1.5 m/s²
Protection class
II
The declared vibration total value has been measured in accordance with a
standard test method and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment
of exposure.
-Warning: the vibration emission during actual use of the power tool can differ
from the declared total value depending on the ways in which the tool is used”.
-Warning: avoid vibration risk
Suggestions: 1) wear glove during operation;
2) limit operating time and shorten trigger time.

3
2. GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of

4
inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions will reduce personal
injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
c) Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with

5
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
b) Only have the replacement carbon brushes provided replaced by the
after-sales service at your store or by an approved specialist. This will
ensure the power tool remains reliable.
Safety Warnings Common For Grinding Operations
a) This power tool is intended to function as a grinder. Read all safety
warnings, instructions, illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below may result in electric
shock, fire and/or serious injury.
b) Operations such as sanding, wire brushing, polishing or cutting-off are
not recommended to be performed with this power tool. Operations for which
the power tool was not designed may create a hazard and cause personal injury.
c) Do not use accessories which are not specifically designed and
recommended by the tool manufacturer. Just because the accessory can be
attached to your power tool, it does not assure safe operation.
d) The rated speed of the accessory must be at least equal to the maximum
speed marked on the power tool. Accessories running faster than their rated
speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within
the capacity rating of your power tool. Incorrectly sized accessories cannot be
adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread.
For accessories mounted by flanges, the arbour hole of the accessory must
fit the locating diameter of the flange. Accessories that do not match the
mounting hardware of the power tool will run out of balance, vibrate excessively and
may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory

6
such as abrasive wheels for chips and cracks, backing pad for cracks, tear
or excess wear. If power tool or accessory is dropped, inspect for damage
or install an undamaged accessory. After inspecting and installing an
accessory, position yourself and bystanders away from the plane of the
rotating accessory and run the power tool at maximum no-load speed for
one minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face
shield, safety goggles or safety glasses. As appropriate, wear dust mask,
hearing protectors, gloves and workshop apron capable of stopping small
abrasive or workpiece fragments. The eye protection must be capable of
stopping flying debris generated by various operations. The dust mask or
respirator must be capable of filtrating particles generated by your operation.
Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering
the work area must wear personal protective equipment. Fragments of
workpiece or of a broken accessory may fly away and cause injury beyond
immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an
operation where the cutting accessory may contact hidden wiring or its
own cord. Cutting accessory contacting a "live" wire may make exposed metal
parts of the power tool "live" and shock the operator.
k) Position the cord clear of the spinning accessory. If you lose control, the
cord may be cut or snagged and your hand or arm may be pulled into the
spinning accessory.
l) Never lay the power tool down until the accessory has come to a
complete stop. The spinning accessory may grab the surface and pull the power
tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact
with the spinning accessory could snag your clothing, pulling the accessory into
your body.
n) Regularly clean the power tool’s air vents. The motor’s fan will draw the
dust inside the housing and excessive accumulation of powdered metal may
cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could

7
ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other
liquid coolants may result in electrocution or shock.
Kickback And Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing
pad or any other accessory. Pinching or snagging causes rapid stalling of the
rotating accessory which in turn causes the uncontrolled power tool to be forced
in the direction opposite of the accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the
edge of the wheel that is entering into the pinch point can dig into the surface of
the material causing the wheel to climb out or kick out. The wheel may either
jump toward or away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also break under these
conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures
or conditions and can be avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to
allow you to resist kickback forces. Always use auxiliary handle, if provided,
for maximum control over kickback or torque reaction during start-up. The
operator can control torque reactions or kickback forces, if proper precautions are
taken.
b) Never place your hand near the rotating accessory. Accessory may
kickback over your hand.
c) Do not position your body in the area where power tool will move if
kickback occurs. Kickback will propel the tool in direction opposite to the
wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid
bouncing and snagging the accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory and cause loss of control or
kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such
blades create frequent kickback and loss of control.

8
Safety Warnings Specific For Grinding :
a) Use only wheel types that are recommended for your power tool and the
specific guard designed for the selected wheel. Wheels for which the power
tool was not designed cannot be adequately guarded and are unsafe.
b)The grinding surface of centre depressed wheels must be mounted below
the plane of the guard lip. An improperly mounted wheel that projects through
the plane of the guard lip cannot be adequately protected.
c) The guard must be securely attached to the power tool and positioned for
maximum safety, so the least amount of wheel is exposed towards the operator.
The guard helps to protect the operator from broken wheel fragments, accidental
contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended applications.
e) Always use undamaged wheel flanges that are of correct size and shape
for your selected wheel. Proper wheel flanges support the wheel thus reducing
the possibility of wheel breakage. Flanges for cut-off wheels may be different from
grinding wheel flanges.
f)Do not use worn down wheels from larger power tools. Wheel intended for
larger power tool is not suitable for the higher speed of a smaller tool and may
burst.
3. SPECIFIC SAFETY RULES
-Check that speed marked on the wheel is equal to or greater than the rated
speed of the grinder;
-Ensure that the wheel dimensions are compatible with the grinder;
-Abrasive wheels shall be stored and handled with care in accordance with
manufacturer’s instructions;
-Inspect the grinding wheel before use, do not use chipped, cracked or otherwise
defective products;
-Ensure that mounted wheels and points are fitted in accordance with the
manufacturer’s instructions;
-Ensure that blotters are used when they are provided with the bonded abrasive
product and when they are required;
-Ensure that the abrasive product is correctly mounted and tightened before use
and run the tool at no-load for 30 s in a safe position, stop immediately if there is
considerable vibration or if other defects are detected. If this condition occurs,
check the machine to determine the cause;

9
-Do not use separate reducing bushings or adapters to adapt large hole abrasive
wheels;
-For tools intended to be fitted with threaded hole wheel, ensure that the thread in
the wheel is long enough to accept the spindle length;
-Check that the work piece is properly supported;
-Do not use cutting off wheel for side grinding;
-Ensure that sparks resulting from use do not create a hazard e.g. do not hit
persons, or ignite flammable substances;
-Ensure that ventilation openings are kept clear when working in dusty conditions.
If it should become necessary to clear dust, first disconnect the tool from the
mains supply(use non metallic objects) and avoid damaging internal parts;
-Always use eye and ear protection. Other personal protective equipment such as
dust mask, gloves, helmet and apron should be worn;
-The wheel continues to rotate after the tool is switched off.
-Never use the tool without the guard in place, the wheel guard must be fitted on
the tool so that the closed side of the guard always points toward the operator.

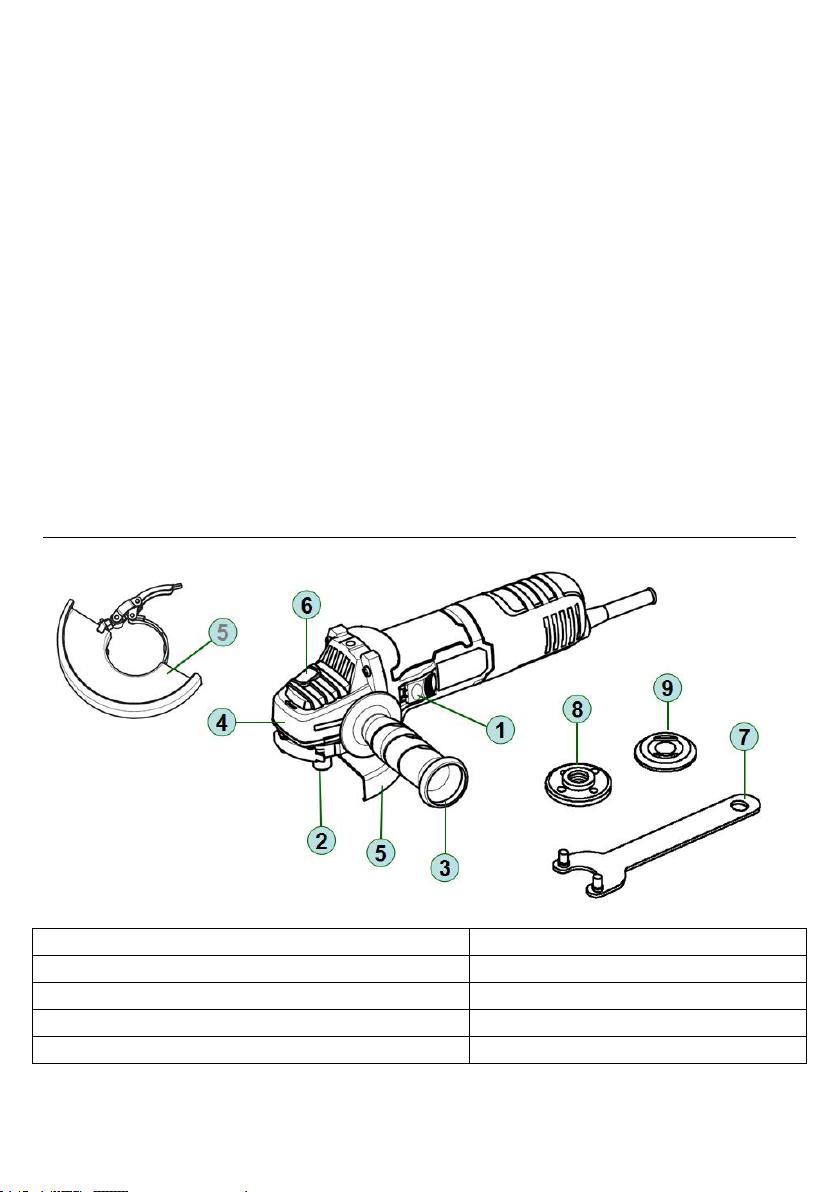

4. TECHNICAL DESCRIPTION
1. Switch button
6. Lock button
2 .Drive shaft
7. Spanner
3. Auxi handle
8. External flange with thread
4. Gear box
9. Internal flange
5. Protective cover (grinding)

10
5. UNPACKING AND CHECKING
Carefully remove the product from the packaging and examine it for any sign of
damage that may have happened during shipping. Lay the contents out and
check them against the parts shown below. If any part is damaged or missing;
please contact the seller and do not attempt to use the air tool.
6. OPERATION
Mounting the Auxi Handle
The side handle can be fitted to the left, right of the unit. Select the position which
gives the most comfortable and safe use.
CAUTION: Always be sure that the side grip is installed securely before operation.
During operation, keep one hand on the rear handle and the other on the side
handle.

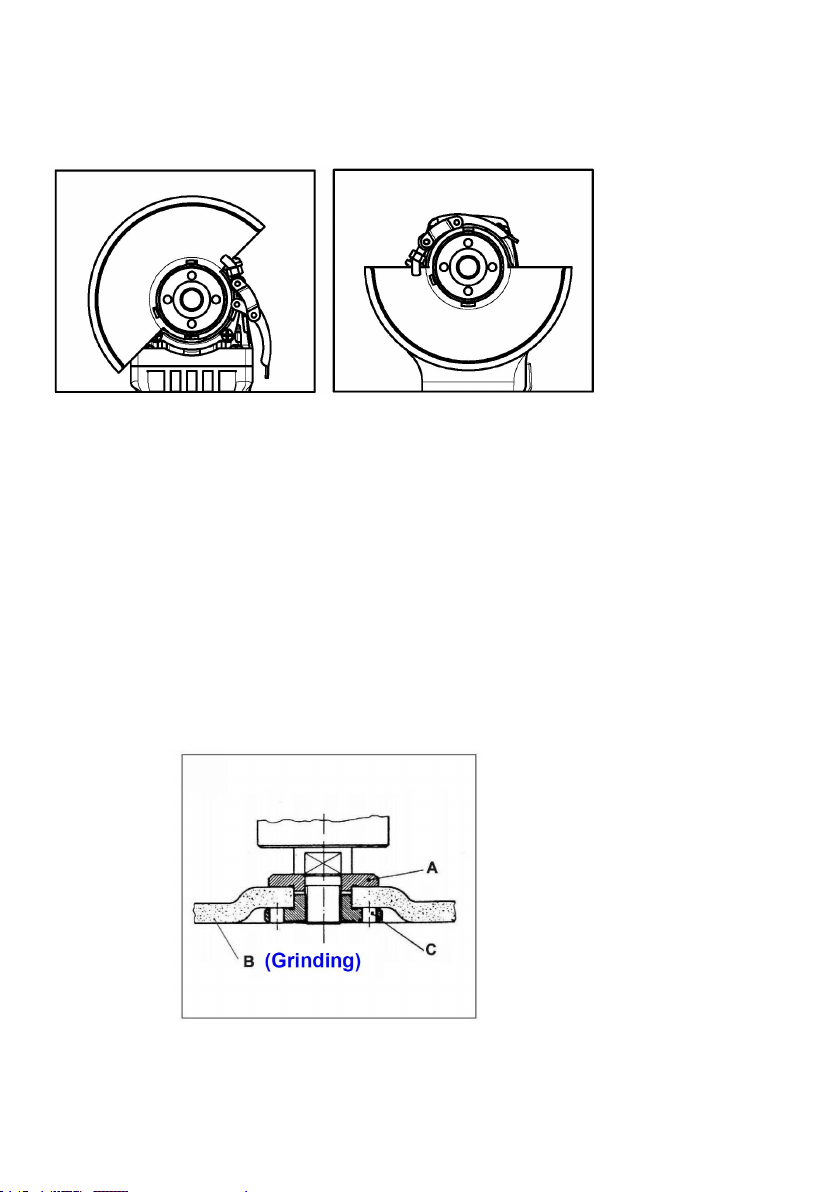

Installing or moving protective cover
WARNING: Ensure the angle grinder is switch off and unplugged from the mains.
Depending on whether your operation is cutting or grinding, select the correct
protective cover. Failure to use the right cover for operation could result in injury.
When using a grinding or cutting-off wheel, the protective guard must be fitted on
the tool so that the closed side of the cover always points toward the operator.
Install the guard: release the lock lever of the guard and insert it on the gear head,
and turn/adjust in any desired position for maximum performance, then close the

11
lock lever. Make sure that the fastening lever is properly locked after setting the
guard. To remove the protective cover, follow the installation procedure in reverse.
The protective cover can be turned to a desired angle, but not more than 45°on
left side or right side.
Grinding and Surface Processing
In order to grind surface, you should use a coarse abrasive disk with a sunken
centre. You can use the abrasive disks with diameter of 115mm. The maximum
thickness of disks is 6mm.
Mounting the Wheels /Disks
Place the back flange A over the spindle making sure that it fits tight. Place the
grinding disc B on the top of the back flange, ensuring the bore fits into the step of
the flange. Mount the concave recess side of the external flange C over the
spindle. Press the spindle lock button to lock the spindle firmly, then tighten the
external flange with the spanner in clockwise direction. Allow the angle grinder to
run in idle at least 1 minute with the grinding disc correctly assembled, a vibration
disc should be immediately replaced.
Switch ON/OFF
Switch on: Push the main Switch forwards to turn on the machine. Then depress
the main switch to lock it in position for continuous operation.
Switch off: Press the main switch at the rear end to release the locking and turn

12
off the machine.
WARNING: Do not cover exhaust vents when the tool is in use. This may cause
damage to the motor and reduce the efficiency of the tool.
Abrasive operation When equipped with abrasive wheel and guard, for the best
work results hold the grinder at 15~20°to the work piece.
Overload
The motor of your right angle grinding machine may be damaged when
overloaded. This results from excessive working pressure over a prolonged
period. Therefore you should not try to accelerate your working speed by
increasing pressure on your machine. The abrasive disks work more efficiently if
only slight pressure is exerted on the grinding machine, thus avoiding a drop in
the grinding speed
7. MAINTENANCE /CLEANING/ LUBRICATION/ STORAGE
Maintenance
Always be sure that the tool is switched off and unplugged before attempting to
perform inspection or maintenance. If the supply cable is damaged, it must be
replaced by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Cleaning
The tool and its air vents have to be kept clean. Regularly clean the tool’s air
vents or whenever the vents start to become obstructed.
Avoid using solvents when cleaning plastic parts. Most plastic parts are
susceptible to damage from various types of commercial solvents and may be
damaged by their use. Use clean clothes to remove dirt, carbon dust, etc.
Lubrication
All the bearings in this tool are lubricated with a sufficient amount of high grade
lubricant for the life of the unit under normal operating conditions, therefore no
further lubrication if required.
Storage
Store the angle grinder in a dry place. Regularly inspect the disks / wheels,
ensure that the disks / wheels is free of cracks and surface defects. Replace the
disks / wheels when it has wore out. Take care not to expose this tool to the rain.

13
8. DESCRIPTION OFTHE SYMBOLS
The use of symbols in this manual is intended to draw your attention to possible
risks. The safety symbols and the explanations that accompany them must be
perfectly understood. The warnings in themselves do not remove the risks and
cannot replace correct actions for preventing accidents.
This symbol, marking a point of safety, indicates a caution, warning
or danger. Ignoring this warning can result in an accident to yourself
or others. To limit the risks of injury, fire or electrocution, always
follow the recommendations indicated.
WARNING – To reduce the risk of injury, user must read instruction
manual.
Class II symbol: this machine is designed with double insulation. It
is not necessary to connect it to an earthed power socket.
This symbol indicates the requirement of wearing ear protection,
eye protection, when using the product.
9. DISPOSAL
Should your appliance need replacement after extended use, do
not discard it with the household rubbish but dispose of it in an
environmentally safe way.
Waste produced by electrical machine items should not be
handled like normal household rubbish. Please recycle where
recycle facilities exist. Check with your Local Authority or retailer
for recycling advice.

14
10.PARTS DIAGRAM

15
NO
Description
Qty
NO
Description
Qty
1
Bearing set
1
26
Nut M8
1
2
Bearing φ7 x φ19 x 6
1
27
Cord clamp
1
3
Armature
1
28
Housing
1
4
Check ring φ10
2
29
Stator
1
5
Screw M5 x 8
2
30
washer φ4
2
6
Bearing φ26 x φ10 x 8
2
31
Screw ST4.2 x 62
2
7
Stop pin
1
32
Fan guide
1
8
Spring
1
33
Brush holder
2
9
Gear box
1
34
Brush
2
10
Screw ST4.2 x 22
4
35
Screw ST2.9X8
4
11
Check ring φ5
1
36
Label
1
12
Bearing φ12 x φ8 x 10
1
37
Capacitance
1
13
Spring washer φ10
1
38
Switch
1
14
Gear
1
39
Switch draw bar
1
15
Screw M4 x 8
3
40
Switch button
1
16
Front cap
1
41
Spring
1
17
Spring washer φ4
4
42
Plug
1
18
Screw M4 x 14
4
43
Cord armor
1
19
Shield
1
44
Wood ruff-key 3 x 3.7 x 10
1
20
Screw ST4.2 x 13
3
45
Spindle
1
21
back cap
1
46
Flange
1
22
Roller φ3 x 4.9
1
47
Grinding wheel(not included)
1
23
Front handle
1
48
Flange nut
1
24
Pinion
1
49
Wrench
1
25
Spring washer φ8
1
CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
