Bonnet OPTIMUM 700 User manual

OPTIMUM 700 & 900
ELECTRIC
TOPS AND UNITS
BUILDER’S SPECIFICATIONS
Part A: Technical characteristics
Part B: Technical instructions for the installer
WARNING
• Installation and repairs must be carried out by personnel approved by the manufacturer and in
accordance with current regulations and standards.
• If any modifications are made the manufacturer can accept no responsibility whatsoever.
• These appliances must be used in a well-ventilated area.
• Read the notice carefully before installation.
• When handling it, it is imperative to leave the appliance on its base till final installation.
3BE390580NI
9

Page 1 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
TABLE OF CONTENTS
ELECTRIC
TOPS AND UNITS
A) TECHNICAL CHARACTERISTICS........................................................... 2
B) TECHNICAL INSTRUCTIONS FOR THE INSTALLER
1. FIRM PLATES ………………........................................…........................................................ 51
1.1 PLATE …………..……….……...….……...…...………..................................................................... 51
1.2 LOCATION OF THE PLATE ……...………….....……………………………………………………. 51
2. INSTALLATION: GENERALITIES ……….…….………………………………...………………… 52
2.1 GENERAL REQUIREMENTS ………..……….……...….……...…...……........................................ 52
2.2 HANDLING ………….….....…………………………………………..……………………………….. 52
2.3 UNPACKING ………...…………..………………………..……………............................................... 52
2.4 ACCESS TO THE COMPONENTS LOCATED BEHIND THE FASCIA ........................................ 53
3. INSTALLATION: PUTTING IN PLACE .……………………………………….….….……………. 54
3.1 READY-TO-INSTALL TOP ………….............................................................................................. 55
3.2 COOKING UNITS …………………………………………………..………….................................. 58
4. INSTALLATION: CONNECTIONS ……………………………………………...….………………. 66
4.1 ELECTRIC CONNECTION ………..……………..…...……...………..…….……………………….. 66
4.2 WATER CONNECTION .…….…...……...……………………………..…......................................... 68
4.3 DRAINAGE CONNECTION ….……….……………………………………........................................ 69

Page 2 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
A: TECHNICAL CHARACTERISTICS

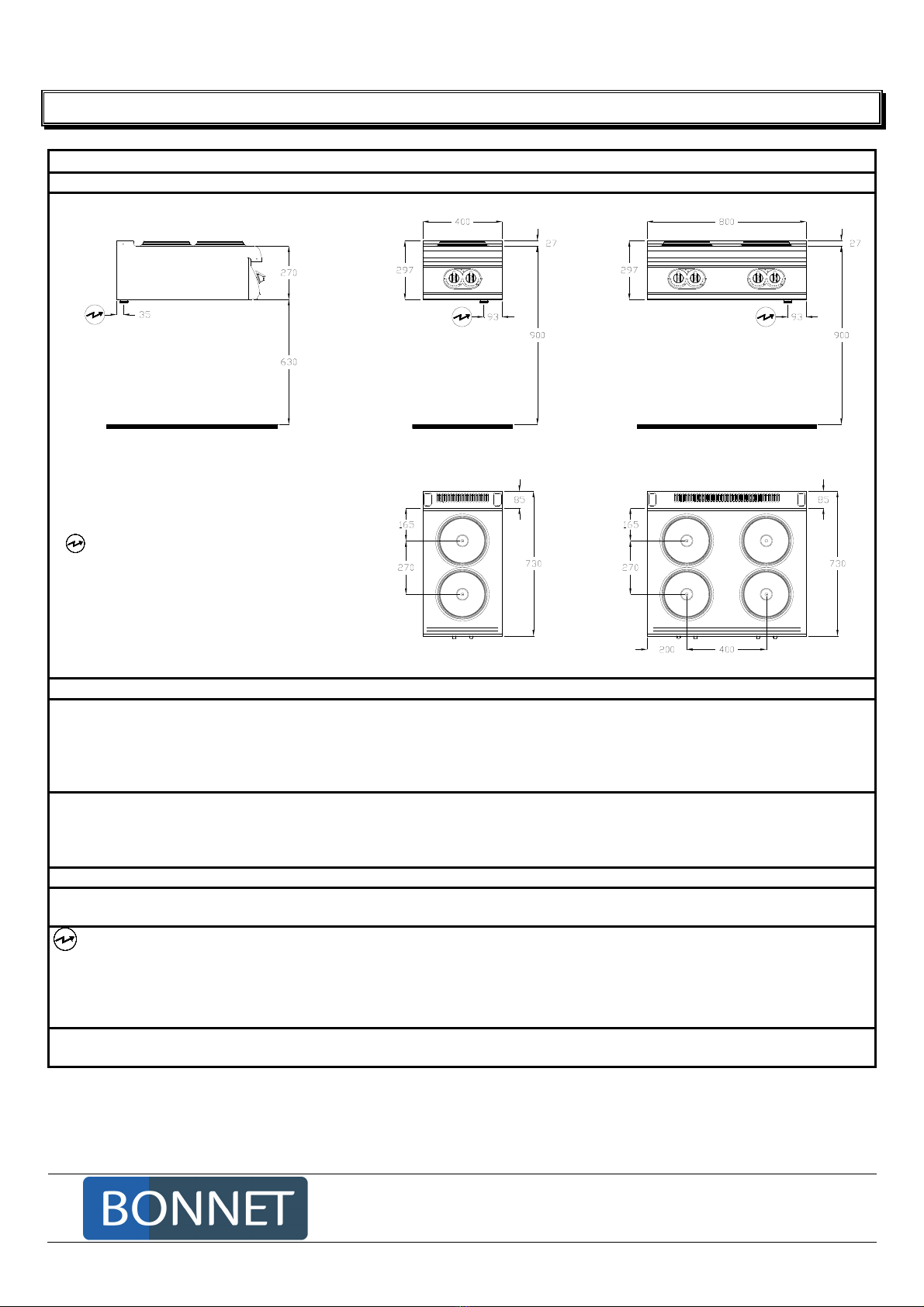

OPTIMUM 700, Electric cooking top, round plates
P075475 P075476
MODEL B-D706.PE400 B-D706.PE800
DIMENSIONS (mm)
Height 297 297
Width 400 800
Depth 730 730
Plate diameter 220 220
PACKAGING (mm)
Height 490 490
Width 500 900
Depth 830 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Round plates 2.6 kW 2 4
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 5.2 10.4
400V 3Na.c. 5.2 10.4
Max. intensity (A) 230V 3a.c. 19.6 30
400V 3Na.c. 11.3 17.2
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor.
This document is not contractual; Edition 05/2007 – 3BE0373FT
ELECTRIC connection
(Foresee a cable with 1.5 m free end)

Page 3 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

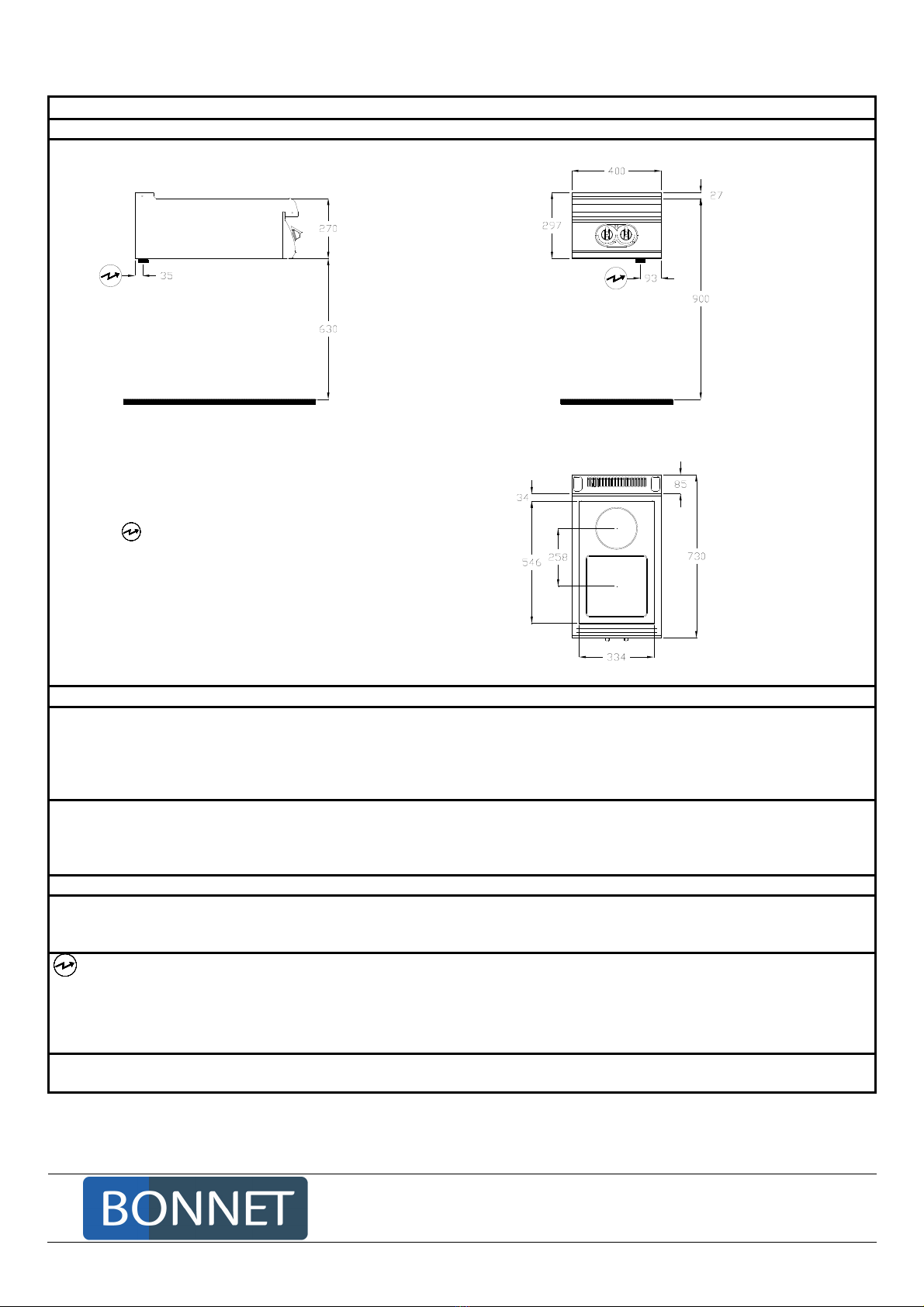

OPTIMUM 700, Electric cooking top, radiant hobs
P075477
MODEL B-D706.FR
DIMENSIONS (mm)
Height 297
Width 400
Depth 730
Pyroceramic plate 546 x 334
PACKAGING (mm)
Height 490
Width 500
Depth 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Front hob 3.5 or 4 kW 1
Back hob 1.7 kW 1
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 5.2
400V 3Na.c. 5.7
Max. Intensity (A) 230V 3a.c. 20
400V 3Na.c. 10
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0374FT
ELECTRIC connection
(Foresee a cable with 1.5 m free end)

Page 4 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking top, snack plates
P075480 P075481
MODEL B-D706.SN400 B-D706.SN800
DIMENSIONS (mm)
Height 355 355
Width 400 800
Depth 730 730
Snack plate 550 x 354 550 x 754
Useful surface (dm²) 17 36
PACKAGING (mm)
Height 550 550
Width 500 900
Depth 830 830
WEIGHT (KG) 50 90
COMPOSITION OF THE TOP
Plate width 400 1 -
Plate width 800 - 1
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 3.9 7.8
400V 3Na.c. 3.9 7.8
Max. intensity (A) 230V 3a.c. 9.8 19.6
400V 3Na.c. 5.7 11.4
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 07/2007 – 3BE0375FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 5 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

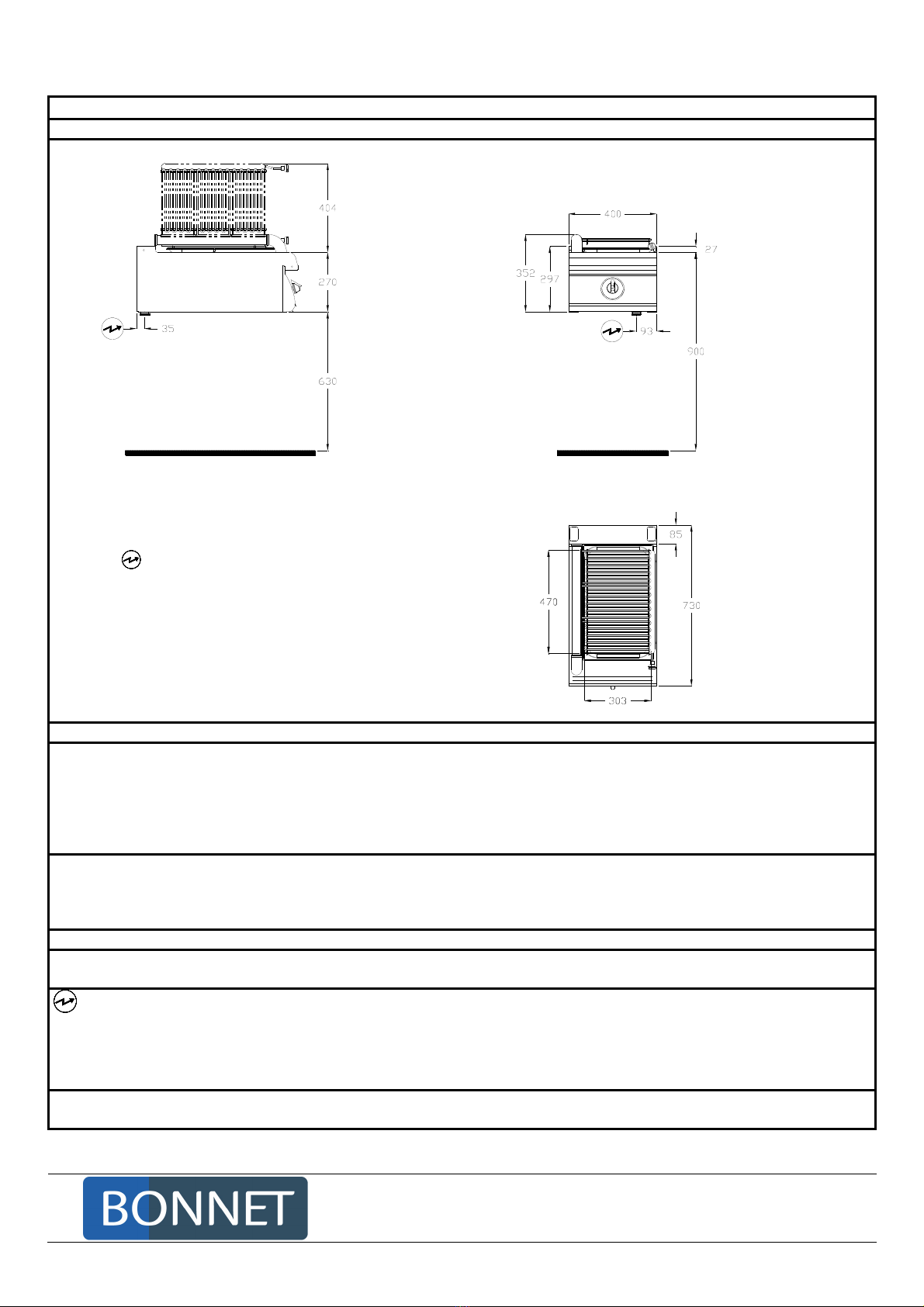

OPTIMUM 700, Electric cooking top, bar grill
P075474
MODEL B-D706.GR400
DIMENSIONS (mm)
Height 352
Width 400
Depth 730
Grill 470 x 303
Useful surface (dm2) 14
PACKAGING (mm)
Height 540
Width 500
Depth 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Grill width 400 1
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 3.93
400V 3Na.c. 3.93
Max. intensity (A) 230V 3a.c. 10
400V 3Na.c. 5.7
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0376FT
ELECTRIC connection
(Foresee a cable with 1.5 m free end)

Page 6 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

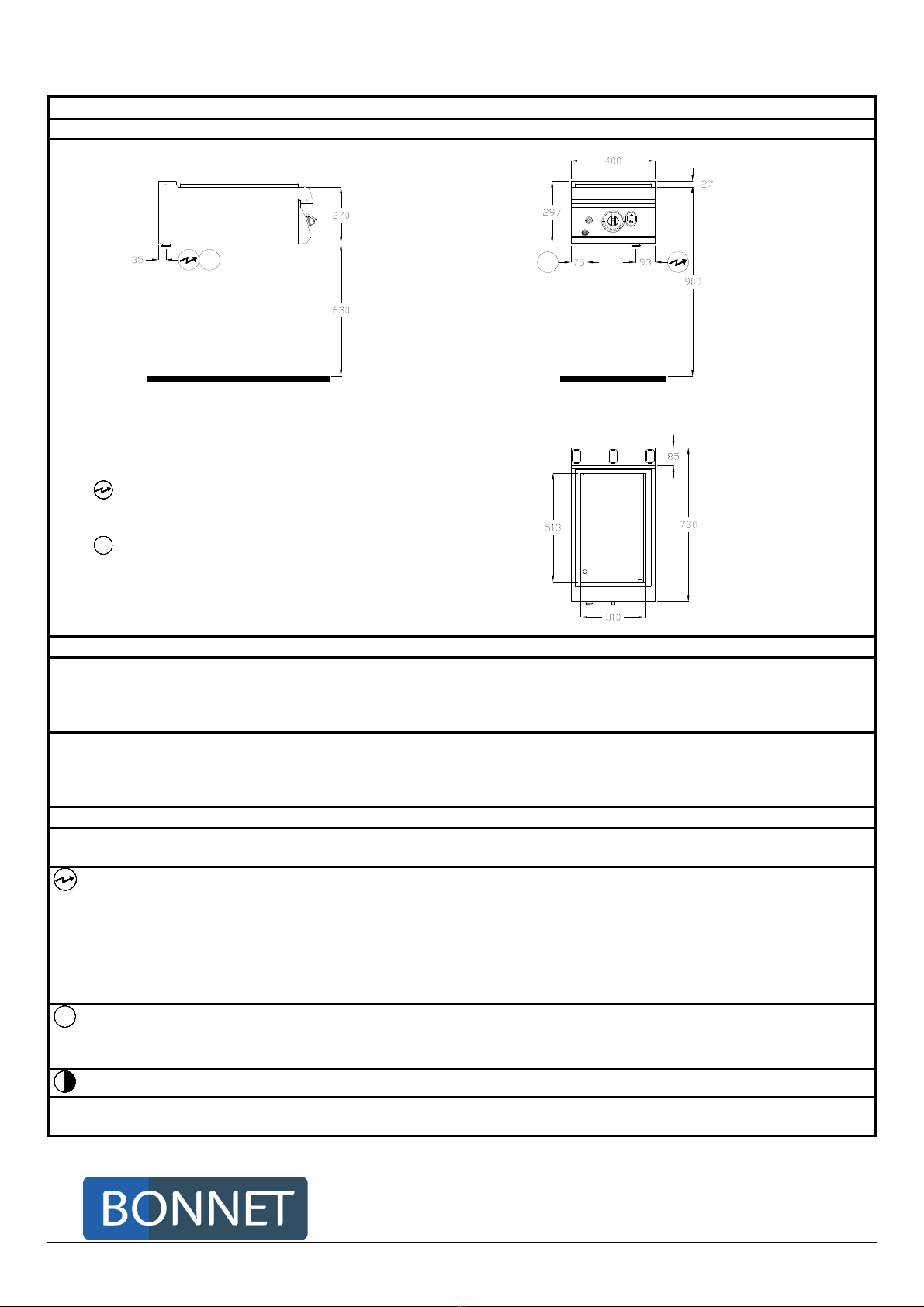

OPTIMUM 700, Electric cooking top, bain marie
P075486
MODEL B-D706.BM400
DIMENSIONS (mm)
Height 297
Width 400
Depth 730
PACKAGING (mm)
Height 490
Width 500
Depth 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Number of GN 1/3 tanks 3
ELECTRICITY (Single-phase or three-phase 230V+T or 400V+N+T)
Power (kW) 230V a.c. 1.5
230V 3a.c. 1.5
400V 3Na.c. 1.5
Max intensity (A) 230V a.c. 6.5
230V 3a.c. 6.5
400V 3Na.c. 6.5
COLD WATER
Pressure 2.5/6 bars
Connection Hose ∅12/17
DRAINAGE From front
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0377FT
ELECTRIC connection
(Foresee a cable with 1.5 m free
length)
COLD WATER

Page 7 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking top, induction 2 x 3 kW
P075478
MODEL B-D706.IND2x3
DIMENSIONS (mm)
Height 297
Width 400
Depth 730
Plate
PACKAGING (mm)
Height 490
Width 500
Depth 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Hobs 3 Kw 2
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 6
400V 3Na.c. 6
Max. intensity (A) 230V 3a.c. 22.6
400V 3Na.c. 13
AIR INLET
Filter sizes 250 x 250
Environment Ambient temperature ≤32°C
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0378FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 8 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking top, induction wok
P075479
MODEL B-D706.WI
DIMENSIONS (mm)
Height 297
Width 400
Depth 730
PACKAGING (mm)
Height 490
Width 500
Depth 830
WEIGHT (KG)
ELECTRICITY (Three-phase 400V+T)
Power (kW) 400V 3a.c. 5
Max. intensity (A) 400V 3a.c. 7.3
AIR INLET
Dimension of filter 250 x 250
Environment Ambient temperature ≤32°C
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0379FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length

Page 9 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

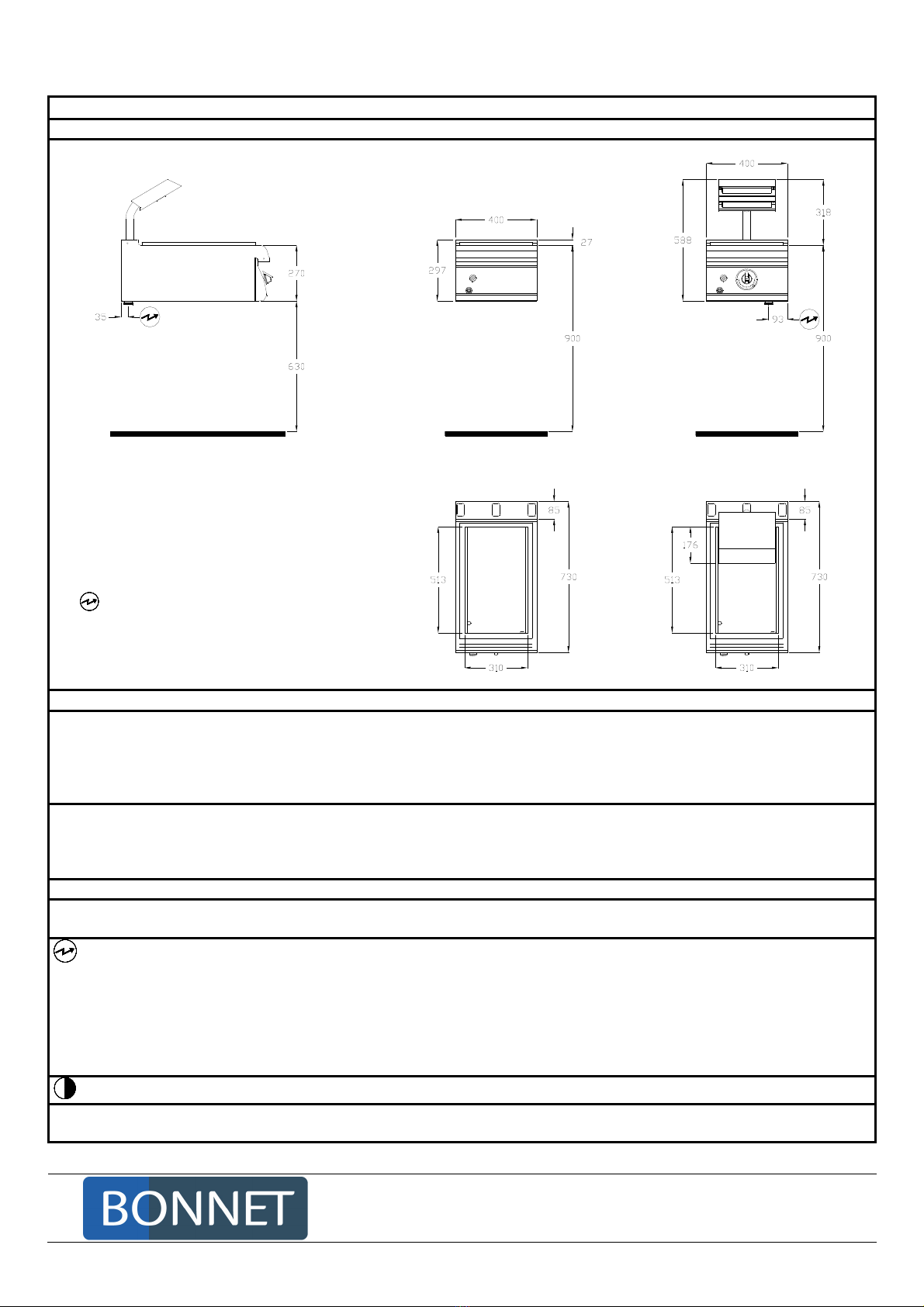

OPTIMUM 700, Electric cooking top, French fry store
P075487 P075488
MODEL B-D706.RF B-D706.RFI
DIMENSIONS (mm)
Height 297 588
Width 400 800
Depth 730 730
Tank 500 x 310 x 150 500 x 310 x 150
PACKAGING (mm)
Height 490 780
Width 500 900
Depth 830 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Tank width 310 1 1
ELECTRICITY (Single-phase or three-phase 230V+T or 400V+N+T)
Power (kW) 230V a.c. - 0.8
230V 3a.c. - 0.8
400V 3Na.c. - 0.8
Max. intensity (A) 230V a.c. - 3.5
230V 3a.c. - 3.5
400V 3Na.c. - 3.5
DRAINAGE From the front
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0380FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 10 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

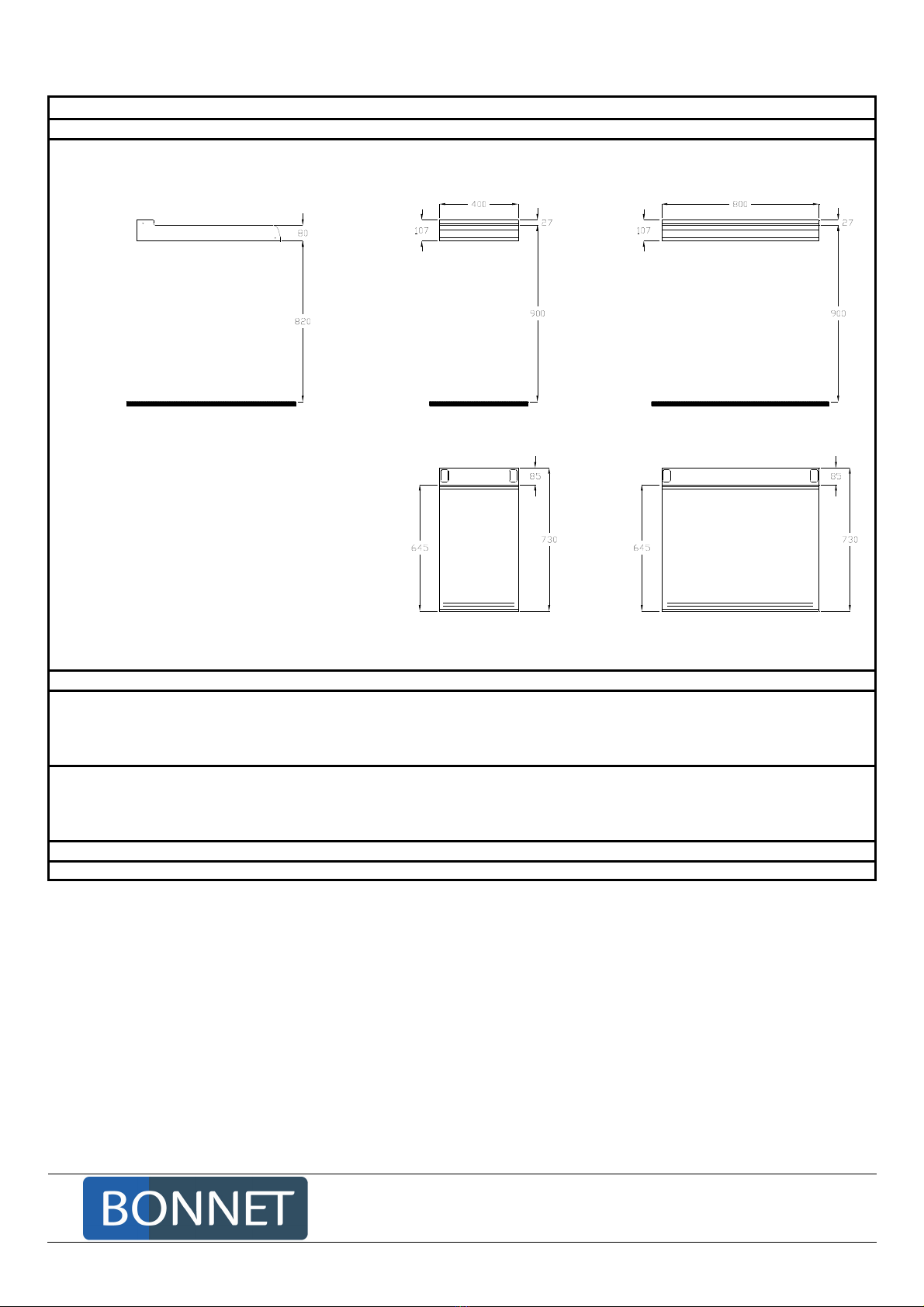

OPTIMUM 700, Cooking top, neutral top
P075482 P075483
MODEL B-D706.DN400 B-D706.DN800
DIMENSIONS (mm)
Height 297 297
Width 400 800
Depth 730 730
Plate diameter 220 220
PACKAGING (mm)
Height 490 490
Width 500 900
Depth 830 830
WEIGHT (KG)
This document is not contractual; Edition 05/2007 – 3BE0381FT

Page 11 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

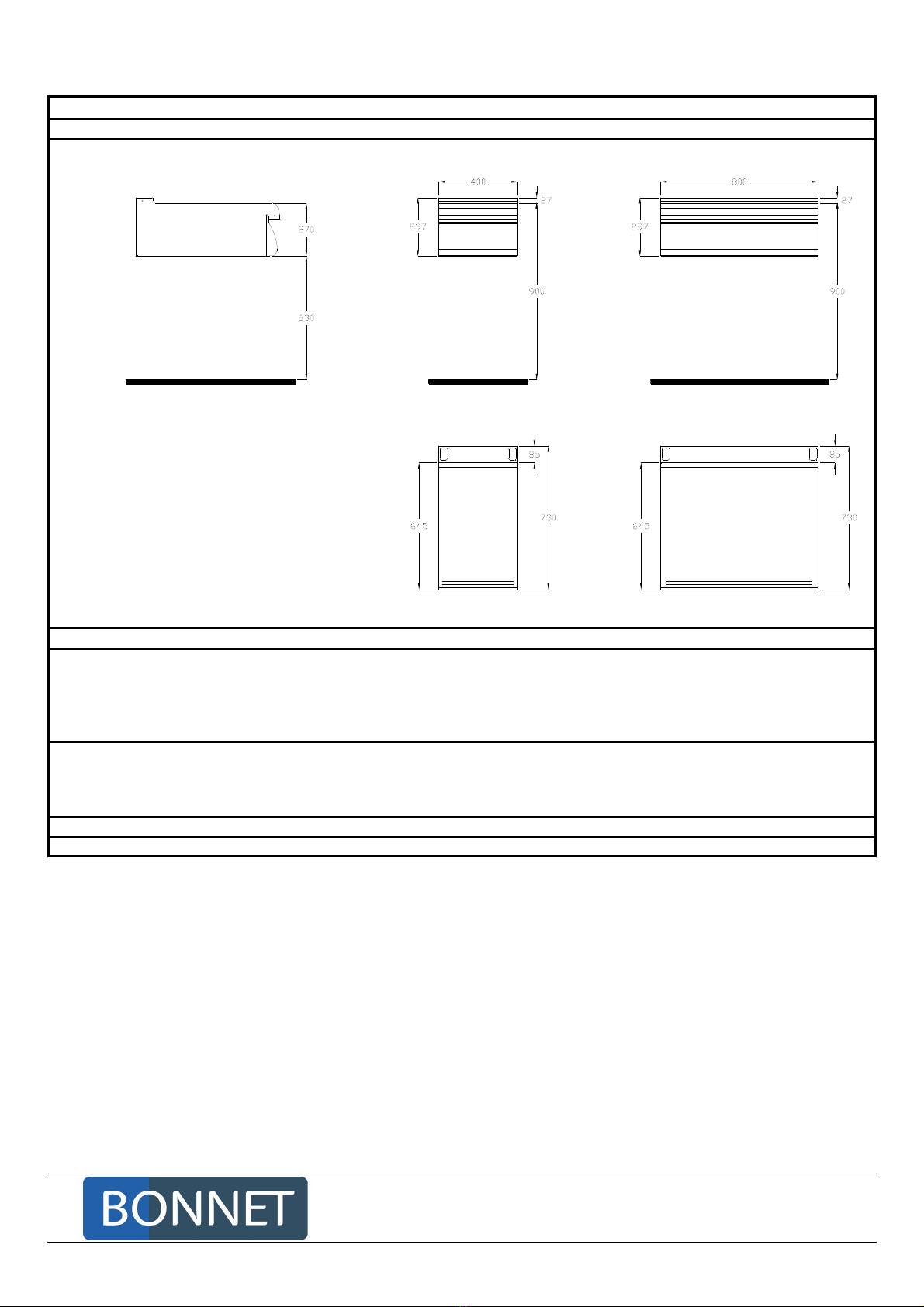

OPTIMUM 700, Accessories, neutral tray
P075484 P075485
MODEL - -
DIMENSIONS (mm)
Height 107 107
Width 400 800
Depth 730 730
PACKAGING (mm)
Height 300 300
Width 500 900
Depth 830 830
WEIGHT (KG)
This document is not contractual; Edition 05/2007 – 3BE0382FT

Page 12 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

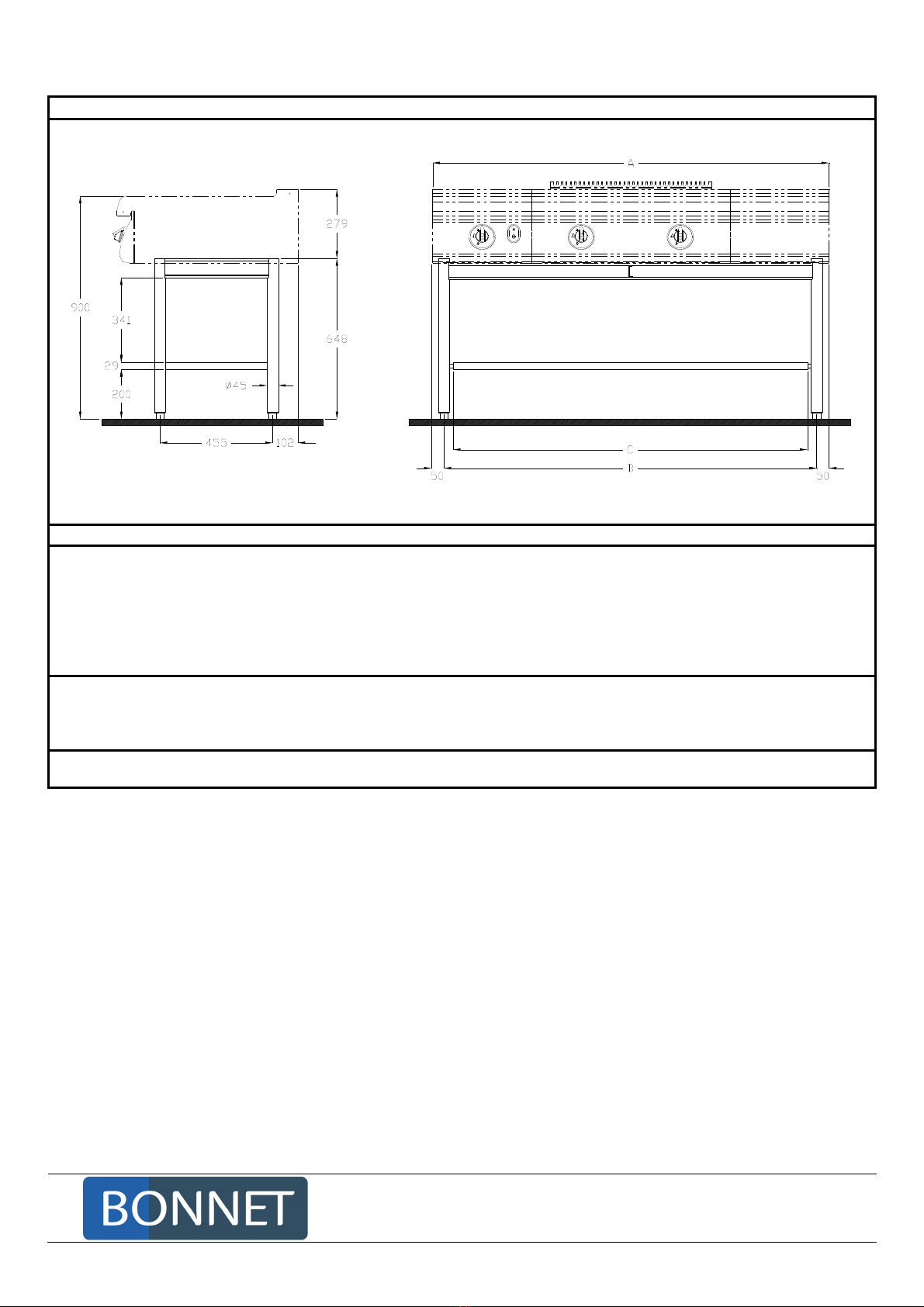

OPTIMUM 700, Accessories, fixed 630 high bases
CODES 072126 072127 072128 072129
DIMENSIONS (mm)
Width of appliance A400 800 1200 1600
Height 648 648 648 648
Width 350 750 1150 1550
Depth 500 500 500 500
Center-to-center distance between legs B305 705 1105 1505
Width of shelf C230 630 1030 1430
PACKAGING (mm)
Height 700 700 700 700
Width 450 850 1250 1650
Depth 550 550 550 550
WEIGHT (KG) 6 9 12 16
This document is not contractual; Edition 05/2007 – 3BE0383FT

Page 13 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

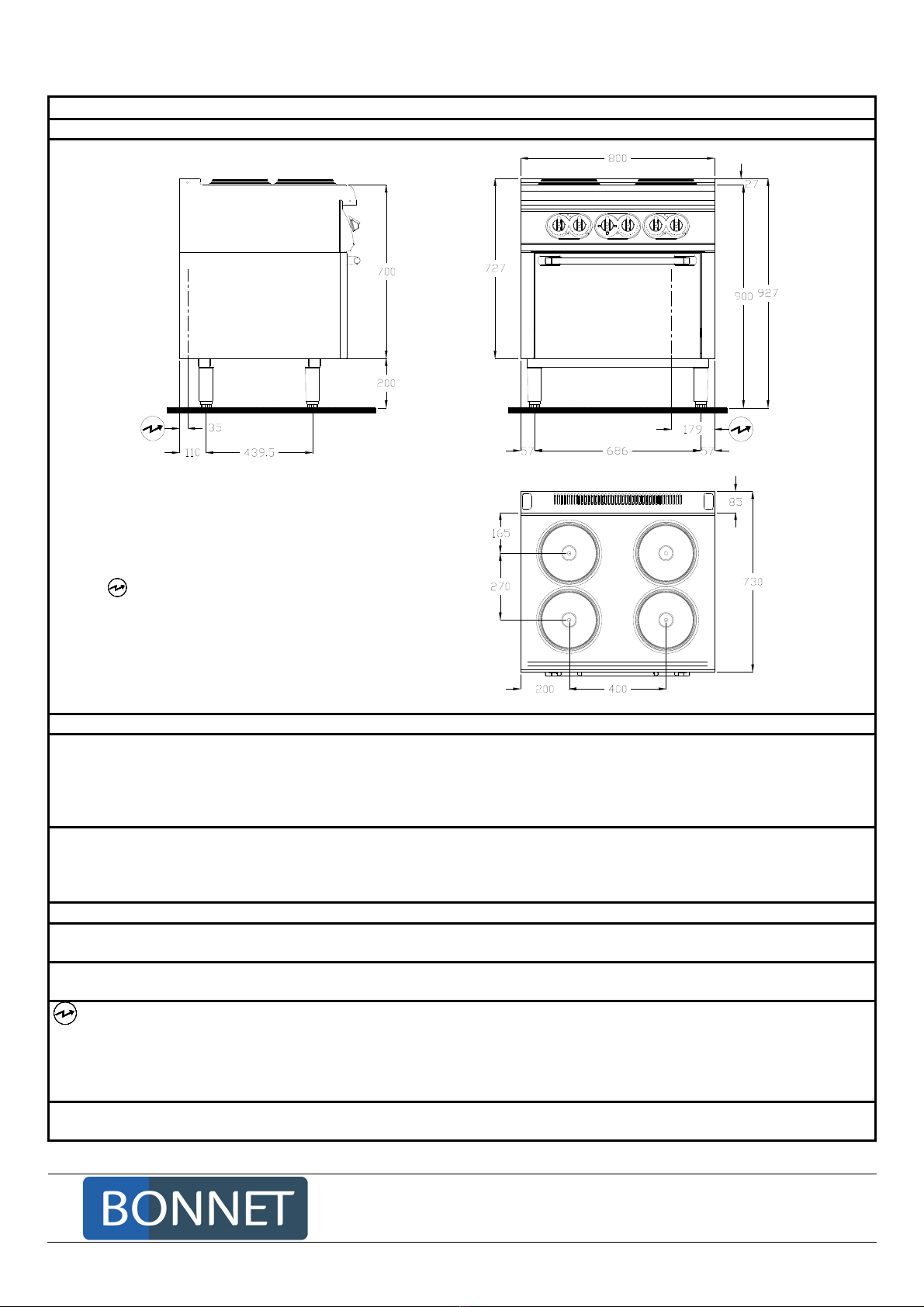

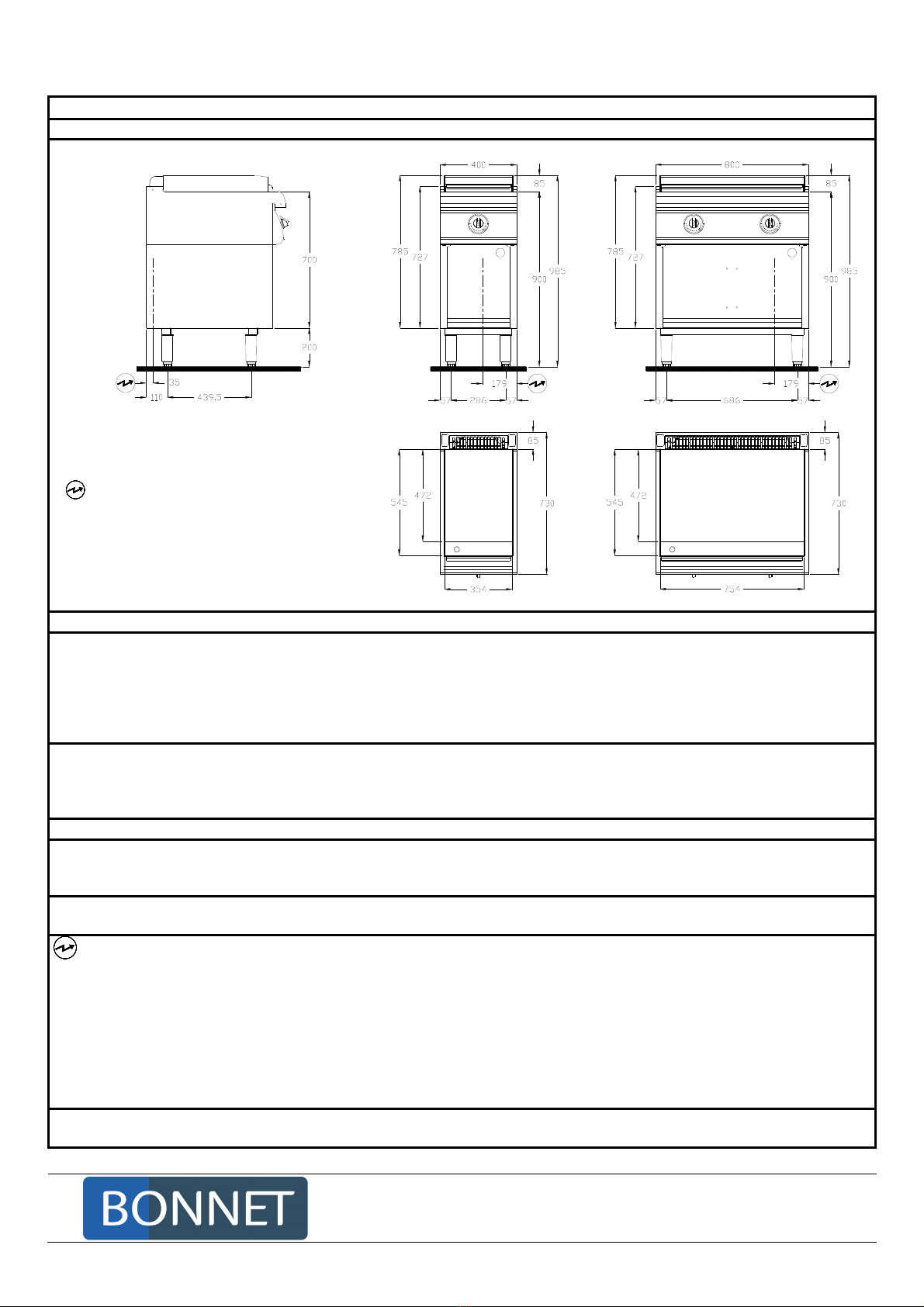

OPTIMUM 700, Electric cooking unit, round plates on free bay
P075526 P075527
MODEL B-B706.PE400 B-B706.PE800
DIMENSIONS (mm)
Height 927 927
Width 400 800
Depth 730 730
Plate diameter 220 220
PACKAGING (mm)
Height 1150 1150
Width 500 900
Depth 830 830
WEIGHT (KG) 70
COMPOSITION OF THE TOP
Round plates 2.6 kW 2 4
COMPOSITION OF THE LOWER PART
Width of free bay 400 800
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Appliance
Power (kW) 230V 3a.c. 5.2 10.4
400V 3Na.c. 5.2 10.4
Max. intensity (A) 230V 3a.c. 19.6 30
400V 3Na.c. 11.3 17.2
Optional ventilated heating kit (to be added to the total power of the appliance)
Power (kW) 230V 3a.c. 1 2
400V 3Na.c. 1 2
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 07/2007 – 3BE0399FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 14 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking unit, round plates on electric oven
P075528
MODEL B-B706.PE800.FE
DIMENSIONS (mm)
Height 927
Width 800
Depth 730
Plate diameter 220
PACKAGING (mm)
Height 1150
Width 900
Depth 830
WEIGHT (KG) 140
COMPOSITION OF THE TOP
Round plates 2.6 kW 4
COMPOSITION OF THE BOTTOM PART
Electric oven 5.1 kW 1
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 15.5
400V 3Na.c. 15.5
Max. intensity (A) 230V 3a.c. 41.9
400V 3Na.c. 24.1
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 07/2007 – 3BE0400FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 15 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking unit, radiant hobs on free bay
P075529
MODEL B-B706.FR
DIMENSIONS (mm)
Height 927
Width 400
Depth 730
Pyroceramic plate 546 x 334
PACKAGING (mm)
Height 1150
Width 500
Depth 830
WEIGHT (KG)
COMPOSITION OF THE TOP
Front hob 3.5 or 4 kW 1
Back hob 1.7 kW 1
COMPOSITION OF THE BOTTOM PART
Width of free bay 400
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Appliance
Power (kW) 230V 3a.c. 5.2
400V 3Na.c. 5.7
Max. intensity (A) 230V 3a.c. 20
400V 3Na.c. 10
Optional ventilated heating kit (to be added to the total power of the appliance)
Power (kW) 230V 3a.c. 1
400V 3Na.c. 1
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor.
This document is not contractual; Edition 05/2007 – 3BE0401FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 16 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex
OPTIMUM 700, Electric cooking unit, snack plates on free bay
P075532 P075533
MODEL B-B706.SN400 B-B706.SN800
DIMENSIONS (mm)
Height 985 985
Width 400 800
Depth 730 730
Snack plate 550 x 354 550 x 754
Useful surface (dm2) 17 36
PACKAGING (mm)
Height 1180 1180
Width 500 900
Depth 830 830
WEIGHT (KG) 65 115
COMPOSITION OF THE TOP
Plate width 400 1 -
Plate width 800 - 1
COMPOSITION OF THE BOTTOM PART
Width of free bay 400 800
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Appliance
Power (kW) 230V 3a.c. 3.9 7.8
400V 3Na.c. 3.9 7.8
Max. intensity (A) 230V 3a.c. 9.8 19.6
400V 3Na.c. 5.7 11.4
Optional ventilated heating kit (to be added to the total power of the appliance)
Power (kW) 230V 3a.c. 1 2
400V 3Na.c. 1 2
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor.
This document is not contractual; Edition 05/2007 – 3BE0402FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 17 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

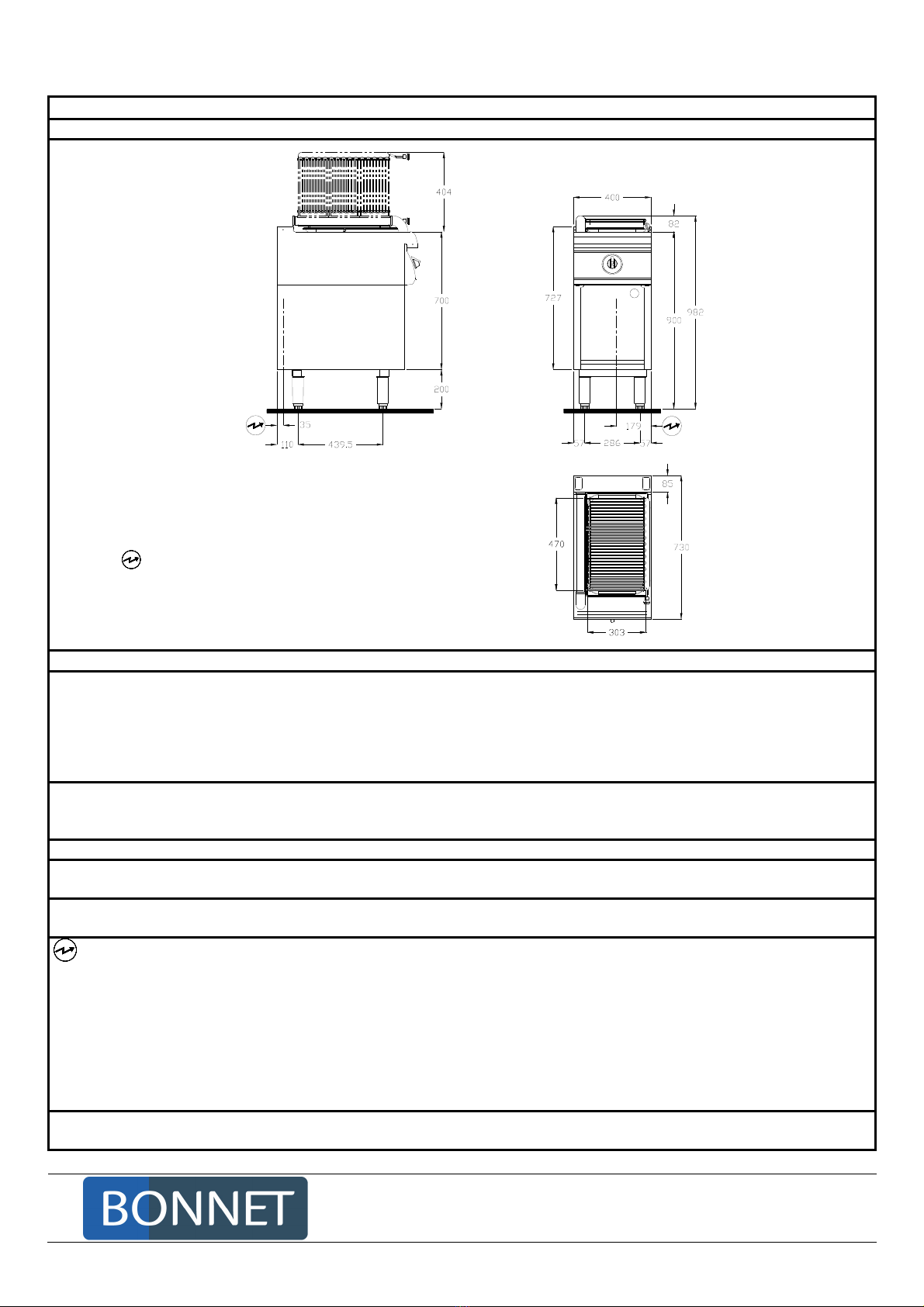

OPTIMUM 700, Electric cooking unit, bar grill on free bay
P075525
MODEL B-B706.GR400
DIMENSIONS (mm)
Height 982
Width 400
Depth 730
Grill 470 x 303
Useful surface (dm2) 14
PACKAGING (mm)
Width 500
Depth x Height 830 x 1170
WEIGHT (KG) 45
COMPOSITION OF THE TOP
Grill width 400 1
COMPOSITION OF THE BOTTOM PART
Width of free bay 400
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Appliance
Power (kW) 230V 3a.c. 3.93
400V 3Na.c. 3.93
Max. intensity (A) 230V 3a.c. 10
400V 3Na.c. 5.7
Optional ventilated heating kit (to be added to the total power of the appliance)
Power (kW) 230V 3a.c. 1
400V 3Na.c. 1
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor.
This document is not contractual; Edition 07/2007 – 3BE0403FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)

Page 18 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

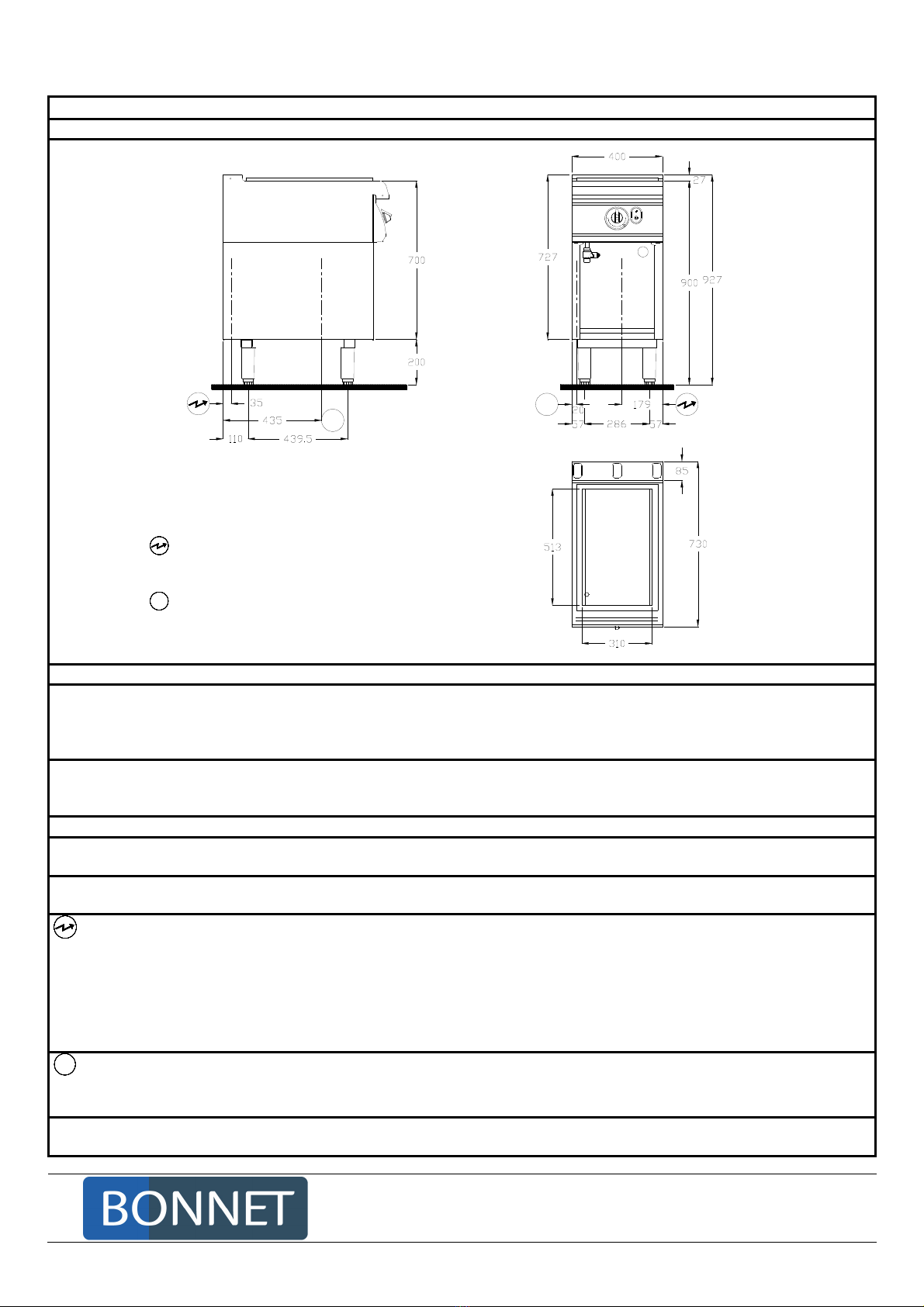

OPTIMUM 700, Electric cooking unit, bain marie on free bay
P075534
MODEL B-B706.BM400
DIMENSIONS (mm)
Height 927
Width 400
Depth 730
PACKAGING (mm)
Width 500
Depth x Height 830 x 1150
WEIGHT (KG) 50
COMPOSITION OF THE TOP
Number of GN 1/3 recipients 3
COMPOSITION OF THE BOTTOM PART
Width of free bay 400
ELECTRICITY (Single-phase or three-phase 230V+T or 400V+N+T)
Power (kW) 230V a.c. 1.5
230V 3a.c. 1.5
400V 3Na.c. 1.5
Max. intensity (A) 230V a.c. 6.5
230V 3a.c. 6.5
400V 3Na.c. 6.5
COLD WATER
Pressure 2.5/6 bars
Connection Hose ∅12/17
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 05/2007 – 3BE0404FT
ELECTRIC connection
(Foresee a cable with 1.5 m free
length)
COLD WATER

Page 19 3BE390580NI – 07/07
BONNET CIDELCEM GRANDE CUISINE
Siége social:
Rue des Frères Lumière - Z.I Mitry Compans
77292 MITRY MORY Cedex

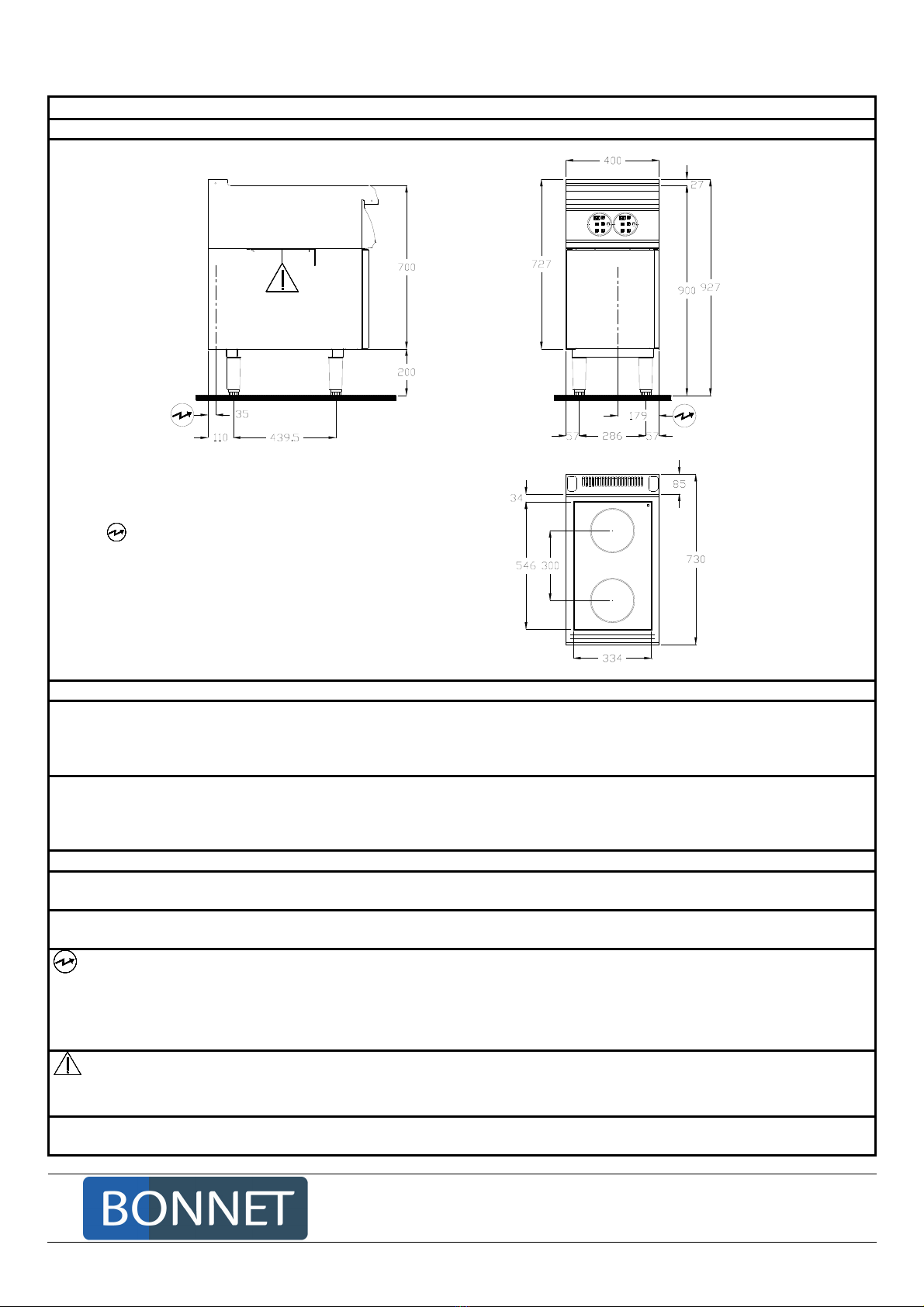

OPTIMUM 700, Electric cooking unit, induction 2 x 3 kW on technical cupboard
P075530
MODEL B-B706.IND2x3
DIMENSIONS (mm)
Height 927
Width 400
Depth 730
PACKAGING (mm)
Height 1150
Width 500
Depth 830
WEIGHT (KG) 55
COMPOSITION OF THE TOP
3 kW hobs 2
COMPOSITION OF THE BOTTOM PART
Width of technical cupboard 400
ELECTRICITY (Three-phase 230V+T or 400V+N+T)
Power (kW) 230V 3a.c. 6
400V 3Na.c. 6
Max. intensity (A) 230V 3a.c. 22.6
400V 3Na.c. 13
AIR INLET
Dimension of the filter 250 x 250
Environment Ambient temperature ≤32°C
ELECTRIC CONNECTION
Electric outlet at 615 mm above the floor
This document is not contractual; Edition 07/2007 – 3BE0405FT
ELECTRIC connection
(Foresee a cable with 1.5 m free length)
