Bosch HBL33 User manual

Built-In Ovens
Installation Manual
Guide d’installation
Manual de instalación
Models: HBL33, HBN33, HBL34, HBN34, HBL35, HBN35, HBL54, HBN54,
HBL56, HBN56, HBL57, HBL8450, HBL8650, HBL8750

Table of Contents
Questions?
1-800-944-2904
www.boschappliances.com
We look forward to hearing from you!
This Bosch Appliance is made by
BSH Home Appliances Corporation
5551 McFadden Ave.
Huntington Beach, CA 92649
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Before you Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tools and Parts Needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Parts Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
27” Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
30” Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Removing Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
For Convection Microwave Combination Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Preparing Oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

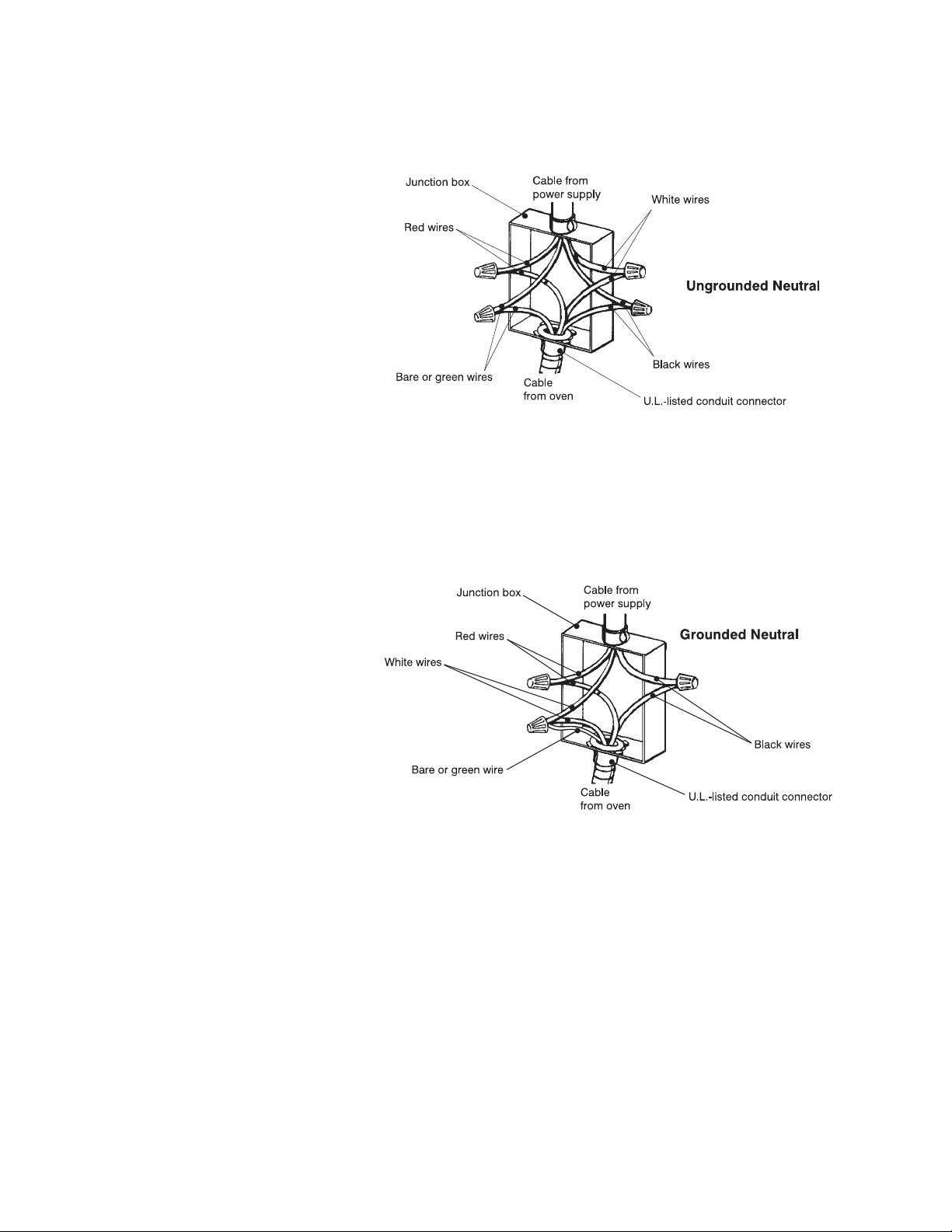

Electrical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Oven Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Testing Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

English 1
Safety
WARNING:
If the information in this manual is not followed exactly, fire or shock may result
causing property damage or personal injury.
WARNING:
Do not repair or replace any part of the appliance unless specifically recommended
in the manuals. Improper installation, service or maintenance can cause injury or
property damage. Refer to this manual for guidance. All other servicing should be
done by a qualified technician.
Appliance Handling Safety Do not lift appliance by door handle. Remove the door for easier handling and
installation. See instructions in Use and Care Manual.
Unit is heavy and requires at least two people or proper equipment to move.
Hidden surfaces may have sharp edges. Use caution when reaching behind or
under appliance.
Safety Codes and Standards This appliance complies with one or more of the following Standards:
• UL 858, The Standard for the Safety of Household Electric Ranges
• UL 923, The Standard for the Safety of Microwave Cooking Appliances
• UL 507, The Standard for the Safety of Electric Fans
• ANSI Z21.1, The American National Standard for Household Cooking Gas
Appliances
• CAN/CSA-C22.2 No. 113-M1984 Fans and Ventilators
• CAN/CSA-C22.2 No. 61-M89 Household Cooking Ranges
It is the responsibility of the owner and the installer to determine if additional
requirements and/or standards apply to specific installations.
Electric Safety Before you plug in an electrical cord, be sure all controls are in the OFF position.
If required by the National Electrical Code (or Canadian Electrical Code), this
appliance must be installed on a separate branch circuit.
Installer - show the owner the location of the circuit breaker or fuse. Mark it for easy
reference.
Important - Save these instructions for the local electrical inspector's use.
Before installing, turn power OFF at the service panel. Lock service panel to prevent
power from being turned ON accidentally.

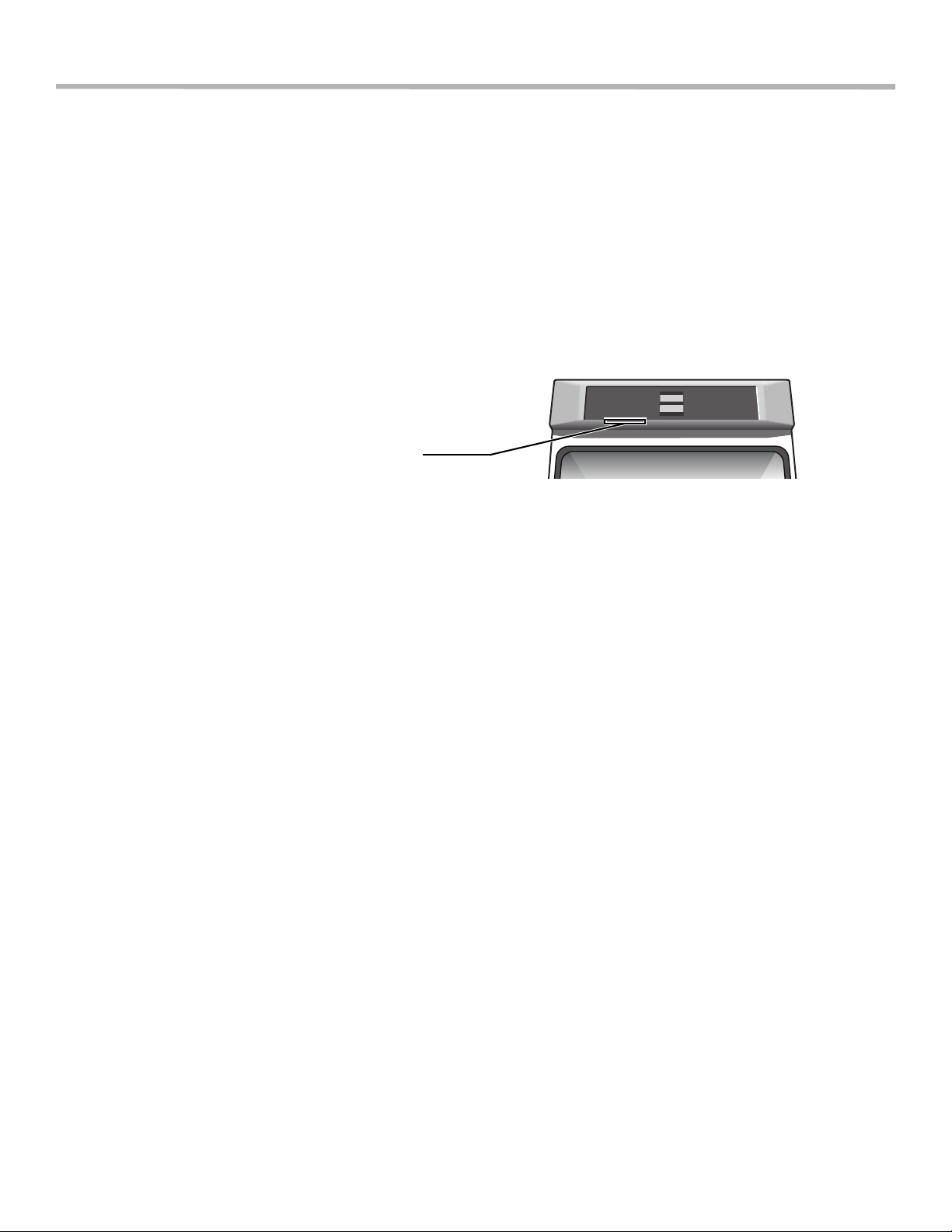

Refer to data plate for more information. See "Data Plate" under "Service" for data
plate location.
mImportant Safety Instructions
READ AND SAVE THESE INSTRUCTIONS

English 2
Be sure your appliance is properly installed and grounded by a qualified technician.
Installation, electrical connections and grounding must comply with all applicable
codes.
Related Equipment Safety Remove all tape and packaging before using the appliance. Destroy the packaging
after unpacking the appliance. Never allow children to play with packaging material.
Never modify or alter the construction of the appliance. For example, do not remove
leveling legs, panels, wire covers or anti-tip brackets/screws.
Transport To avoid damage to the oven vent, use the transport method shown in the picture
below.
mImportant Safety Instructions
READ AND SAVE THESE INSTRUCTIONS

English 3
Preparation
Before you Begin
Tools and Parts Needed • Phillips head screwdriver
• Measuring tape
• Drill with bit (1/8")
Parts Included • Phillips head screws (6)
27” Appliances
General Information
Power Requirements The outlet must be properly grounded in accordance with all applicable codes.
Dimensions for 27” Wall-Mounted Units

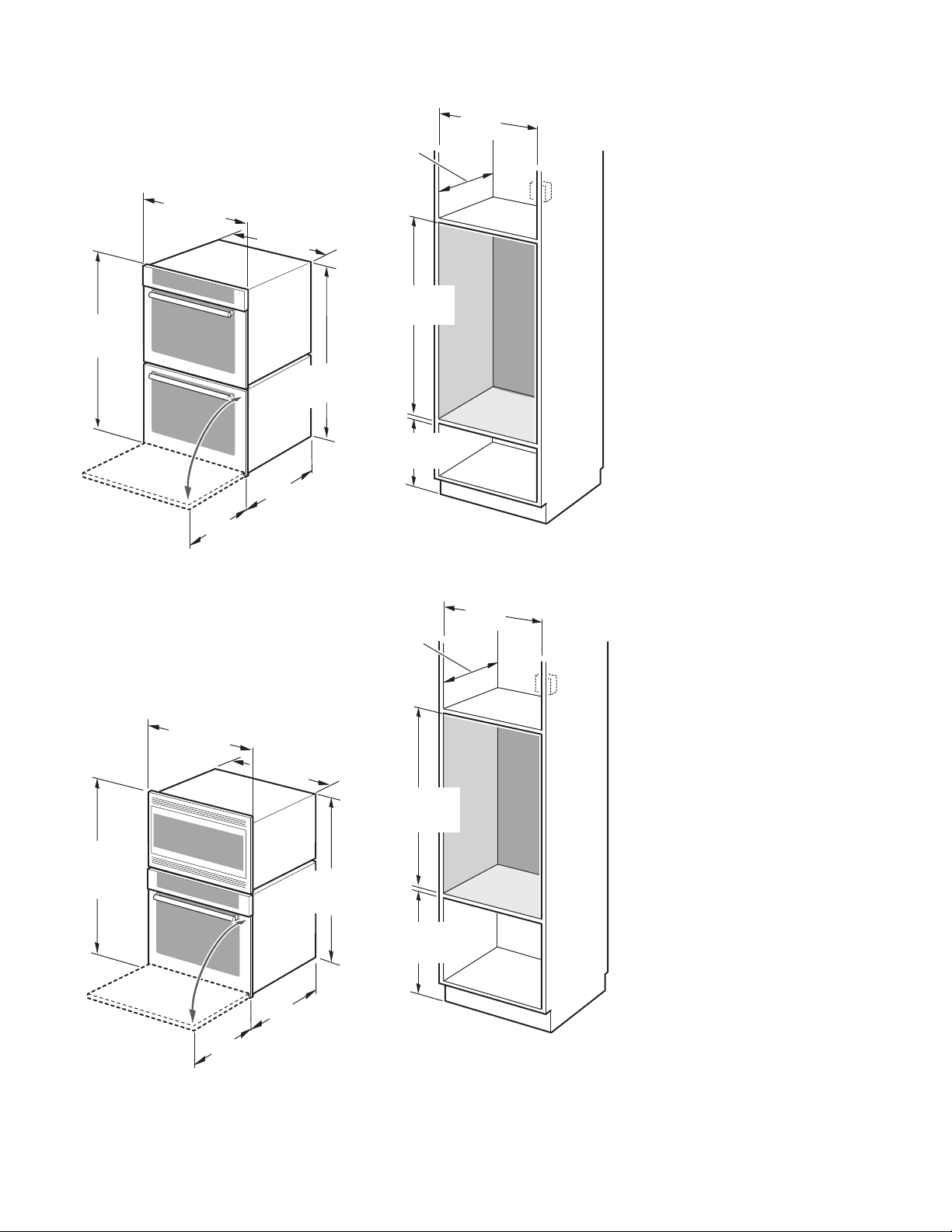

25
1/2"
(648mm)
28
1/4"
(718mm)
27
"
(686mm)
24
13/16"
(630mm)
min. 4
3/4"
(121mm)
max. 31
3/8"
(797mm)
24
"
(610mm)
23
7/8"
(606mm)
22
"
(559mm)
29
1/16"
(738mm)
26
3/4"
(680mm)
Single Oven 27”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven and
the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening. The
supporting base must be well secured
to the floor/cabinet and level.
Note: The conduit box must be installed
either above or below the unit. If the
conduit box is installed below the unit, a
2” diameter hole or space is required
between the back wall and the right rear
of the 2x4 supports.
The cabinet base must be flat and
capable of supporting a weight of at
least 210 lbs (95 kg).

English 4
25
1/2"
(648mm)
24
"
(610mm)
51
1/8"
(1299mm)
9
3/4"
(248mm)
23
7/8"
(606mm)
22
"
(559mm)
51
3/4"
(1314mm)
26
3/4"
(680mm)
49
3/4"
(1264mm)
24
13/16"
(630mm)
Double Oven 27”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 355 lbs (161 kg).

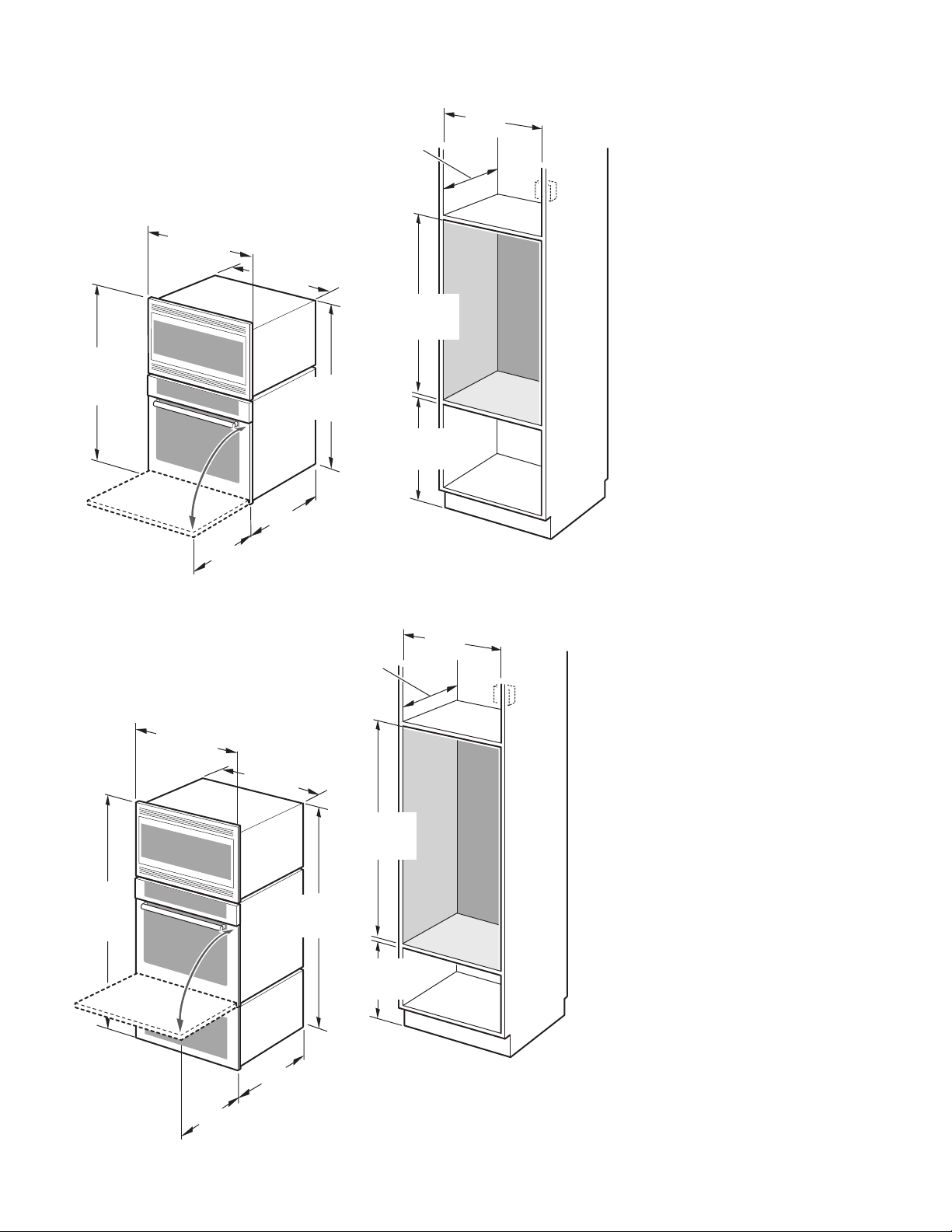

237/8" (606mm)
22" (559mm)
50"
(1270mm) 483/8"
(1229mm)
263/4"
(680mm)
251/2"
(648mm)
24"
(610mm)
491/2"
(1257mm)
191/2"
(500mm)
2413/16"
(630mm)
Combo Oven with Microwave 27”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be
located above the unit to facilitate
connecting and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 330 lbs (150 kg).

English 5
23
7/8"
(606mm)
22
"
(559mm)
26
3/4"
(680mm)
25
1/2"
(648mm)
24
"
(610mm)
60
3/4"
(1543mm)
59
5/8"
(1514mm)
9
3/4"
(248mm)
24
13/16"
(630mm)
61
3/8"
(1559mm)
Combo Oven with Microwave and
Warming Drawer 27”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 370 lbs (168 kg).
36
"
(915mm)
20
"
(508mm)
28
1/4"
(718mm)
16
1/2"
(419mm)
24
"
(610mm)
4
3/4"
(121mm)
25
1/2"
(648mm)
23
7/8"
(606mm)
22
"
(559mm)
29
1/16"
(738mm)
26
3/4"
(680mm)
27
"
(686mm)
24
13/16"
(630mm)
min. 3
3/4"
(95mm)
27” Under-the-counter units

English 6
30” Appliances
Dimensions for 30” Wall-Mounted Units
28
1/2"
(724mm)
28
1/4"
(718mm)
27
"
(686mm)
27
13/16"
(706mm)
min. 4
3/4"
(121mm)
max. 31
3/8"
(797mm)
24
"
(610mm)
23
7/8"
(606mm)
22
"
(559mm)
29
1/16"
(738mm)
29
3/4"
(755mm)
Single Oven 30”
It is good practice, when oven is installed
at the end of a cabinet run, adjacent to a
perpendicular wall or cabinet door, to
allow at least 1/4” space between the
side of the oven and the wall/door.
For oven support, install 2x4’s extending
front to back flush with the bottom and
the side of the opening. The supporting
base must be well secured to the floor/
cabinet and level.
Note: The conduit box must be installed
either above or below the unit. If the
conduit box is installed below the unit, a
2” diameter hole or space is required
between the back wall and the right rear
of the 2x4 supports.
The cabinet base must be flat and
capable of supporting a weight of at
least 190 lbs (86 kg).
28
1/2"
(724mm)
24
"
(610mm)
51
1/8"
(1299mm)
9
3/4"
(248mm)
51
3/4"
(1314mm)
29
3/4"
(755mm)
23
7/8"
(606mm)
22
"
(559mm)
49
3/4"
(1264mm)
27
13/16"
(706mm)
Double Oven 30”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 330 lbs (150 kg).

English 7
237/8" (606mm)
22" (559mm)
50"
(1270mm) 483/8"
(1229mm)
293/4"
(755mm)
281/2"
(724mm)
24"
(610mm)
491/2"
(1257mm)
191/2"
(500mm)
2713/16"
(706mm)
Combo Oven with Microwave 30”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 290 lbs (132 kg).
23
7/8"
(606mm)
22
"
(559mm)
29
3/4"
(755mm)
28
1/2"
(724mm)
24
"
(610mm)
60
3/4"
(1543mm)
59
5/8"
(1514mm)
9
3/4"
(248mm)
27
13/16"
(706mm)
61
3/8"
(1559mm)
Combo Oven with Microwave and
Warming Drawer 30”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 310 lbs (141 kg).

English 8
23
7/8"
(606mm)
22
"
(559mm)
29
3/4"
(755mm)
28
1/2"
(724mm)
24
"
(610mm)
40
"
(1016mm)
38
1/8"
(968mm)
9
3/4"
(248mm)
27
13/16"
(706mm)
40
7/16"
(1027mm)
Combo Oven with Warming
Drawer 30”
It is good practice, when oven is
installed at the end of a cabinet run,
adjacent to a perpendicular wall or
cabinet door, to allow at least 1/4”
space between the side of the oven
and the wall/door.
For oven support, install 2x4’s
extending front to back flush with the
bottom and the side of the opening.
The supporting base must be well
secured to the floor/cabinet and level.
Note: The conduit box must be located
above the unit to facilitate connecting
and servicing.
The cabinet base must be flat and
capable of supporting a weight of at
least 290 lbs (132 kg).
36
"
(915mm)
20
"
(508mm)
28
1/4"
(718mm)
16
1/2"
(419mm)
24
"
(610mm)
4
3/4"
(121mm)
28
1/2"
(724mm)
23
7/8"
(606mm)
22
"
(559mm)
29
1/16"
(738mm)
29
3/4"
(755mm)
27
"
(686mm)
27
13/16"
(706mm)
min. 3
3/4"
(95mm)
30” Under-the-counter-Units

English 9
Removing Packaging
• Cut straps on outside of box.
• Remove cardboard box.
• Remove all top and side cardboard and Styrofoam braces.
• Place oven in front of cabinets where it is to be installed.
• Unscrew unit from Left and Right Brackets as show in “Left and Right
Packaging Bracket Removal.”
Left and Right Packaging Bracket Removal
Note: Different models use different packaging materials. Actual brackets may look
differently. Bracket remains in packaging base. Unit should stay on packaging base
until ready to be lifted into cabinet cutout.
For Convection
Microwave Combination
Units
Remove 2 rear support Convection Microwave Shipping Brackets prior to
installation as shown in “Convection Microwave Shipping Bracket Removal.”
Convection Microwave Shipping Bracket Removal (for Convection Microwave Combination Units Only)
Preparing Oven Place oven in front of cabinets where it is to be installed. Rest it on a jack or other
sturdy support so that it is in line with the cabinet cutout.

English 10
Installation
Electrical Installation
All model ovens on the front cover are dual rated, designed to be connected to
either 208/240V AC, 60 Hz, 4 wire, single-phase power supply.
The electrical supply should be a 4-wire single-phase AC. Install a suitable conduit
box (not furnished). An appropriately-sized, UL-listed conduit connector must be
used to correctly attach the conduit to the junction box.
Important: Local Codes may vary; installation, electrical connections and
grounding must comply with all applicable local codes.
If local codes permit grounding through the electrical supply neutral, connect both
the white neutral wire and the bare ground wire from the oven to the white neutral
electrical supply wire.
Model Circuit Required
208V, 60 Hz 240V, 60 Hz
HBN33, HBL33,
HBN34, HBL34 25 AMP 30 AMP
HBN54, HBL54, HBL84 30 AMP 30 AMP
HBN35, HBL35 40 AMP 40 AMP
HBN56, HBL56,
HBL8650 30 AMP 40 AMP
HBL57, HBL8750 50 AMP

English 11
Electrical Connection The four-wire connection is preferred, but where local codes permit, the three wire
connection is also acceptable.
Four-wire Connection
• Connect the red oven wire to the red electrical supply wire (hot wire).
• Connect the black oven wire to the black electrical supply wire (hot wire).
• Connect the white neutral oven wire to the white neutral (not bare ground)
electrical supply wire.
• Connect the bare ground oven wire to the bare ground electrical supply wire.
Three-wire Connection
• Connect red wire from oven to red wire injunction box.
• Connect black wire from oven to black wire in junction box.
• Connect both green ground wire and white wire from oven to white (or gray)
neutral wire in junction box.
The conduit cable, where connected at the oven, swivels. Rotate conduit cable
upward (or downward) and direct through hole prepared in cabinet to attach to J-
Box.
To maintain serviceability, the flex conduit must not be shortened and should be
routed to permit temporary removal of the oven.

English 12
Oven Installation
Note: Before installing the oven, be sure to verify the cabinet dimensions and electrical
connections.
Removing the Oven Door For ease of installation, some oven doors may be removed to reduce the weight of
the oven by 30 lbs (14 kg) per door, before installing into the cabinet. See “To
remove the oven door.”
To remove the oven door:
mCAUTION:
When removing the door:
• Make sure oven is cool and power to the oven has been turned
off before removing the door. Failure to do so could result in
electrical shock or burns.
• The oven door is heavy and fragile. Use both hands to remove
the oven door. The door front is glass. Handle carefully to avoid
breaking.
• Grasp only the sides of the oven door. Do not grasp the handle
as it may swing in your hand and cause damage or injury.
• Failure to grasp the oven door firmly and properly could result in
personal injury or product damage.
• To avoid injury from hinge bracket snapping closed, be sure that
both levers are securely in place before removing the door. Also,
do not force door open or closed - the hinge could be damaged
and injury could result.
1. Be sure to read the above CAUTION
before attempting to remove the door.
2. Open the door completely.
3. Flip levers on hinges toward you.
4. Close door carefully until it stops. It will
be about half way closed.
5. Holding the door firmly on both sides
using both hands, pull the door up and
out of the hinge slots. Hold firmly; the
door is heavy.
6. Place the door in a convenient and
stable location for cleaning.

English 13
Installing the Oven 1. Lift or slide unit into cabinet cutout. Do not lift appliance by door handle.
2. Push straight in until oven trim is flush with cabinet wall, being careful not to
crimp flexible conduit between oven and cabinet back wall. The oven should be
straight and level, not crooked.
3. Install supplied screws through tap holes in trim. (2 screws for single ovens, 4
screws for double/combo ovens)
To replace the oven door:
Testing Operation
1. Turn on power at the breaker.
2. Check power at junction box using a volt meter.
For 240 V installation, the reading between the red and black wires (line to line)
should be 220 to 240 volts.
For 208 V installation, the reading between the red and black wires (line to line)
should be 190 to 208 volts.
3. Test the oven mode.
Select the BAKE mode. See the Use and Care Manual for detailed operation
instructions.
4. Verify that the oven light comes on and the oven begins to preheat.
5. Test the door lock.
Set the SELF CLEAN mode. Confirm that the door locks when the lock icon
appears in the display.
6. If installing a double oven, test the second oven as well.
7. If any of the tests do not result as explained above, contact Bosch service for
assistance. Otherwise, the installation is complete at this time.
1. Holding the door firmly in both hands,
place hinges in hinge slots.
2. Open door all the way to expose
hinges and slots.
3. Push lever down and away from you
until flush with the bracket.
4. Close and open door slowly to be sure
it is correctly and securely in place.
Door must be straight, not crooked.

English 14
Service
Before Calling Service See Use and Care Manual for troubleshooting information. Refer to the Warranty in
the Use and Care Manual.
To reach a service representative, see the contact information at the front of the
manual. Please be prepared with the information printed on your product data plate
when calling.
Data Plate The data plate shows the model and serial number. Refer to the data plate on the
appliance when requesting service. The data plate is located on the underside of
the control panel:
Data Plate

Table des matières
Questions ?
1-800-944-2904
www.boschappliances.com
Nous attendons de vos nouvelles !
Cet appareil électroménager de Bosch est fait par
BSH Home Appliances Corporation
5551 McFadden Ave.
Huntington Beach, CA 92649
Sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Consignes de sécurité importantes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Préparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Avant de commencer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Outils et pièces nécessaires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pièces incluses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Appareils électroménagers de 27 po . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Informations générales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Appareils électroménagers de 30 po . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pour enlever l’emballage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pour les fours combinés de micro-ondes et convection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Installation électrique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Raccordement électrique . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation du four . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Test de contrôle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Avant d'appeler le service de dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Français 1
Sécurité
AVERTISSEMENT:
si les informations de ce manuel ne sont pas suivies à la lettre, un incendie ou un
choc électrique peuvent se produire et sont susceptibles de causer des dommages
matériels ou des lésions corporelles.
AVERTISSEMENT:
ne pas réparer ni remplacer des pièces de l'appareil à moins que cela ne soit
expressément recommandé dans le manuel. Toute installation, réparation ou
maintenance inadéquate peut entraîner des blessures ou des dommages matériels.
Consulter ce manuel pour obtenir des conseils sur la façon de procéder. Tous les
travaux d'entretien doivent être confiés à un technicien qualifié.
Sécurité de manipulation de
l'appareil Ne pas soulever l'appareil par la poignée de la porte. Enlever la porte pour faciliter
la manipulation et l'installation de l'appareil. Voir les instructions du Manuel
d'utilisation et d'entretien.
Cet appareil est lourd et il faut au moins deux personnes ou l'équipement approprié
pour le déplacer.
Les surfaces cachées peuvent comporter des arêtes vives. Faites attention en
étendant le bras derrière l'appareil ou en dessous.
Codes et normes de sécurité Cet appareil est conforme à une ou plusieurs des normes suivantes :
• UL 858, Norme pour la sécurité des cuisinières électriques domestiques
• UL 923, Norme pour la sécurité des appareils de cuisson à micro-ondes
• UL 507, Norme pour la sécurité des ventilateurs électriques
• ANSI Z21.1, Norme nationale américaine pour les appareils de cuisson à gaz
domestiques
• CAN/CSA-C22.2 No. 113-M1984, Ventilateurs et soufflantes
• CAN/CSA-C22.2 No. 61-M89, Cuisinières pour usage ménager
Il incombe au propriétaire et à l'installateur de déterminer si des exigences et/ou
normes additionnelles s'appliquent pour des installations spécifiques.
Sécurité électrique Avant de brancher le cordon électrique, vérifier que toutes les commandes sont
dans la position "OFF" (Arrêt).
S'il y a lieu, conformément au Code national de l'électricité (ou au Code canadien
de l'électricité), cet appareil doit être installé sur un circuit de dérivation séparé.
Installateur - indiquer au propriétaire l'emplacement du disjoncteur ou du fusible.
Identifier sa position pour pouvoir le retrouver facilement plus tard.
mConsignes de sécurité importantes
LIRE ET CONSERVER CES CONSIGNES

Français 2
Important - Conserver ces instructions pour l'usage de l'inspecteur local en
électricité.
Avant l'installation, couper le courant au panneau de service. Verrouiller le panneau
de service pour éviter que le courant ne soit accidentellement rétabli.
Pour plus d'informations, se reporter à la plaque signalétique. Pour connaître
l'emplacement de la plaque signalétique, voir "Plaque signalétique" sous
"Entretien".
S'assurer que l'appareil est adéquatement installé et mis à la terre par un technicien
qualifié. L'installation, les connexions électriques et la mise à la terre doivent être
conformes à tous les codes applicables.
Sécurité apparentée concernant
l'équipement Retirer le ruban adhésif et l'emballage avant d'utiliser l'appareil. Détruire l'emballage
après avoir déballé l'appareil. Ne jamais laisser les enfants jouer avec les matériaux
de conditionnement.
Ne jamais modifier ni altérer la configuration de l'appareil. Par exemple, ne pas
retirer les pieds de nivellement, les panneaux, les couvercles de câblage ou les
fixations/vis antibasculement.
Transport Pour éviter tout dommage à l'évent du four, utiliser la méthode de transport illustrée
ci-dessous.
mConsignes de sécurité importantes
LIRE ET CONSERVER CES CONSIGNES

Français 3
Préparation
Avant de commencer
Outils et pièces
nécessaires • Tournevis à tête Phillips
• Ruban à mesurer
• Perceuse avec foret (1/8 po)
Pièces incluses • Vis cruciformes (6)
Appareils électroménagers de 27 po
Informations générales
Exigences électriques La prise doit être correctement reliée à la terre selon tous les codes applicables.
Dimensions pour les appareils muraux de 27 po
25
1/2"
(648mm)
28
1/4"
(718mm)
27
"
(686mm)
24
13/16"
(630mm)
min. 4
3/4"
(121mm)
max. 31
3/8"
(797mm)
24
"
(610mm)
23
7/8"
(606mm)
22
"
(559mm)
29
1/16"
(738mm)
26
3/4"
(680mm)
Four unique de 27 po
Lorsque le four est installé à l'extrémité
d'une série de placards, adjacent à un
mur perpendiculaire ou à une porte de
placard, il est recommandé de laisser
au moins 1/4 po (0,6 cm) d'espace
entre la paroi du four et le mur ou la
porte.
Pour le soutien du four, installer des
montants de 2 pouces sur 4 qui
s'étendent de l'avant à l'arrière et
viennent affleurer le fond et le côté de
l'ouverture. Le socle de soutien doit
être bien fixé au plancher ou au coffret
et être de niveau.
Remarque : la boîte de connexions
doit être installée soit au-dessus, soit
au-dessous de l'appareil. Si la boîte de
connexions est installée sous
l'appareil, un espace ou une ouverture
de 2 po (5,8 cm) de diamètre est
requis entre le mur arrière et la partie
arrière droite des montants de support
de 2 pouces sur 4.
Le socle du coffret doit être plate et
apte à soutenir un poids d’au moins
210 lb (95 kg).
