Bosch HGV745359Z User manual

[en] Instruction manual

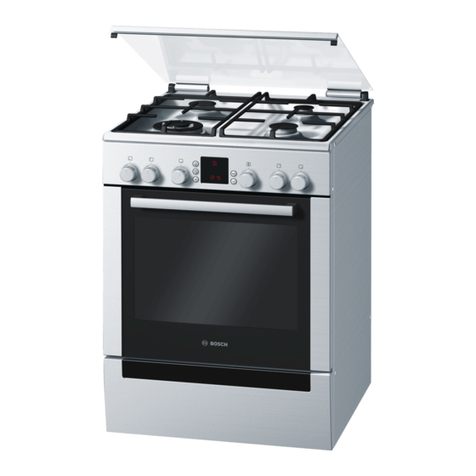

Free standing cooker HGV745359Z

3
ÚTable of contents [en]Instructionmanual
Important safety information.....................................................4
Causes of damage......................................................................6
Damage to the oven...........................................................................6
Damage to the plinth drawer............................................................7
Set-up, gas and electricity connection.....................................7
Gas connection ...................................................................................7
For your safety.....................................................................................7
Electrical connection ..........................................................................8
Levelling the cooker ...........................................................................8
Setting up the appliance ...................................................................8
Measures to be noted during transport..........................................8
Your new cooker.........................................................................9
General information............................................................................9
Cooking area .......................................................................................9
The oven............................................................................................ 10
The cooking compartment ............................................................. 10
Your accessories ......................................................................11
Inserting accessories ...................................................................... 11
Optional accessories ...................................................................... 11
After-sales service products .......................................................... 12
Before using the oven for the first time..................................12
Setting the clock .............................................................................. 12
Heating up the oven........................................................................ 12
Cleaning the accessories............................................................... 12
Advance cleaning of burner cup and cap .................................. 13
Suitable pans ............................................................................13
Precautions for use ......................................................................... 13
Making settings on the hob.....................................................14
Igniting the gas burners.................................................................. 14
Table - Cooking................................................................................ 14
Setting the oven........................................................................ 15
Types of heating and temperature ............................................... 15
If the oven is to switch off automatically ..................................... 15
If the oven is to switch on and off automatically ....................... 16
Rapid heating ................................................................................... 16
Setting the clock.......................................................................16
Setting the timer .......................................................................16
Childproof lock .........................................................................17
Oven ................................................................................................... 17
Care and cleaning ....................................................................17
Upper glass cover ...........................................................................17
Cleaning agents ............................................................................... 17
Detaching and refitting the rails .................................................... 18
Detaching and attaching the oven door...................................... 19
Removing and installing the door panels ................................... 19
Troubleshooting .......................................................................20
Malfunction table.............................................................................. 20
Replacing the bulb in the oven ceiling light ............................... 20
Glass cover ....................................................................................... 20
After-sales service ...................................................................21
E number and FD number ............................................................. 21
Energy and environment tips..................................................21
Saving energy with your oven .......................................................21
Saving energy with the gas hob ................................................... 21
Environmentally-friendly disposal.................................................. 21
Tested for you in our cooking studio .....................................22
Cakes and pastries ......................................................................... 22
Baking tips ........................................................................................ 24
Meat, poultry, fish.............................................................................24
Tips for roasting and grilling.......................................................... 26
Bakes, gratins, toast with toppings .............................................. 26
Preprepared products..................................................................... 26
Special dishes .................................................................................. 27
Defrosting .......................................................................................... 27
Drying ................................................................................................. 28
Preserving ......................................................................................... 28
Acrylamide in foodstuffs .........................................................29
Test dishes ................................................................................29
Baking ................................................................................................ 29
Grilling ................................................................................................ 30
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.bosch-home.com and
in the online shop www.bosch-eshop.com

4
: Important safety information
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for
future use or for subsequent owners.
These instructions are only valid if the
appropriate country symbol appears on the
appliance. If the symbol does not appear on
the appliance, it is necessary to refer to the
technical instructions which will provide the
necessary instructions concerning
modification of the appliance to the
conditions of use of the country.
Appliance category: Category 1
Check the appliance for damage after
unpacking it. Do not connect the appliance
if it has been damaged in transport.
Only allow a licensed professional to
connect the appliance and to convert the
appliance to a different type of gas. The
appliance must be installed (electric and
gas connections) in accordance with the
instruction and installation manual. An
incorrect connection or incorrect settings
may lead to serious accidents and damage
to the appliance. The appliance
manufacturer accepts no liability for
damage of this kind. The appliance's
warranty becomes void.
Caution:This appliance is for cooking
purposes only. It must not be used for other
purposes, for example room heating.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
Caution:The use of a gas cooking
appliance results in the production of heat,
moisture and products of combustion in the
room in which it is installed. Ensure that the
kitchen is well ventilated especially when
the appliance is in use: keep natural
ventilation holes open or install a
mechanical ventilation device (mechanical
extractor hood).
Prolonged intensive use of the appliance
may call for additional ventilation, for
example opening of a window, or more
effective ventilation, for example increasing
the level of mechanical ventilation where
present.
This appliance is not intended for operation
with an external timer or a remote control.
Do not use inappropriate child safety
shields or hob guards. These can cause
accidents.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around
the appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old
at a safe distance from the appliance and
power cable.
Always slide accessories into the cooking
compartment correctly. See "Description of
accessories in the instruction manual.
Risk of fire!
■A draught is created when the appliance
door is opened. Greaseproof paper may
come into contact with the heating
element and catch fire. Do not place
greaseproof paper loosely over
accessories during preheating. Always
weight down the greaseproof paper with a
dish or a baking tin. Only cover the
surface required with greaseproof paper.
Greaseproof paper must not protrude over
the accessories.
Risk of fire!
■Combustible objects that are left in the
cooking compartment may ignite. Never
store combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off
the appliance and unplug the mains plug
or switch off the fuse in the fuse box. Shut
off the gas supply.
Risk of fire!
■Hot oil and fat can ignite very quickly.
Never leave hot fat or oil unattended.
Never use water to put out burning oil or
fat. Switch off the hotplate. Extinguish

5
flames carefully using a lid, fire blanket or
something similar.
Risk of fire!
■The hotplates become very hot. Never
place combustible items on the hob.
Never place objects on the hob.
Risk of fire!
■The appliance becomes very hot, and
flammable materials can easily catch fire.
Do not store or use any flammable
objects (e.g. aerosol cans, cleaning
agents) under or in the vicinity of the oven.
Do not store any flammable objects inside
or on top of the oven.
Risk of fire!
■When gas hotplates are in operation
without any cookware placed on them,
they can build up a lot of heat. The
appliance and the extractor hood above it
may become damaged or be set on fire.
Grease residue in the filter of the extractor
hood may ignite. Only operate the gas
burners with cookware on them.
Risk of fire!
■The rear of the appliance becomes very
hot. This may cause damage to the power
cables. Electricity and gas lines must not
come into contact with the rear of the
appliance.
Risk of fire!
■Never place flammable objects on the
burners or store them in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off
the appliance. Pull out the mains plug or
switch off the appliance at the circuit
breaker in the fuse box. Shut off the gas
supply.
Risk of fire!
■The surfaces of the plinth drawer may
become very hot. Only store oven
accessories in the drawer. Flammable and
combustible objects must not be stored in
the plinth drawer.
Risk of burns!
■The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of serious burns!
■Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk of burns!
■Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with
care.
Risk of burns!
■The hotplates and surrounding area
(particularly the hob surround, if fitted)
become very hot. Never touch the hot
surfaces. Keep children at a safe distance.
Risk of burns!
■During operation, the surfaces of the
appliance become hot. Do not touch the
surfaces when they are hot. Keep children
away from the appliance.
Risk of burns!
■Empty cookware becomes extremely hot
when set on a gas hotplate that is in
operation. Never heat up empty cookware.
Risk of burns!
■The appliance becomes hot during
operation. Allow the appliance to cool
down before cleaning.
Risk of burns!
■Caution: Accessible parts may be hot
when the grill is in use. Young children
should be kept away from the appliance.
Risk of burns!
■If the liquefied gas bottle is not upright,
liquefied propane/butane can enter the
appliance. Intense darting flames may
therefore escape from the burners.
Components may become damaged and
start to leak over time so that gas escapes
uncontrollably. Both can cause burns.
Always use liquefied gas bottles in an
upright position.
Risk of scalding!
■The accessible parts become hot during
operation. Never touch the hot parts. Keep
children at a safe distance.
Risk of scalding!
■When you open the appliance door, hot
steam may escape. Open the appliance
door with care. Keep children at a safe
distance.
Risk of scalding!
■Water in a hot cooking compartment may
create hot steam. Never pour water into
the hot cooking compartment.
Risk of injury!
■Scratched glass in the appliance door
may develop into a crack. Do not use a
glass scraper, sharp or abrasive cleaning
aids or detergents.
Risk of injury!
■Incorrect repairs are dangerous. Repairs
may only be carried out, and damaged
power and gas lines replaced, by an after-
sales engineer trained by us. If the
appliance is faulty, unplug the mains plug
or switch off the fuse in the fuse box. Shut
off the gas supply. Contact the after-sales
service.
Risk of injury!

6
■Faults or damage to the appliance are
dangerous. Never switch on a faulty
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Shut off the gas supply.
Contact the after-sales service.
Risk of injury!
■Unsuitable pan sizes, damaged or
incorrectly positioned pans can cause
serious injury. Observe the instructions
which accompany the cookware.
Risk of injury!
■Caution: Glass lids may shatter when
heated. Turn off all the burners before
shutting the lid. Wait until the oven has
cooled down before closing the glass
cover.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out by one of our
trained after-sales engineers. If the
appliance is faulty, unplug the mains plug
or switch off the fuse in the fuse box.
Contact the after-sales service.
Risk of electric shock and serious injury!
■The cable insulation on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
electrical appliance cables into contact
with hot parts of the appliance.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
■When replacing the cooking compartment
bulb, the bulb socket contacts are live.
Before replacing the bulb, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box.
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Causes of damage
Hob
Caution!
■Only use the burners when cookware has been placed on
top. Do not heat up empty pots or pans. The saucepan base
will be damaged.
■Only use pots and pans with an even base.
■Place the pot or pan centrally over the burner. This will
optimise transfer of the heat from the burner flame to the pot
or ban base. The handle does not become damaged, and
greater energy savings are guaranteed.
■Ensure that the gas burners are clean and dry. The burner
cup and burner cap must be positioned exactly.
■Ensure that the top cover is not closed when the oven is
started up.
Damage to the oven
Caution!
■Accessories, foil, greaseproof paper or ovenware on the
cooking compartment floor: do not place accessories on the
cooking compartment floor. Do not cover the cooking
compartment floor with any sort of foil or greaseproof paper.
Do not place ovenware on the cooking compartment floor if a
temperature of over 50 ºC has been set. This will cause heat
to accumulate. The baking and roasting times will no longer
be correct and the enamel will be damaged.
■Water in a hot cooking compartment: do not pour water into
the cooking compartment when it is hot. This will cause
steam. The temperature change can cause damage to the
enamel.
■Moist food: do not store moist food in the cooking
compartment when it is closed for prolonged periods This will
damage the enamel.
■Fruit juice: when baking particularly juicy fruit pies, do not
pack the baking tray too generously. Fruit juice dripping from
the baking tray leaves stains that cannot be removed. If
possible, use the deeper universal pan.
■Cooling with the appliance door open: only allow the cooking
compartment to cool when it is closed. Even if the appliance
door is only open a little, front panels of adjacent units could
be damaged over time.
■Very dirty door seal: If the door seal is very dirty, the
appliance door will no longer close properly when the
appliance is in use. The fronts of adjacent units could be
damaged.Always keep the door seal clean.
■Appliance door as a seat, shelf or worktop: Do not sit on the
appliance door, or place or hang anything on it. Do not place
any cookware or accessories on the appliance door.
■Inserting accessories: depending on the appliance model,
accessories can scratch the door panel when closing the
appliance door. Always insert the accessories into the
cooking compartment as far as they will go.
■Carrying the appliance: do not carry or hold the appliance by
the door handle. The door handle cannot support the weight
of the appliance and could break.

7
Damage to the plinth drawer
Caution!
Do not place hot objects in the plinth drawer. It could be
damaged.
Set-up, gas and electricity connection
Gas connection
Installation must only be performed by an approved expert or a
licensed after-sales service engineer in accordance with the
instructions specified under "Gas connection and conversion to
a different gas type".
For the licensed expert or after-sales service
Caution!
■The setting conditions for this appliance are specified on the
rating plate on the back of the appliance. The gas type set in
the factory is marked with an asterisk (*).
■Before setting up the appliance, check the grid access
conditions (gas type and gas pressure) and ensure that the
gas setting of the appliance meets these conditions. If the
appliance settings have to be changed, follow the instructions
in the section "Gas connection and conversion to a different
gas type".
■This appliance is not connected to a waste gas main. It must
be connected and commissioned in accordance with the
installation conditions. Do not connect the appliance to a
waste gas main. All ventilation regulations must be observed.
■The gas connection must be made via a fixed, i.e. not mobile
connection (gas line) or via a safety hose.
■If using the safety hose, ensure that the hose is not trapped
or crushed. The hose must not come into contact with hot
surfaces.
■The gas line (gas pipe or safety hose) can be connected to
the right or left-hand side of the appliance. The connection
must have an easily accessible locking device.
Safety information
The rated working pressure of your appliance is:
for natural gas (G20) 2 kPa;
for LPG (G30) 3 kPa;
for LPG (G31) 3,7 kPa.
Your appliance must be operated with these pressures. All the
information on the rating plate of your appliance is based on
these pressures. The manufacturer takes no responsibility for
the resulting operability or performance of the appliance or for
other risks if the appliance is operated with pressures other
than those specified.
Caution!
If the pressure of your local gas supply is higher than:
natural gas (G20) 2,5 kPa;
LPG (G30) 3,6 kPa;
or LPG (G31) 4,5 kPa; for safety reasons, the appliance must
be equipped with a suitable pressure regulator. The connection,
maintenance and setting of the pressure regulator must be
carried out by an approved gas fitter.
If you do not know the pressure of your local gas supply, ask
your gas supplier.
For your safety
This appliance is adjusted to operate on LPG only.
Faults in the gas installation/smell of gas
If you notice a smell of gas or faults in the gas installation, you
must
■immediately shut off the gas supply and/or close the gas
cylinder valve
■immediately extinguish all naked flames and cigarettes
■switch off electrical appliances and lights
■open windows and ventilate the room
■call the aftersales service or the gas supplier
Burn back
Fire in burner tube or chamber
In the event of a burn-back, where the flame burns back to the
jet, immediately turn off the gas supply at the control valve on
the panel.
After ensuring the flame is extinguished, re-light the appliance
in the normal manner.
Should the appliance again burn back, close the control valve
and call a service technician. Do not use the appliance again
until the service technician has declared that it is safe to do so.
Gas-pressure regulator
This appliance requires an operating pressure of 2,8 kPa at the
appliance. A suitable LPG regulator that coplies with the
requirements of SANS 1237 must be installed.
Important information for the user
This appliance may only be installed by a registeres LP Gas
installer.
All registered installers are issued with a card carrying their
registration number. Ask to be shown the card before allowing
the installation work to be shown the card before allowing the
installation work to commence and make a note of the installer
QCC number.
Upon completion of the installation, the installer is required to
explain the operational details of the appliance together with
the safety instructions.
You should only sign for acceptance of the installation and be
provided with a copletion certificate. You should only sign for
acceptance of the installation when the installation is completed
to your satisfaction.
Note that your invoice is required in the event that you wish
make a quarantee claim.
Important information for the installer
This appliance may only be installed by a registered LP Gas
installer registered with the Liquefied Petroleum Gas
Association of Southern Africa.
The appliance must be installed in accordance with the
requirements of SANS 10087-1 and any fire department
regulations and/or local bylaws applicable to the area. If in
doubt check with the relevant authority before undertaking the
installation.
Upon completion of the installation you are required to fully
explain and demonstrate to the user the operational details and
safety practices applicable to the appliance and the installation.

8
Moving the appliance by the gas line or door handle
Do not move the appliance while holding the gas line; the gas
pipe could be damaged. There is a risk of a gas leak! Do not
move the appliance while holding it by the door handle. The
door hinges and door handle could be damaged.
Electrical connection
Caution!
■Have the appliance set up by your after-sales service. A 16 A
fuse is required for connection. The appliance is designed for
operation at 220-240 V.
■If the electricity supply drops below 180 V, the electrical
ignition system does not work.
■Any damage arising from the appliance being connected
incorrectly will invalidate the guarantee.
■If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
For the after-sales service
Caution!
■The appliance must be connected in accordance with the
data on the rating plate.
■Only connect the appliance to an electrical connection that
meets the applicable provisions. The socket must be easily
accessible so that you can disconnect the appliance from the
electricity supply if necessary.
■Please ensure the availability of a multi-pin disconnecting
system.
■Never use extension cables or multiple plugs.
■For safety reasons, this appliance must only be connected to
an earthed connection. If the safety earth terminal does not
comply with regulations, safety against electrical hazards is
not guaranteed.
■You must use a H 05 W-F type cable or equivalent for the
appliance connection.
Levelling the cooker
Always place the cooker directly on the floor.
1. Pull out the plinth drawer and lift it up and out.
There are adjustable feet at the front and rear on the inside of
the plinth.
2. Use an Allen key to raise or lower the adjustable feet as
necessary until the cooker is level (picture A).
3. Push the plinth drawer back in (picture B).
Setting up the appliance
■The appliance must be set up directly on the kitchen floor
and in line with the specified dimensions. The appliance must
not be set up on any other object.
■The distance between the top edge of the oven and the
bottom edge of the extractor hood must meet the
requirements of the extractor hood manufacturer.
■Ensure that the appliance is not moved again after set up.
The distance from the high output burner or wok burner to
the fronts of the adjacent units or the wall must be at least 50
mm.
Measures to be noted during transport
Secure all mobile parts in and on the appliance using an
adhesive tape that can be removed without leaving any traces.
Push all accessories (e.g. baking tray) into the corresponding
slots with cardboard at the edges, in order to avoid damaging
the appliance. Place cardboard or similar between the front and
rear side to prevent knocks against the inside of the glass door.
Secure the door and, if available, the top cover to the appliance
sides using adhesive tape.
Keep the original appliance packaging. Only transport the
appliance in the original packaging. Observe the transport
arrows on the packaging.
If the original packaging is no longer available
pack the appliance in protective packaging to guarantee
sufficient protection against any transport damage.
Transport the appliance in an upright position. Do not hold the
appliance by the door handle or the connections on the rear, as
these could be damaged. Do not place any heavy objects on
the appliance.
%$


0LQ


9
Your new cooker
Here you will learn about your new cooker. We will explain the
control panel, the hob and the individual operating controls.
You will find information on the cooking compartment and the
accessories.
General information
The design depends on the respective appliance model. Cooking area
Here is an overview of the control panel. The design depends
on the respective appliance model.
Burner knob
You can adjust the heat setting of the hotplates using the four
burner knobs.
There is a limit stop at the end of the settings area. Do not turn
the timer beyond this.
Explanations
1 Hob cover
2 Hob
3 Hotplate knob
4 Function selector, Operating switches and display
panel, Temperature selector
5 Appliance cooling
6 Oven door
7 Plinth drawer








Explanations
1 Standard burner
2 Standard burner
3 High output burner
4 Economy burner
Positions Function/gas oven
þZero position The oven is switched off.
8Ignition position Ignition position
—
˜
Settings area Large flame = highest setting
Economy flame = lowest setting




10
The oven
Use the function selector and the temperature selector to set
the oven.
Function selector
Use the function selector to select the type of heating for the
oven.
You can turn the function selector clockwise and anti-clockwise.
The light comes on in the cooking compartment when you
make settings.
Temperature selector
Use the temperature selector to set the temperature and the
grill setting.
While the oven is heating up, the ptemperature symbol lights
up in the display. If heating is interrupted, the symbol goes out.
For some settings, it does not light up.
Buttons and display
You can use the buttons to set various additional functions. You
can read the values that you have set in the display.
The cooking compartment
The oven light is located in the cooking compartment. A cooling
fan protects the oven from overheating.
Oven light
During operation, the oven light in the cooking compartment is
on.
Cooling fan
The cooling fan switches on and off as required. The hot air
escapes above the door.
So that the cooking compartment cools down more quickly
after operation, the cooling fan continues to run for a certain
period afterwards.
Caution!
do not cover the ventilation slots. Otherwise the oven will
overheat.
Setting Use
þOff position The oven switches off.
%Top/bottom heating For cakes, bakes and lean joints of
meat (e.g. beef or game) on one
level. Heat is emitted evenly from
the top and bottom.
<3D hot air* For cakes and pastries on one to
three levels. The fan distributes the
heat from the heating ring in the
back panel evenly around the
cooking compartment.
6Pizza setting For the quick preparation of frozen
products without preheating, e.g.
pizza, chips or strudel. The bottom
heating element and the ring heat-
ing element in the back panel heat
up.
$Bottom heating For preserving, browning and the
final baking stage. The heat is
emitted from below.
7Hot air grilling For roasting meat, poultry and
whole fish. The grill element and
the fan switch on and off alter-
nately. The fan causes the hot air
to circulate around the dish.
*Grill, small area For grilling small amounts of
steaks, sausages, bread and
pieces of fish. The centre part of
the grill element becomes hot.
(Grill, large area For grilling steaks, sausages, toast
and pieces of fish. The whole area
below the grill heating element
becomes hot.
BDefrost For defrosting, e.g. meat, poultry,
bread and cakes. The fan causes
the warm air to circulate around
the dish.
IRapid heating For rapid preheating of the oven
without accessories.
* Type of heating used to determine the energy efficiency class
in accordance with EN50304.
Positions Function
ÿZero position Oven not hot.
50-270 Temperature
range
Temperature in °C.
1, 2, 3 Grill settings Grill settings for the *Grill,
small area and (Grill, large
area.
Setting 1 = low
Setting 2 = medium
Setting 3 = high
Button Use
VTimer button This is used to set the timer.
0Clock button This is used to set the Clock, x
Oven cooking time and yEnd
time.
AMinus button Use this button to decrease the
setting values.
EKey button This is used to switch the child-
proof lock on and off.
@Plus button Use this button to increase the set-
ting values.
