Bosch WTH83002FG User manual

Clothes dryer
WTH83002FG
[NL] User manual and
installation instructions
Translated from Dutch to English - www.onlinedoctranslator.com

NL
Refer to the Digital User's Guide for more
information.
Index
1 Safety................................................ 4
1.1 General instructions .................. 4
9 Programs ................................ 22
9.1 Automatic programs ..... 22
9.2 Time programs................................ 231.2 Destination of the device
rate .................................. 4
1.3 Restriction of users ...... 4
1.4 Secure installation................................. 5
1.5 Safer use ................................... 7
10 Accessories................................ 24
11 Laundry................................... 25
11.1 Preparing the laundry.......... 25
1.6 Safe cleaning and
maintenance ......................................... 10 12 The Ministry in its essence.......... 25
12.1 Switching on the device .... 25
12.2 Set program ................. 25
2 Avoiding material damage ...... 11
3 Environmental protection and saving
ring................................................. 11
12.3 Loading the drum with
laundry ....................................... 25
3.1 Disposing of the packaging .... 11
3.2 Saving energy ....................... 11
3.3 Energy Saving Mode ........ 12
12.4 Starting the program ... 26
12.5 Changing Activated Ready in
Time................................... 26
12.6 Refilling the laundry .................. 26
12.7 Program cancel .................. 26
12.8 Taking out the laundry ................... 26
12.9 Switching off the appliance .......... 26
12.10 Fluff filter ................................ 26
4 Set up and connection .................. 12
4.1 Unpacking the device .................. 12
4.2 Scope of delivery ..................... 12
4.3 Installation site
requirements ................................... 13 12.11 Bottom unit filter
system ................................ 28
4.4 Adjusting the device .......... 14
4.5 Connecting the appliance
electrically................................................. 14
12.12 Condensate tank ........ 30
13 Child Lock .................................. 31
13.1 Switching on child lock .......... 31
13.2 Deactivating the child lock.......... 31
5 Getting to know your device.................. 15
5.1 Device ................................... 15
5.2 Control panel..................... 16
14 Basic Settings .................. 32
6 Display ................................... 17
7 Buttons .................................. 19
14.1 Overview of the basic
settings ................................... 32
14.2 Changing basic settings....... 33
8 Drying target ................................... 21
8.1 Changing dryness target................ 21
8.2 Adjust drying target................ 21
15 Cleaning and maintenance .......... 33
15.1 Tips for cleaning and
maintenance................................ 33
2

NL
15.2 Bottom Unit ................................ 33
15.3 Humidity sensor ................ 35
16 Troubleshooting .................. 37
17 Transporting, Storing and
drain.................................. 42
17.1 Preparing the device for
transport ................................ 42
17.2 Disposal of your old
appliance ....................................... 42
18 Customer Service............................ 43
18.1 Product number (E no.) and
production number (FD) ........... 43
19 Consumption values .................. 44
20 Technical data.............. 45
3

NLSafety
1 Safety
Observe the following safety instructions.
1.1 General instructions
sRead this manual carefully.
sKeep the operating instructions and product information for future reference.
for use or for subsequent owners.
sDo not connect the device in case of transport damage.
1.2 Destination of the device
Only use the device:
sto use dryer-safe and water-washed textiles
dry and refresh.
sfor domestic use and in enclosed spaces within the
sly environment.
sto an altitude of 4000 m above sea level.
1.3 Restriction of users
This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and/or knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the resulting hazards. understood. Children must
not play with the appliance.
Cleaning and user maintenance shall not be made by children
unless they are supervised.
Make sure that children up to 3 years old and pets cannot reach the
device.
4

SafetyNL
1.4 Secure installation
WARNING ‒ Risk of electric shock! Improper
installations are dangerous.
▶Only connect and use the device in accordance with the
information on the type plate.
▶ Only connect the device to a mains supply with alternating
current via a properly installed earthing socket.
▶The protective earth system of the electrical house installation must be
installed in accordance with the electrical engineering regulations. The
installation must have a sufficiently large conductor diameter.
▶ When using an earth leakage circuit breaker, only use a type
marked with .
▶ Never power the device via an external switching device, e.g. a
time switch or remote control.
▶ Never connect the appliance to a circuit that is regularly turned
on and off by the utility company.
▶ When the device is installed, the mains plug of the mains
connection cable must be freely accessible or, if free access is not
possible, an all-pole disconnecting device must be installed in the
permanently installed electrical system in accordance with the
installation instructions.
▶When setting up the device, make sure that the power cord is
not pinched or damaged.
Damaged power cord insulation is dangerous.
▶ Never bring the connecting cable into contact with hot
appliance parts or heat sources.
▶ Never bring the power cable into contact with sharp points or
edges.
▶ Never kink, pinch or alter the power cord.
WARNING ‒ Risk of fire!
Using an extended power cord and unauthorized adapters is
dangerous.
▶ Do not use extension cords or multiple sockets.
5

NLSafety
▶ Use only manufacturer-approved adapters and power cords.
▶If the power cord is too short and a longer power cord is not
available, contact an electrical retailer to adjust the home
installation.
WARNING ‒ Risk of injury!
The heavy weight of the device can cause injuries when lifted.
▶ Do not lift the device alone.
If this appliance is installed incorrectly in a washer-dryer column,
the installed appliance may fall.
▶ Only stack the dryer on top of a washing machine with the dryer
manufacturer's connection kit
→ "Accessories", page 24 Any other placement method is not
allowed.
▶ Do not install the appliance in a washer-dryer column if the dryer
manufacturer does not offer a suitable connection set.
▶ Do not install appliances from different manufacturers and with
different depths and widths in a washer-dryer column.
▶Do not set up a washer-dryer column on a platform, the
devices can tilt.
WARNING ‒ Risk of suffocation!
Children can pull packing material over their head and become
entangled and suffocate.
▶ Keep packaging material away from children.
▶ Do not let children play with packaging material.
CAUTION ‒ Risk of injury!
The device may vibrate or move during operation.
▶ Set up the device on a clean, flat and solid surface.
▶ Level the appliance using the appliance feet and a spirit level.
6

SafetyNL
There is a tripping hazard with incorrectly laid hoses and mains
connection cables.
▶ Lay the hoses and connection cables in such a way that they cannot
be tripped over.
If the appliance is moved by protruding parts, such as the loading
door, the parts can break off.
▶Do not move the appliance by protruding parts.
CAUTION ‒ Risk of cutting!
Sharp edges on the device can cause cuts if touched.
▶ Do not touch the device on sharp edges.
▶ Use protective gloves when installing and transporting the
device.
1.5 Safer use
WARNING ‒ Risk of electric shock!
A damaged appliance or damaged power cord is dangerous.
▶ Never use a damaged device.
▶ Never pull on the power cord to disconnect the device from the
power supply. Always pull the plug on the power cord.
▶ If the appliance or the mains cable is damaged, immediately
unplug the mains cable from the socket or switch off the fuse in
the fuse box.
▶Contact customer service. → Page 43 Penetrating moisture
can cause an electric shock.
▶Only use the device in closed rooms.
▶Never expose the device to excessive heat and humidity.
▶Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
7

NLSafety
WARNING ‒ Risk of health hazard! Children can lock
themselves in the appliance and endanger their lives.
▶Do not install the appliance behind a door that blocks or
prevents the opening of the appliance door.
▶In the case of discarded appliances, remove the plug of the
mains cable from the socket, then cut the mains cable and
damage the lock of the appliance door so that the appliance door
no longer closes.
WARNING ‒ Risk of suffocation!
Children can inhale or swallow small parts and choke.
▶Keep small parts away from children.
▶ Do not allow children to play with small parts.
WARNING ‒ Risk of explosion!
Coal dust or flour in the vicinity of the device can cause explosions.
▶ Keep the area around the device clean during use.
WARNING ‒ Risk of poisoning!
The condensed water from this appliance is not drinking water and may be
contaminated with fluff.
▶ Do not drink or continue to use the condensed water from the
device.
Detergents and care products can lead to poisoning if ingested.
▶ In case of accidental ingestion, seek medical advice.
▶Keep detergents and care products out of the reach of children.
8

SafetyNL
WARNING ‒ Risk of fire!
The refrigerant R290 in this appliance is environmentally friendly
but flammable and can ignite on contact with open flames or
ignition sources.
▶ Open flames and other ignition sources away from the
hold device.
WARNING ‒ Risk of explosion!
Residues in the fluff filter can ignite during drying.
▶ Clean the fluff filter regularly.
Highly flammable items, such as lighters or matches, can ignite
during drying.
▶ Before drying, remove all highly flammable objects from the
pockets of the laundry.
If unwashed laundry has come into contact with solvents, oil, wax,
wax remover, paint, grease or stain remover, it may ignite during
drying.
▶ Do not dry unwashed laundry in this appliance.
▶Rinse the laundry thoroughly with hot water and detergent
before drying.
▶ Do not use the appliance if the laundry is previously cleaned
with industrial chemicals.
WARNING ‒ Risk of fire!
The laundry was not cooled sufficiently if drying was interrupted
prematurely and could ignite.
▶ Do not interrupt the drying program prematurely.
▶ Remove and spread out the laundry immediately if drying is
interrupted prematurely.
CAUTION ‒ Risk of injury!
The cover plate may break when climbing or clambering on the
device.
▶ Do not climb or scramble on the device.
9

NLSafety
The appliance may tip over when sitting or leaning on the open
door.
▶ Do not sit or lean on the appliance door.
▶ Do not place any objects on the appliance door.
Reaching into the rotating drum can cause injury to hands.
▶ Wait for the drum to come to a complete stop before reaching inside the
drum with your hand.
1.6 Safe cleaning and maintenance
WARNING ‒ Risk of electric shock! Improper
repairs are dangerous.
▶Only trained specialist personnel may carry out repairs on the
device.
▶ Only original spare parts may be used for repair of the device.
▶ If the power cord of this appliance is damaged, it must be
replaced by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard. Penetrating
moisture can cause a shock.
▶ Do not use a steam cleaner, pressure washer, hoses or nozzles
to clean the appliance.
WARNING ‒ Risk of injury!
The use of non-original spare parts and non-original accessories
is dangerous.
▶ Only use original spare parts and original accessories from the
manufacturer.
WARNING ‒ Risk of poisoning!
Toxic fumes can be generated when cleaning agents containing
solvents are used.
▶Do not use solvent-based cleaning agents.
10

Avoid material damageNL
Foam or foam rubber may deform
or melt when dried.
▶ Do not dry foam or foam rubber
laundry.
Unsuitable cleaning agents can
damage the surfaces of the device.
▶ Do not use sharp or abrasive
cleaning agents.
▶ Do not use strong alcohol-based
cleaning agents.
▶ Do not use hard scouring or
dishwashing sponges.
▶ Clean the device only with water
and a soft, damp cloth.
▶ Remove all detergent residues, spray
mist residues or residues immediately
upon contact with the appliance.
2 Material damage
avoid
PAY ATTENTION!
Incorrect dosage of fabric softeners,
detergents, care products and
cleaning agents can affect the
functioning of the appliance.
▶Follow the manufacturer's dosing
recommendations.
Exceeding the maximum load
quantity affects the operation of the
appliance.
▶ Observe and do not exceed the
maximum load for each
programme.
→ "Programs", Page 22
Overheating of the device can affect
the operation of the device.
▶ Keep the ventilation opening on
the device free during use.
▶ Ensure adequate ventilation in
the room.
Light objects, such as hair and fluff,
can be drawn into the ventilation
opening of the device during
operation and affect the function of
the device.
▶ Keep the environment clean while
using the device.
▶Keep light objects away from the
device.
Operation with a missing, incomplete
or defective fluff guard (depending on
the appliance equipment, e.g. fluff
filter, fluff container, filter mat) can
lead to damage to the appliance.
▶ Do not use the appliance with a
missing, incomplete or defective
fluff guard.
3 Environmental protection and
savings
3.1 Disposing of the
packaging
The packaging materials are
environmentally friendly and can be
reused.
▶ Dispose of the individual components
separately according to type.
3.2 Saving energy
If you follow these directions, your
device will use less power.
Use the device in a well-ventilated
area and keep the ventilation
opening of the device clear.
aA hindered air exchange
extends the program duration and
increases energy consumption.
11

NLSet up and connect
Before drying, spin the laundry in
the washing machine. 4 Set up and connect
aWetter laundry extends the
program duration and increases
energy consumption. 4.1 Unpacking device
PAY ATTENTION!
Objects that remain in the drum and
that are not intended for use with the
device can lead to material and device
damage.
▶Before use, remove all these items
and the supplied accessories from
the drum.
Observe the maximum load for the
programmes.
→ "Programs", Page 22
aExceeding the maximum
male load quantity extends the
program duration and increases
energy consumption.
Clean the fluff filter after drying →
Page 26 .1.Completely remove packaging
material and protection from the
device.
aA contaminated fluff filter
reduces the airflow in the
appliance, extends the program
duration and increases energy
consumption.
→ "Disposal of the packaging",
Page 11
2.Check the device for visible
damage.
After cleaning the filters in the filter
system of the bottom unit
→ Page 28 dry well.
3.Open the appliance door.
→ "The Ministry in Essence",
Page 25
aWetter filters extend the
program duration and increase
energy consumption.
4.Remove the accessories from the
drum.
5.Close the appliance door.
3.3 Energy Saving Mode 4.2 Scope of delivery
If you do not operate the device for a
longer period of time, the device
automatically switches to energy-
saving mode. All clues disappear and
Start/Refillflashes. Energy-saving
mode is exited when you operate the
device again, e.g. open or close the
door.
The energy saving mode is exited
when you operate the device again.
After unpacking, check all parts for
transport damage and the
completeness of the delivery.
PAY ATTENTION!
Use with incomplete or defective
accessories may impair the operation
of the device or cause material
damage and damage to the device.
▶Do not use the device with
incomplete or defective accessories.
▶ Replace the accessories before
using the device.
→ "Accessories", page 24
12

Set up and connectNL
delivery amount
catch
Description installation site To demand
in a laundry
drying column
The device al-
borrow with the
original connection
set of the drug
ger manufacturer in
a washer-dryer
to set up a column.
sConnection set
with pull-out
work schedule
→ Page 24
sConnection set
→ Page 24
Clothes dryer
Accompanying
documents
4.3 Installation site
requirements
This device al-
borrow a washing
machine from the-
same manufacturer
place. The
depth and width
use of this
appliance with
the measurements
of the washing machine
china match
man.
The washer-dryer column
do not place on
a platform.
PAY ATTENTION!
If the device is tilted more than 40°,
residual water can run out of the
device and cause material damage.
▶Carefully tilt the device.
▶ Transport the device upright.
Freezing residual water in the device
can damage the device.
▶ Do not place and use the device in
frost-sensitive places or outdoors.
If the device is used immediately after
transport, the refrigerant in the
device may cause damage to the
device.
▶ Let the device rest for two hours
immediately after transport before
using it for the first time.
on a wall No snakes and
mains connection
between wall and
device clamping
man.
installation site
On the floor
To demand
The device on
a clean, ef-
fen and fixed on-
place surface.
The device
set
→ Page 14 .
13

NLSet up and connect
4.4 Adjusting the device
To reduce noise and vibration, level
the device.
▶To adjust the appliance, turn the
appliance feet. Check the horizontal
adjustment of the appliance with a
spirit level.
All appliance feet must be firmly
planted on the floor.
4.5 Connecting the appliance
electrically
1.Insert the mains plug of the
appliance's connecting cable into
a socket in the vicinity of the
appliance.
The connection data of the device
can be found in the technical data
→ Page 45 .
2.Check the mains plug for tightness.
14

Getting to know your deviceNL
5 Getting to know your device

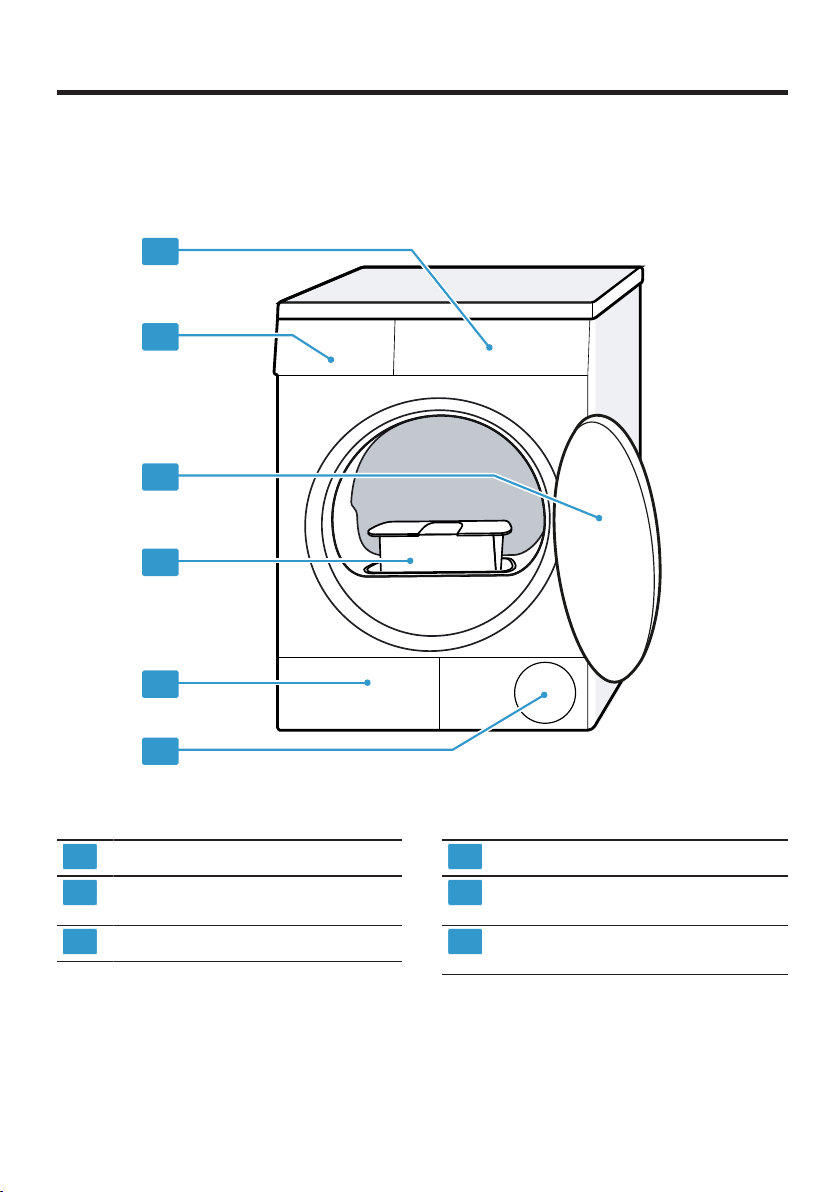

5.1 Device
Here you will find an overview of the components of your device.
6
5
4
3
2
1
Depending on the device type, details in the picture may differ,
e.g. the color and the shape.
an
1Vent 4Door
2Service valve of the bottom
unity → Page 33
5Condensate tank
→ Page 30
3Fluff filter →
Page 26
6Control panel
→ Page 16
15

NLGetting to know your device
5.2 Control panel
You can set all functions of your device and obtain information about the
operating status via the control panel.
2 3
1 1
4 4
1Programs →
Page 22
2Program selector
→ Page 25
3Display →
Page 17
Buttons → Page 19
4
16

DisplayNL

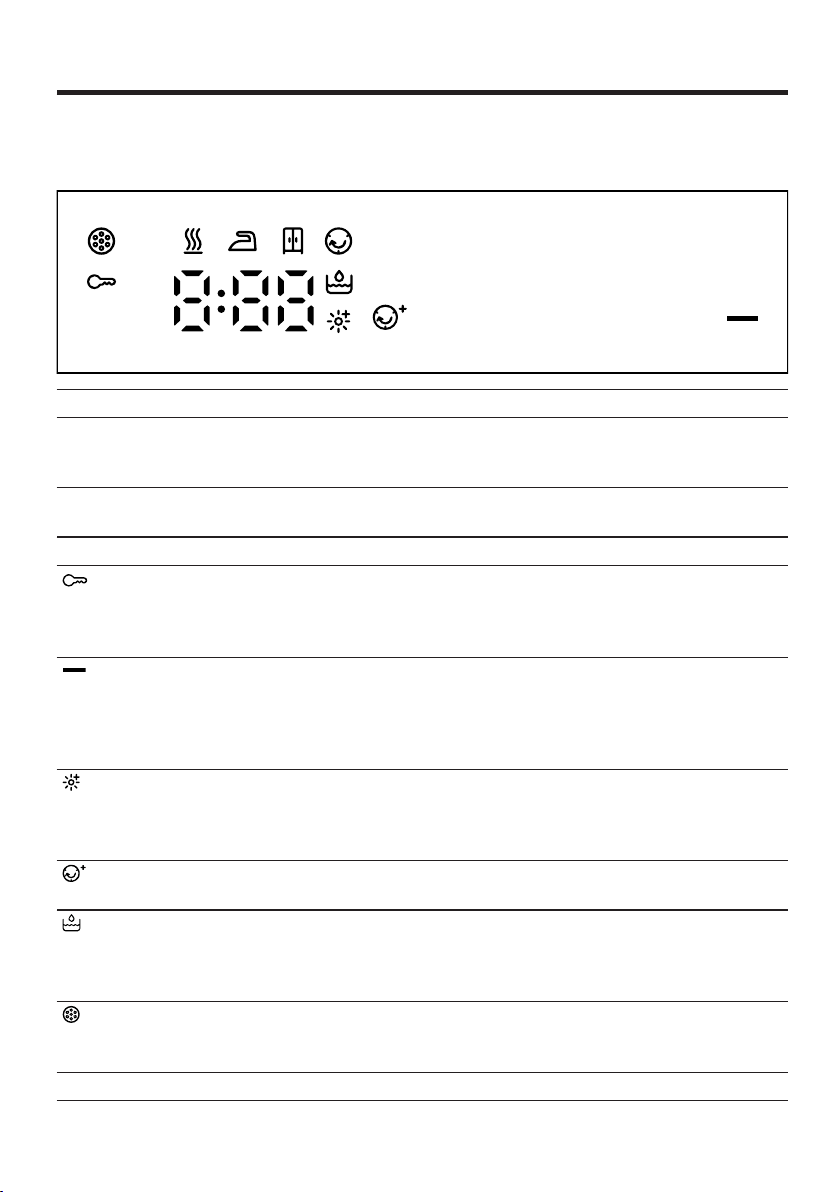

6 Display
The display shows the current setting values, options or information texts.
Display
0:401
name Description
Program duration /
remaining time of
the program
Expected program duration or remaining
time of the program in hours and minutes.
1:25 Time program Time program is set.
→ "Time programs", page 23
10h1Ready in time
Child lock
→ "Buttons", Page 19
slights up: the child lock is activated. s
flashes: the child lock is activated
and the device was operated.
→ "Deactivate child lock", page 31
(Start/Additional
to fill)
Start / Pause Start, cancel or pause
slights up: the program is running and can
be aborted or paused. sflashes: the
program can be
started or resumed.
Drying target
suits
The custom drying target is activated.
→ "Drying target", Page 21
1
2
3
Anti-crease function The anti-crease function is activated.
→ "Buttons", Page 19
Condensate tank
server
Emptying the condensed water container
→ Page 30 .
Push in the condensed water container
→ Page 30 .
fluff filter
Filter system from
Cleaning the fluff filter → Page 26 .
Bottom unit filter system
at 28 .
cleaning the bottom unit → page
1Example
17

NLDisplay
Display name
To dry
Description
Program status
Program statusDrying purpose iron
dry
Drying purpose cabinet-
dry
Program status
Anti wrinkle
Pause
Program end
Program status
Program status
Program status
-P-
end
1Example
18

Buttons NL
7 Buttons
Here you will find an overview of the buttons and their setting options.
Knob
Start/Refill
Choice Description
sstart
sCancel
spause
Start program, an-
zero or pause.
3 sec. sactivate
sdeactivate
Activate or deactivate
the child lock.
The control panels
secure against accidental
operation.
If the childproof lock has been
activated and the appliance
has been switched off, the
childproof lock remains
activated.
→ "Child lock",
Page 31
Dryness level s1
s2
s3
Adjust the drying target
sen.
If you find the laundry too
damp after drying with a
specific drying target, you
can
adjust drying target.
→ "Adjust drying
target", Page 21
Anti wrinkle sactivate
sdeactivate
Activate or deactivate the
anti-crease function.
The drum moves the
laundry after the end of
the program for
the 120 minutes at
regular intervals
to avoid creasing.
Ready in up to 24 hours The program end
to establish.
The program duration is
already included in the
set number of hours.
19

NLButtons
Knob Choice Description
After the program has
started, the program
duration is displayed.
ven.
20
