en The main points in brief
18
YThe main points in brief
Themainpointsinbri ef
--------
--------
--------
1@ @
Load the laundry and close
the door.
Switch the dryer on by
turning the programme
selector to the required
programme.
Press the Start button.
2@ @
End of the programme. Remove the laundry. Switch the dryer off.
3@
Empty the condensate
container.
Clean the fluff filter.

Getting to know your appliance en
19
*Getting to know your appliance
Gettingtoknowyour appliance Dryer
* depending on the model
(Condensate container
0Control and display panel
8Drum interior light*
@Dryer door
HAir inlet
PFluff filter
XEasyClean filter
#


+
3
;

en Getting to know your appliance
20

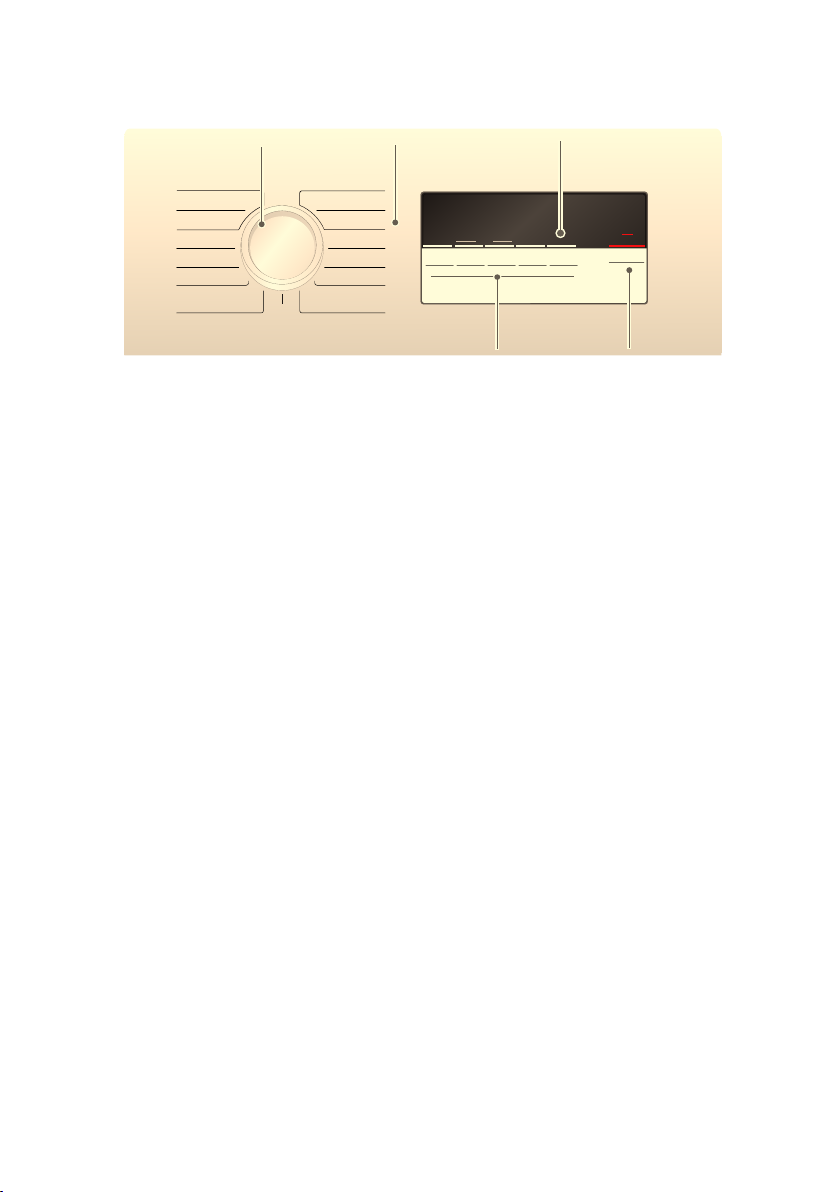

Control panel
(Programme selector for switching the dryer on/off and selecting the
programme.
0Programmes ~Page 23.
8Start button for starting or interrupting the programme ~Page 25.
@Buttons for applying default programme settings ~Page 25.
HDisplay panel ~Page 21.
VFKUDQNWURFNHQH[W UD
VFKUDQNWURFNHQH[W UD
VFKUDQNWURFNHQ
VFKUDQNWURFNHQ
EJHOWURFNHQ
+DQGWFKHU
0L[
6SRUWVZHDU
'DXQHQ
([W U D.X U]  
:ROO HI L QL VK
%OXVHQ +HPGHQ
+

#


Getting to know your appliance en
21

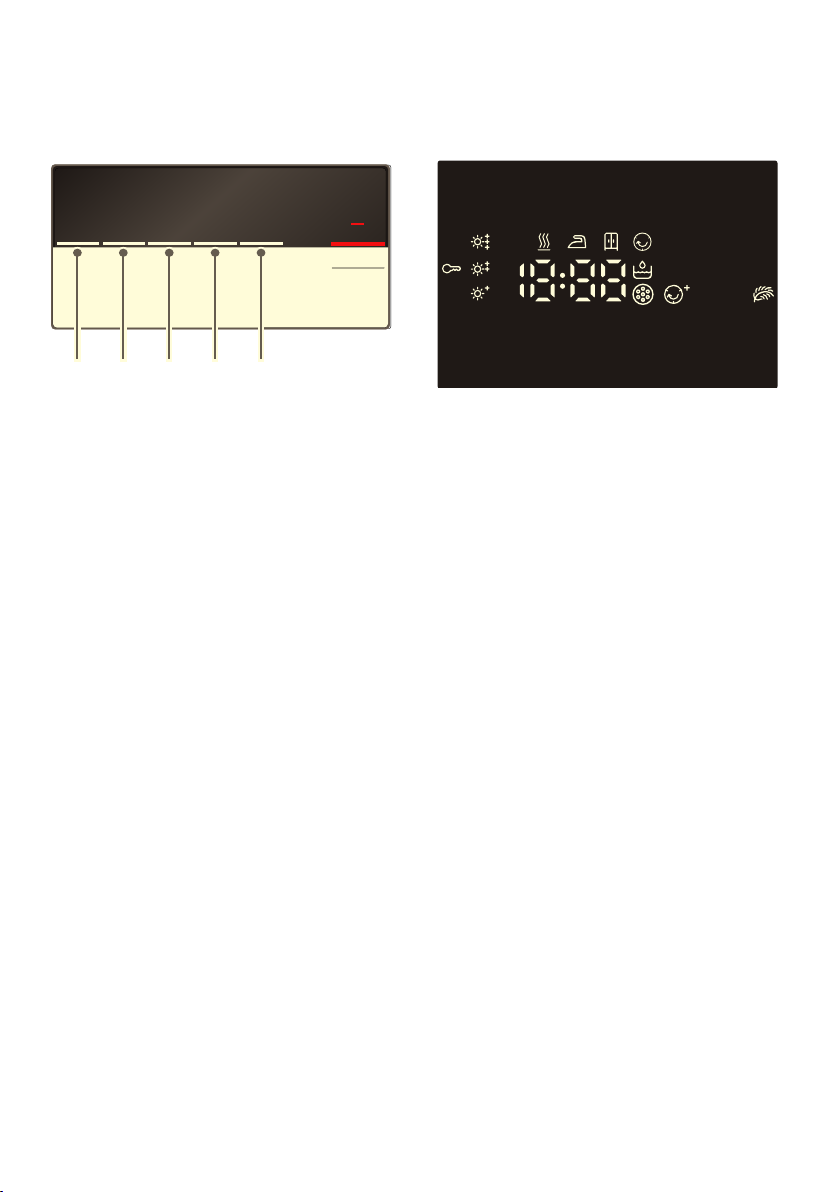

Display panel
Buttons on the display panel
For a detailed description of all buttons,
see ~Page 25 onwards.
Display panel
(Degree of dryness.
0Drying Time.
8Ready in.
@Anti-Crease.
HLow-Heat.

#+
ðEmpty the condensation container
~Page 28.
çClean the fluff filter ~Page 29
and clean the EasyClean filter
~Page 32.
eö»Q- ˜ - “Ÿš: Programme
progress for Dry, Iron Dry,
Cupboard Dry, Anti-Crease, Pause
and End of programme.
EChildproof lock active .
”Anti-Crease selected.
sLow-Heat selected.
ôDegree of dryness selected.
1:27 Expected programme duration in
hours and minutes.
3 h Programme will end in 3 h/hours
when the "Ready in" time is
selected.

en Laundry
22
ZLaundry
Laundry Preparing the laundry
:Warning
Risk of explosion/fire!
Remove any cigarette lighters and
matches from pockets.
Caution!
The dryer drum and fabrics could be
damaged.
Remove all objects from pockets and
observe the following information:
■Tie cloth belts, apron strings, etc.
together or use a laundry bag.
■Close zips, hooks and eyelets and
buttons. Button up large items of
laundry, such as covers.
■Remove any metal objects, such as
paper clips, from pockets.
■To ensure a consistent drying result,
sort laundry by fabric type and
drying programme.
■Always dry very small items of
laundry, e.g. babies' socks, together
with large items such as towels.
■Knitted fabrics such as T-shirts and
jerseys often shrink the first time they
are tumble-dried. Use a gentle
programme.
■Do not overdry easy-care laundry.
This increases creasing of the
laundry.
■Use timed programmes for single
garments.
■Some detergents and care products,
e.g. starch or softeners, contain
particles which may be deposited on
the moisture sensor. This may impair
the sensor function and in
consequence the drying result.
Notes
– When washing laundry to be
tumble-dried, use the correct
amount of detergent and care
products as specified in the
manufacturer's instructions.
– Clean the moisture sensor
regularly ~Page 32.
Sorting washing according to:
cSuitable for tumble drying
aDry at normal temperature
`Dry at low temperature
bDo not tumble-dry
Note: Do not load laundry from the
washing machine directly into the
tumble dryer. Sort the spun laundry
before placing it in the dryer drum.
If you dry thin, thick and multi-layer
fabrics together, they will dry to differing
degrees. To achieve an even drying
result, you should therefore only dry
together laundry of the same type of
fabric and structure. If you feel that the
laundry is still too damp, you can select
a timed programme for subsequent
drying ~Page 23.
Caution!
Possibility of material damage to the
dryer or laundry.
Do not tumble-dry the following
fabrics:
■Laundry contaminated with oil.
■Unwashed fabrics.
■Non-breathable fabrics (e.g. rubber-
coated).
■Easily damaged fabrics such as silk,
synthetic curtains.

Programmes and buttons en
23
/Programmes and buttons
Programmesandbuttons Programmes
Programme and fabrics Maximum load and programme
settings/info
Name of the programme
Which fabrics is the programme suitable for?
The maximum load is based on the
dry weight of the fabrics
Possible programme settings
Cottons iExtra Dry Ò
Hard-wearing, heat-resistant fabrics that are made of more than one
layer of cotton or linen and do not dry readily.
8 kg
Cottons iCupboard Dry »
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen.
8 kg
Cottons iIron Dry ö
Normal, hard-wearing and heat-resistant fabrics made of a single
layer of cotton or linen that need to be damp after drying and are suit-
able for ironing or hanging up.
8 kg
Easy-Care fExtra Dry Ò
Synthetic or blended fabrics that are made of more than one layer
and do not dry readily.
3.5 kg
Easy-Care fCupboard Dry »
Normal synthetic or blended fabrics made of a single layer.
3.5 kg
Easy-Care fIron Dry ö
Normal synthetic or blended fabrics made of a single layer that need
to be damp after drying and are suitable for ironing or hanging up.
3.5 kg
Sportswear w
Weatherproof and outdoor clothing with a membrane coating
and water-repellent fabrics.
1.5 kg
Towels ¼
Hard-wearing towels made of cotton.
6 kg
Mix o
Mixed load consisting of cotton and synthetic fabrics.
3 kg

en Programmes and buttons
24
--------
Timed program warm 5
All types of fabric; time programme.
Suitable for pre-dried or slightly damp laundry and for drying off
multi-layered, thick laundry.
Notes
■Only dry wool, sports shoes and soft toys with the basket for
woollens ~Page 14.
■In the time programme, the laundry's residual moisture is not
automatically detected. If the laundry is still too damp after
the drying programme, repeat the programme and, if required,
extend the programme length.
3 kg
You can adjust the programme
length using the button for
the drying time.
Timed program cold 5
All types of fabric. For freshening up or airing items of laundry
that have not been worn for long.
3 kg
You can adjust the programme
length using the button for
the drying time.
Shirts ’
Non-iron shirts or blouses made of cotton, linen, synthetic fibres
or blended fabrics.
1.5 kg
SuperQuick 40’ ^
Synthetics and light cottons.
1kg
Wool finish l
Fabrics made from wool or a wool blend that are suitable for tumble
drying.
3 kg
Delicates Ì
For delicate, washable underwear, e.g. made of velvet, lace, Lycra,
silk or satin.
1 kg

Programmes and buttons en
25
Buttons
--------
Buttons Explanations and notes
Note: Not all buttons and their functions can be selected in all programmes.
Fine adjust ôIf your laundry is too damp after drying, you can adjust the drying settings, e.g. Cup-
board Dry, using the drying level button. The drying setting can be increased in three
stages from –to •using the drying level button.
Once you have adjusted the drying level, this setting will be retained even after the
dryer has been switched off.
Note: The higher the degree of dryness, the longer the programme duration.
Drying Time 5Adjust the programme length for the time programmes. Between 20 minutes
and 3 hours, in 10-minute increments.
Finished in ñThe programme will end in 1-24 hrs. Set the "Ready in" time in increments of one
hour to delay the start of the programme. The required number of hours after the
programme ends is displayed in the display panel.
Easy-Iron QThe drum moves the laundry at regular intervals after drying to prevent creasing. You
can extend the automatic Anti-Crease function by 60 minutes after any programme
has finished.
Low Heat sReduced temperature for delicate fabrics, e.g. polyacrylic or elastane. Selecting the
button will extend the drying time.
E3 Sec.
(Childproof lock)
Press and hold the "Ready in" time button and the drying time button at the same
time for 3 seconds to activate or deactivate the childproof lock.
Start/Reload AStarts or pauses the programme.

en Operating the appliance
26
1Operating
the appliance
Operatingtheappliance Loading laundry and
switching on the dryer
Note: The dryer must be correctly
positioned and connected, ~Page 13.
1. Place the laundry in the drum.
2. Turn the programme selector to any
programme to switch the dryer on.
3. Close the dryer door.
Caution!
Possibility of material damage to the
dryer or laundry.
Take care not to trap any laundry in the
door.
Setting a programme
Note: If you have activated the
childproof lock, you must deactivate it
before you can set a programme, see
~Page 25.
1. Select the required programme;
detailed information on the
programmes can be found on
~Page 23 onwards.
2. Use the programme selector to set
the required programme. The default
programme settings for the selected
programme appear in the display
panel.
Note: Default programme settings
are standard settings that are
already defined when a programme
is selected. After selecting a
programme, you can see the default
programme settings in the display
panel.
3. If required, adjust the default
programme settings. You can find
detailed information on this on
~Page 25 onwards.
Starting the programme
Press the Start button.
Note: If you want to lock the
programme to prevent it from being
adjusted inadvertently, you can select
the childproof lock, see ~Page 25.

Operating the appliance en
27
Programme sequence
The programme status is indicated in
the display field.
Changing the programme or
adding laundry
You can remove or add laundry and
change or alter the programme at any
time during drying.
1. To pause the programme, open the
dryer door or press the Start button.
2. Add or remove laundry.
3. Select another programme or an
additional function, if required.
4. Close the dryer door.
5. Press the Start button.
Note: The programme duration in the
display panel is updated depending on
the load and residual moisture in the
laundry. The values displayed may
change after the programme is
changed or the load is adapted.
Cancelling the programme
The programme can be interrupted at
any time; to pause, open the dryer door
or press the Start button.
Caution!
Risk of fire. Laundry may catch fire.
If you cancel the programme, you must
remove the laundry items and spread
them out so that the heat can disperse.
Programme end
“Ÿš appears in the display panel.
Removing laundry and
switching off the dryer
1. Remove the laundry.
2. Turn the programme selector to the
"off" position.
e.g.
1:27
Expected programme duration
in hours and minutes.
Note: When a programme is
selected, the expected drying
time for the recommended load
is displayed. During drying
moisture sensors detect the
remaining moisture in the load
and adjust the programme
length (except timed
programmes). This is visible via
the time remaining leaping
forward.
eDry
öIron Dry
»Cupboard Dry
QAntiCrease
- ˜ -Pause
“Ÿš End

en Operating the appliance
28
Emptying the condensate
container
By default, the condensation from the
appliance runs into the condensation
container.
Alternatively, you have the option of
discharging the condensation water*
supplied depending on the model. If you
choose to discharge the condensation
water into the waste-water system, you
will not need to empty the condensation
container during the drying programme
or after each time you use the dryer.
1. Pull out the condensate container
horizontally.
2. Pour out the condensation water.
Caution!
Dirty condensation water may be
harmful to your health and cause
material damage.
Condensation water is not suitable
for drinking and may be
contaminated with fluff. Do not drink
the condensation water or reuse it.
3. Push in the condensate container
until you feel it lock back into place
in the dryer.
* into the waste-water system via a
drain hose

Operating the appliance en
29
Clean the fluff filter
Note: During drying, fluff and hair from
the laundry is trapped by the fluff filter. If
the fluff filter is blocked or dirty, this
reduces the flow of air, which prevents
the dryer from achieving its maximum
performance. Clean fluff filters also
reduce energy consumption and the
drying time.
Clean the fluff filter after each drying
cycle:

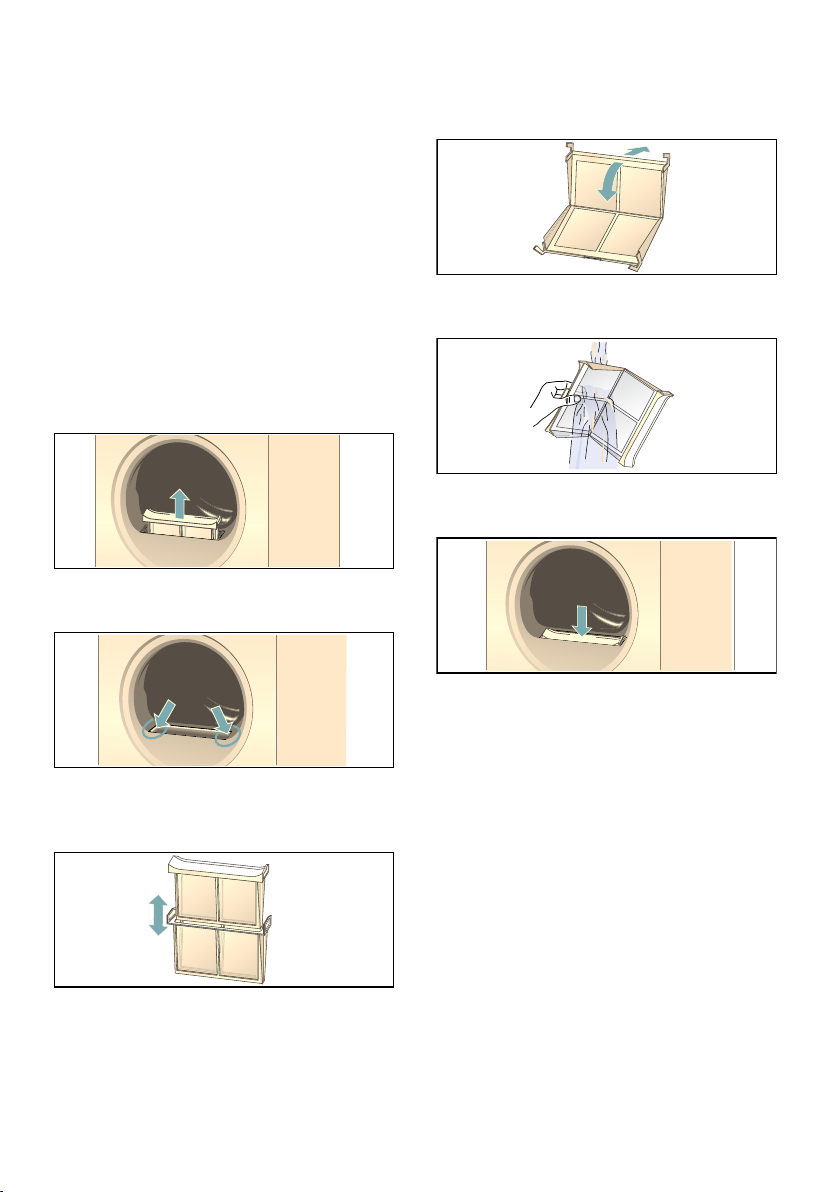

1. Open the dryer door and remove all
fluff from the door.
2. Pull out the two-part fluff filter.
3. Remove the fluff from the recess in
the fluff filter.
Note: Ensure that no fluff falls into
the open shaft.
4. Pull apart the two-part fluff filter.
5. Open both filters and remove all the
fluff.
6. Rinse away the fluff under warm,
running water.
7. Dry the fluff filter, close it and reinsert
the two-part fluff filter.
Caution!
The dryer may be damaged.
Do not operate the dryer without a fluff
filter or if the fluff filter is defective.

en Signal setting
30
MSignal setting
Signal setting You can change the following settings:
■The speed at which the washing
machine was spun; only used if the
anticipated drying time needs to be
displayed more accurately,
■The volume of the audible signal at
the end of the programme,
■The volume of the audible button
signals.
You will need to activate the setting
mode in order to change these settings.
Activating the setting mode
1. Switch the dryer on.
2. Select the "Cottons" programme in
position 1 and wait for five seconds.
Setting mode is now activated. The
symbols go out on the display panel
and the programme duration is
displayed.

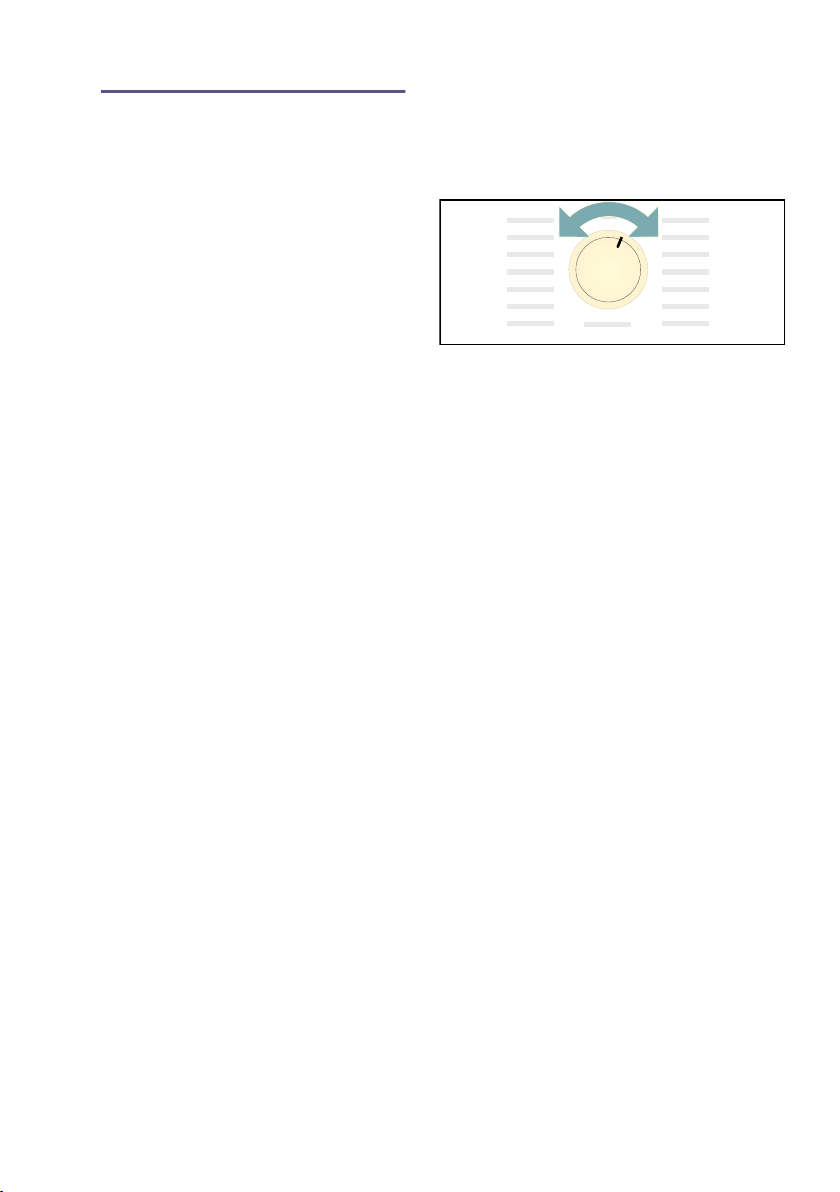

1. Press and hold the Start button and,
at the same time, turn the
programme selector clockwise to
position 2.
2. The spin speed is shown on the
display.
3. Press the "Ready in" time button or
the drying time button to change the
spin speed.
4. Turn the programme selector
clockwise to position 3.

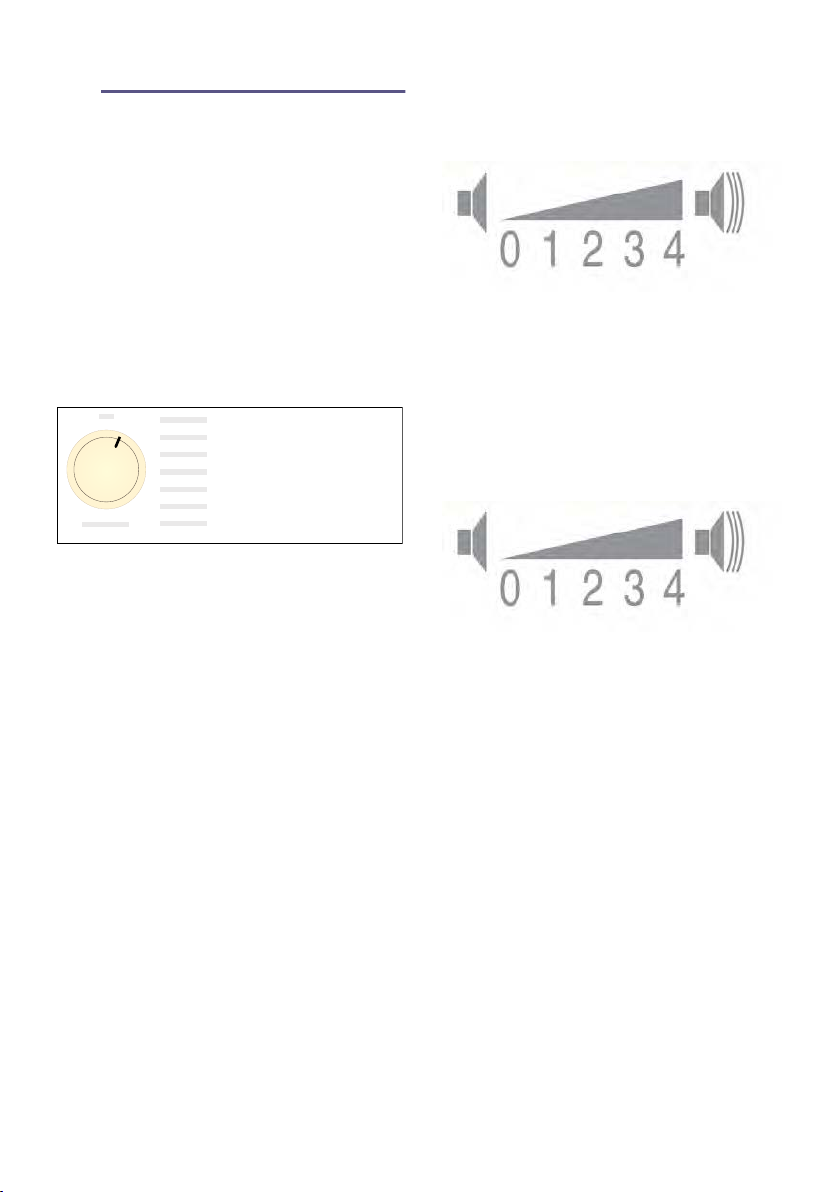

5. The volume for the audible signal at
the end of the programme is shown
on the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
6. Press the "Ready in" time button or
the drying time button to change the
volume.
7. Turn the programme selector
clockwise to position 4.
8. The volume for the audible button
signal is shown on the display.
0 = off, 1 = quiet, 2 = medium,
3 = loud, 4 = very loud
9. Press the "Ready in" time button or
the drying time button to change the
volume.
Note: You can select other positions
with the programme selector; however,
you will be unable to change these
settings.
Finishing setting mode
Turn the programme selector to the
"Off" position once you have set the
required spin speed and the volume.
The settings have now been saved.





Noises en
31

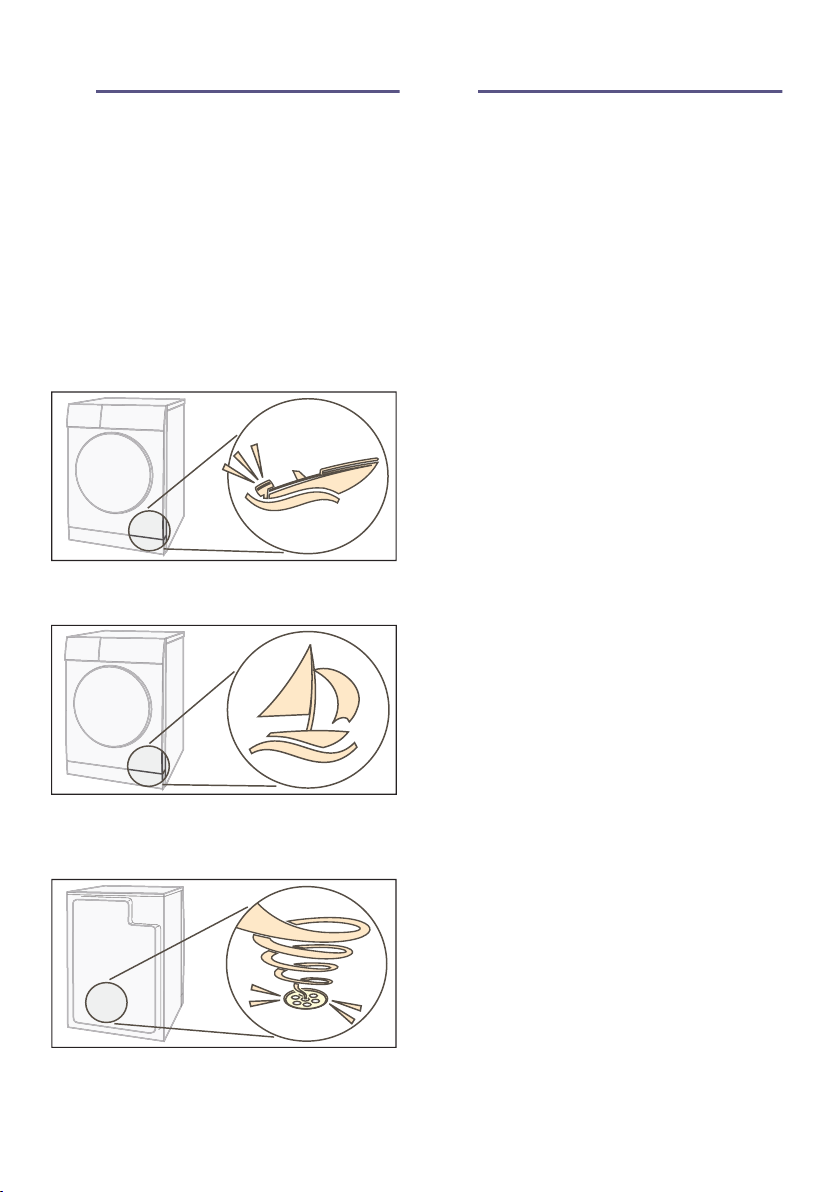

>Noises
Noises Note: During drying, particularly in the
initial phase, operation of the appliance
results in noise from the compressor
and pump. This is perfectly normal and
does not impair proper functioning of
the appliance.
From time to time, the compressor in
the dryer generates a humming noise.
However, the volume may vary
depending on the programme and
progress of the drying process.
Every now and then, the compressor is
ventilated. This creates a whirring noise.
The condensation is pumped into
the condensate container by a pump.
This generates pumping noises.
DCleaning
Cleaning Cleaning the dryer and the
control panel
:Warning
Risk of death!
There is a risk of electric shock as the
dryer is operated with electricity.
Disconnect the dryer from the mains
before cleaning.
Clean the dryer using only water and a
soft, damp cloth.
Remove all detergent residue, spray
residue or other residues immediately.
Do not use cleaning agents or agents
for pre-treating laundry (e.g. prewash
sprays, stain removers). Do not use
high-pressure cleaners or steam jet
cleaners to clean your appliance.

en Cleaning
32
Cleaning the moisture sensor
Note: The dryer is equipped with a
stainless-steel moisture sensor. The
moisture sensor measures how damp
the laundry is.
After long periods of usage the moisture
sensor may become covered by a fine
layer of limescale or residues of
detergents and care products. Such
residues must be removed regularly as
the sensor function and in consequence
the drying result may be impaired.
Open the door and clean the moisture
sensor with a coarse sponge.
Caution!
Moisture sensor may be damaged.
Do not clean moisture sensors with
abrasives and steel wool.
Cleaning the EasyClean filter
When çappears in the display panel,
clean the EasyClean filter as follows:
1. First clean the fluff filter ~Page 29.
2. Close the door of the dryer.
3. Open the maintenance flap on the
heat exchanger.
4. Release the levers on the EasyClean
filter.
5. Use the grip handle to pull the
EasyClean filter out.
6. Now take off the filter mat.
7. Wash out the filter mat by hand
using clean water.
Notes
– If the filter mat is covered with
stubborn dirt, you can also
remove this carefully using a
vacuum cleaner.
– Do not use cleaning agents.
8. Dry the filter mat by squeezing the
water out.
Note: Only use the filter mat if it is
clean and dry.
9. Put the filter mat back on.
Note: Ensure that the filter mat is
not misshapen, torn or clogged.
Position the filter mat as shown
above.

Cleaning en
33

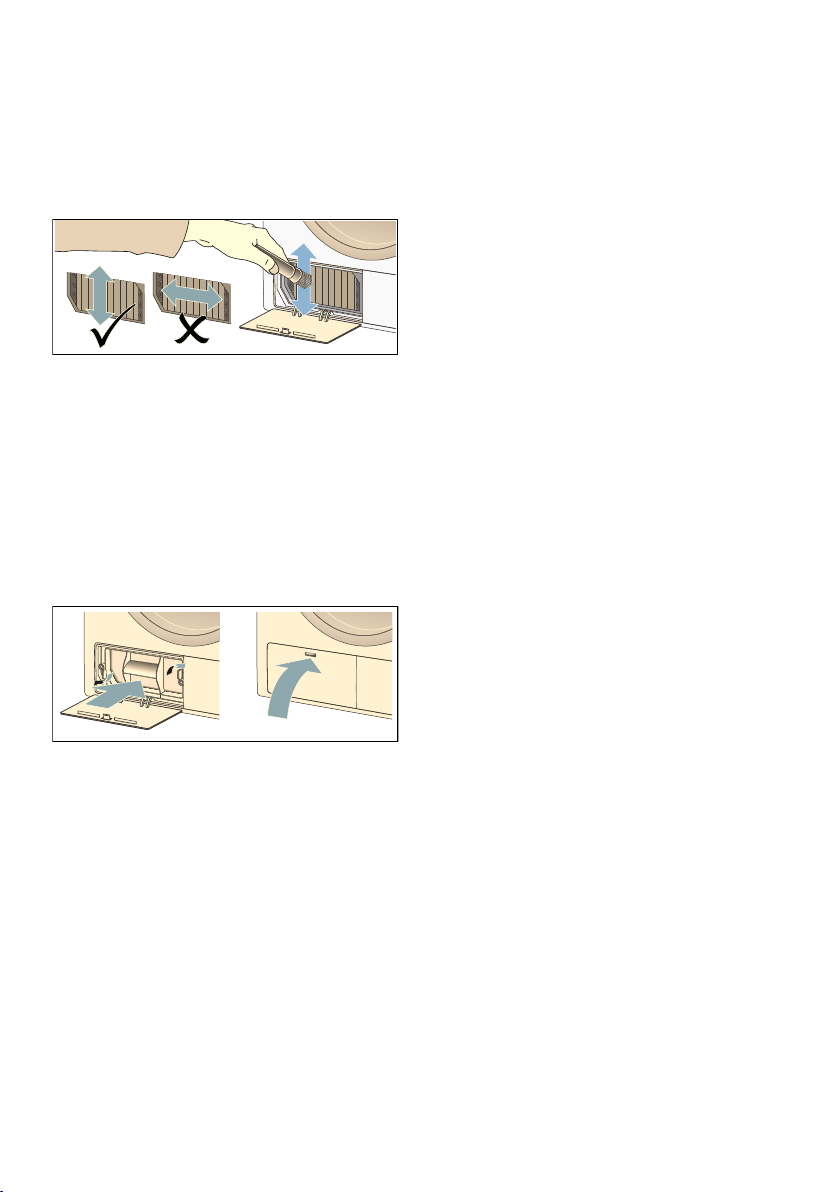

10.Check how dirty the dryer's heat
exchanger is before putting the
EasyClean filter back in. If it is very
dirty, use a vacuum cleaner with a
brush attachment to clean it carefully
from top to bottom.
Note: Take care not to bend or
damage the fins on the heat
exchanger when cleaning it.
Caution!
Risk of injury.
You could cut yourself on the fins of
the heat exchanger.
Do not touch these with your hands.
11.Slide the EasyClean filter in and
make sure it clicks into place.
12.Close the maintenance flap.
13.Switch the dryer off.
You have now cleaned the EasyClean
filter.
Note: If your filter mat is damaged, you
can order a new one from the after-
sales service using part number:
12007650.
Contact information for all countries can
be found on the enclosed after-sales
service list.

en Faults and what to do about them
34
3Faults and what to do about them
Faultsandwhat todoabout them
Faults Cause/remedy
ðin the display panel
and drying was inter-
rupted.
■Empty the condensation container and press the Start button.
■If the optional condensation drain has been installed, the drain hose may be
blocked or kinked.If the optional condensation drain has been installed, the
drain hose may be blocked or kinked. Check the hose for deposits and
flush the hose through. Lay the hose without any kinks.
çin the display panel. ■Clean the fluff filter ~Page 29.
■Clean the EasyClean filter ~Page 32.
The dryer will not start. ■Start button selected?
■Mains plug plugged in or fuse/circuit breaker checked?
■Programme selected? Select a programme.
■Dryer door open? Close the door.
■Childproof lock activated? Deactivate the childproof lock.
■"Ready in" time selected? Programme starts after a delay.
Creasing. ■Creasing occurs when you have exceeded the maximum load or selected
the wrong programme for the type of fabric. All the required information
can be found in the programme table.
■Remove clothes immediately after drying; creasing may occur if they are
left in the drum.
Water is leaking out. Not a fault; the dryer may be positioned on an incline. Level the dryer.
Programme duration dis-
played changes during
drying.
Not a fault. The moisture sensors detect the remaining moisture in the load and
adjust the programme length accordingly (except timed programmes).
Laundry is not dried cor-
rectly or is still too damp.
■After the end of the programme, warm laundry feels damper than it actually
is. Spread the laundry out and allow the heat to disperse.
■Fine tune the dryness level. This extends the drying time but does not
increase the temperature. Your laundry will become drier ~Page 25.
■Select a programme with a longer drying time or increase the dryness level.
This does not increase the temperature.
■Select a timed programme to add extra drying time for laundry that is still
damp ~Page 23.
■If you have exceeded the maximum load for the programme, the laundry
may not be dried properly.
■Clean the moisture sensor in the drum. The sensor may become covered in
a fine layer of limescale or detergent and care product residue, which then
impairs its performance. This prevents your laundry from being dried prop-
erly ~Page 32.
■Drying has stopped as a result of a power cut, because the condensation
container is full or because the maximum drying time has been exceeded.
Note: See also the laundry tips ~Page 22.
* Depending on the model

Faults and what to do about them en
35
Note:
If you cannot rectify the fault yourself by turning the dryer off and then on again,
please contact our after-sales service.
Drying time too long? ■The fluff filter or the EasyClean filter may be dirty, which will make the dry-
ing time longer. Clean the fluff filter or the EasyClean filter.
■If the air inlet on the dryer is blocked or not freely accessible, this may
increase the drying time. Make sure that the air inlet remains unobstructed.
■The optimum ambient temperature for drying is between 15 °C and 30 °C.
Outside of this range, the drying time may increase.
■Insufficient air circulation in the room may increase the drying time. Venti-
late the room.
Display panel goes out
and Start button flashes.
Not a fault. Energy saving mode is active ~Page 12.
Humidity in the room is
increasing.
Not a fault. Make sure the room is adequately ventilated.
Power failure. The drying programme is stopped. Remove the laundry and spread it out, or
restart the programme.
Unusual noises when dry-
ing.
Not a fault; see also ~Page 31.
The dryer feels cold
despite drying.
Not a fault. The dryer can dry effectively at low temperatures using a heat pump.
Faults Cause/remedy
* Depending on the model

en Consumption values
36
[Consumption values
Consumptionvalues Consumption values table
Programme Spin speed used for spinning
the laundry Duration** Energy consumption**
Cottons 8 kg 8 kg
Cupboard Dry* 1400 rpm 180 min 1.52 kWh
1000 rpm 203 min 1.90 kWh
800 rpm 236 min 2.25 kWh
Iron Dry* 1400 rpm 123 min 1.12 kWh
1000 rpm 146 min 1.40 kWh
800 rpm 179 min 1.58 kWh
Easy-Care 3.5 kg 3.5 kg
Cupboard Dry* 800 rpm 66 min 0.50 kWh
600 rpm 78 min 0.61 kWh
* Programme setting for testing in accordance with the IEC61121 standard.
** The values may differ from those specified, depending on the type of fabric, composition of laundry to
be dried, residual moisture in the laundry, the degree of dryness that has been set, the amount of laun-
dry being loaded, the environmental conditions, and any additional functions that have been activated.
