Bosch HMV9302 User manual

Household Appliances
Over-the-Range Microwave
Installation Instructions
For Models: HMV9302, HMV9303, HMV9305, HMV9306, HMV9307
PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
IMPORTANT: Save these instructions for the local electrical inspector’s use.
INSTALLER: Please leave these Installation Instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
Printed in Korea
P/No.: 3828W5U0503

2
YOUR SAFETY FIRST
BEFORE YOU START
• Proper installation is the installer's responsibility!
– Read the entire manual before you begin. The Model number label is located on the oven front. See Figure 1.
Mounting plate is located on back side of microwave oven. See Figure 2.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
FOR YOUR SAFETY:
• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled properly.
The dimensions of the oven are as follows:
Height : 16 7/16 inches
Width : 29 15/16 inches
Depth : 15 5/8inches
Weight : 60 lbs.
• Avoid Electrical Shock!
– Before you drill into the wall, note where electrical outlets are and where electrical wires might be concealed
behind the wall. YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires with your drill bit.
– Locate and disconnect the power to any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
• ELECTRICAL RATING OF THIS OVEN : 120V AC 60Hz.
– You need a DEDICATED 120V, 60Hz, AC only, 15 or 20A, fused electrical supply (located in the cabinet above
the microwave as close as possible to the microwave) serving only the microwave.
Mounting
plate
( Remove from
oven to install. )
Back of oven
Figure 1 Figure 2
Model Number Label
WARNING

3
• THIS APPLIANCE MUST BE GROUNDED!
–If there is an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire
for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
• Place the plug into a properly installed and grounded outlet. See Figure 3.
• Do not use an extension cord.
• Keep the power cord dry and do not pinch or crush it.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE
POWER SUPPLY CORD GROUNDING PRONG!
This appliance MUST be grounded!
If you use the grounding plug improperly, you risk electric shock!
–Check with a qualified electrician if you are not sure whether the oven is properly grounded or if you do not
completely understand the grounding instructions.
DO NOT USE A FUSE IN THE NEUTRAL OR GROUNDING CIRCUIT.
Improper grounding could result in electric shock or other personal injury.
SAVE THESE INSTRUCTIONS FOR THE LOCAL ELECTRICAL INSPECTOR'S USE.
• DO NOT EXPOSE YOURSELF TO EXCESSIVE MICROWAVE ENERGY!
–DO NOT try to operate the microwave oven with the door open.
–DO NOT tamper with or defeat the safety interlocks.
–DO NOT place objects between the microwave oven front face and the door.
–
DO NOT allow soil or cleaner residue to build up on the flat surfaces around the microwave oven door.
–DO NOT operate the microwave oven if it is damaged.
–The microwave oven door must close properly to operate safely.
–DO NOT USE THE MICROWAVE OVEN:
• If the door is bent.
• If the hinges or latches are broken or loose.
• If the door sealing surfaces or glass is broken or cracked.
–DO NOT ATTEMPT TO ADJUST OR REPAIR THE OVEN YOURSELF!
It should be adjusted and repaired by a qualified technician who can check for microwave leakage after
repairing the oven.
If you do not use the microwave oven as instructed,
you could be exposed to excessive microwave energy.
YOUR SAFETY FIRST
PROPERLY POLARIZED AND
GROUNDED OUTLET
Three-Pronged (Grounding) Plug
Figure 3
WARNING
WARNING
WARNING

4

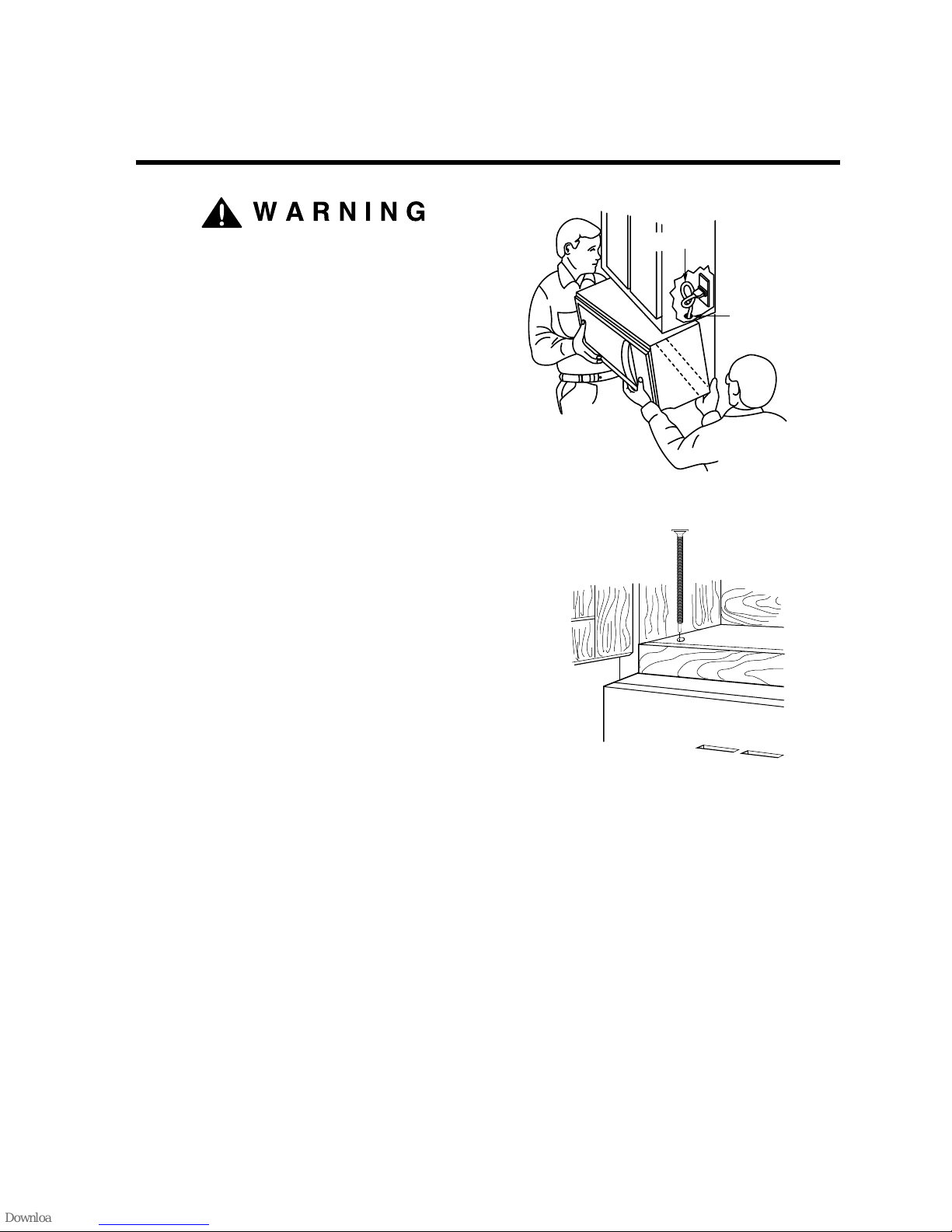

• MAKE SURE YOU HAVE ENOUGH SPACE AND SUPPORT.
–Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of
minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.
–ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.
–DO NOT mount the microwave oven to an island or peninsula cabinet.
–BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight of any items
you place inside the oven or upper cabinet.
–Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.
–BE SURE you have enough space. See Figure 4 below for minimum vertical and horizontal clearance.
If you do not mount the oven as instructed,
you risk personal injury and/or property damage.
CAUTION
• Before you begin installing the oven, PLACE A PIECE OF THE CARTON OR OTHER HEAVY
MATERIAL (such as a blanket) over the countertop or cooktop to protect it. Do not use a plastic cover.
Failure to protect these surfaces could result in property damage.
YOUR SAFETY FIRST
30" min. cabinet opening width
30" min. clearance from bottom
of cabinet to cooking surface
or countertop
(Use templates included
with installation instructions)
Grounded Outlet
(inside upper cabinet)
Power Supply Cord Hole
Figure 4
CAUTION

5

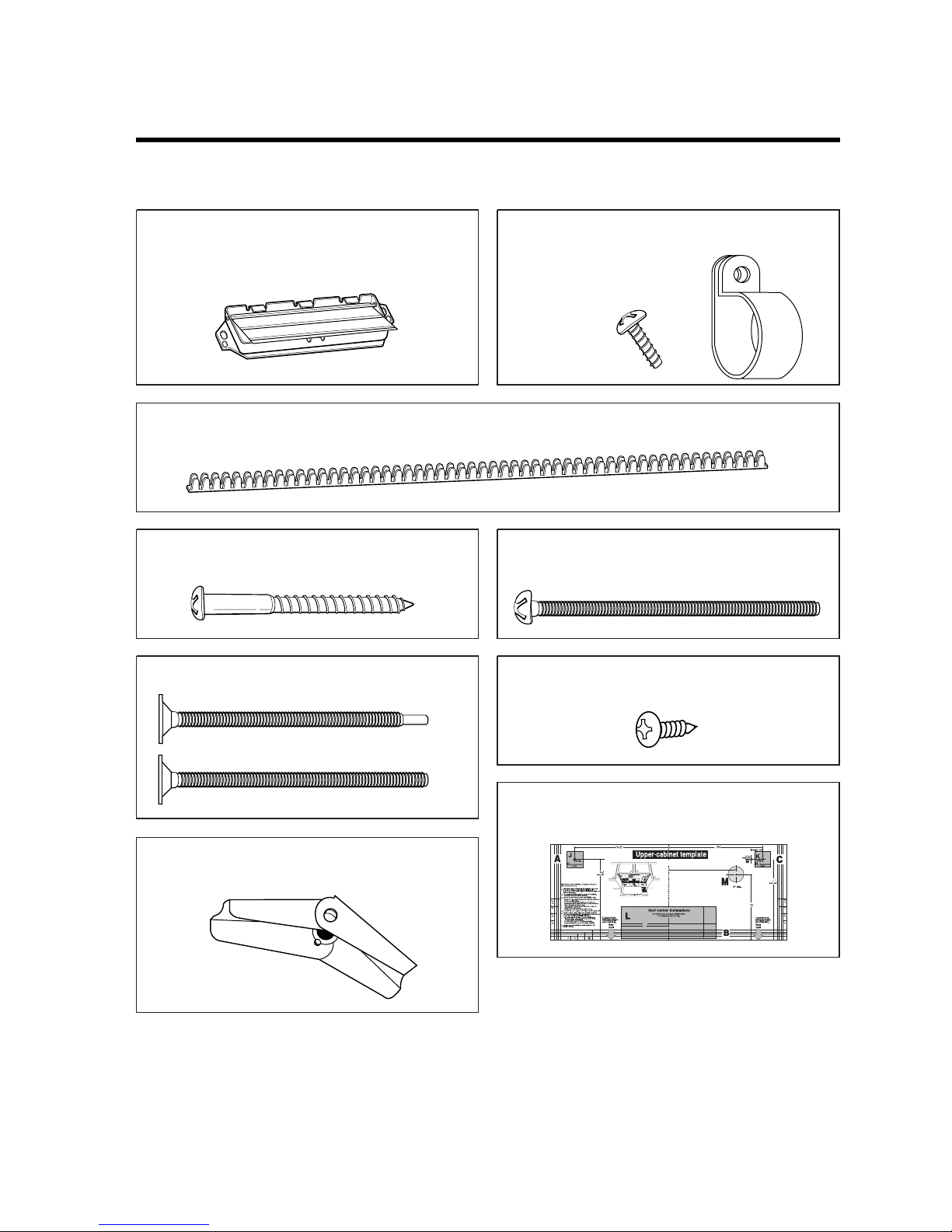

THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
PARTS, TOOLS, MATERIALS
Damper/duct connector
(for roof vented or wall vented installation)
Not Actual Size
Four 1/4" x 2" lag screws - Actual Size
(for wall stud holes)
Four 1/4" x 3" toggle bolts - Actual Size
(for drywall holes)
Two 1/4" x 3" bolts - Actual Size
OR
(for securing to the upper cabinet)
Four spring toggle heads - Actual Size
(for the toggle bolts)
Left side
Right side
centerline
6"
4"
8"
12"
10-
8-
11
Roof-ventinginstallation
Upper-cabinettemplate
B
CD
10-
316
One upper cabinet template - Not Actual
Size
Two tapping screws - Actual Size
(for attaching the damper duct connector)
One power cord clamp bushing - Actual Size (for the cord hole in a metal upper cabinet)
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)
Actual Size
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
NOTE: You need to install at least one lag screw into a 2" x 4" stud and four anchor bolts into the wall,
and the mounting area must meet the 150 lbs. weight requirement.

6

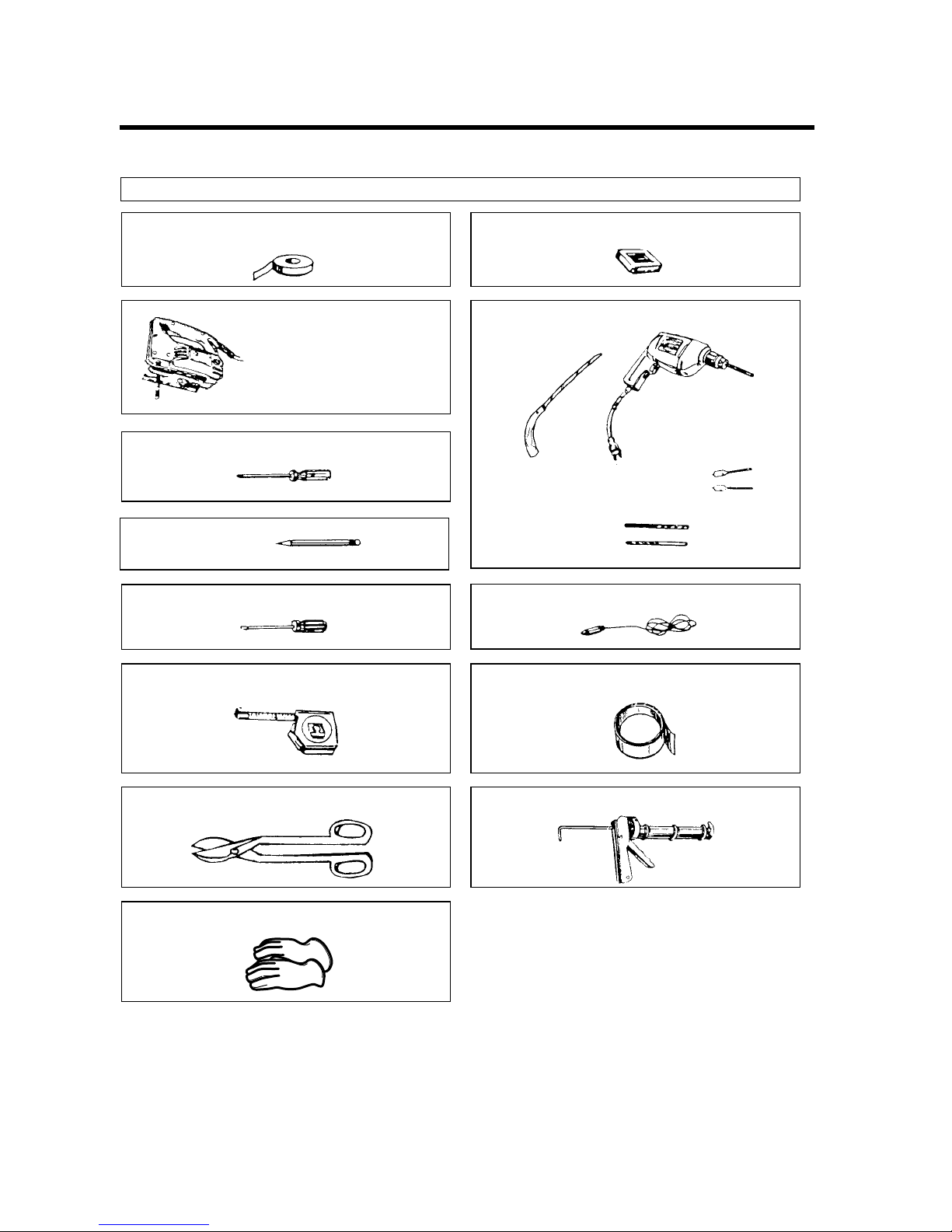

YOU WILL NEED THE FOLLOWING TOOLS AND MATERIALS FOR THE INSTALLATION:
Carton or other heavy material for covering the counter top.
• If you have brick or masonry walls, you will need special hardware and tools.
• The ductwork you need for the installation is not included. All wall and roof caps must have a back-draft damper
(shown on page 5).
PARTS, TOOLS, MATERIALS
Clear tape
(for taping the templates to the wall) Stud finder or thin nail.
Saber saw (for cutting vent
holes for roof or wall venting)
Keyhole saw (for the power cord hole)
Electric drill
3/8" and 3/4" wood drill bits
1/2" and 3/16"
drill bits
Phillips screwdriver
Pencil
Flat blade screwdriver
Measuring tape (metal preferred)
Small side cutters or tin snips Caulking gun
Plumb line
Duct Tape
Gloves

7
AVOID ELECTRICAL SHOCK! THIS APPLIANCE MUST BE GROUNDED!

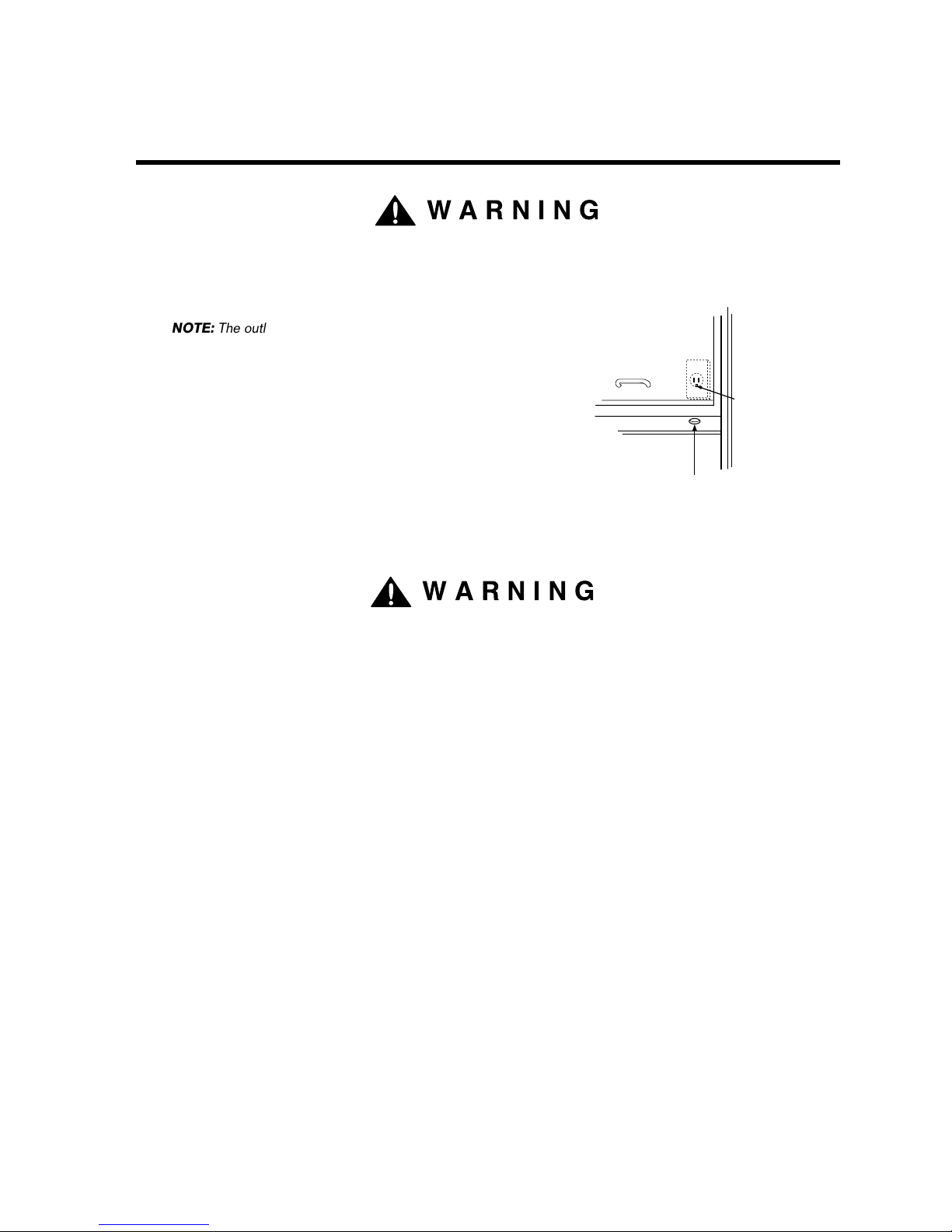

1. Locate the grounded electric outlet for this oven in the cabinet
above the oven, as shown in Figure 4 Detail.
2. You will cut the power-supply-cord hole (shown in Figure 4 Detail)
later when you prepare the wall and upper cabinet in Step 4.
Improper grounding could result in
electric shock or other personal injury.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY
CORD GROUNDING PRONG! This appliance MUST be grounded!
STEP 1: PREPARE THE
ELECTRICAL CONNECTIONS
Grounded Outlet
( Inside Cabinet )
Upper
Cabinet
Power-Supply-Cord Hole
Figure 4 Detail
WARNING
WARNING
NOTE: The outlet should be on a circuit dedicated to the
microwave oven 120V, 60Hz., AC only with a 15 or
20A fused electrical supply.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
IMPORTANT: If you do not have the proper wall outlet, you
MUST have one installed by a qualified
electrician.

8
THIS OVEN MUST BE PROPERLY VENTED!
You may vent your oven in one of three ways:
Roof-venting If your oven is located on an outside wall near the roof, as in Figures 5 (31/4" x 10" duct)
and 6 (6" round duct.)
Wall-venting If your oven is located on an outside wall on the first floor of your house, as in Figure 7
(31/4" x 10" duct) and Figure 6 (6" round duct.)
Room-venting If your oven is located on an inside wall of your house, as in Figure 8.
REMEMBER AS YOU INSTALL THE VENTING:
• Keep the length of the ductwork and the number of elbows to a minimum to ventilate your oven efficiently.
See examples on page 9.
• Keep the size of the ductwork the same.
• Do not install two elbows together.
• Use duct tape to seal all joints in the duct system.
• Use caulking to seal the exterior wall or roof opening around the cap.
STEP 2:
PREPARE THE VENTING SYSTEM
Wall-venting
through-the-wall
wall cap
3 1/4"x10"
duct
Figure 7
cabinet
oven
through-the-roof
3 1/4"x10"
duct
Figure 5
roof cap
Roof-venting
cabinet
oven
6" min.
diameter
round duct
3 1/4" to round
duct transition
3 1/4" to round
ductwork transition
Figure 6
roof cap
wall cap
elbow
WARNING:FIRE HAZARD
room-venting
Figure 8
cabinet
oven
NOTE: The ductwork you need for outside ventilation is not included with your oven. The standard ductwork
fittings and length are shown in Figure 9, page 9.
NOTE: If you choose the rear exhaust method (roof- or wall-venting), be sure there is enough clearance within the
wall for the exhaust duct.
“wall-venting”
“roof-venting”

9
STEP 2:
PREPARE THE VENTING SYSYTEM

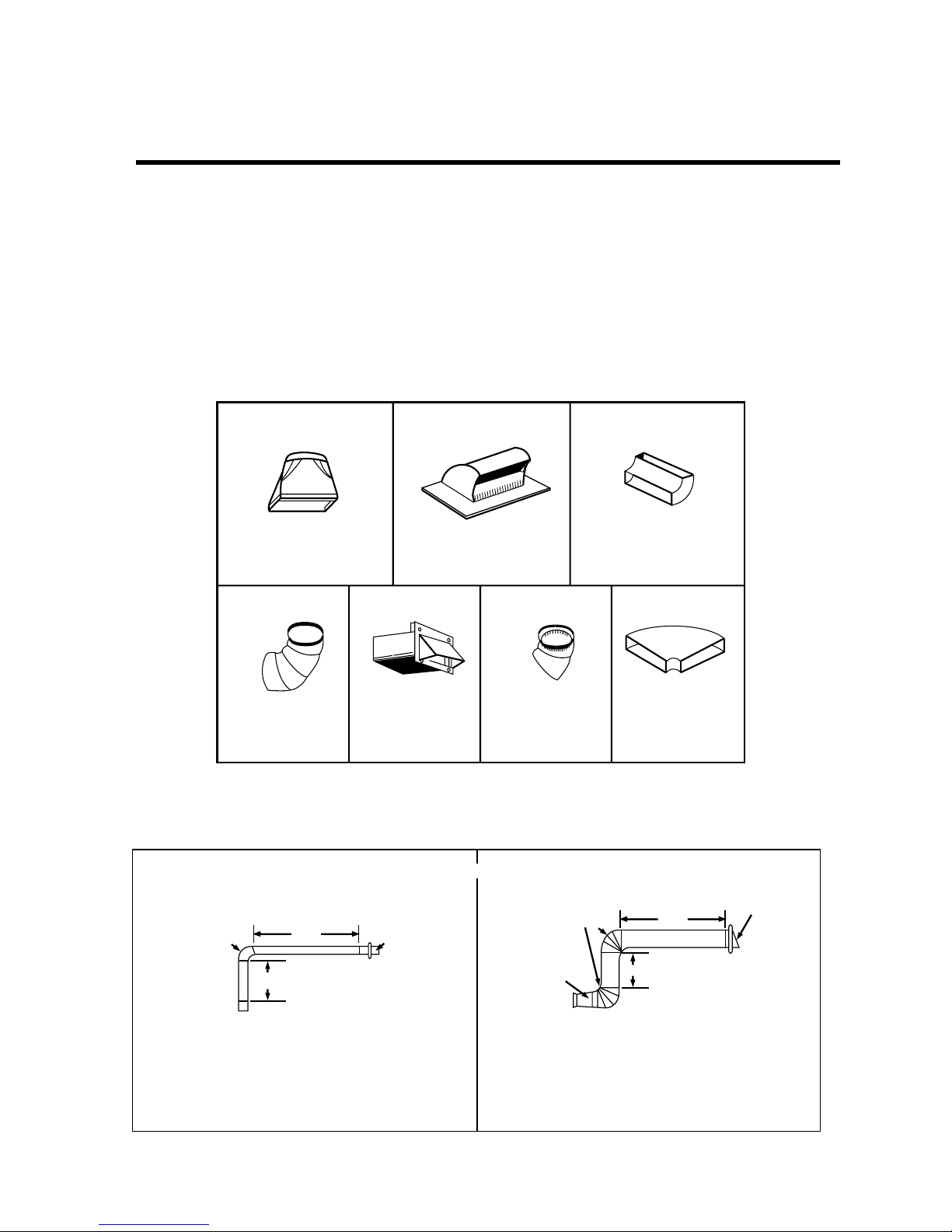

STANDARD FITTINGS
DUCT LENGTH
The total length of the duct system, including straight duct, elbows, transitions, wall or roof caps must not
exceed the equivalent of 140 feet.
For best performance, do not use more than three 90 degree elbows.
Below are the standard fittings and their equivalent length in feet.
Figure 9
Examples
For 3 1/4"x10" SYSTEMS
1-3 1/4" x 10" 90oelbow
1-Wall Cap
8 feet straight duct
TOTAL LENGTH
1-transition
2-90oelbows
1-Wall Cap
8 feet straight
TOTAL LENGTH
For 6" ROUND SYSTEMS
1
4567
23
3 1/4"x10"
to 6"=5ft.
90oelbow
=10ft.
45oelbow
=5ft.
3 1/4"x10"
wall cap
=40ft.
3 1/4"x10"
flat elbow
=10ft.
3 1/4"x10" roof
cap=24ft.
3 1/4"x10" 90˚
elbow=25ft.
6ft.
2ft. 2ft.
3 1/4"x10"
90oelbow
wall cap
6ft.
90oelbows
transition
wall cap
= 25 ft.
= 40 ft.
= 8 ft.
= 73 ft.
= 5 ft.
= 20 ft.
= 40 ft.
= 8 ft.
= 73 ft.
NOTE: If the existing duct is round, you must use a rectangular-to-round adapter, with a rectangular 3" extension
duct installed between the damper assembly and the adapter to prevent the exhaust damper’s sticking.
To calculate the equivalent length of each ductpiece used, see the examples below.

10

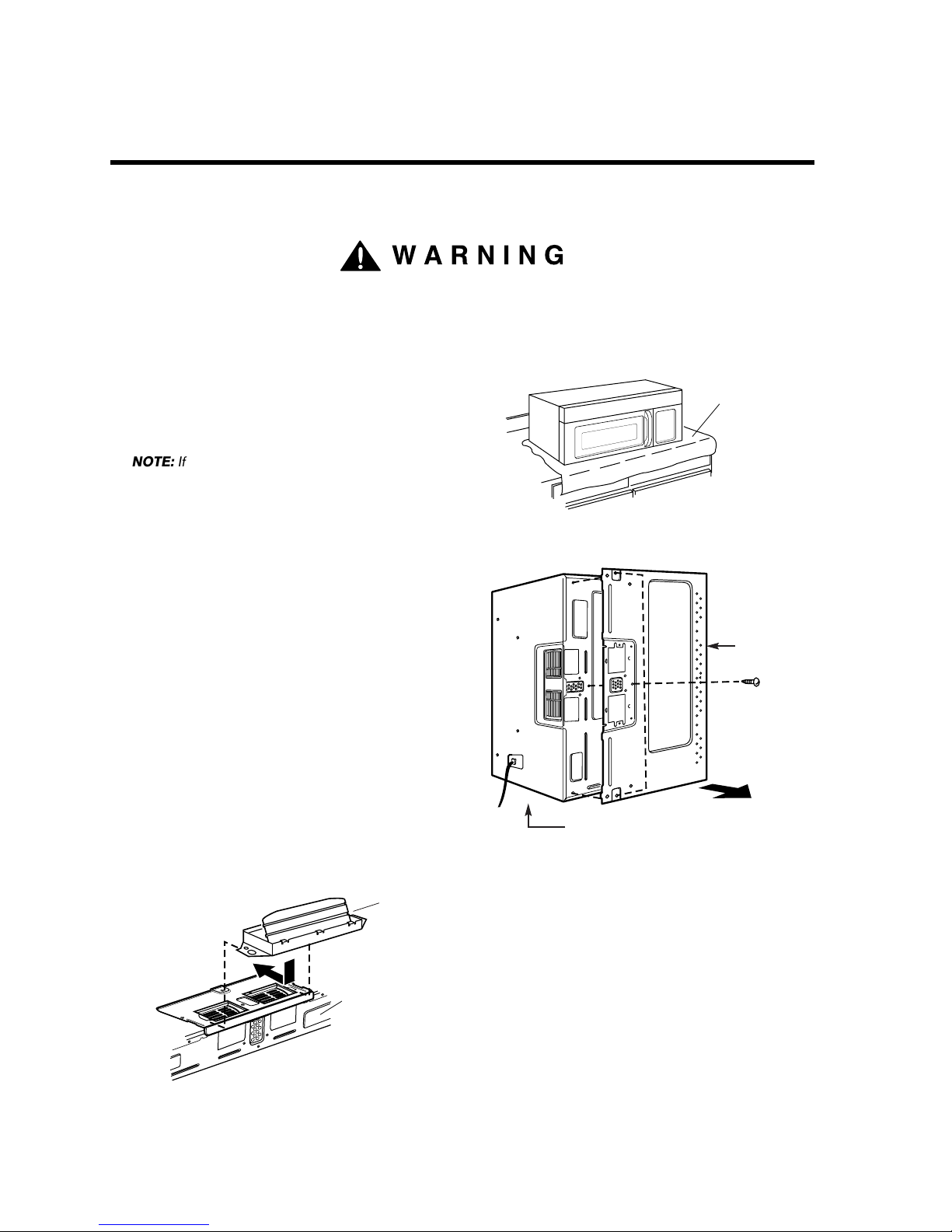

Your microwave oven is shipped with the blower assembled for roof venting. You need to adjust the blower if
you want wall-venting or room-vented (recirculating) installation.
ELECTRICAL SHOCK HAZARD! UNPLUG UNIT BEFORE WORKING ON IT.
•DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in
electrical shock.
REMOVE THE MOUNTING PLATE:
1. Remove any shipping materials and parts from inside
the microwave oven.
2. Cover the countertop or cooktop with a thick,
protective covering to protect it from damage and dirt.
See Figure 10.
3. Remove mounting plate screw(s) (1 or 2 screws)
from the mounting plate as shown and discard
(see Figure 11).
4. This plate will be used to locate and mark the mounting
holes on the rear wall. (It will be used to locate and
mark the mounting holes on the rear wall.)

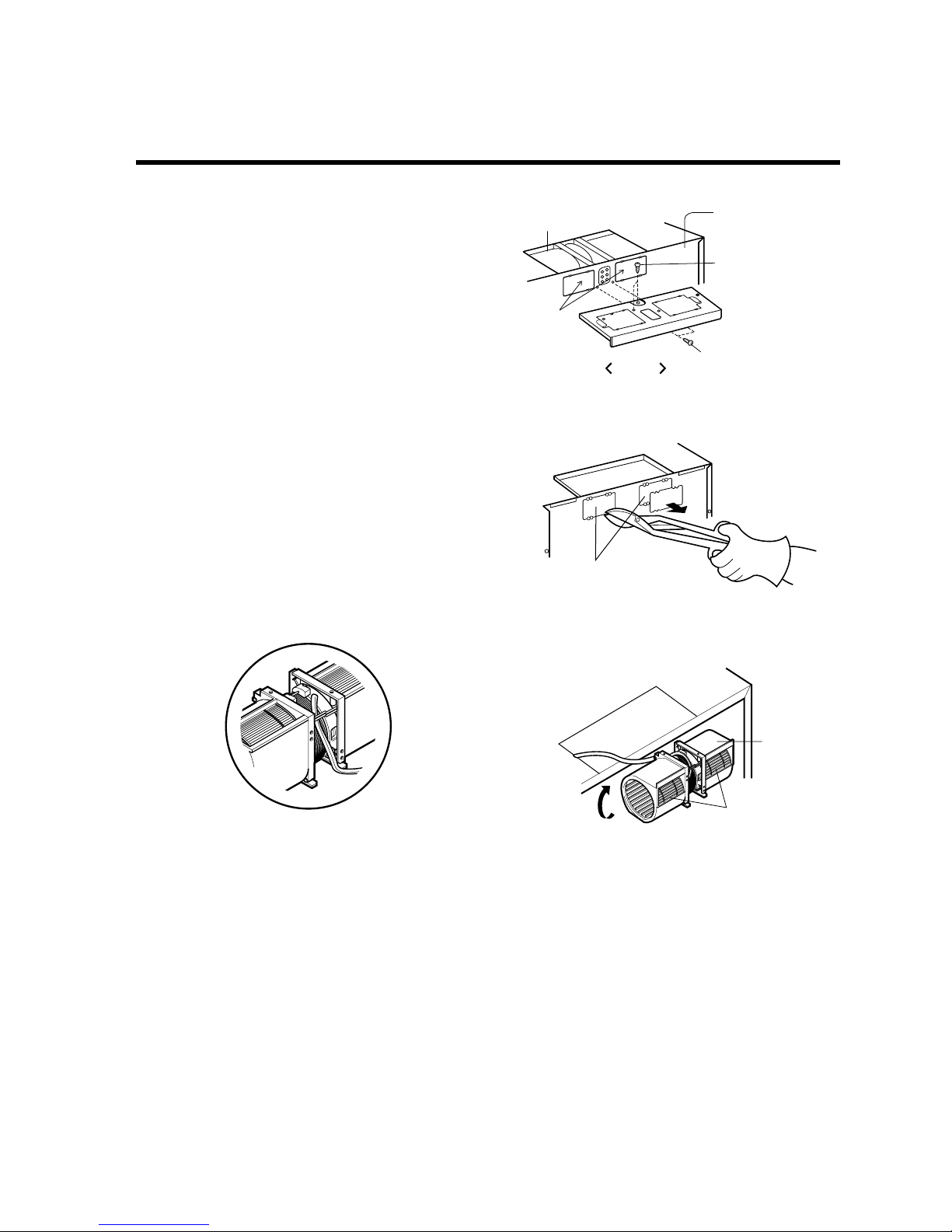

5. Locate exhaust adaptor, grease filters and hardware
packet.
6. At this point, remove any adhesive tape (if there is any),
on the exhaust adaptor, the grease filters and the
power supply cord.

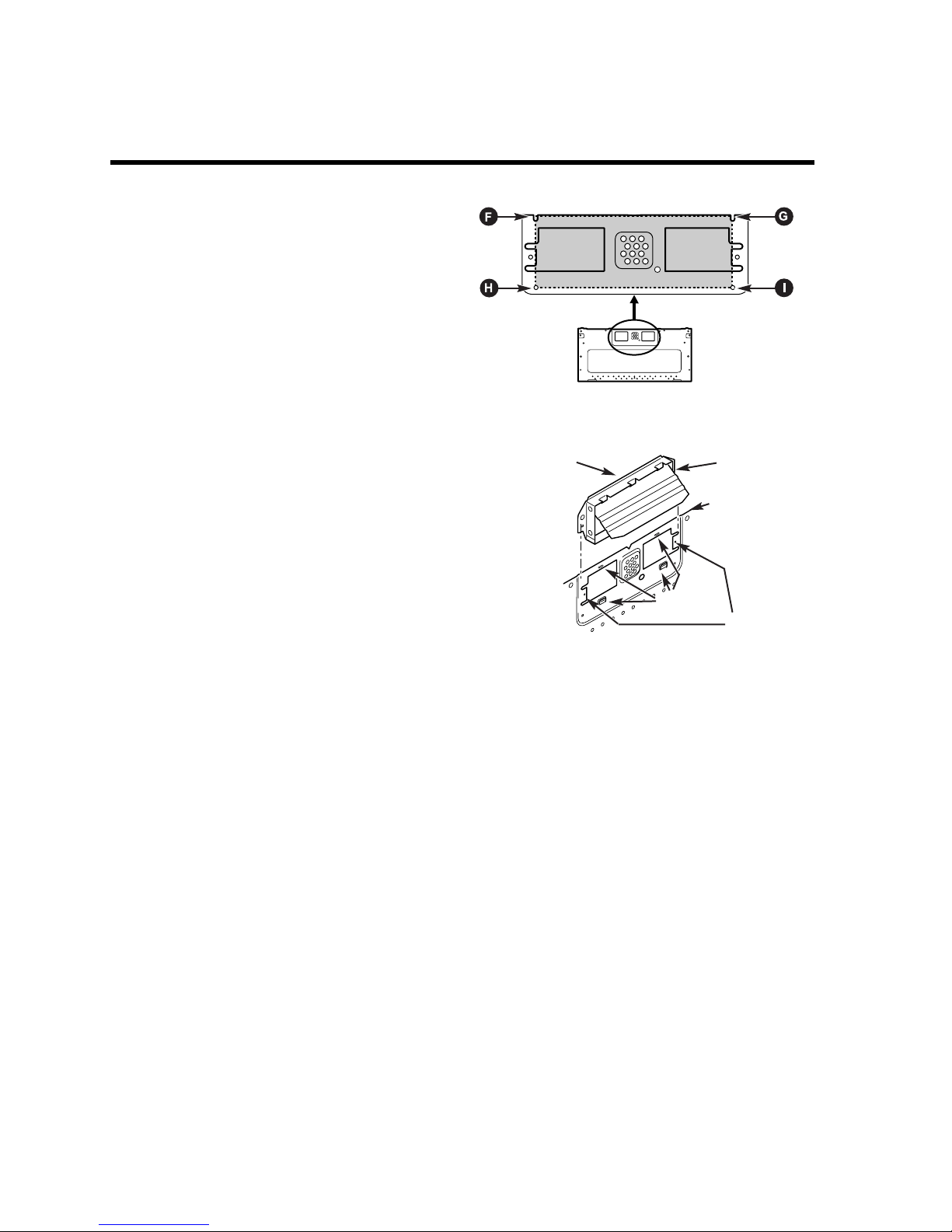

ROOF-VENTED INSTALLATION:
This oven is shipped assembled for roof-vented. You
will need to install the exhaust adaptor regardless of
cabinet.
1. Attach the exhaust adaptor to the blower plate by
sliding it into the guides (see Figure 12).
Go to step 4 on page 13.
STEP 3:
PREPARE THE VENTING BLOWER
Figure 10
A thick, protective
covering
Figure 11
Mounting
plate
Mounting plate
screw(s)
(1 or 2 screws)
Control panel side
Figure 12
Back
of oven
Exhaust
adaptor
WARNING
NOTE: If you have a free-standing range, disconnect it, move it
onto a piece of cardboard or hardboard and pull it away
from the wall, so that you can get closer to the upper
cabinet and back wall for easier measuring and drilling.

11
WALL-VENTED INSTALLATION:
1. Remove one blower unit mounting screw and one blower
plate screw. Remove the blower plate from cabinet.
See Figure 13.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or tin snips to cut and remove knockouts
“B” from Back plate. Discard knockouts. Be careful not
to distort the plate. See Figure 14.
4. Reassemble the blower wire. See Figure 15.
5. Rotate the unit so that the exhaust ports face the rear of
the cabinet. See Figure 16. When you insert blower unit,
blower wire must be like Figure 16.
6. Place blower unit back into cabinet. Check that the
exhaust ports face towards the rear of the cabinet.
See Figure 17.
7. Reattach the blower plate to cabinet so the exhaust ports
and blower plate opening are aligned. Attach with one
blower unit mounting screw and then one blower plate
mounting screw. See Figure 18.
STEP 3:
PREPARE THE VENTING BLOWER
Figure 13
Option
blower plate
mounting screws
blower unit
mounting screw
blower unit
Parts "B"
back plate
Figure 14
Knockout Parts "B"
Parts "B"
Figure 16
exhaust
ports
blower
unit
Figure 15

12
STEP 3:
PREPARE THE VENTING BLOWER
ROOM-VENTED (Recirculating)
INSTALLATION:
1. Remove one blower unit mounting screw and one
blower plate screw. Remove the blower plate from
cabinet. See Figure 19.
2. Carefully lift the blower unit out of the microwave oven.
3. Rotate blower unit 90˚so the exhaust ports face the
front of the cabinet. See Figure 20.
4. Place blower unit back into microwave oven.
5. Reattach blower plate to microwave oven. Attach with
the one blower unit mounting screw and then the one
blower plate mounting screw. See Figure 21.
Figure 19
blower unit
exhaust ports
Figure 18
Figure 21
blower unit
exhaust
ports
Figure 17
blower plate
mounting screws
blower unit
mounting screws
blower plate
mounting screws
blower unit
mounting screws
blower plate
mounting screws
blower unit
mounting screws
Figure 20
blower
unit
Option
Option
Option

13
MEASURE AND TACK / TAPE UP THE
TEMPLATES
1. Using a plumb line and (metal) measuring tape, find and
mark the vertical center line on the back wall, as in
Figure 22.
2. Find and mark one or two points where the studs are
on the wall (Studs are normally 16 inches apart) and
then measure and mark the stud locations. If you
cannot find any wall stud, consult a local building
contractor.
DO NOT ATTEMPT TO INSTALL THE MICROWAVE
OVEN IF YOU CANNOT FIND A WALL STUD.
3. Line up the plumb line on the wall with the center line
on the mounting plate.
4. Center mounting plate on rear wall installation area by
lining up the plumb line on wall with centerline on
mounting plate. Make sure the minimum width is 30
inches and that the top of the mounting plate is located a
minimum of 30 inches above the cooking surface. See
Figure 23.
5. Measure the bottom of the upper cabinet frame. Trim
the edges "A" "B" and "C" on the upper cabinet
template so that the template will fit on the bottom of
the upper cabinet. If upper cabinet has a recessed
frame, trim template so that it fits inside the recessed
area. Align the centerline of the upper cabinet template
with the centerline of the mounting plate; then securely
tape or tack the upper cabinet template in place.
See Figure 23
Figure 22
Figure 23
upper cabinet template
mounting plate
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
CAUTION
NOTE: If the cabinets are not plumb, adjust the
mounting plate to the cabinets. If the front edge
of the cabinet is lower than the back edge,
adjust the mounting plate to be level with the
cabinet front.
NOTE: Be sure the minimum width is 30 inches and the
distance from the top of the mounting plate to
the range or counter top is at least 30 inches.
See Figure 4 on page 4.

14
DRILLING THE HOLES IN THE WALL AND UPPER CABINET:
BE VERY CAREFUL WHEN DRILLING HOLES INTO THE WALL.
Electrical wires could be concealed behind the wall covering
and if the drill hits them you could get an electric shock.
1. Find the points on the mounting plate labeled A, B, C, and D. Drill a 3/16" diameter hole at any of these points that
are in front of a wall stud. Drill a 3/4" diameter hole at any of these points that are over drywall.
2. Drill a 3/8" hole at points Jand Kon the upper cabinet template.
3. Cut or drill a 2" diameter hole at the area marked M, “power supply cord hole”on the upper cabinet template.
If the upper cabinet is metal, you will need to cover the edge of the hole with the power supply cord bushing
(supplied) to prevent damage to the cord from the rough metal edge.
YOU MUST COVER THE EDGE OF THE POWER SUPPLY CORD HOLE IN
A METAL CABINET WITH THE POWER SUPPLY CORD BUSHING.
FAILURE TO DO SO COULD RESULT IN DAMAGE TO THE CORD AND
ELECTRIC SHOCK.
4. Cut out the venting areas (with the saber saw):
• Roof-Vented: cut out the shaded area marked Lon the upper cabinet template.
• Wall-Vented: go to STEP 5, INSTALL THE MOUNTING PLATE, located on page 16.
5. Use caulking compound to seal the exterior wall or roof opening around the wall cap or roof cap.
STEP 4: PREPARE THE WALL AND
UPPER CABINET FOR INSTALLATION
Figure 24 Figure 25
cabinet front filler block cabinet
bottom shelf
filler
block
WARNING
WARNING
NOTE: If the bottom of the upper cabinet is recessed 3/4" or more, you will need 2"x2" filler blocks (not included) to
provide additional support for the bolts. See Figure 24.
•Mark the center of each filler block and drill a 3/8" diameter hole at the mark.
•Align filler blocks over the two openings in the top of the microwave oven cabinet and attach to cabinet
with masking tape. See Figure 25.

15
STEP 5: INSTALL THE MOUNTING
PLATE TO THE WALL
1. Draw a vertical line on the wall at the center of the 30″
wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making sure
that the tabs are against the bottom of the cabinet. Line
up the notch and center line on the mounting plate to
the center line on the wall.
2. While holding the mounting plate with one hand, draw
circles on the wall at holes A, B, C and D. Four holes
must be used for mounting. If the holes are not used,
the installation will not be secure. Installer must use
these holes for proper installation. Use toggle bolts
through these holes unless one of them lines up with a
stud. Use a lag screw for studs.
For wall-vented: The oven requires a rear wall cutout
opening for the rear wall duct and the exhaust adaptor
must be attached to the mounting plate. See the next page
on how to prepare the rear wall cutout opening and the
exhaust adaptor/mounting plate for wall-vented.
3. Drill holes on the circles. If there is a stud, drill a 3/16″
hole for lag screws. Two or preferably four lag screws
at holes A and C or B and D must be used to secure
mounting plate to wall. If there is no stud, drill a 3/4″
hole for toggle bolts. Make sure to use at least 1 lag
screw at holes of area “E”in a stud, and 4 toggle bolts
at holes A, B, C and D in the drywall or the plaster.
4. Attach the plate to the wall. To use spring toggle head
bolts: Remove the toggle wings from the bolts. Insert
the bolts into the mounting plate and replace the spring
toggle head to 3/4″past the bolt ends. Insert the spring
toggle head into the holes in the wall to mount the
bracket. You may pull forward on the bracket to help in
tightening the toggle bolts. Tighten all bolts.
See Figure 27.
Center Line
A
C
B
3/16" Hole on Studs
3/4" Hole on Drywall Only
Draw
Center Line
Draw Lines
on Studs
Wall
Mounting
Plate
Space More Than Wall Thickness
Bolt
End
Toggle Bolt
Toggle Wings
For Wall-
Vented Only
Minimum 66 "
From the Floor
Support Tab Support Tab
E
Mounting
Plate
Figure 26
Figure 27
D
CONNECTING THE OVEN TO A WALL STUD:
NOTE: Draw a fifth circle inside area E, through one of
the holes to match the location of a stud.
NOTE: The oven must be connected to at least one
wall stud.

16
STEP 5: INSTALL THE MOUNTING
PLATE TO THE WALL
TO PREPARE THE REAR WALL
CUTOUT OPENING AND EXHAUST
ADAPTOR/MOUNTING PLATE FOR
WALL-VENTED:
1. Place the mounting plate against the rear wall as
described in step 5 item 1 (page 15).
2. Using a pencil, put dots through slots F and G, and
through holes H and I. Remove the mounting plate and
draw lines extending through the points. This will give
the location and size of the box cutout for the rear wall
duct. See Figure 28.
•Attach the exhaust adaptor to the rear mounting plate by
sliding it into the guides at the top center of the plate on
the wall side. Push in securely until it is past the top
locking tabs and in the lower locking tabs. Take care to
assure the damper hinge is installed so that it is at the
top and that the damper swings freely.
•Carefully guide the exhaust adaptor (now attached to the
mounting plate) into the house duct, before using the
screws to attach the plate to the wall. This will assure
proper alignment for installation. See Figure 29.
•Return to step 5, item 3 (page 15) to continue. After
completing the installation of the mounting plate, again
check the rear damper for free movement to assure it
will operate properly.
Slide exhaust
adaptor into
guides on
rear panel.
Exhaust Adaptor Damper
(hinge side up)
Locking
Tabs Guides
Mounting Plate
(wall side)
Figure 28
Figure 29

17
STEP 6:
ATTACH THE OVEN TO THE WALL
You will need two people to lift this
microwave. Failure to use more
than one person could result in
personal injury.
1. Carefully lift microwave oven and hang it on support
tabs (See Figure 26 on the page 15) at the bottom
of the mounting plate. Reaching through upper
cabinet, thread power supply cord through the
power supply cord hole in the bottom of the upper
cabinet.
See Figure 30.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or
cabinet frame.
3. Insert a bolt down through each hole in the upper
cabinet bottom. See Figure 31.
Tighten the bolts until the gap between the upper
cabinet and microwave oven is closed.
4. If wall vented or room vented installation is used, go
to No.7 on the next page.
Figure 30
Figure 31
power cord
power cord
hole
WARNING

18
STEP 6:
ATTACH THE OVEN TO THE WALL
5. Roof vented installation: See Figure 32
Install ductwork through the vent opening in the upper
cabinet. Complete the venting system through the roof
according to the method needed.
See “PREPARE THE VENTING SYSTEM,”step 2 on
the page 8. Use caulking to seal exterior roof opening
around the exhaust cap. See Figure 6 on page 8.
6. Use power supply cord clamp to bundle the power
supply cord. Install the power supply cord clamp, using
a screw as shown in Figure 33, to inside of the cabinet.
7. To install the grease filter: Slide it into the slide slot,
then push up and toward oven center to lock.
See Figure 34.
8. Plug in the power supply cord.
9. Read your use and care manual, then check the
operation of your microwave oven.
Figure 32
Figure 34
damper
duct power
supply
cord
clamp
Figure 33

Household Appliances
Électroménagers
Four à micro-ondes avec hotte
Instructions d’installation
For Models: HMV9302, HMV9303, HMV9305, HMV9306, HMV9307
PRIÈRE DE LIRE TOUTES LES INSTRUCTIONS AVANT DE PROCÉDER À L’INSTALLATION.
IMPORTANT : Conserver ces instructions pour que l’inspecteur local puisse vérifier l’installation.
INSTALLATEUR : Prière de remettre ces instructions au propriétaire après l’installation.
PROPRIÉTAIRE : Conserver ces instructions pour référence future.
Imprimé en Corée
Piéce n°: 3828W5U0503

2
VOTRE SÉCURITÉ D’ABORD
AVANT DE COMMENCER
• L’installateur est responsable de faire une installation adéquate!
– Lire le manuel au complet avant de commencer. L’étiquette portant le numéro de modèle se trouve sur le devant
du four. Voir figure 1.
AVERTISSEMENT
POUR VOTRE SÉCURITÉ :
•Il faut deux personnes pour installer ce four. Il est lourd et peut entraîner des blessures corporelles s’il n’est pas
manipulé adéquatement. Les dimensions du four sont :
Hauteur : 16 7/16 po (417 mm)
Largeur : 29 15/16 po (760 mm)
Profondeur : 15 5/8 po (397 mm)
Poids : 60 lb (27,25 kg)
• Éviter les chocs électriques!
– Avant de percer le mur, noter l’emplacement des prises de courant et où des fils électriques pourraient être
dissimulés derrière la paroi. IL Y A DES RISQUES D’ÉLECTROCUTION si l’on touche à des fils électriques
avec la mèche de la perceuse.
– Trouver le disjoncteur ou le fusible correspondant et couper le courant aux circuits électriques qui pourraient
être affectés par l’installation de ce four. IL Y A DES RISQUES D’ÉLECROCUTION SI LE COURANT
N’EST PAS COUPÉ.
• ALIMENTATION ÉLECTRIQUE DE CE FOUR : 120 V CA 60 Hz.
– Il faut une alimentation électrique DISTINCTE de 120 V, 60 Hz, CA seulement de 15 ou 20 A, avec fusible
ou disjoncteur (située dans l’armoire au dessus du four à micro-ondes, le plus près possible du four) servant
uniquement à alimenter le four à micro-ondes.
Arrière du four
Figure 1 Figure 2
Étiquette de numéro de modèle
Plaque de
montage
(La déposer
du four avant
l’installation)
S’ASSURER DE BIEN LIRE LES DIRECTIVES DE SÉCURITÉ QUI SUIVENT :
La plaque de montage se trouve à l’arrière du four à micro-ondes. Voir figure 2.
