Bosch KGN Series User manual

en Instructions for use Fridge-freezer 3
Fridge-freezer
KGN..

en Table of contents
Safety and warning information ........... 3
Environmental protection ...................... 6
Scope of delivery ................................... 7
Installation location ................................ 7
Observe ambient temperature
and ventilation ........................................ 8
Connecting the appliance .................... 8
Getting to know your appliance .......... 9
Switching on the appliance ................ 10
Setting the temperature ...................... 11
eco .......................................................... 11
Alarm functions .................................... 11
Usable capacity .................................... 12
Refrigerator compartment .................. 12
Super cooling ....................................... 14
Freezer compartment .......................... 14
Freezing capacity ................................. 14
Freezing and storing food .................. 14
Freezing fresh food ............................. 15
Super freezing ...................................... 16
Thawing frozen food ............................ 16
Interior fittings ....................................... 17
Sticker “OK” .......................................... 17
Switching off and disconnecting
the appliance ........................................ 18
Cleaning the appliance ....................... 18
Light (LED) ............................................ 19
Tips for saving energy ........................ 19
Operating noises ................................. 19
Eliminating minor faults yourself ....... 20
Customer service ................................. 22

en
3
enTable of contents enInstructions for useFridge-freezer
Safety and warning
information
Before you switch ON the
appliance
Please read the operating and
installation instructions carefully!
They contain important
information on how to install,
use and maintain the appliance.
The manufacturer is not liable if
you fail to comply with the
instructions and warnings.
Retain all documents for
subsequent use or for the next
owner.
Technical safety
Fire hazard
The tubes of the
refrigeration circuit convey a
small quantity of an
environmentally friendly but
flammable refrigerant (R600a). It
does not damage the ozone
layer and does not increase the
greenhouse effect. If refrigerant
escapes, it may injure your eyes
or ignite.
If damage has occurred
■Keep naked flames and/or
ignition sources away from the
appliance,
■thoroughly ventilate the room
for several minutes,
■switch off the appliance and
pull out the mains plug,
■inform customer service.
The more refrigerant an
appliance contains, the larger
the room must be in which the
appliance is situated. Leaking
refrigerant can form a
flammable gas-air mixture in
rooms which are too small.
The room must be at least 1 m³
per 8 g of refrigerant. The
amount of refrigerant in your
appliance is indicated on the
rating plate inside the appliance.
When installing the appliance,
ensure that the mains cable is
not trapped or damaged.
If the power cord of this
appliance is damaged, it must
be replaced by the
manufacturer, Customer Service
or a similarly qualified person.
Improper installations and
repairs may put the user at
considerable risk.
Repairs may be performed by
the manufacturer, customer
service or a similarly qualified
person only.
Only original parts supplied by
the manufacturer may be used.
The manufacturer guarantees
that only these parts satisfy the
safety requirements.
Do not use multiple sockets,
extension leads or adapters.

en
4
Fire hazard
Portable multiple outlets or
power supplies may overheat,
causing a fire.
Never leave portable multiple
outlets or portable power
supplies behind the appliance.
Important information when
using the appliance
■Never use electrical
appliances inside the
appliance (e.g. heaters,
electric ice makers, etc.). Risk
of explosion!
■Never defrost or clean the
appliance with a steam
cleaner! The steam may
penetrate electrical parts and
cause a short-circuit. Risk of
electric shock!
■Do not use additional means
to accelerate the defrosting
process other than those
recommended by the
manufacturer. Risk of
explosion!
■Do not use pointed or sharp-
edged implements to remove
frost or layers of ice. You
might damage the refrigerant
tubes.Leaking refrigerant may
cause eye injuries or ignite.
■Do not store products which
contain flammable propellant
(e.g. spray cans) or explosive
substances in the appliance.
Risk of explosion!
■Do not stand on or lean
heavily against the base of the
appliance, drawers, doors,
etc.
■For defrosting and cleaning,
pull out the mains plug or
switch off the fuse. Do not pull
out the mains plug by tugging
on the power cord.
■Store high-percentage alcohol
tightly sealed and in an
upright position.
■Keep plastic parts and the
door seal free of oil and
grease. Otherwise, plastic
parts and the door seal will
become porous.
■Never cover or block the
ventilation openings of the
appliance.
■Do not store bottled or
canned liquids (especially
carbonated drinks) in the
freezer compartment.Bottles
and cans may burst!
■Never put frozen food straight
from the freezer compartment
in your mouth.
Risk of low-temperature burns!

en
5
■Avoiding placing children
and vulnerable people at
risk:
At risk here are children,
people who have limited
physical, mental or sensory
abilities, as well as people
who have inadequate
knowledge concerning safe
operation of the appliance.
Check that children and
vulnerable people have
understood the hazards.
A person responsible for
safety must supervise or
instruct children and
vulnerable people who are
using the appliance.
Only children aged 8 years
and above may use the
appliance.
Supervise children while the
appliance is being cleaned or
maintained.
Never allow children to play
with the appliance.
■Avoid prolonged touching of
frozen food, ice or the
evaporator pipes, etc.
Risk of low-temperature burns!
Children in the household
■Keep children away from
packaging and its parts.
Danger of suffocation from
folding cartons and plastic
film!
■Do not allow children to play
with the appliance!
■If the appliance features a
lock:
keep the key out of the reach
of children!
General regulations
The appliance is suitable
■for refrigerating and freezing
food,
■for making ice.
This appliance is intended for
use in the home and the home
environment.
The refrigeration circuit has
been checked for leaks.
This appliance complies with the
relevant safety regulations for
electrical appliances and is
fitted with noise suppression.
This appliance is intended for
use up to a maximum height of
2000 metres above sea level.

en
6
Environmental
protection
Packing
All the materials are environmentally
friendly and can be recycled.
■Dispose of packing in an
environmentally responsible manner.
■Contact your appliance retailer or your
local authority for information about
the available disposal methods and
sites.
End-of-life appliances
Valuable raw materials can be recovered
by environmentally-friendly disposal.
m Warning
Children can become trapped
inside the appliance and
suffocate
■To make it more difficult for children to
climb into the appliance, the shelves
and containers should be left in place
inside the appliance.
■Keep children away from the disused
appliance.
m Caution
Risk of refrigerant and harmful
gases escaping.
Do not damage the refrigeration circuit
pipes or the insulation.
1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an
environmentally friendly manner.
Disposal of your old appliance (as per
e-waste Rules)
This appliance is labelled in
accordance with the guidelines
on e-waste Management and
Handling Rules 2016 concerning
used electrical and electronic
appliances. The guideline
determines the framework for the
return and recycling of used
appliances.
Note
This product does not contain any of
hazardous substances as specified in
the e-waste Management and Handling
Rules 2016.
Any disposal through unauthorized
agencies/person will attract action under
Environment (Protection) Act 1986.


en
7
Dos
■Please visit our website to find out
more details regarding e-waste
disposal:
https://www.bosch-home.in/
metapages/e-waste-management
■Keep the product in isolated area,
after it becomes non-functional/
unrepairable so as to prevent its
accidental breakage.
■Consult the authorized service center
as to whether the Electronic
Equipment can be repaired or not,
before discarding.
■Consult the retailer about appliance
take back schemes.
Don’ts
■The product should not be opened by
the user himself/herself, but only by
authorized service personnel.
■The product is not meant for resale to
any unauthorized agencies/scrap
dealers/kabariwalah.
■Do not dispose of the discarded
Electronic Equipment in household
bins or Municipal bins.
■Do not dump the discarded Electronic
Equipment in the open or in any land
fill site, as this will result in
contamination of the soil and the
ground water.
■Do not keep any replaced spare
part(s) from the product in exposed
area.
Scope of delivery
After unpacking all parts, check for any
damage in transit.
If you have any complaints, please
contact the dealer from whom you
purchased the appliance or our
customer service.
The delivery consists of the following
parts:
■Free-standing appliance
■Interior fittings (depending on model)
■Bag containing installation materials
■Operating instructions
■Installation manual
■Customer service booklet
■Warranty enclosure
■Information on the energy
consumption and noises
Installation location
A dry, well ventilated room is suitable as
an installation location. The installation
location should not be exposed to direct
sunlight and not placed near a heat
source, e.g. a cooker, radiator, etc. If
installation next to a heat source is
unavoidable, use a suitable insulating
plate or observe the following minimum
distances from the heat source:
■3 cm to electric or gas cookers.
■30 cm to an oil or coal-fired cooker.
The floor of the installation location must
not give way; if required, reinforce floor. If
the floor is uneven, compensate with
supports.

en
8
Distance from wall
When installing the appliance, ensure
that the door can be opened by 90°.
Observe ambient
temperature
and ventilation
Ambient temperature
The appliance is designed for a specific
climate class. Depending on the climate
class, the appliance can be operated at
the following temperatures.
The climate class can be found on
the rating plate. Fig. -
Note
The appliance is fully functional within
the room temperature limits of the
indicated climatic class. If an appliance o
climatic class SN is operated at colder
room temperatures, the appliance
will not be damaged up to a temperature
of +5 °C.
Ventilation
Fig. #
The air on the rear panel and on the side
panels of the appliance heats up.
Conduction of the heated air must
not be obstructed. Otherwise,
the refrigerating unit must work harder.
This increases power consumption.
Therefore: Never cover or block
the ventilation openings!
Connecting
the appliance
After installing the appliance, wait at least
1 hour until the appliance is switched on.
During transportation the oil in
the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for
the first time, clean the interior of
the appliance (see chapter “Cleaning
the appliance”).
Electrical connection
The socket must be near the appliance
and also freely accessible following
installation of the appliance.
Climate class Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

en
9
m Warning
Risk of electric shock!
If the length of the mains cable is
inadequate, never use multiple sockets
or extension leads. Instead, please
contact Customer Service for
alternatives.
The appliance complies with protection
class I. Connect the appliance to 220–
240 V/50 Hz alternating current via a
correctly installed socket with protective
conductor. The socket must be protected
by a 10 A to 16 A fuse.
For appliances operated in non-
European countries, check whether the
indicated voltage and current type match
the values of your electricity supply. This
information can be found on the rating
plate, Fig. -.
m Warning
Never connect the appliance
to electronic energy saver plugs.
Our appliances can be used with mains
and sine-controlled inverters. Mains-
controlled inverters are used
for photovoltaic systems which
are connected directly to the national
grid. Sine-controlled inverters must be
used for isolated applications (e.g. on
ships or in mountain lodges) which are
not connected directly to the national
grid.
Getting to know your
appliance

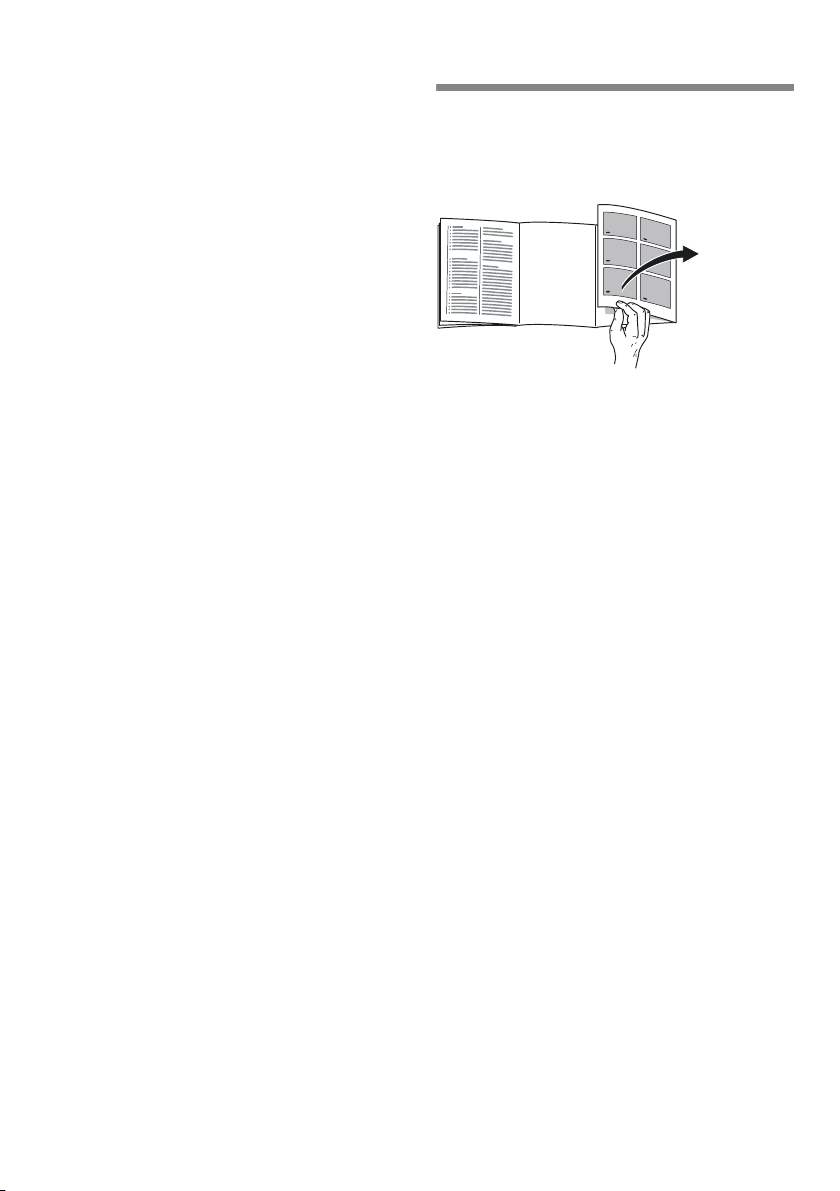

Please fold out the illustrated last page.
These operating instructions refer
to several models.
The features of the models may vary.
The diagrams may differ.
Fig. !
* Not all models.
A Refrigerator compartment
B Freezer compartment
1–9 Controls
10 Shelf for small bottles
11 Shelf for large bottles
12 Light
13* Bottle shelf
14 Cold storage compartment
15 Vegetable container with humidity
control
16 Frozen food container (small)

en
10
Controls
Fig. "Switching on the
appliance
Fig. "
1. Insert the plug in the socket.
2. A warning signal sounds.The
alarm indicator flashes.
3. To switch off the warning signal, press
6 temperature setting button.
The alarm indicator flashes until the
set temperature has been reached.
The factory recommends the following
settings:
■Refrigerator section: 4 °C
■Freezer section: –18 °C
Operating tips
■When the appliance has been
switched on, it may take several hours
until the set temperatures have been
reached.
■The fully automatic NoFrost system
ensures that the freezer compartment
remains free of ice. Defrosting is no
longer required.
■The sides of the housing are
sometimes heated slightly. This
prevents condensation in the area of
the door seal.
■If the freezer compartment door
cannot be immediately re-opened after
it has been closed, wait until the
resulting low pressure has equalised.
1Display alarm
This lights up if the appliance
becomes too warm.
2Refrigerator compartment
temperature selection button
The button sets the temperature
in the refrigerator compartment.
3“super” display
Illuminates, if the super cooling is
in operation.
4Temperature display refrigerator
compartment
The numbers correspond to the
set refrigerator compartment
temperatures in °C.
5Eco indicator
This lights up when eco mode is
switched on in the cooling
compartment.
6Temperature selection button
freezer compartment
The button sets the temperature
in the freezer compartment.
7“super” display (freezer
compartment)
Illuminates when super freezing
is on.
8Temperature display freezer
compartment
The numbers correspond
to the set freezer compartment
temperatures in °C.
9Eco indicator
This lights up when eco mode is
switched on in the freezer
compartment.

en
11
Setting
the temperature
Refrigerator compartment
The temperature can be set from +2 °C
to +8 °C.
Keep pressing the temperature election
button 2 until the required refrigerator
compartment temperature is set.
The value last selected is saved.The set
temperature is indicated on temperature
display 4.
Note
To reach the selected temperature, open
the ventilation openings to 1/3, Fig. &.
Freezer
The temperature can be set from -16 °C
to -24 °C.
Keep pressing temperature setting
button 6 until the required freezer
compartment temperature is set.
The value last selected is saved. The set
temperature is indicated on temperature
display 8.
We recommend a factory setting of -18
°C in the freezer compartment.
eco
The eco function switches the appliance
to energy-saving mode.
The appliance automatically sets the
following temperatures:
■Refrigerator compartment: +8 °C
■Freezer compartment: -16 °C
Switching on eco
Keep pressing the temperature setting
button 6 until the eco indicator is
highlighted.
Alarm functions
Fig. "
Door alarm
The door alarm (continuous sound)
switches on if the appliance door is open
for longer than one minute. Close
the door to switch off the warning signal.
Temperature alarm
The temperature alarm switches on if the
freezer section is too warm and the
frozen food is at risk of thawing.
The alarm indicator flashes.
The alarm may switch on without any risk
to the frozen food:
■when the appliance is switched on,
■when large quantities of fresh food are
placed in the appliance,
■if the freezer compartment door is
open too long.

en
12
Note
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.
Switching off the alarm
Fig. "
Press the temperature setting button 6 to
switch off the warning signal.
Usable capacity
Information on the usable capacity can
be found inside your appliance on
the rating plate. Fig. -
Fully utilising the freezer
volume
To place the maximum amount of frozen
food in the freezer compartment, you can
remove the containers. You can then
stack the food directly on the shelf and
on the floor of the freezer compartment.
Note
Avoid contact between food and rear
panel. Otherwise the air circulation will
be impaired.
Food or packaging could freeze to
the rear panel.
Removing the fittings
Pull out the frozen food container all
the way, lift at the front and remove.
Fig. )
Refrigerator
compartment
The refrigerator compartment is the ideal
storage location for meat, sausage, fish,
dairy products, eggs, ready meals
and pastries.
Storing food
■Store fresh, undamaged food. The
quality and freshness will then
be retained for longer.
■In the case of ready-made products
and bottled goods, observe the best-
before date or use-by date specified
by the manufacturer.
■To retain aroma, colour
and freshness, pack or cover food
well before placing in the appliance.
This will prevent the transfer
of flavours and the discolouration
of plastic parts in the refrigerator
compartment.
■Allow warm food and drinks to cool
down before placing in the appliance.
Note
Do not block air outlet openings with
food, otherwise the air circulation will be
impaired. Food which is stored directly
in front of the air outlet openings may be
frozen by the cold air flowing out.

en
13
Note the chill zones in the
refrigerator compartment
The air circulation in the refrigerator
compartment creates different chill
zones:
■The coldest zones are in front of the
air outlet openings and in the chill
compartment, Fig. !/14.
Note
Store perishable food (e.g. fish,
sausage, meat) in the coldest zones.
■Warmest zone is at the very top of the
door.
Note
Store e.g. hard cheese and butter in
the warmest zone. The aroma of hard
cheese can then continue to develop
and butter remains spreadable.
Vegetable container with
humidity control
Fig. '
To create the optimum storage climate
for fruit and vegetables, you can set
the humidity level in the vegetable
container:
■Mainly vegetables as well as for a
mixed or small load – high air
humidity
■Mainly fruit as well as for a large load
– low air humidity
Notes
■Fruit sensitive to cold (e.g. pineapple,
banana, papaya and citrus fruit) and
vegetables sensitive to cold (e.g.
aubergines, cucumbers, zucchini,
peppers, tomatoes and potatoes)
should be stored outside
the refrigerator at temperatures
of approx. +8 °C to +12 °C for
optimum preservation of quality and
flavour.
■Condensation may form in the
vegetable container depending on the
type and quantity of products stored.
Remove condensation with a dry cloth
and adjust air humidity in the
vegetable container with the humidity
controller.
Cold storage compartment
Fig. &
The cold storage compartment has lower
temperatures than the refrigerator
compartment. Even temperatures below
0 °C may occur.
Ideal for storing fish, meat and sausage.
Not suitable for lettuce and vegetables
and produce sensitive to cold.
The temperature of the chill
compartments can be varied using the
ventilation opening. Push temperature
controller upwards to reduce the
temperature. Push temperature controller
downwards to increase the temperature.
Fig. &

en
14
Super cooling
Super cooling sets the refrigerator
temperature to the coldest temperature
setting for approx. 15 hours. Then
the appliance automatically switches
to the temperature set prior to super
cooling mode.
Switch on super cooling mode, e.g.
■before placing large quantities of food
in the refrigerator compartment.
■for the fast cooling of drinks.
Note
When super cooling is switched on,
increased operating noises may occur.
Switching on and off
Fig. "
Keep pressing the temperature setting
button 2 until the super indicator 3 is lit.
Freezer compartment
Use the freezer compartment
■To store deep-frozen food.
■To make ice cubes.
■To freeze food.
Note
Ensure that the freezer compartment
door has been closed properly. If
the door is open, the frozen food will
thaw. The freezer compartment will
become covered in thick ice. Also: waste
of energy due to high power
consumption!
Freezing capacity
Information on the freezing capacity can
be found on the rating plate. Fig. -
Prerequisites for freezing
capacity
■Switch on super freezing before
placing fresh products
in the compartment (see chapter
entitled “Super freezing”).
■Remove containers; stack food
directly on the shelf and on the floor of
the freezer compartment.
■Freeze large quantities of food
preferably in the very top
compartment where food freezes
particularly quickly and therefore also
gently.
Freezing and storing
food
Purchasing frozen food
■Packaging must not be damaged.
■Use by the “use by” date.
■Temperature in the supermarket
freezer must be -18 °C or lower.
■If possible, transport deep-frozen food
in an insulated bag and place quickly
in the freezer compartment.

en
15
Note when loading products
■Preferably freeze large quantities
of food in the top compartment, where
food freezes particularly quickly
and therefore also gently.
■Place the food over the whole area
of the compartments or the frozen
food containers.
Note
Food which is already frozen must not
come into contact with the food which
is to be frozen. If required, move
the frozen food to other frozen food
containers.
Storing frozen food
Insert frozen food container all the way to
ensure unrestricted air circulation.
Freezing fresh food
Freeze fresh and undamaged food only.
To retain the best possible nutritional
value, flavour and colour, vegetables
should be blanched before freezing.
Aubergines, peppers, zucchini and
asparagus do not require blanching.
Literature on freezing and blanching
can be found in bookshops.
Note
Keep food which is to be frozen away
from food which is already frozen.
■The following foods are suitable for
freezing:
Cakes and pastries, fish and seafood,
meat, game, poultry, vegetables, fruit,
herbs, eggs without shells, dairy
products such as cheese, butter and
quark, ready meals and leftovers such
as soups, stews, cooked meat and
fish, potato dishes, soufflés and
desserts.
■The following foods are not suitable
for freezing:
Types of vegetables, which are usually
consumed raw, such as lettuce or
radishes, eggs in shells, grapes,
whole apples, pears and peaches,
hard-boiled eggs, yoghurt, soured
milk, sour cream, crème fraîche and
mayonnaise.
Packing frozen food
To prevent food from losing its flavour
or drying out, place in airtight containers.
1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents
and date of freezing.
Suitable packaging:
Cling wrap, tubular film made of
polyethylene, aluminium foil, freezer
containers.
These products are available from
specialist outlets.

en
16
Unsuitable packaging:
Wrapping paper, greaseproof paper,
cellophane, bin liners and used shopping
bags.
Items suitable for sealing packaged
food:
Rubber bands, plastic clips, string, cold-
resistant adhesive tape, etc.
Bags and tubular film made of
polyethylene (PE) can be sealed with a
film heat sealer.
Shelf life of frozen food
Storage duration depends on the type
of food.
At a temperature of -18 °C:
■Fish, sausage, ready meals and cakes
and pastries:
up to 6 months
■Cheese, poultry and meat:
up to 8 months
■Vegetables and fruit:
up to 12 months
Super freezing
Food should be frozen solid as quickly
as possible in order to retain vitamins,
nutritional value, appearance and flavour.
Several hours before placing fresh food
in the freezer compartment, switch on
super freezing to prevent an unwanted
temperature rise.
As a rule, 4–6 hours is adequate.
This appliance runs constantly
and the freezer compartment drops to
a very low temperature.
If the max. freezing capacity is to be
used, super freezing must be switched
on for 24 hours before the fresh produce
is placed in the freezer compartment.
Smaller quantities of food (up to 2 kg)
can be frozen without “super freezing”.
Note
When super freezing is switched on,
increased operating noises may occur.
Switching on and off
Fig. "
Keep pressing the temperature selection
button 6 until the Super display 7 is lit.
Super freezing automatically switches off
after approx. 2½ days.
Thawing frozen food
Depending on the type and application,
select one of the following options:
■at room temperature
■in the refrigerator
■in an electric oven, with/without fan
assisted hot-air
■in the microwave
m Caution
Do not refreeze thawing or thawed food.
Only ready meals (boiled or fried) may
be refrozen.
No longer store the frozen produce for
the max. storage period.

en
17
Interior fittings
Shelves and containers
You can reposition the inner shelves
and the containers in the door as
required: pull shelf forwards, lower
and swivel out to the side. Lift
the container and remove.
Special features
(not all models)
Bottle shelf
Fig. %
Bottles can be stored securely on
the bottle shelf.
Ice cube tray
Fig. +
1. Fill the ice cube tray ¾ full of drinking
water and place in the freezer
compartment.
2. If the ice tray is stuck to the freezer
compartment, loosen with a blunt
implement only (spoon-handle).
3. To loosen the ice cubes, twist the ice
tray slightly or hold briefly under
flowing water.
Freezer calendar
Fig. *
To prevent the quality of the frozen food
from deteriorating, do not exceed the
storage duration. The figures next
to the symbols indicate the permitted
storage period of the produce in months.
In the case of commercially available
frozen food observe the date
of manufacture or use-by date.
Ice pack
The ice pack can be removed to cool
food temporarily, e.g. in a cold bag.
If a power failure or malfunction occurs,
the ice pack can be used to slow down
the thawing process.
Breakfast set
Fig. ,
The containers for the breakfast set can
be taken out and filled individually.
Sticker “OK”
(not all models)
The sticker “OK” lets you check whether
the refrigerator compartment achieves
the safe temperature ranges of +4 °C or
colder recommended for food. If the
sticker does not indicate “OK”, gradually
reduce the temperature.
Note
When the appliance is switched on, it
may take up to 12 hours until the set
temperature is reached.
Correct setting

en
18
Switching off and
disconnecting the
appliance
Switching off the appliance
Pull out mains plug or switch off fuse.
Refrigerating unit switches off.
Disconnecting the appliance
If you do not use the appliance for
a prolonged period:
1. Pull out the mains plug or switch off
the fuse.
2. Clean the appliance.
3. Leave appliance doors open.
Cleaning the appliance
m Caution
■Do not use abrasive, chloride or acidic
cleaning agents or solvents.
■Do not use scouring or abrasive
sponges.
The metallic surfaces could corrode.
■Never clean shelves and containers
in the dishwasher.
The parts may become deformed!
The cleaning water must not get into
the following areas:
■Controls
■Illumination
■Ventilation openings
■Openings in the separating plate
Proceed as follows:
1. Pull out the mains plug or switch off
the fuse.
2. Take out the frozen food and store
in a cool location. Place ice pack (if
available) on the food.
3. The rinsing water must not drip into
the controls, lighting, ventilation
openings or the openings in the
partition!
Clean the appliance with a soft cloth,
lukewarm water and a little pH-neutral
washing-up liquid.
4. Wipe the door seal with clear water
only and then wipe dry thoroughly.
5. After cleaning reconnect the
appliance.
6. Put the frozen food back into
the appliance.
Interior fittings
All variable parts of the appliance
can be taken out for cleaning.
Take out shelves in the door
Fig. $
Lift shelves upwards and take out.
Take out glass shelves
Pull the glass shelves forwards and take
out.
Removing the container
Fig. (
Pull out the container all the way, lift at
the front and remove.
Taking out the frozen food container
Fig. )
Pull out the frozen food container all
the way, lift at the front and remove.

en
19
Light (LED)
Your appliance features a maintenance-
free LED light.
These lights may be repaired
by customer service or authorised
technicians only.
Tips for saving energy
■Install the appliance in a dry, well
ventilated room! The appliance should
not be installed in direct sunlight
or near a heat source (e.g. radiator,
cooker).
If required, use an insulating plate.
■Allow warm food and drinks to cool
down before placing in the appliance.
■Thaw frozen food in the refrigerator
compartment and use the low
temperature of the frozen food to cool
refrigerated food.
■Open the appliance as briefly as
possible.
■To achieve the lowest energy
consumption, leave a small wall gap
at the side.
■The arrangement of the fittings does
not affect the energy rating of the
appliance.
Operating noises
Quite normal noises
Note
When super freezing is switched on,
increased operating noises may occur.
Droning
Motors are running (e.g. refrigerating
units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are
switching on/off.
Cracking
Automatic defrosting is running.
Preventing noises
The appliance is not level
Please align the appliance with a spirit
level. Use the height-adjustable feet
or place packing underneath them.
The appliance is not free-standing
Please move the appliance away
from adjacent units or appliances.
Containers or storage areas wobble
or stick
Please check the removable parts
and re-insert them correctly if required.
Bottles or receptacles are touching
each other
Move the bottles or receptacles slightly
away from each other.

en
20
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following
information.
Customer service will charge you for advice – even if the appliance is still under
guarantee!
Fault Possible cause Remedial action
Temperature differs greatly
from the set value.
In some cases it is adequate to switch off
the appliance for 5 minutes.
If the temperature is too high wait a few hours
and check whether the temperature has
approached the set value.
If the temperature is too low check
the temperature again the next day.
A warning signal sounds.
The alarm indicator flashes.
Fault - the freezer section is
too warm!
Frozen food is at risk.
To switch off the warning signal, press
temperature setting button Fig. "/6.
Appliance is open. Close the appliance.
The ventilation openings are
covered up.
Ensure that there is adequate ventilation.
Too much food was placed in
the freezer at once.
Do not exceed the freezing capacity.
The temperature in the
freezer section is too warm.
Appliance opened
frequently.
Do not open the appliance unnecessarily.
The ventilation openings
have been covered.
Remove obstructions.
Large quantities of fresh
food are being frozen.
Do not exceed the freezing capacity.
The side panels of the
appliance are warm.
Pipes run into the side panels
which heat during the
cooling process.
That is normal behaviour for the appliance and
not a fault.
Furniture touching the appliance will not be
damaged by the heat.
