Bosch VBC-255 User manual

Digital Color Camera
VBC-255
en Installation and Operation manual

Digital Color Camera Table of Contents | en 3
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
Table of Contents
1Safety 5
1.1 Safety precautions 5
1.2 Important safety instructions 6
1.3 Important notices 7
1.4 FCC & ICES compliance 8
1.5 UL certification 9
1.6 Bosch notices 10
2 Introduction 11
2.1 Features 11
2.2 Unpacking 11
3 Connections 12
3.1 Power connection 12
3.1.1 Low voltage cameras 12
3.1.2 High voltage cameras 13
3.2 Video connection 13
3.2.1 Composite video signal 13
3.2.2 Y/C output video signal 14
3.3 Lens mounting 15

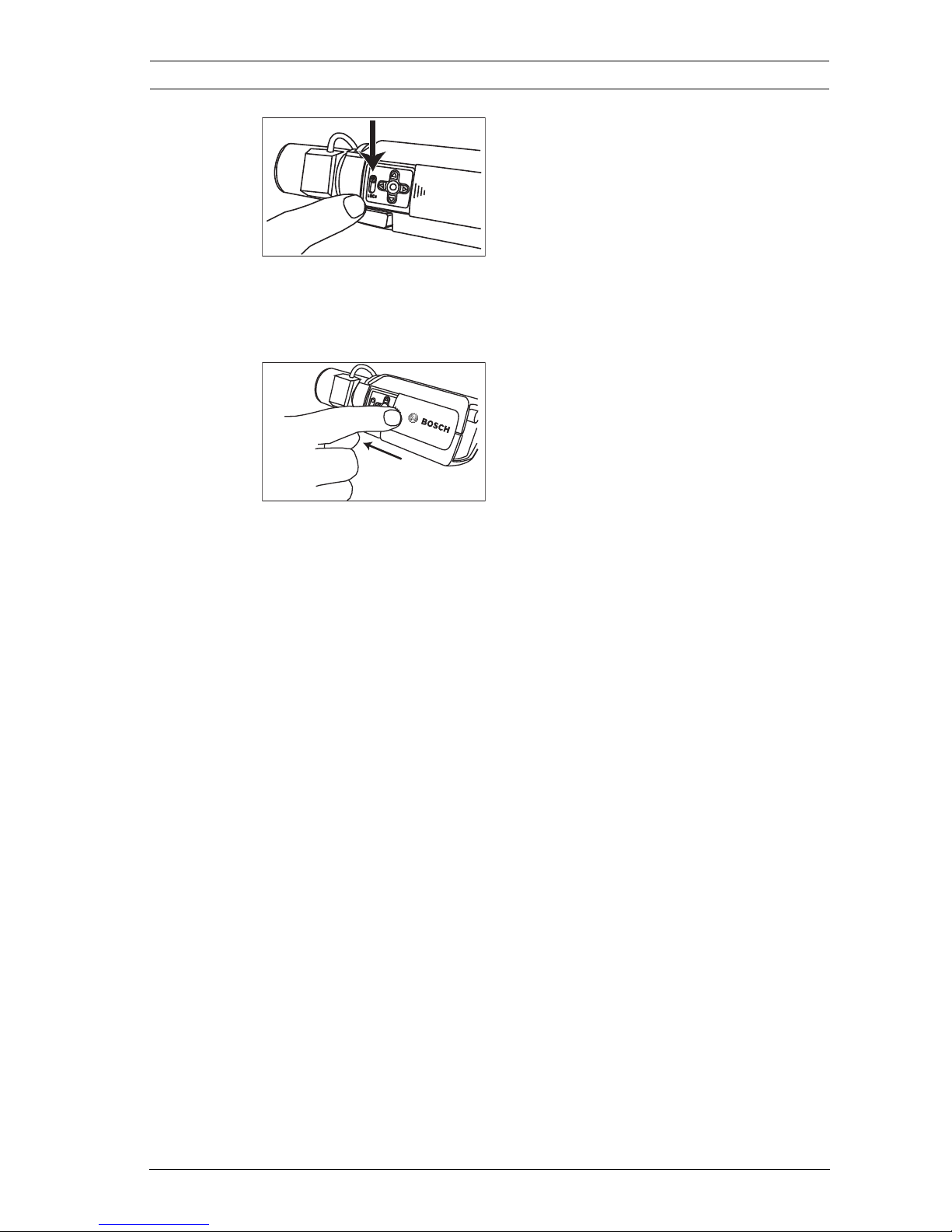

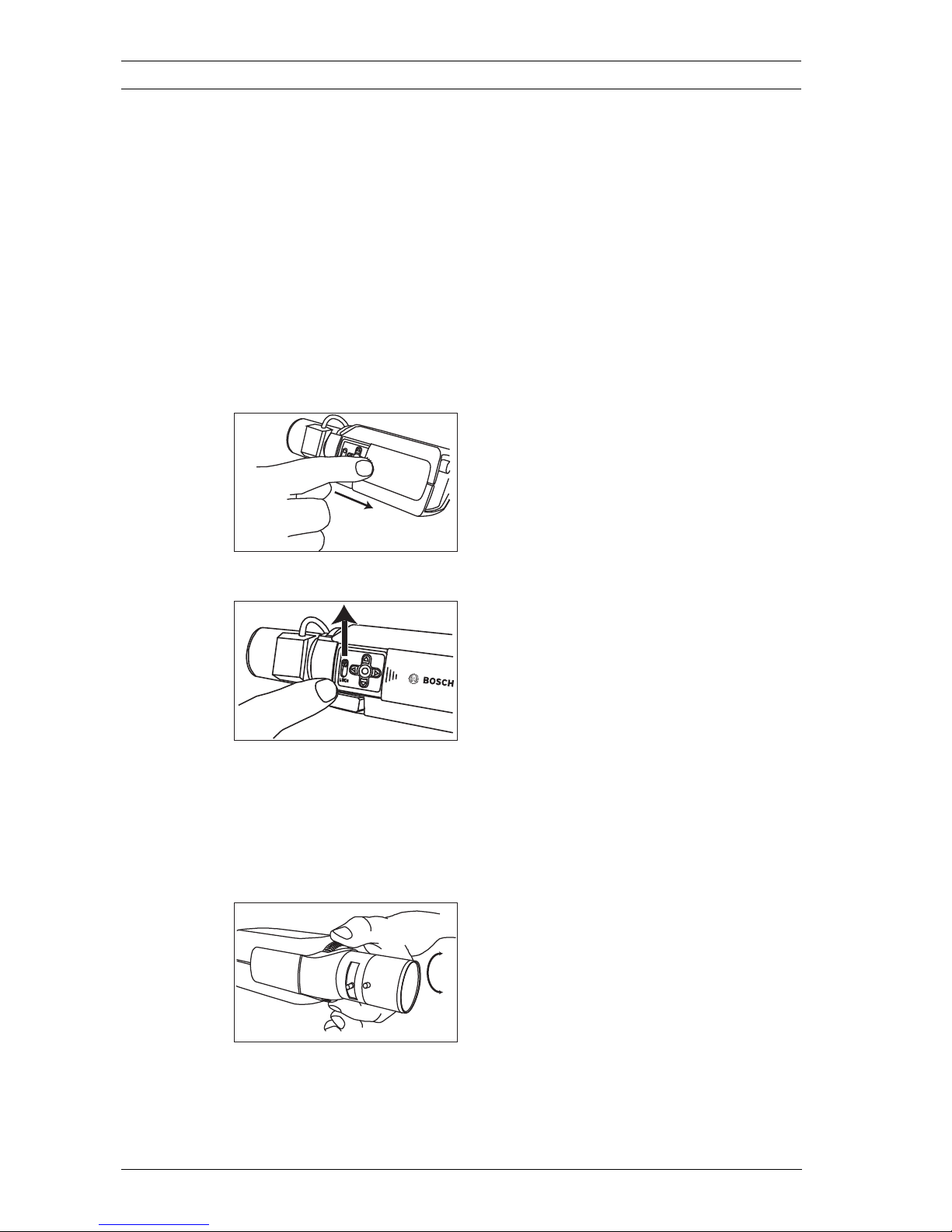

3.4 Back focus adjustment 16

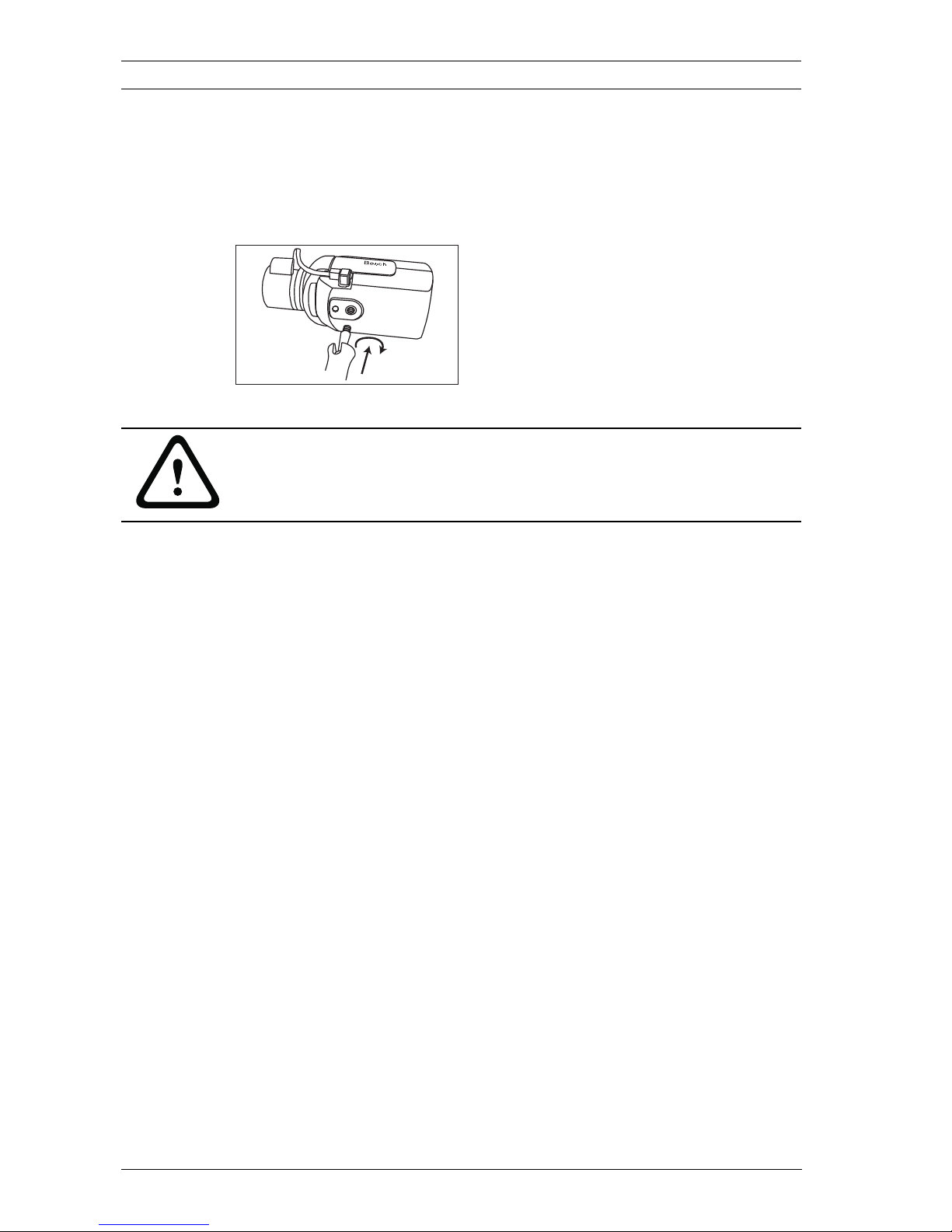

3.5 Mounting the camera 18
4 Configuration 19
4.1 Menus 19
4.1.1 Top level menus 19
4.1.2 Menu navigation 20
4.2 Main menu structure 21
4.2.1 Shutter/AGC submenu 22
4.2.2 Color submenu 23
4.3 Install menu structure 24
4.3.1 Lens Wizard submenu 25

4en | Table of Contents Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
5 Technical Data 27
5.1 Specifications 27

Digital Color Camera Safety | en 5
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
1Safety
1.1 Safety precautions
DANGER!
High risk: This symbol indicates an imminently hazardous
situation such as "Dangerous Voltage" inside the product.
If not avoided, this will result in an electrical shock, serious
bodily injury, or death.
WARNING!
Medium risk: Indicates a potentially hazardous situation.
If not avoided, this could result in minor or moderate bodily
injury.
CAUTION!
Low risk: Indicates a potentially hazardous situation.
If not avoided, this could result in property damage or risk of
damage to the unit.

6en | Safety Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
1.2 Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Heed all warnings on the unit and in the
operating instructions before operating the unit.
1. Cleaning - Generally, using a dry cloth for cleaning is
sufficient but a moist, fluff-free cloth or leather shammy
may also be used. Do not use liquid cleaners or aerosol
cleaners.
2. Heat Sources - Do not install the unit near any heat
sources such as radiators, heaters, stoves, or other
equipment (including amplifiers) that produce heat.
3. Water - Never spill liquid of any kind on the unit.
4. Lightning - Take precautions to protect the unit from
power and lightning surges.
5. Controls adjustment - Adjust only those controls specified
in the operating instructions. Improper adjustment of
other controls may cause damage to the unit.
6. Power sources - Operate the unit only from the type of
power source indicated on the label.
7. Servicing - Unless qualified, do not attempt to service this
unit yourself. Refer all servicing to qualified service
personnel.
8. Replacement parts - Use only replacement parts specified
by the manufacturer.
9. Installation - Install in accordance with the manufacturer's
instructions and in accordance with applicable local codes.
10. Attachments, changes or modifications - Only use
attachments/accessories specified by the manufacturer.
Any change or modification of the equipment, not
expressly approved by Bosch, could void the warranty or,
in the case of an authorization agreement, authority to
operate the equipment.

Digital Color Camera Safety | en 7
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
1.3 Important notices
Disposal - Your Bosch product was developed and
manufactured with high-quality material and components that
can be recycled and reused. This symbol means that
electronic and electrical appliances, which have reached the
end of their working life, must be collected and disposed of
separately from household waste material. Separate collecting
systems are usually in place for disused electronic and
electrical products. Please dispose of these units at an
environmentally compatible recycling facility, per European
Directive 2002/96/EC
WARNING!
Power disconnect for high voltage versions: A unit has power
supplied whenever the power cord is inserted into the power
source. The power cord plug is the main power disconnect for
the unit. For pluggable equipment, install the socket outlet near
the equipment so it is easily accessible.
WARNING!
All-pole power switch: Incorporate an all-pole power switch,
with a contact separation of at least 3 mm in each pole, into the
electrical installation of the building.

8en | Safety Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
1.4 FCC & ICES compliance
FCC & ICES Information
(U.S.A. and Canadian Models Only)
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office,
Washington, DC 20402, Stock No. 004-000-00345-4.

Digital Color Camera Safety | en 9
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
1.5 UL certification
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Closed
Circuit Television Equipment, UL 2044. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the
performance or reliability of the security or signaling aspects of
this product. UL has only tested fire, shock and/or casualty
hazards as outlined in UL's Standard(s) for Safety for Information
Technology Equipment, UL 60950-1. UL Certification does not
cover the performance or reliability of the security or signaling
aspects of this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR
CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR
SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT.

10 en | Safety Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
1.6 Bosch notices
Copyright
This manual is the intellectual property of Bosch Security
Systems and is protected by copyright. All rights reserved.
Trademarks
All hardware and software product names used in this
document are likely to be registered trademarks and must be
treated accordingly.
Note:
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was complete and correct at the time of printing. The ongoing
development of the products may mean that the content of the
user guide can change without notice. Bosch Security Systems
accepts no liability for damage resulting directly or indirectly
from faults, incompleteness or discrepancies between the user
guide and the product described.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com

Digital Color Camera Introduction | en 11
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
2 Introduction
2.1 Features
The VBC-255 is a professional surveillance color camera that
incorporates 10-bit digital signal processing. The camera is easy
to install and ready to use, and offers good quality picture
performance.
Features include:
– 1/3-inch format CCD imager
– Backlight compensation
– Lens autodetection
– Lens wizard for easy backfocus
2.2 Unpacking
Unpack carefully and handle the equipment with care.
The packaging contains:
– Digital color camera
– CCD protection cap (mounted on camera)
– Spare lens connector (male)
– These instructions
If equipment has been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
WARNING!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
CAUTION!
The camera module is a sensitive device and must be handled
carefully.

12 en | Connections Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
3 Connections
3.1 Power connection
3.1.1 Low voltage cameras
Figure 3.1 Low voltage power connection
Connect power from a 24 VAC or 12 VDC class 2 power supply
as follows:
– Use AWG16 to 22 stranded wire; cut back 10 mm (0.4 in)
of insulation.
– Push in the tabs and insert the wires.
Note
These connections are not polarity sensitive.
CAUTION!
Before proceeding, disconnect the power from the power
supply cable. Ensure that the voltage of the unit matches the
voltage and type of the power supply being used.
VIDEO
12 VDC
24 VAC
10 mm

Digital Color Camera Connections | en 13
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
3.1.2 High voltage cameras
Figure 3.2 High voltage power connection
Connect the power cable of a high voltage camera to a 230 VAC
power supply outlet.
3.2 Video connection
3.2.1 Composite video signal
Figure 3.3 Composite BNC connector
For a composite video output signal, connect the video coax
cable to the BNC connector of the camera.
VIDEO
VIDEO
Video BNC

14 en | Connections Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
3.2.2 Y/C output video signal
Figure 3.4 Y/C connector
For a Y/C video output signal, connect the Y/C video cable to
the Y/C connector of the camera.

Digital Color Camera Connections | en 15
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
3.3 Lens mounting
The camera accepts C-mount and CS-mount lenses. DC-iris
lenses are recommended for the best picture performance. The
camera automatically detects the type of lens used and
optimizes performance accordingly. A spare male lens
connector is provided.
Note
If a short circuit is detected on the lens connector, the on-
screen display (OSD) failure message LENS SHORT CIRCUIT is
shown. The lens circuit is automatically disabled to avoid
internal damage. Remove the lens connector and check the pin
connections.
CAUTION!
To avoid damaging the CCD sensor when using a C-mount lens,
turn the green back-focus ring counterclockwise until it stops
before mounting the lens.
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
Figure 3.5 Mounting a lens Figure 3.6 Lens connector
Bosch
Bosch
Pin Video iris lens DC iris lens
1 Supply (11.5V ±0.5, 50mA max.) Damp -
2 Not used Damp +
3 Video signal 1Vpp 1kOhm Drive +
4 Ground Drive -

16 en | Connections Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
3.4 Back focus adjustment
To optimize picture sharpness in both bright and low-level
lighting, adjust the back focus. Use the camera's unique Lens
Wizard. This ensures that the object of interest always remains
in focus, even when focusing at the maximum lens iris opening.
– When back focusing zoom lenses, ensure the object of
interest remains in focus throughout the entire zoom range
of the lens.
To adjust back focus:
1. Open the slide door panel at the side of the camera.
1. Unlock the back focus locking button.
2. Press and hold the center key for more than 1.5 seconds
until the Install menu appears.
3. Select Wizard and move cursor to the Set Back Focus
Now item.
4. Turn the back focus adjustment as required.
5. Lock the back focus locking button.
Bosch
Bosch

Digital Color Camera Connections | en 17
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
6. Press and hold the center key for more than 1 second until
all the menus disappear.
7. Close the side door panel.
Note:
To back focus a zoom lens, see the zoom lens installation guide.
Bosch

18 en | Connections Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
3.5 Mounting the camera
The camera can be mounted either from the top or from the
bottom (1/4" 20 UNC thread). The bottom mounting is isolated
from ground to prevent ground loops.
Figure 3.7 Mounting a camera
CAUTION!
Do not point the camera/lens into direct sunlight as this may
damage the sensors.

Digital Color Camera Configuration | en 19
Bosch Security Systems Installation and Operation manual AM18-Q0603 | v1.0 | 2011.04
4 Configuration
The camera normally provides an optimal picture without the
need for further adjustments. However, advanced set-up
options are available in a menu system for getting the best
results under special circumstances.
The camera implements the changes immediately so that before
and after settings are easily compared.
4.1 Menus
4.1.1 Top level menus
There are two upper level menus: a Main menu and an Install
menu. The menus have functions that can be selected directly
or submenus for more detailed set-up.
– To access the Main menu, press the menu/select button
(center) for less than 1 second. The Main menu appears on
the monitor. Select and set-up the picture enhancement
functions. If not satisfied with the changes, recall the
default values.
– The camera also has an Install menu in which the
installation settings can be set. To access the Install menu,
press the menu/select button (center) for longer than 1.5
seconds.

20 en | Configuration Digital Color Camera
AM18-Q0603 | v1.0 | 2011.04 Installation and Operation manual Bosch Security Systems
4.1.2 Menu navigation
Five keys, located behind the side door panel, are used for
navigating through menu system.
– Use the up or down keys to scroll through a menu.
– Use the left or right keys to move through options or to set
parameters.
– When in a menu, quickly double-press the menu/select key
to restore the selected item to its factory default.
– To close all menus at once hold down the menu/select key
until the menu display disappears or continually select the
Exit item.
Some menus automatically close after about two minutes; other
menus have to be closed manually.
Figure 4.1 Side panel door Figure 4.2 Menu/select key
Figure 4.3 Navigation
Up key
Menu/Select key (center)
Right key
Down key
Left key
Bosch
Bosch
