Bosch LI60LBC24 User manual

Extractor hood
LI60LBC24
en User manual and installation instructions
Register your product on My Siemens and discover exclusive ser-
vices and offers.
siemens-home.bsh-group.com/welcome
The future moving in.
Siemens Home Appliances

en Safety
2
Table of contents
INFORMATION FOR USE
1 Safety....................................................................2
2 Avoiding material damage...................................4
3 Environmental protection and saving en-
ergy .......................................................................5
4 Operating modes .................................................5
5 Familiarising yourself with your appliance ........6
6 Basic operation ....................................................6
7 Cleaning and servicing........................................6
8 Troubleshooting...................................................8
9 Disposal................................................................8
10 Customer Service.................................................8
11 INSTALLATION INSTRUCTIONS .........................9
11.4 Secure installation ...............................................9
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡For extracting cooking vapour.
¡In private households and in enclosed
spaces in a domestic environment.
¡Up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡With an external timer.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶Keep small parts away from children.
▶Do not let children play with small parts.

Safety en
3

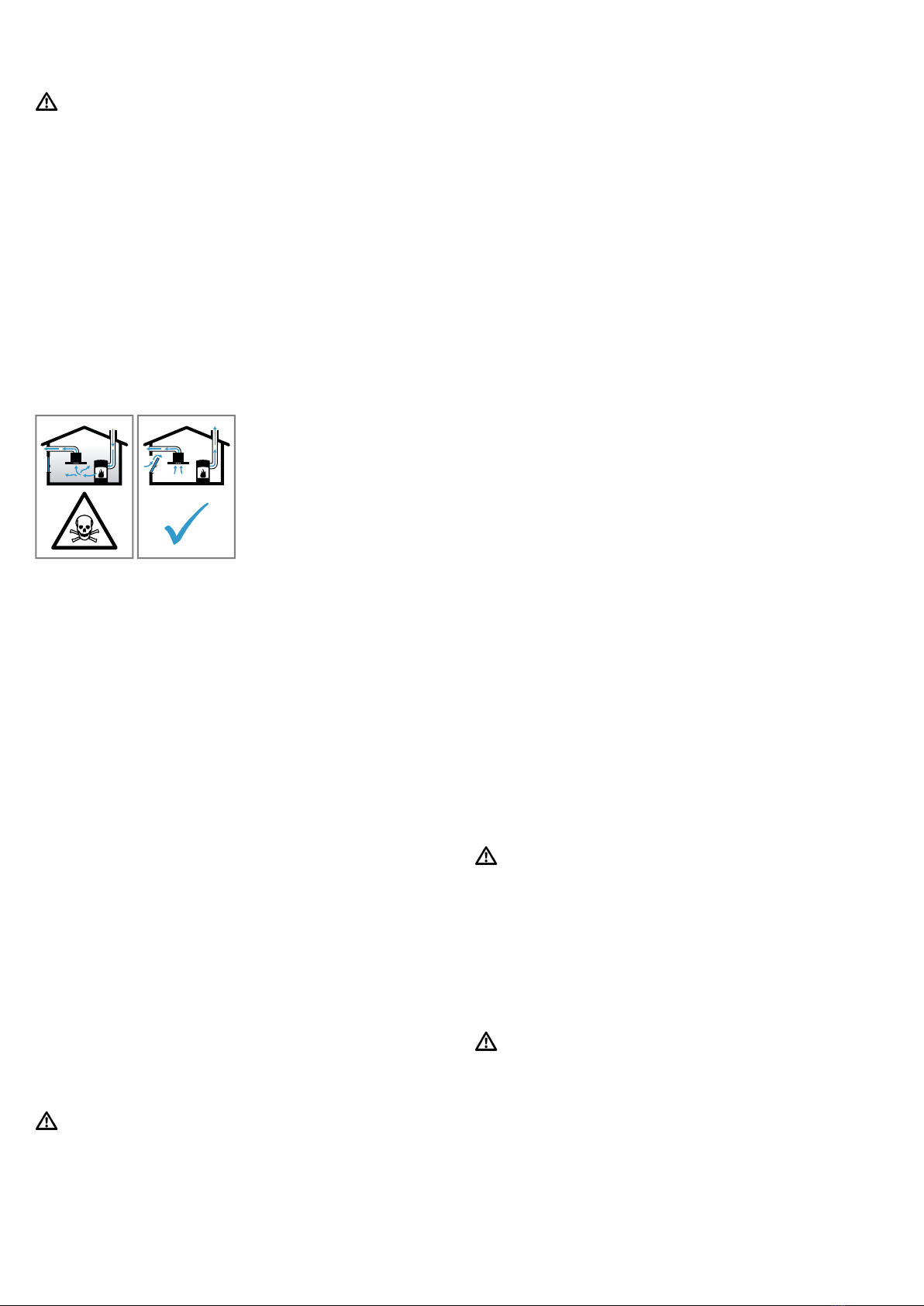

WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the flue or the extraction
shaft are sucked back into the living space.
▶Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
▶It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
drop more than 4Pa(0.04mbar) below at-
mospheric pressure. This can be achieved
whenever the air needed for combustion is
able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by
other technical means. An incoming/ex-
haust air wall box alone does not ensure
compliance with the limit.
▶In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Never operate the appliance without a
grease filter.
▶Clean the grease filters regularly.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a solid
fuel heating appliance (e.g. wood- or coal-
burning) unless the heating appliance has
a sealed, non-removable cover. There must
be no flying sparks.
Hot oil or grease ignites very quickly.
▶Always supervise hot oil and fat.
▶Never extinguish burning oil or fat with wa-
ter. Switch off the cooking zone. Extinguish
flames carefully using a lid, fire blanket or
something similar.
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. A ventilation appliance in-
stalled above the cooker may become dam-
aged or catch fire.
▶Only operate the gas burners with cook-
ware on them.
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
▶Only operate the gas hobs with cookware
on them.
▶Activate the ventilation system.
▶Never operate two gas hobs simultan-
eously on the highest flame for longer than
15 minutes. Two gas hobs correspond to
one large burner.
▶Never operate large burners of more than
5kW with the highest flame for longer
than 15minutes, e.g. a wok.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
▶Never touch these hot parts.
▶Keep children at a safe distance.
The appliance becomes hot during operation.
▶Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Carefully clean the appliance interior.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.

en Avoiding material damage
4
The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1).
▶Do not look directly into the switched-on
LED lights for longer than 100seconds.
WARNING‒Risk of electric shock!
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page8
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by the manufac-
turer, the manufacturer's Customer Service
or a similarly qualified person in order to
prevent any risk.
An ingress of moisture can cause an electric
shock.
▶Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
▶Do not use steam- or high-pressure clean-
ers to clean the appliance.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
▶Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning
agents in conjunction with aluminium parts,
e.g. grease filter on extractor hoods.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
▶Clean the grease filters regularly.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶If the appliance is defective, call Customer
Service.
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric
shock.
▶Do not use wet sponge cloths.
2 Avoiding material damage
ATTENTION!
Condensate may cause corrosion damage.
▶To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in
damage.
▶Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
▶Follow the cleaning instructions.
▶Do not use harsh or abrasive detergents.
▶Clean stainless steel surfaces in the direction of the
finish only.
▶Never clean controls with stainless steel cleaners.
If you put incorrect stress on the design elements, they
may break off.
▶Do not pull design elements.
▶Do not place objects on the design elements or
hang objects from them.

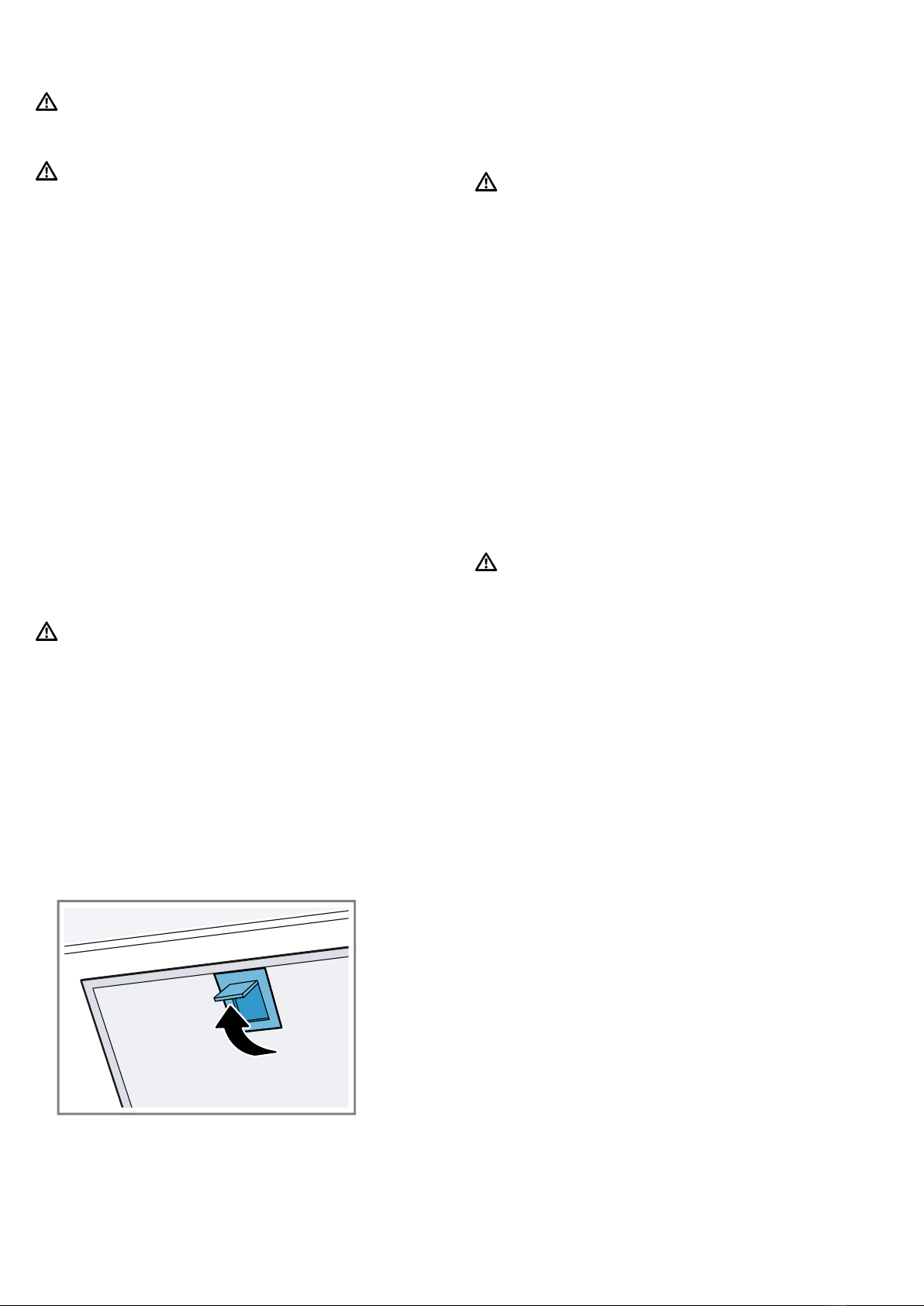

There is a risk of surface damage if you do not peel off
the protective film.
▶Remove the protective film from all parts of the ap-
pliance before using for the first time.
Painted surfaces are easily damaged.
▶Follow the cleaning instructions.
→"Cleaning the appliance", Page6
▶Ensure that the painted surfaces are not scratched.

Environmental protection and saving energy en
5
3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compat-
ible and can be recycled.
▶Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Switch off the lighting if it is no longer required.
¡When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
¡The effectiveness of the filter is retained.
Put the cooking lid on.
¡The cooking vapours and condensation are re-
duced.
Only use the additional functions if required.
¡Switching off additional functions reduces power
consumption.
4 Operating modes
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease fil-
ters and conveyed to the exterior by a pipe system.
The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels (not applicable to appliances that
only discharge the air back into the
room).
¡If the exhaust air is to be conveyed
into a non-functioning smoke or ex-
haust gas flue, you must obtain the
consent of the heating engineer re-
sponsible.
¡If the exhaust air is conveyed
through the external wall, a tele-
scopic duct should be used.

en Familiarising yourself with your appliance
6
5 Familiarising yourself with your appliance
5.1 Controls
The controls are used to configure all functions of your
appliance and to obtain information about the operat-
ing status.
Activating or deactivating ventilation
Lighting
6 Basic operation
6.1 Switching on the appliance
1. Pull out the filter pull-out.
2. Press ⁠.
aThe indicator lamp lights up.
aThe damper closes automatically after 60minutes.
6.2 Switching off the appliance
▶Press ⁠.
6.3 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
▶Press ⁠.
6.4 Switching off the lighting
▶Press ⁠.
7 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
7.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
ATTENTION!
Unsuitable cleaning products may damage the sur-
faces of the appliance.
▶Do not use harsh or abrasive detergents.
▶Do not use cleaning products with a high alcohol
content.
▶Do not use hard scouring pads or cleaning
sponges.
▶Do not use any special cleaners for cleaning the ap-
pliance while it is hot.
▶Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
▶Wash sponge cloths thoroughly before use.
7.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are
not damaged by incorrect cleaning or unsuitable clean-
ing products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
▶Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commer-
cial or industrial cleaning agents in conjunction with
aluminium parts, e.g. grease filter on extractor
hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
▶Before cleaning, pull out the mains plug or switch
off the fuse in the fuse box.
▶Do not use steam- or high-pressure cleaners to
clean the appliance.

Cleaning and servicing en
7
WARNING‒Risk of burns!
The appliance will become hot during operation.
▶Allow the appliance to cool down before cleaning it.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
▶Carefully clean the appliance interior.
1. Observe the information regarding the cleaning
agents.
2. Clean as follows, depending on the surface:
‒Clean stainless steel surfaces in the direction of
the finish using a sponge cloth and hot soapy
water.
‒Clean painted surfaces using a damp sponge
cloth and hot soapy water.
‒Clean aluminium using a soft cloth and glass
cleaner.
‒Clean plastic using a soft cloth and glass
cleaner.
‒Clean glass using a soft cloth and glass cleaner.
3. Dry with a soft cloth.
4. Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft
cloth.
You can obtain stainless steel cleaning products
from the after-sales service or the online shop.
7.3 Cleaning controls
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
▶Do not use wet sponge cloths.
1. Observe the information regarding the cleaning
agents.
2. Clean using a damp sponge cloth and hot soapy
water.
3. Dry with a soft cloth.
7.4 Removing the grease filter
1. ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
Open the locks on the grease filters.
2. Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
7.5 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters roughly every2 months.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1. Observe the information regarding the cleaning
agents.
2. Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from after-sales service
or the online shop.
3. Use a brush to clean the grease filters.
4. Rinse the grease filters thoroughly.
5. Allow the grease filters to drain.
7.6 Cleaning grease filters in the
dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
▶Clean the grease filters roughly every2 months.
ATTENTION!
The grease filters may become damaged if they are
squeezed.
▶Do not squeeze the grease filters.
Note:When cleaning the grease filter in the dish-
washer, light discolouration may occur. This discoloura-
tion has no effect on the performance of the metal
grease filters.
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7
1. Observe the information regarding the cleaning
agents.
2. Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with
utensils.
Use special grease solvent for stubborn dirt. You
can obtain grease solvents from after-sales service
or the online shop.
3. Start the dishwasher.
Select a temperature of no more than 70°C.
4. Allow the grease filters to drain.
7.7 Fitting grease filters
ATTENTION!
Falling grease filters may damage the hob below.
▶Grip below the grease filter with one hand.
1. Fit the grease filters.
2. Fold the grease filters upwards and engage the
locks.
3. Make sure that the locks engage.

en Troubleshooting
8
8 Troubleshooting
You can rectify minor faults on your appliance yourself.
Read the troubleshooting information before contacting
after-sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶If the appliance is defective, call Customer Service.
WARNING‒Risk of electric shock!
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be carried out
by trained specialist staff.
▶Only use genuine spare parts when repairing the
appliance.
▶If the power cord of this appliance is damaged, it
must be replaced by the manufacturer, the manufac-
turer's Customer Service or a similarly qualified per-
son in order to prevent any risk.
8.1 Malfunctions
Fault Cause and troubleshooting
The appliance is not
working.
The mains plug of the power cord is not plugged in.
▶Connect the appliance to the power supply.
The circuit breaker is faulty.
▶Check the circuit breaker in the fuse box.
There has been a power cut.
▶Check whether the lighting in your kitchen or other appliances are working.
The lighting does not
work.
Different causes are possible.
▶Call the after-sales service.
→"Customer Service", Page8
General malfunctions
occur.
Malfunction
1. Switch off the fuse in the fuse box.
2. Switch the fuse back on after approx. 10 seconds.
3. If the malfunction occurs again, call after-sales service.
9 Disposal
9.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are
available from your specialist dealer or local author-
ity.
This appliance is labelled in accord-
ance with European Directive
2012/19/EU concerning used elec-
trical and electronic appliances
(waste electrical and electronic equip-
ment - WEEE).
The guideline determines the frame-
work for the return and recycling of
used appliances as applicable
throughout the EU.
10 Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note:Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information on the warranty period and terms
of warranty in your country is available from our after-
sales service, your retailer or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number
(FD) of your appliance.
The contact details for Customer Service can be found
in the enclosed Customer Service directory or on our
website.
This product contains light sources from energy effi-
ciency class F. These light sources are available as a
spare part and should only be replaced by trained spe-
cialist staff.

Installation instructions en
9
10.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
¡Inside the appliance (remove grease filters for ac-
cess).
¡On top of the appliance.
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
11 Installation instructions
Observe this information when installing the appliance.
11.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
11.2 Unit dimensions
You will find the dimensions of the appliance here
11.3 Safety clearances
Comply with the safety clearances for the appliance.
11.4 Secure installation
Follow these safety instructions when in-
stalling the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being
drawn back in. Room-air-dependent heat-pro-
ducing appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and dis-
charge the exhaust gases into the open
through an exhaust gas system (e.g. a chim-
ney). With the extractor hood switched on, air
is extracted from the kitchen and the adjacent
rooms. Without an adequate supply of air, the
air pressure falls below atmospheric pressure.
Toxic gases from the flue or the extraction
shaft are sucked back into the living space.
▶Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a

en Installation instructions
10
room-air-dependent heat-producing appli-
ance is being operated.
▶It is only possible to safely operate the ap-
pliance if the pressure in the room in which
the heating appliance is installed does not
drop more than 4Pa(0.04mbar) below at-
mospheric pressure. This can be achieved
whenever the air needed for combustion is
able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by
other technical means. An incoming/ex-
haust air wall box alone does not ensure
compliance with the limit.
▶In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures
to you.
▶Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulat-
ing-air mode.
Risk of poisoning from flue gases being
drawn back in.
▶If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being
drawn back in.
▶Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
▶Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
▶If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer re-
sponsible.
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶Keep packaging material away from chil-
dren.
▶Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
Grease deposits in the grease filter may catch
fire.
▶The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
▶Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must al-
ways be provided for. If gas hobs and elec-
tric hobs are operated together, the largest
specified clearance applies.
The grease deposits in the grease filter may
catch fire.
▶Never work with naked flames close to the
appliance (e.g. flambéing).
▶Do not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-remov-
able cover is present. There must be no fly-
ing sparks.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
▶Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
▶All fastening components must be fixed
firmly and securely in place.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
▶Do not make any changes to the electrical
or mechanical assembly.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appli-
ance may damage the connecting cable.
▶Do not kink or trap the connecting cable.
If the appliance or the power cord is dam-
aged, this is dangerous.
▶Never operate a damaged appliance.
▶Never pull on the power cord to unplug the
appliance. Always unplug the appliance at
the mains.
▶If the appliance or the power cord is dam-
aged, immediately unplug the power cord
or switch off the fuse in the fuse box.
▶Call customer services. →Page8

Installation instructions en
11
Incorrect repairs are dangerous.
▶Repairs to the appliance should only be
carried out by trained specialist staff.
▶Only use genuine spare parts when repair-
ing the appliance.
▶If the power cord of this appliance is dam-
aged, it must be replaced by the manufac-
turer, the manufacturer's Customer Service
or a similarly qualified person in order to
prevent any risk.
Incorrect installation is dangerous.
▶Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
▶Connect the appliance to a power supply
with alternating current only via a properly
installed socket with earthing.
▶The protective conductor system of the do-
mestic electrical installation must be prop-
erly installed.
▶Never equip the appliance with an external
switching device, e.g. a timer or remote
control.
▶When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
▶When installing the appliance, check that
the power cable is not trapped or dam-
aged.
11.5 General information
Follow these general instructions during the installation.
¡For the installation, observe the currently valid build-
ing regulations and the regulations of the local elec-
tricity and gas suppliers.
¡When discharging the exhaust air, the official and
legal regulations, such as the regional building
code., must be observed.
¡In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
¡The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
11.6 Information on the installation situation
¡Install this appliance in a kitchen cupboard.
¡To install additional special accessory parts, ob-
serve the enclosed installation instructions.
¡The width of the extractor hood must correspond at
least with the width of the hob.
¡To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
11.7 Instructions for the electrical
connection
In order to safely connect the appliance to the elec-
trical system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
▶The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
▶If this is not possible, an all-pole isolating switch
must be integrated into the permanent electrical in-
stallation according to the conditions of overvoltage
category III and according to the installation regula-
tions.
▶The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB)
in the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
▶Do not kink or trap the connecting cable.
¡The connection data can be found on the rating
plate. →Page9
¡The connecting cable is approx.1.30m long.
¡This appliance complies with the EC interference
suppression regulations.
¡The appliance corresponds to protection class 1.
You should therefore only use the appliance with a
protective earth connection.
¡Do not connect the appliance to the power supply
during installation.
¡Ensure that the protection against contact is guaran-
teed during installation.
11.8 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
¡Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
¡Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
¡Use an exhaust pipe that is made of non-combust-
ible material.
¡To prevent condensate from returning, fit the ex-
haust pipe with a 1° gradient from the appliance.
Round pipes
Use round pipes with an inner diameter of 150mm (re-
commended) or at least 120mm.
11.9 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
Notes
¡If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
¡If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.

en Installation instructions
12
11.10 Installation
Checking the unit
1. Check whether the fitted unit is level and has suffi-
cient load-bearing capacity.
The max. weight of the appliance is 6kg.
Note:Note the furniture manufacturer's specifica-
tions with regard to the load-bearing capacity of the
fitted unit.
2. Ensure that the fitted unit is heat-resistant up to
90°C.
3. Ensure that the fitted unit is still stable after the cut-
outs have been made.
Preparing the units
Requirement:The unit is suitable for the installation.
→"Checking the unit", Page12
1. Cover the hob to prevent damage.
2. Ensure that the fitted unit is still stable after the cut-
outs have been made.
3. Make the cut-out for the exhaust pipe.
4. When installing in cabinets with an intermediate
floor, make the cut-out in the intermediate floor.
5. Remove any shavings.
Preparing the appliance
▶Remove the grease filters.
To avoid causing damage, do not bend the grease
filters.
Installing the appliance
1. When installing without an intermediate floor, meas-
ure and mark the holes for the mounting brackets
on the side walls.
102
83
2. When installing with an intermediate floor, slightly
screw the mounting brackets onto the appliance. In-
sert the appliance into the opening in the intermedi-
ate floor. Mark the holes for the mounting brackets
on the side walls. Unscrew the mounting brackets
from the appliance again.
3. Screw the mounting brackets to the unit. In doing
so, only tighten the screws tight enough that the
mounting bracket can still be moved.
4. Screw the appliance onto the mounting brackets.
5. Align the appliance and the mounting brackets in
the cabinet and tighten all of the screws.
6. Secure the exhaust pipe to the air pipe connector.
7. Connect the exhaust pipe to the exhaust air opening
on the external air extraction system.
8. Seal the joints.
9. Insert the mains plug into the protective contact
socket.
10. Fit the grease filters.
To avoid causing damage, do not bend the grease
filters.
Changing the filter pull-out's limit stop
1. Pull out the filter pull-out fully.
2. Undo the screw for the front end stop and pull it for-
wards as far as possible.
3. Close the filter pull-out and align it to the furniture.
4. Pull out the filter pull-out again.
5. Retighten the screw for the front end stop.

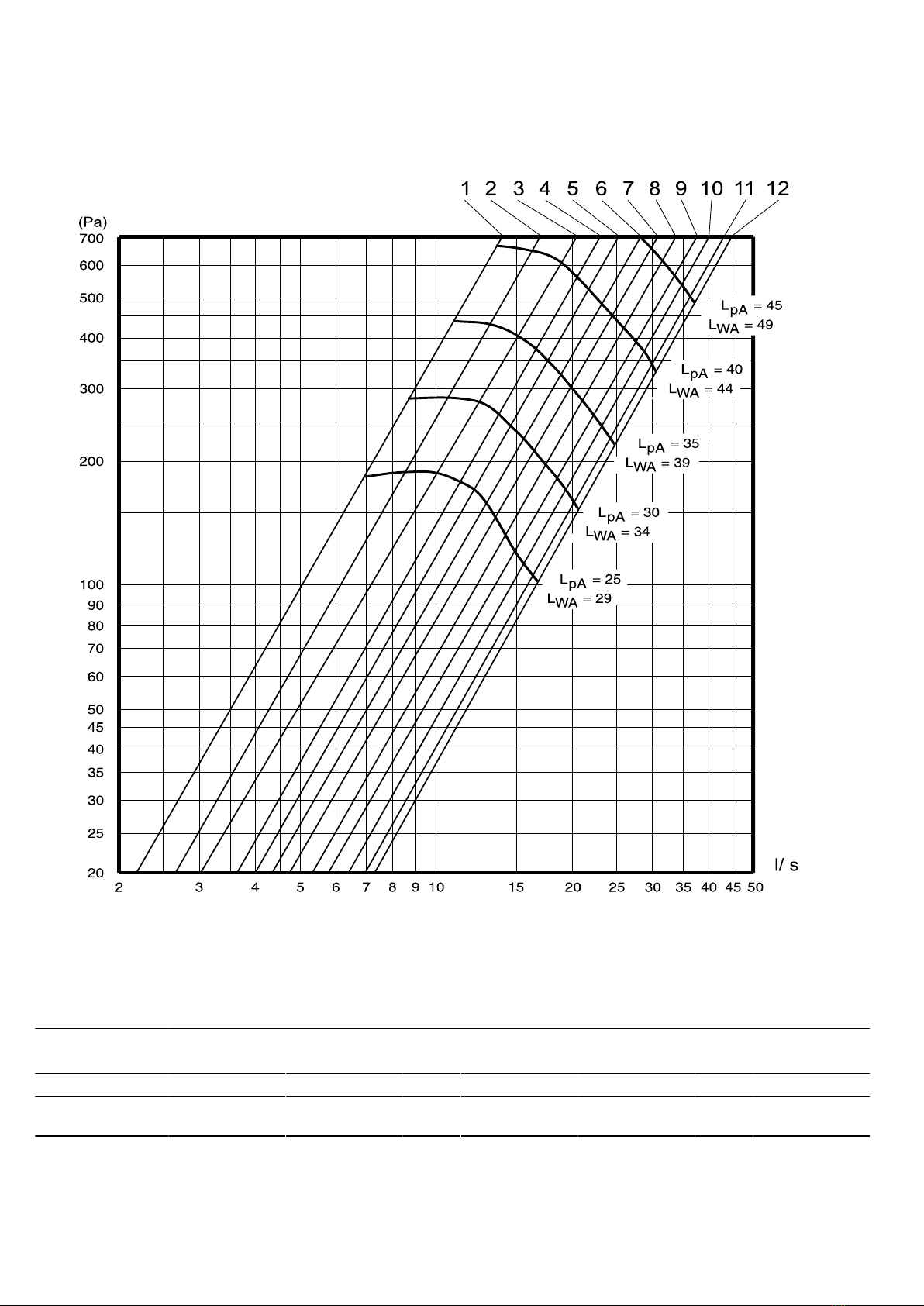

Setting the air flow
Requirement:The grease filters have been removed.
→"Removing the grease filter", Page7

Installation instructions en
13
1. Open the backflow flap ⁠ and remove the reducing
disc ⁠.
2. To adjust the reducing disc, cut out the appropriate
number of rings.
3. Insert the reducing disc and close the backflow flap.
Ensure that the guide groove is in the correct posi-
tion when refitting the reducing disc.
Measuring the airflow
▶In order to measure the pressure drop, attach the
hose to the measurement opening ⁠ on the front
edge of the air pipe connector.
Removing the appliance
1. Disconnect the appliance from the power supply.
2. Loosen the exhaust pipe.
3. Remove the grease filters.
To avoid causing damage, do not bend the grease
filters.
4. Loosen the screw connection with the fitted unit.
5. Remove the appliance.

en Installation instructions
14
11.11 Air flow diagrams
You can find the air flow diagrams below.
Forced ventilation – adjustment diagram
Static pressure drop
pA
L = The A-measured sound pressure level at 10 m² sabin
L = The A-measured sound pressure level relative to 1 pW
WA
Cut-away rings
Existing opening of the reducing disc Without reducing disc
Air flow
K-factor q=k*√Δp

Installation instructions en
15
Basic ventilation – adjustment diagram
Static pressure drop
pA
L = The A-measured sound pressure level at 10 m² sabin
L = The A-measured sound pressure level relative to 1 pW
WA
Setting
Air flow
Measuring range 10–20l/s
Average values
K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12
K-factor
q=k*√Δp
0.46 0.57 0.70 0.80 0.92 1.04 1.13 1.20 1.36 1.46 1.60 1.71

*9001578323*
9001578323 (021117)
en
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
siemens-home.bsh-group.com
Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG
